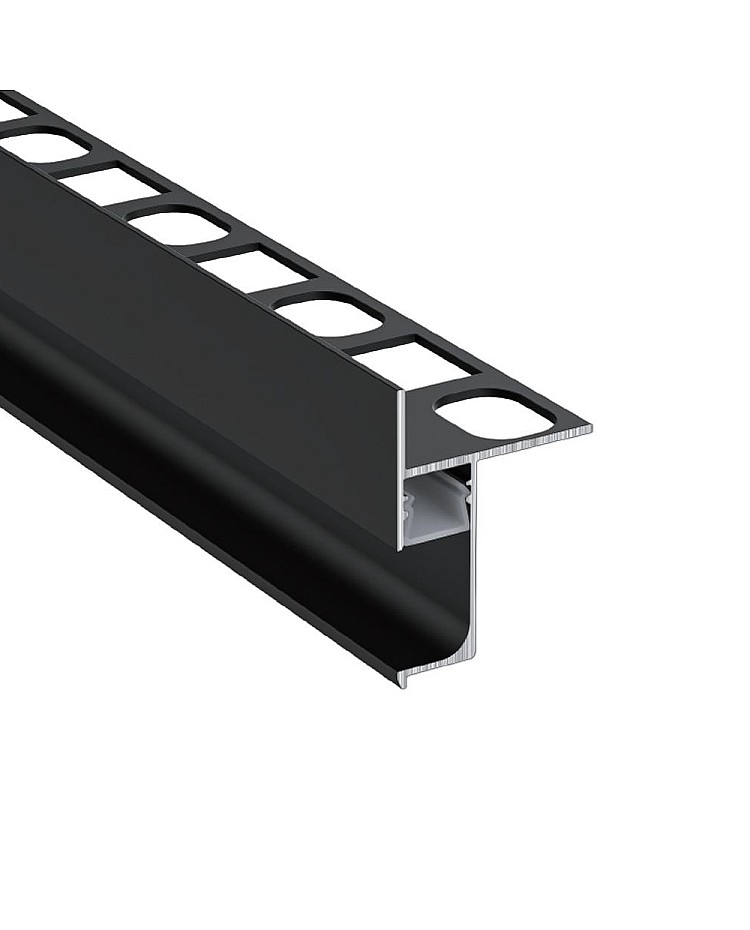

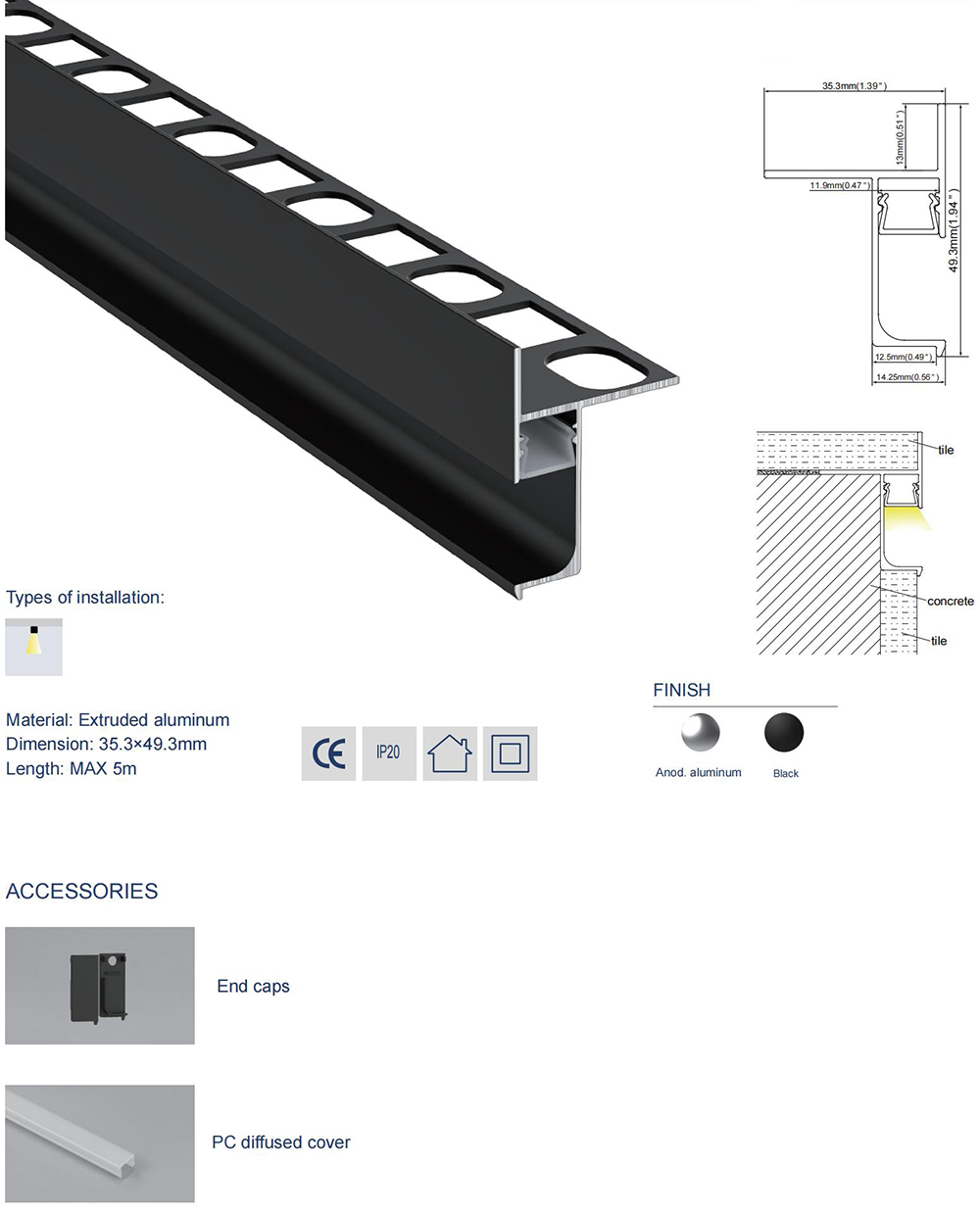

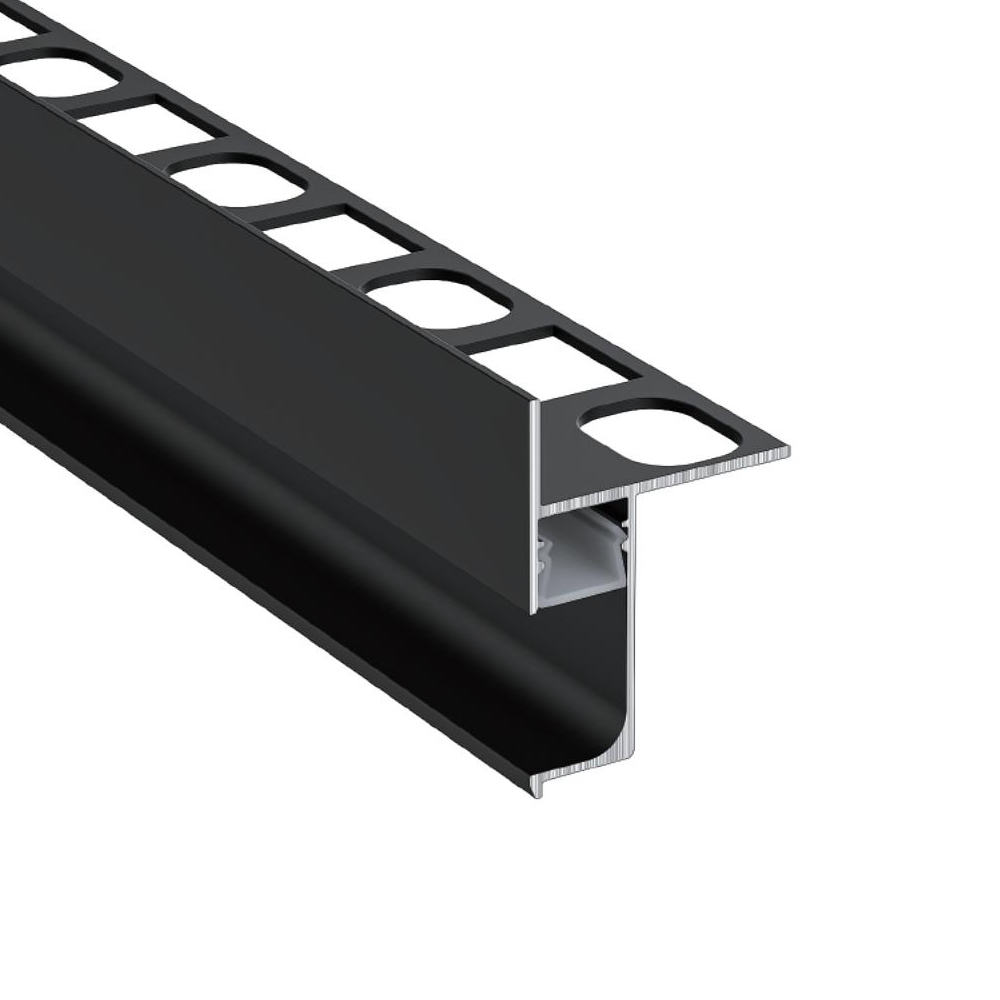

The tile-in LED channels are designed for integration into the edge of tiles for stair lighting. They can be flush-mounted with 13mm tiles and provide downward indirect lighting on the steps to create a cozy illumination and enhance safety. It features a tile-over flange design for a clean, modern look, making it ideal for stair installations. They are made from 6063-T5 extruded aluminum material and have a black anodized surface treatment for anti-oxidation resistance and for a longer lifespan. The standard lengths are 1 m and 2 m, and can be cut to any length you need. Custom length is supported. The inner width is 11.9 mm and allows the maximum width of strip lights to be 11mm. Recommend adding our high-density 10mm COB strip lights as the light source without visible light dots and dark areas. The aluminum channels can serve as heat sinks for better heat dissipation. Only one type of diffusers available: the PC diffused covers. They are made of brand material, anti-yellowing, will provide uniform, soft light distribution. The end caps with and without wire holes are included.
Features:
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Color: Black

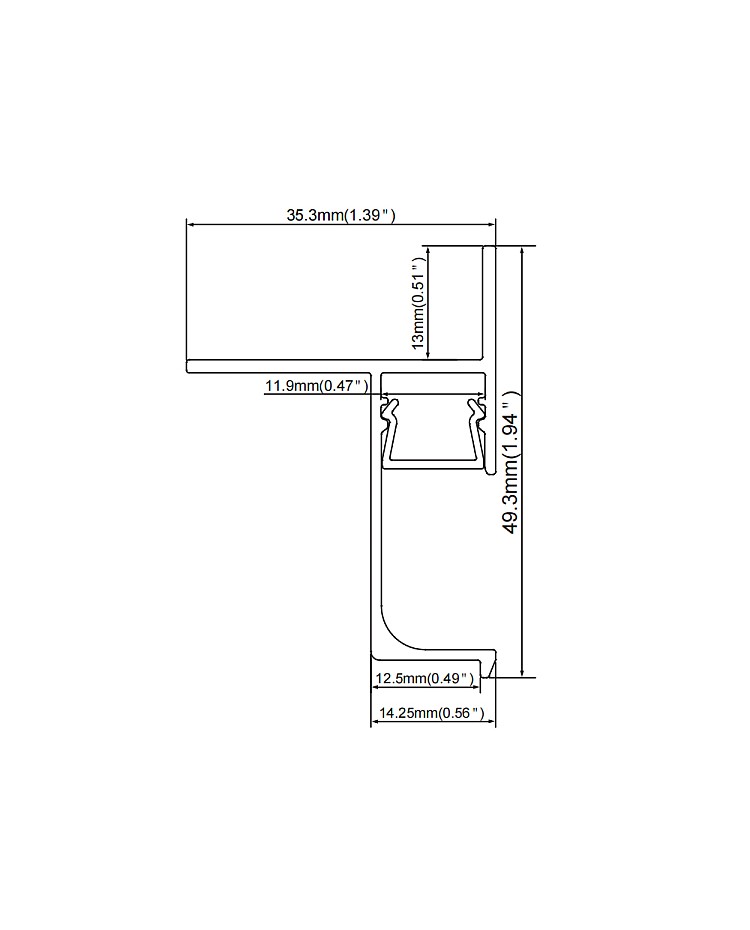

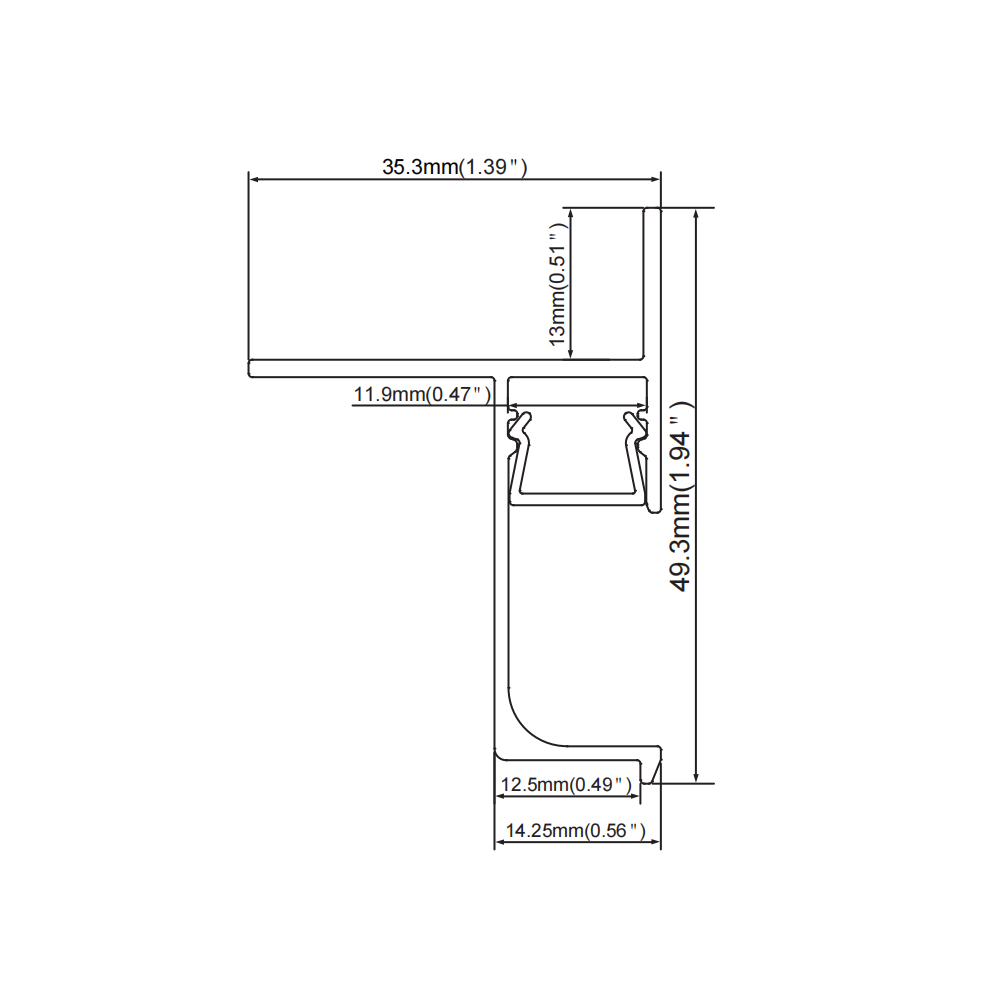

- Size ( W x H ): 35.3 mm x 49.3 mm / 1.39" x 1.94"
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 11.9 mm ( 0.47" )
- Maximum width of light strips: 11 mm / 0.43"
- Maximum power: 15W/m
- Diffusers: PC diffused cover
- End caps with and without wire holes are included

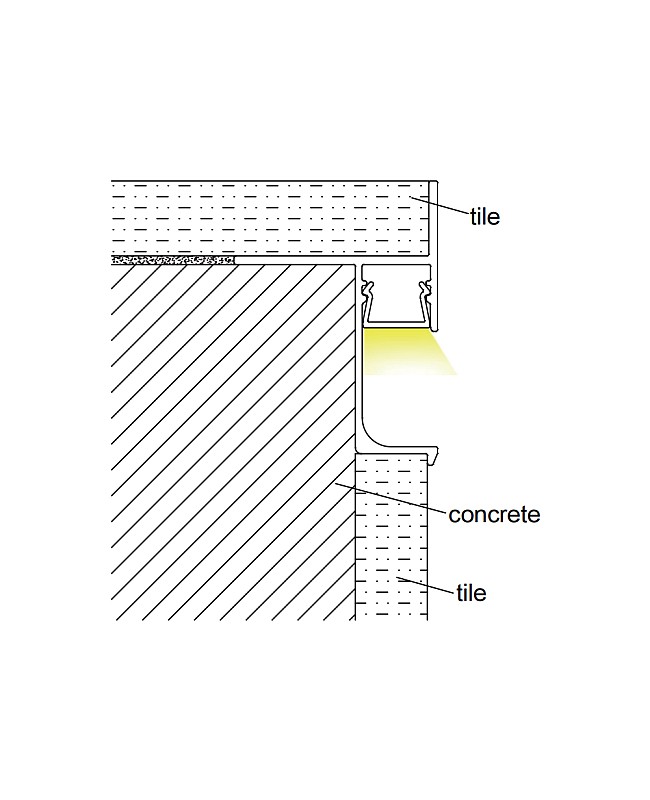

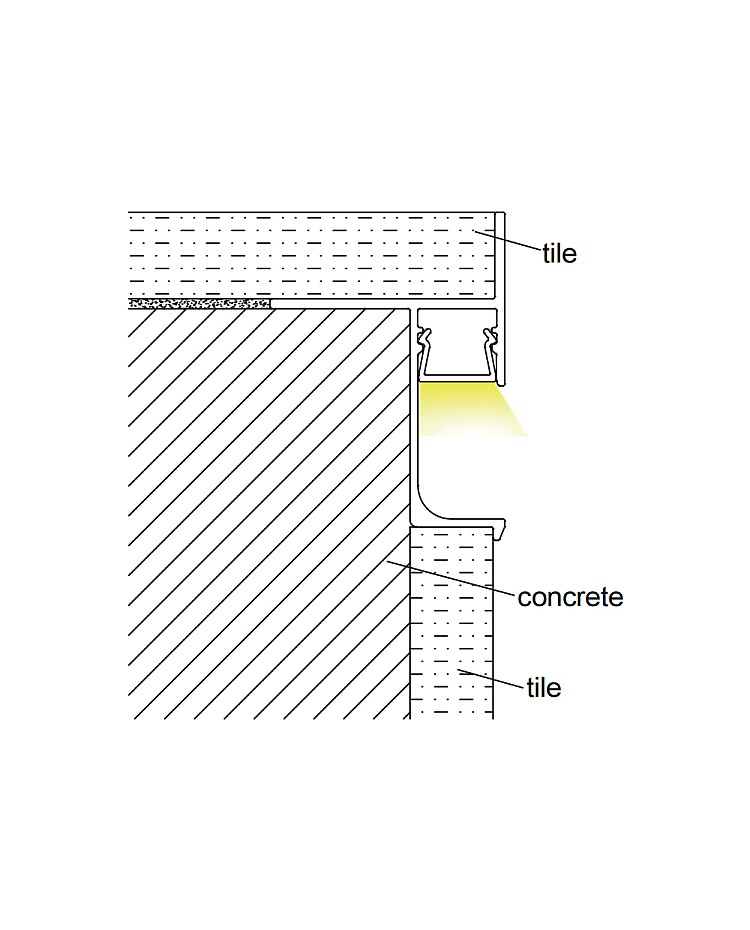

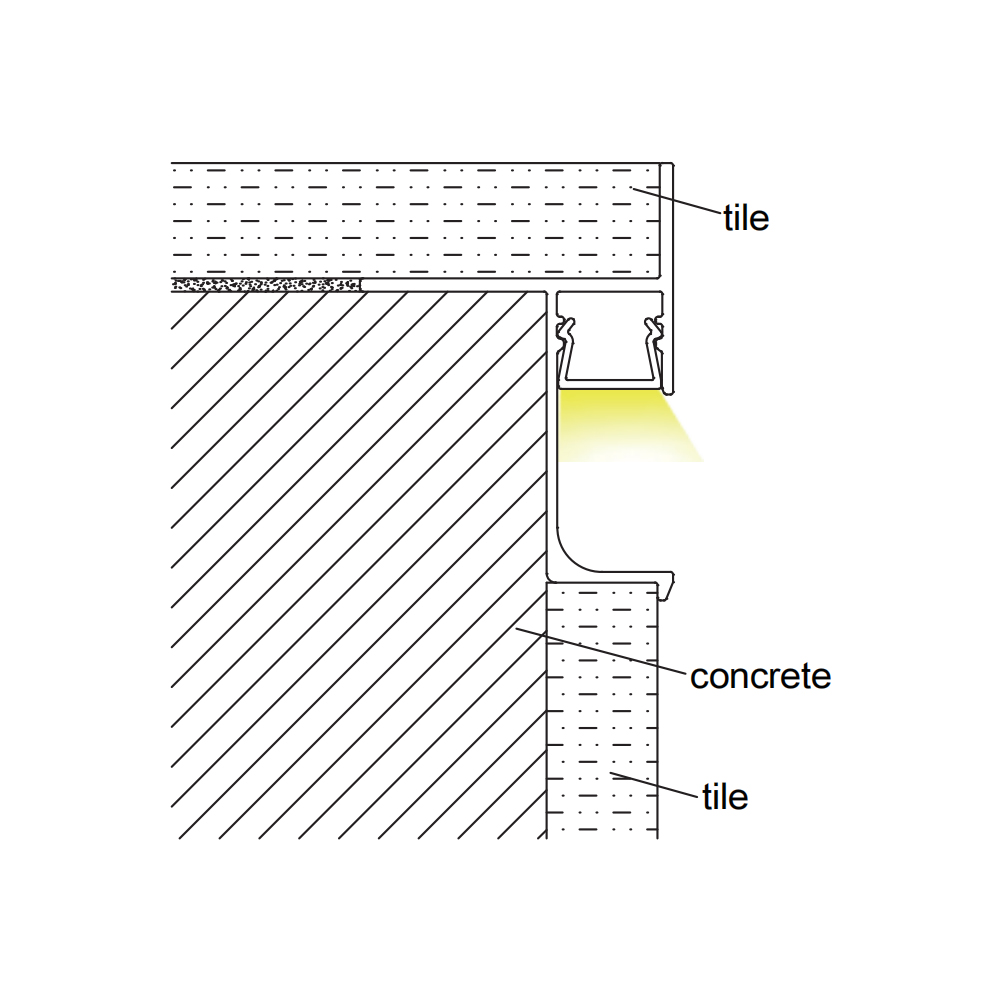

- Installation method: Recessed in 13mm tiles
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Tile-in recessed lighting for steps and walls
- Edge illumination for tile or concrete transitions
- Floor path lighting in hotels, theaters, and galleries
- Safety and decorative lighting for stair edges
Includes:
1 x Tile-in black LED channel
1 x PC diffused cover
End caps ( With and without wire holes)
