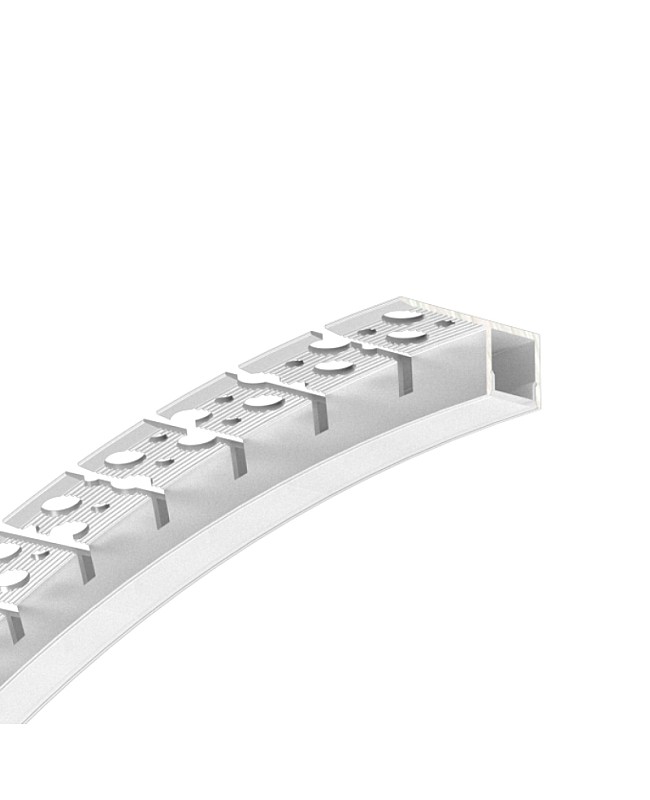

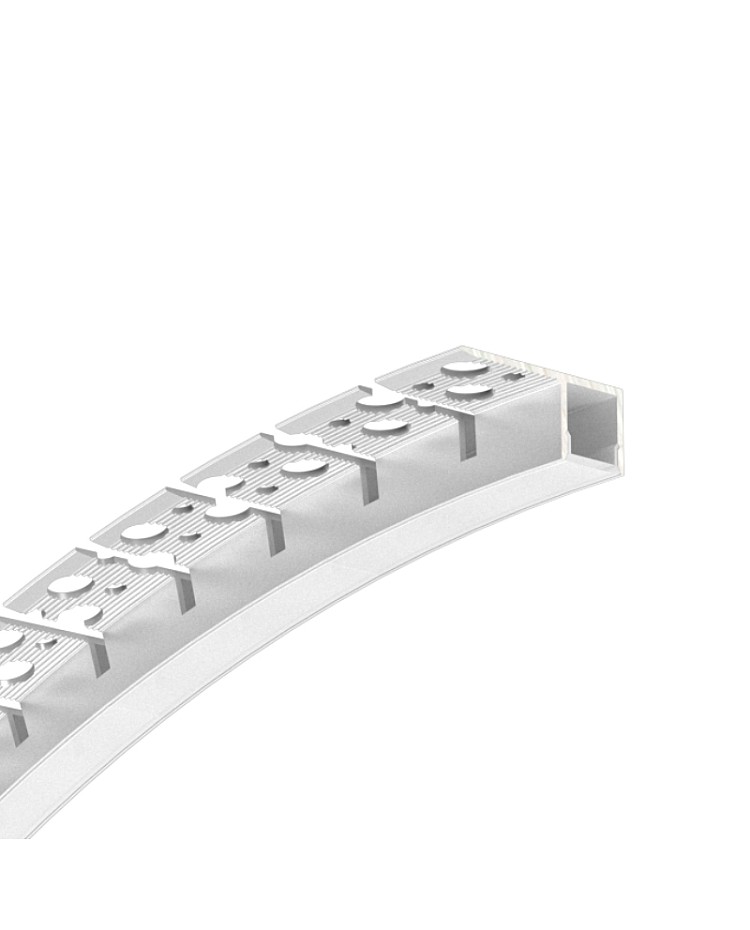

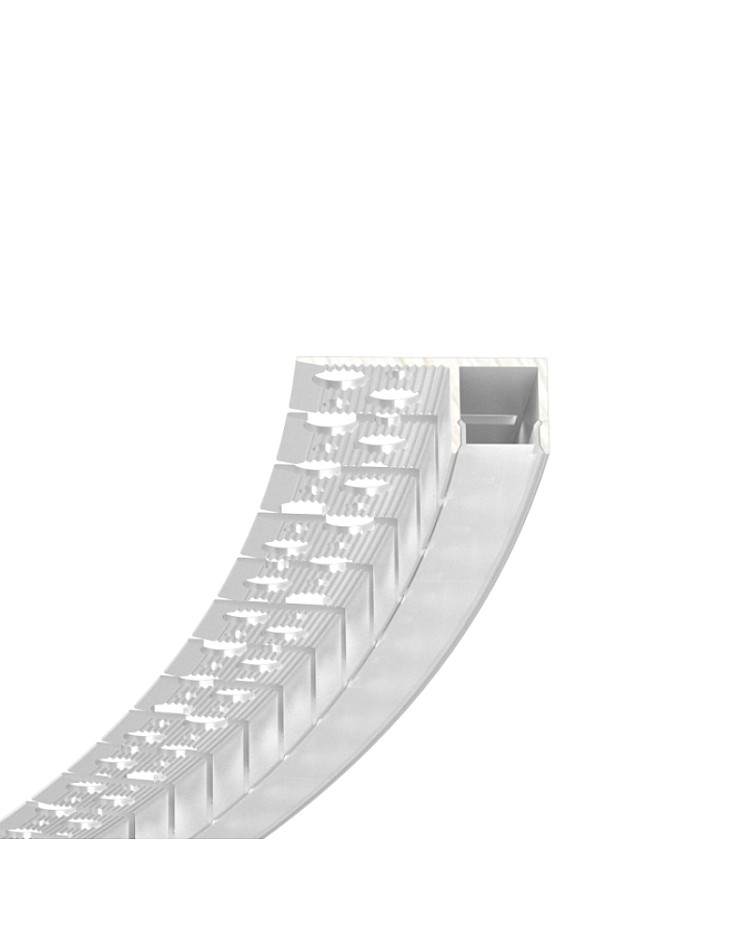

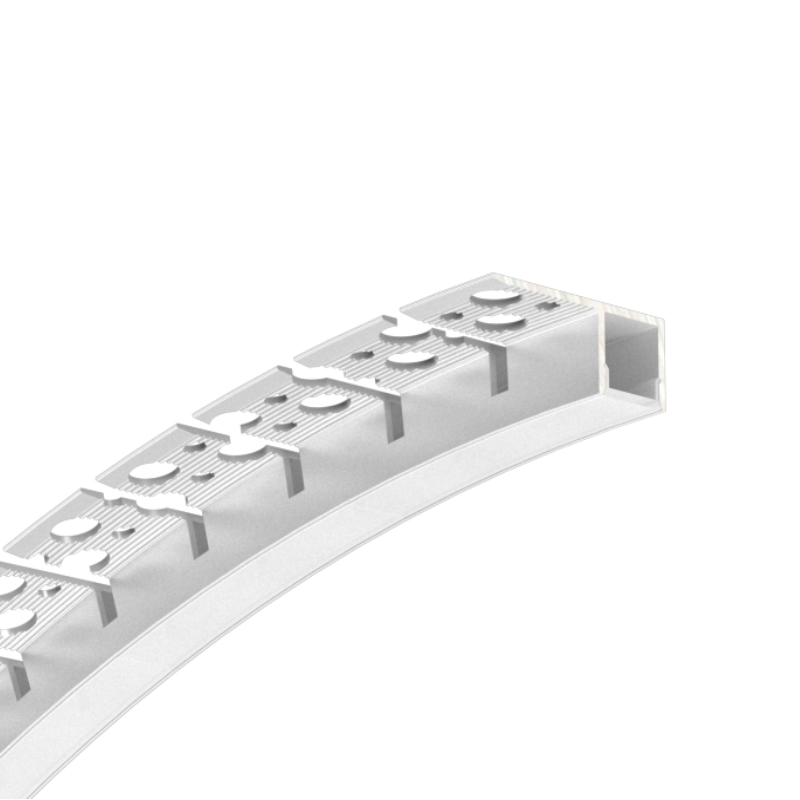

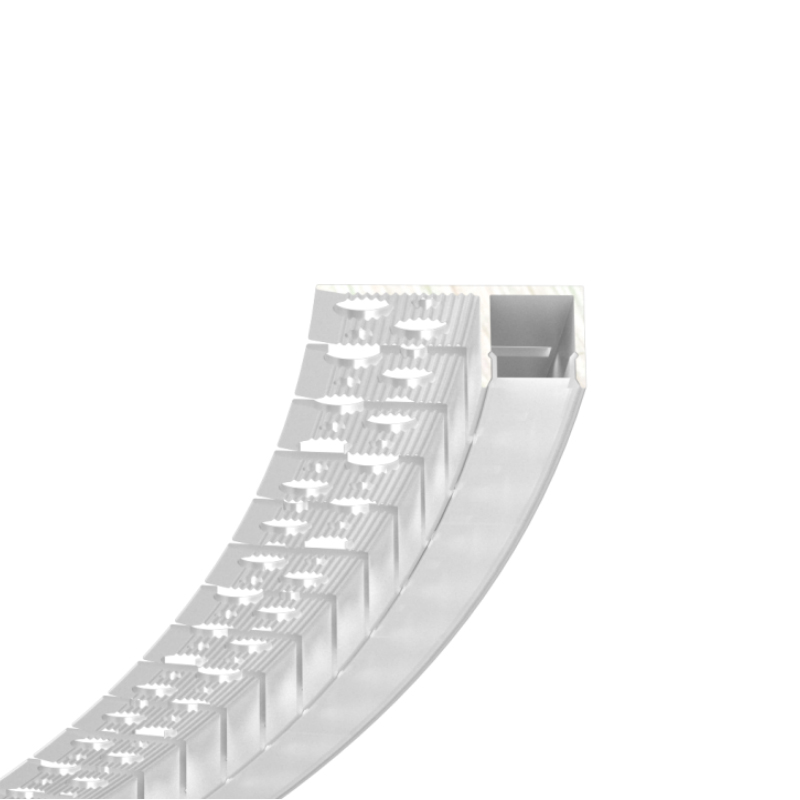

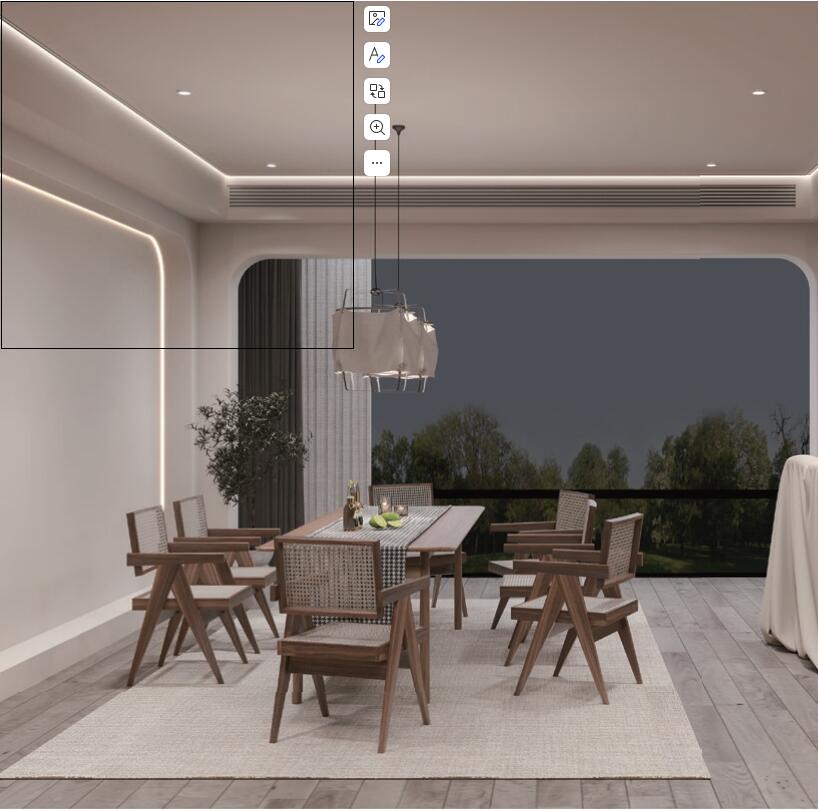

The Border Flexible LED Light Channels, which have a single flange design, can be flush mounted and plastered in with 12mm/0.47" marble boards, wooden panels, decorative panels, etc. There are side-bending and up-down bending products available, and you can use them to design and make decorative and curved line lighting in residential and business places. It can be seamlessly blended into the plasterboard walls or ceilings. They are made of 6063-T5 extruded aluminum material and feature a silver anodized surface treatment, providing anti-oxidation resistance and a longer lifespan. The stock lengths are 1 m and 2 m, and they can be cut to any size to meet your needs. The inner width is 10.3mm, allowing the maximum width of Strip Lights to be 10mm (UP-Down Bending) or 6mm (Side Bending). Recommend using high-density COB Tape Lights as the light source to create a continuous, smooth line of lighting, with no light spots or dark areas. Only semi-clear silicone diffusers are available; they are made of high-quality silicone material, anti-yellowing, and with perfect light distribution. The Wings of the drywall plaster-in LED profiles with small round holes, which allow for screwing to the wooden or plasterboard panels. This will make the installation on the ceilings or walls easier.
Specifications:
- Type: Border Trimless Plaster-in LED Channels

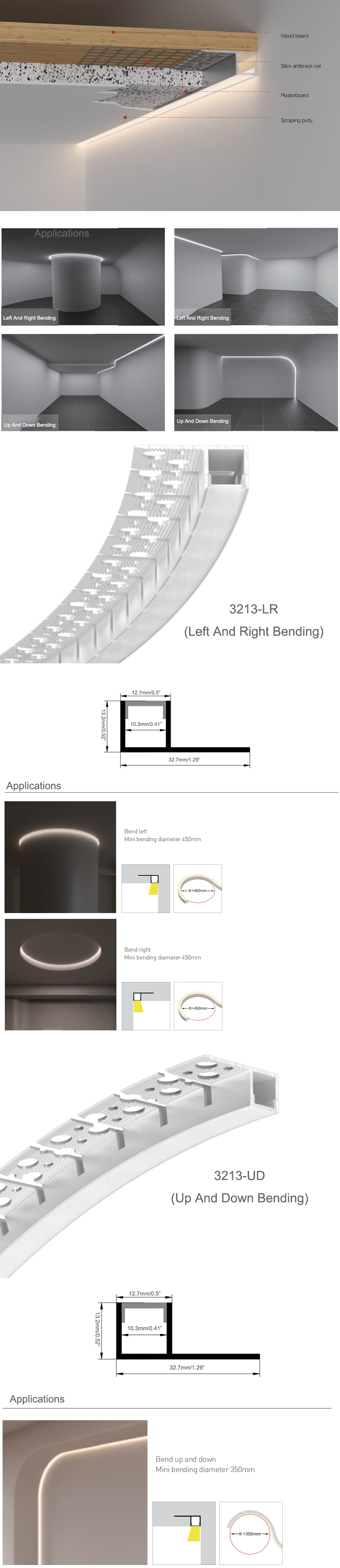

- Models: 3213-LR(Left And Right Bending) / 3213-UD(Up And Down Bending)
- Material: 6063-T5 Extruded Aluminum
- Surface Treatment: Anodized

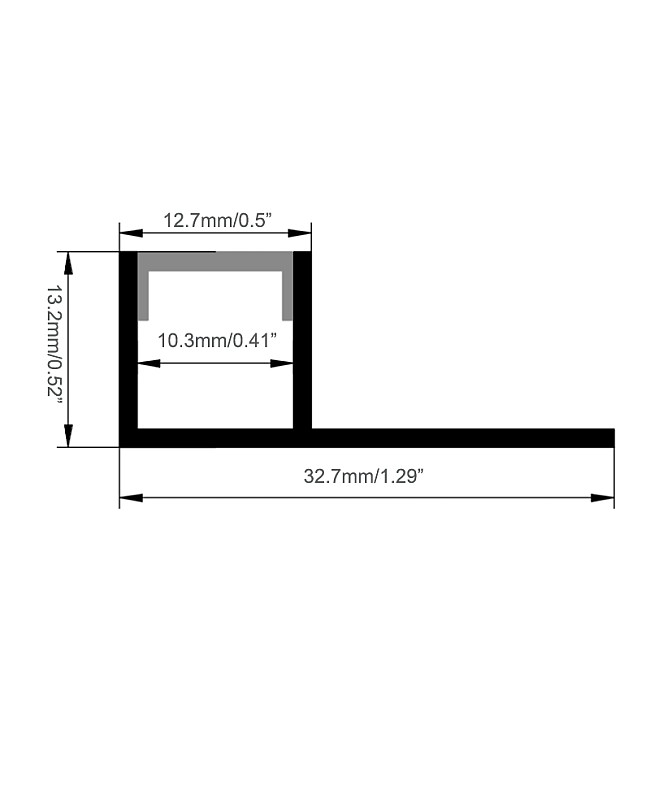

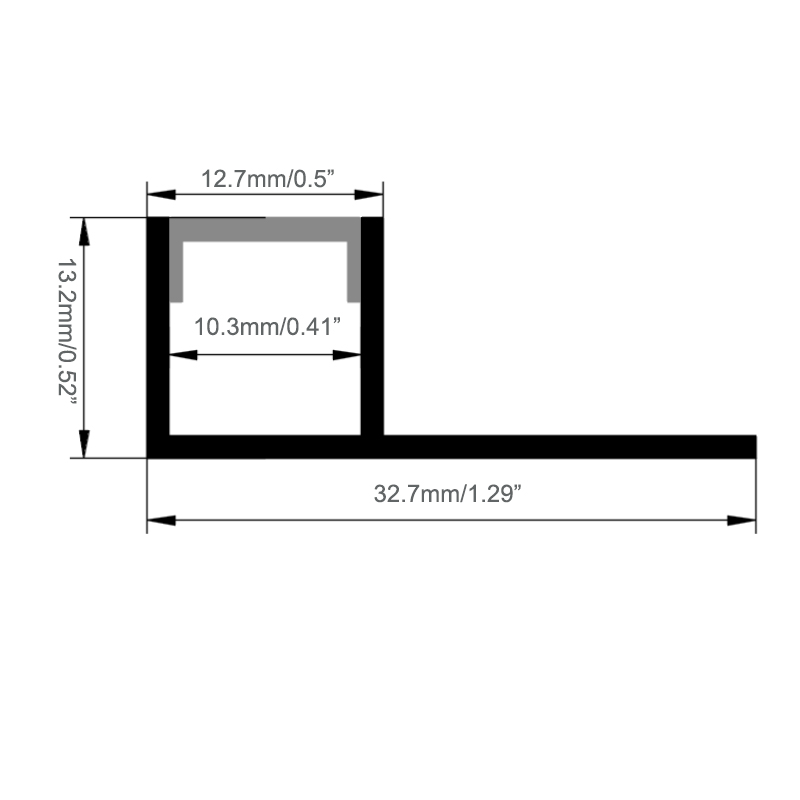

- Size(W*H): 32.7mm(1.29")*13.2mm(0.52")
- Colors: Silver(Aluminum Profiles) / Milky (Silicone Diffuser)
- Aluminum Channel's Length Available: 1M, 2M, 3M
- Silicone Diffuser's Max Length: 50M/100M Per Roll
- Custom Length: YES
- Inner Width: 10.3mm
- Max Width Of Strip Lights: 5/6mm Regular LED Strips On The Side Or 10mm Zig Zag LED Strips On The Bottom(3213-LR); 8mm/10mm Regular SMD Or COB LED Strips(3213-UD)
- Diffusers: Semi-clear Silicone Diffuser
- Mini Bending Diameter: 450mm(Side Bending) / 350mm(Up And Down Bending)
- IP Rating: IP20 Non-waterproof
- Installation: Plaster-in

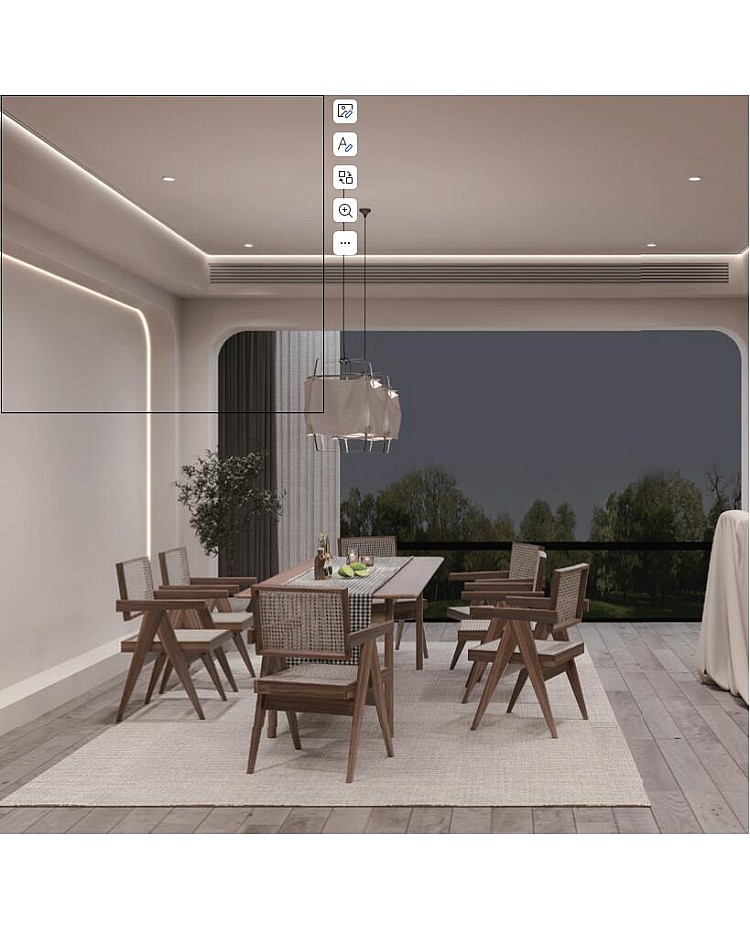

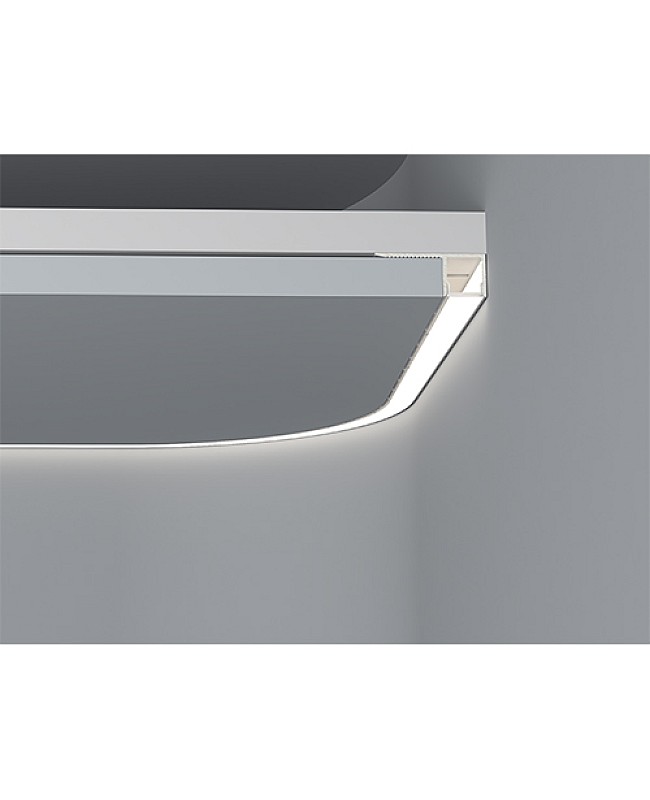

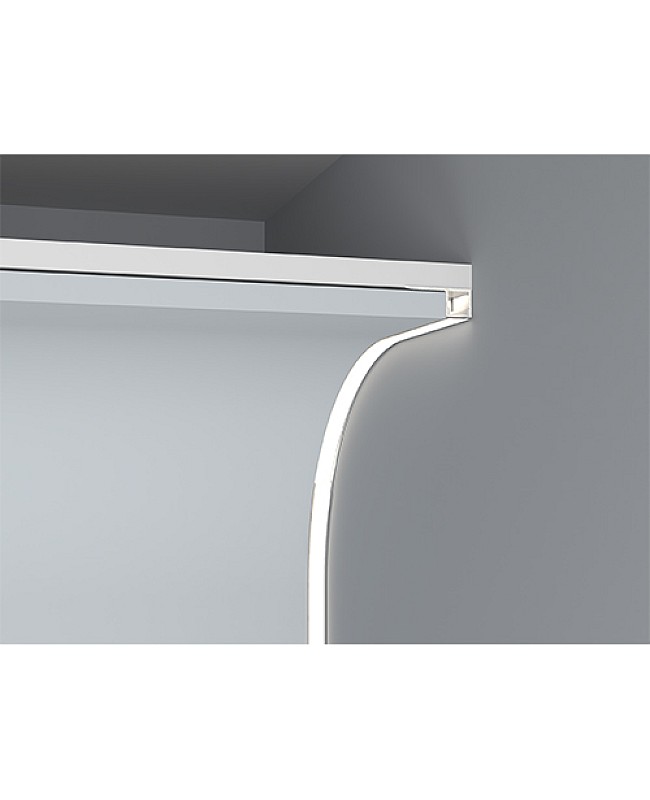

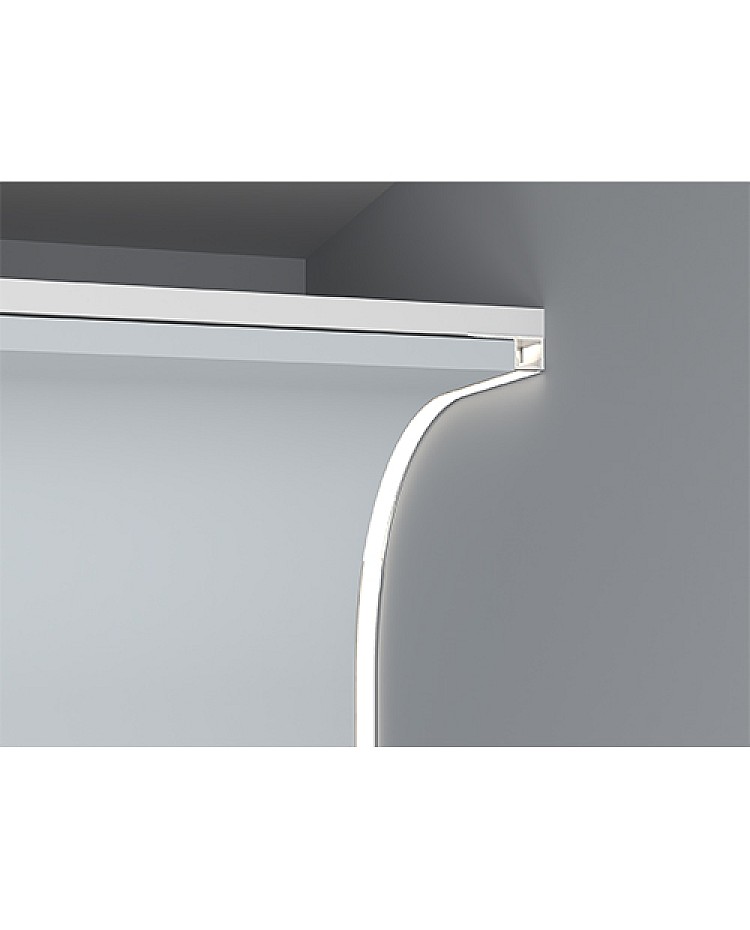

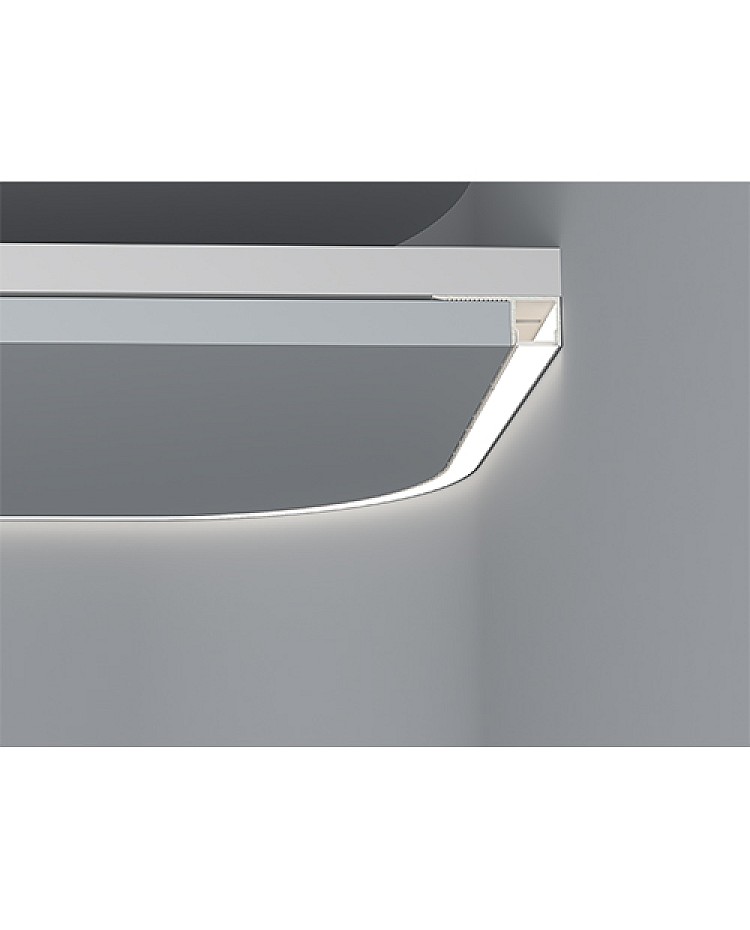

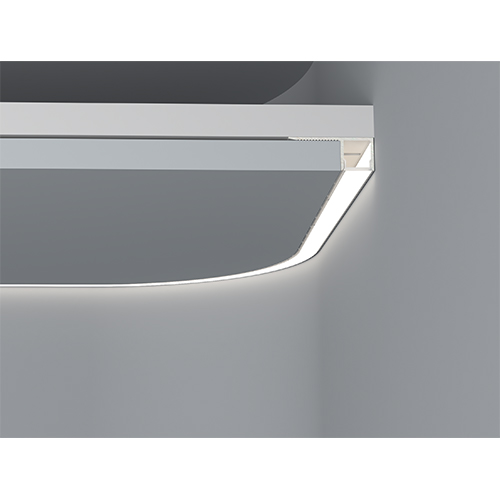

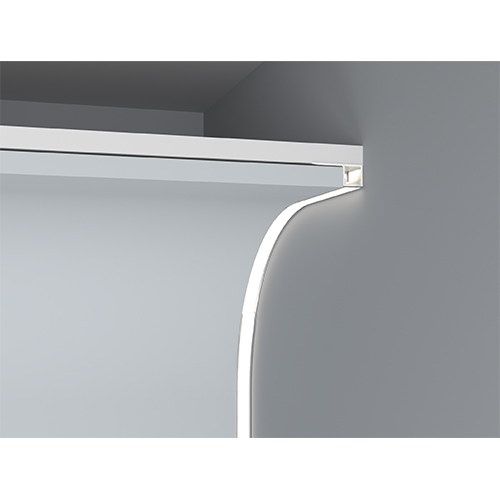

- Applications: Border Decorative Lighting On False Ceilings, Plasterboard Walls, etc
- Certifications: CE, ROHS
- 5 Years Warranty
Includes:
1 * Border Flexible LED Light Channel
1 * LED Silicone Diffuser
1 * End Caps
