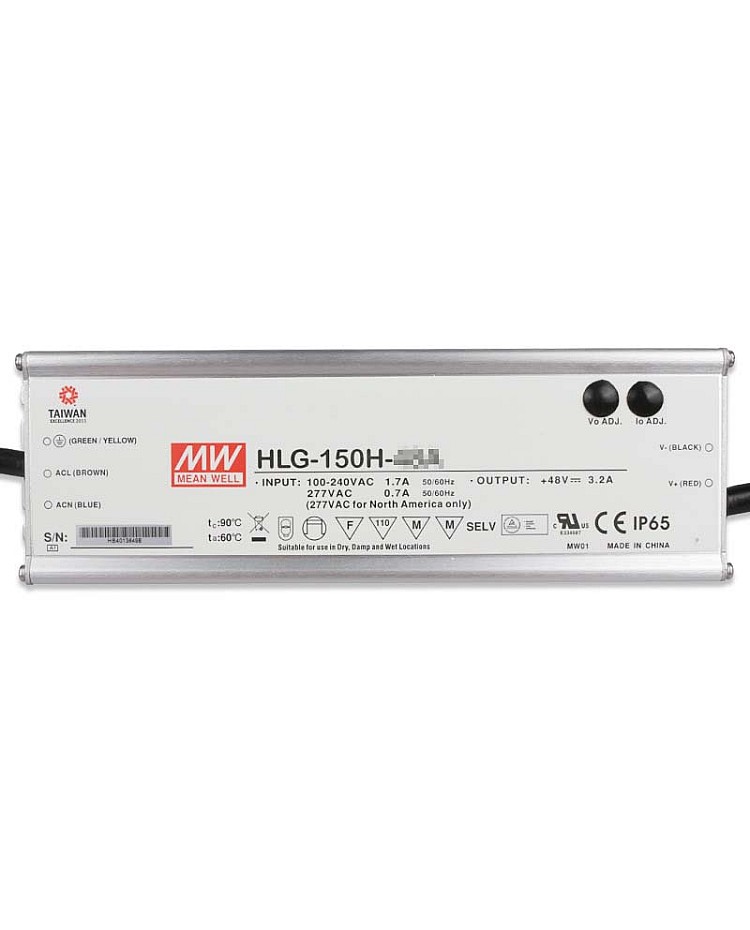

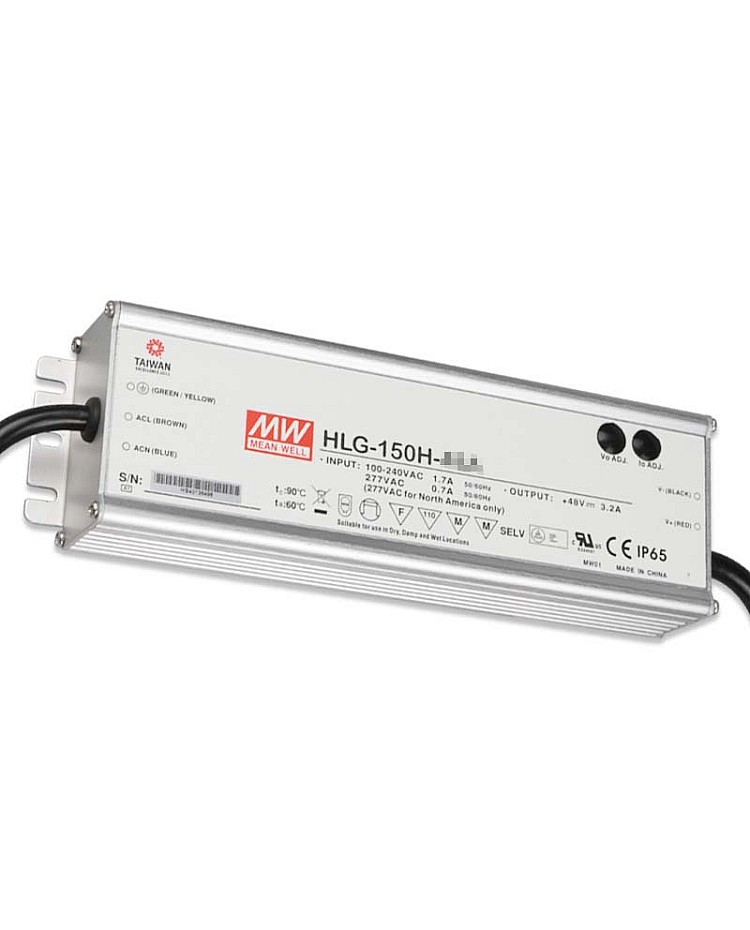

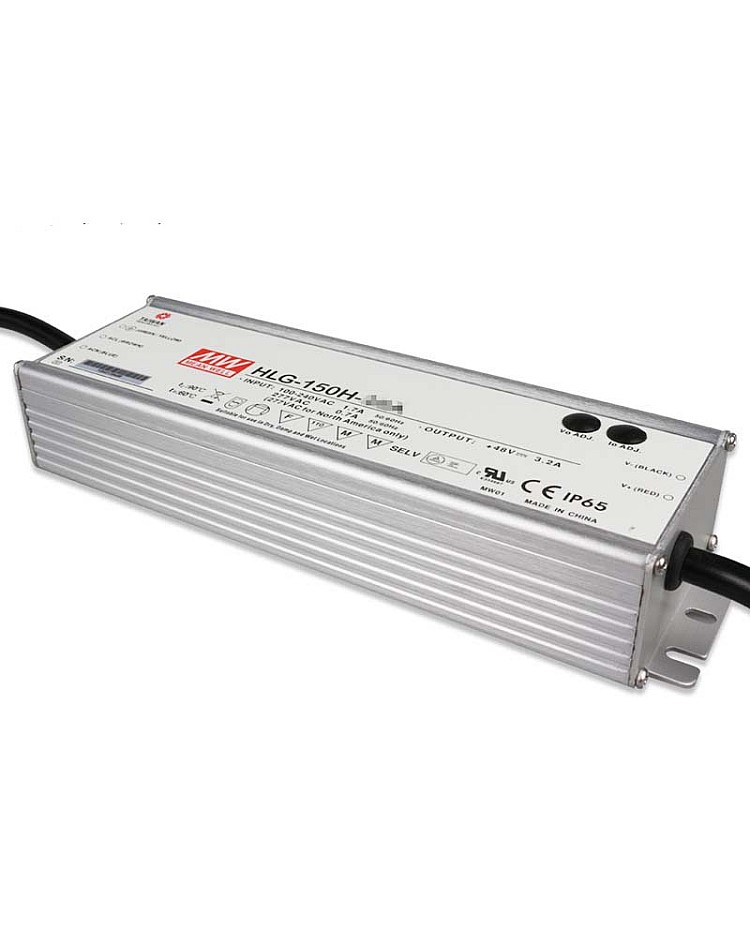

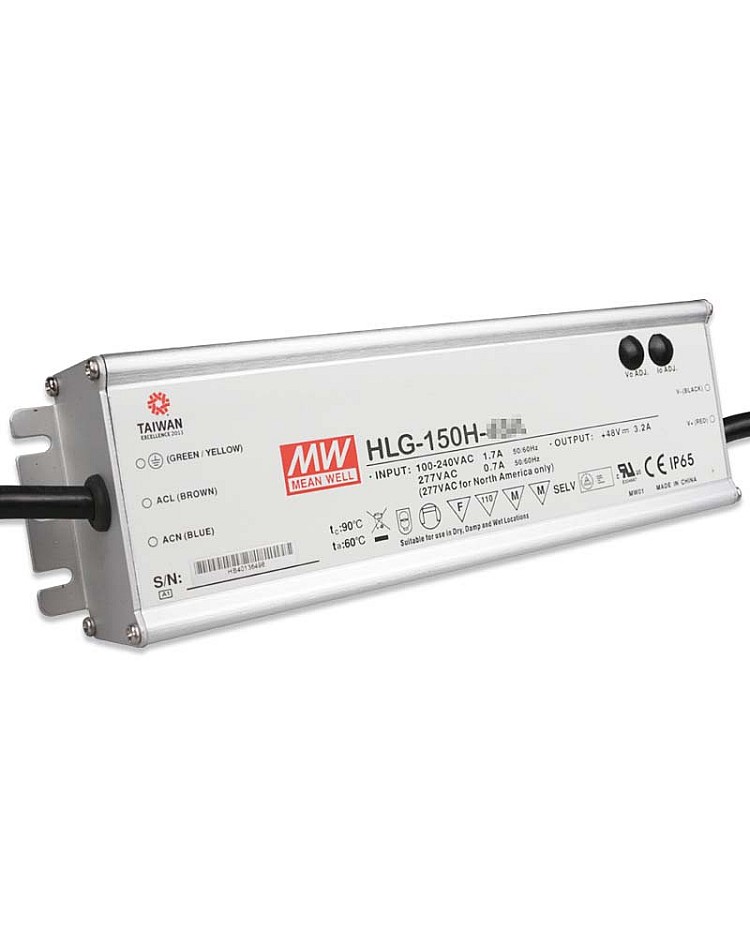

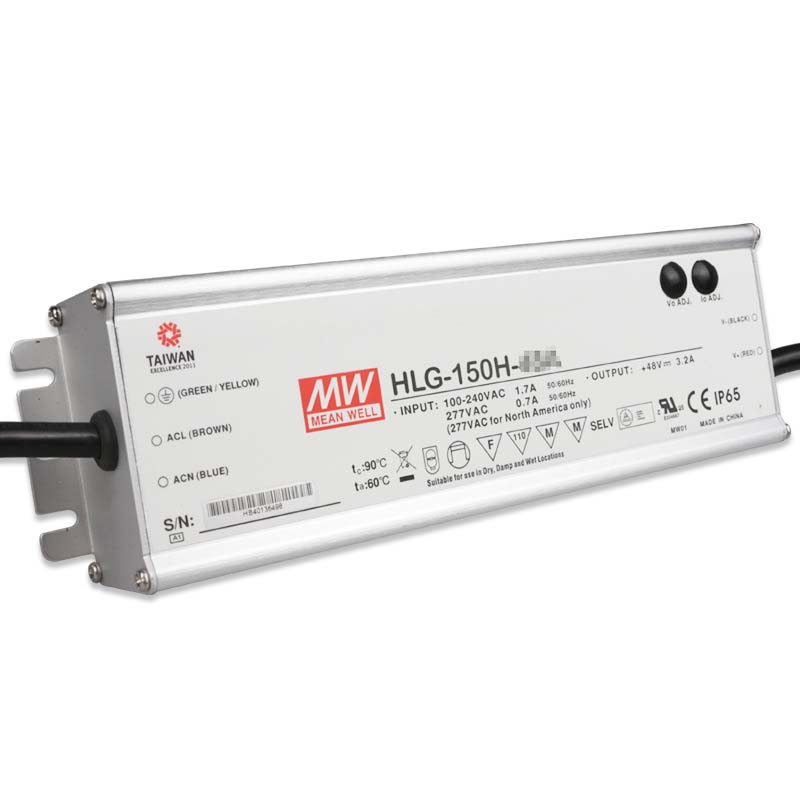

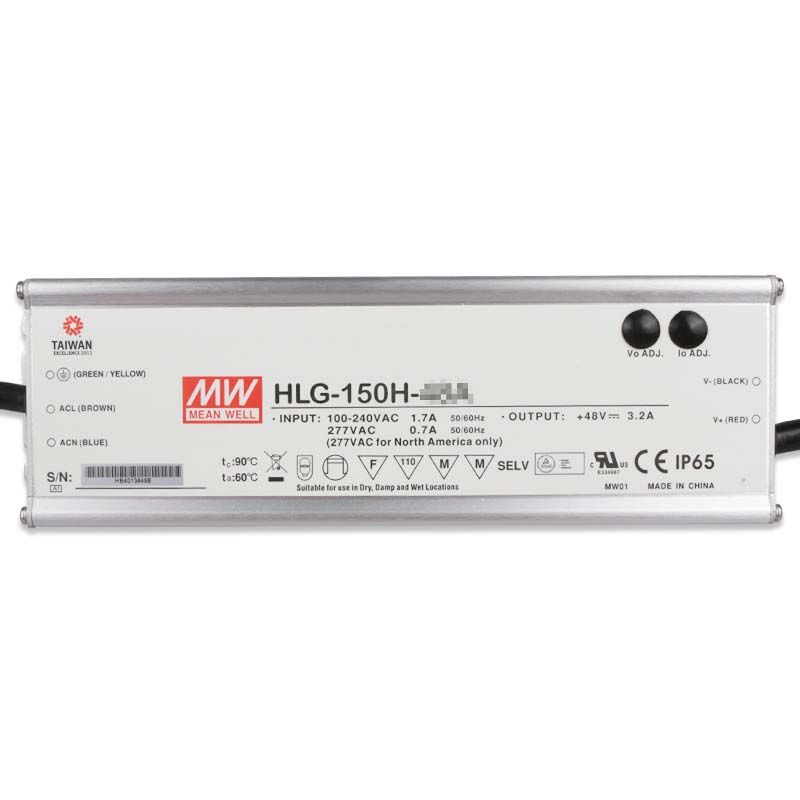

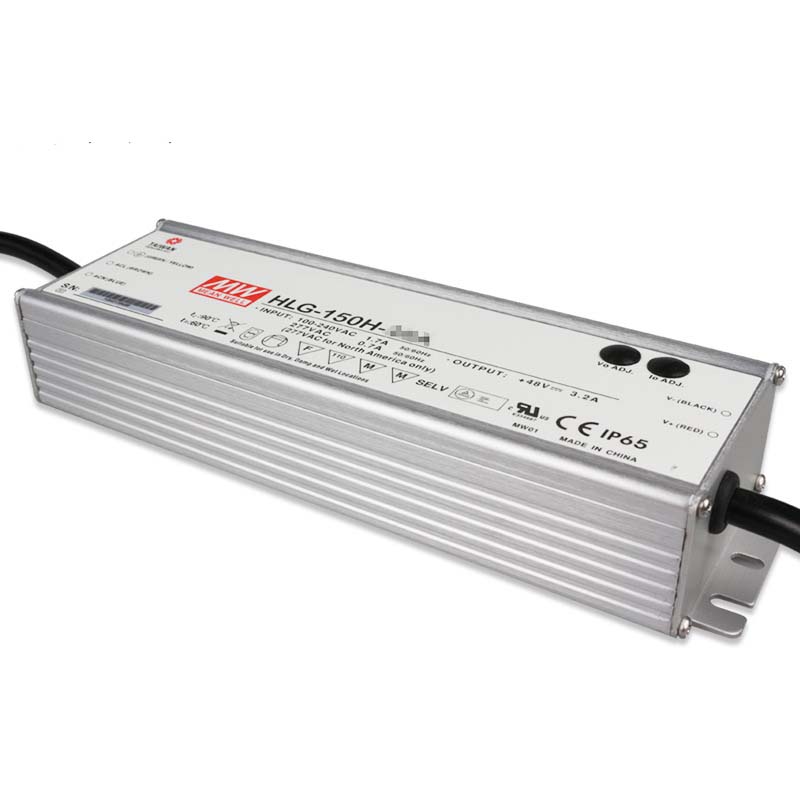

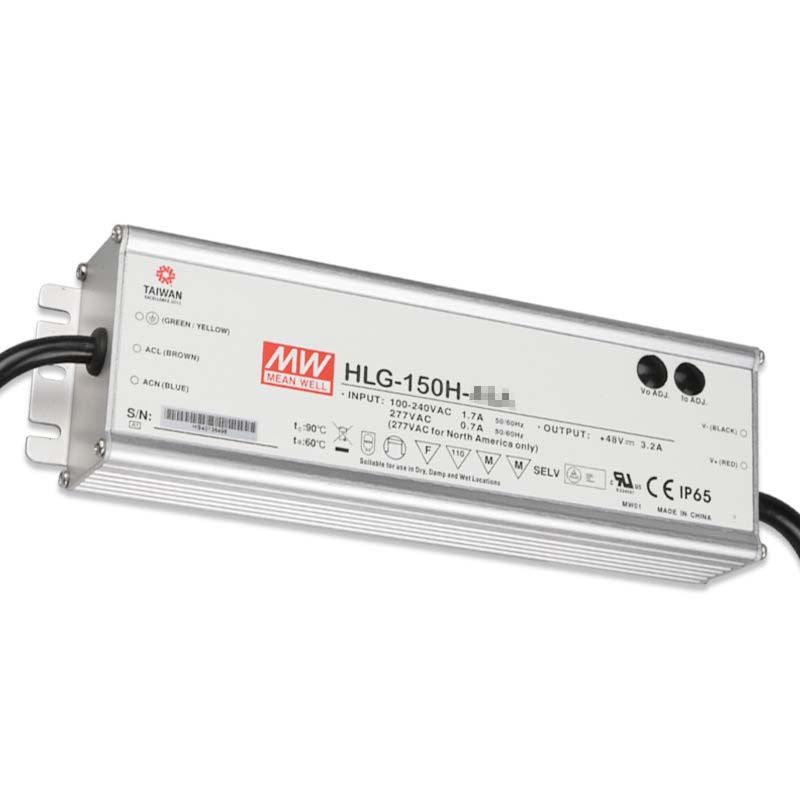

The Meanwell HLG-150H series waterproof adjustable power supplies, 4 types of products offer various output voltages from DC12V to DC54V. The A and AB Types have output voltage and current adjustable through the built-in potentiometer, and the B, AB, and D types have the dimming function for LED lighting systems. The Mean Well adjustable power supplies were enclosed in the metal housing and with class I design, featuring the dual mode constant voltage and constant current output design, the input voltage range from AC90V to AC305V, can connect to the public power system directly and without extra adapters. the high-efficiency rate up to 94%, with the fanless design, the operation temperature from -40℃ to 90℃ and the case temperature under free air convection. The metal housing design and IP67/IP65 ingress protection level allow this series to fit indoor and outdoor applications. The lifespan is over 62,000 hours and gets a 7-year warranty.
- Constant Voltage And Constant Current Mode Output
- Metal Housing With Class I Design
- Various Output Voltage Products Available
- High Efficiency Up To 94%
- IP67 / IP65 Rating For Indoor Or Outdoor Applications
- Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Function
- Lifespan: >62,000 Hours
- Applications: Greenhouse Lighting, Fish Lamps, Parking Lighting, High-Bay Lights, Street Lights
Quick Links:
Meanwell HLG-150H Series Specification Document
Specifications:
- Model: HLG-150H

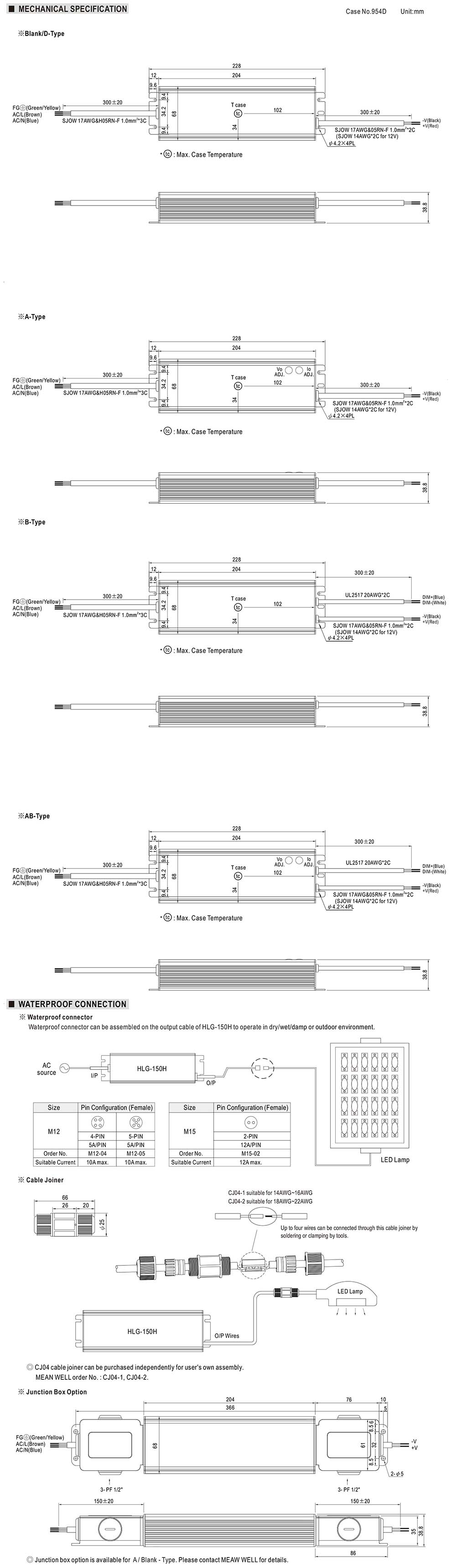

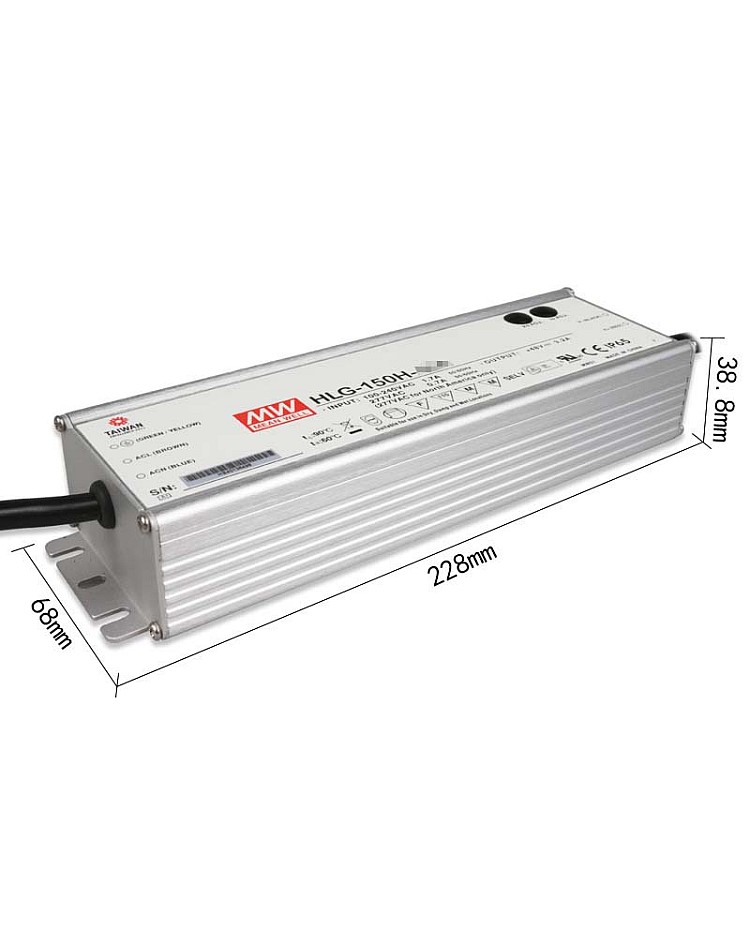

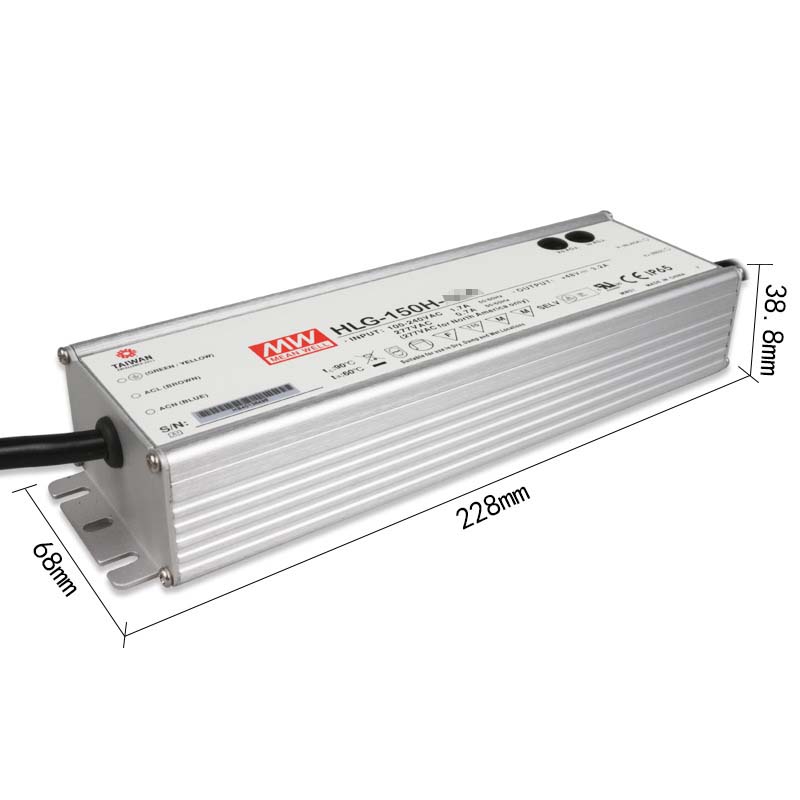

- Size: 228*68*38.8mm(L*W*H)
- Types:
- Blank: IP67 Waterproof Level, Voltage, And Current Fixed
- A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer

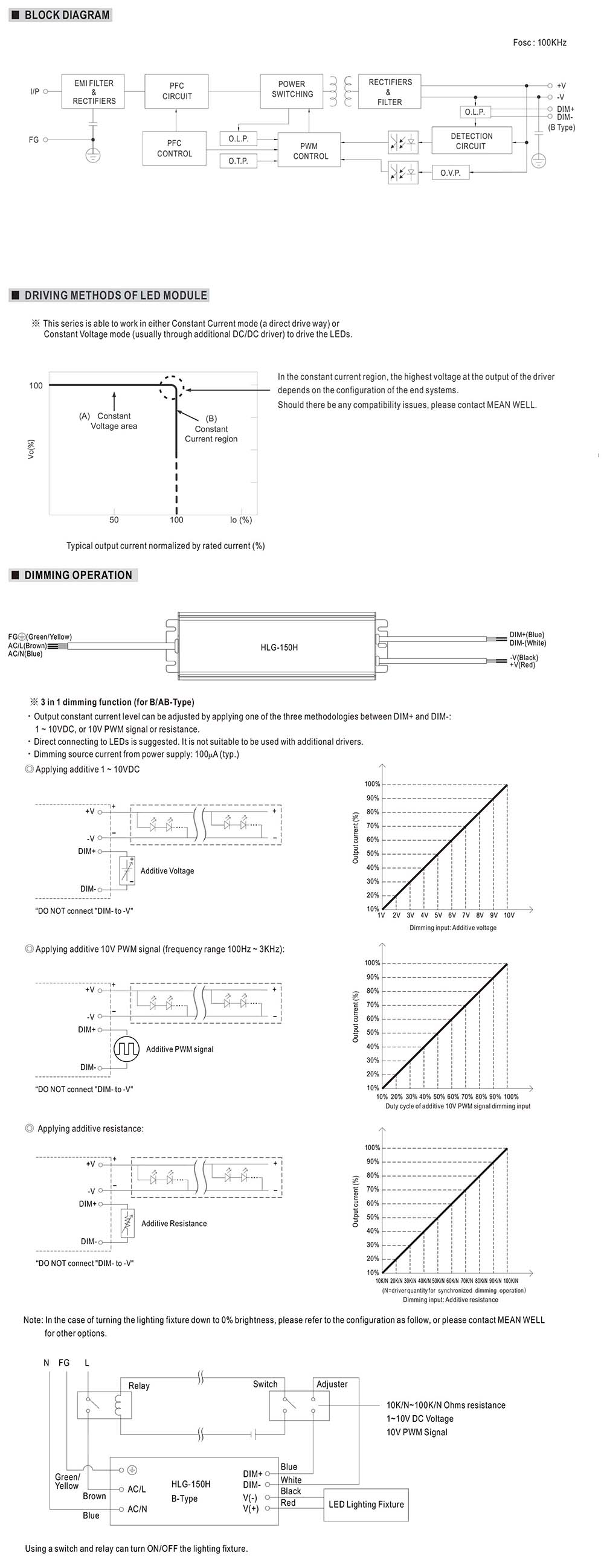

- B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- D: IP67 Waterproof Level, Timer Dimming Function
- Input Voltage Range: 90- 305VAC
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.93/277VAC
- Efficiency: 91.5%(DC12V), 92%(DC15V), 93%(DC20V), 93%(DC24V), 93.5%(DC30V), 93.5%(DC36V), 94%(DC42V), 94%(DC48V), 94%(DC54V)
- AC Current: 1.7A/115VAC, 0.75A/230VAC, 0.7A/277VAC
- Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
- Rated Current: 12.5A(DC12V), 10A(DC15V), 7.5A(DC20V), 6.3A(DC24V), 5A(DC30V), 4.2A(DC36V), 3.6A(DC42V), 3.2A(DC48V), 2.8A(DC54V)
- Rated Power: 150W(DC12V), 150W(DC15V), 150W(DC20V), 151.2W(DC24V), 150W(DC30V), 151.2W(DC36V), 151.2W(DC42V), 153.6W(DC48V), 151.2W(DC54V)
- Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 7.5-12.5A(DC12V), 6-10A(DC15V), 4.5-7.5A(DC20V), 3.8-6.3A(DC24V), 3-5A(DC30V), 2.5-4.2A(DC36V), 2.16-3.6A(DC42V), 1.92-3.2A(DC48V), 1.68-2.8A(DC54V)
- Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 38-46V(DC42V), 43-53V(DC48V), 49-58V(DC54V)
- Working Temperature: -40℃-+80℃
- Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
- Safety Standards: UL8750(Type "HL"), CSA C22.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent, GB19510.1, GB19510.14, EAC TP TC 004, KC61347-2-13(Except For AB-Type), IP67 Or IP65 Approved
- Short Circuit Protection
- Over-Voltage Protection
- Over Temperature Protection
- 7 Years Warranty
Includes:
1 * Meanwell Adjustable Power Supply
