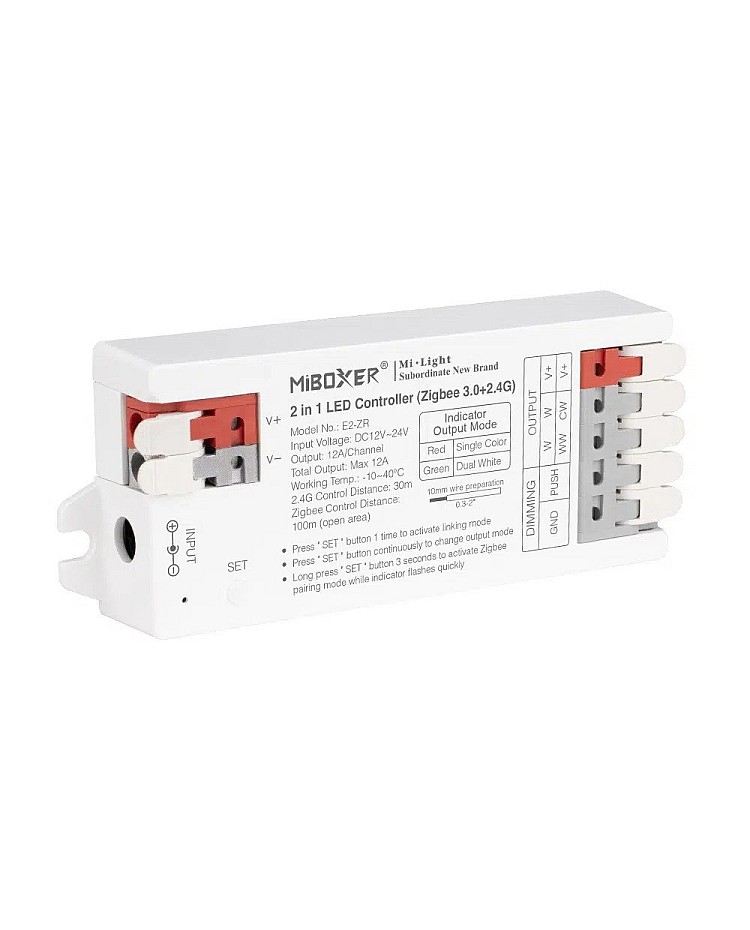

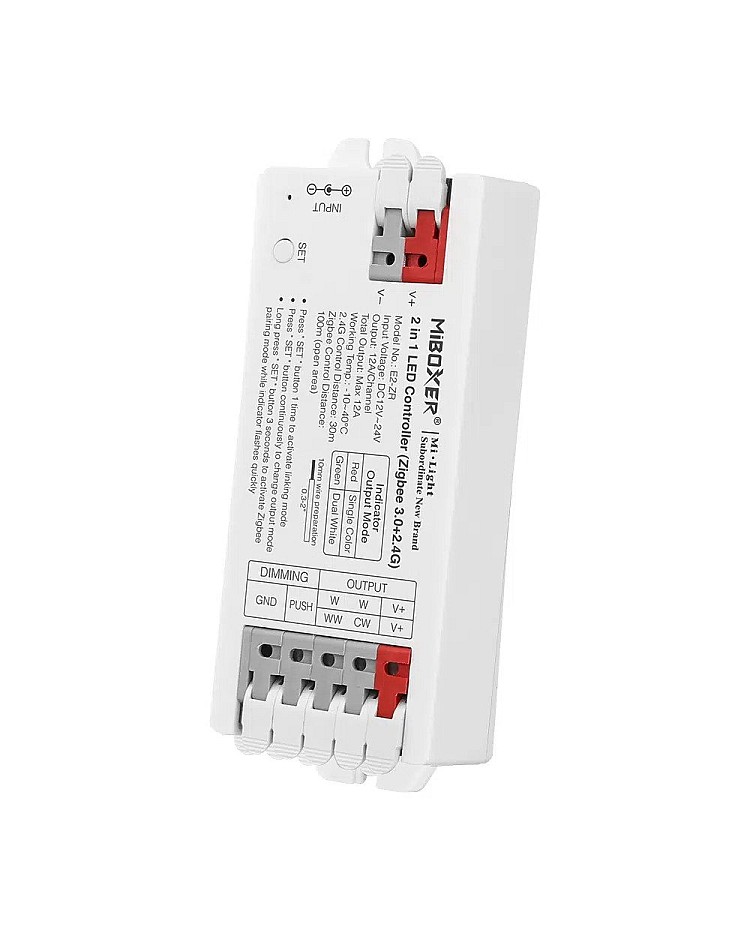

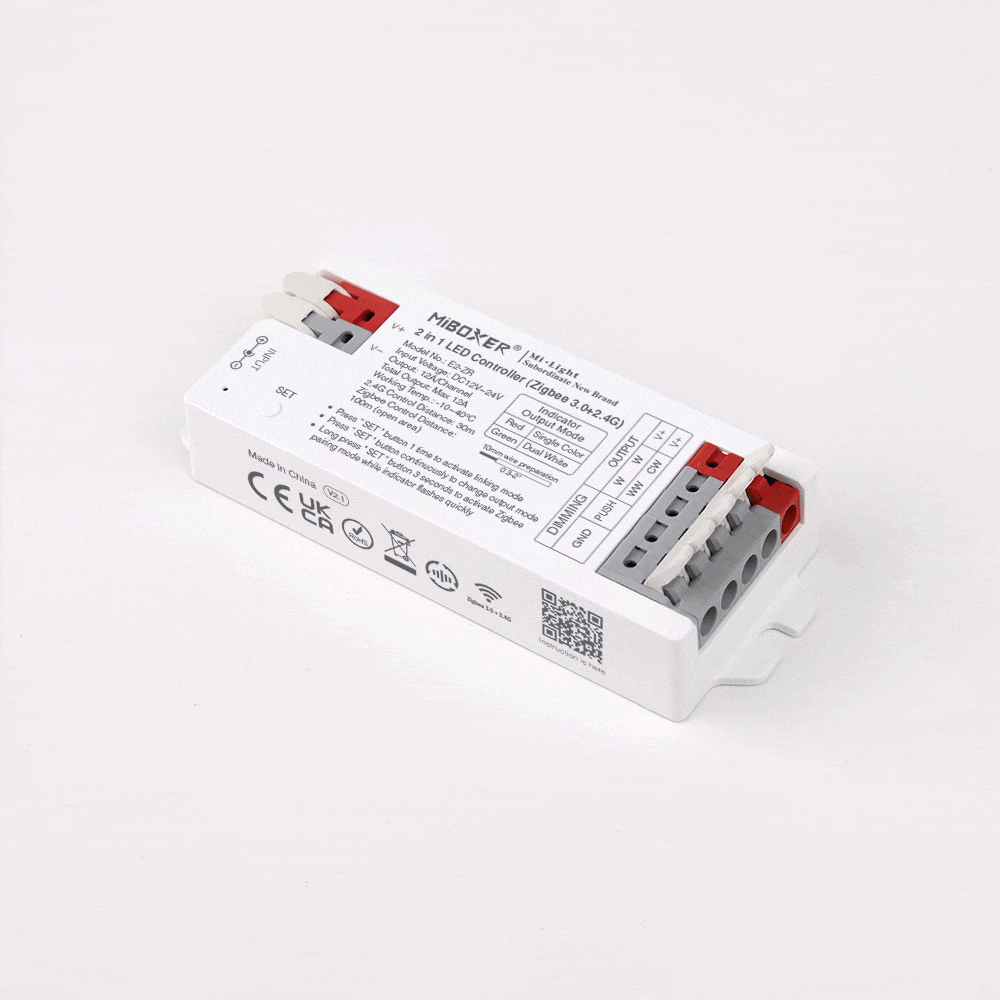

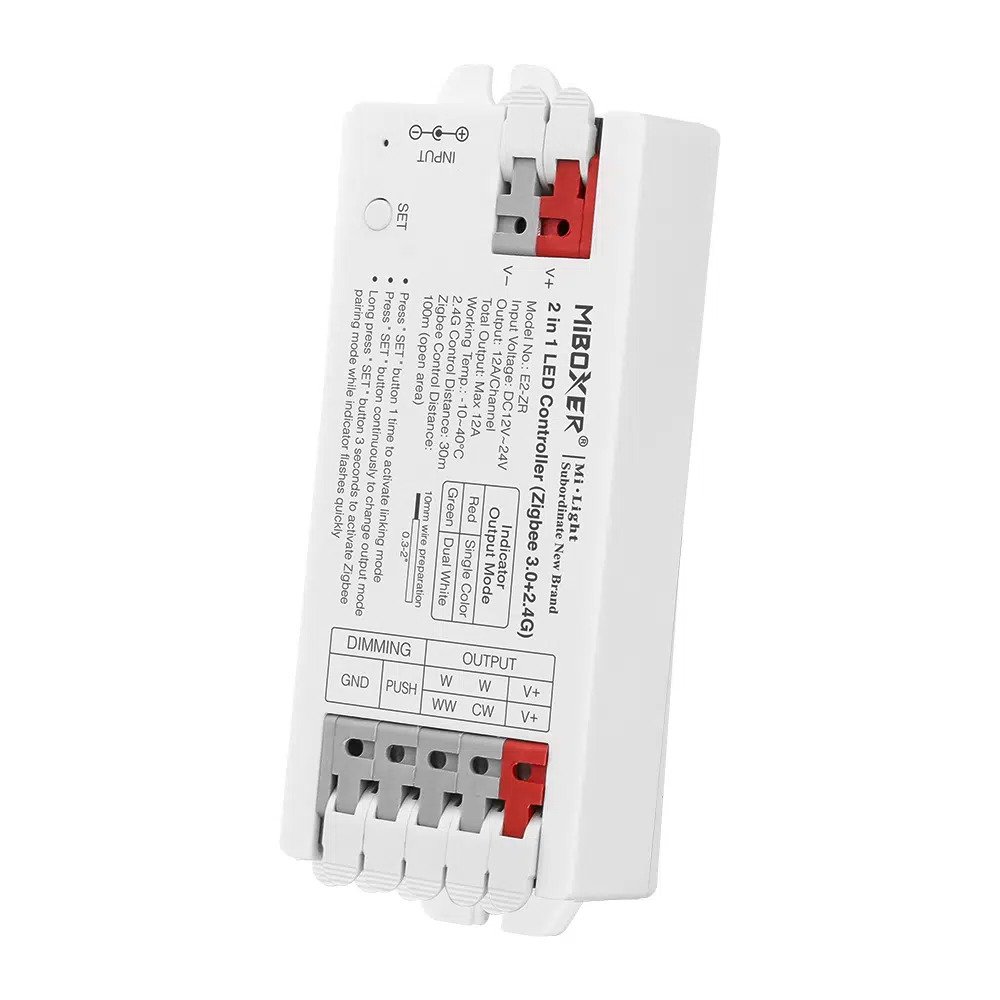

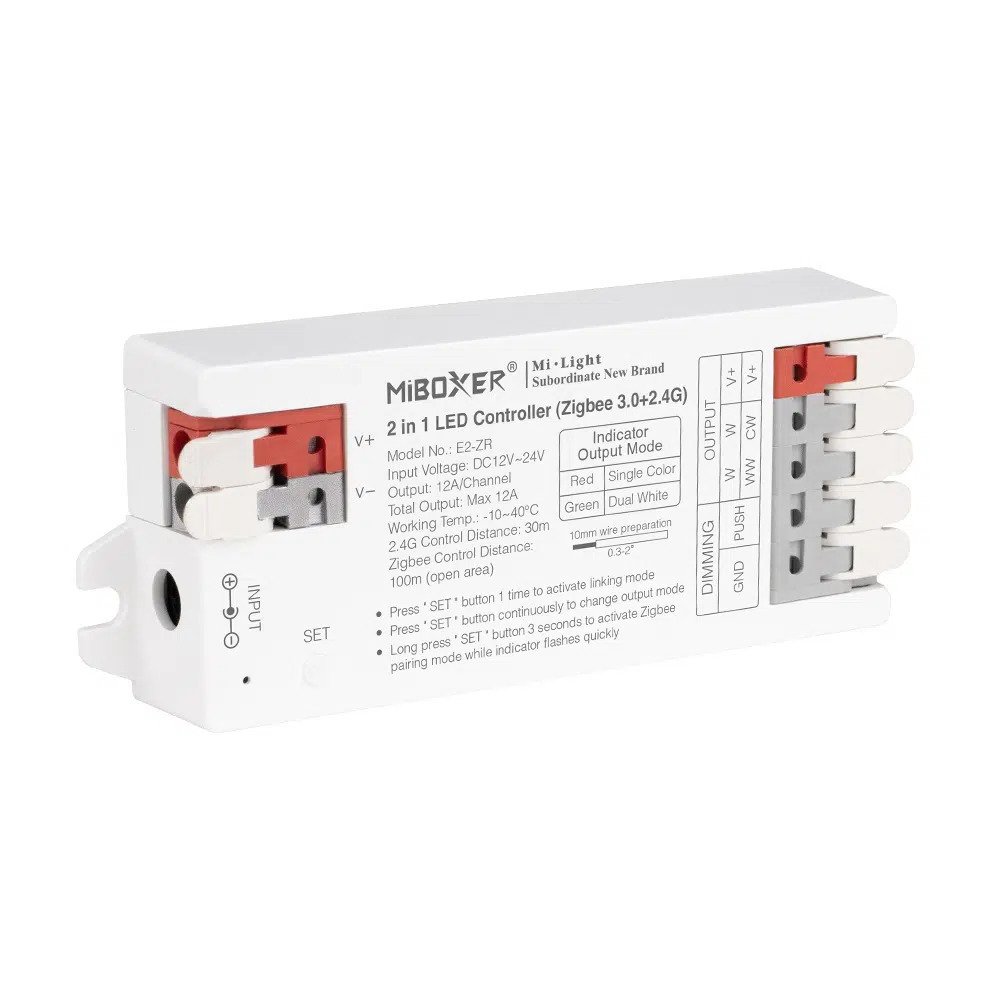

The MiBoxer E2-ZR Zigbee Smart Dimmer with 2 in 1 design for single color and dual white LED Lights. Press the button " SET " on the controller to switch the output from single color to dual white. It can be controlled by 2.4G RF Remote Controls to adjust the brightness and color temperature for various scenes. The Smart Dimmer can transmit the signals from the Remote Control to another Dimmer within 30 meters, and the Dimmers will work synchronously. After entering the standard Zigbee 3.0 Gateways, the Controllers can be controlled by a smartphone APP and third-party voice commands. You can achieve more functions on the app, like device sharing, scene customization, timing, and more. It can work with Amazon Alexa and Google Assistant, and you can use voice commands to control ON/OFF, brightness, colors, etc., through voice. The E2-ZR Remote Light Dimmer can enter Philips Hue, IKEA TRADFRI, and Amazon ECHO series standard Zigbee 3.0 Gateways. The MiBoxer Smart Dimmers have an instant wiring tool-free design, are easy to connect to a power supply, and LED Lights.
Features:
- Type: 2 In 1 Smart Dimmer For Single Color/Dual White LED Lights
- Model: E2-ZR
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: DC12-24V
- Output: 12A/Channel
- Total Output: 12A Max
- Color Temperature Adjustable
- Stepless Dimming Brightness
- Switching 2 Output Mode(Single Color, Dual White) Via One Button
- Communication Protocol: Zigbee 3.0 + 2.4GHz
- Compatible With 2.4G RF Remote Controls: FUT006, FUT007, B1, B1-B, T1, B2, T2, K1, K1-B, FUT087, FUT087-B, S1-B, S1-W, S1-G, WL-BOX1
- Control Distance: Zigbee≤100m(Open Area); 2.4G RF≤30m
- Wireless Technology: Zigbee 802.15.4
- Wireless Frequency: 2.400-2.480GHz
- Tuya Smart APP Control(Zigbee 3.0 Gateway Needed)
- Support Third-party Voice Control: Amazon Alexa And Google Assistant
- High Frequency(16KHz) / Low Frequency(250Hz) Can Be Switched
- Auto Signal Transmitting
- IP Rate: IP20 Non-waterproof
- Two Power Interfaces: Wiring Ports, DC5.5*2.1mm
- Tool-free Instant Wiring
- 2 Years Warranty
Includes:
1*E2 ZR Zigbee Smart Dimmer
1*User Manual
