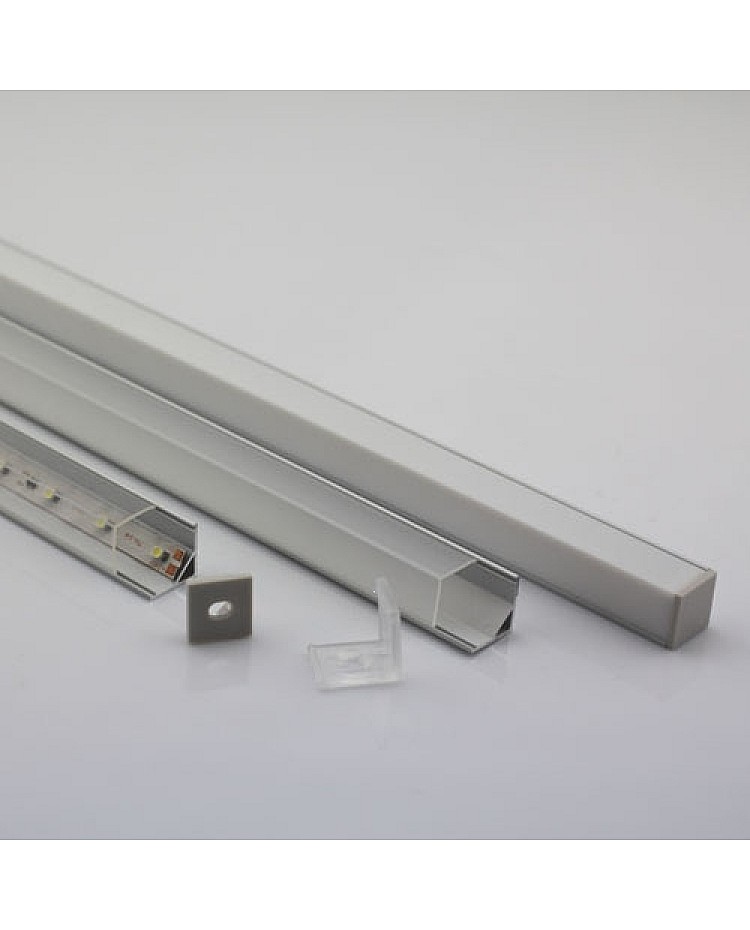

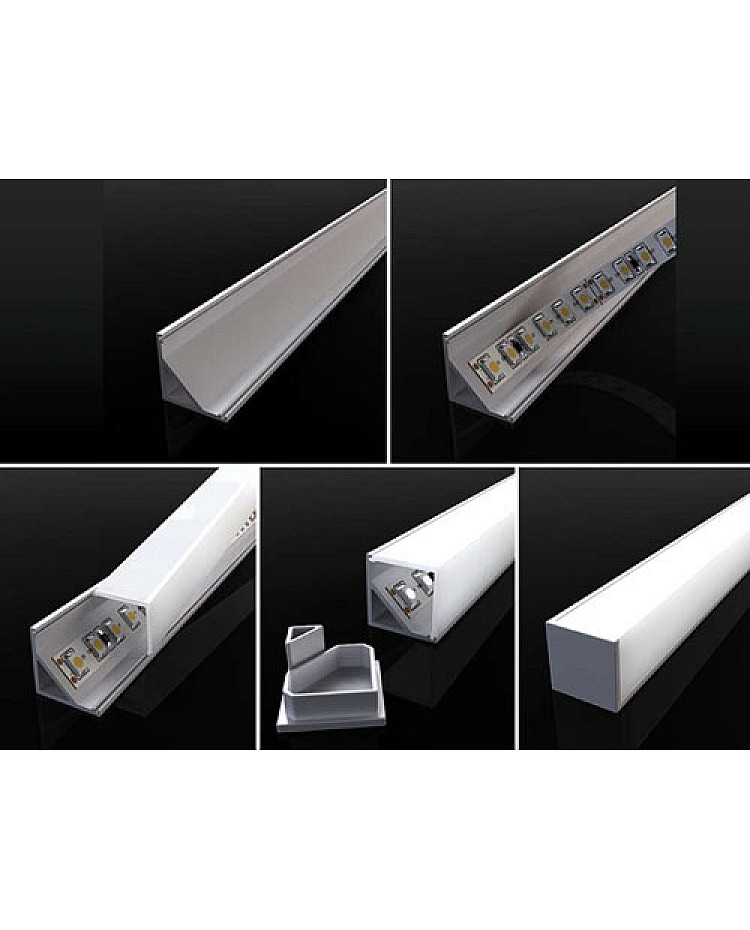

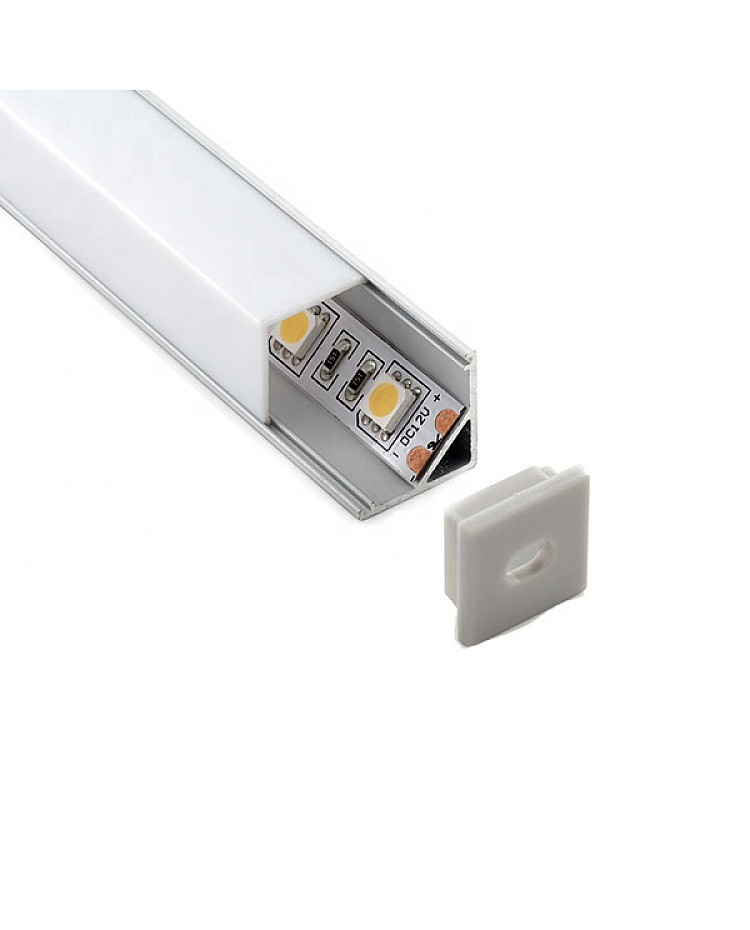

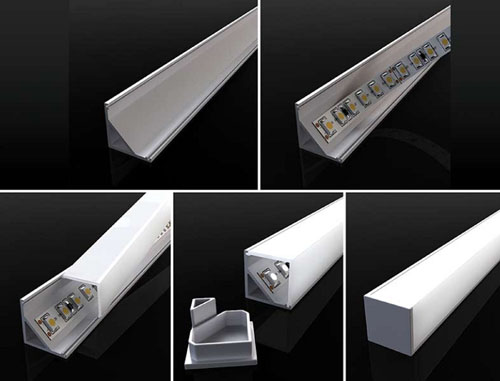

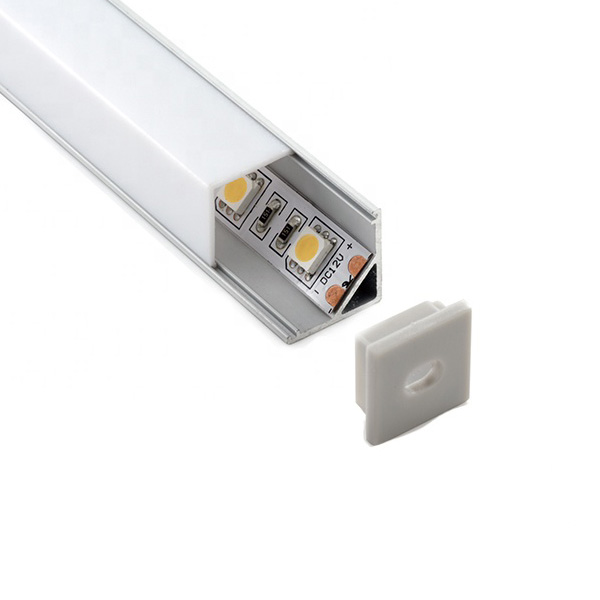

The V-shaped LED Profiles are designed for installations at 90° angles. Its compact, triangular design makes it perfect for under cabinets, shelves, wardrobes, and wall-to-ceiling transitions, where space-saving, professional corner lighting is required. They are designed to be mounted in corner areas, providing a seamless and sleek look while illuminating the space with smooth, even light without visible LED dots. The V-shaped design evenly distributes light along the entire length of the profiles, ensuring every corner of your cabinet is well-lit. Ideal for residential, retail, office, and architectural projects. The corner LED channels are made of durable aluminum with anodized or powder-coated surfaces, providing oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and you can cut to any length you prefer. The inner width is 10 mm, allowing a maximum LED strip width of 10 mm. There are three types of V shape LED diffusers available: PMMA opal matte cover, PMMA semi-clear cover, and PC diffused cover. The diffusers are made of brand material, anti-yellowing, and with excellent light distribution. The end caps and mounting clips are included.
Specifications:

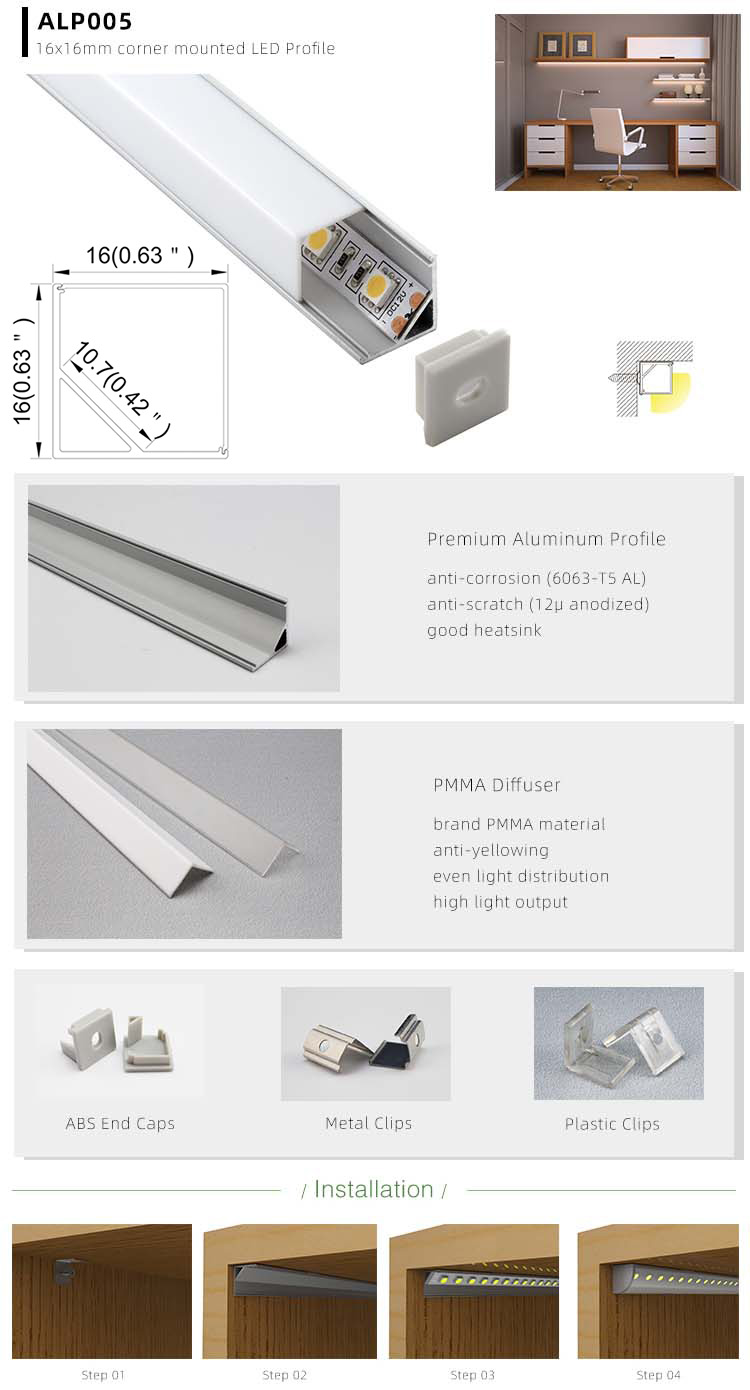

- Model: ALP005
- Material: Extruded aluminium
- Surface treatment: Anodized or powder-coated
- Color: Silver, white, black

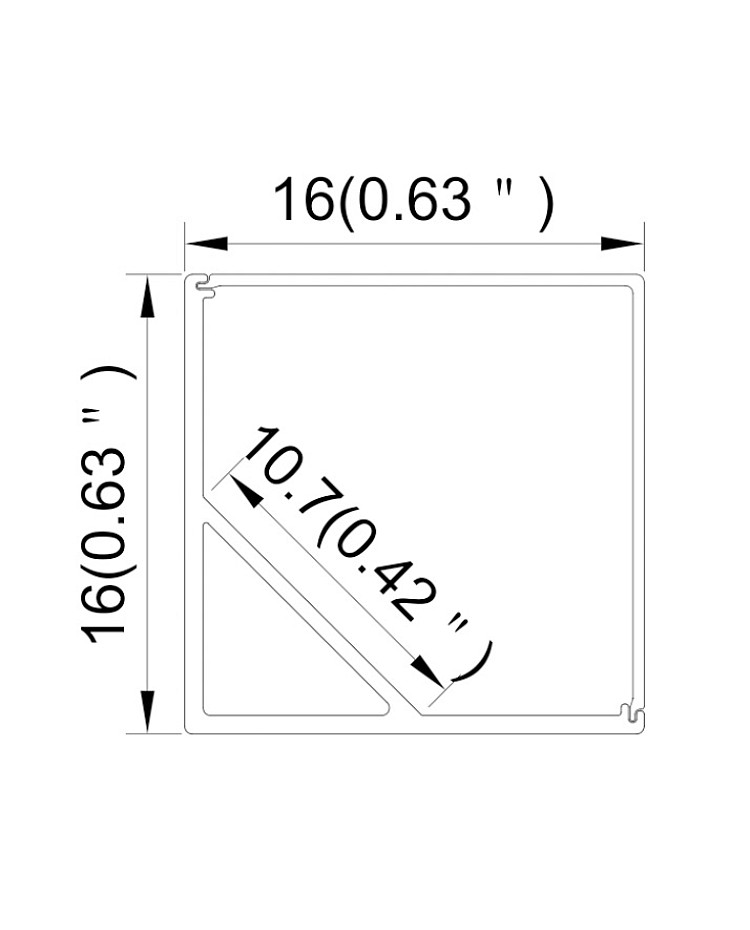

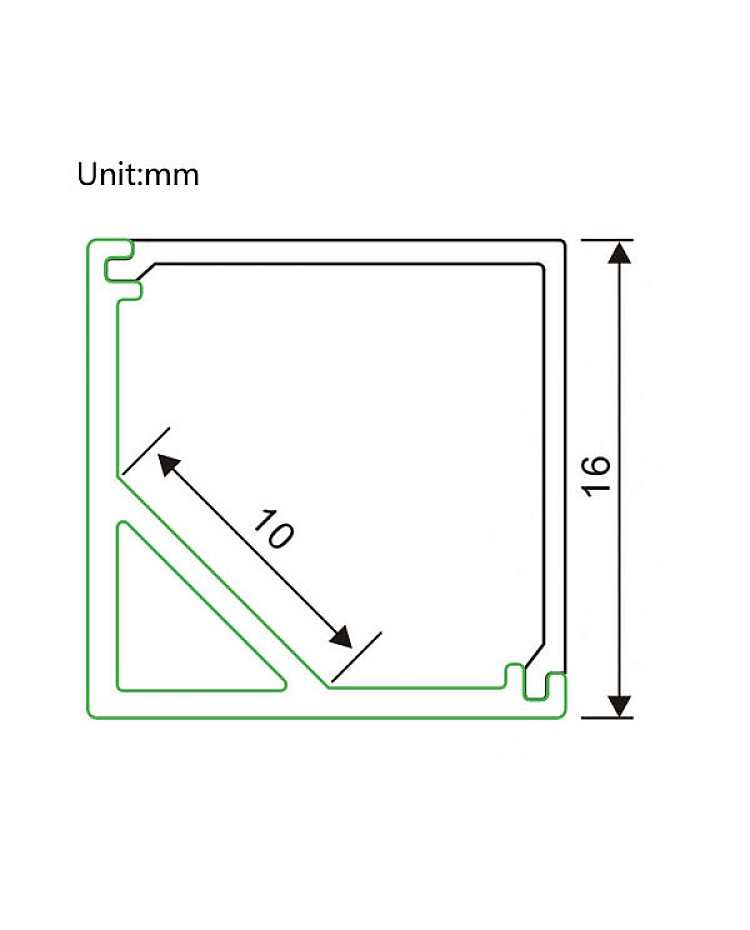

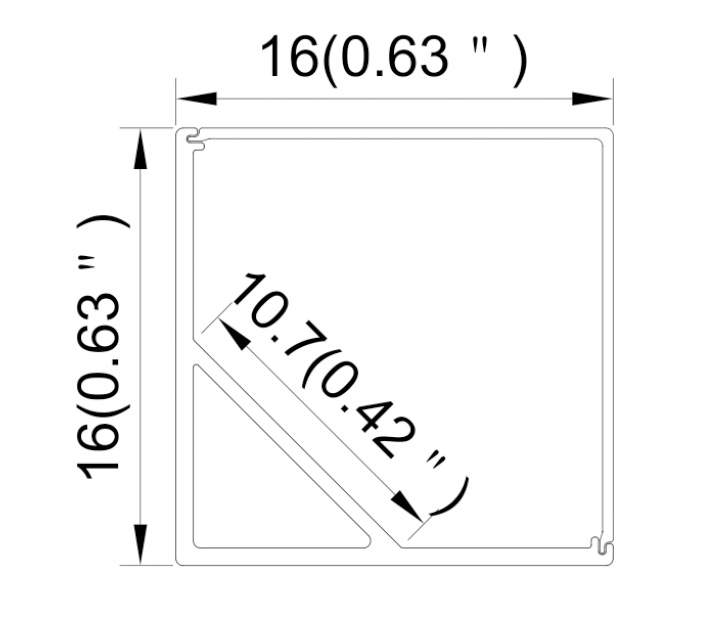

- Size ( W x H ): 16 mm x 16 mm ( 0.63" x 0.63" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10.7 mm ( 0.42" )
- Allows the maximum width of strip lights to be 10 mm ( 0.39" )
- Max power: 15W/m

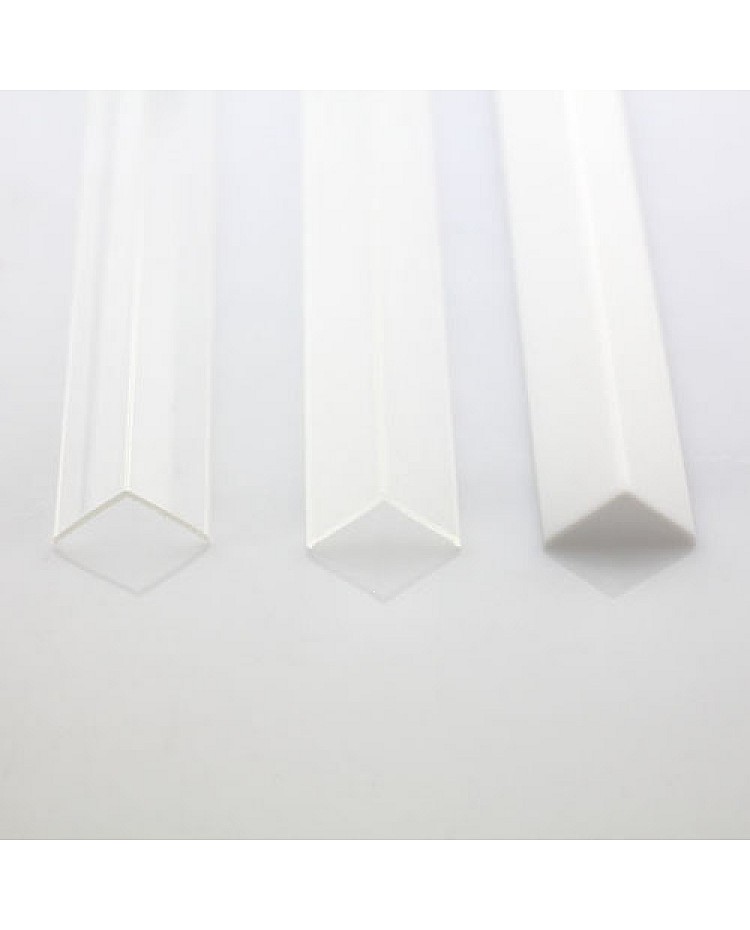

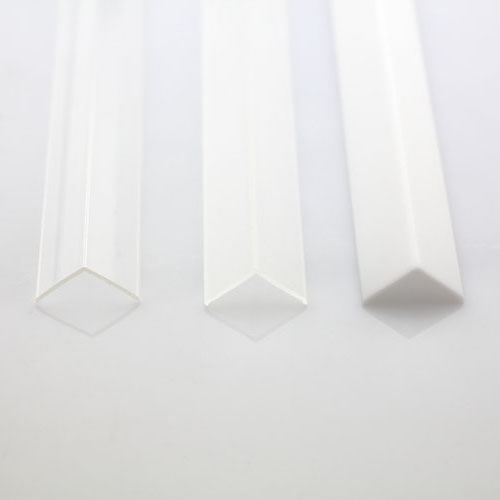

- Covers: PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover
- Beam angle: 100°

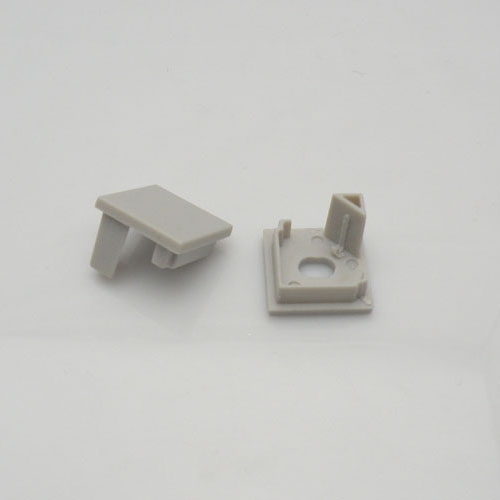

- End caps with and without wire holes and mounting clips are included

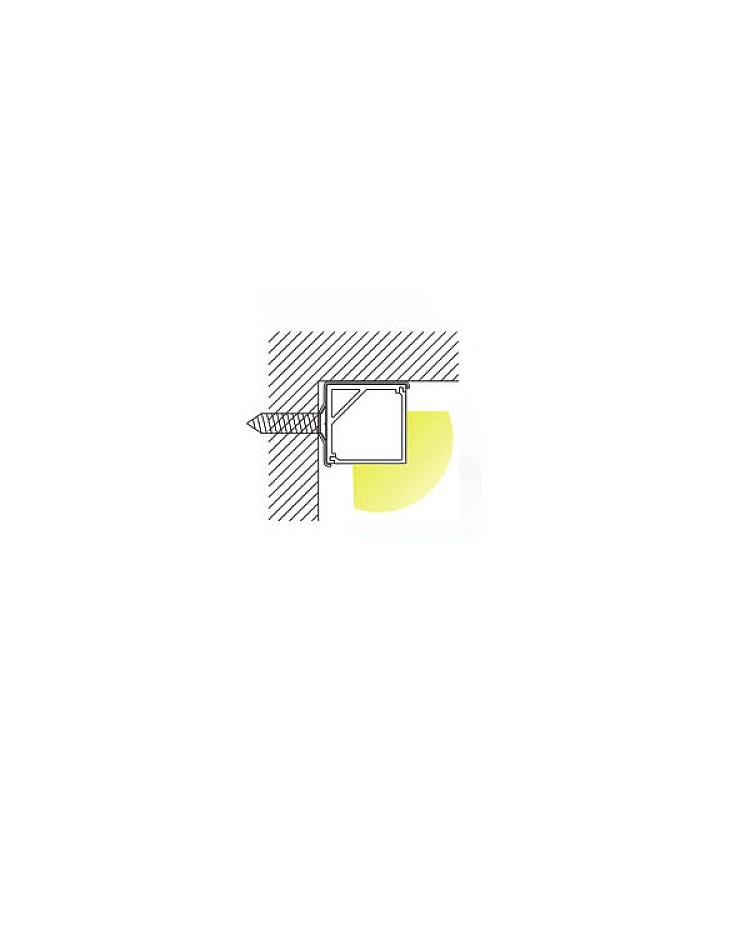

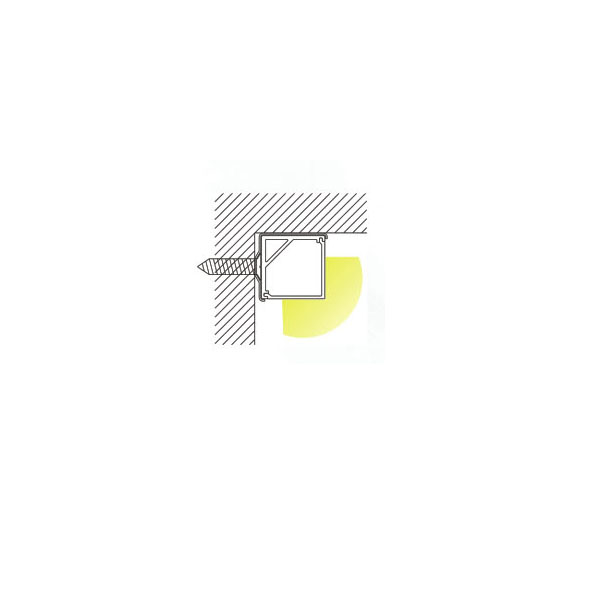

- Application: Corner-mounted
- Certifications: CE, ROHS
- Warranty: 5 years

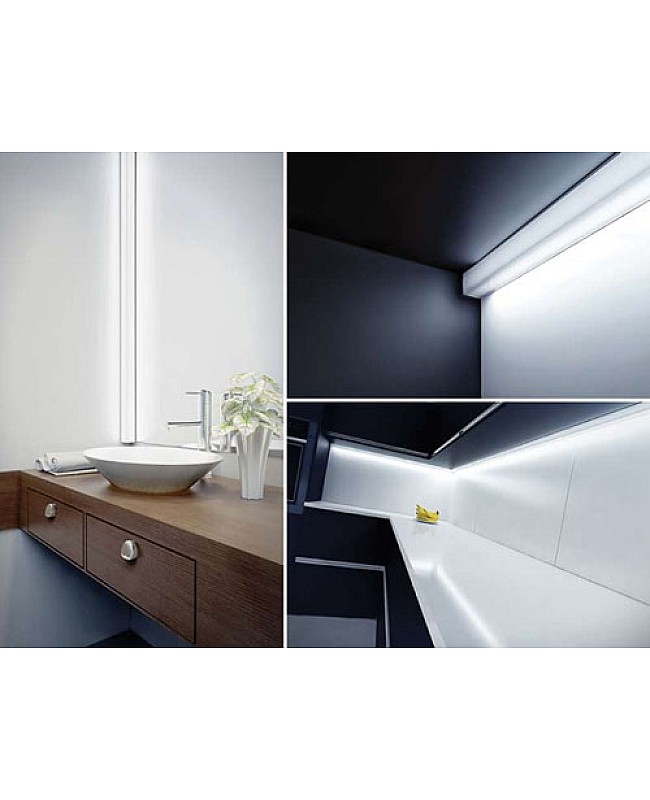

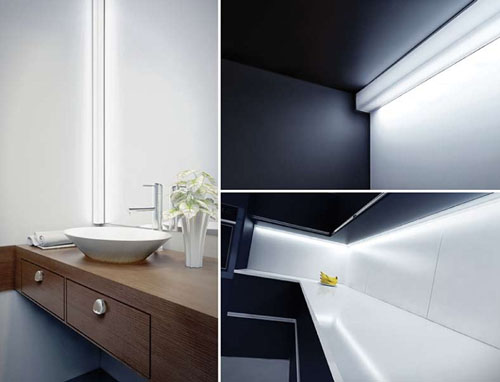

Applications:

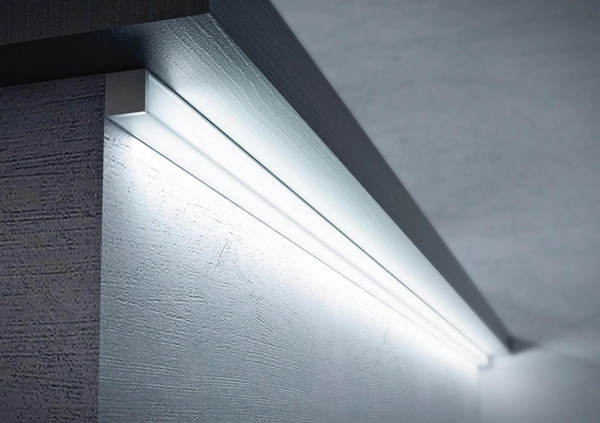

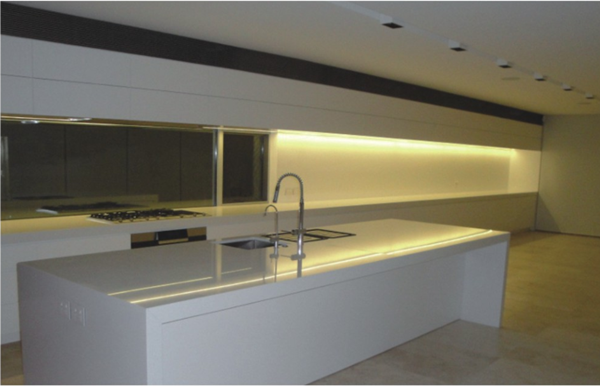

- Corner & edge lighting: Designed for installation in 90° corners ( wall-to-ceiling, wall-to-wall, shelf-to-wall), and provides uniform angled illumination without glare.
- Under-cabinet and shelf lighting: Create functional, shadow-free task lighting in kitchens, offices, and workspaces to illuminate countertops or desks.
- Furniture & display lighting: Enhance product visibility and modern aesthetics for bookcases, wardrobes, cabinets, and retail displays.
- Accent & decorative lighting: Creates indirect ambiance lighting with smooth diffusion. Add stylish linear lighting to the corners of living rooms, bedrooms, and commercial interiors.
- Architectural & interior design: Enhances room geometry with continuous linear glow. Concealed lighting along ceilings, walls, or furniture edges.
Package:

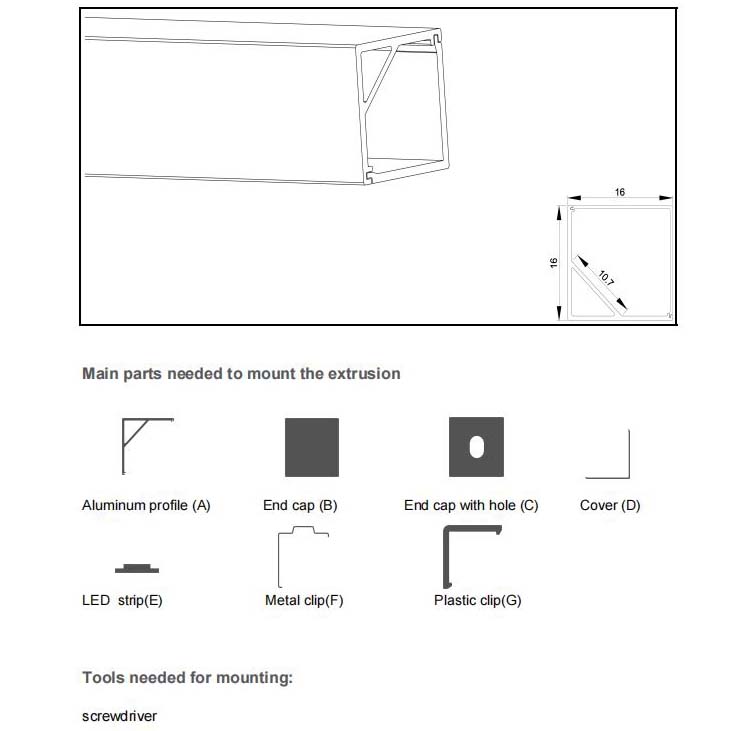

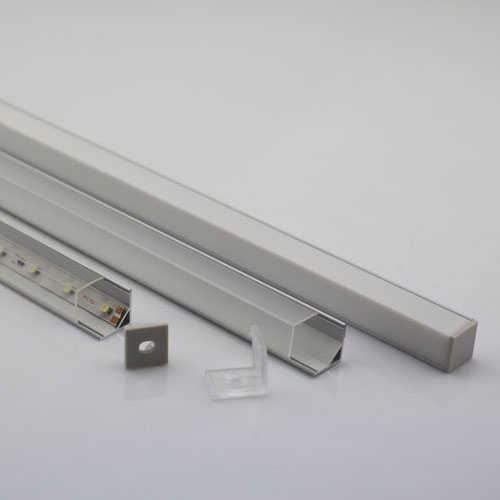

1 *V shape corner light profile with diffuser

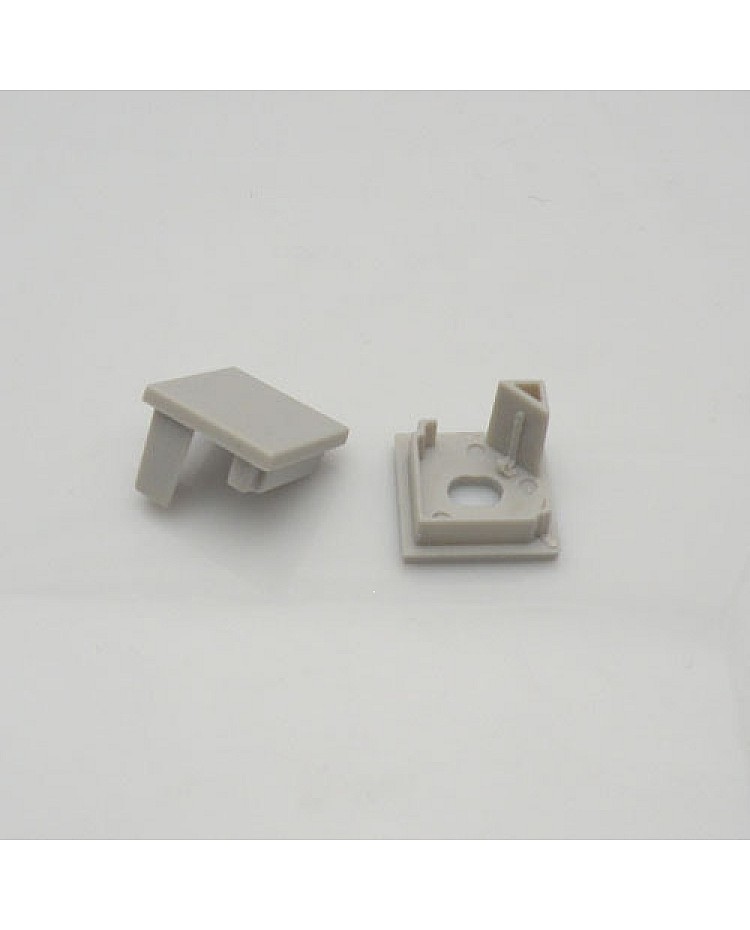

End caps(With and without wire hole)
Mounting clips
