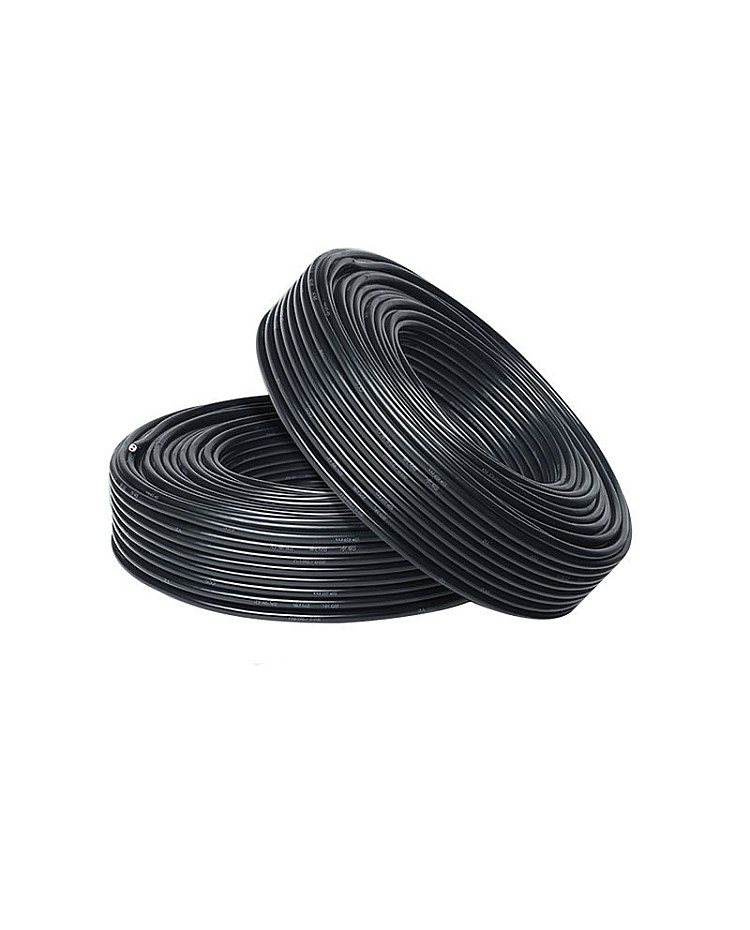

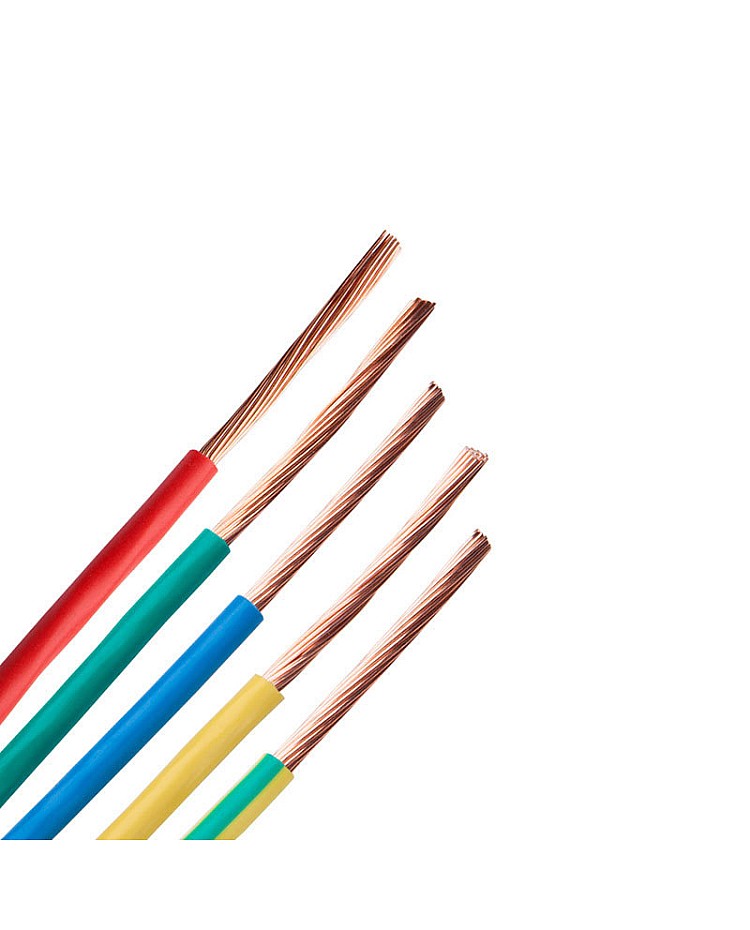

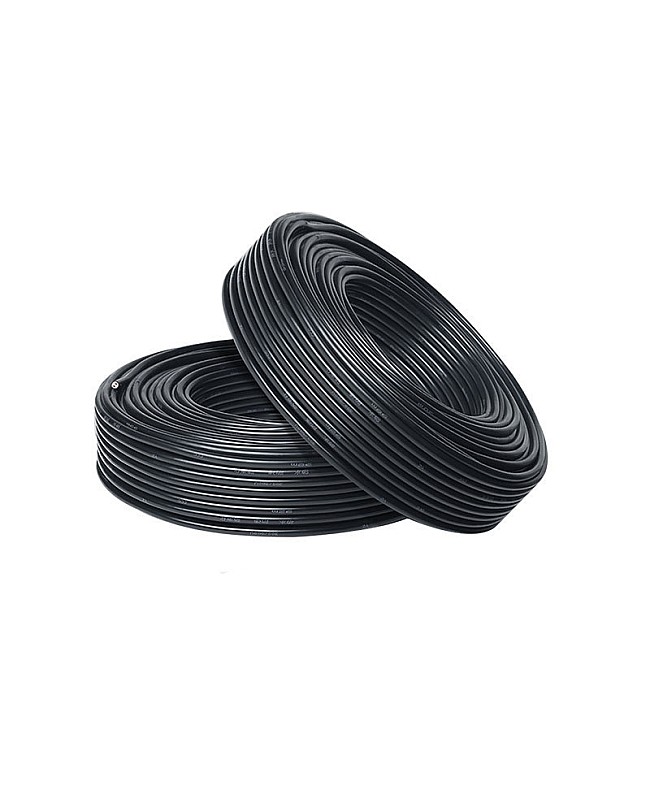

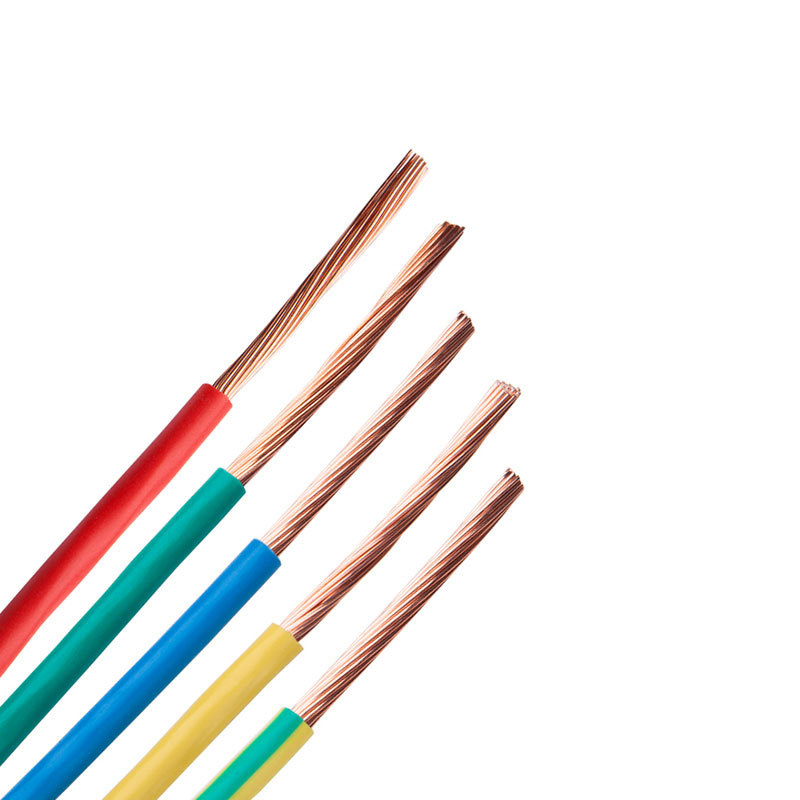

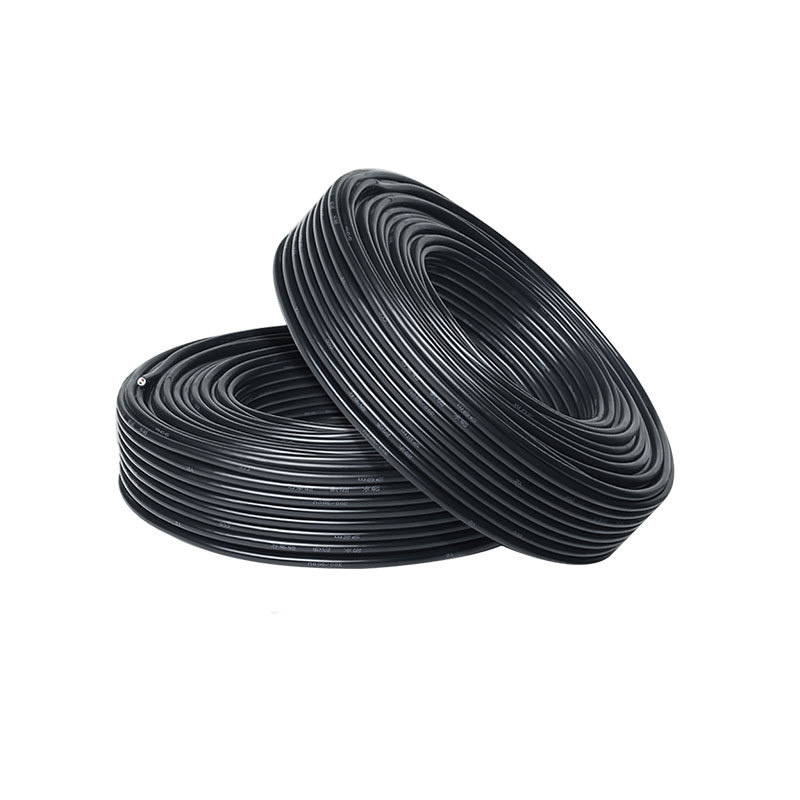

You can choose 2Pin, 3Pin, 4Pin, or 5Pin for the waterproof electrical PVC cable wires for LED lights. The LED PVC cable is made of PVC and copper material. The PVC insulation layer is made of new environmentally friendly plastic material, with high-temperature resistance, 0℃ skin soft and anti-freeze, and 80℃ flame retardant. The inner wire comprises high-purity oxygen-free copper and a wrapped waterproof layer. Enhance the tensile strength while reinforcing the gap between the cores.
Specifications:
- Material: PVC + Copper
- Color: Black
- Rated Voltage: 300V
- Rated Current: 1-2A(0.2㎜²), 2-3A(0.3㎜²), 4-5A(0.5㎜²), 5-6A(0.75㎜²), 6-7A(1.0㎜²), 7-8A(1.5㎜²)
- IP Rating: IP65

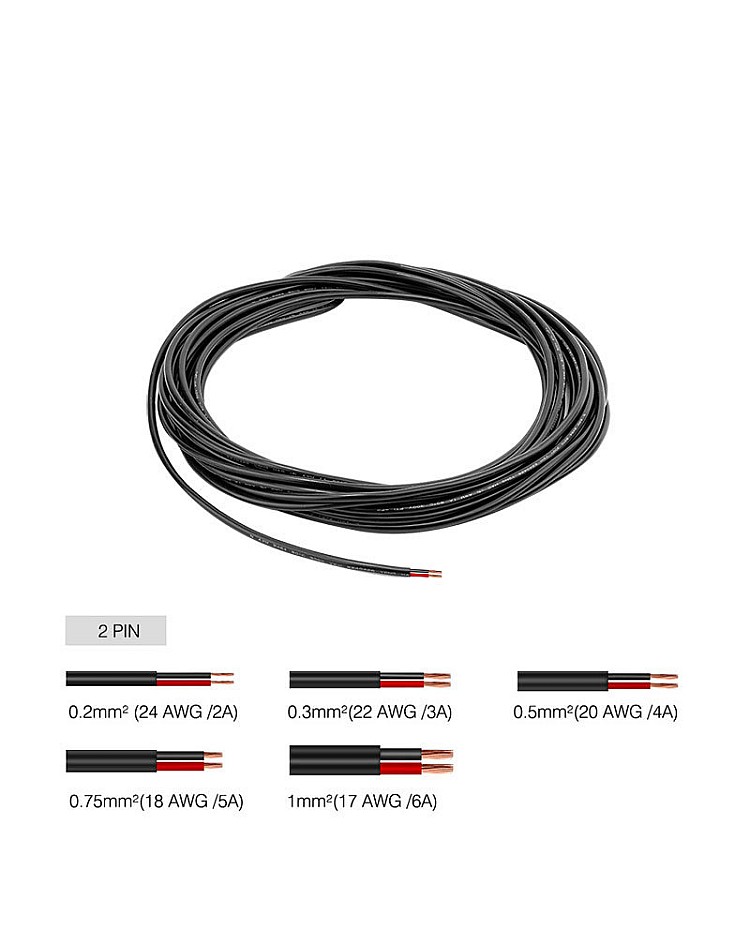

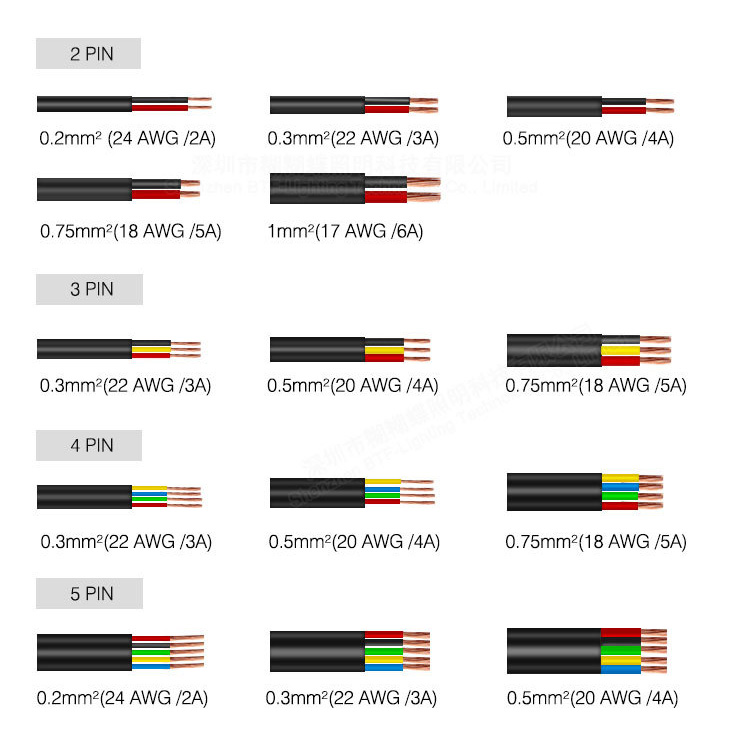

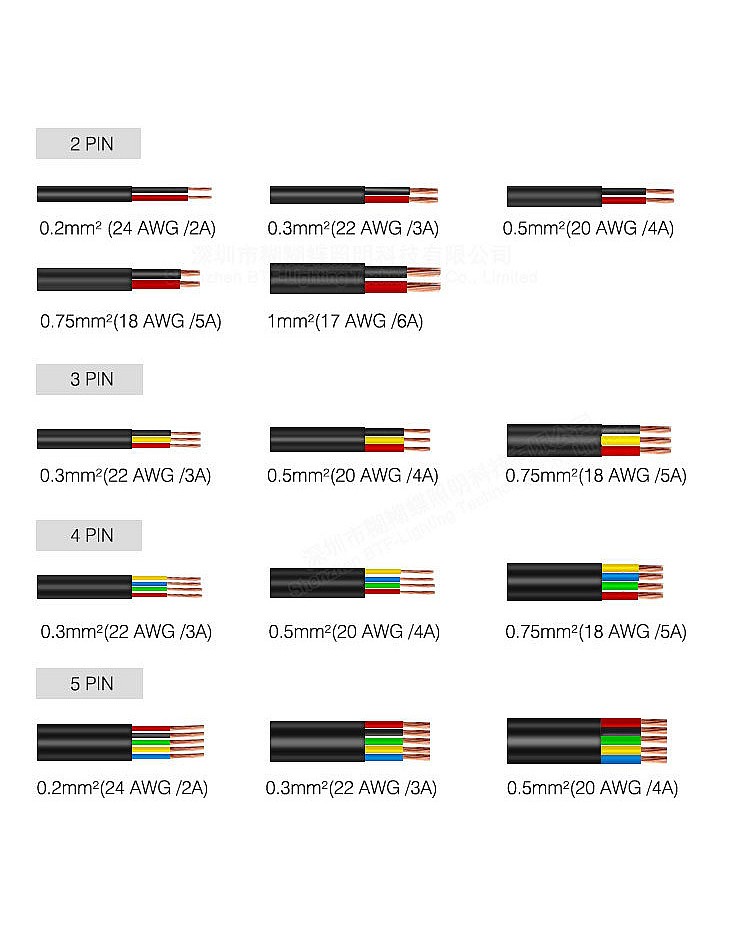

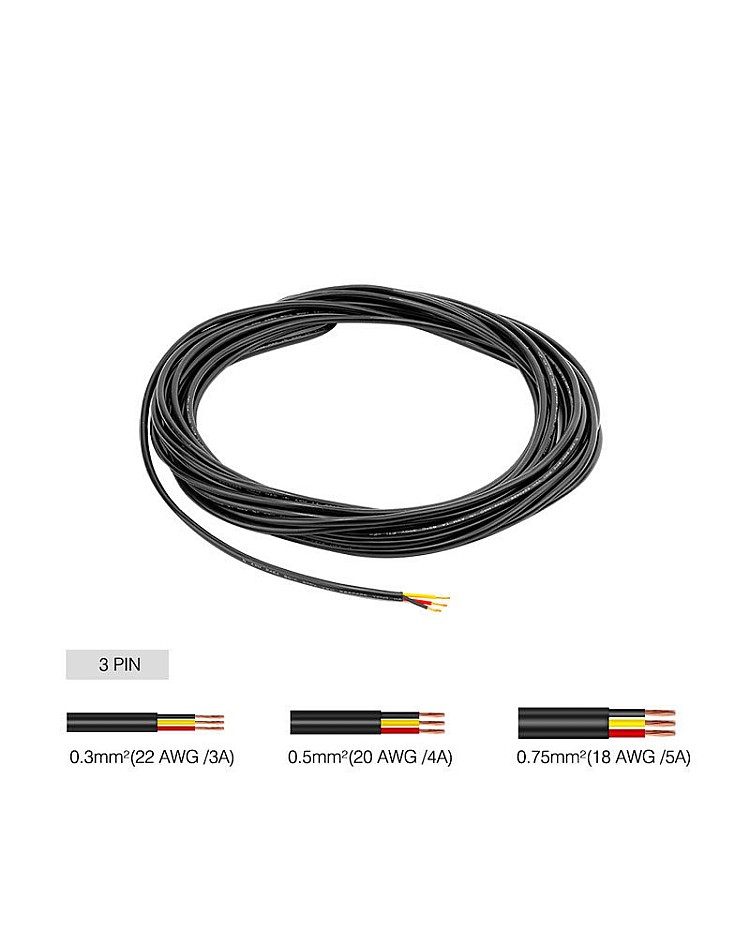

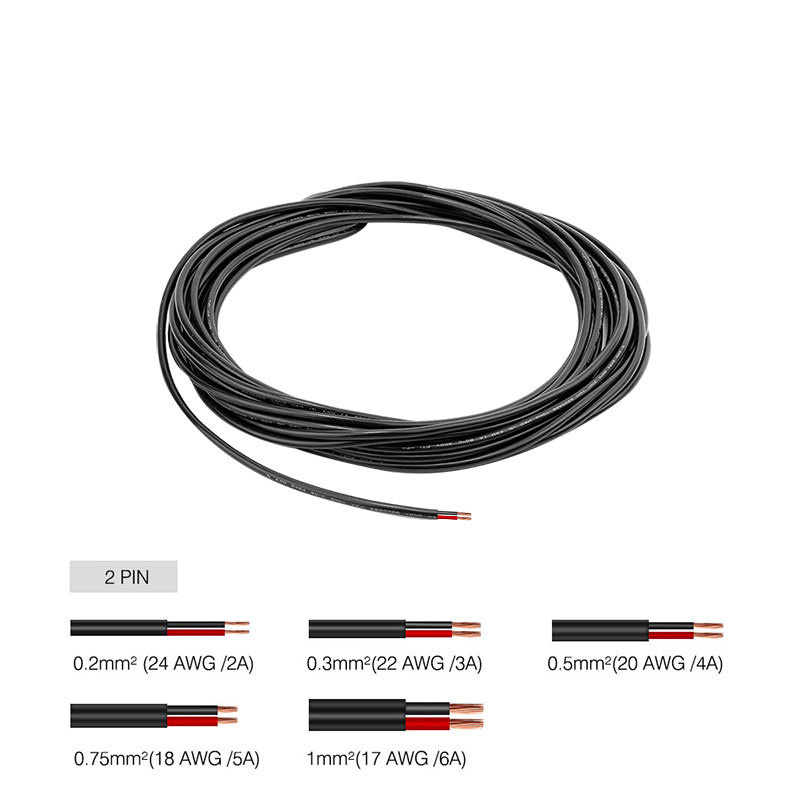

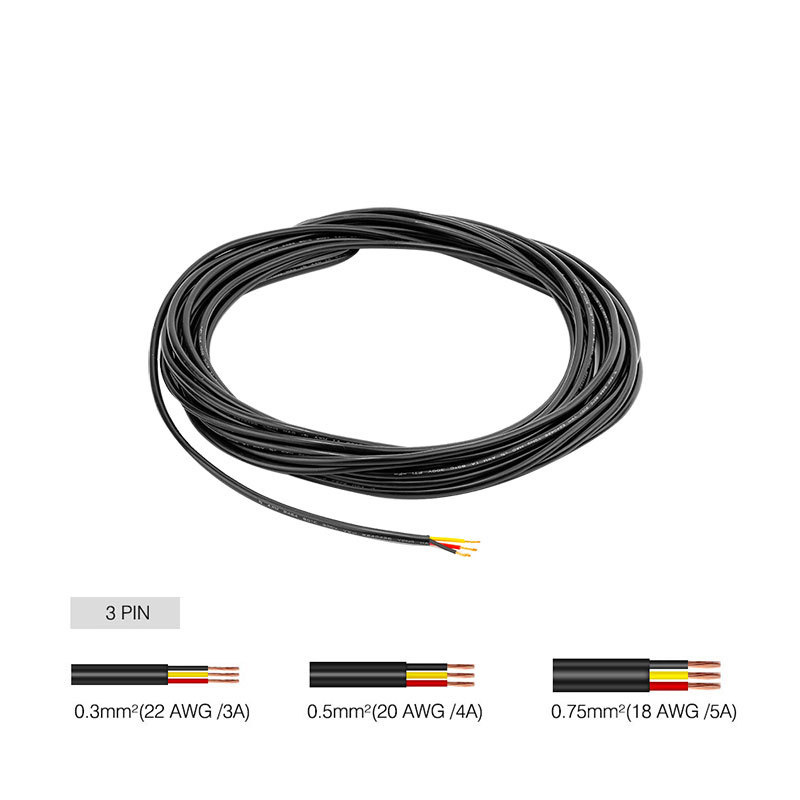

- Pins: 2, 3, 4, 5
- Application Size: 0.2㎜², 0.3㎜², 0.5㎜², 0.75㎜², 1㎜²
- 24AWG=0.2㎜²=11*0.16mm
- 22AWG=0.3㎜²=17*0.15mm
- 20AWG=0.5㎜²=28*0.15mm
- 18AWG=0.75㎜²=42*0.15mm
- 17AWG=1.0㎜²=56*0.15mm
- 16AWG=1.5㎜²=42*0.2mm
- Fireproofing Grade: UL94V-0
- High Temperature Resistance
- Length: 10 meters
Includes:
1 * Waterproof PVC Cable Wire(10Meters/Piece)
