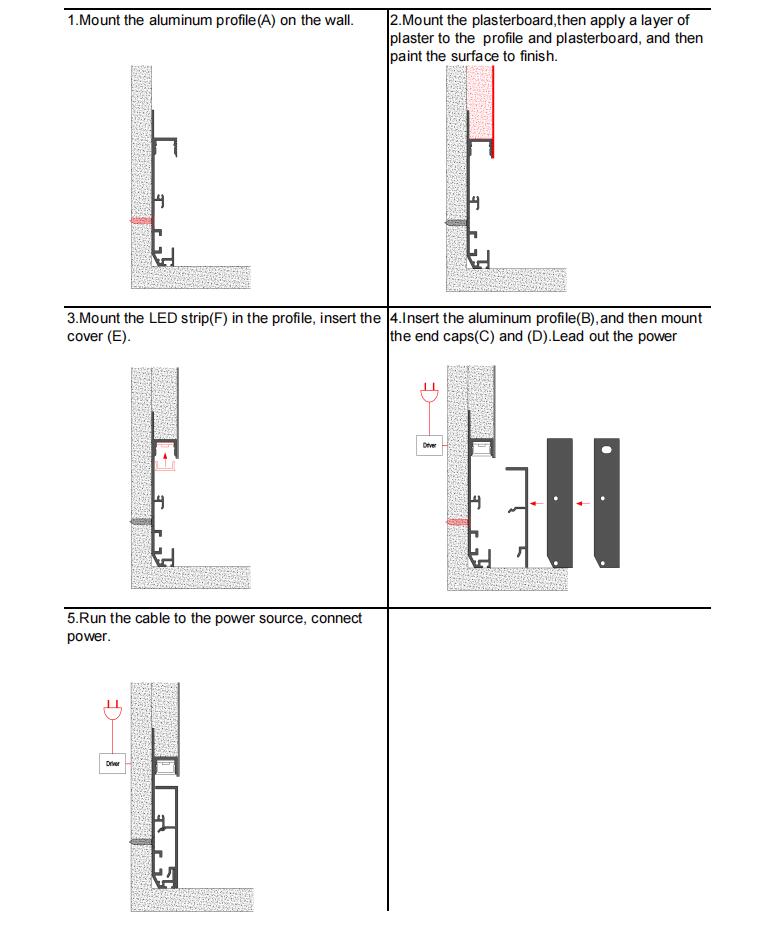

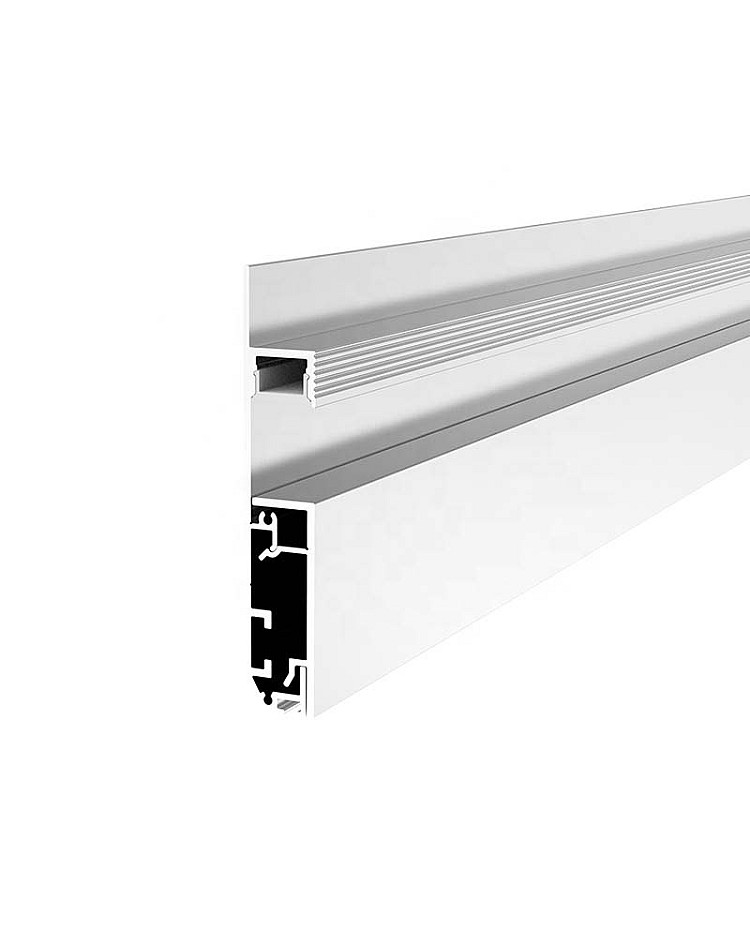

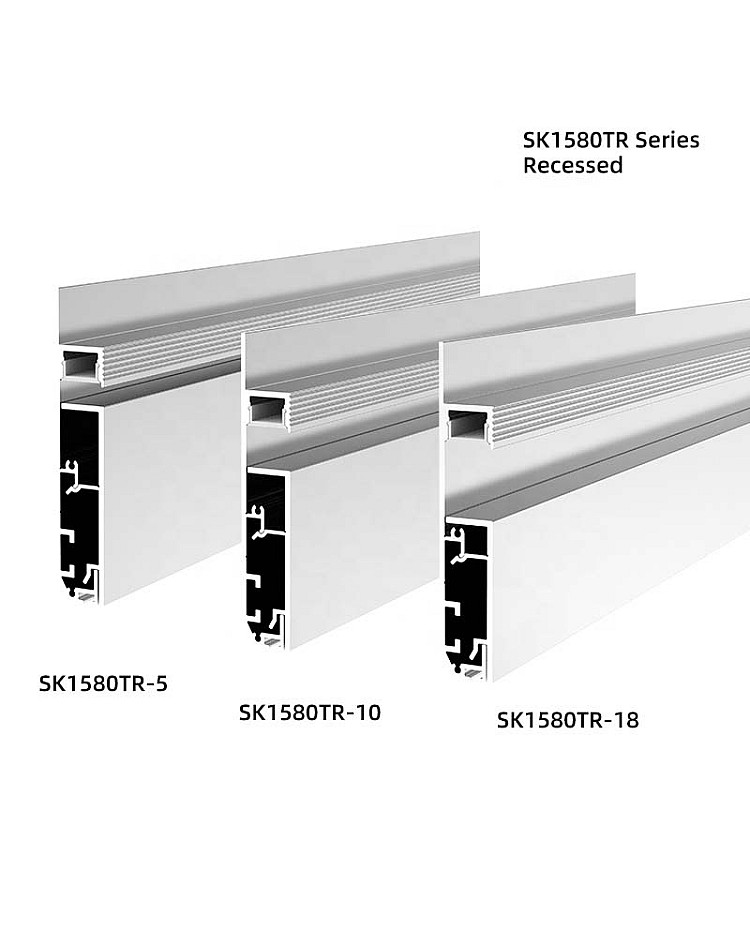

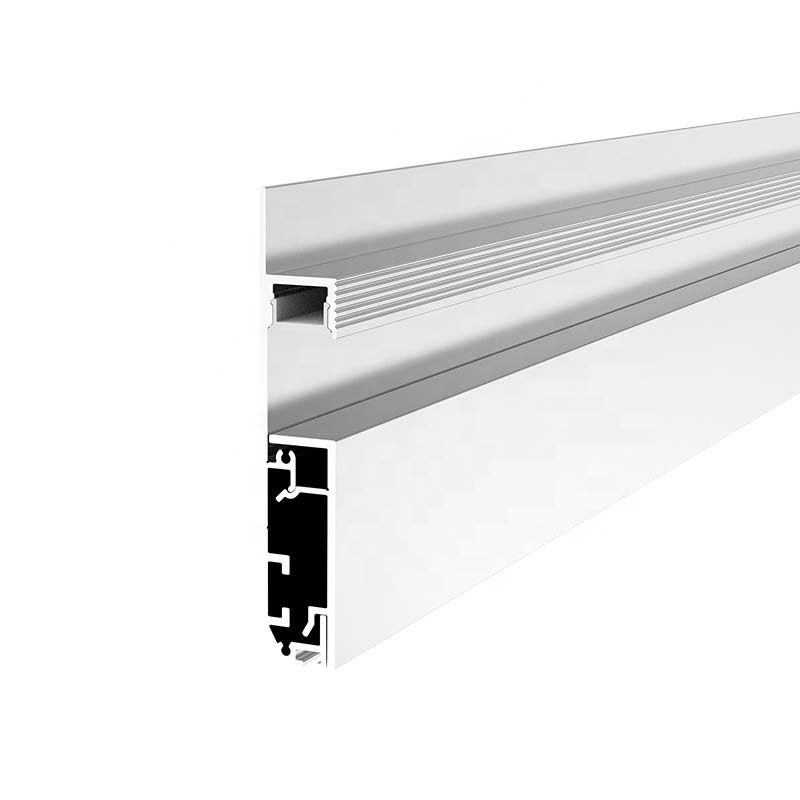

The SK1580TR LED light channels are designed for baseboard lighting. It provides soft, glare-free indirect illumination that enhances residential and commercial spaces. Three lighting space products are available: 5mm, 10mm, and 18mm, to offer flexibility for different design effects. Ideal for installation in drywall to create a seamless, flush finish that integrates perfectly with modern interiors. Perfect for hallways, living rooms, hotels, offices, and retail environments, it adds both safety and decorative accent lighting. The inner width is 10.5mm, allowing a maximum strip light width of 10mm. It is easy to add LED lights to the LED skirting board, and the aluminum channels can be used as heat sinks to improve heat dissipation and extend the lifespan of the LED lights. The floor edge lighting channel is made of 6063-T5 extruded aluminum with an anodized surface finish for oxidation resistance and a longer lifespan. There is only one type of diffuser available: the PC diffused cover, made of brand-stable, anti-yellowing material, with perfect lighting distribution that helps evenly distribute light, reducing harsh shadows and glare. 90° vertical and 180° joiners are sold separately; you can use them for corner or straight connections. End caps with and without wire holes are included.
Specifications:
- Model: SK1580TR
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

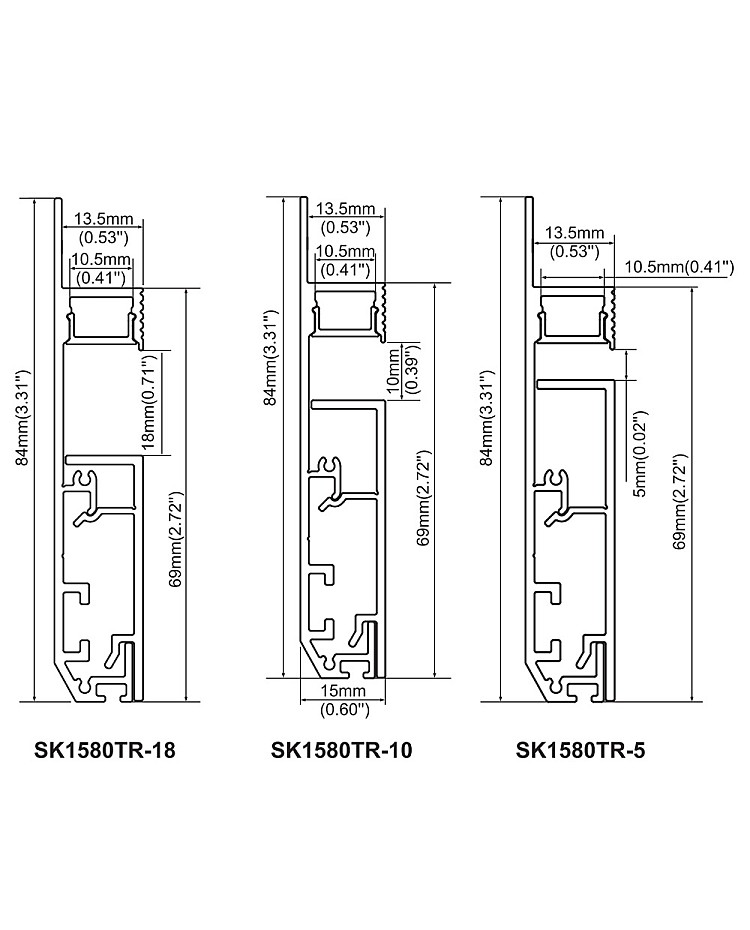

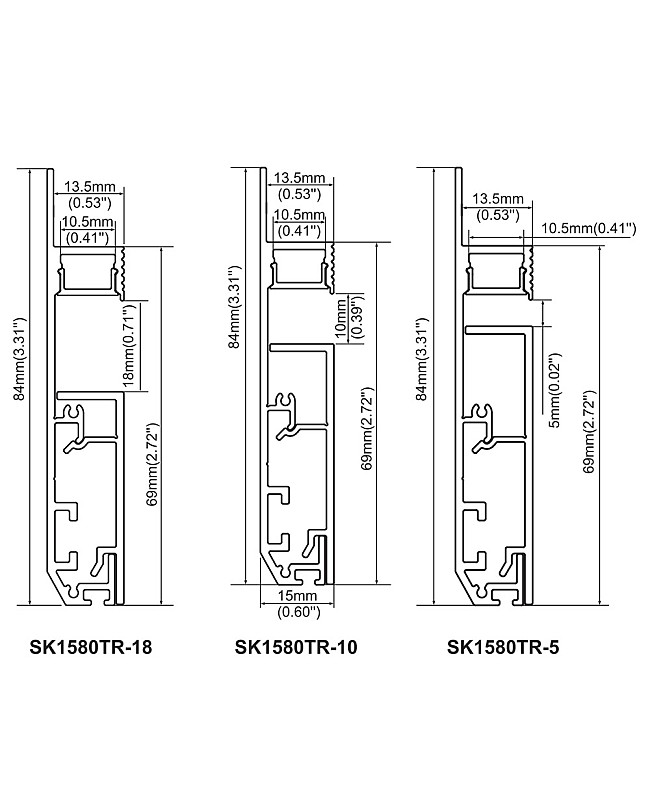

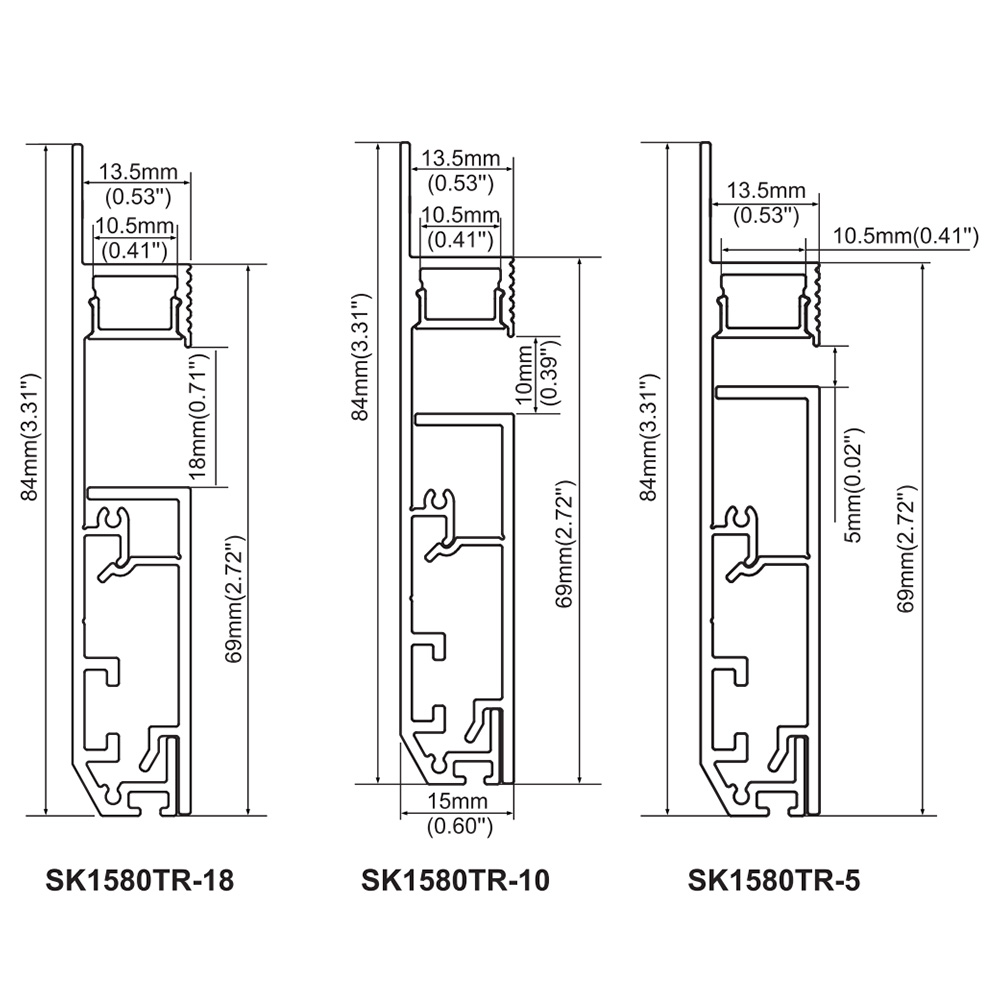

- Size ( W x H ): 84 mm x 15 mm ( 0.6" x 3.31" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10.5 mm ( 0.41" )
- Max width of strip lights: 10 mm ( 0.39" )
- Max power: 15W/m

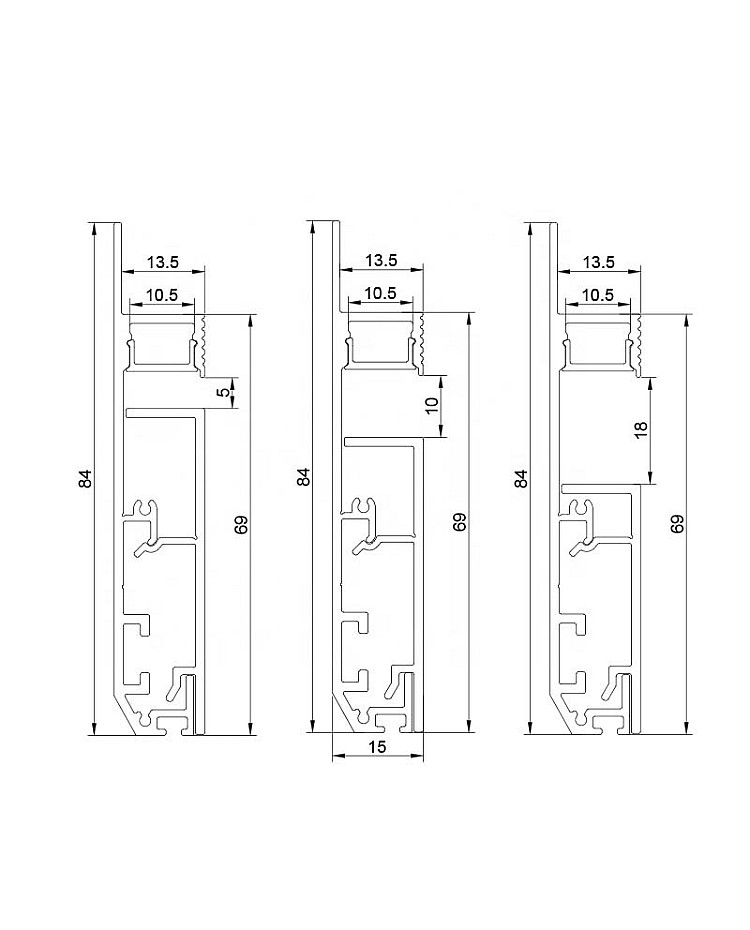

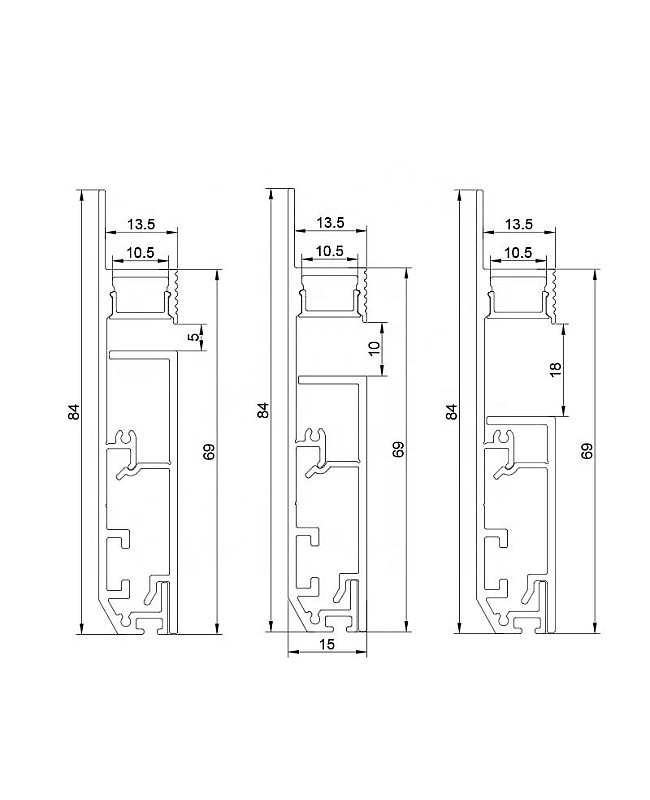

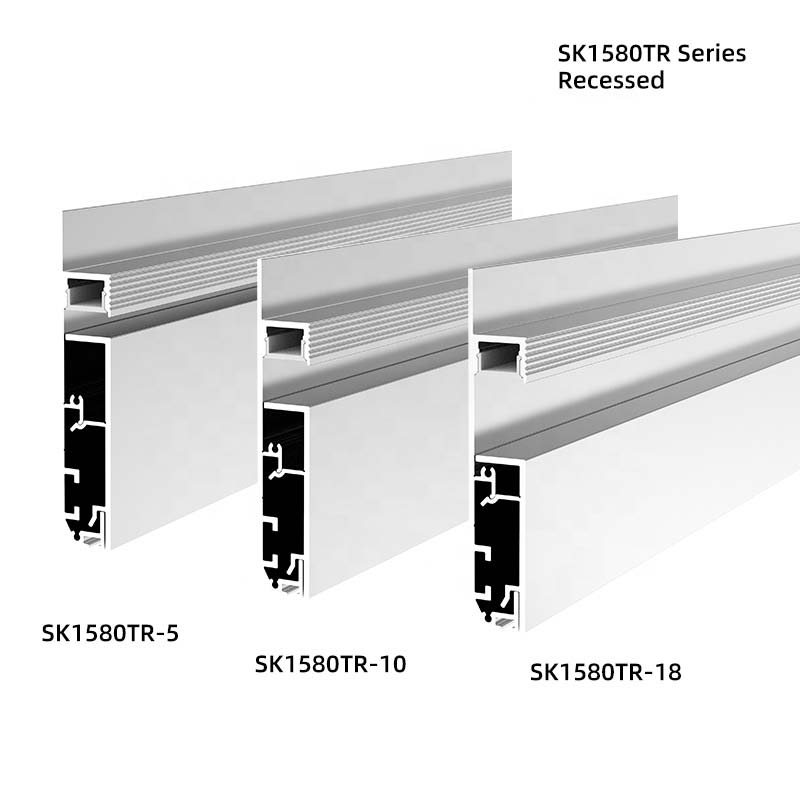

- Lighting space: 5 mm ( 0.02" ), 10 mm ( 0.39" ), 18 mm ( 0.71" )
- Diffusers: PC diffused cover
- Beam angle: 100°
- 90° vertical, and 180° connectors sold separately

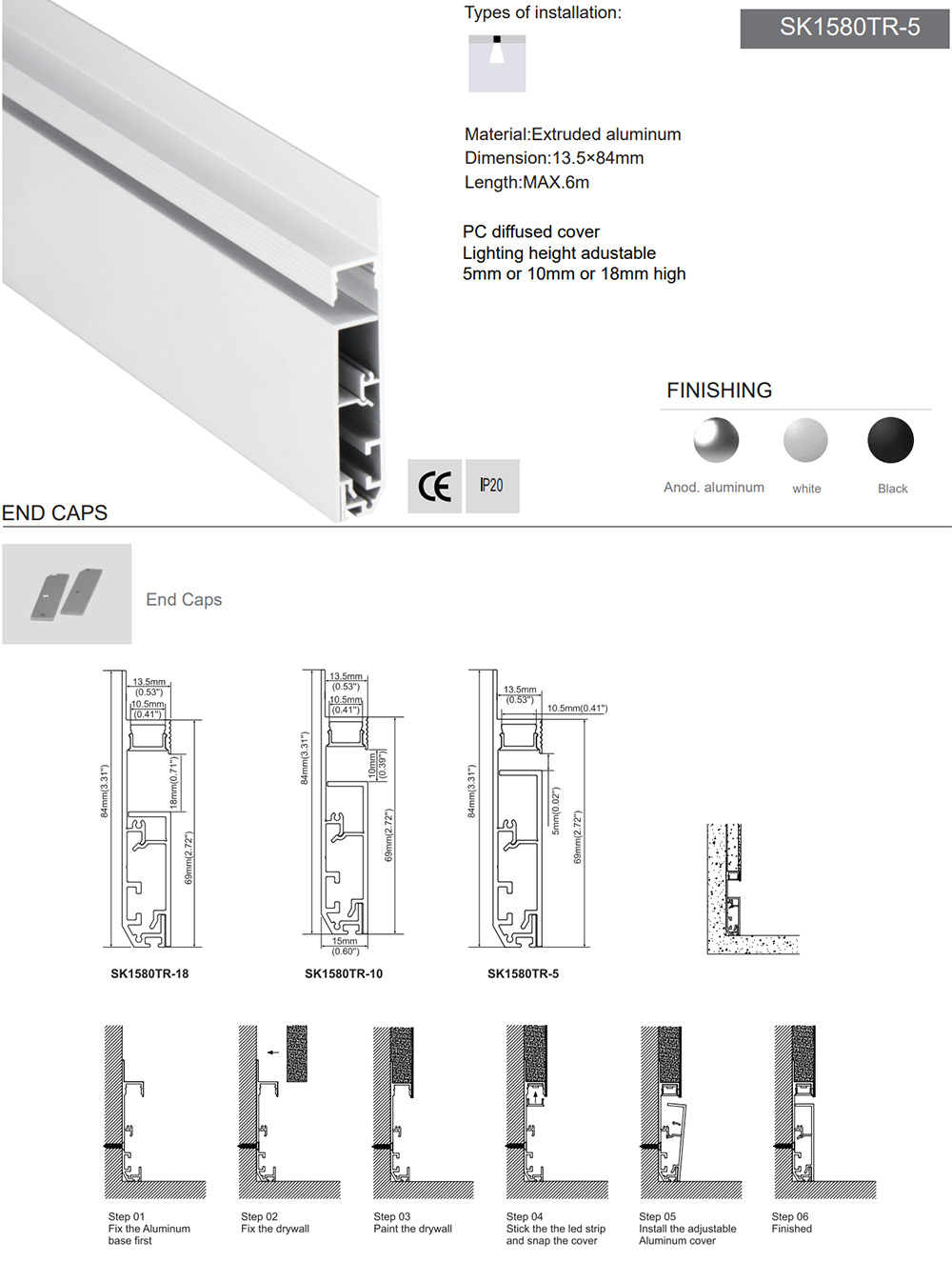

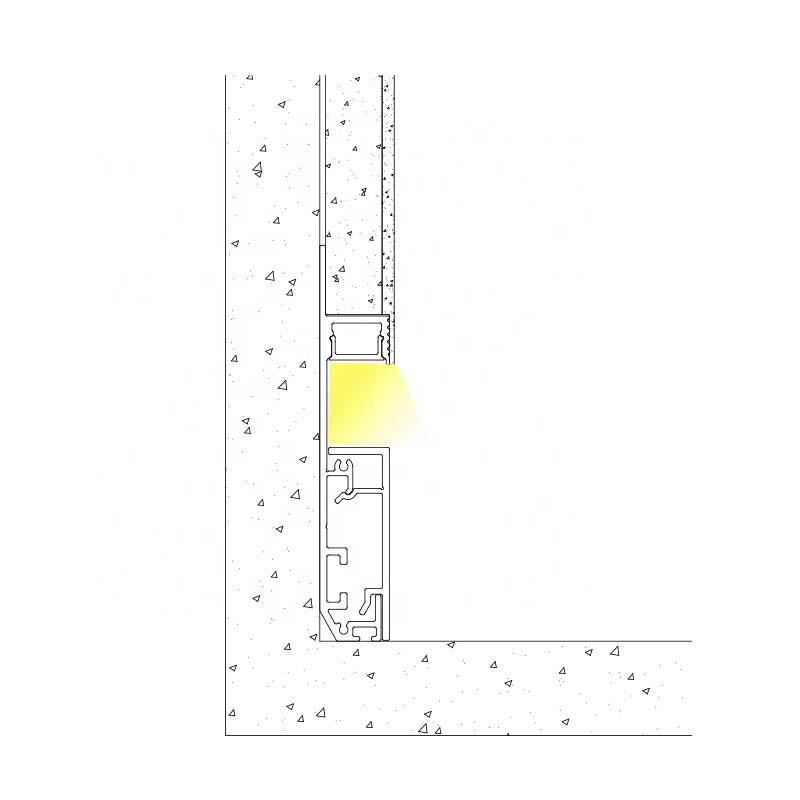

- Installation: Recessed
- End caps with and without wire holes are included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

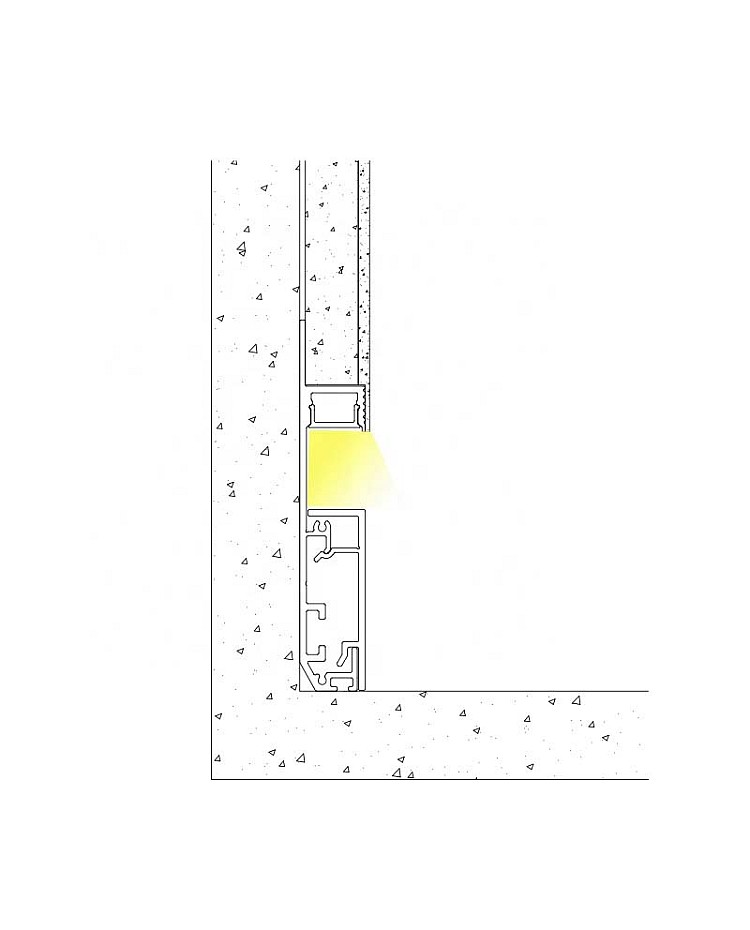

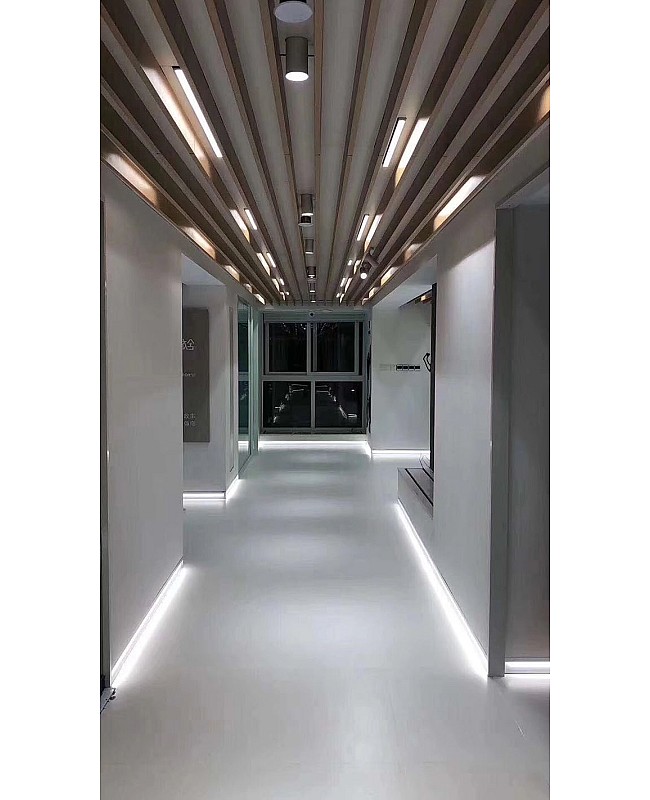

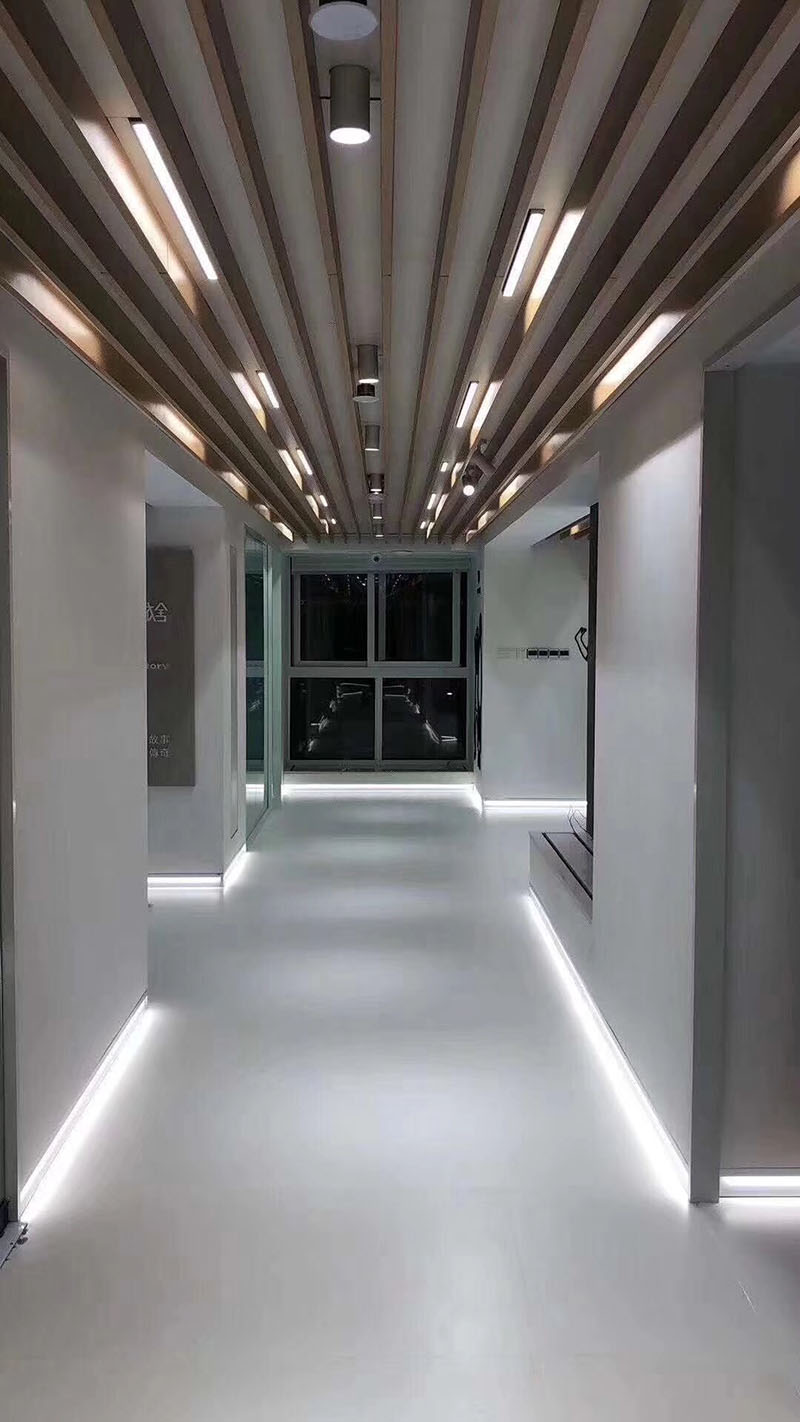

- Skirting & baseboard lighting: Installed along the bottom of the walls as recessed skirting boards to provide indirect floor-level illumination.
- Pathway and corridor lighting: Guide movement in hallways, staircases, and commercial spaces. Enhances safety in low-light environments.

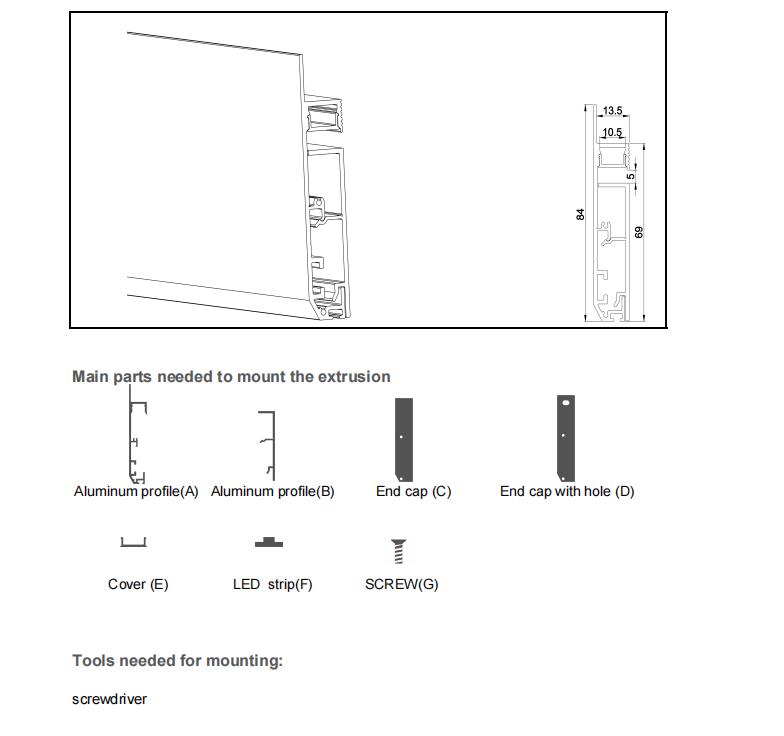

Includes:
1 * Baseboard LED lighting channel and diffuser
End caps ( With and without wire hole )
