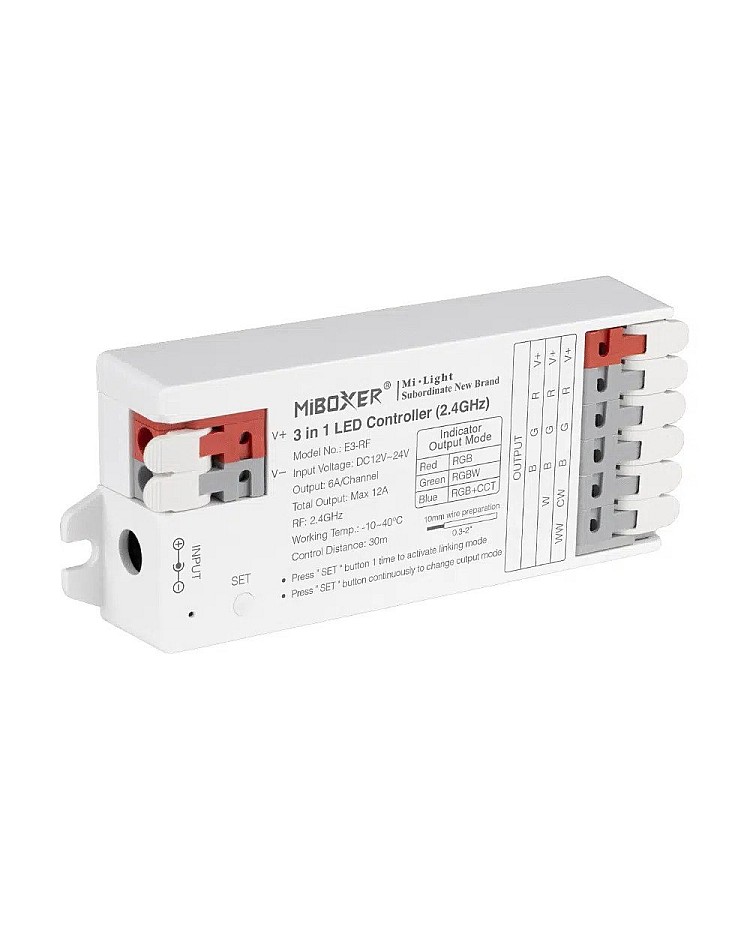

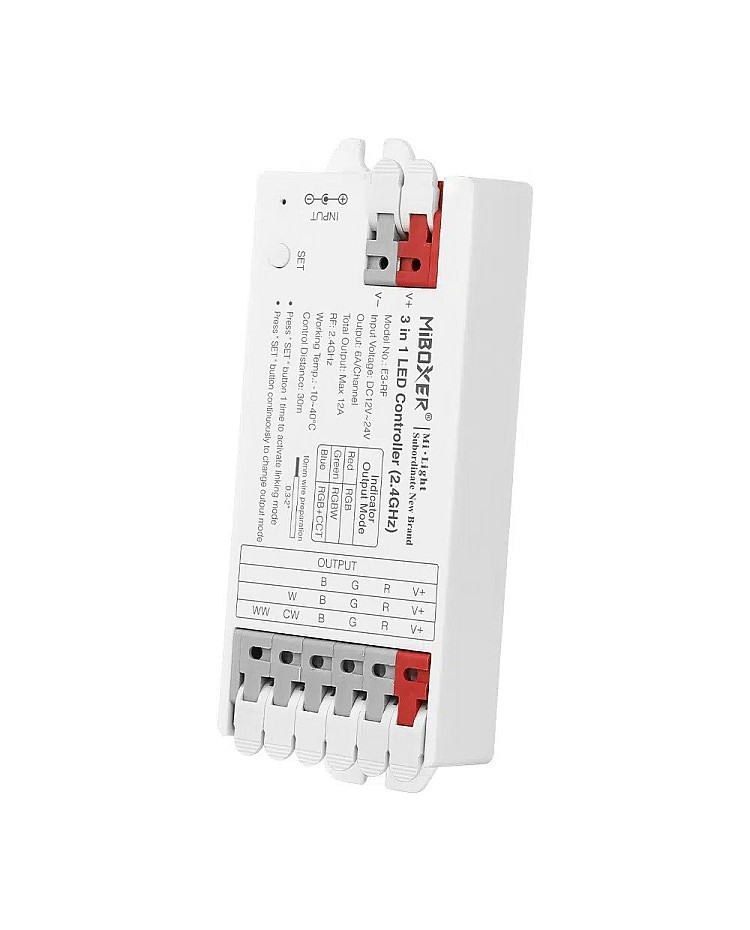

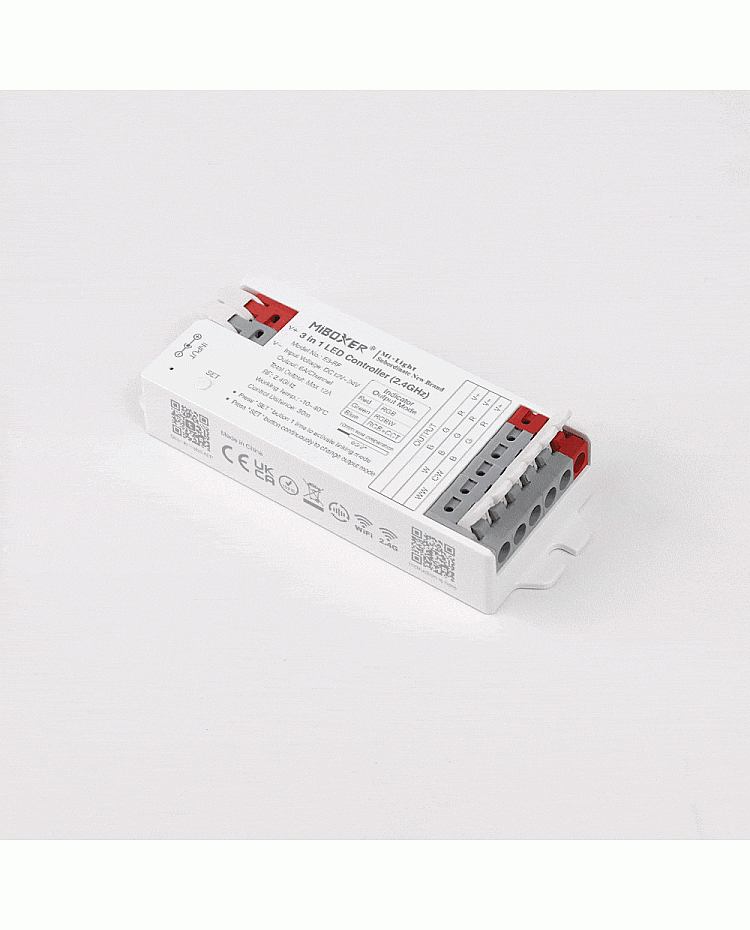

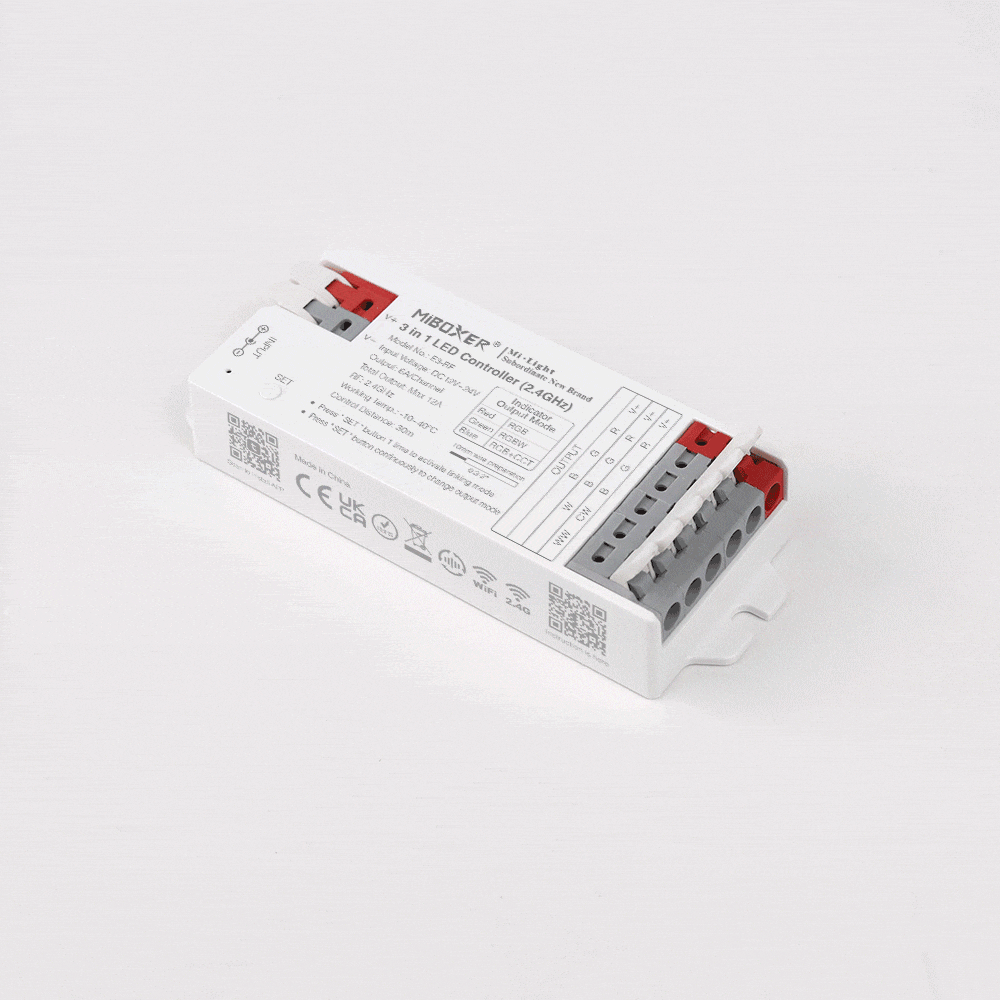

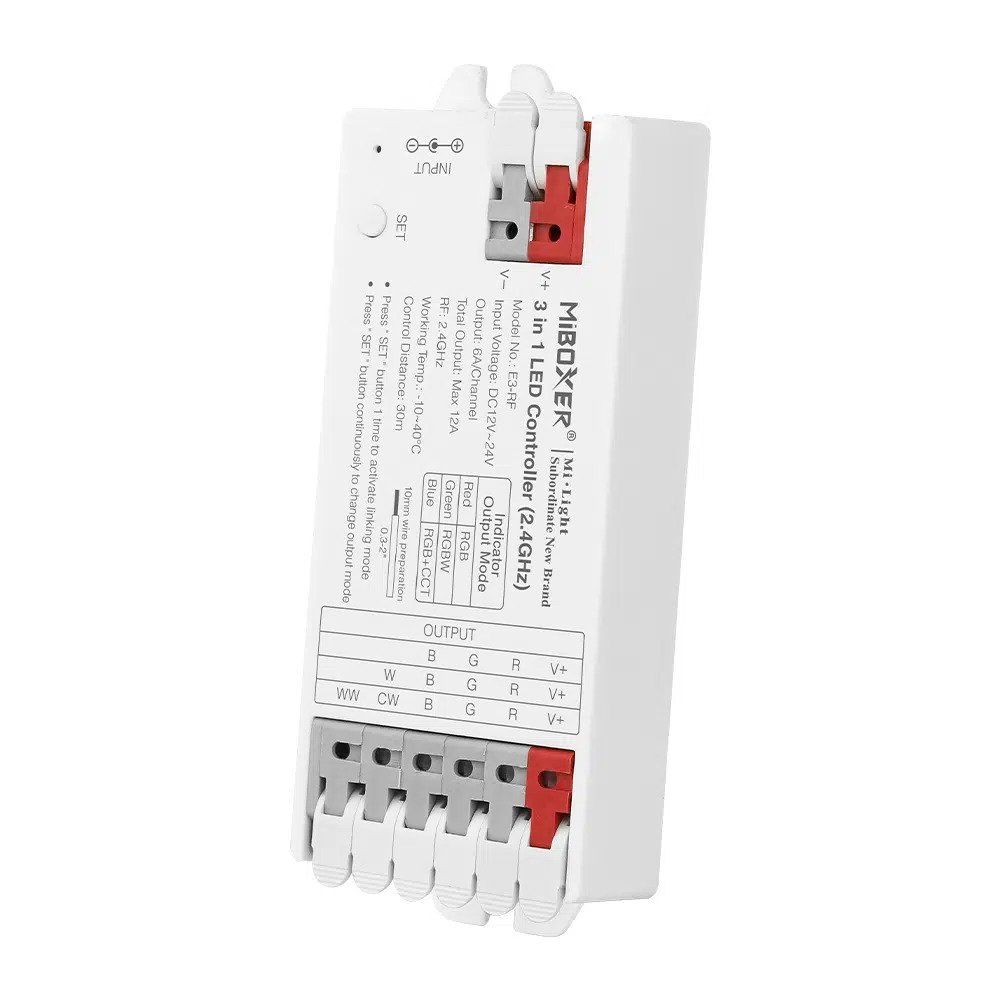

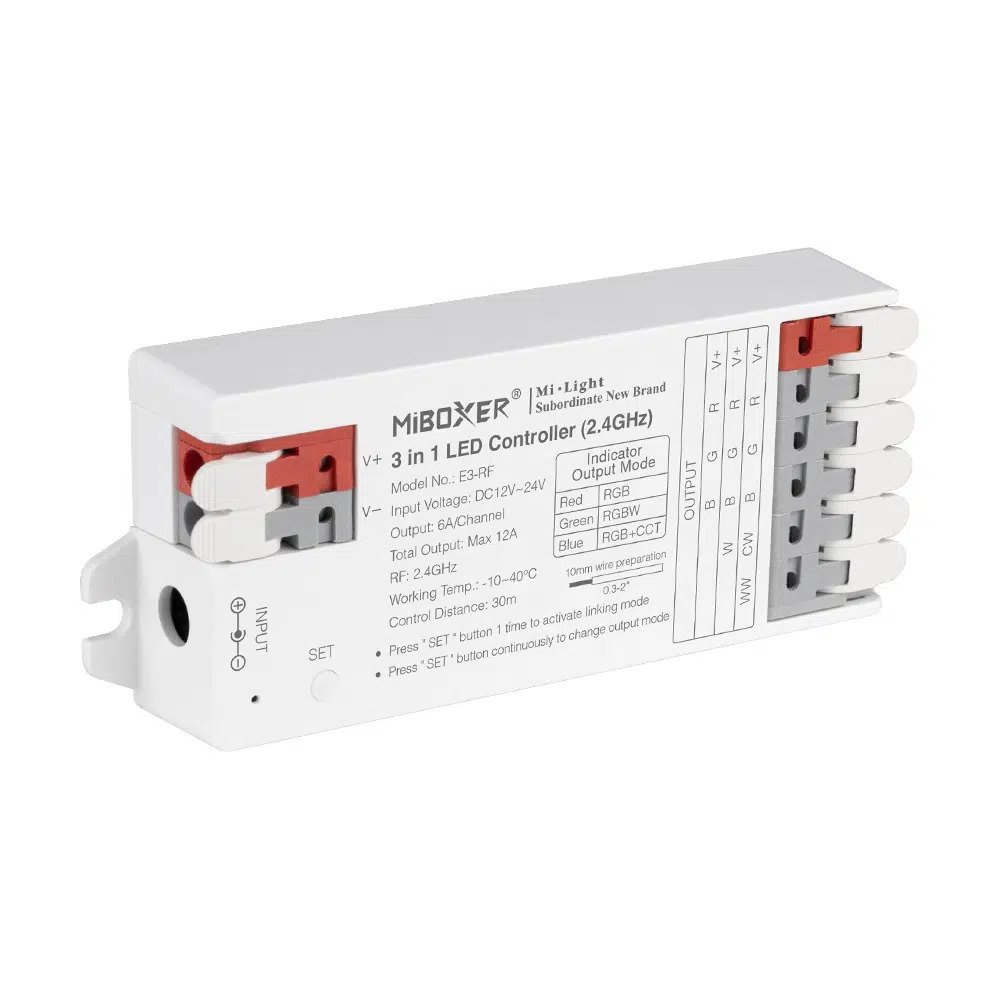

The MiBoxer E3-RF RGBW Wireless LED Controller with 3 in 1 design for RGB, RGBW, and RGB+CCT LED Lights. There is a " SET " on the controller; press it to switch the output mode conveniently. It can be controlled by RF Remote Controls, smartphone APP, and third-party voice commands to set the colors and adjust the color temperature, brightness, and saturation for various scenes. The wire terminals with instant wiring tool-free design, are super easy to connect to the power supply and LED Lights. The MiBoxer Wireless Light Controllers can transmit the signals from the Remote Control to another Controller LED Strip RGB within 30 meters, and different controllers can work synchronously. After pairing to a 2.4GHz Light Gateway, the E3 RF can be controlled by a smartphone APP and third-party voice commands and can work with Amazon Alexa and Google Assistant.
Features:
- Type: 3 In 1 Wireless LED Controller For RGB, RGBW, RGBWW
- Model: E3-RF
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: DC12-24V
- Output: 6A/Channel
- Total Output: 12A Max
- 16 Million Colors To Choose
- Color Temperature Adjustable
- Brightness Adjustable
- Saturation Adjustable
- RF: 2.4GHz
- 2.4G RF Remote Control: FUT100, FUT089S, FUT089, FUT089-B, FUT088, FUT092, FUT092-B, FUT096, FUT096-B, B8, B0, B0-B, B4, B4-B, T4, B3, B3-B, T3, S2-B, S2-W, S2-G, FUTD01
- Control Distance: ≤30m
- Switching 3 Output Mode(RGB, RGBW, RGB+CCT) Via One Button
- Auto Signal Transmitting And Modes Synchronization
- High Frequency(16KHz) / Low Frequency(250Hz) Can Be Switched
- Support Smartphone APP Control And Third-party Voice Control(2.4G Gateway Needed)
- Can Work With Amazon Alexa And Google Assistant
- Support DMX512 Controllable(Only for RGB+CCT Output Mode, DMX512 LED Transmitter Needed)
- Output Connection: Common Anode
- Instant Wiring Tool-free
- Two Port Interfaces: Wiring Ports, DC5.5*2.1mm
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- 2 Years Warranty
Includes:
1*E3 RF RGBWW LED Controller
1*User Manual
