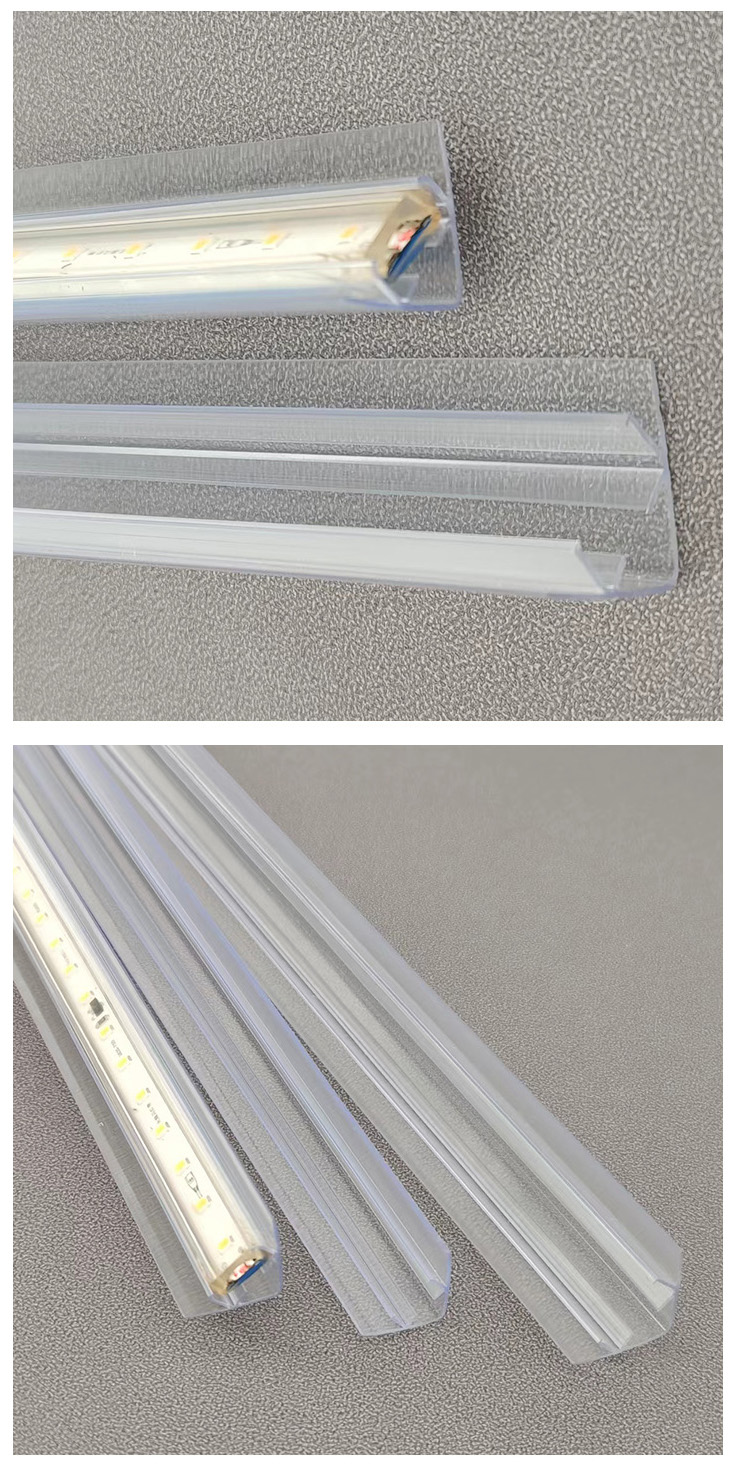

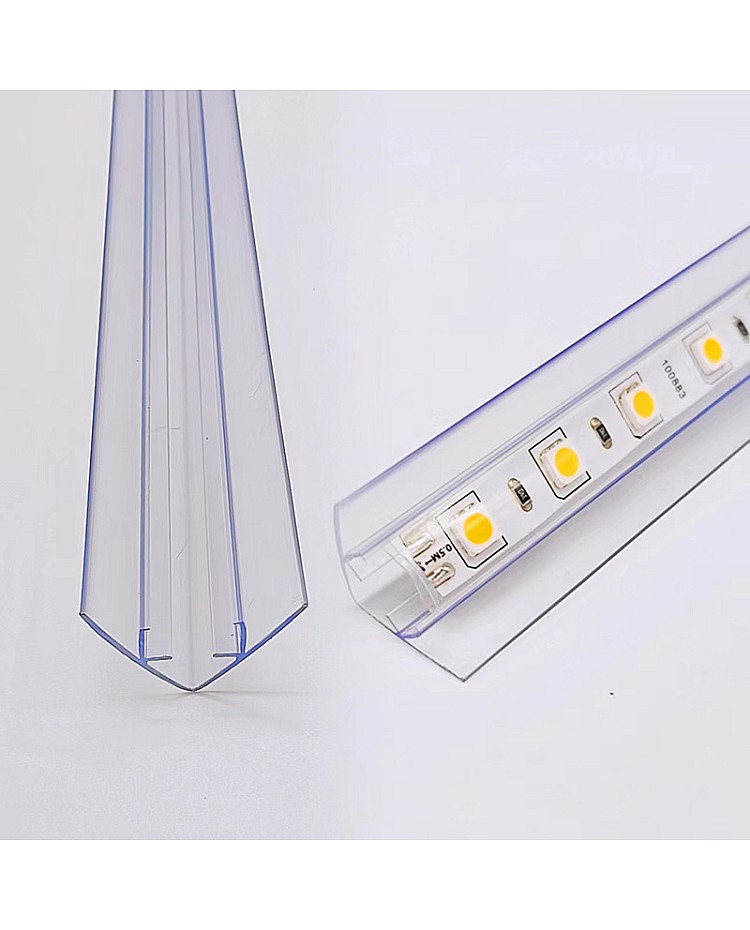

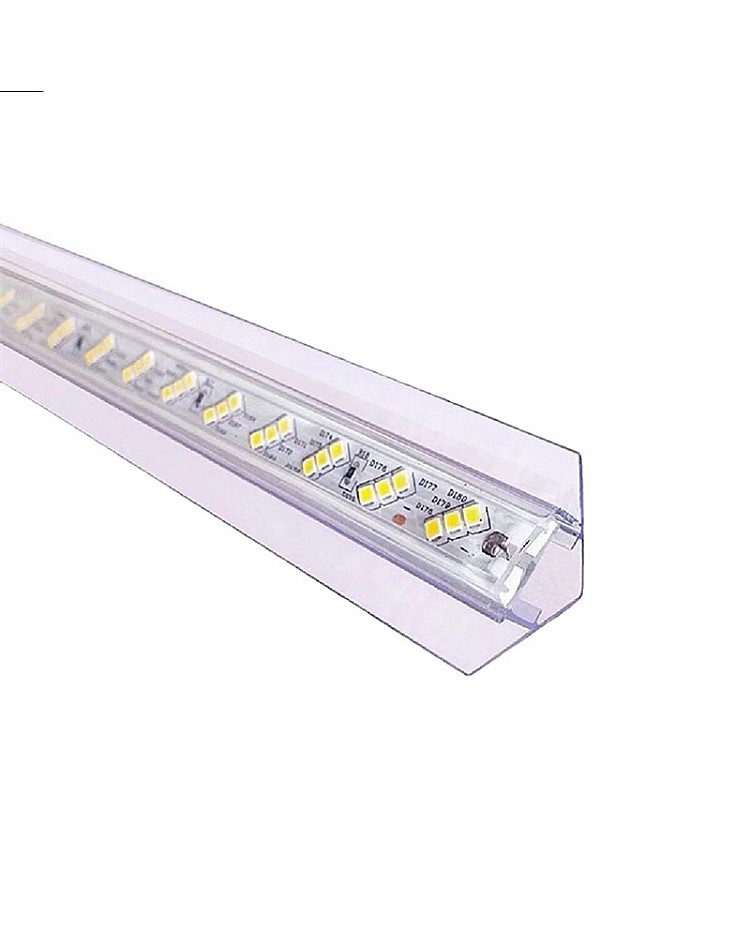

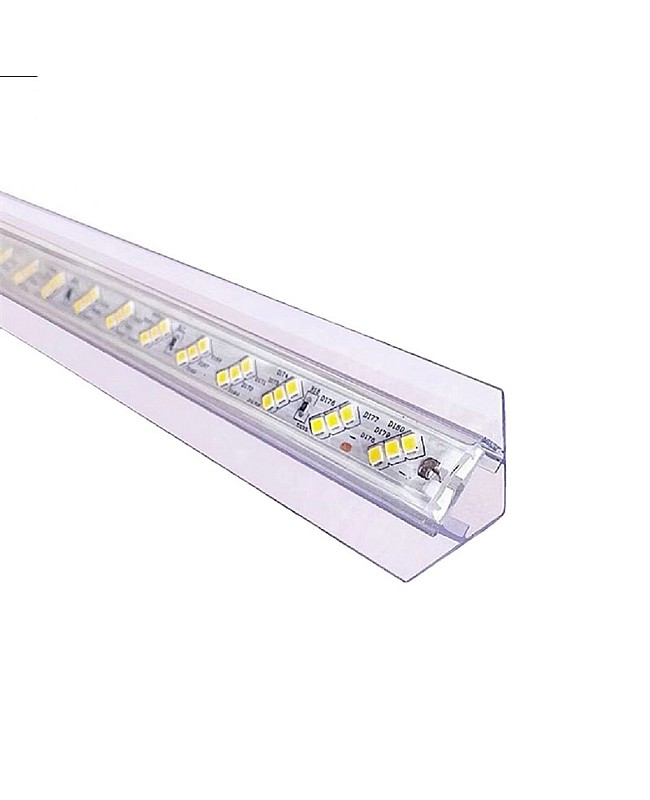

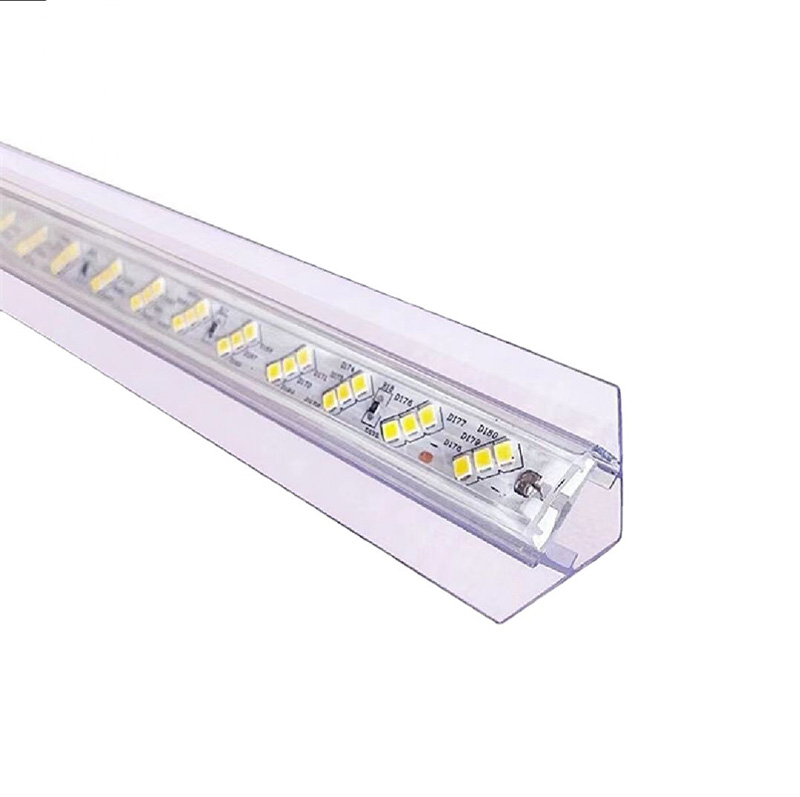

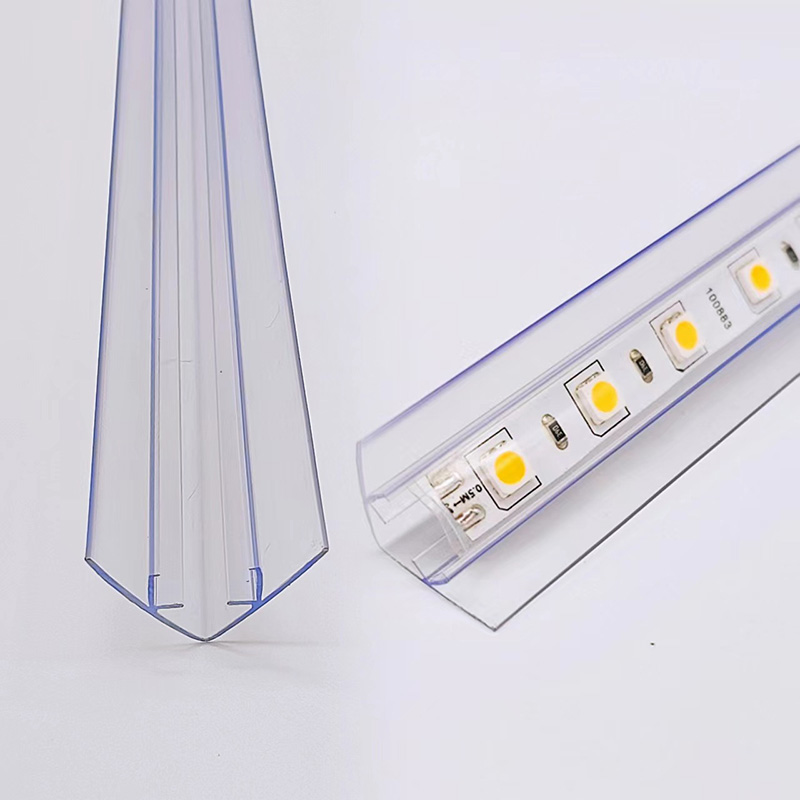

The plastic LED strip channels feature a 45-degree V-shaped design that perfectly fits corners, edges, and angled surfaces, providing a smooth, continuous lighting effect. Low-profile design blends seamlessly into modern interiors, kitchens, cabinets, staircases, and accent lighting. They offer a cost-effective and straightforward solution that enables you to add a clean, diffused light effect. The plastic LED strip channels are made from high-quality PVC material, which is lightweight, durable, and long-lasting. The V-shaped design enables easy installation in both indoor and outdoor corner areas. The standard length is 1 meter and 2 meters per piece, and it is easy to cut to the desired length. Four types of corner LED profiles are available: PLC-18, PLC-14, PLC-12, and PLC-13. The PLC-13 PVC channels are designed for use with bare-board and surface-coated waterproof LED strips, allowing you to mount them directly on the channels and use them indoors. The PLC-18, PLC-14, and PLC-12 feature a slot design that enables the mounting of IP67 and IP68 waterproof LED strips for both indoor and outdoor applications.
Specifications:
- Type: Plastic LED strip channels
- Material: PVC
- Shape: V
- Color: Transparent

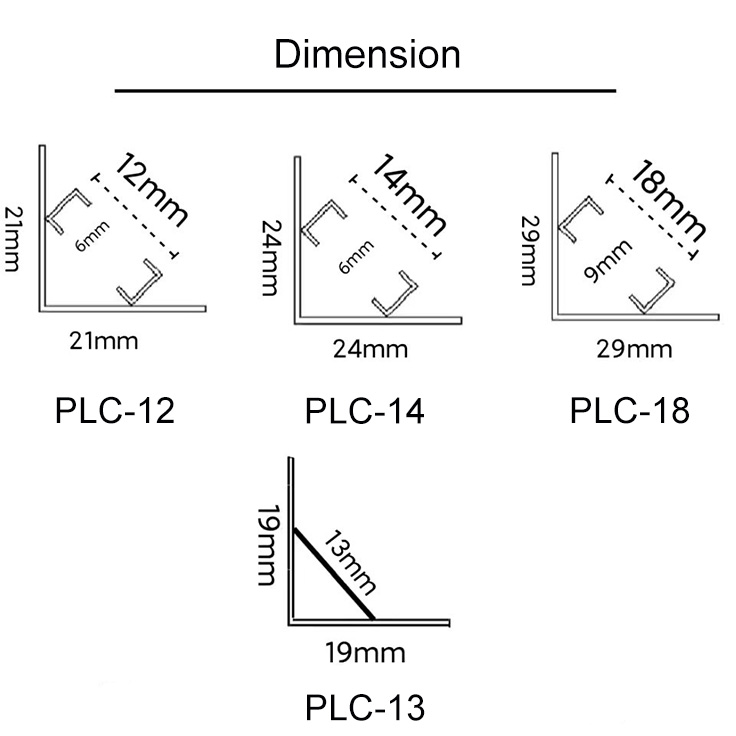

- Models: PLC-18 / PLC-14 / PLC-12 / PLC-13

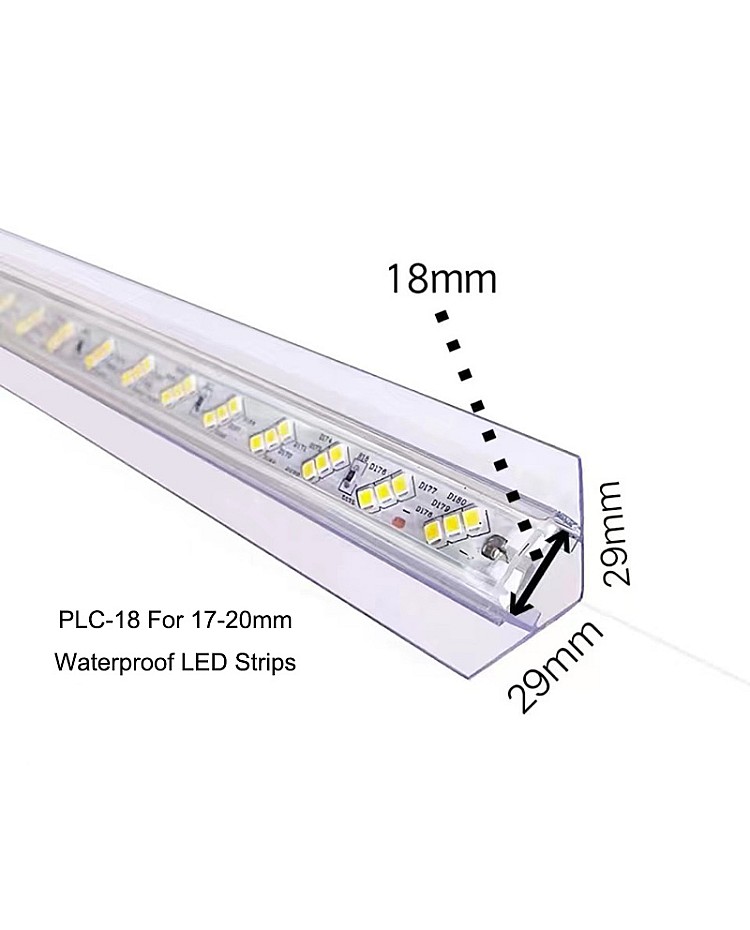

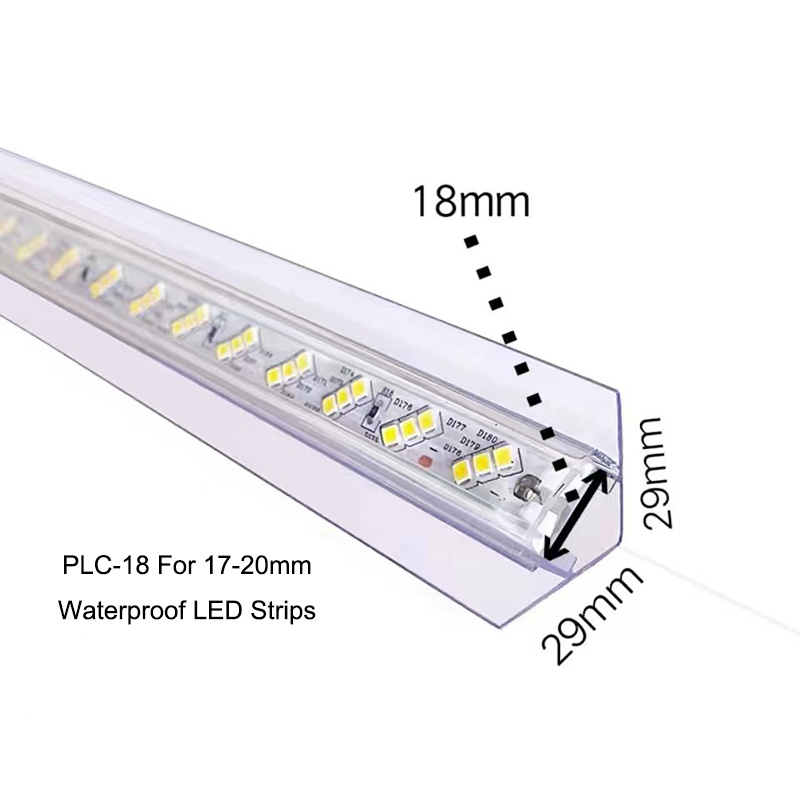

- PLC-18 For 17-20mm IP67 & IP68 waterproof LED strips

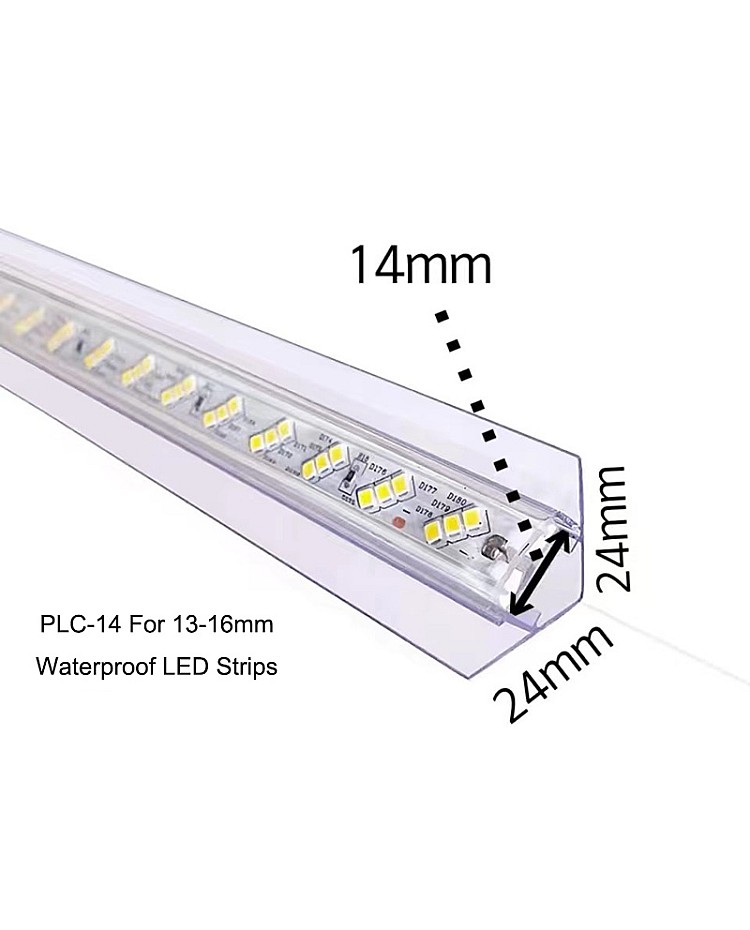

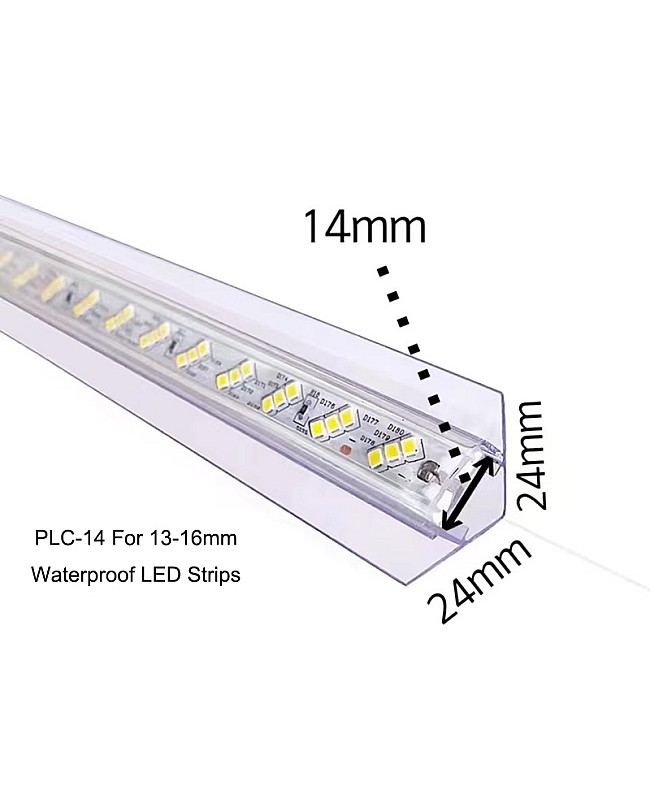

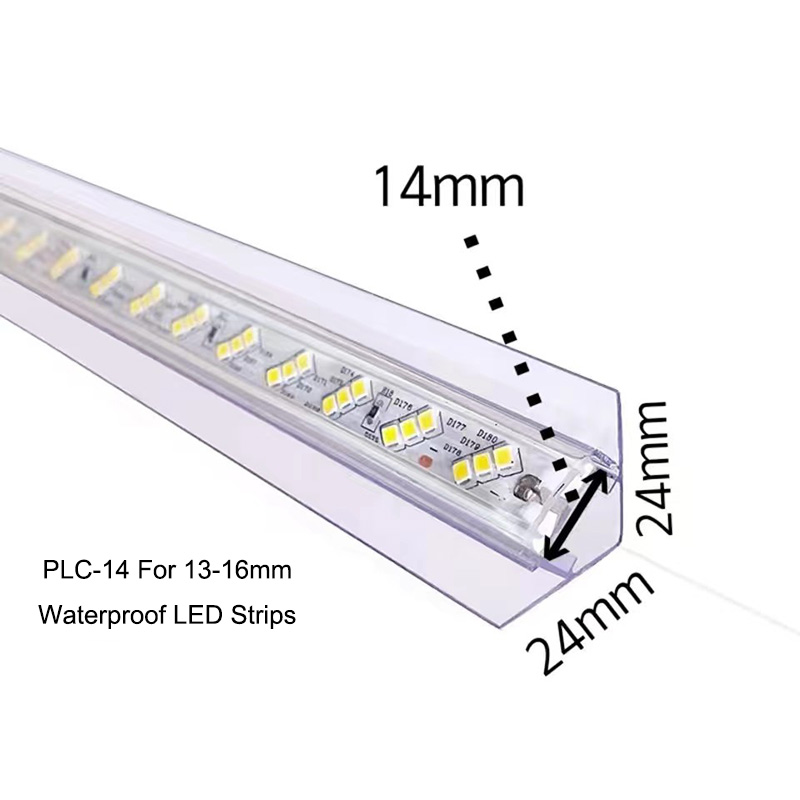

- PLC-14 For 13-16mm IP67 & IP68 waterproof LED strips

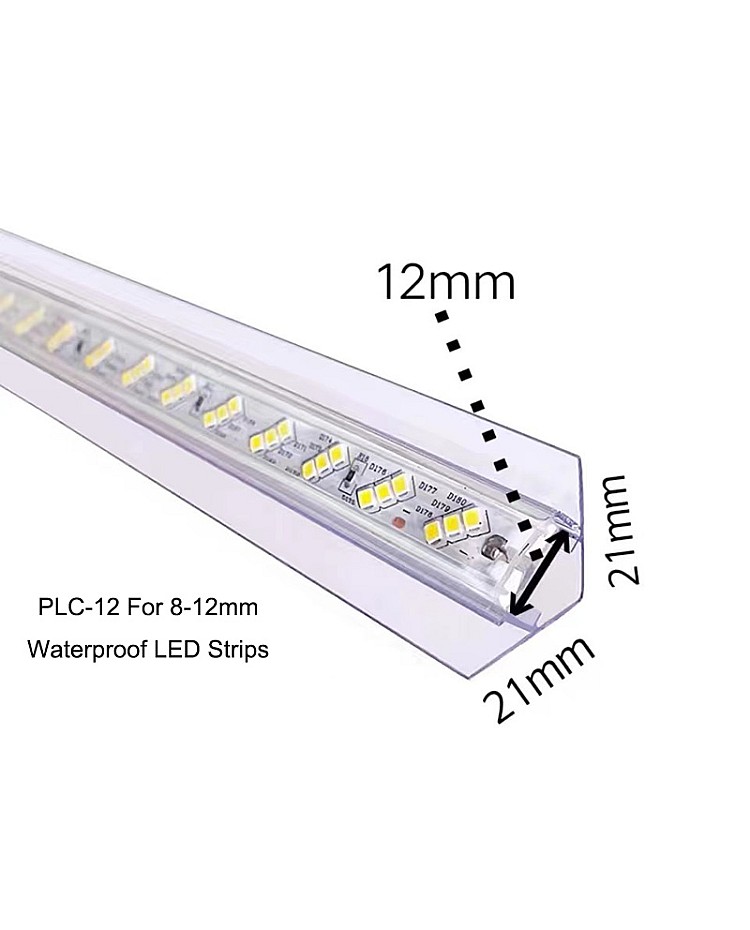

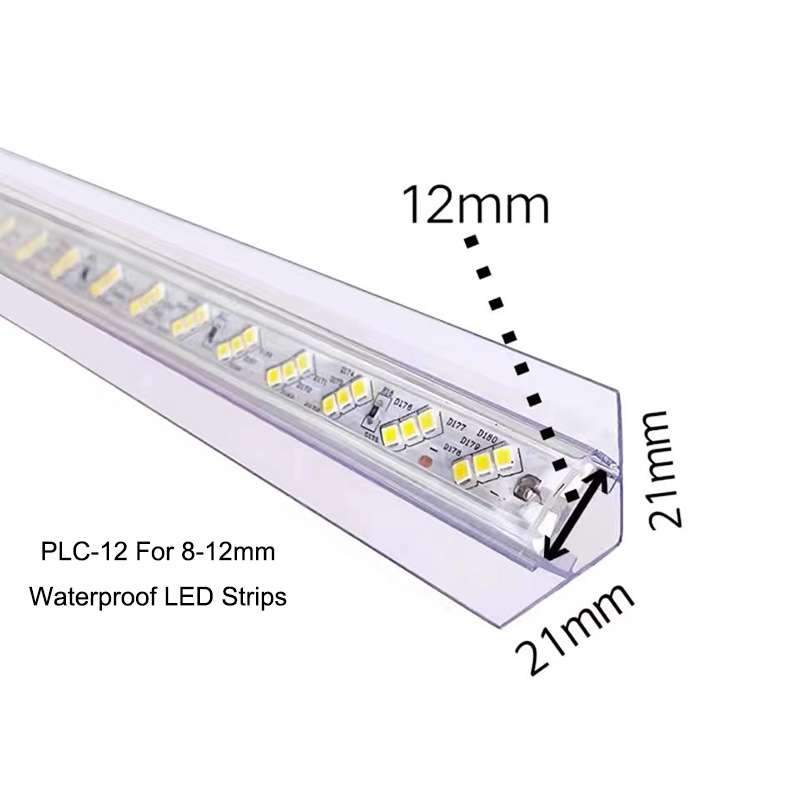

- PLC-12 For 8-12mm IP67 & IP68 weatherproof LED strips

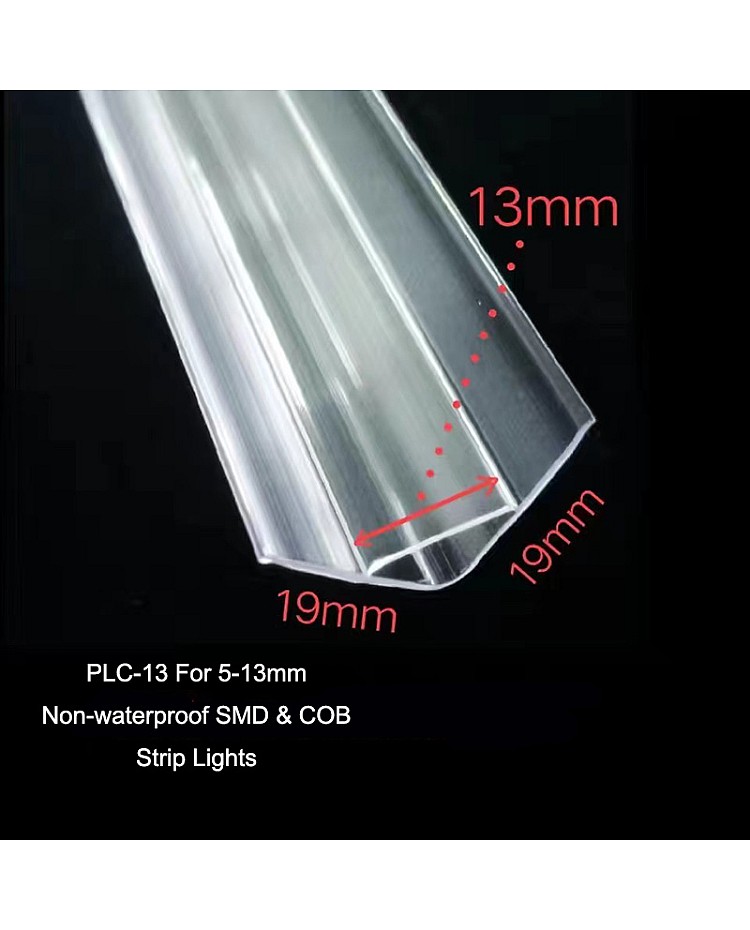

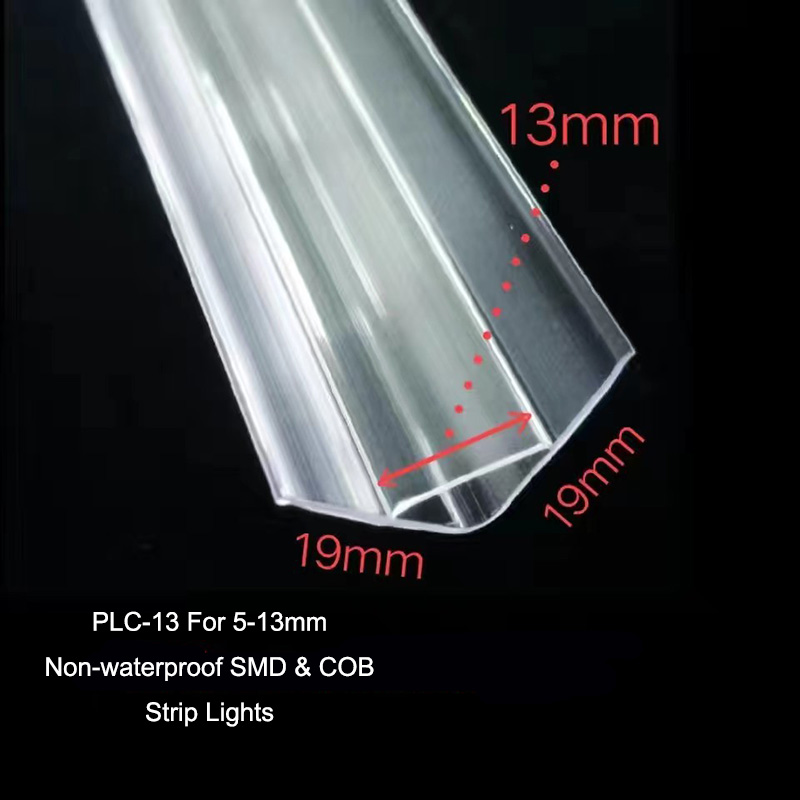

- PLC-13 For 5-13mm bare-board or surface-coated SMD & COB strip lights
- Length: 1M(39"), 2M(78")
- Installation: Screw-on, adhesive
Applications:
- Cove lighting
- Kitchen under-cabinet lighting
- Staircase & hallway accents
- Retail displays & architectural lighting
- DIY home & commercial projects
Includes:
1 * 45-degree plastic LED channel
