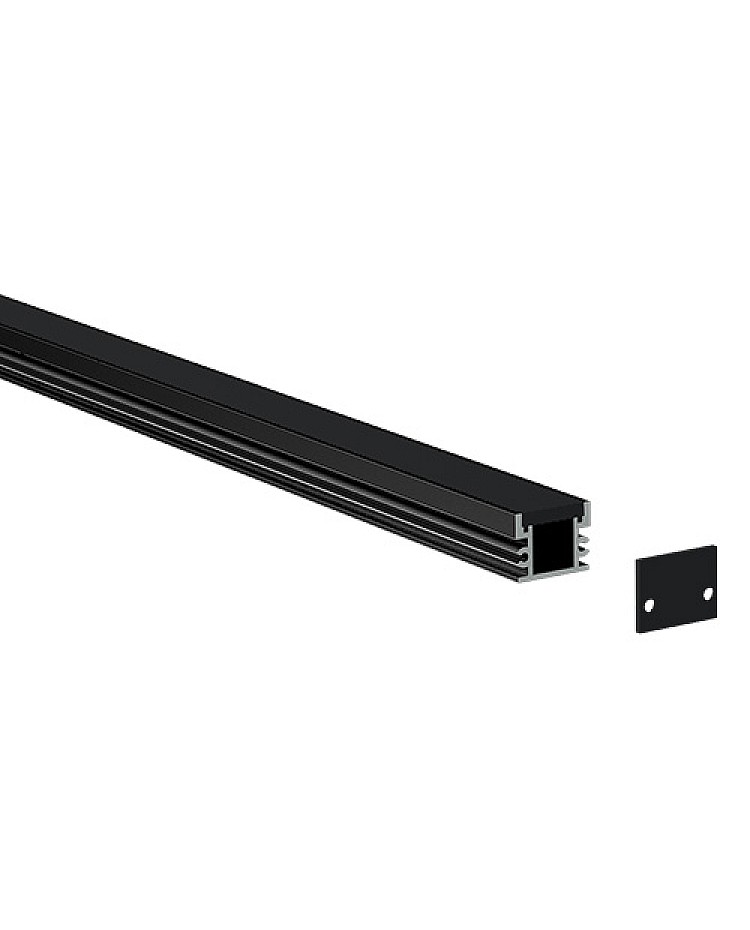

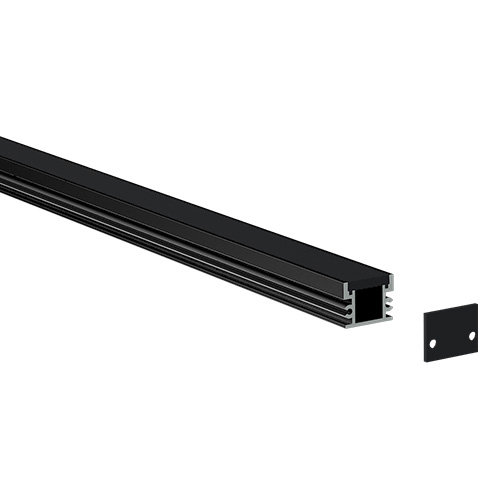

The black recessed floor LED channels are designed to provide a pleasing and warm lighting effect on the floor. They are perfect for creating a seamless, modern look while ensuring the lighting remains subtle and unobtrusive. The floor LED profiles are made of 6063-T5 aluminum alloy with a black anodized finish, providing oxidation resistance and a longer lifespan. The stock lengths are 1 m and 2 m per piece, and you can cut to any size required for your project. Two types of LED diffusers are available: PC semi-clear covers and black PC covers. These covers are made of imported, anti-yellowing material for perfect light distribution. The inner width of the black LED profile is 10.5mm, and we recommend installing 10mm high-density COB LED tapes as a light source to create seamless linear lighting with light dots. The end caps, with and without wire holes, are included, allowing them to connect easily to the light dimmers of the power supplies and enclose the low-profile LED channels.
Specifications:
- Type: Floor aluminum LED channels
- Model: 1814
- Material: 6063-T5 aluminum alloy
- Colors: Black

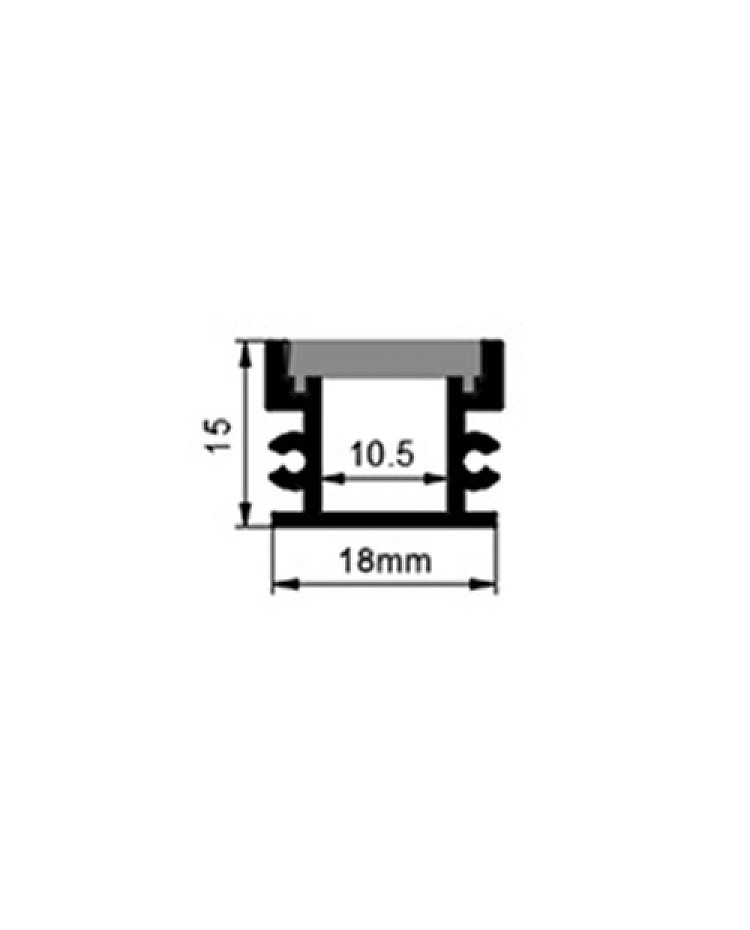

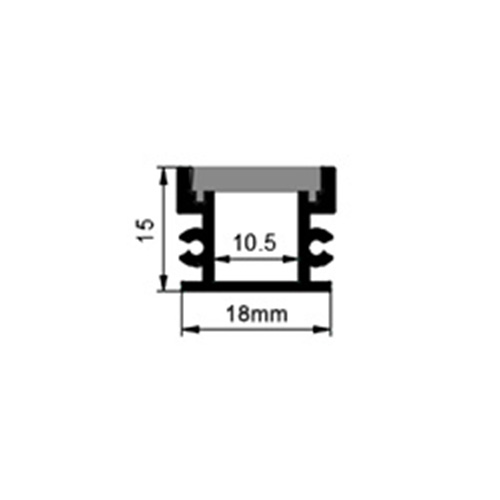

- Size ( W x H ) : 18 mm x 15 mm / 0.71" x 0.59"
- Inner width: 10.5 mm / 0.41"
- Maximum width of tape lights: 10 mm / 0.39"
- Maximum power: 15W/m
- Light diffusers available: Black PC diffusers
- Lengths available: 1 m ( 39" ) / 2 m ( 78" )
- Custom length available: YES
- IP rating: IP20 non-waterproof

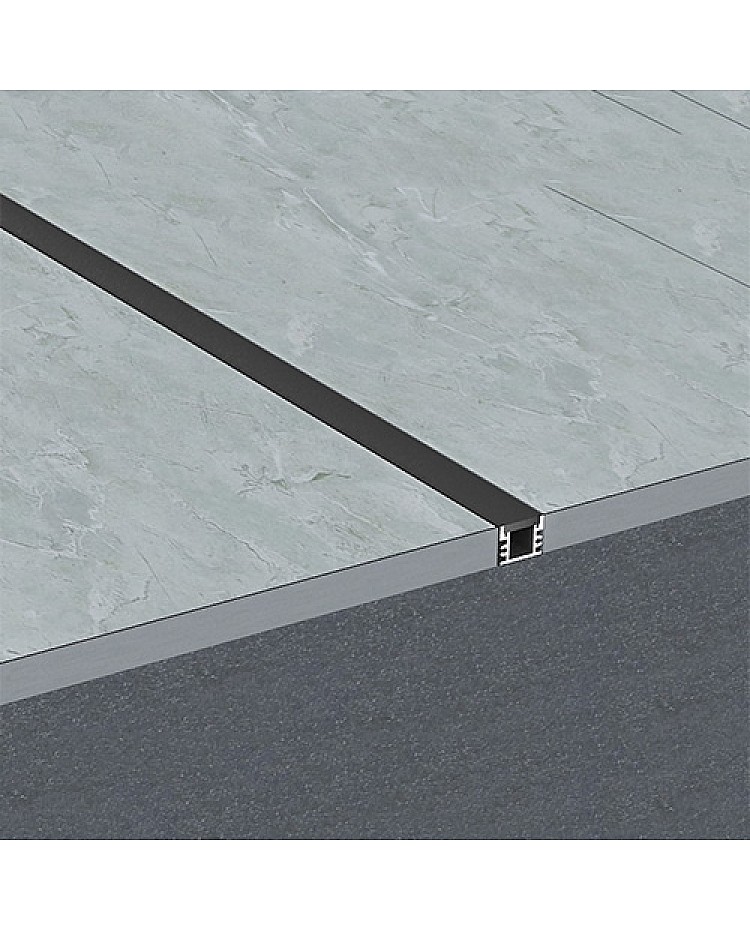

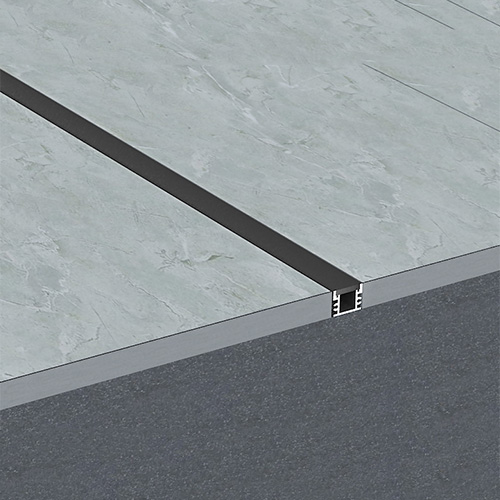

- Installation: Recessed

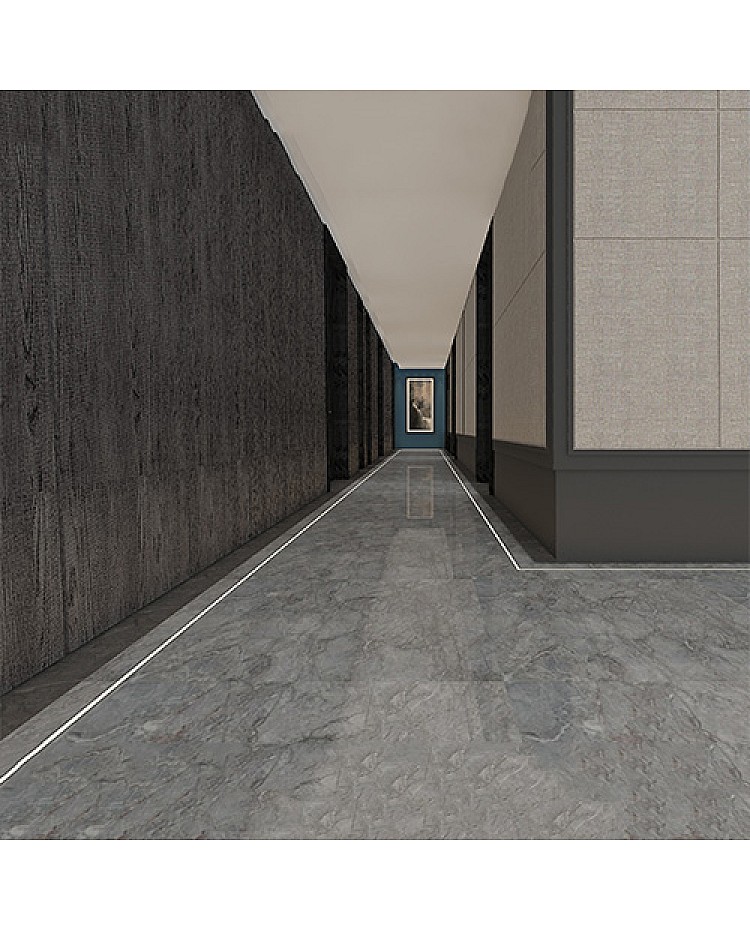

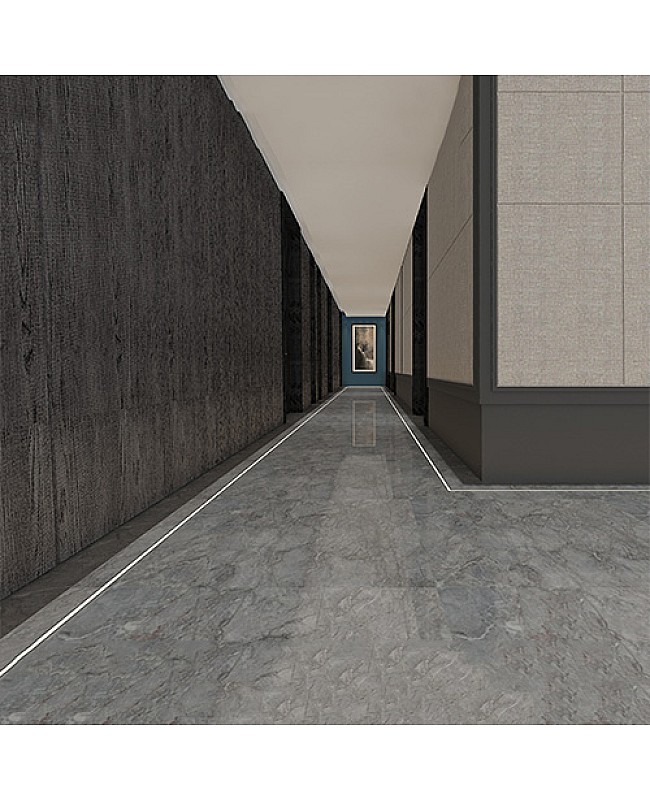

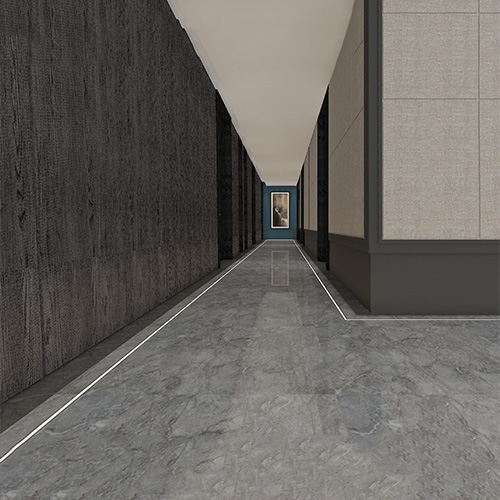

- Applications: Floor lighting
- Warranty: 5 years
Includes:
1 * Floor LED channel with diffuser
End caps(With and without wire hole)
