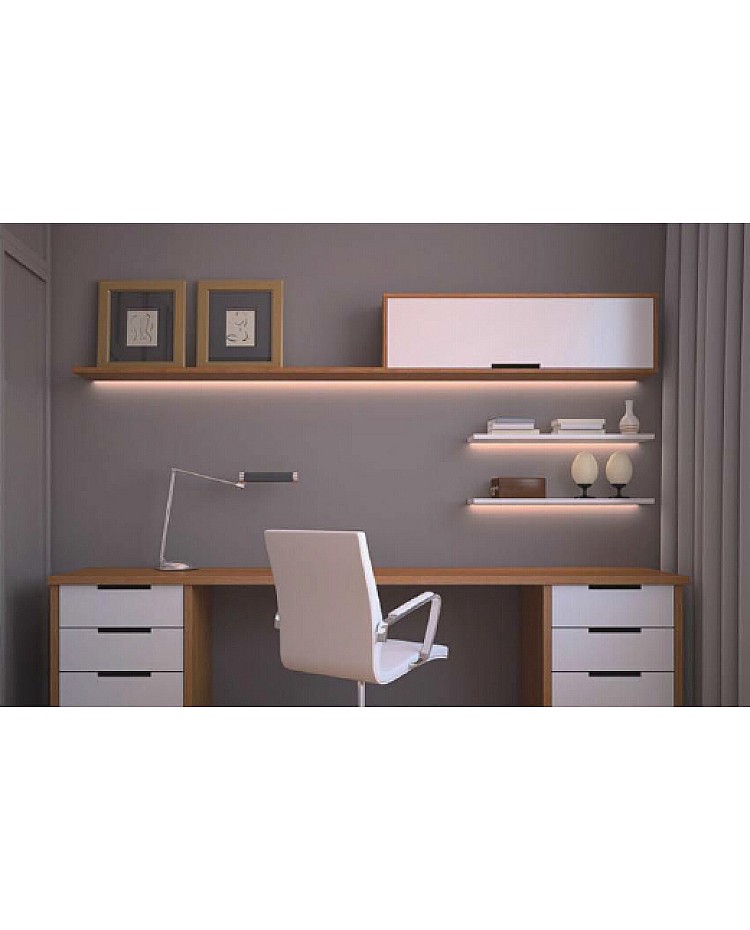

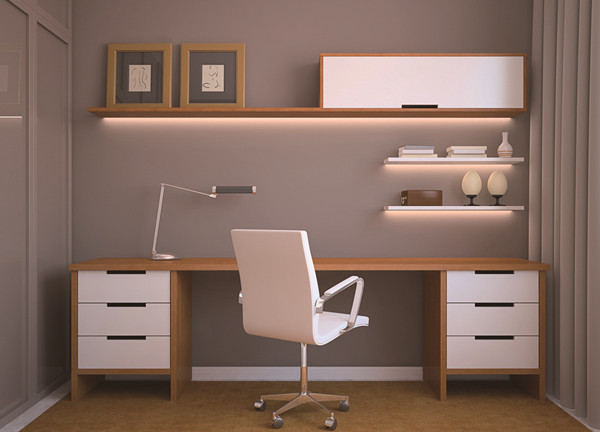

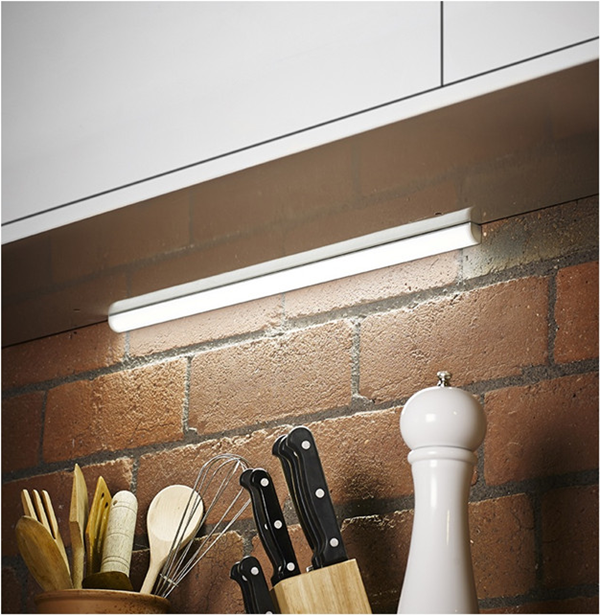

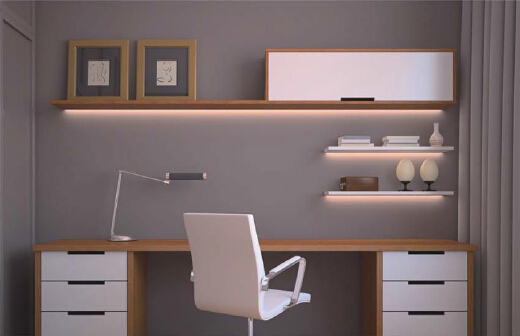

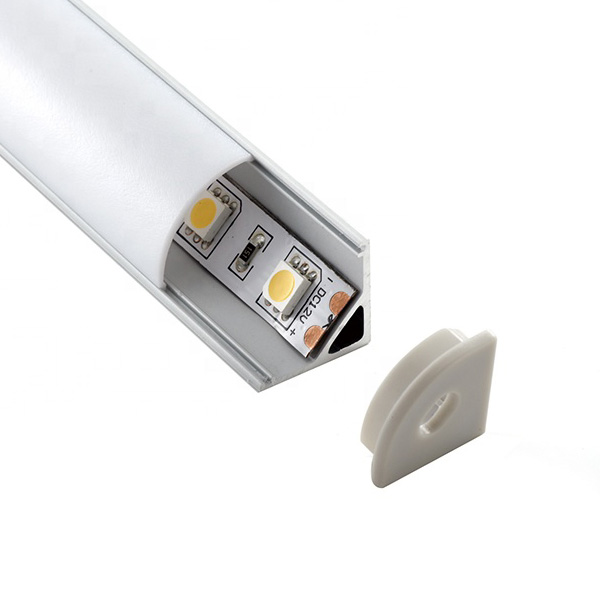

The corner-mount LED profile is an excellent choice for those seeking an efficient and attractive way to illuminate dark corners or wall/ceiling junctions. This product features a slim, sleek design with a 45° angle that fits snugly into inside corners and casts smooth, uniform light outward at the perfect angle. Ideal for under-cabinet lighting, shelving, display cases, kitchen counters, retail displays, furniture, home, and office setups.

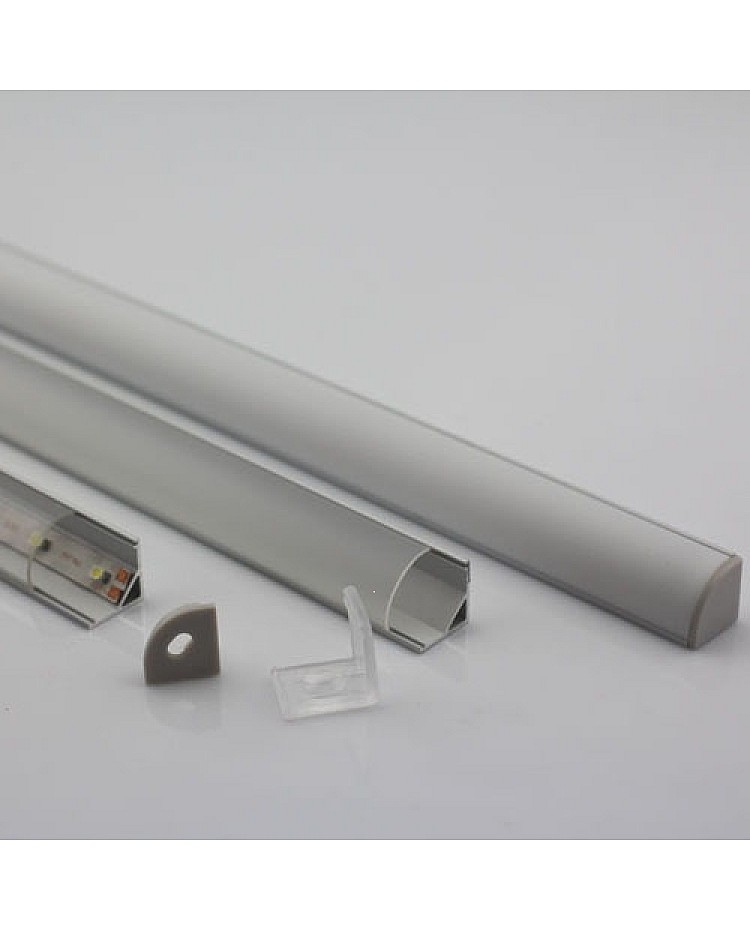

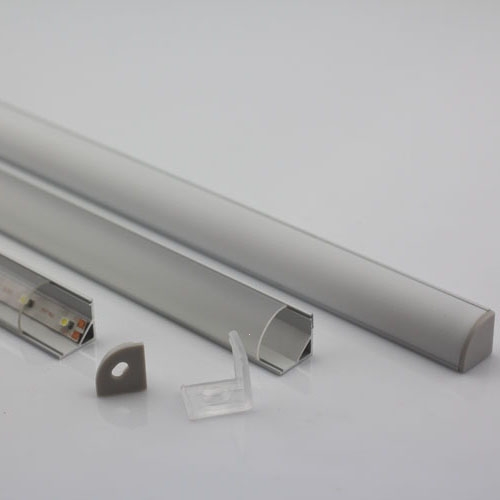

They are made of high-quality extruded aluminum alloy with an anodized or powder-coated surface finish for excellent corrosion resistance and a longer lifespan. The standard lengths are 1m and 2m, and custom lengths are supported. The inner width is 10mm, allowing a maximum LED light width of 10mm. You can add our high-density 10mm dimmable LED strips for indoor use or 8mm IP67 waterproof LED strips for outdoor use. The corner LED channels can serve as heat sinks, enhancing heat dissipation and extending the lifespan of strip lights while maintaining consistent performance.

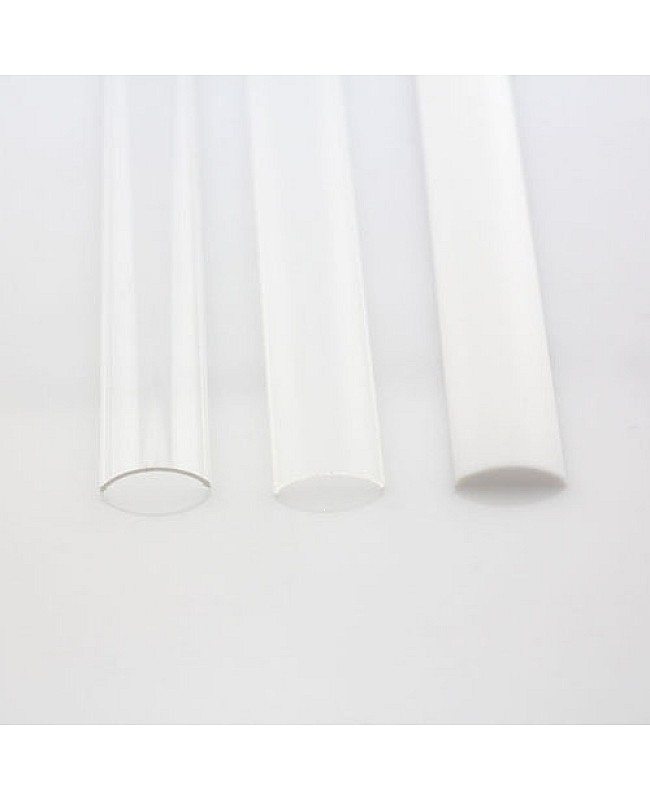

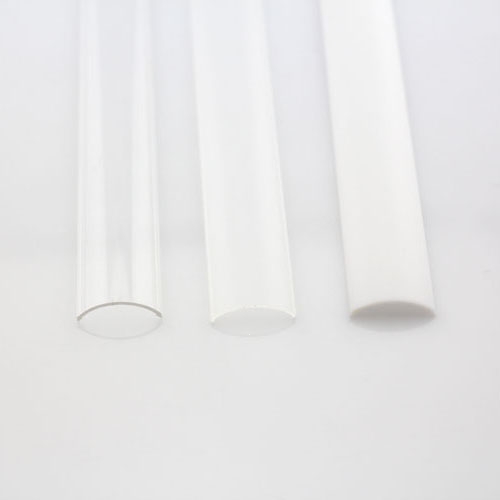

There are seven types of rounded diffusers available: PC and PMMA series. They are made of high-quality material with anti-yellowing properties, providing even light distribution, eliminating harsh shadows, and creating soft, comfortable illumination. The diffusers are round, which will enlarge the lighting area. You can pick them with various light transmittance levels to meet the brightness requirements of your projects.
Whether you're upgrading your kitchen, styling a display shelf, or adding warmth to your home, the V-shape angled LED profile delivers professional corner accent lighting with a clean, understated finish.

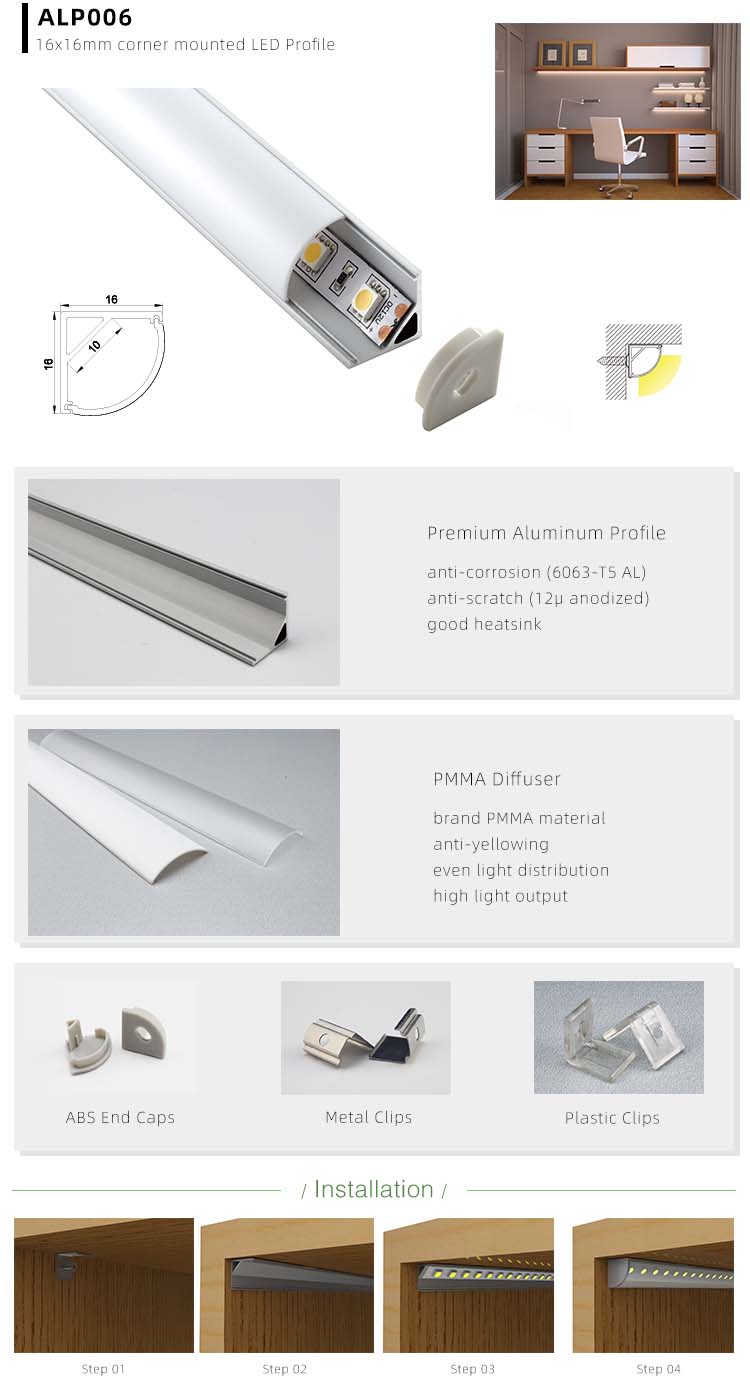

Specifications:
- Material: 6063-T5 aluminum alloy
- Surface treatment: Anodized, powder-coated
- Colors: Silver, white, black

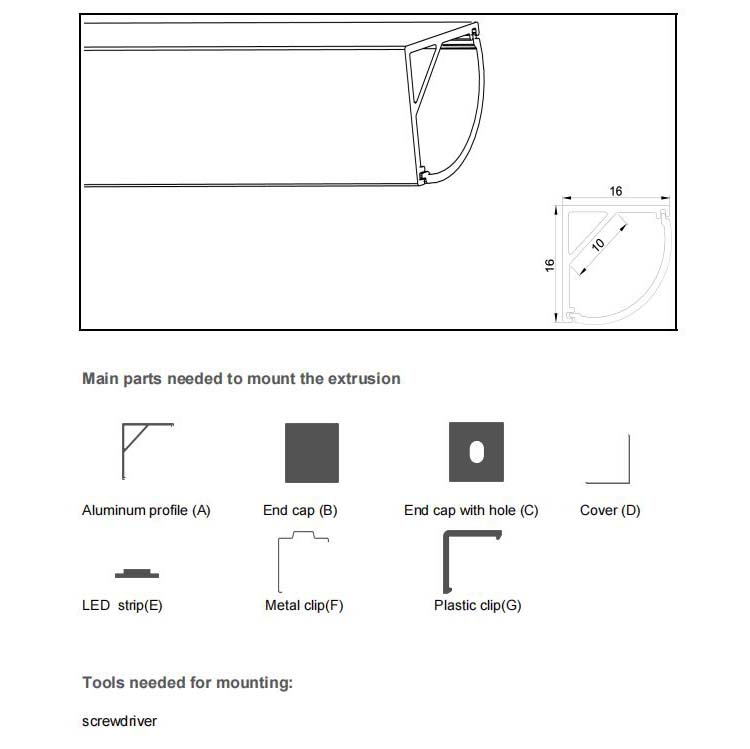

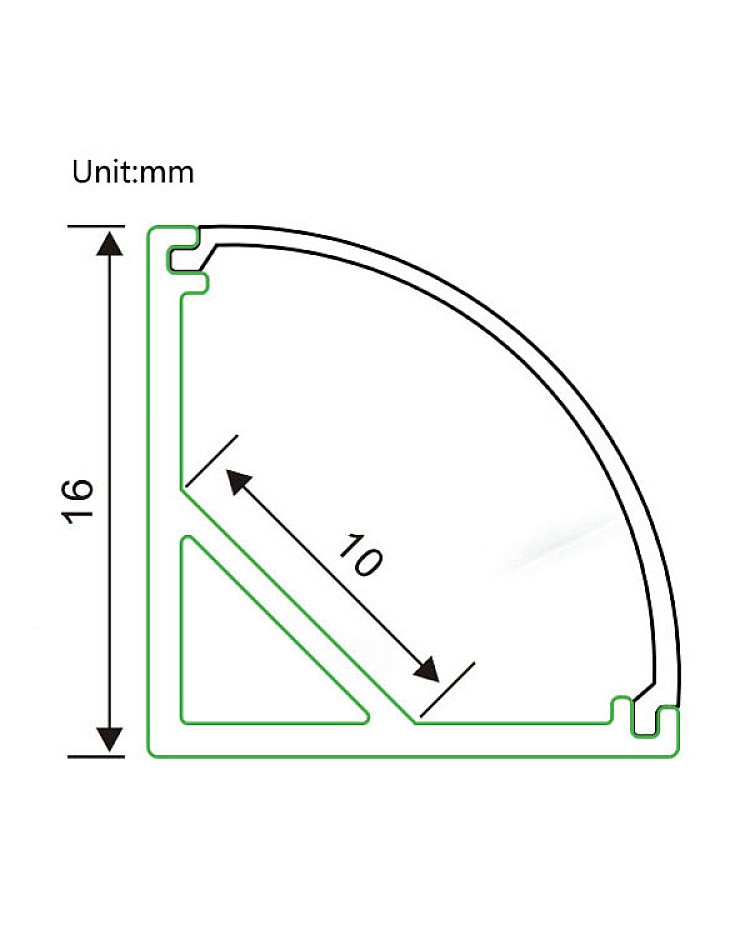

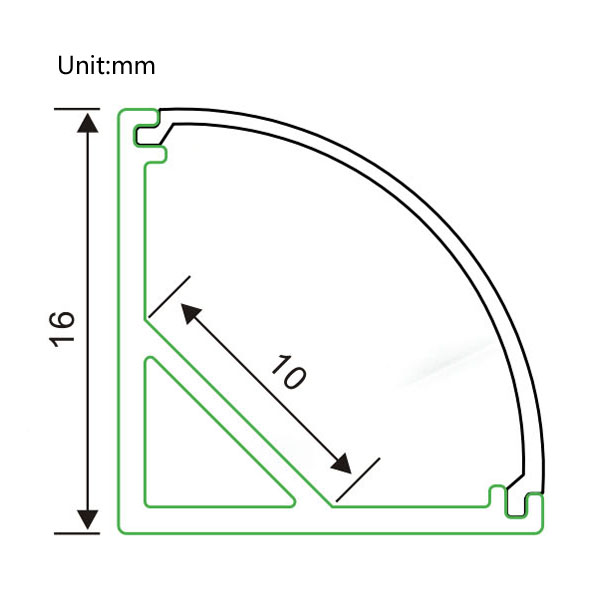

- Size ( Width x Height ): 16mm x 16mm ( 0.63" x 0.63" )
- Standard lengths: 1m ( 39.37" ), 2m ( 78.74" )
- Custom length available: Yes
- Inner width: 10mm ( 0.39" )
- Allows the maximum width of LED strips to be 10mm ( 0.39" )
- Max power: ≤15W/M
- Covers: PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover / PC semi-clear cover / PC clear cover / black PC cover
- Beam angle: 100°
- Tolerance: ±1%
- Waterproof level: IP20 non-waterproof

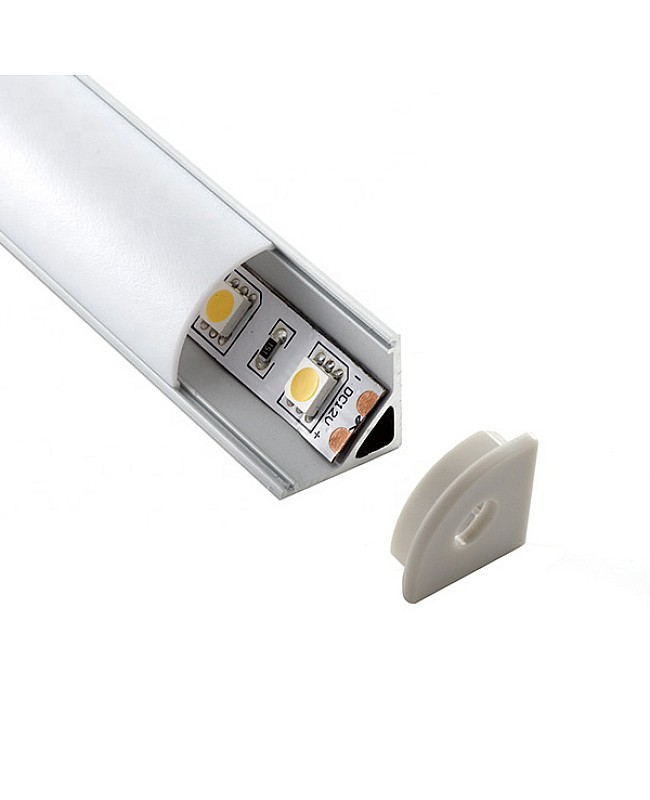

- End caps ( with and without wire holes ) are included

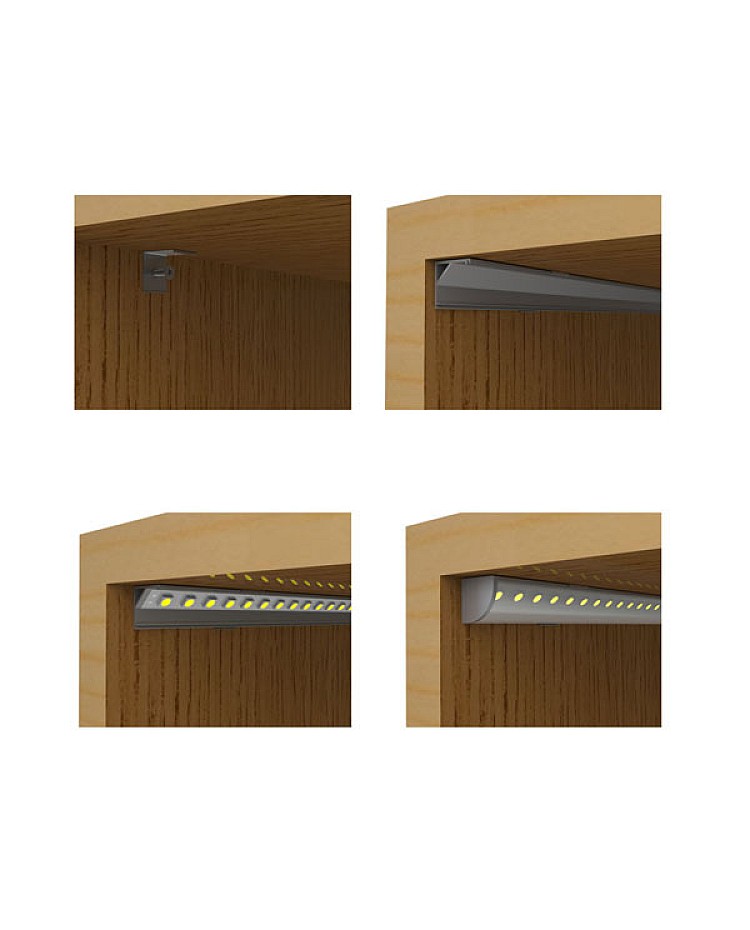

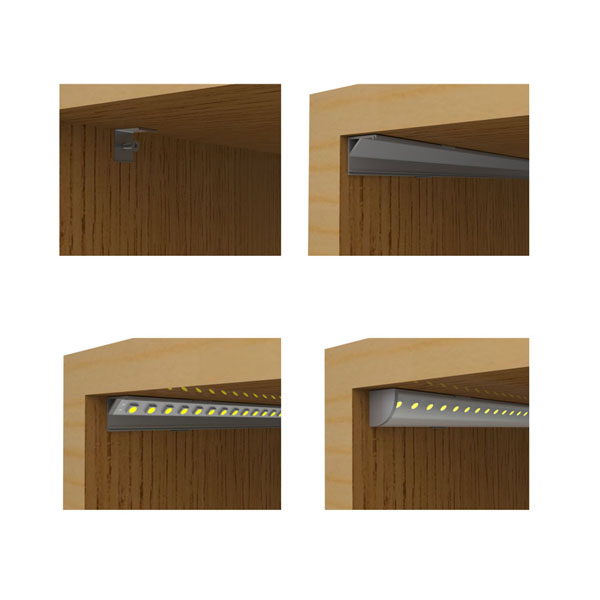

- Metal and plastic mounting clips are selectable

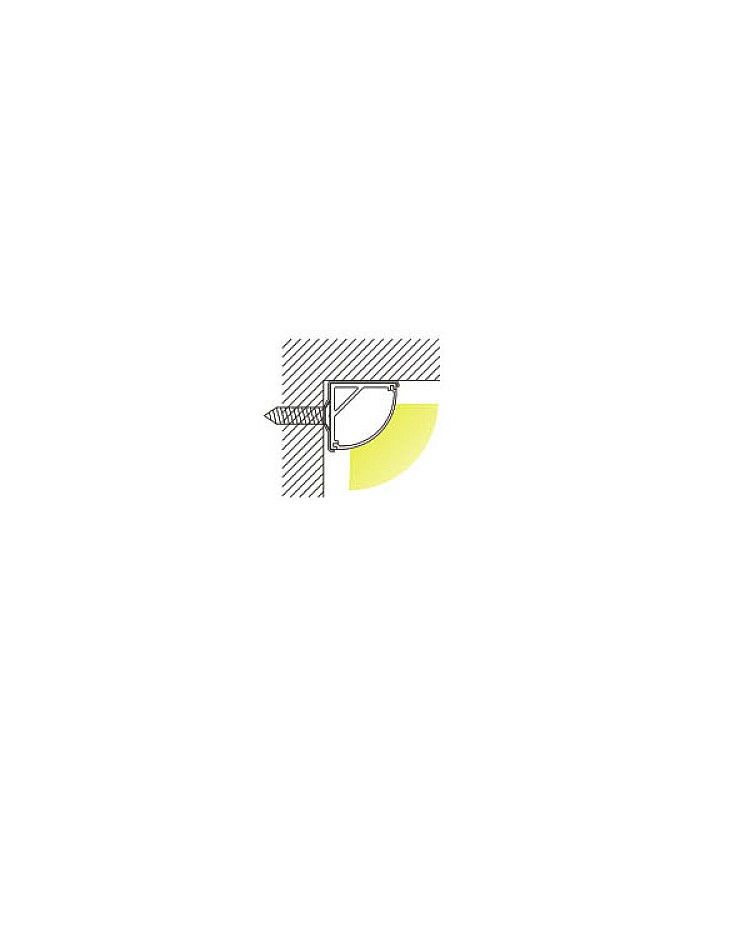

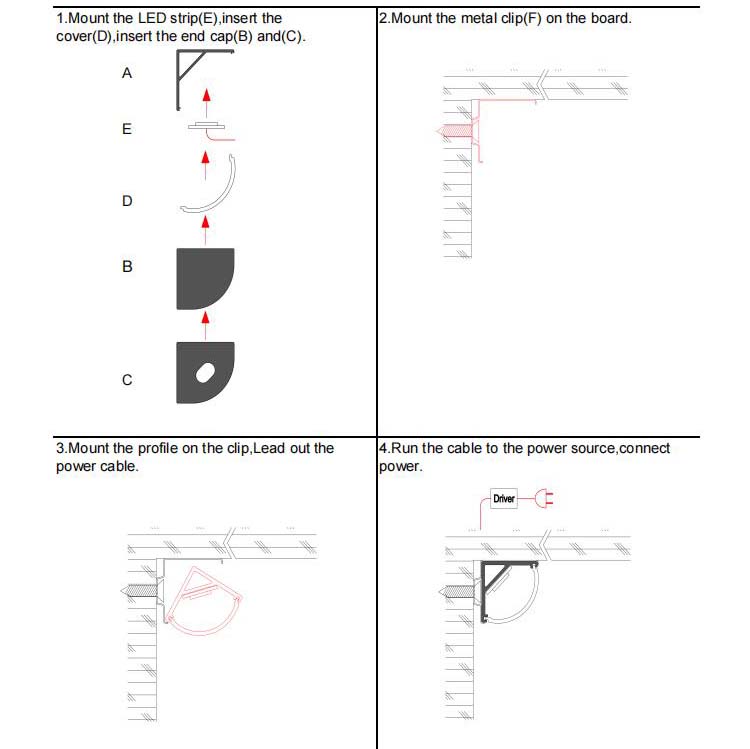

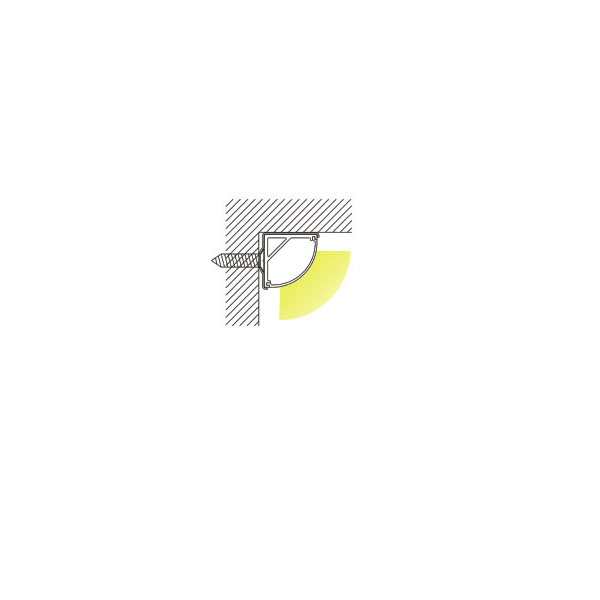

- Installation: Corner-mounted
- Warranty: 5 years
Package:
1 x Diffusers
End caps ( With and without wire holes )
Mounting clips
