The LED remote controller is designed for constant-voltage RGBW LED strips and is enclosed in a black metal shell for improved heat dissipation, with dual RJ45 ports for synchronization. Multiple controllers can work synchronously when connected via a network cable using RJ45 connectors; the maximum network cable length is 80 meters. The RGBW LED controller has four output channels. The max output current of each channel is 8A, and the max load power is 768W at DC24V. The full-touch wall panel RF touch remote control includes a control range of up to 20 meters, a working voltage range from AC90V to AC265V, and can connect directly to the public power system without an extra adapter. The remote control has one color ring, five function buttons, nine working models in total, adjustable brightness for static colors, 256 levels in total, and adjustable speed for dynamic modes, 100 levels in total. The wall panel remote control's structure, dimensions, and installation comply with European 86-type standards and are easy to install and use. Long-pressing the brightness and speed keys can get a fast adjustment.

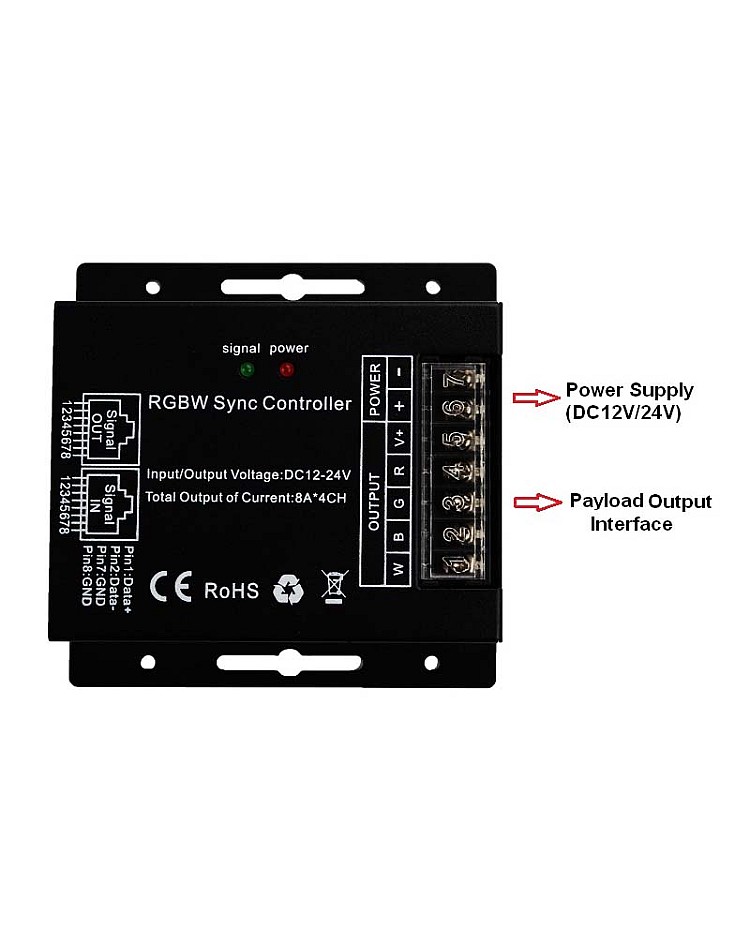

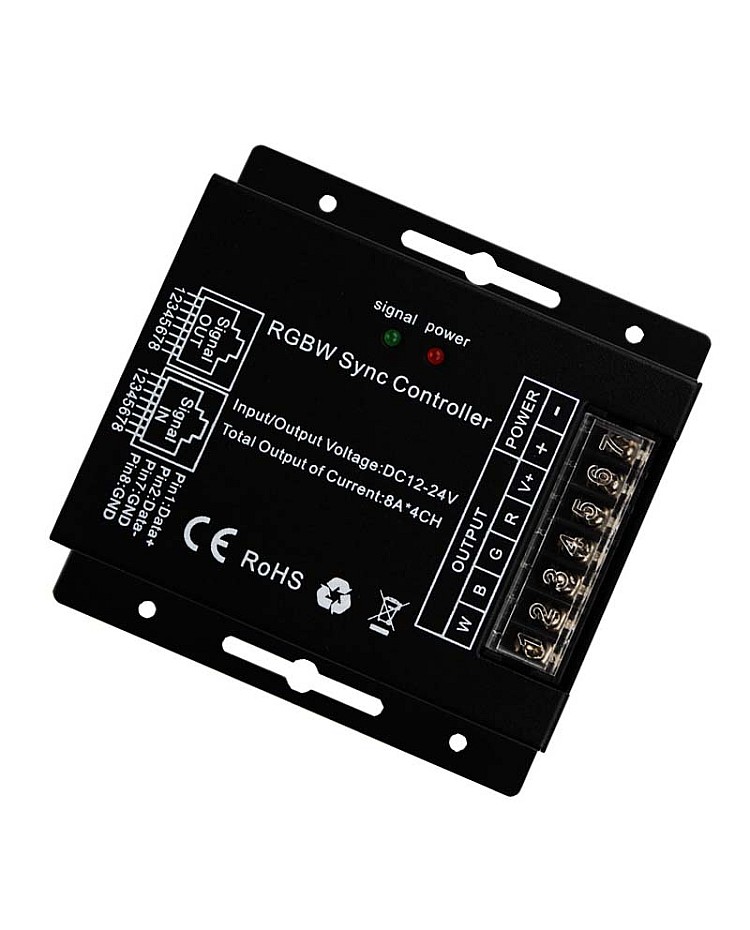

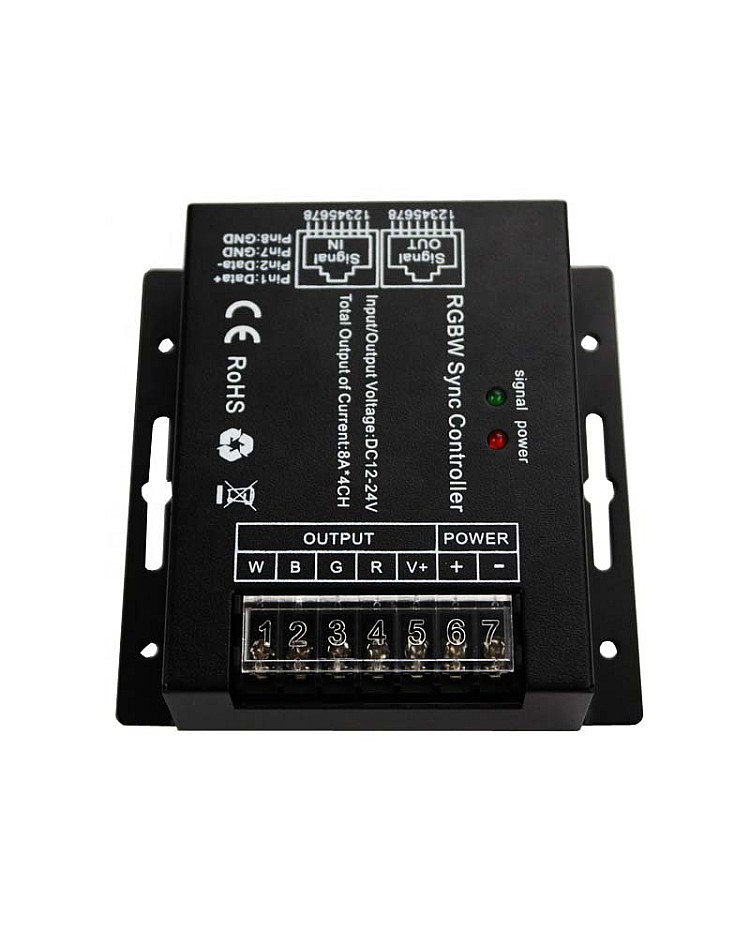

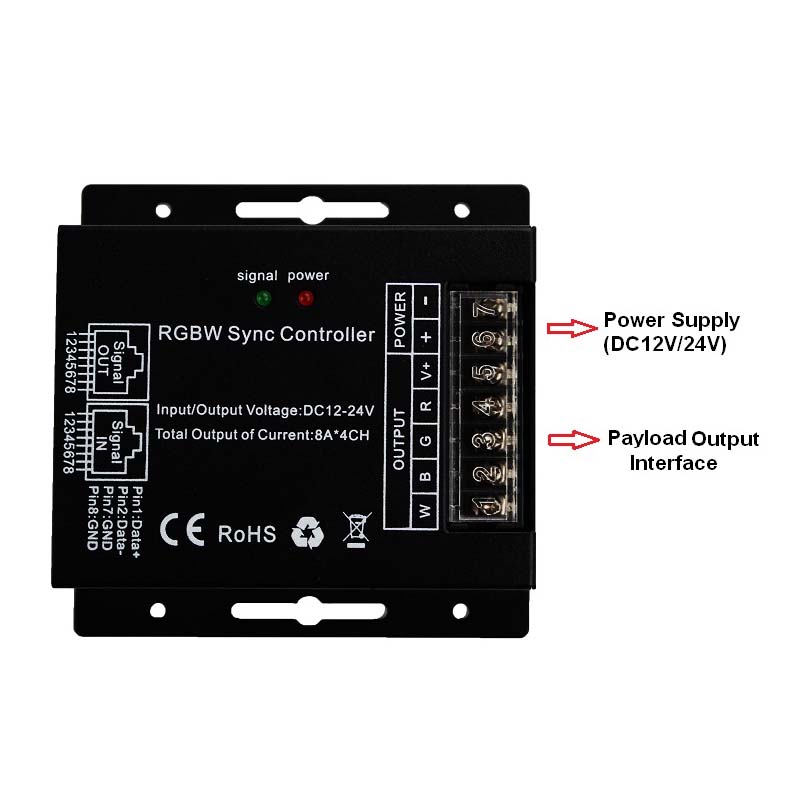

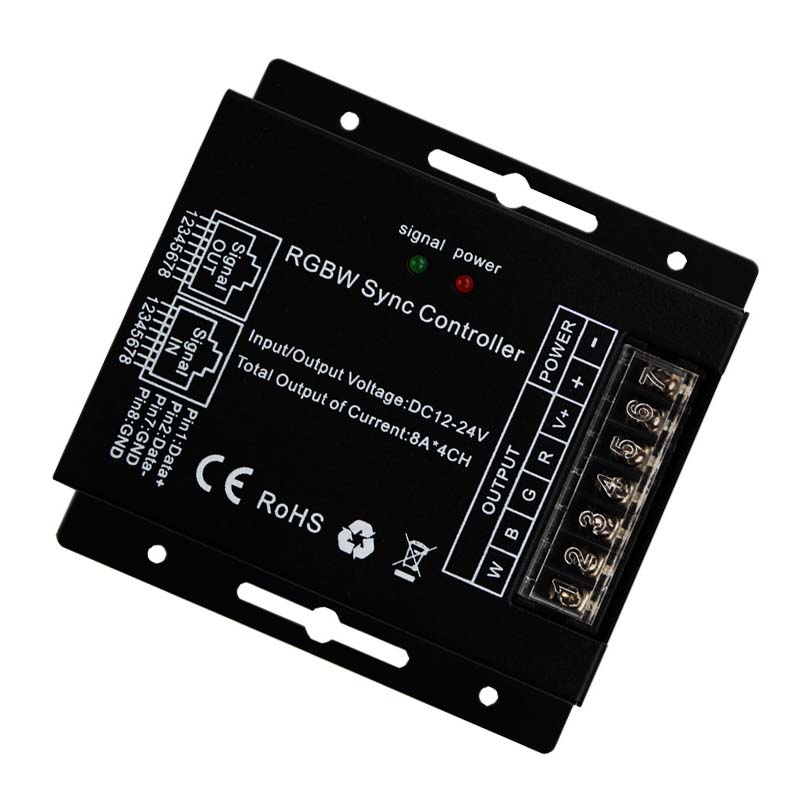

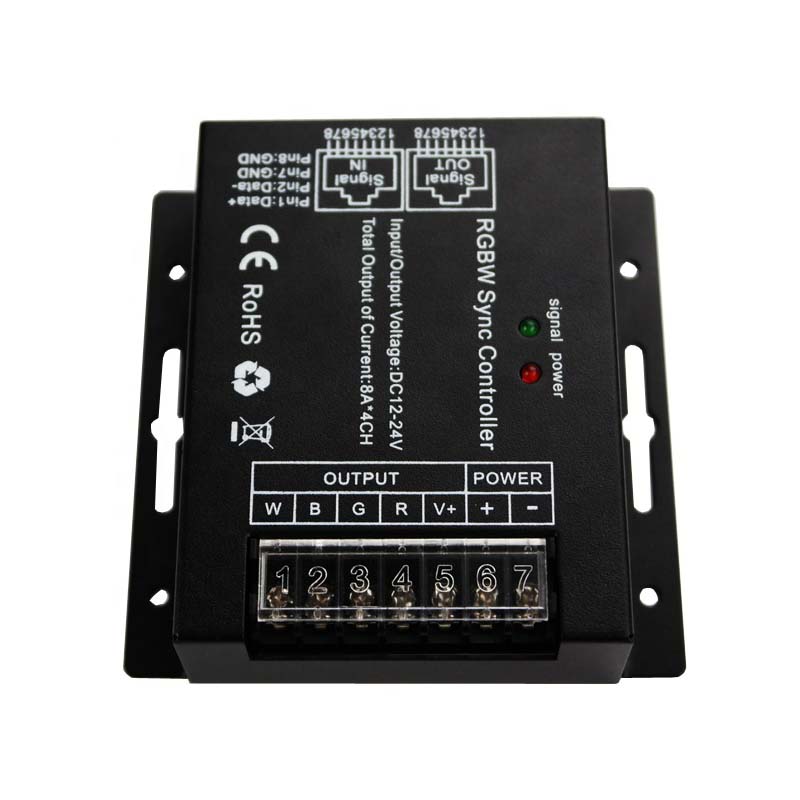

RGBW LED Remote Controller Specifications:
- Working Temperature: -20-60℃
- Size: 91*88*24mm(L*W*H)
- Working Voltage: DC12-24V
- Output Channels: 4
- Max Output Current: 8A Each Channel
- Max Output Power: 384W(12V), 768W(24V)
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Grayscale: 256 Levels
- Speed Stage: 100 Grade
- Mode: 9
- RF Distance: <20M
- PWM Frequency: 433.92MHz
- Dual RJ45 Ports For Synchronization Function
- Memory Function: YES
- Short Circuit Protection: YES
- Weight: 300g
- 3 Years Warranty

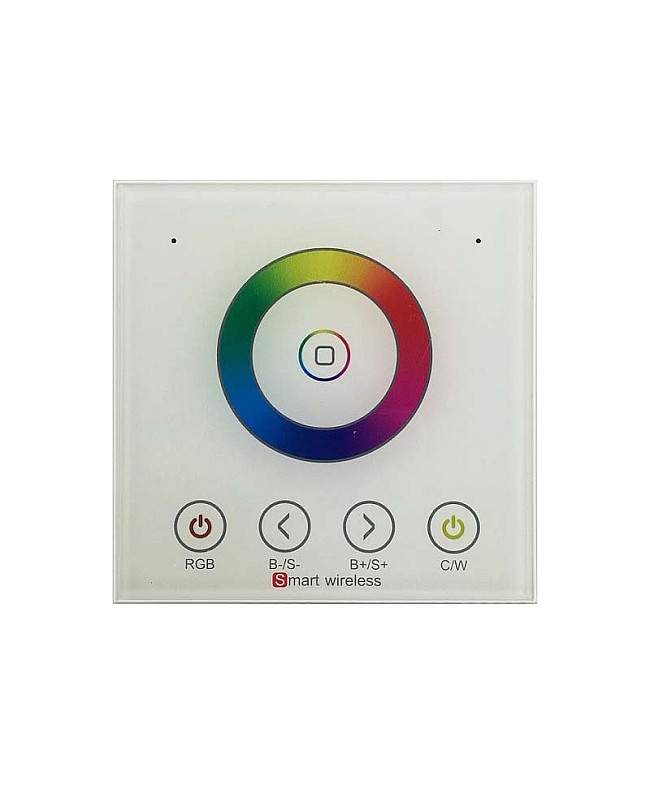

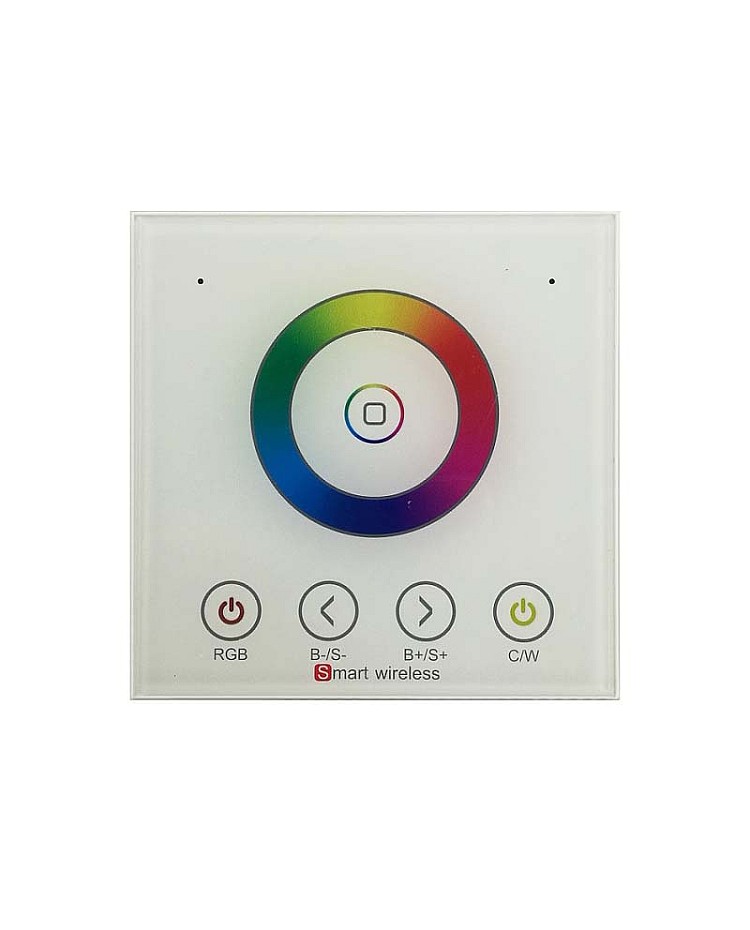

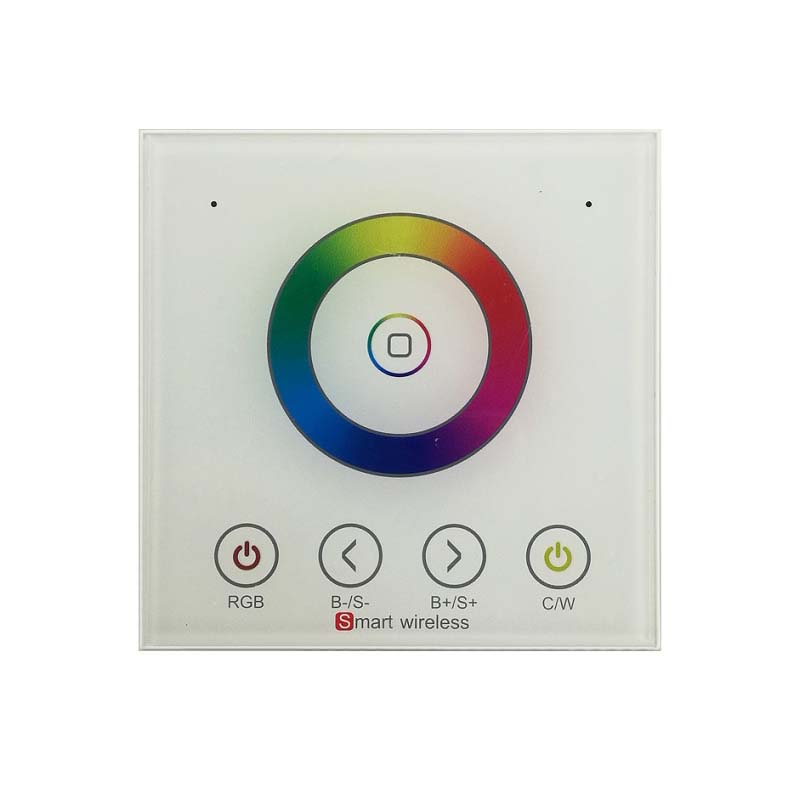

Wall Panel Touch Control Specifications:
- Working Temperature: 0-45℃
- Size: 86*86*34mm(L*W*H)
- Working Voltage: AC90-265V(50/60Hz)
- Standby Power: 0.2W
- Working Power: 2W
- RF Frequency: 433.92MHz
- RF Distance: 20m
- 86-Type European Standard
- Weight: 130g

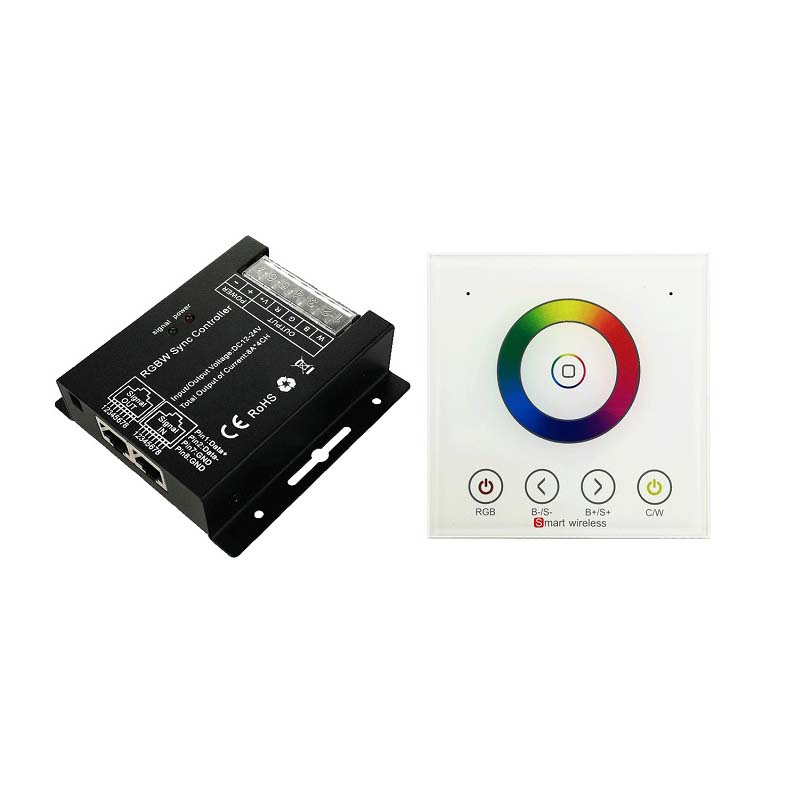

Includes:

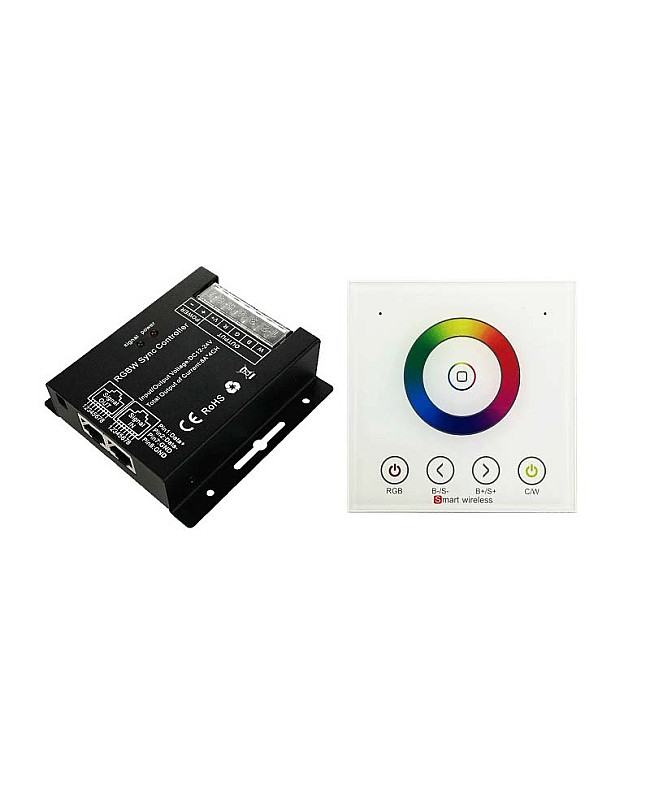

1 * RGBW LED Remote Controller
1 * 2.4G RF Wall Panel Touch Control
