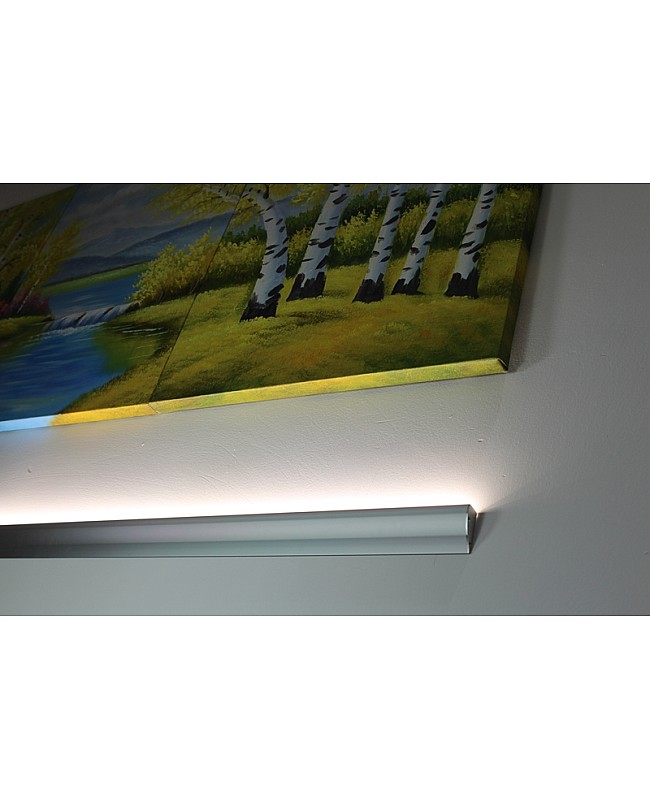

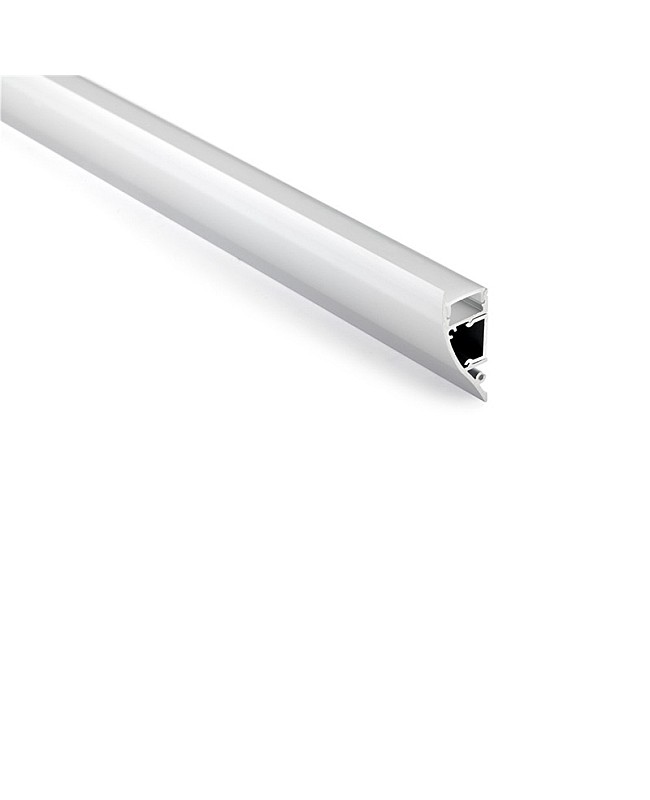

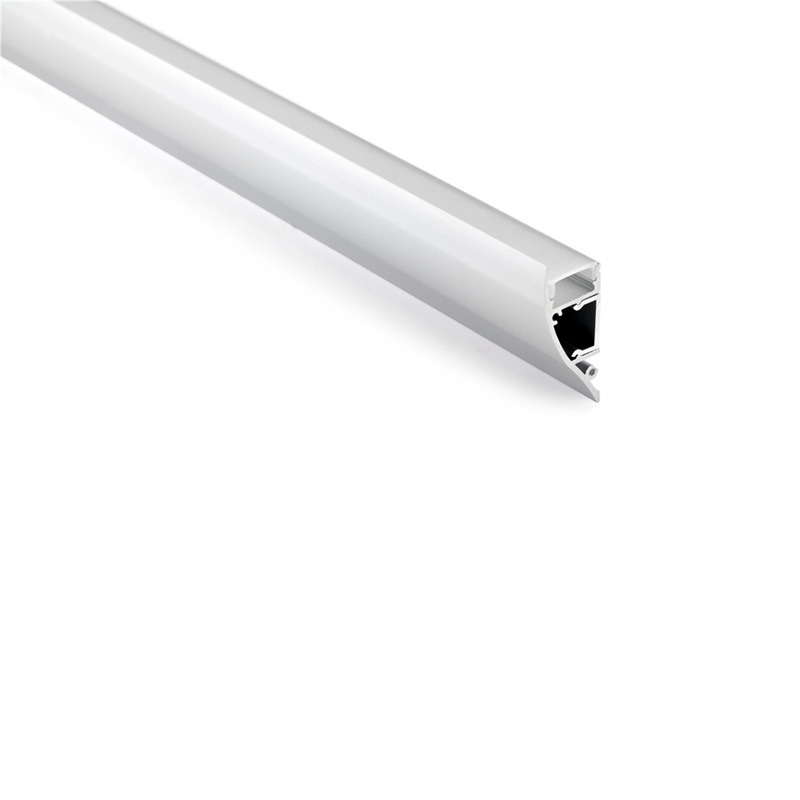

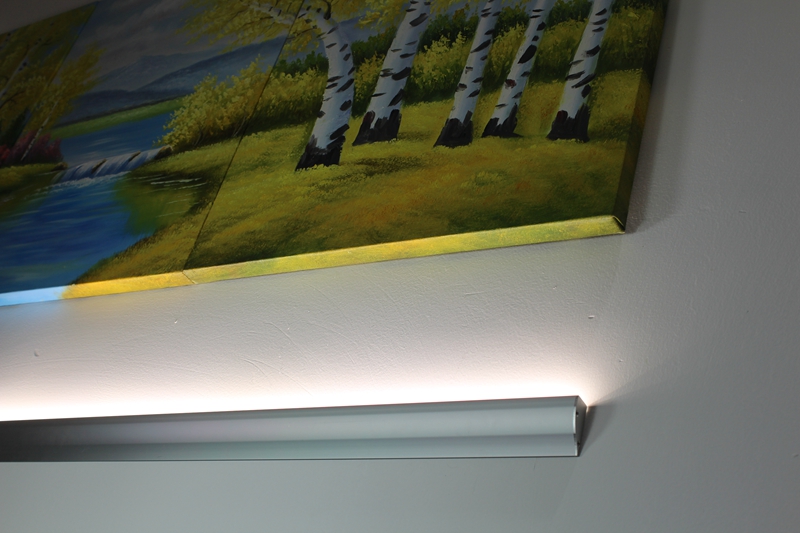

The aluminum wall light profiles are designed for upward or downward indirect lighting, with the diffusers positioned slightly behind the edge to provide glare-free illumination. The diffusers will evenly diffuse light upward or downward, enhancing the aesthetic of walls, ceilings, artwork, and architectural features. The aluminum LED profiles are made from 6063-T5 aluminum alloy material and feature anodized surface treatment, which provides enhanced oxidation resistance and a longer lifespan. The stock lengths are 1 m and 2 m, and can be cut to any desired size. Six different diffusers are available to meet various needs: the PMMA series and the PC series. The diffusers are made from high-quality materials, ensuring stable quality, anti-yellowing properties, and perfect light distribution. You can easily add the flexible LED strips to the aluminum body, allowing for a maximum width of 12mm of LED in profiles. The wall light channels can serve as heat sinks for heat dissipation, and they have space inside to conceal the wires.
Specifications:
- Material: Aluminium alloy(6063-T5)
- Model: ALP062
- Surface Treatment: Anodized
- Color: Silver

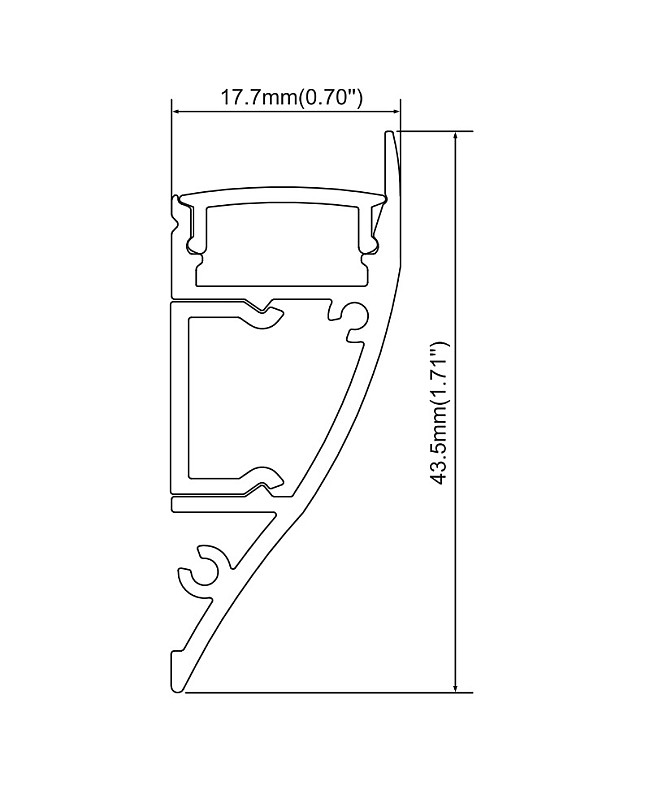

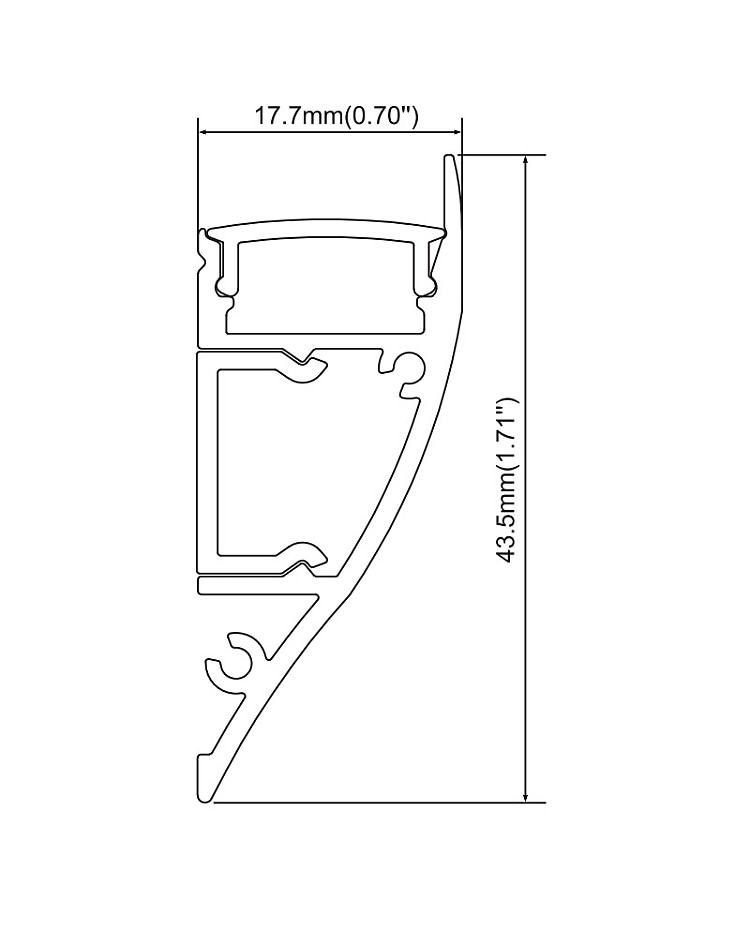

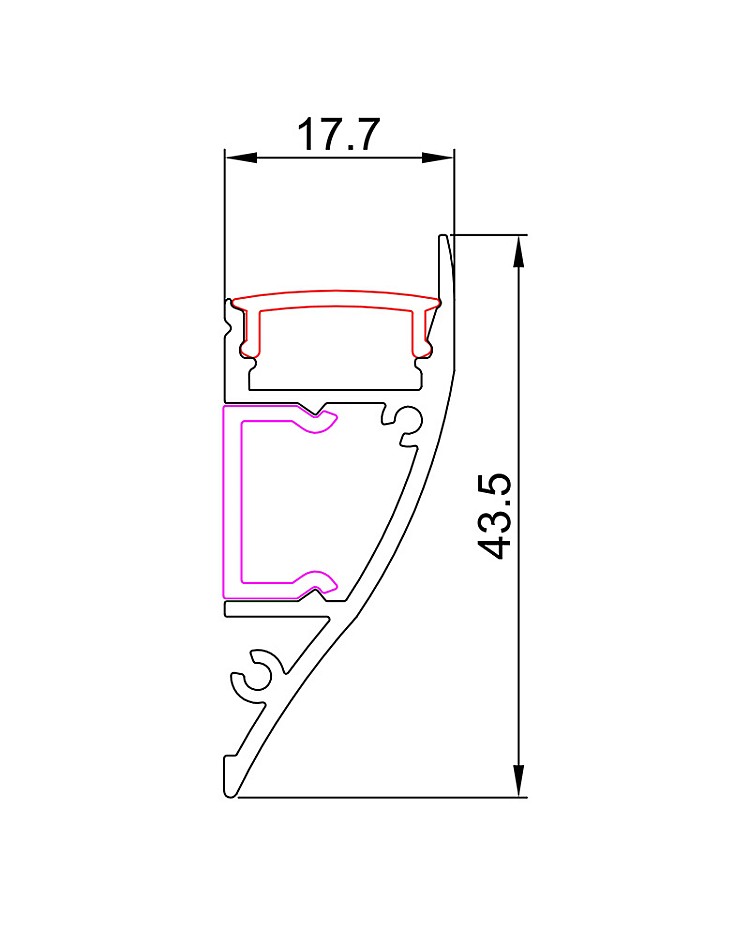

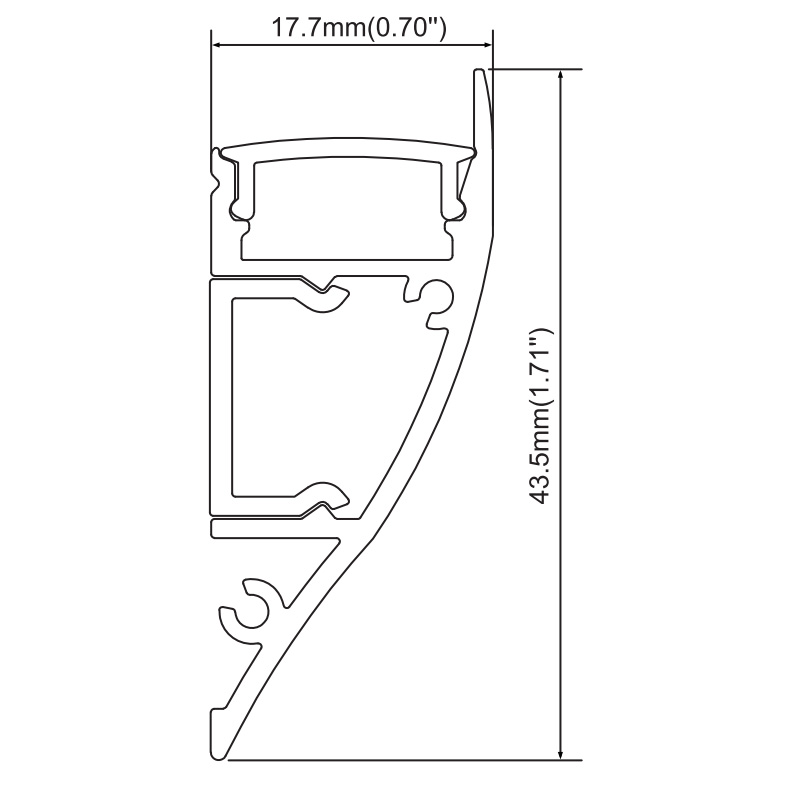

- Size(H*W): 43.5 mm x 17.7 mm ( 1.71" x 0.7" )
- Standard Length: 1 m ( 39" ), 2 m ( 78" )
- Custom Length Available: YES
- Inner Width: 12.2 mm ( 0.48" )
- Accommodate the maximum width of strip light to be 12 mm ( 0.47" )
- Max Power Of Strip Lights: <25W/M
- Diffusers: PMMA opal matte diffuser, PMMA semi-clear diffuser, PMMA clear diffuser, PC opal matte diffuser, PC semi-clear diffuser, PC clear diffuser
- Beam Angle: 100°

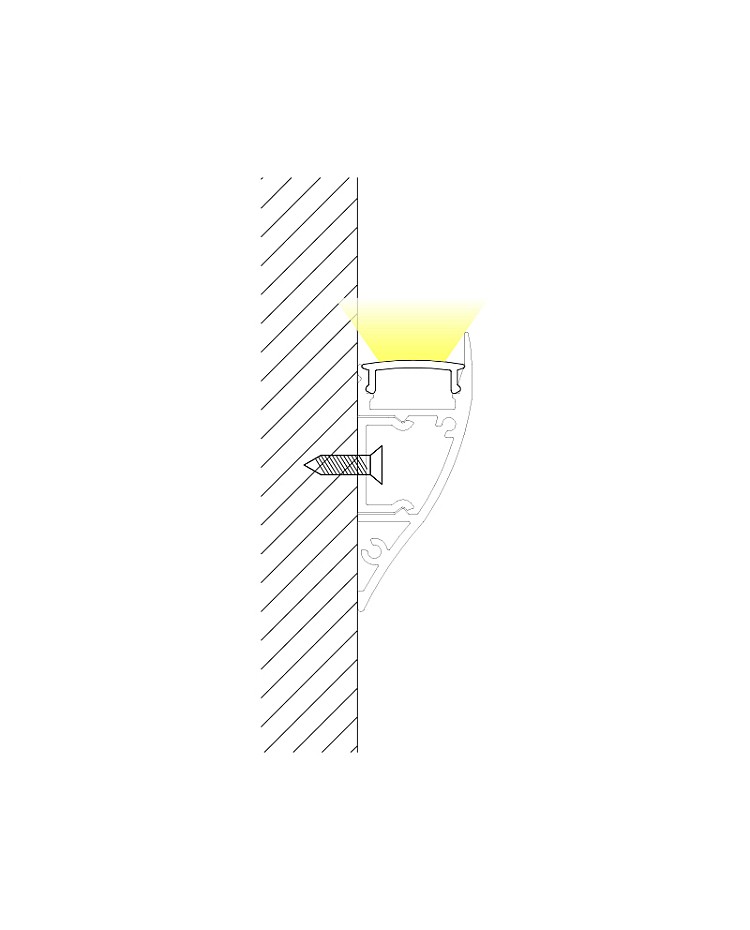

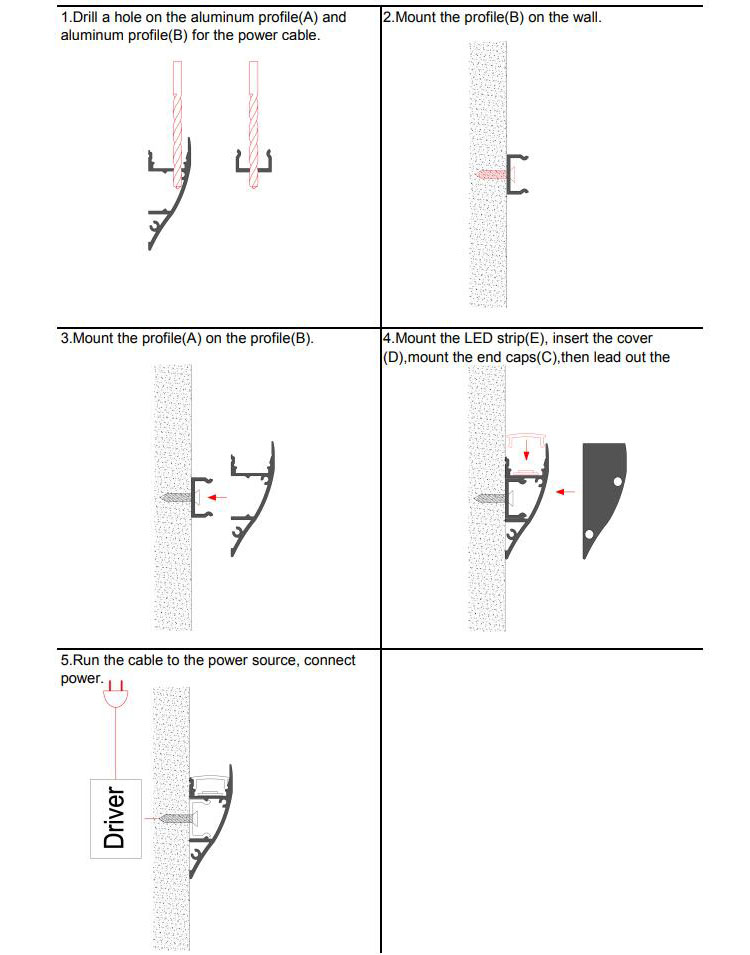

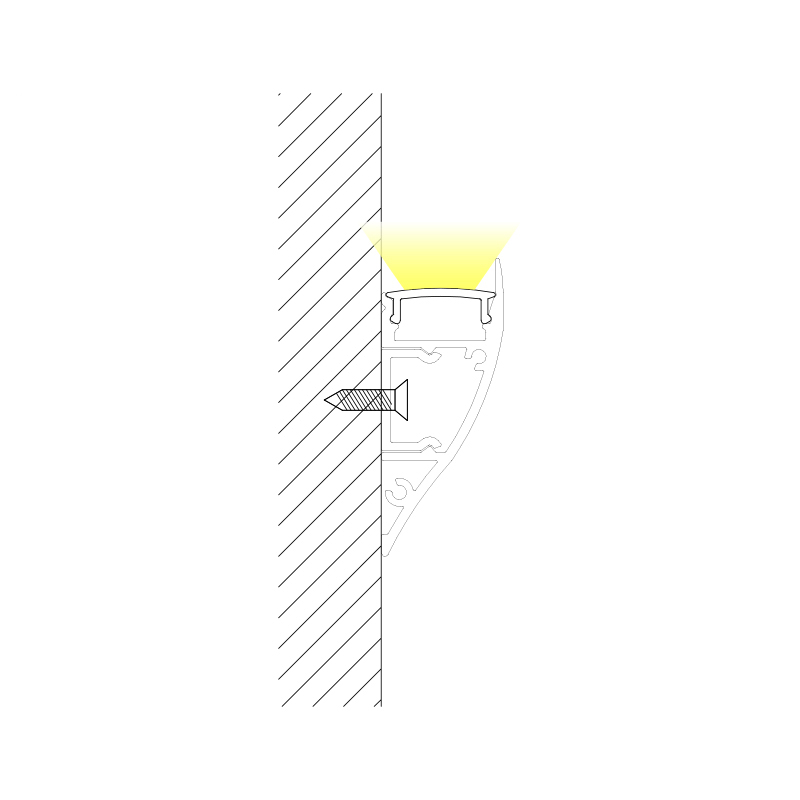

- Installation: Surface mounted
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Cove & Ceiling Lighting: Hidden LED strips for ambient glow
- Retail & hospitality lighting: Accent lighting for displays and bars
- Modern home & office decor

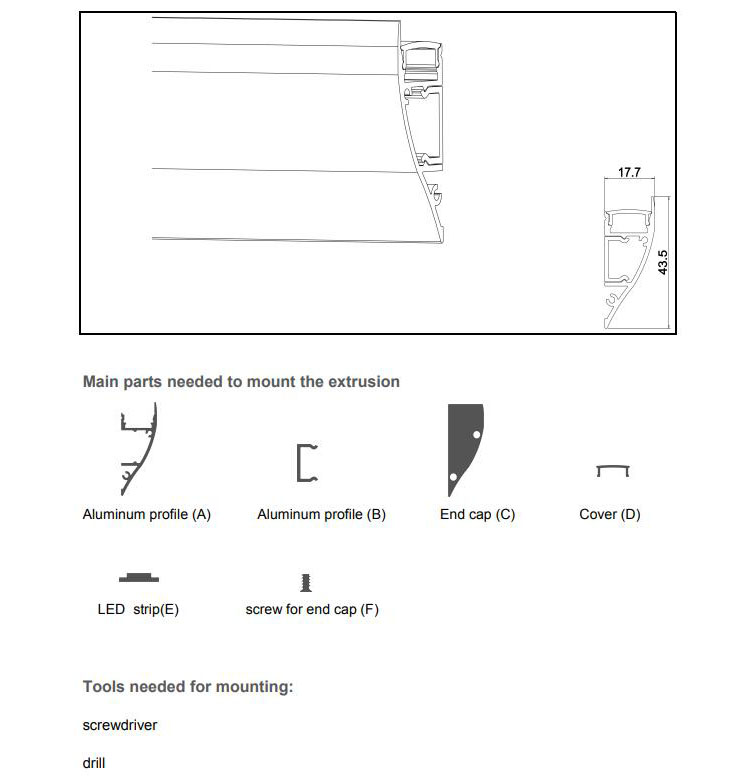

Includes:
1 * Aluminum profile with diffused cover

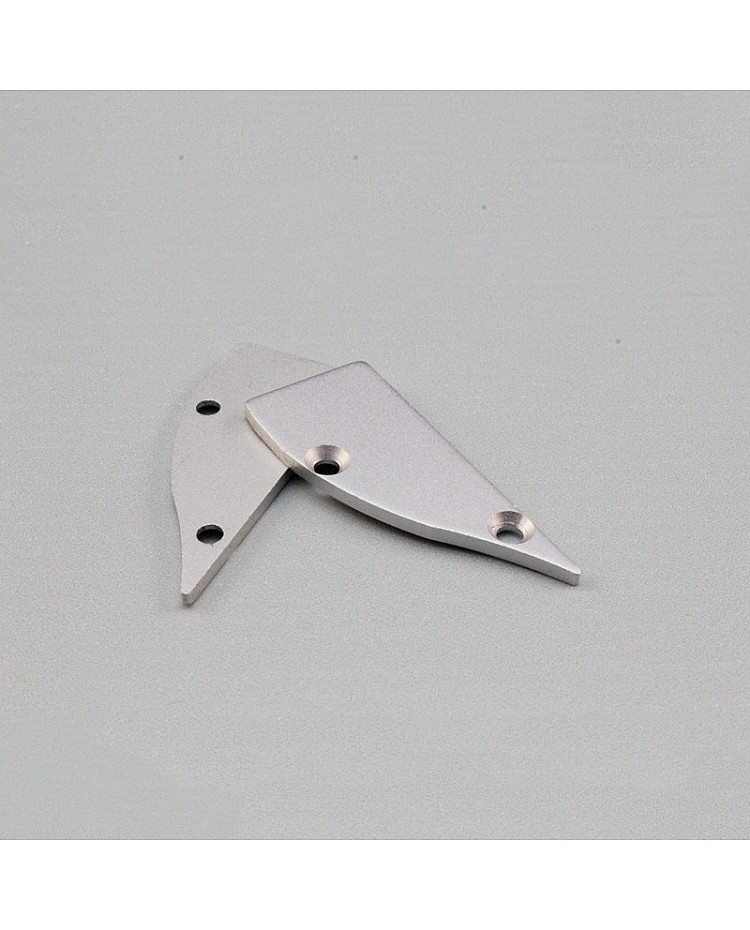

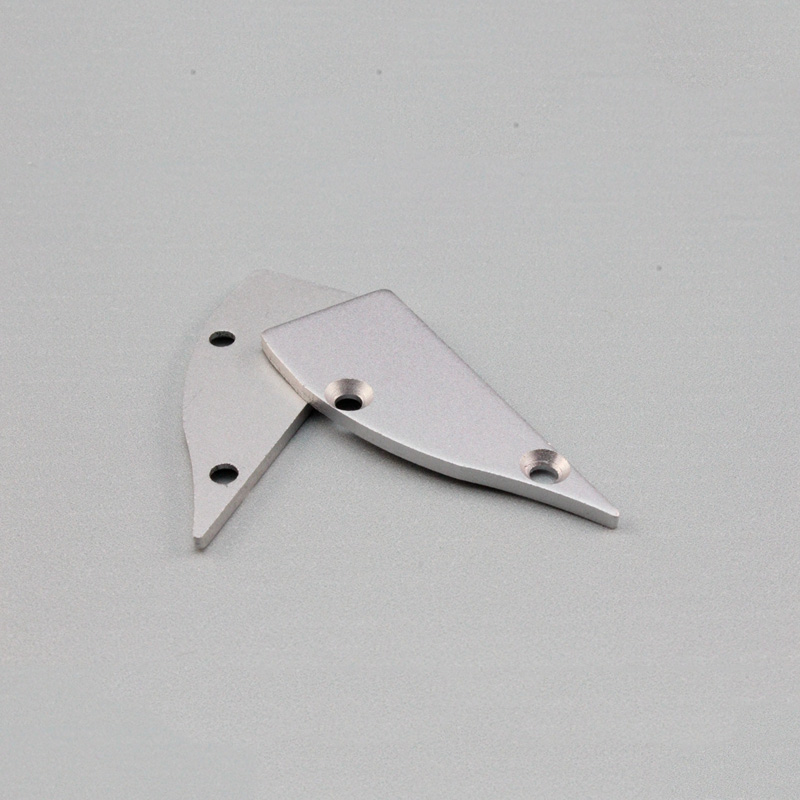

End caps
