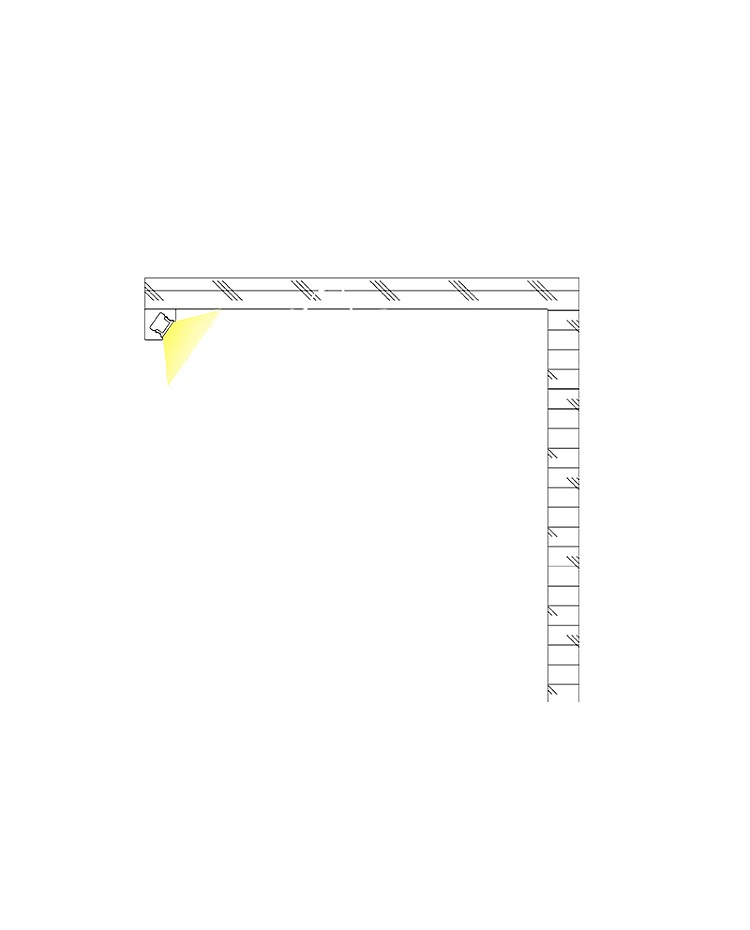

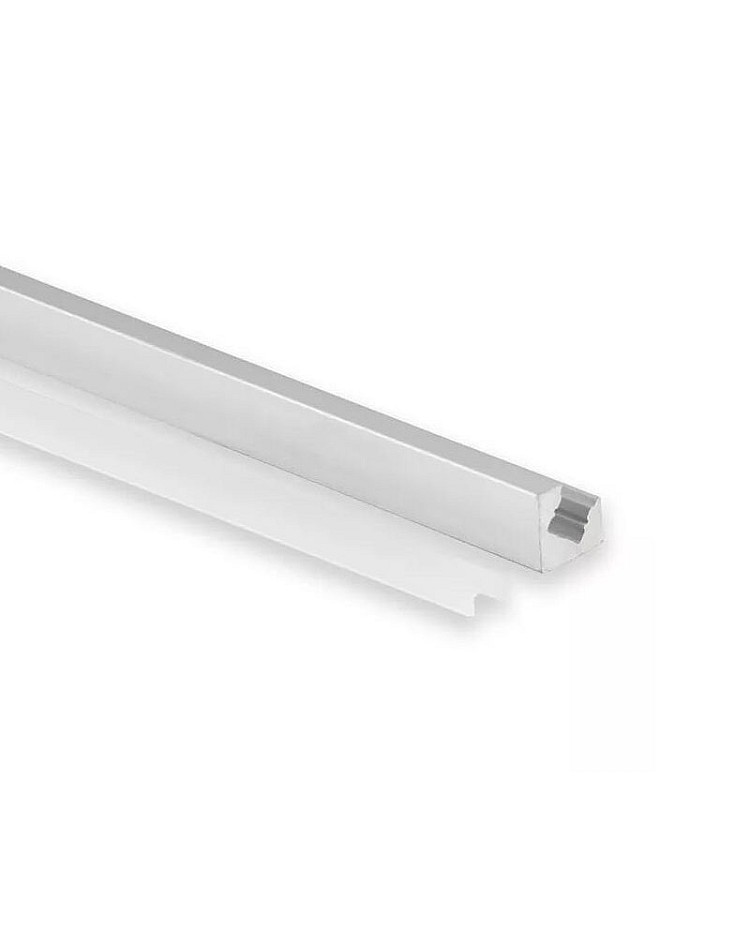

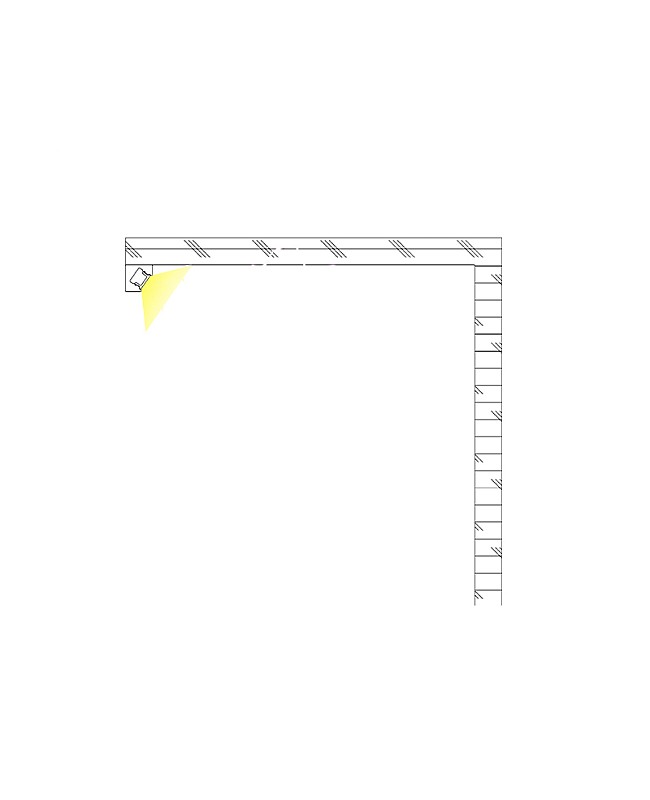

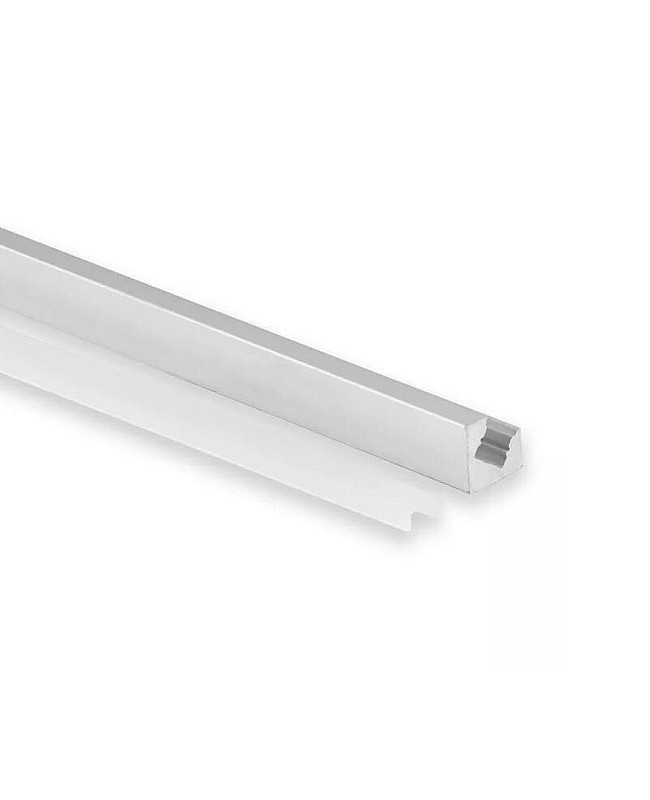

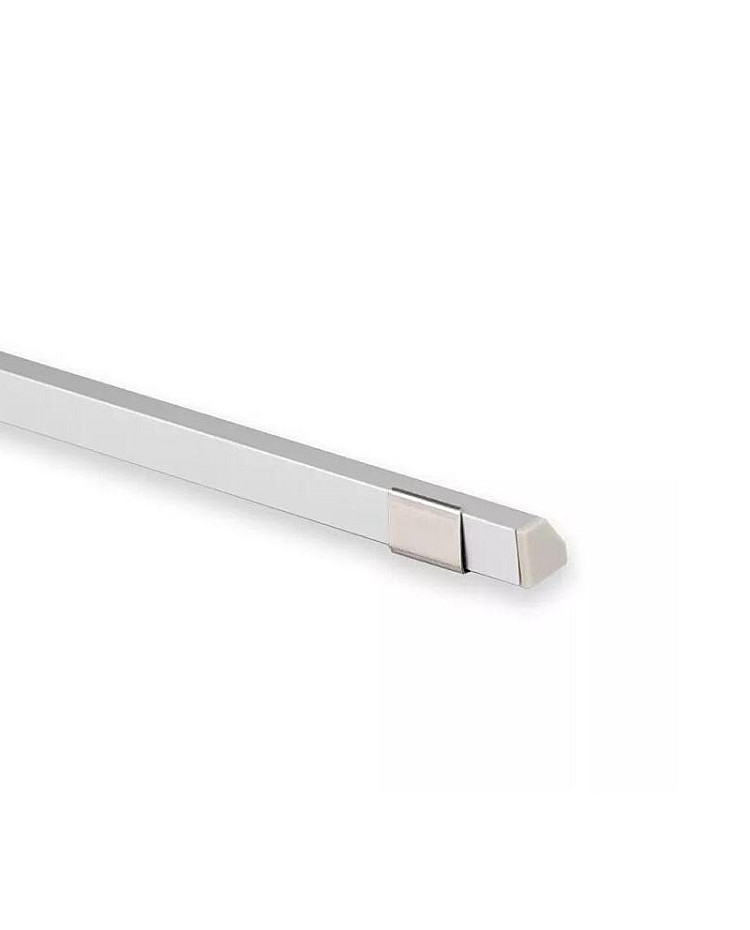

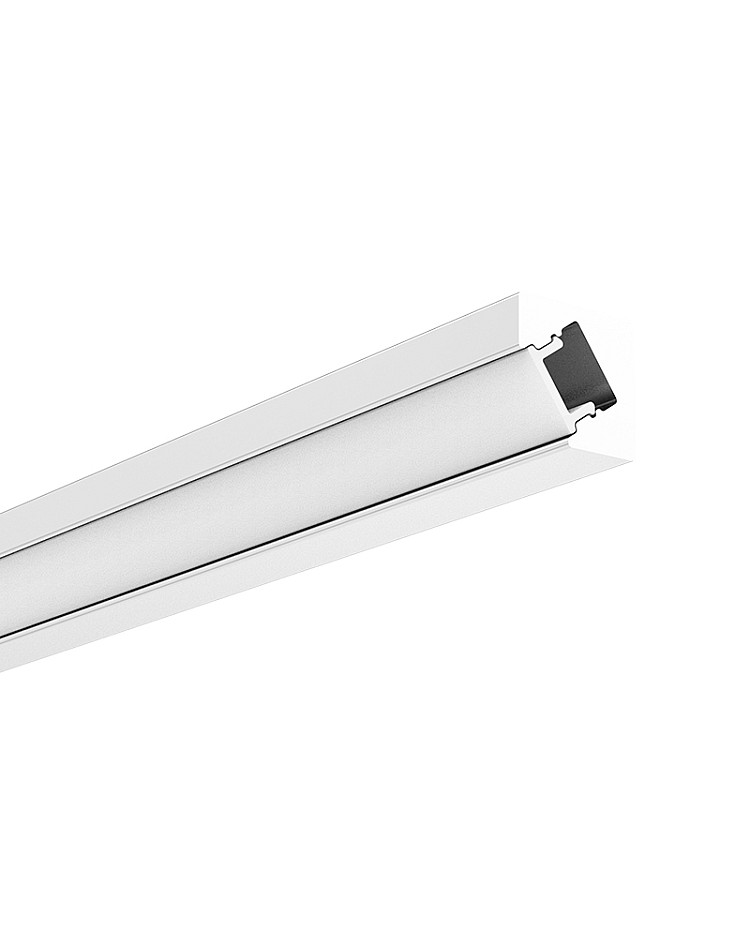

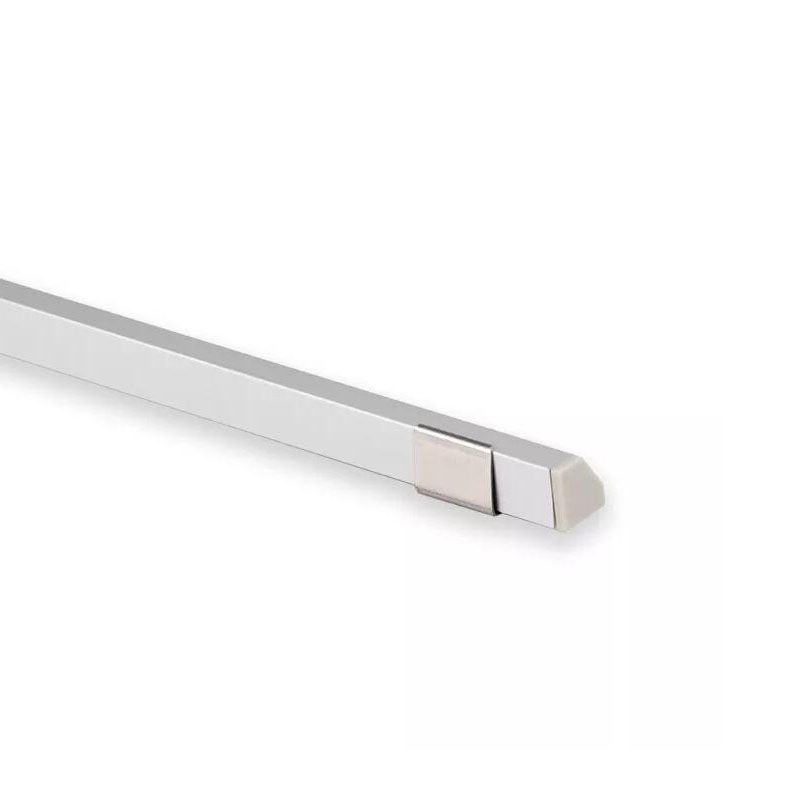

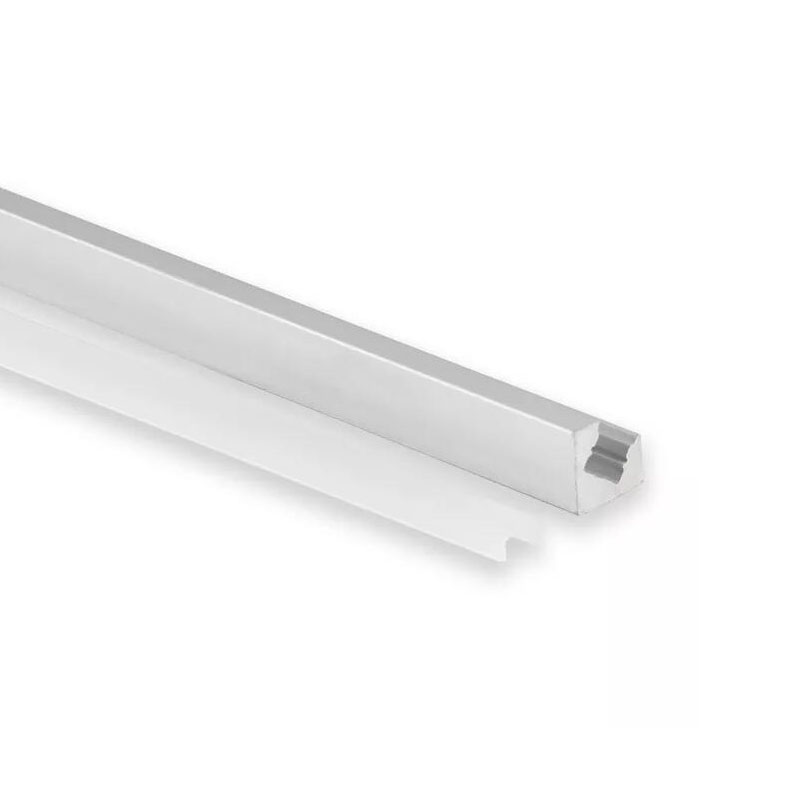

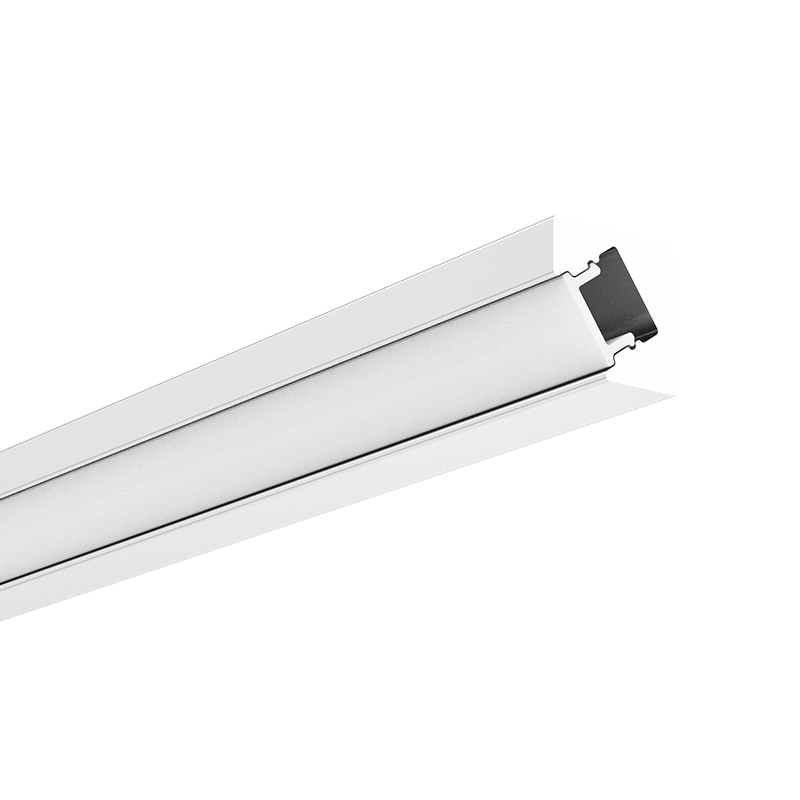

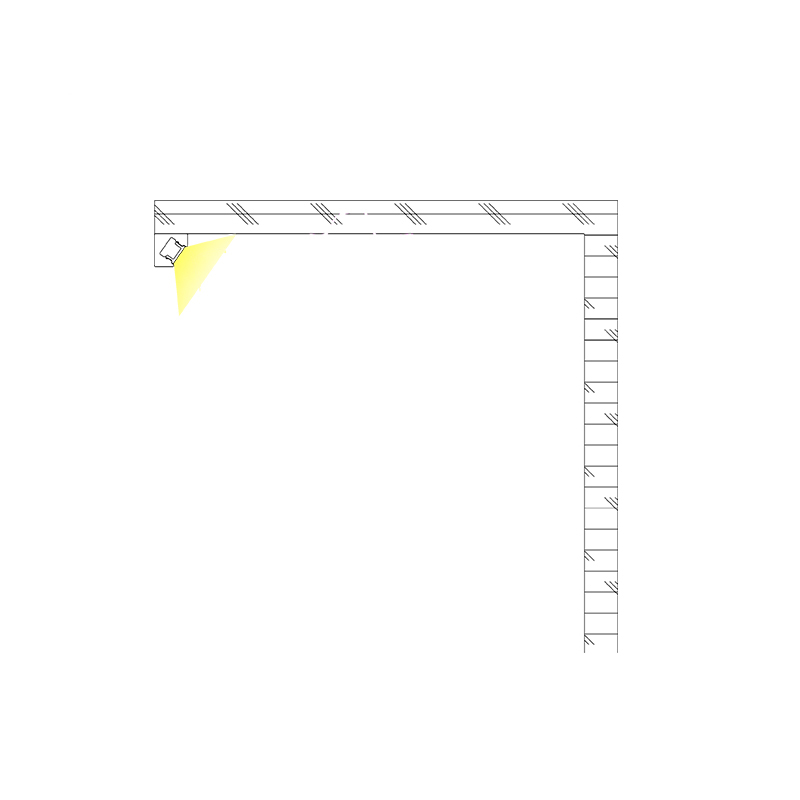

The super-slim LED light extrusion features a polarized lighting design, making it ideal for places with limited space. Engineered with a 45-degree beam angle, reducing glare and with focused light distribution. Ideal for discrete installations under cabinets, in closets, or inside narrow coves and corners. They are crafted from 6063-T5 aluminum alloy with a silver anodized surface treatment, which enhances oxidation resistance and extends their lifespan. The standard lengths are 1 m and 2 m, and can be cut to any size for your project. The inner width is 6.2 mm, allowing for a maximum width of 6 mm for the LED strips. We recommend using high-density, dotless COB strip lights as the light source, ensuring a uniform distribution of light with no light spots or dark areas. One type of diffuser is available: the PC frosted diffuser, made of brand-stable material and resistant to yellowing, diffuses the strip lighting softly, providing uniform, even lighting. End caps and metal clips are included for easy installation.
Specifications:

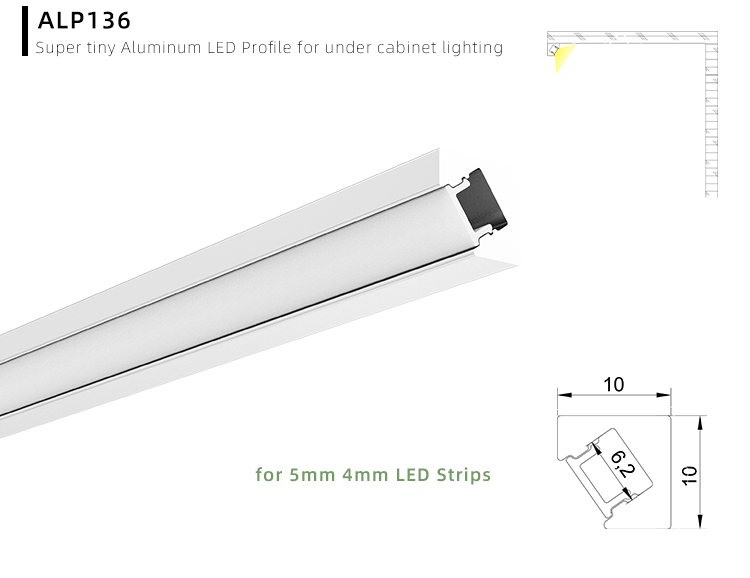

- Model: ALP136
- Material: Aluminium alloy 6063-T5
- Surface treatment: Anodized
- Colors: Silver

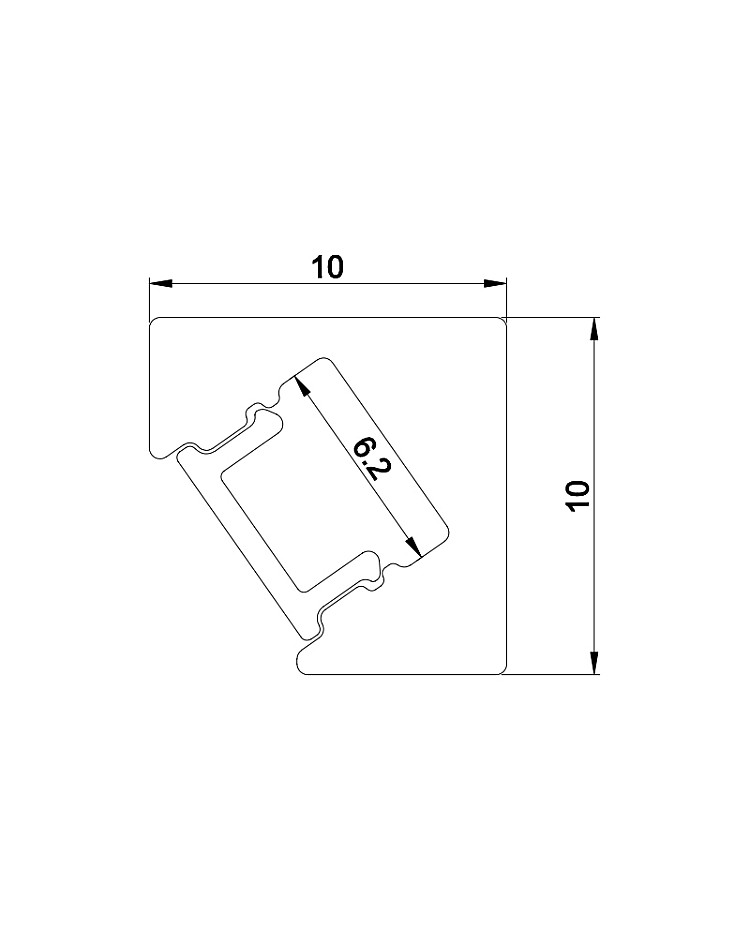

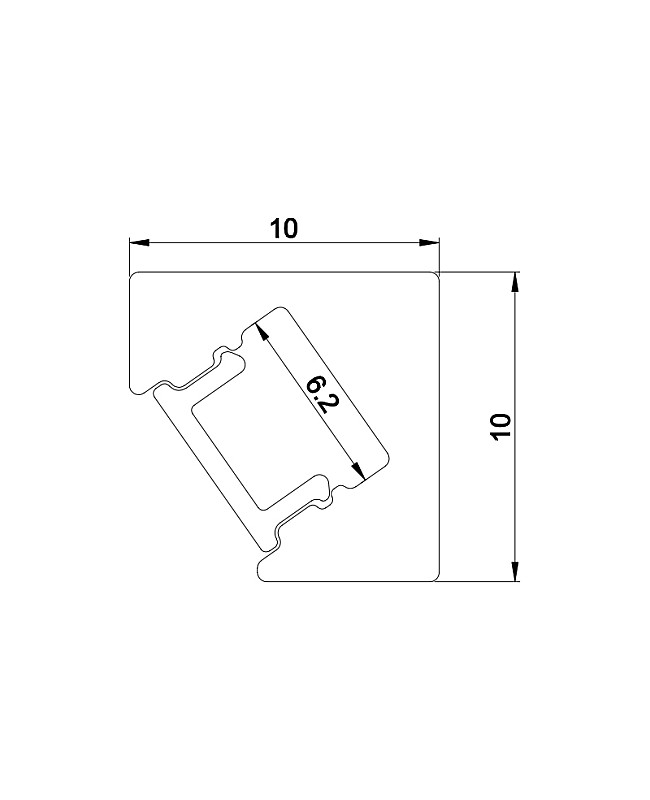

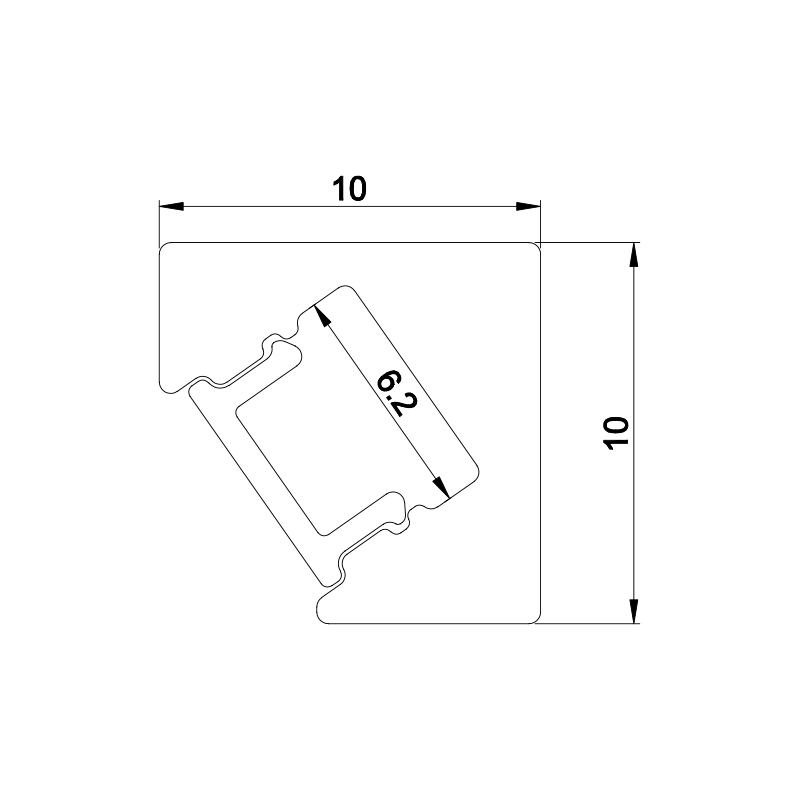

- Size ( W x H ) : 10 mm x 10 mm ( 0.39" x 0.39" )
- Inner width: 6.2 mm ( 0.24" )
- Max width of LED strips: 6 mm ( 0.24" )
- Max power: 10W/m
- Standard lengths available: 1 m ( 39" ), 2 m ( 78" )
- Custom length: YES
- Diffuser: PC frosted diffuser
- Beam angle: 100°
- Tolerance: ±1%
- IP rate: IP20 non-waterproof
- End caps and metal clips are included

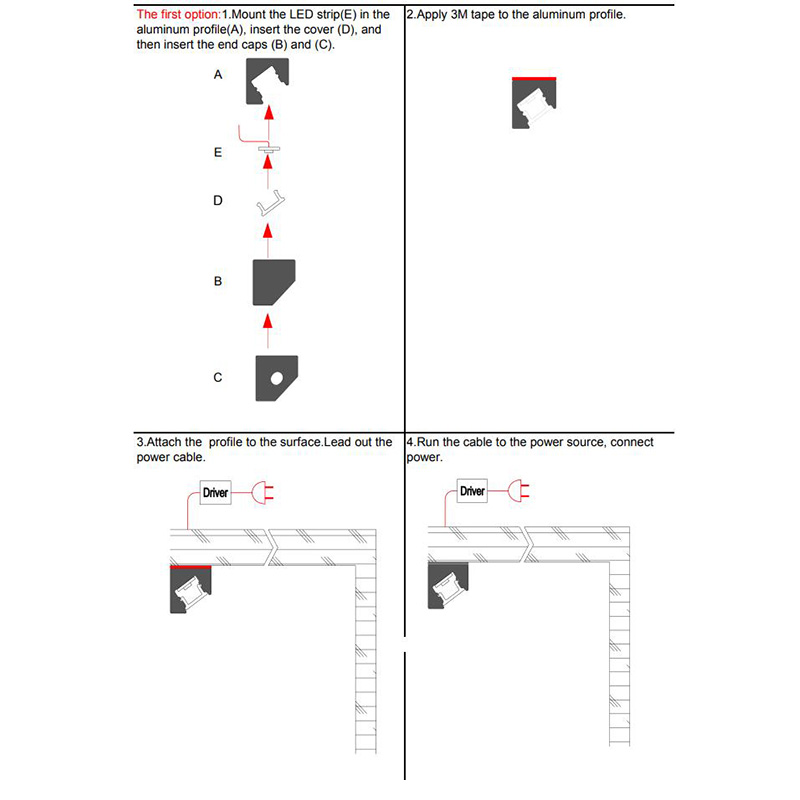

- Installation: Surface mounted
- Warranty: 5 years
Applications:

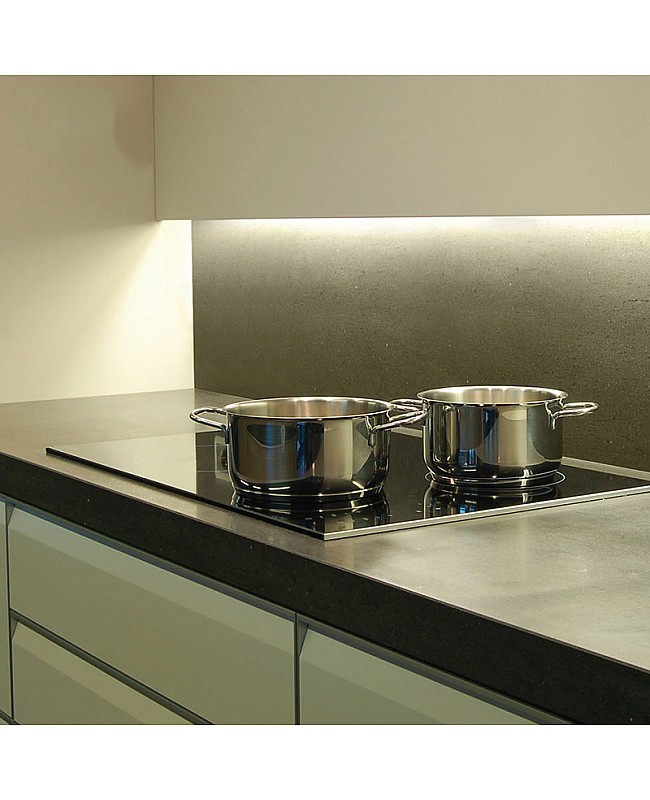

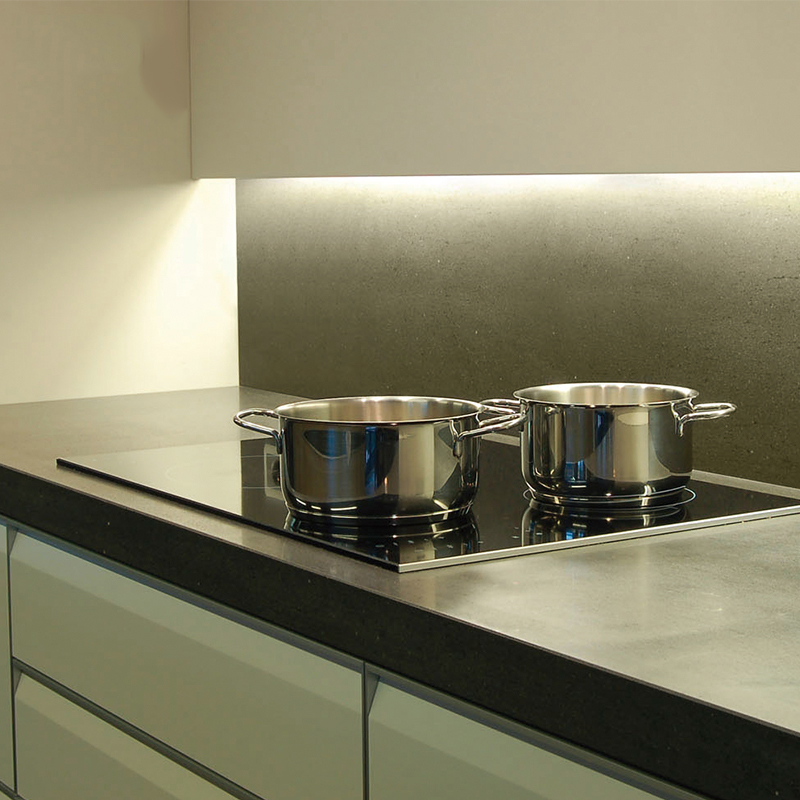

- Under kitchen cabinets and countertops
- Display shelves and product showcases
- Closet, wardrobe, furniture, and drawer lighting
- Retail and commercial shelf lighting

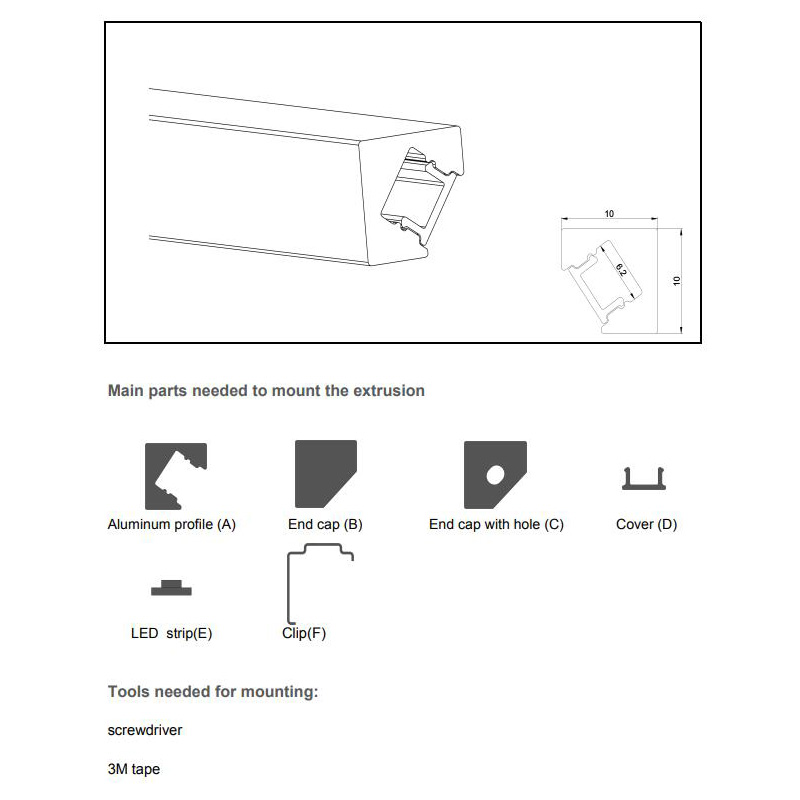

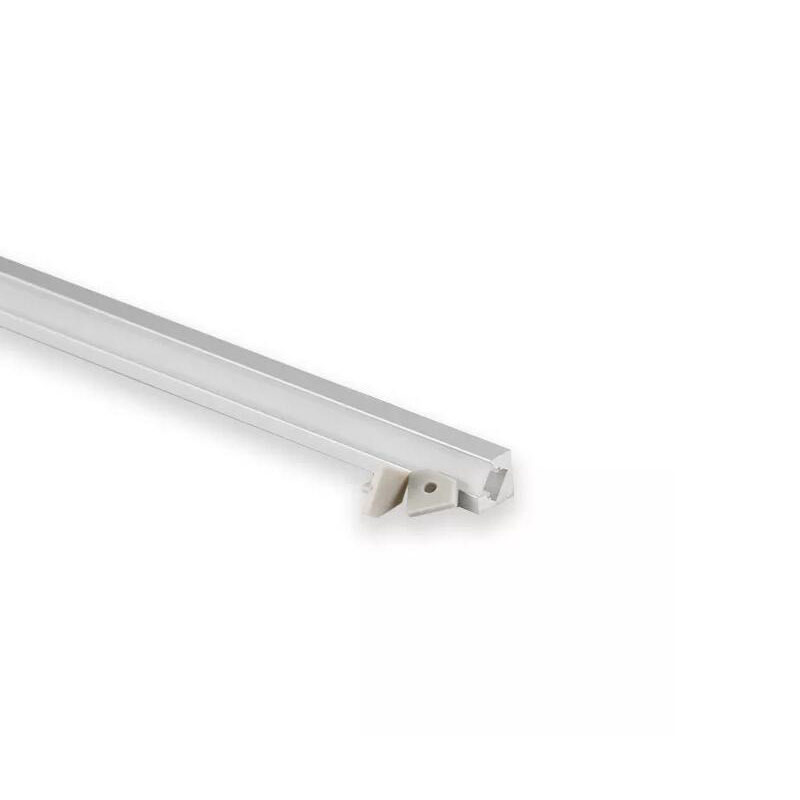

Includes:

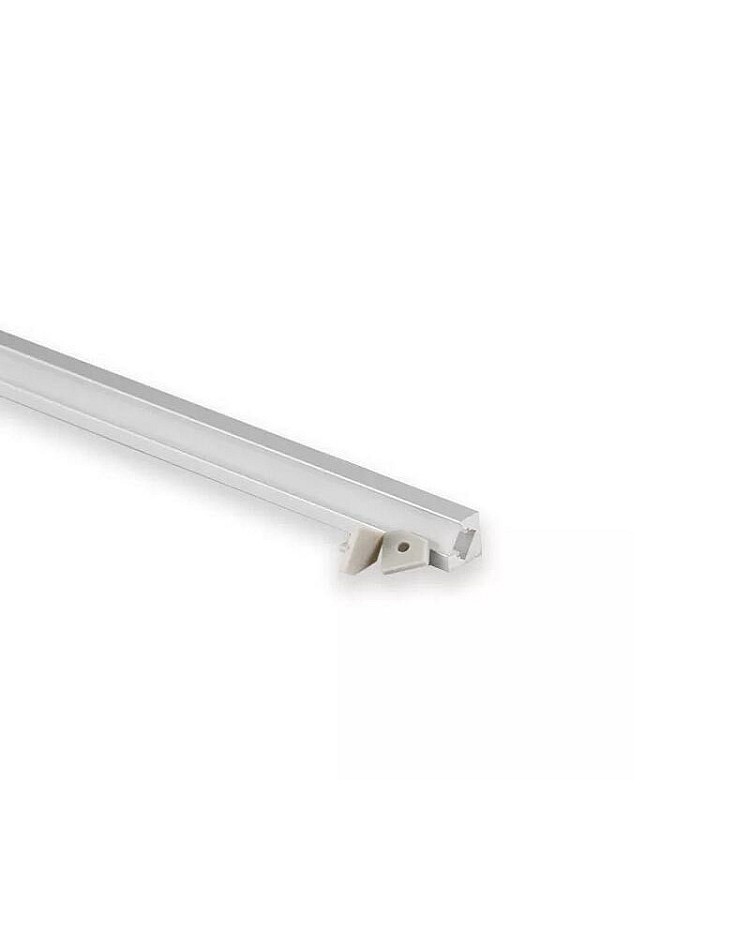

End caps (With and without wire holes)
Metal clips
