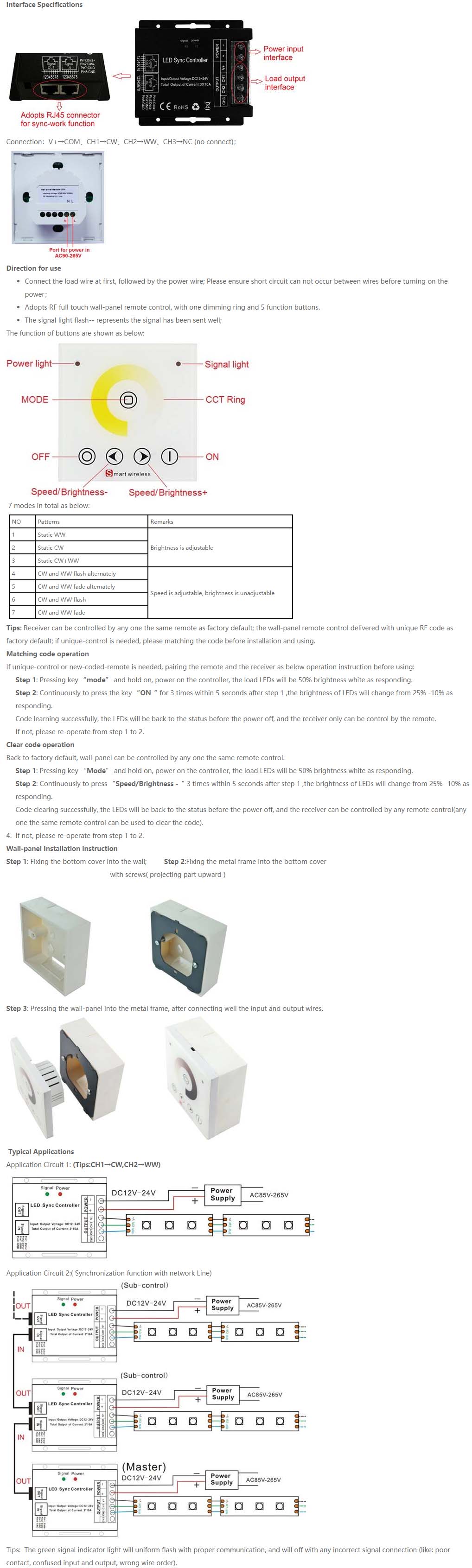

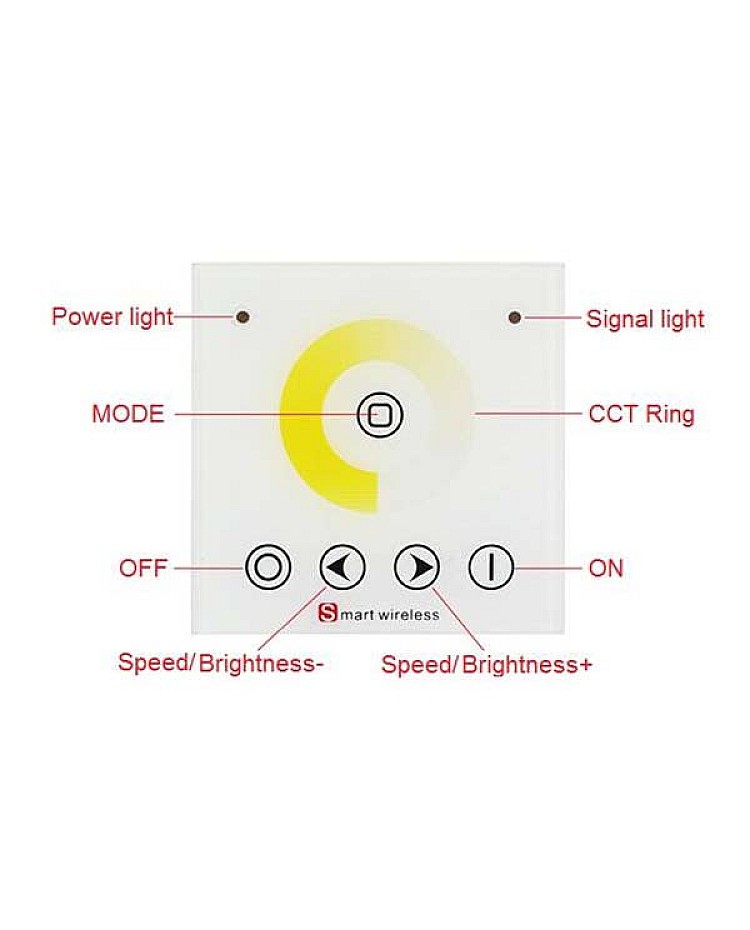

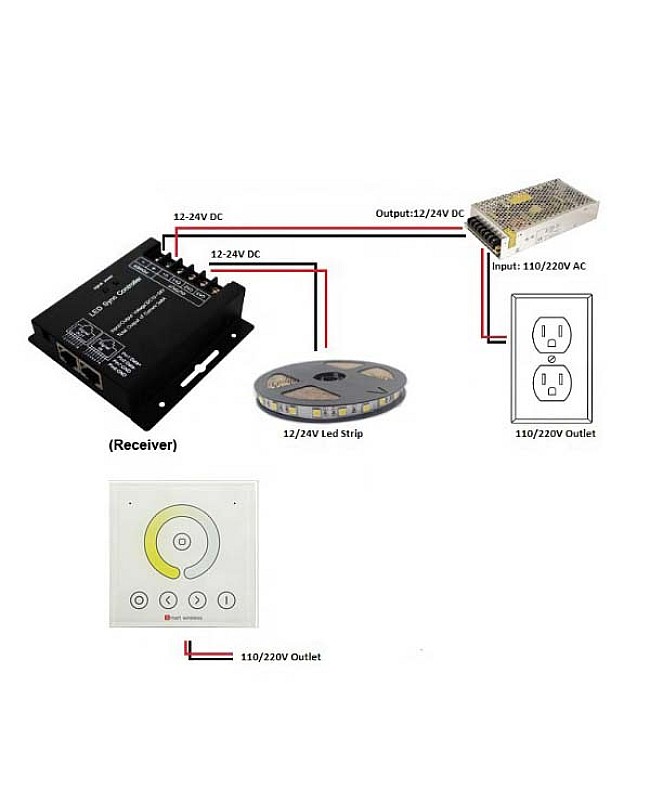

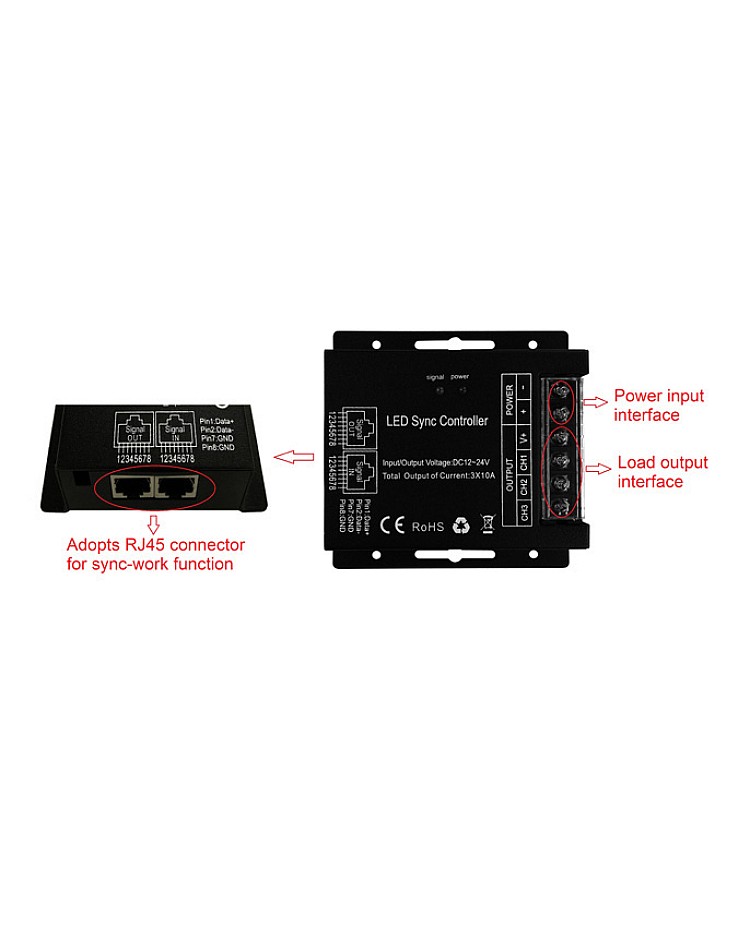

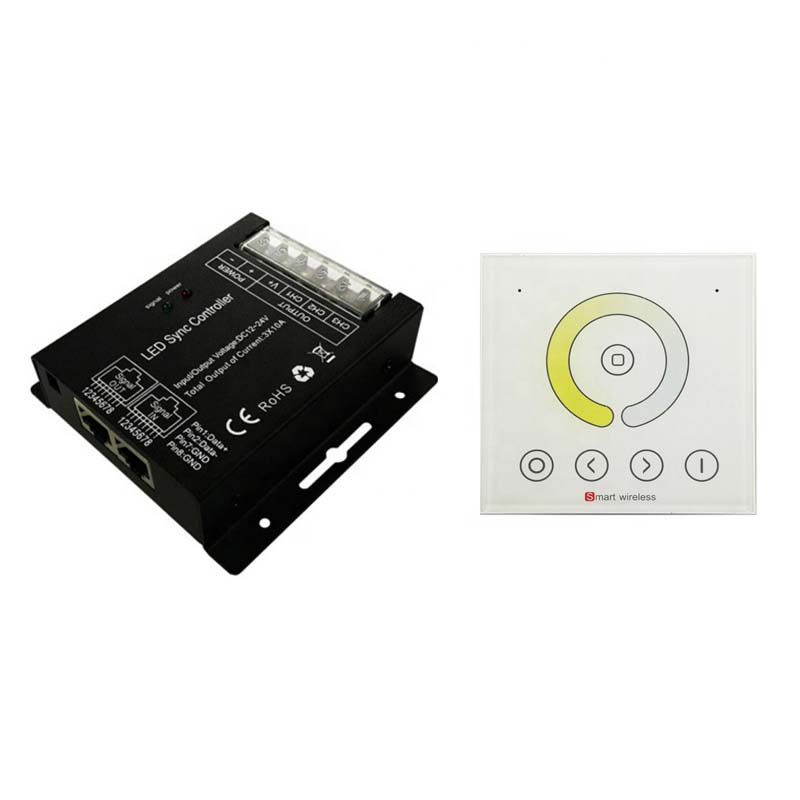

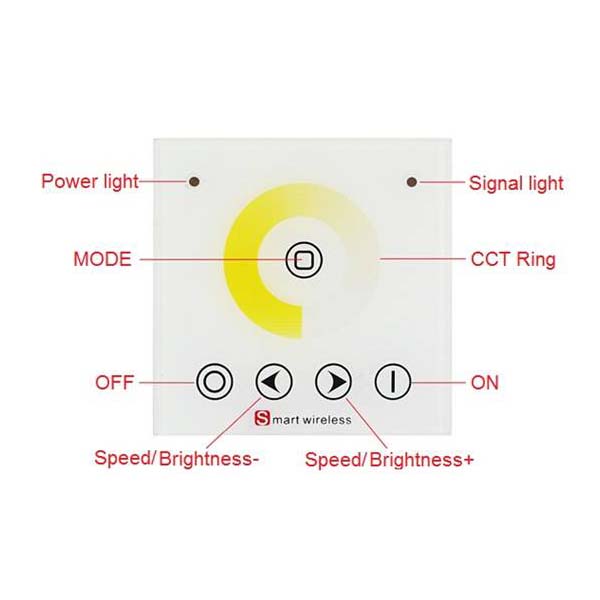

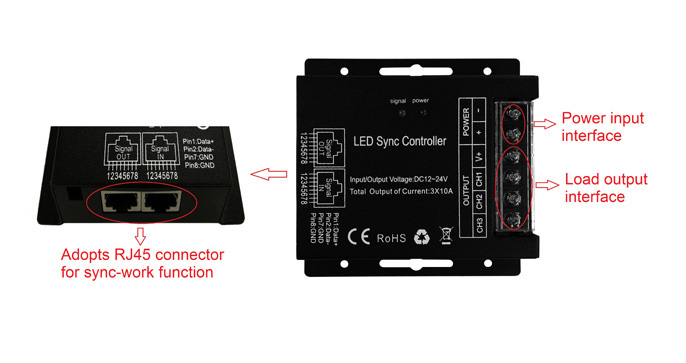

Check the Sync DC12V-24V CCT LED Controller, paired with the touch wall panel remote control, designed for the CW+WW constant voltage LED Lights, working in DC12V or DC24V, the CCT LED Controller with 2 channels output, the max output current of each channel is 10A, adopts the advanced PWM digital control technology, used for controlling constant voltage Tunable White LED Strips, with 2 RJ45 input ports and output with four interfaces, including two identical V+ for positive interfaces, the other two for the CW and WW control interface, with memory function, each time power-on reserve the mode which stop in the last power off. you could adjust the brightness, color temperature and various dynamic changes in lighting effects through the touch wall panel remote control, the RF Remote Control with one dimming ring and 5 function buttons, control range up to 20meters, the working voltage of the wall panel control between AC90V to AC265V, the structure/dimension/installation of the Wall Panel Remote COntrol according to the 86-type European standard, easy to install and use. long-press the brightness and speed key can get the fast adjustment. it's convenient to use the RJ45 connectors to connect the multiple controllers together and achieve the synchronization function of thousands of meters of LED Strips and other more quantity LED Lights, in theory, they can be connected numerous.

CCT LED Controller Features:

  • Working Voltage: -20-60℃
  • Size: L91*W88*H24mm
  • Working Voltage: DC12V-DC24V
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode
  • Output Channels: 2
  • Output Current: ≤10A(Each Channel)
  • Max Output Power: 240W(DC12V)/480W(DC24V)
  • PWM Frequency: 433.92MHz
  • Remote Distance: 20M
  • Gray Scale: 256 Levels
  • Speed Stage: 100 Grade
  • Mode: 8
  • Memory Function: YES
  • Short Circuit Protection: YES
  • Weight: 360g
  • 3 Years Warranty

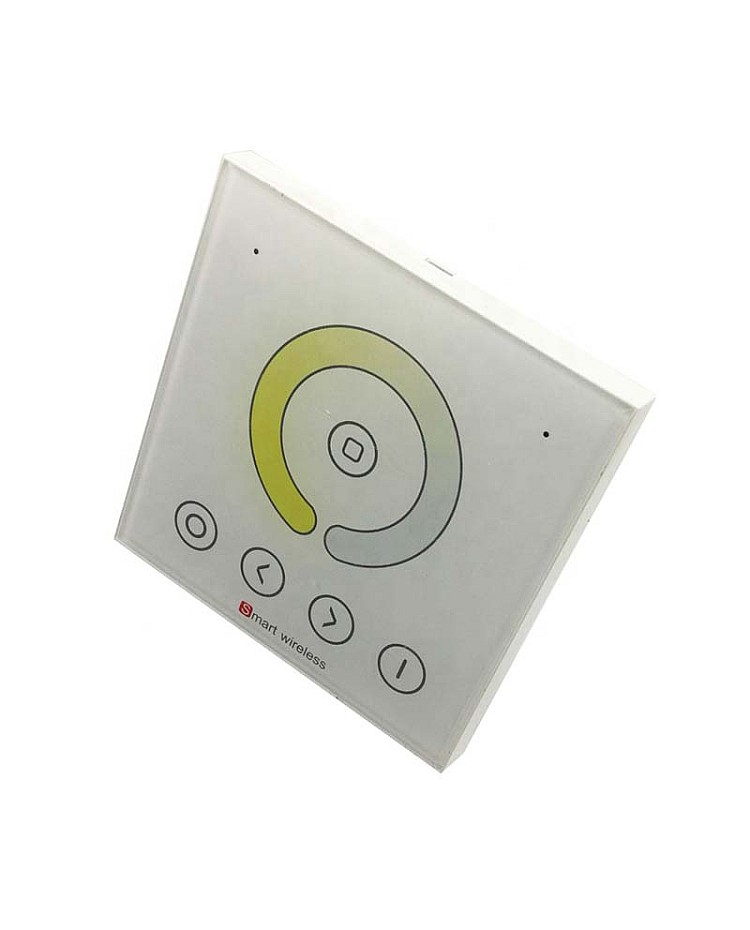

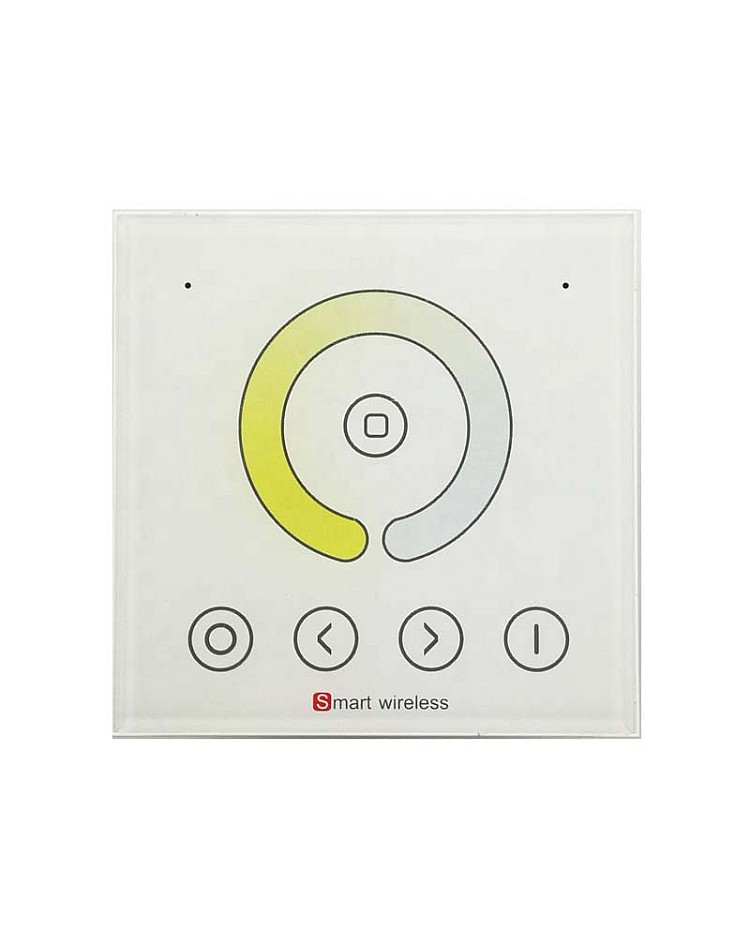

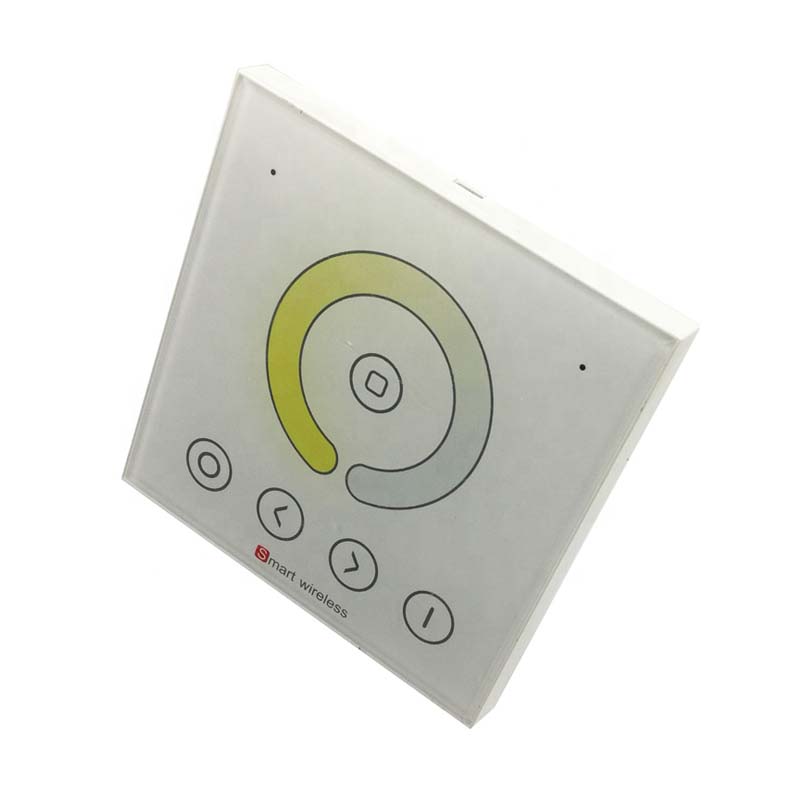

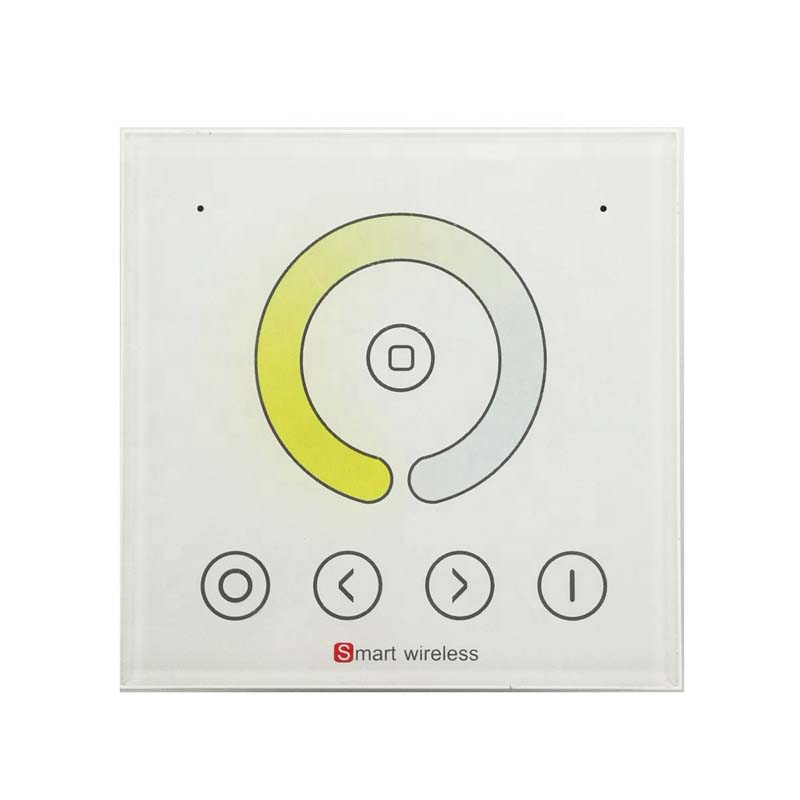

Touch Wall Panel Remote Features:

  • Dimension: 86*86*34mm(lL*W*H)
  • Working Temperature: 0℃-45℃
  • Working Voltage: AC90-265V(50/60Hz)
  • Standby Power: 0.2W
  • Working Power: 2W
  • RF Frequency: 433.92MHz
  • RF Distance: ≤20m
  • Structure: 86-Type European Standard
  • Weight: 130g

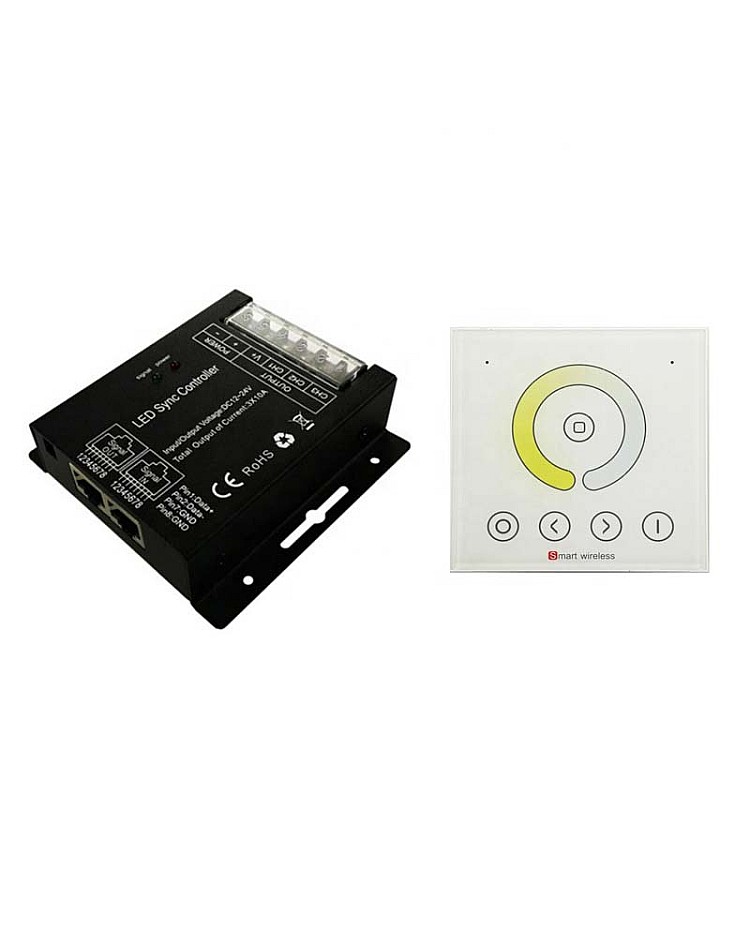

1*CCT LED Controller

1*Touch Wall Panel Remote Control
