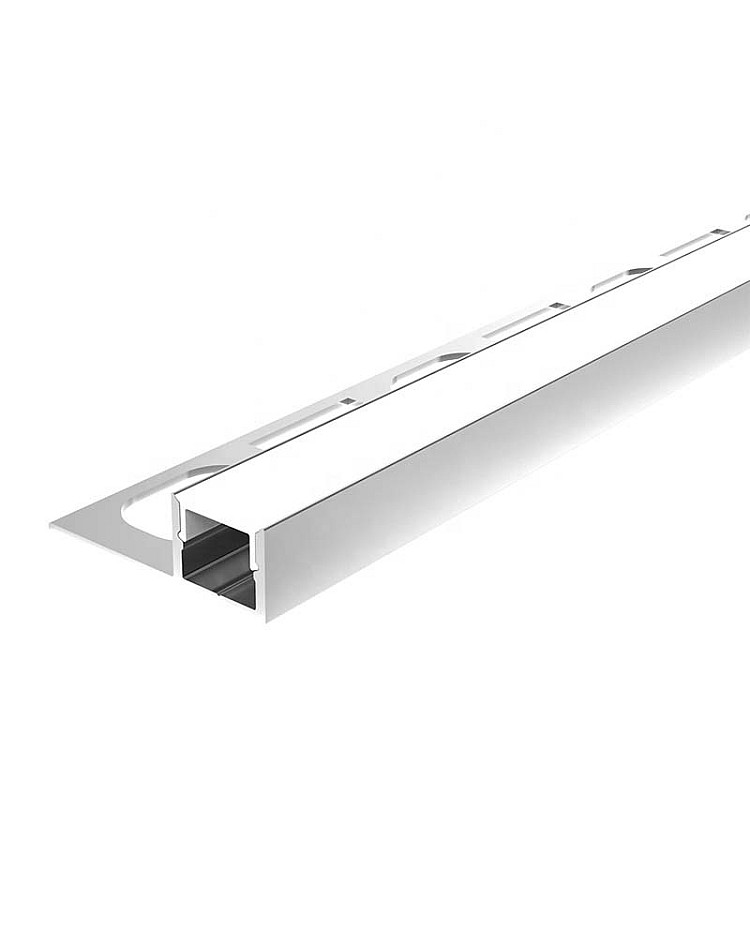

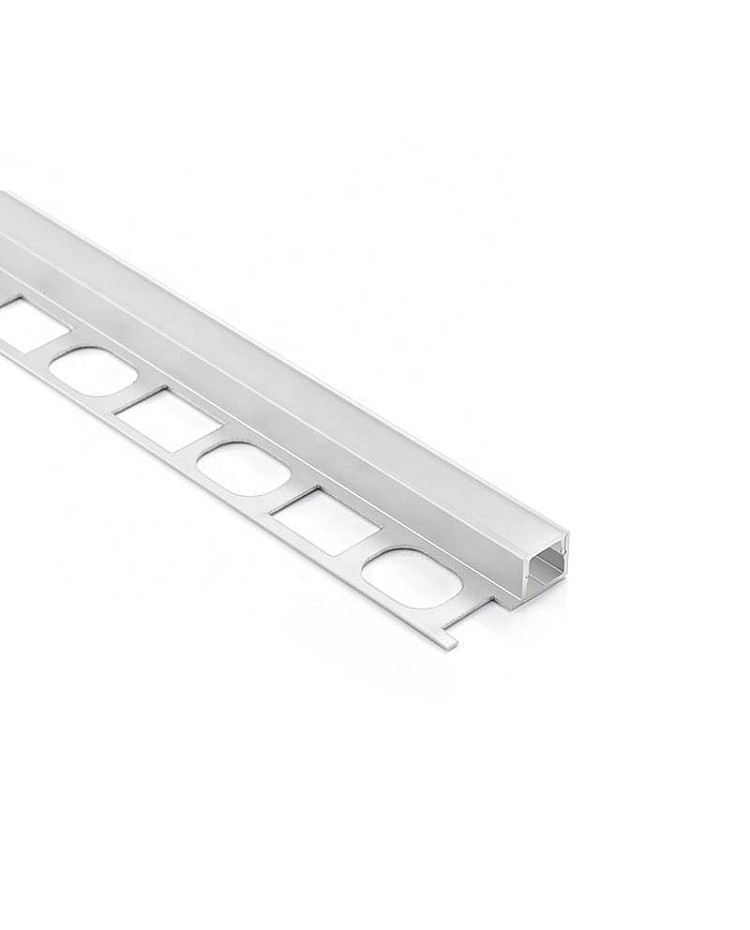

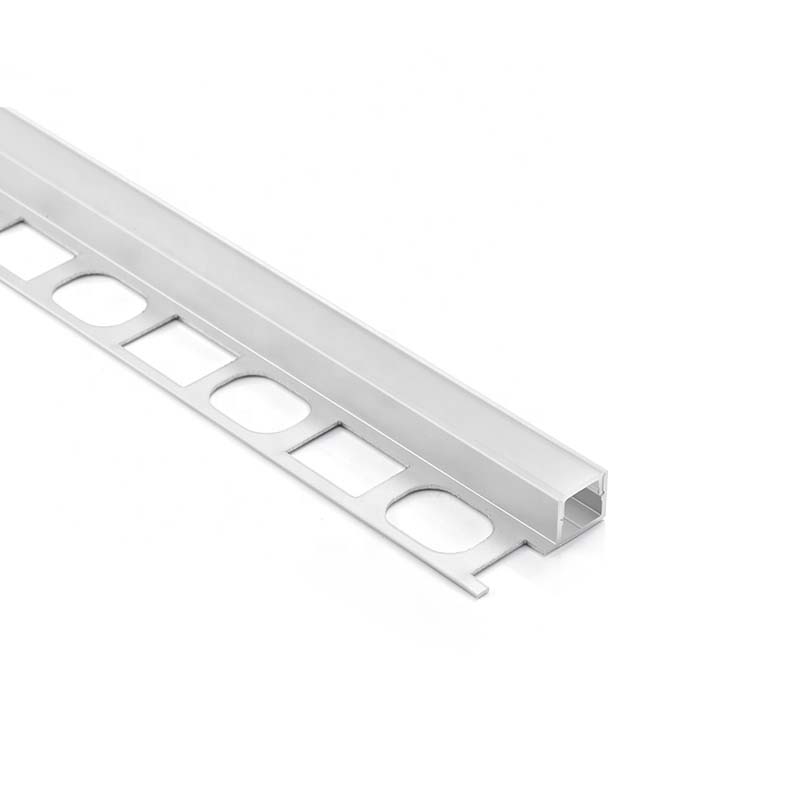

Check the Tile Edge LED Profiles with flange are designed to be installed flush with the surface of the marble, giving off a sleek, illuminated effect. For 10mm marble or tile on the wall or ceiling to create a stylish and modern look in any space, an excellent choice for Show Niche Lighting or Lighting areas with tiles, such as kitchens, bathrooms, etc. It's made of high-quality aluminum alloy material with anodized silver surface treatment and anti-oxidation resistance, making it durable and long-lasting. It will protect the LED Strips from being damaged and act as a heat sink to prolong the life of the LED Tile Lighting. Only one type of diffuser is available: PC diffused cover, which is made of brand-stable material, anti-yellowing, to create a seamless light output. The inner width is 10.5mm and accommodates 10mm wide LED Strips. Recommend adding high-density Tunable White COB LED Strips as the light source, without visible light dots and dark areas, to provide a bright smooth glow. End caps with wire holes are included, and they are easy to connect to the Transformer to light up or connect to the CCT Dimmer to adjust the brightness.  The standard length is 1M and 2M; the max size can be 6M and cuttable. The Profiles are easy to install, making them an excellent choice for LED lights in tiles.

Quick Links:

Dotless COB LED Strip Lights


  • Model: ALP087
  • Material: 6063-T5 Aluminium Alloy

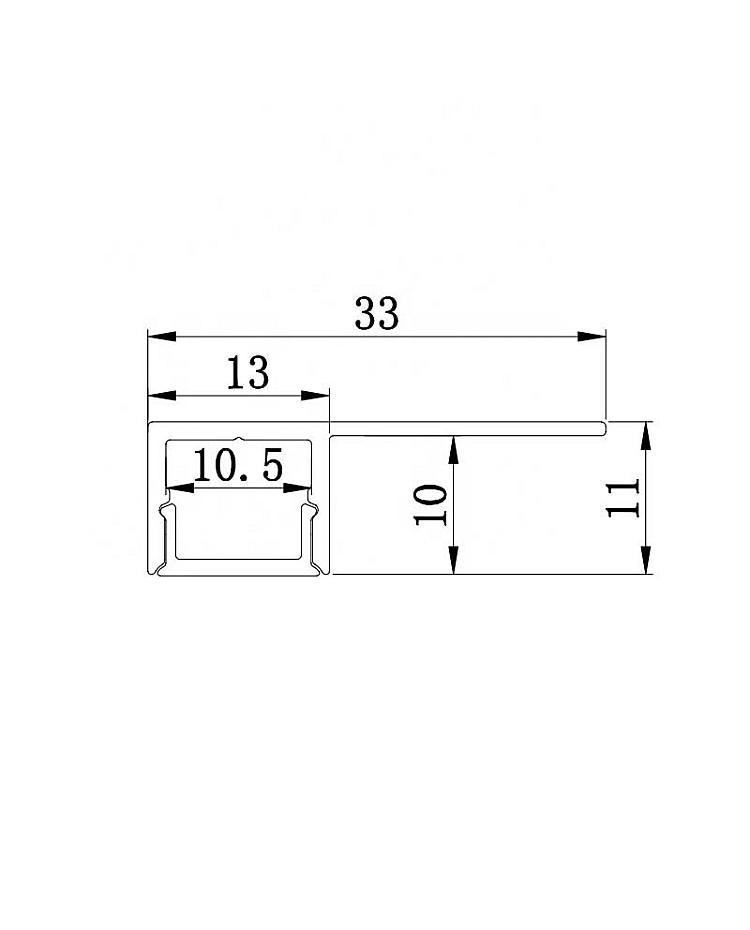

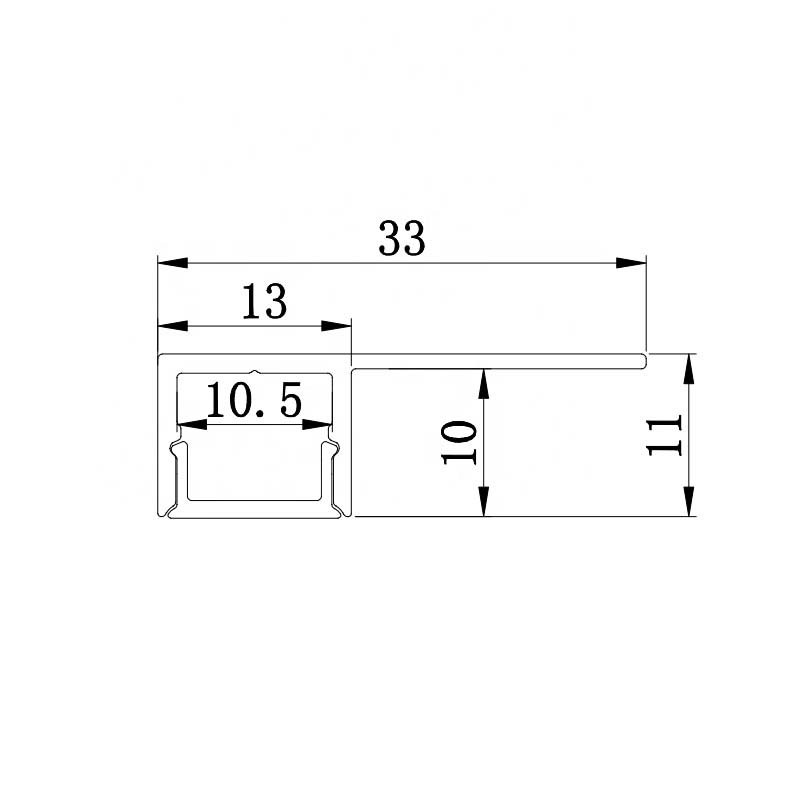

  • Size: 33.1*11mm
  • Surface Treatment: Anodized Silver
  • Colors: Silver(default), White, Black
  • Inner Width: 10.5mm
  • Compatible With ≤10mm LED Strips
  • Power: <15W/Meter
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Diffuser: PC Diffused Cover

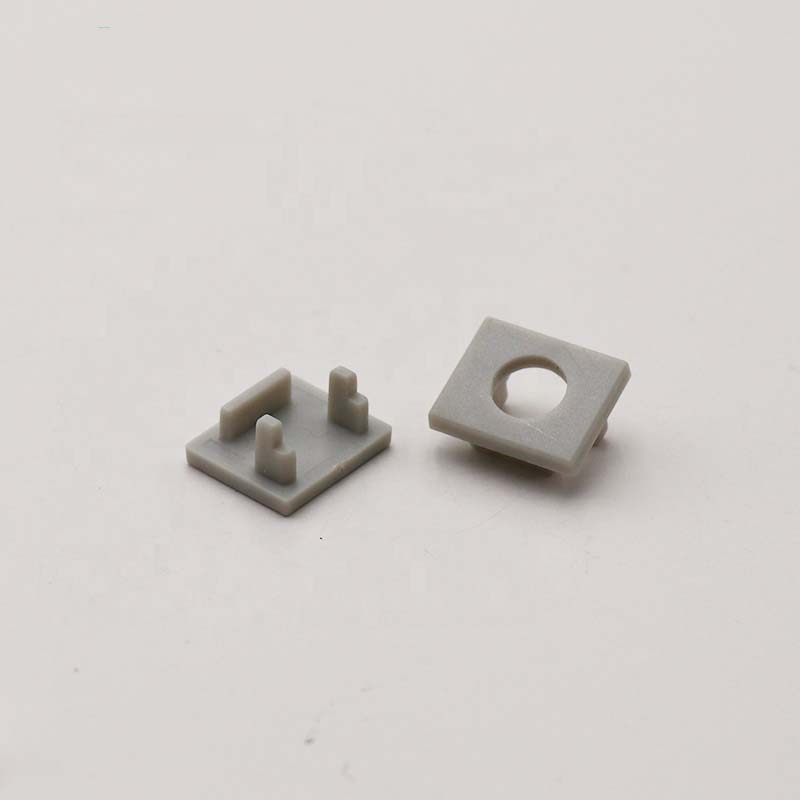

  • End Caps With Wire Hole And Without Wire Hole Included
  • LED Strips, Controllers And Transformers Sold Separately

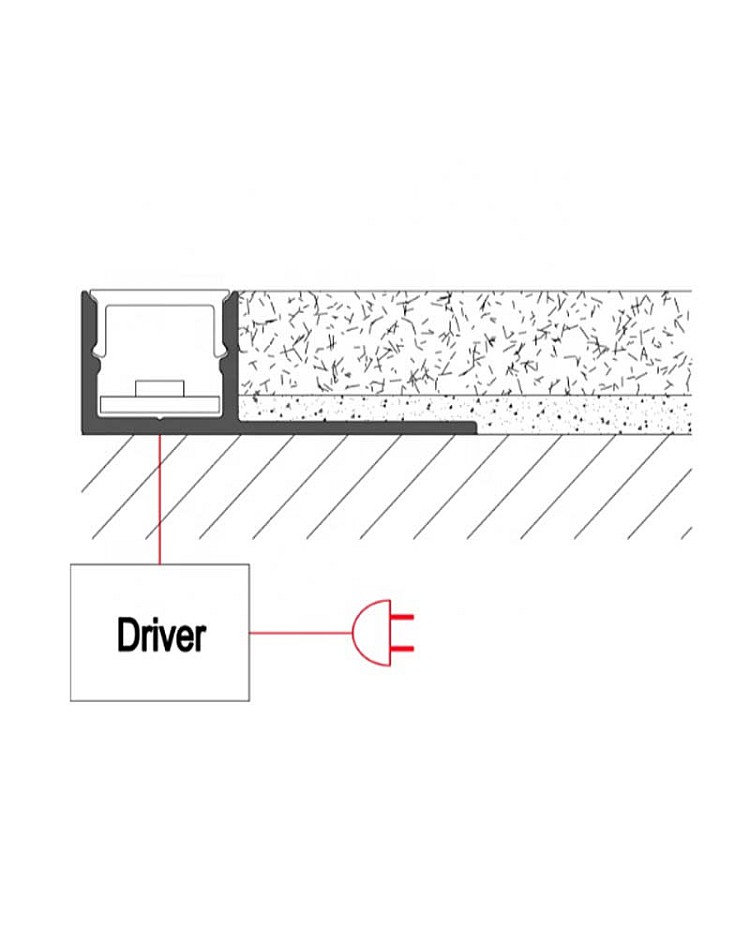

  • Installation: Trimless Recessed For 10mm Marble/Tile

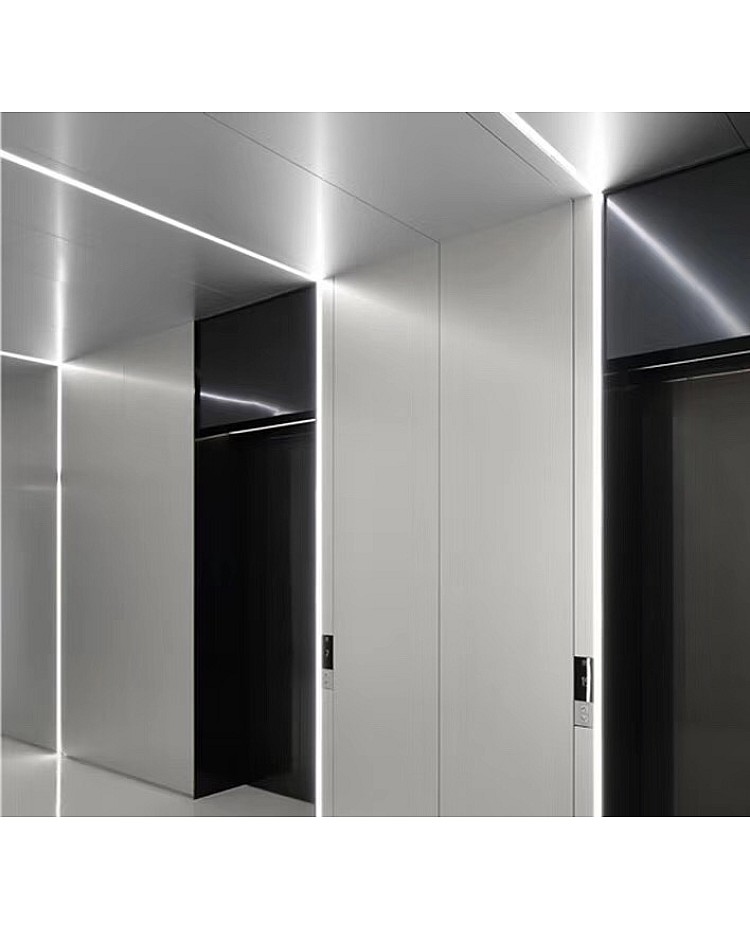

  • Applications: Wall, Ceiling In Kitchen, Bathroom, Swimming Pool, etc
  • 5 Years Warranty


1*Tile Edge LED Profile

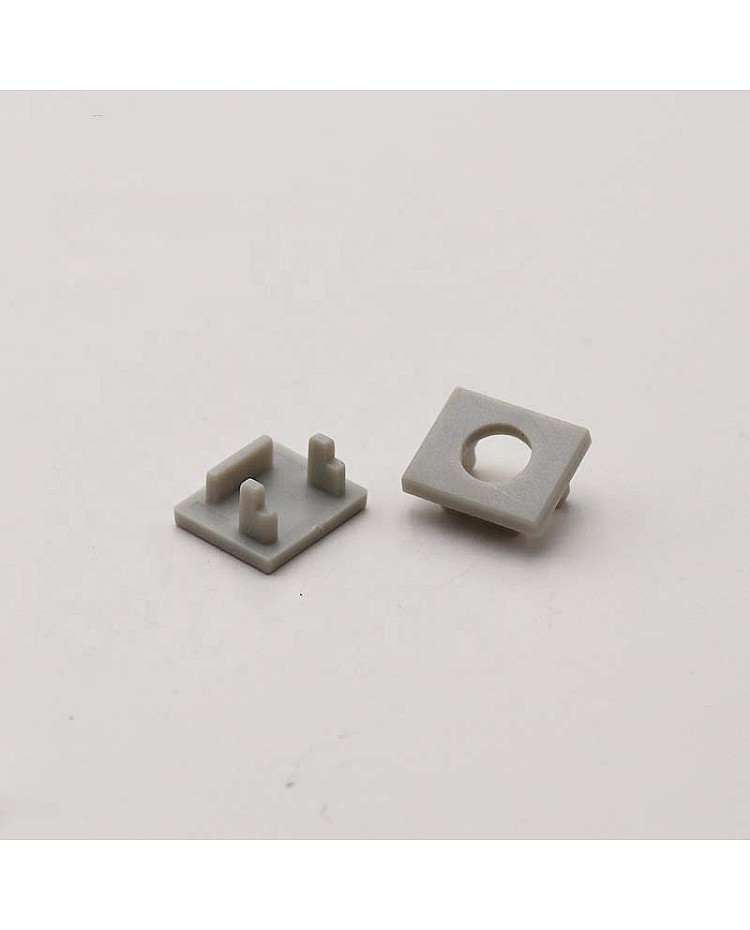

End Caps(With Wire Hole/Without Wire Hole)

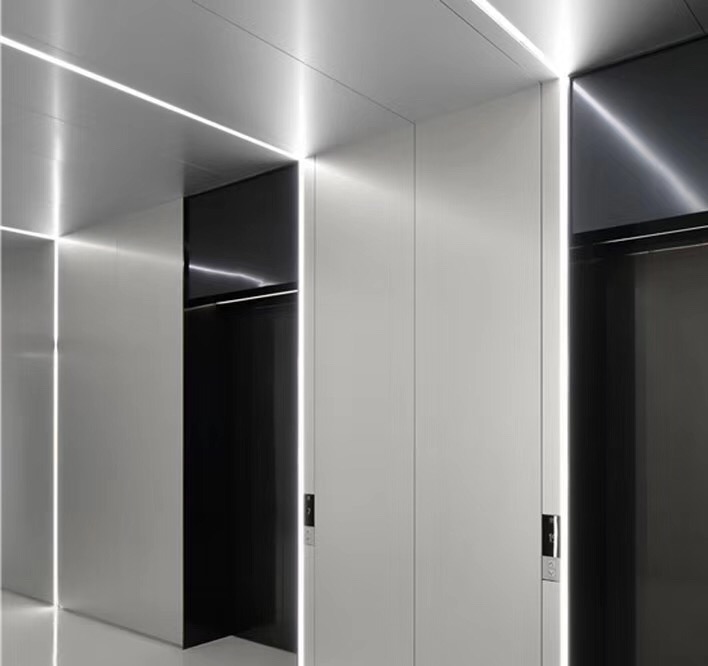

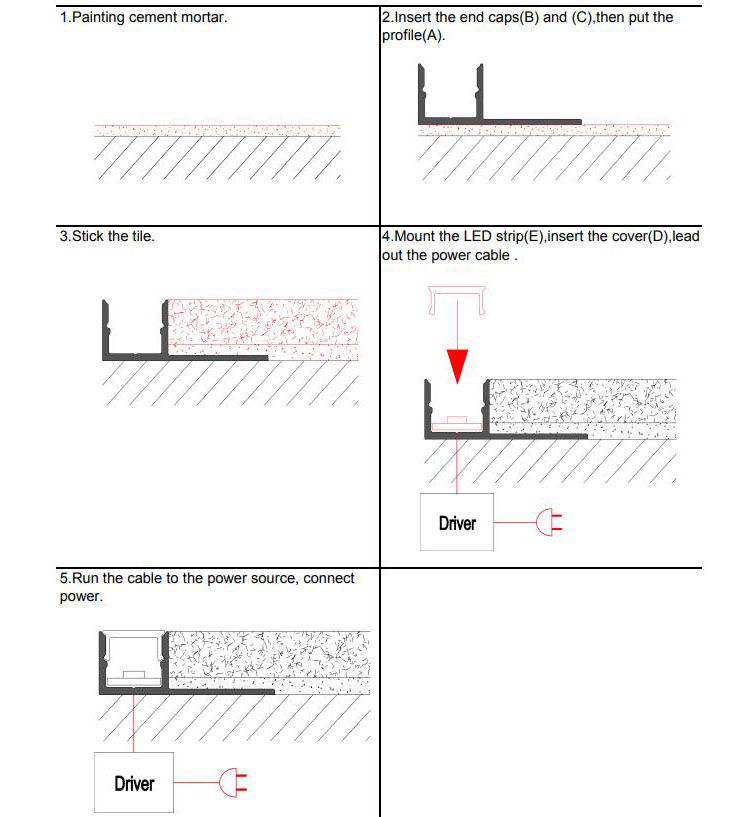

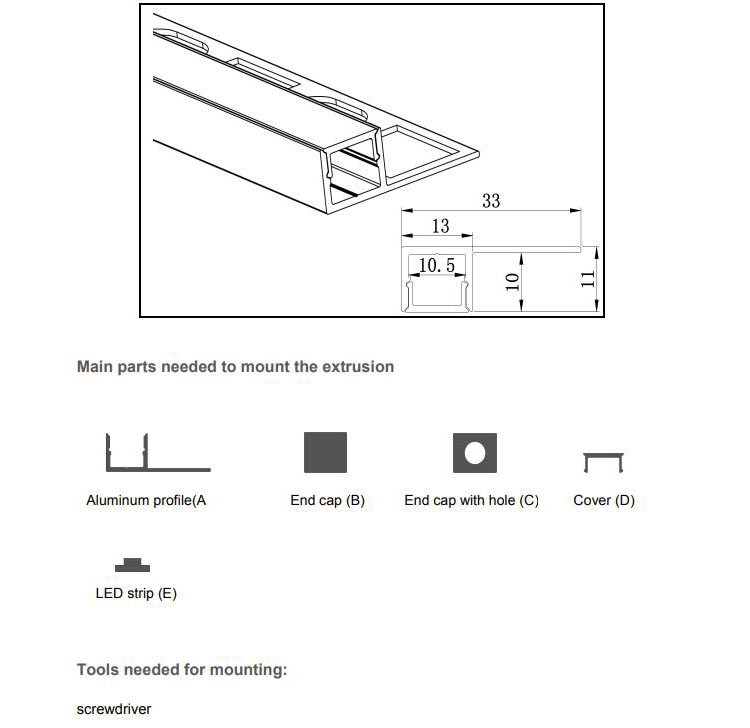

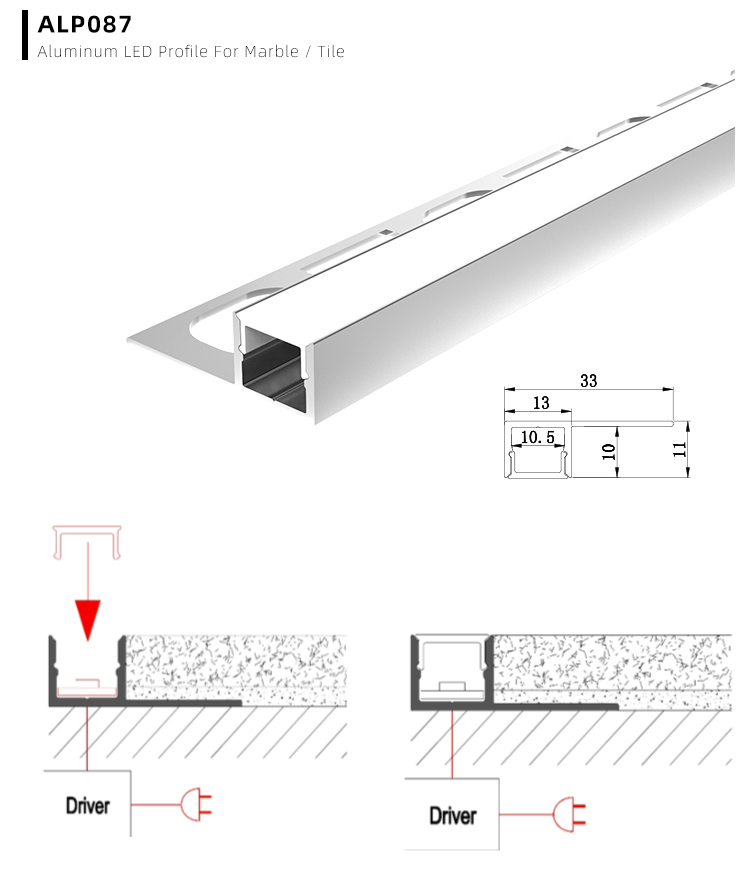

Tile Edge LED Profiles Review LED Profiles For Tile How To Install LED Tile Profiles 10mm Tile Recessed LED Profiles
