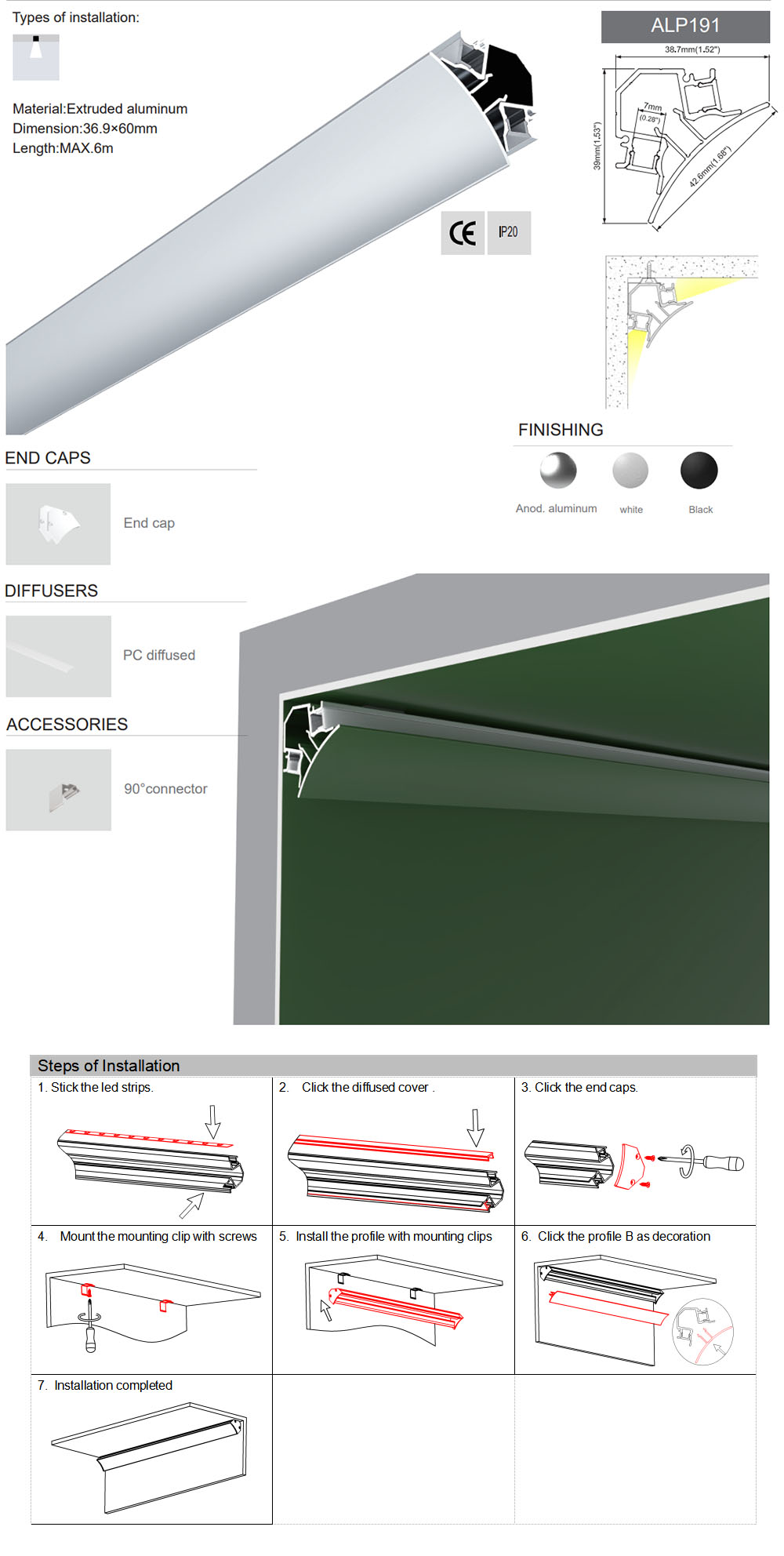

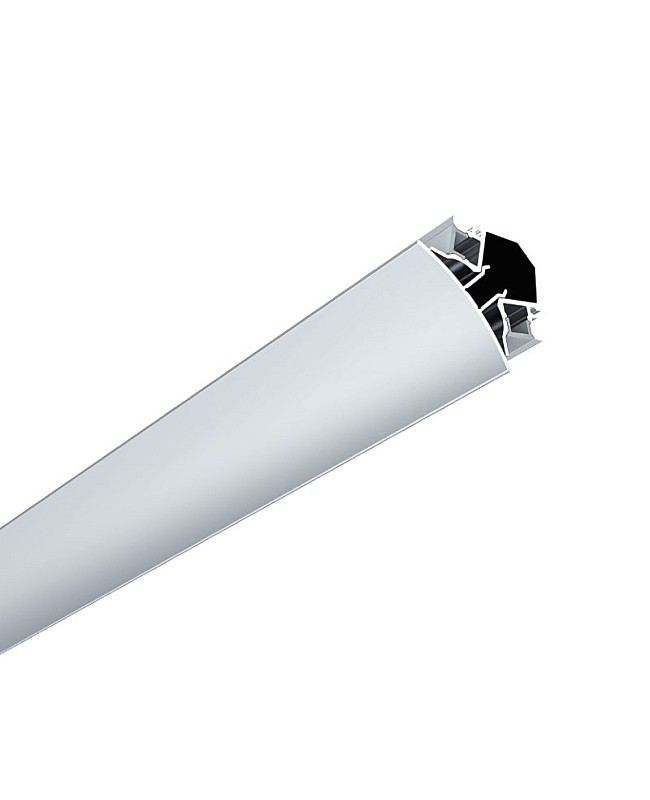

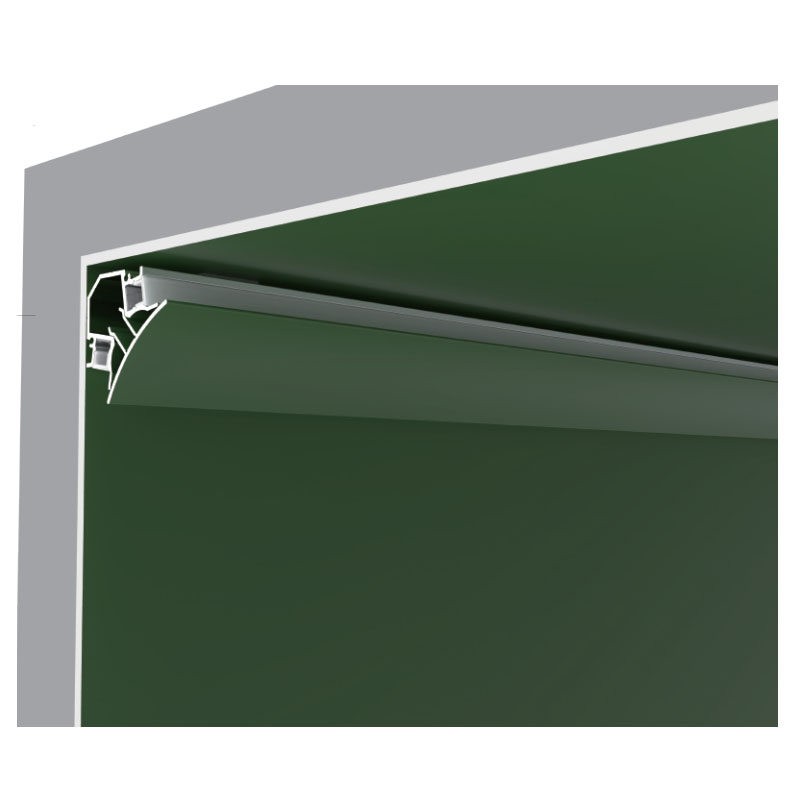

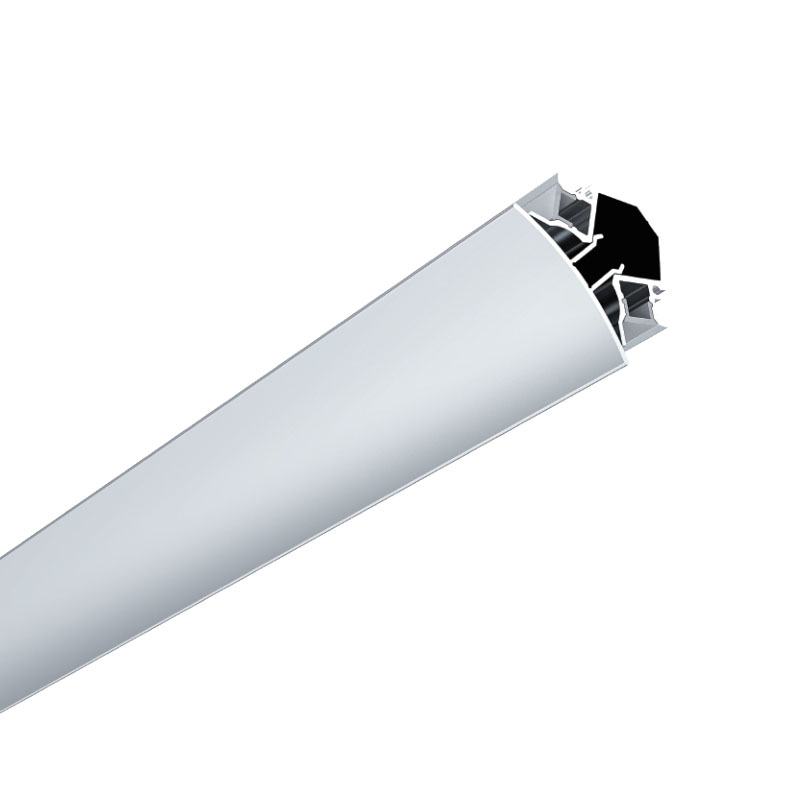

ALP191 is another cornice light channel with a smaller size than ALP190. They can be mounted on the ceiling-wall junction and deliver lighting to both the ceiling and wall, creating a cozy ambient lighting effect. Making them ideal for ambient lighting, cove effects, or mood enhancement in residential and commercial interiors. The cornice aluminum profiles consist of two parts: profile A and profile B. Profile A houses and conceals LED strips, serving as heat sinks to facilitate better heat dissipation. The inside has space to hide lighting accessories, such as wires and linear drivers. Profile B features a white-coated finish that conceals Profile A, allowing the entire light channel to blend seamlessly into the surrounding decoration. The standard lengths are 1 m and 2 m, and can be easily cut to your desired length. Custom length is available. They are crafted from 6063-T5 aluminum alloy and feature an anodized or powder-coated surface treatment for enhanced oxidation resistance. Two types of diffusers are available: PC diffused covers and PC semi-clear covers. They are made of high-quality material, with perfect light distribution and different light transience. The inner width is 7mm, allowing for a maximum width of rigid or flexible strip lights of 6mm. You can add our 4mm high-density COB strip lights to create uniform lighting without hotspots.
Specifications:
- Model: ALP191
- Material: Extruded aluminum 6063-T5

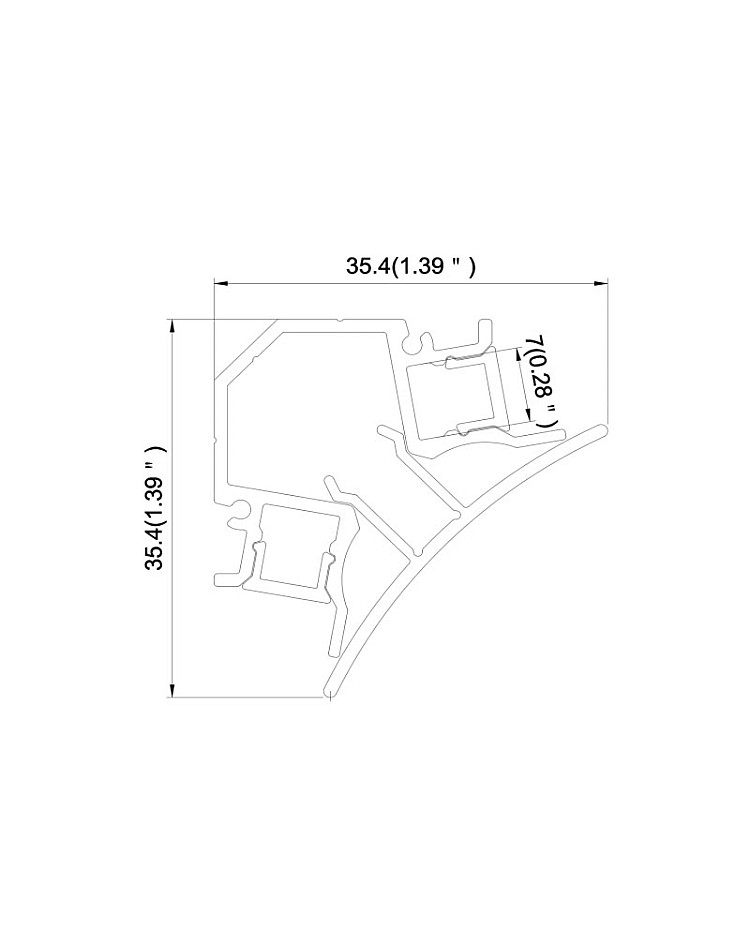

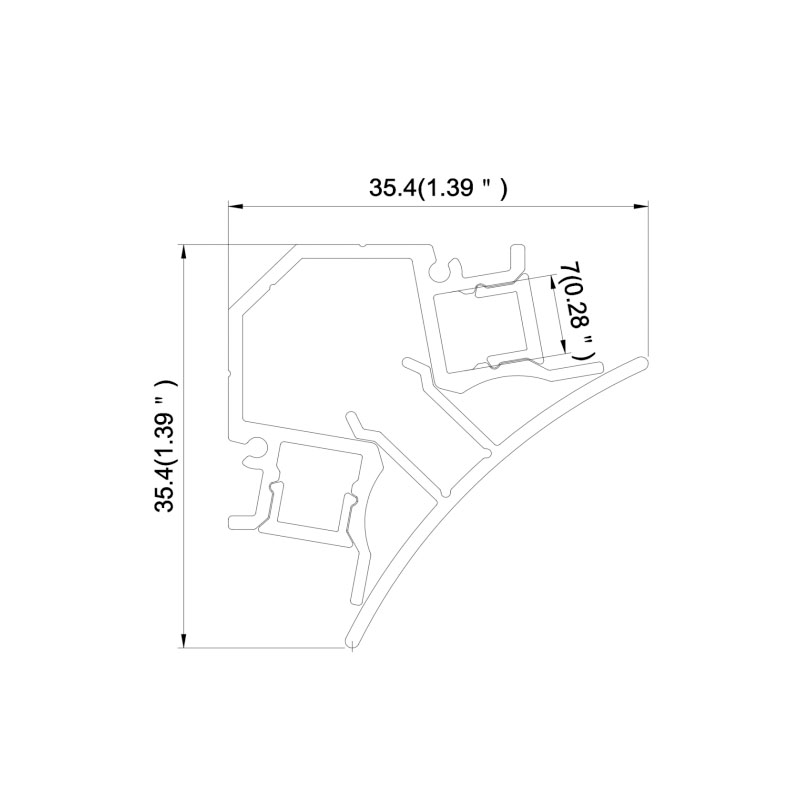

- Size ( W x H ): 39 mm x 38.7 mm ( 1.53" x 1.52" )
- Surface treatment: Anodized and powder-coated
- Colors: White ( Profile-B), silver ( Profile-A )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom lengths available: YES
- Diffusers: PC diffused cover / PC semi-clear cover
- Inner width: 7 mm ( 0.28" )
- Maximum width of LED strips: 6 mm ( 0.24" )
- Max power: 18W/m
- Beam angle: 100°
- IP rate: IP20 non-waterproof
- Tolerance: ±1%

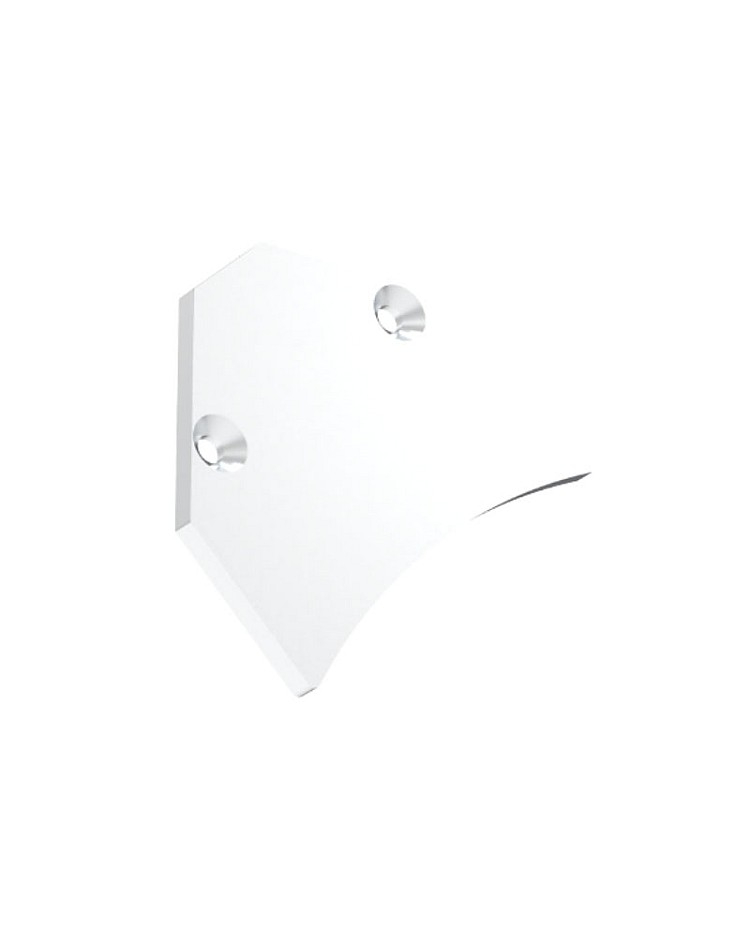

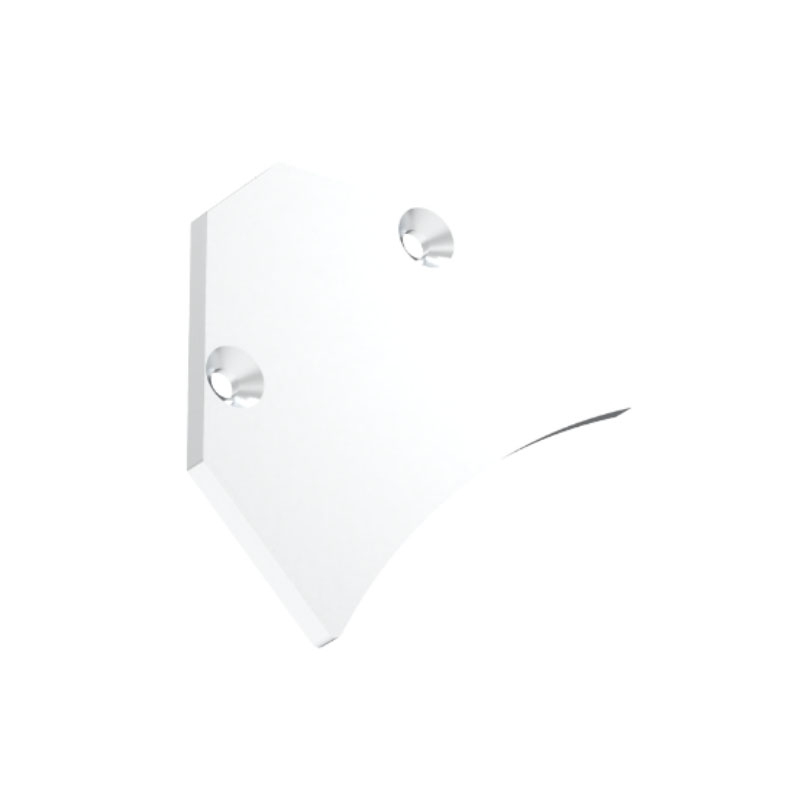

- End caps are included

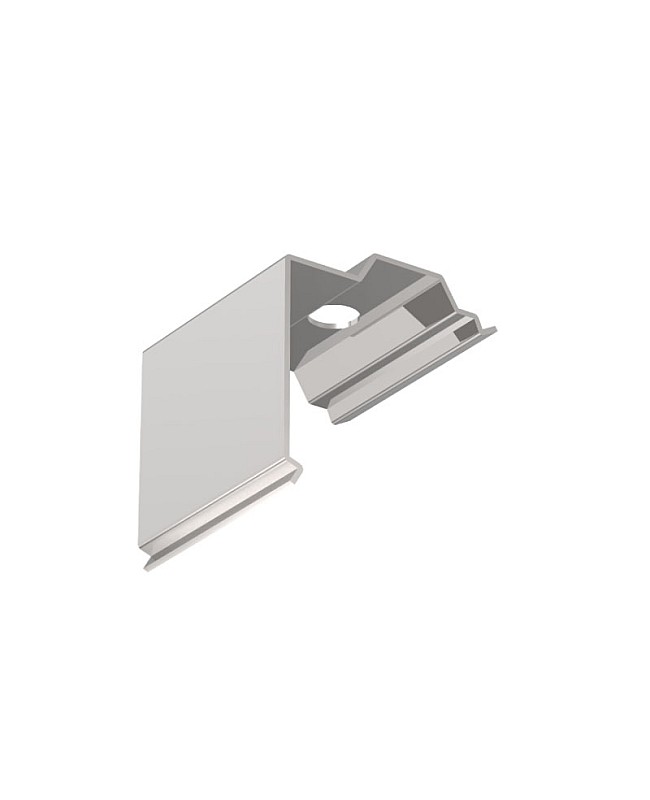

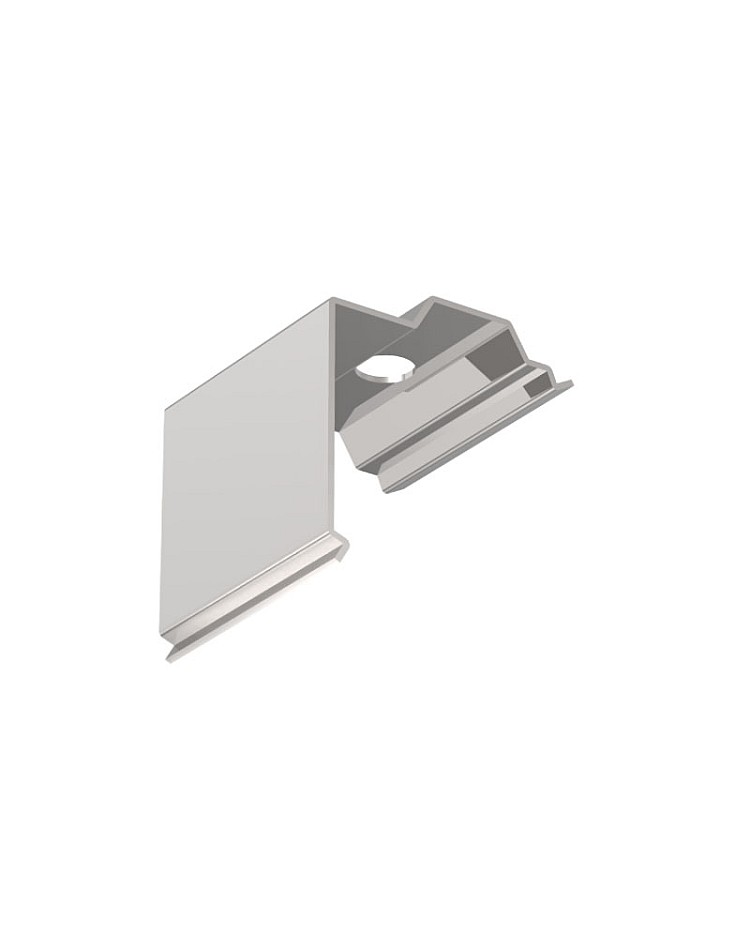

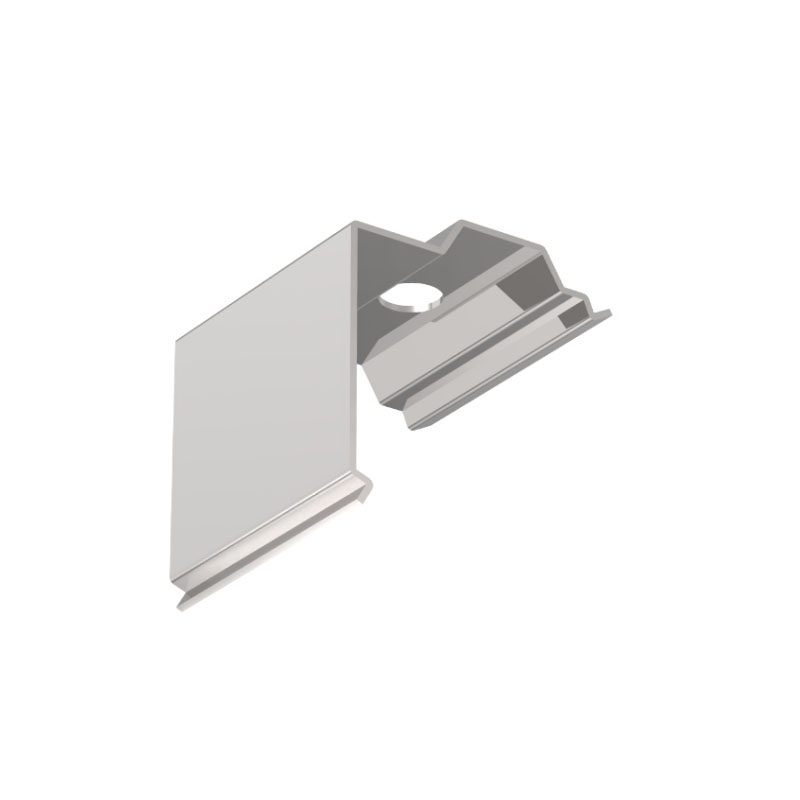

- Metal clips are included

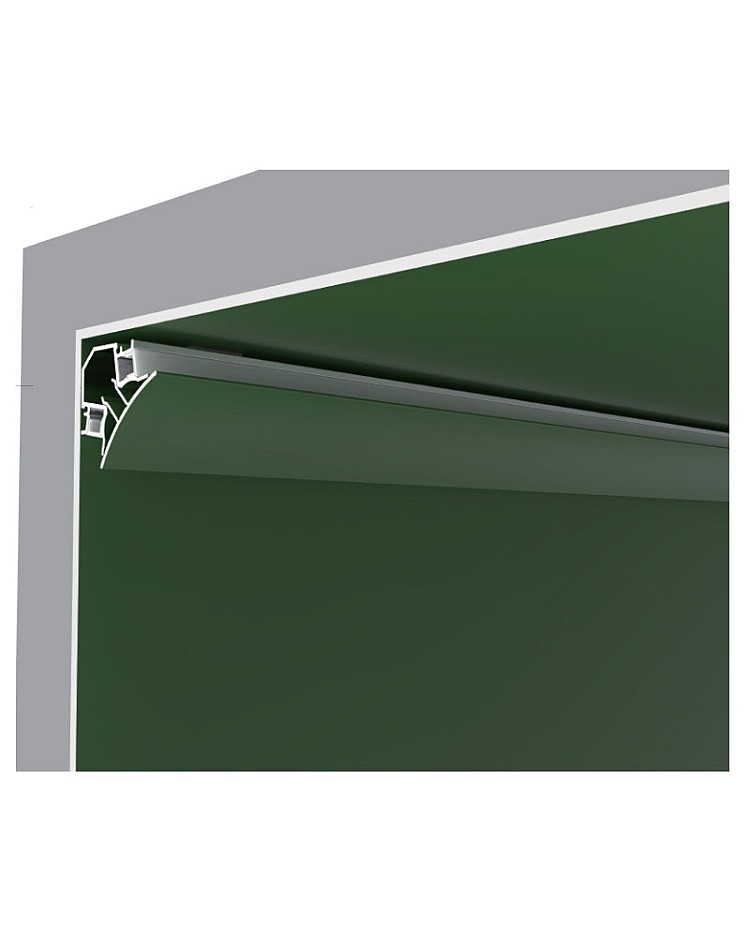

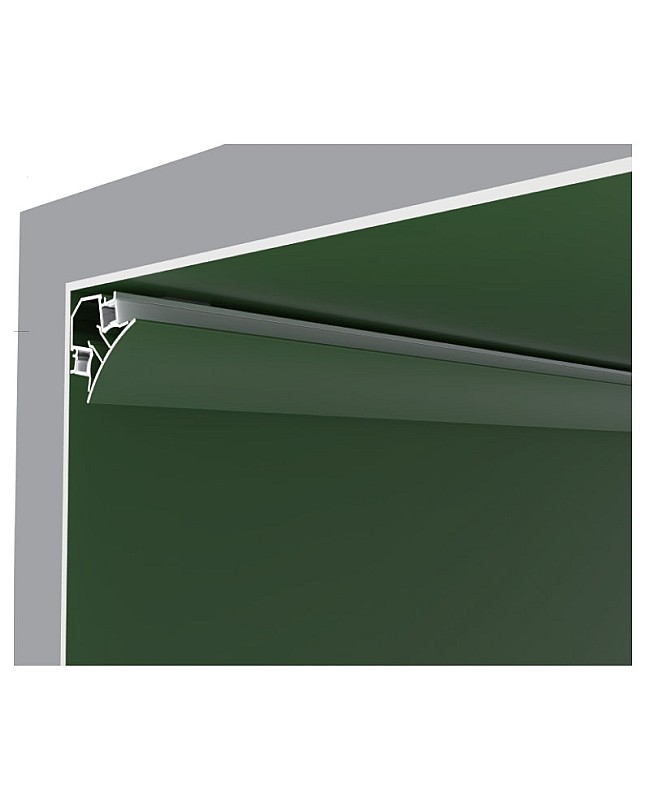

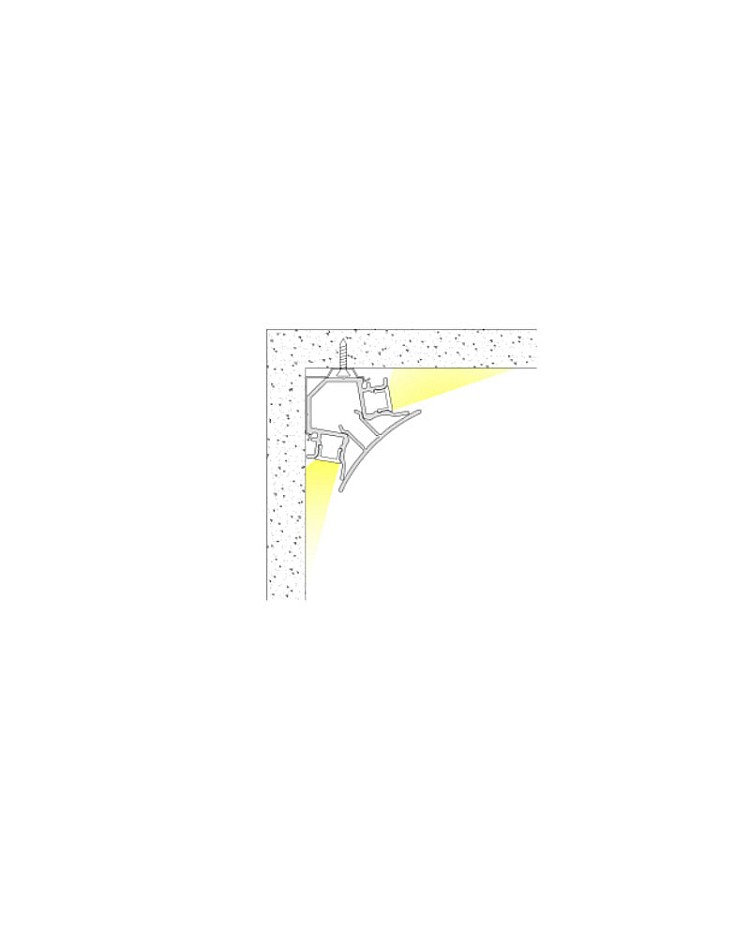

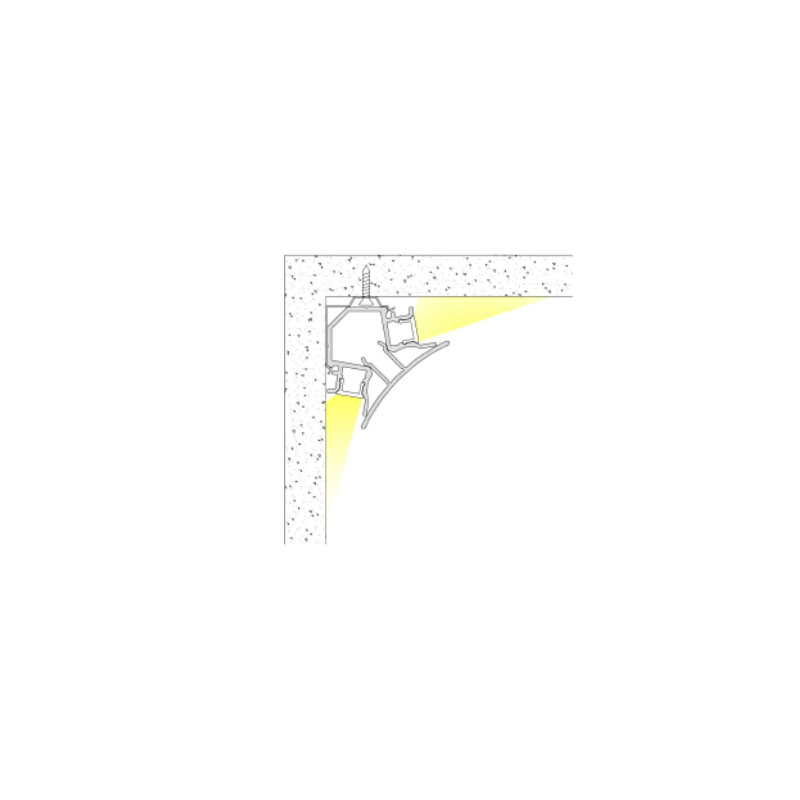

- Installation: Ceiling-wall junction mounted
- Warranty: 5 years
Includes:
1 * Cornice LED channel with diffuser
End caps
Mounting clips
