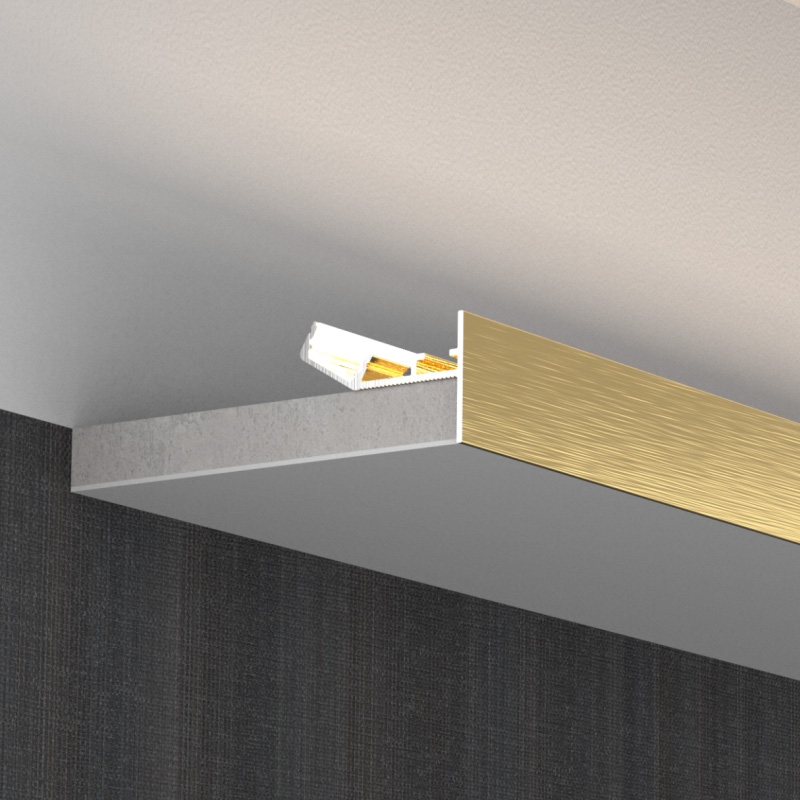

The tray ceiling LED channels are engineered to deliver elegant indirect lighting by seamlessly concealing LED strips within recessed ceiling designs. They feature a 30° upward incline that optimally directs light onto the ceiling plane. This creates a smooth, diffused wash of light, producing a warm and ambient glow while keeping the light source completely hidden from view.

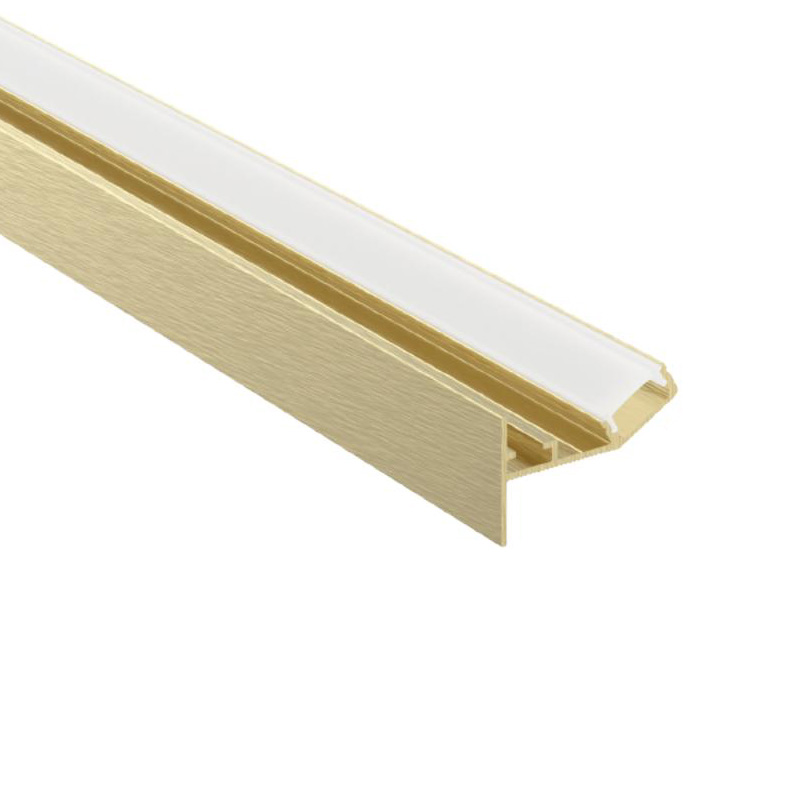

The ceiling light profiles are manufactured from high-quality aluminum and feature an anodized finish for anti-oxidation resistance and a longer lifespan. The standard lengths are 1m and 2m; custom lengths are also supported. The inner width is 12.3mm, allowing a maximum strip light width of up to 12mm. We recommend using high-density COB strip lights as the light source for even illumination without visible light dots or dark areas.

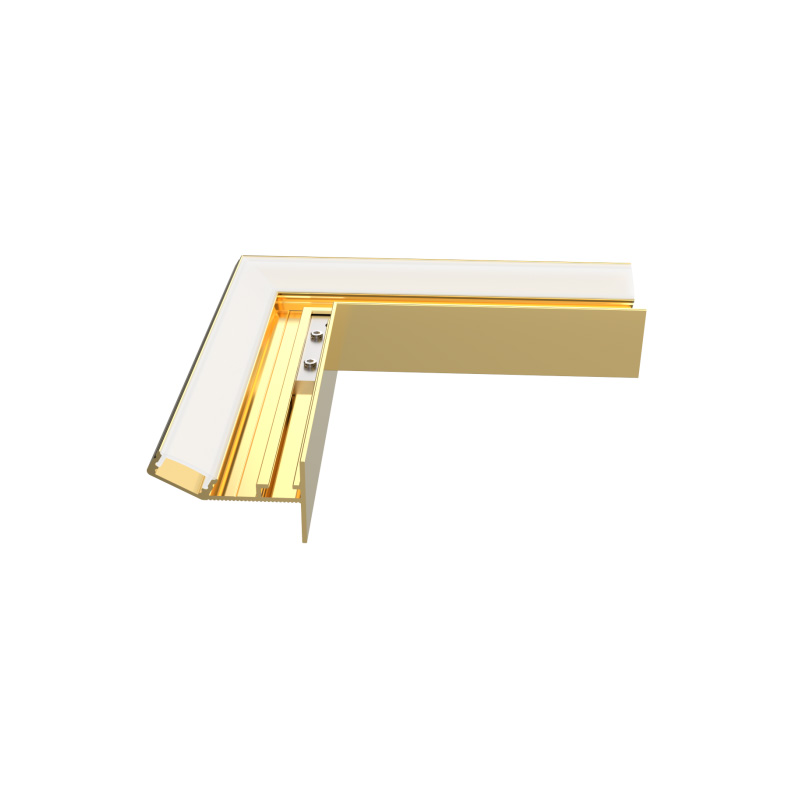

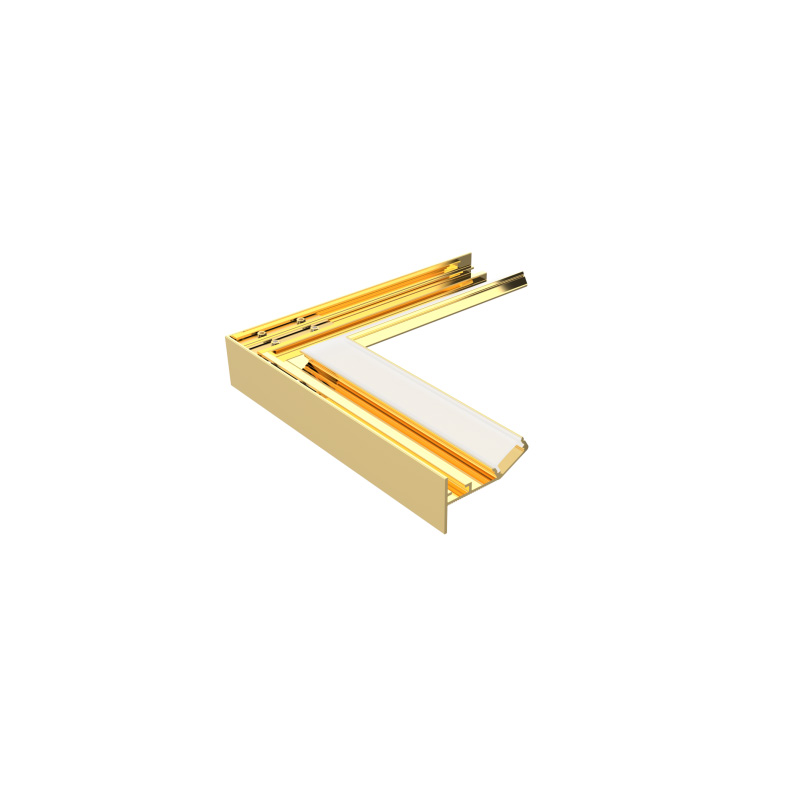

Two types of diffusers are available: PC diffused and PC semi-clear covers. The plastic covers will diffuse the lighting evenly for smooth illumination. Pre-made 90-degree corner connectors for inside or outside corner installation, and you can purchase the 180° joiners for longer runs.

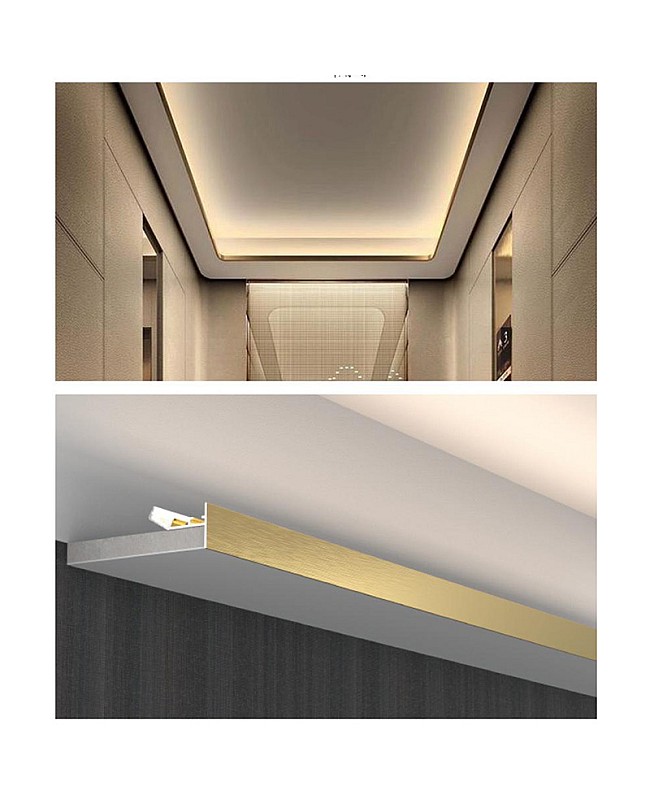

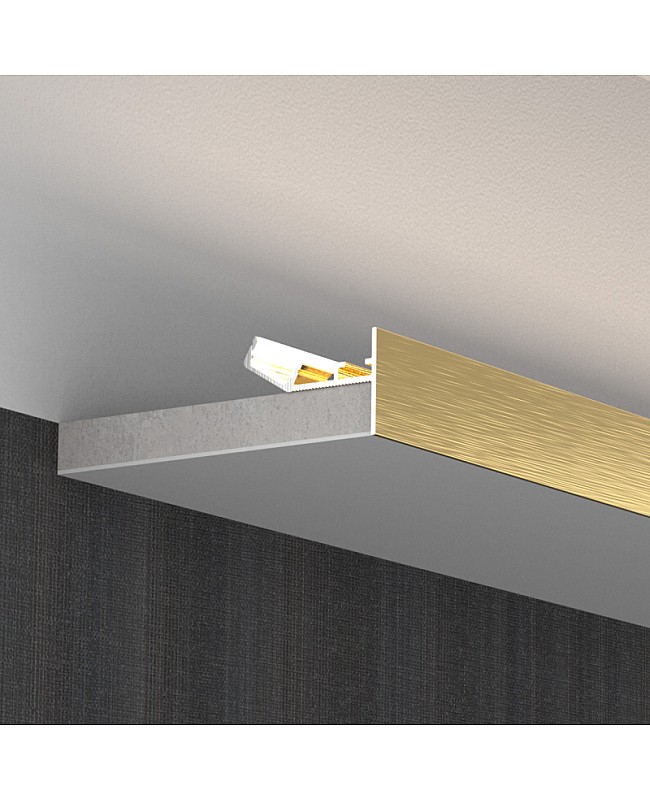

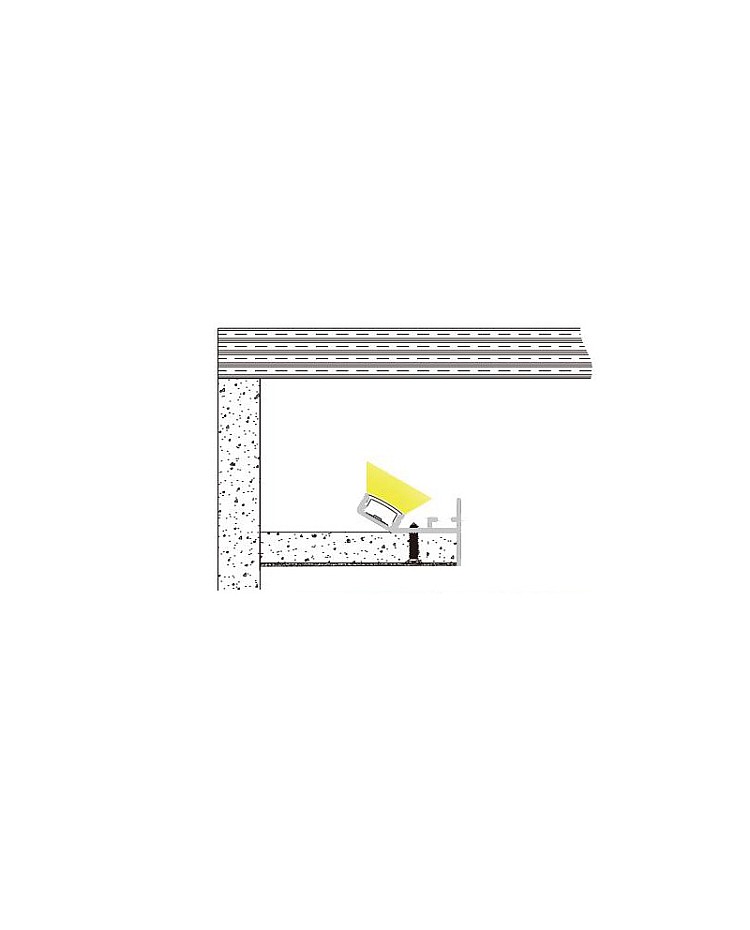

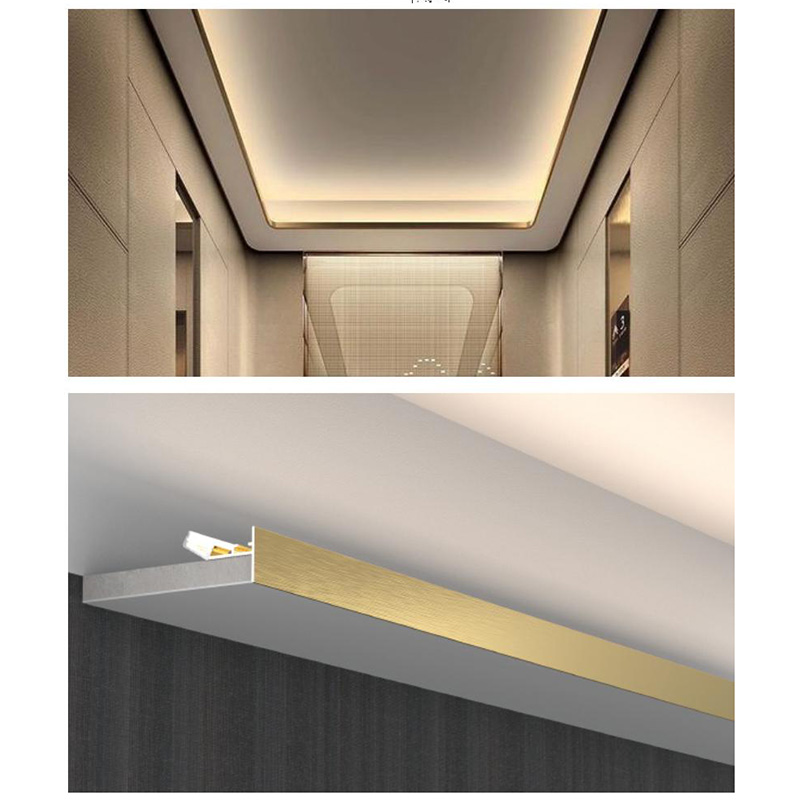

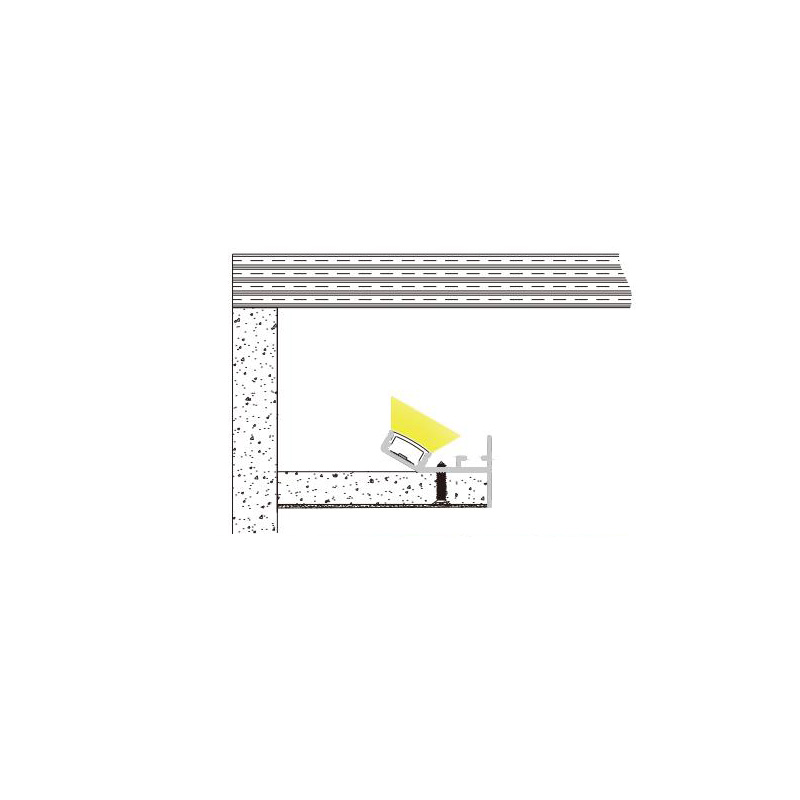

They can be flush-mounted with 1/2" plasterboards, which are ideal for coffered ceiling lighting, cove lights, lighting in a false ceiling, and ceiling perimeter lighting.

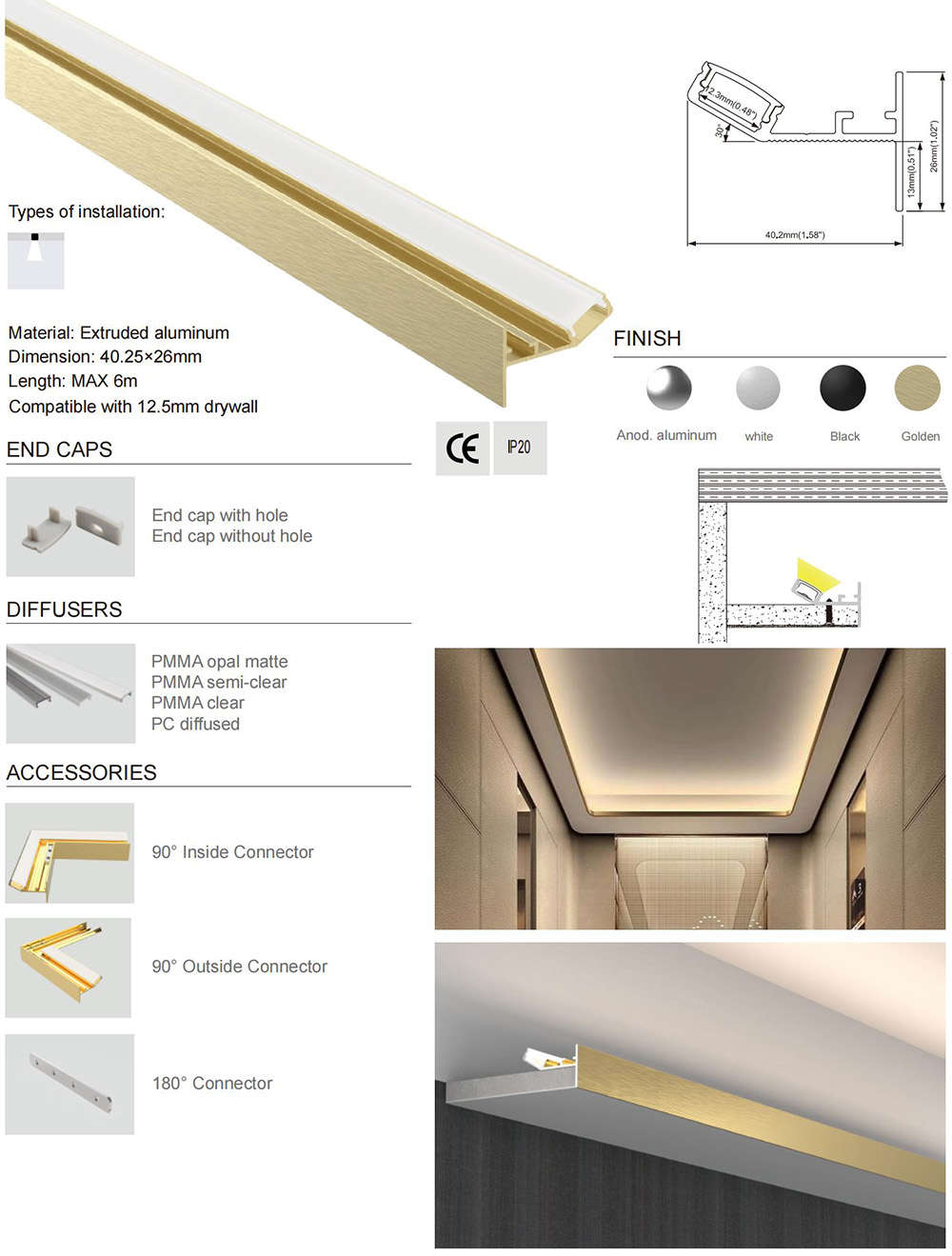

Specifications:

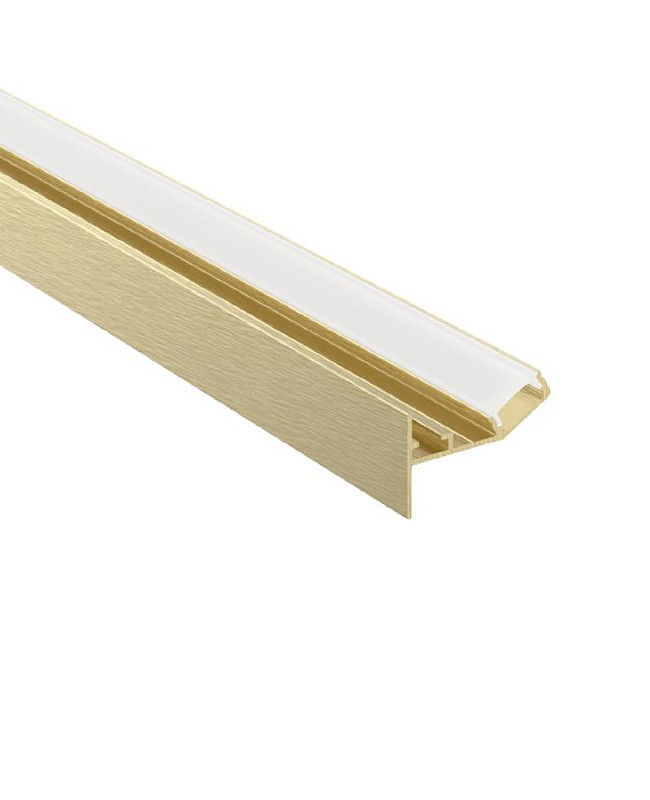

- Model: ALP205
- Material: Extruded aluminum 6063-T5

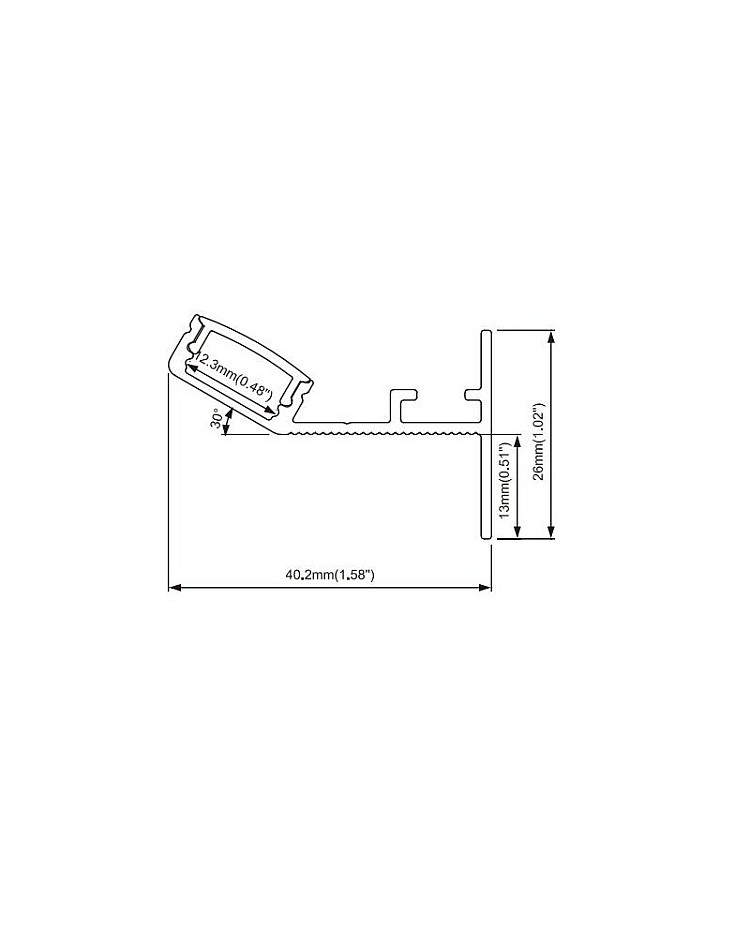

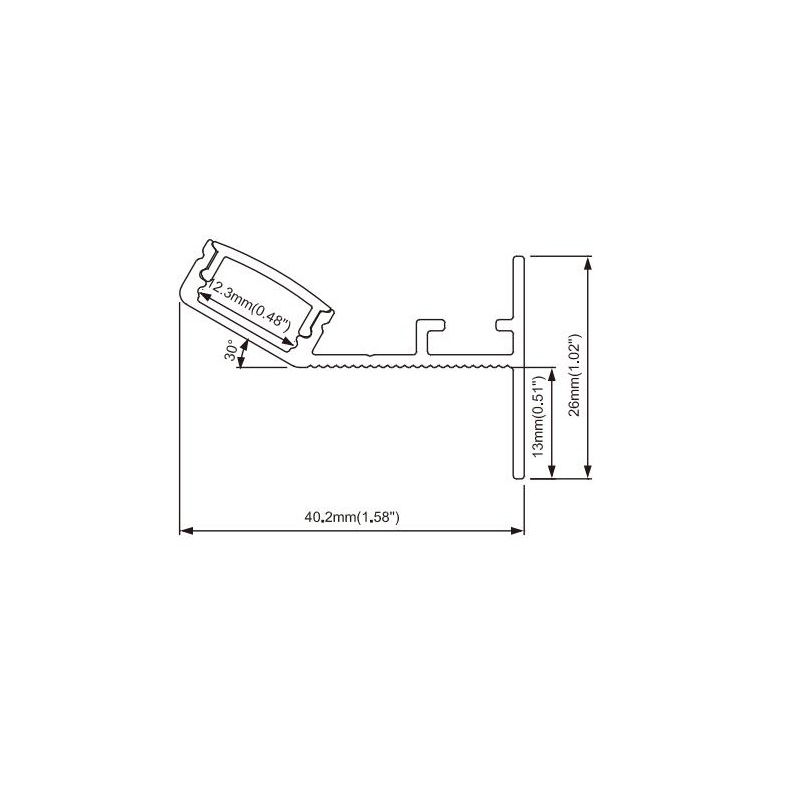

- Size ( width x height ): 40.2 mm x 26 mm / 1.58" x 1.02"
- Surface treatment: Anodized
- Colors: Gold brushed, black, silver
- Standard lengths: 1 m ( 39" ) / 2 m ( 78" )
- Custom length available: YES
- Inner width: 12.3 mm / 0.48"
- Allows the max width of strip lights to be 12mm/0.47"
- Diffusers available: PC diffused covers ( 60-85% transmittance ), PC semi-clear covers ( 85-92% transmittance )
- Tolerance: ±1%
- IP rating: IP20 non-waterproof

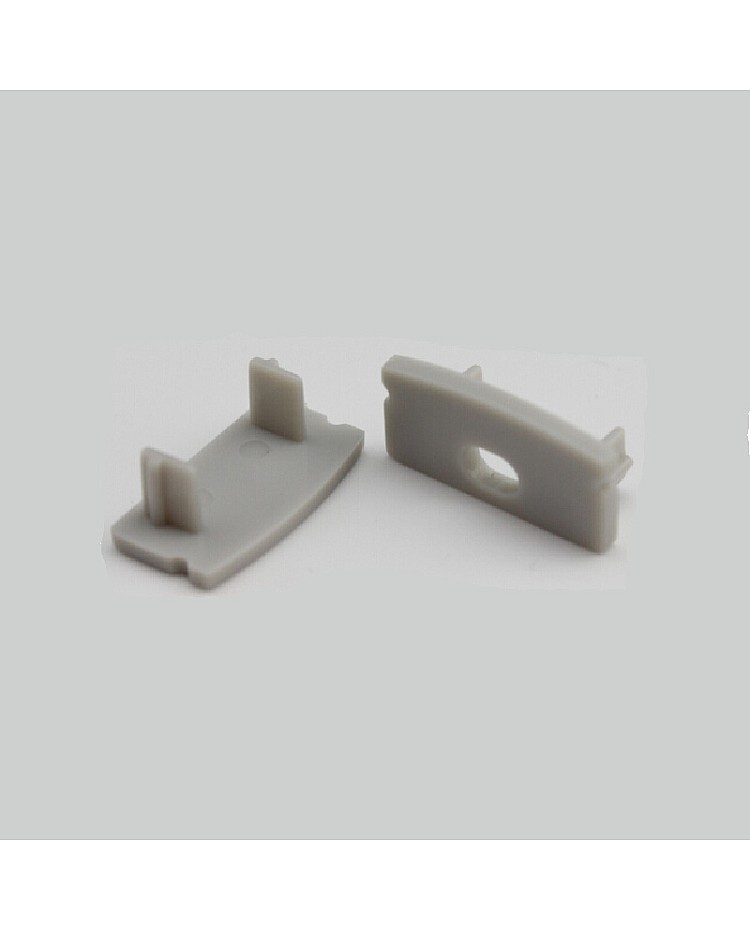

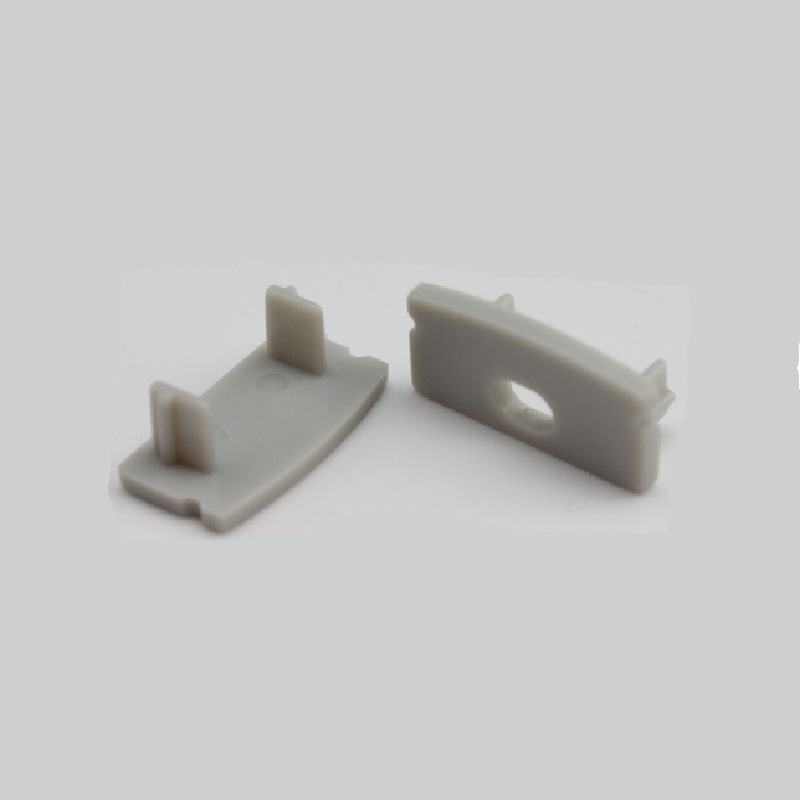

- End caps with and without wire holes

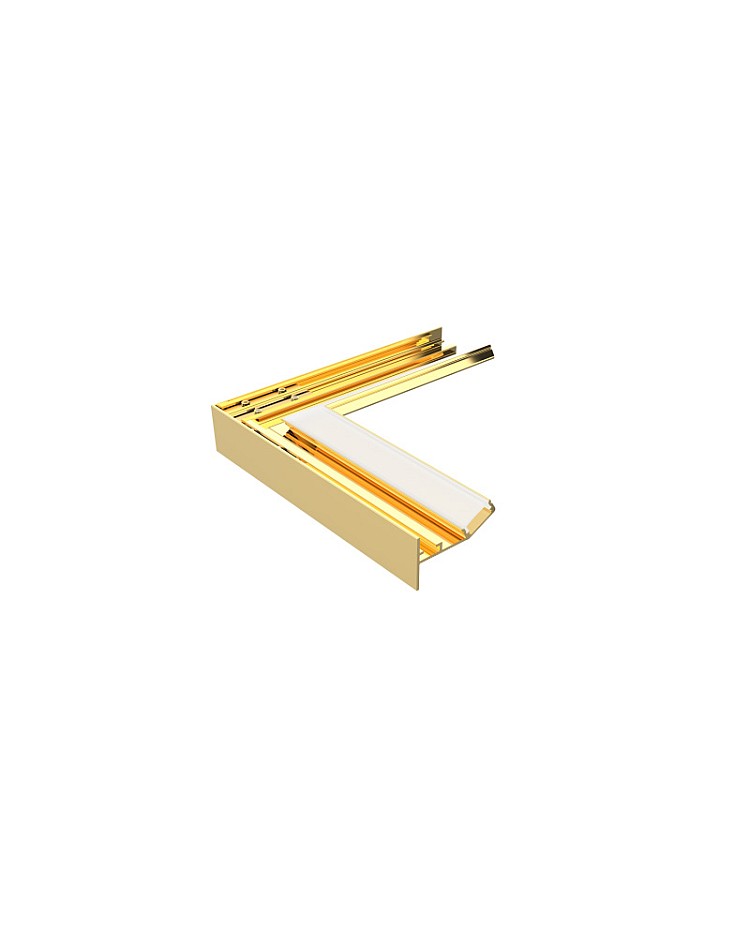

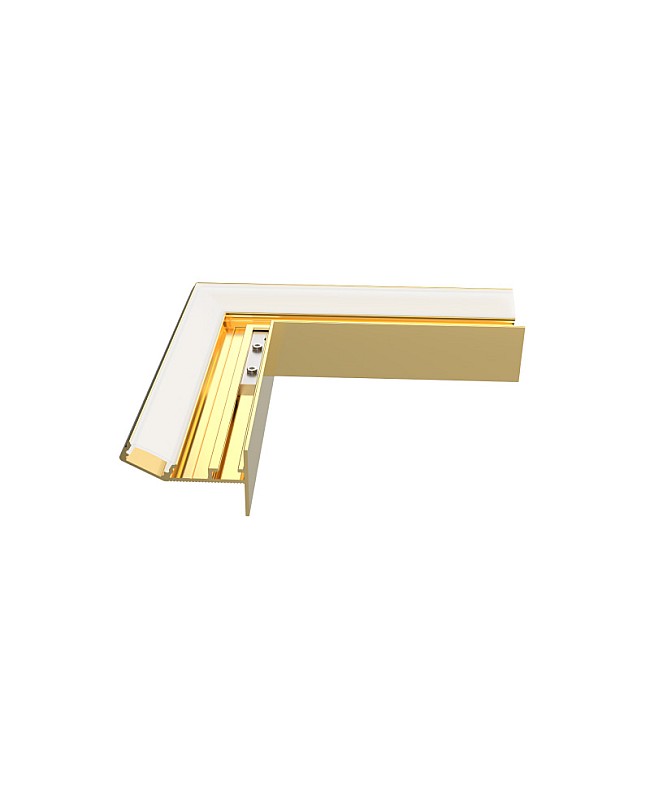

- 90° inside / 90° outside connectors, 180° couplers sold separately
- Installation method: Plaster-in 1/2 plasterboard
- Applications: Cove lighting
- Warranty: 5 years
Includes:
1 * Tracy ceiling LED channels with diffusers
End caps(With / without wire holes)
