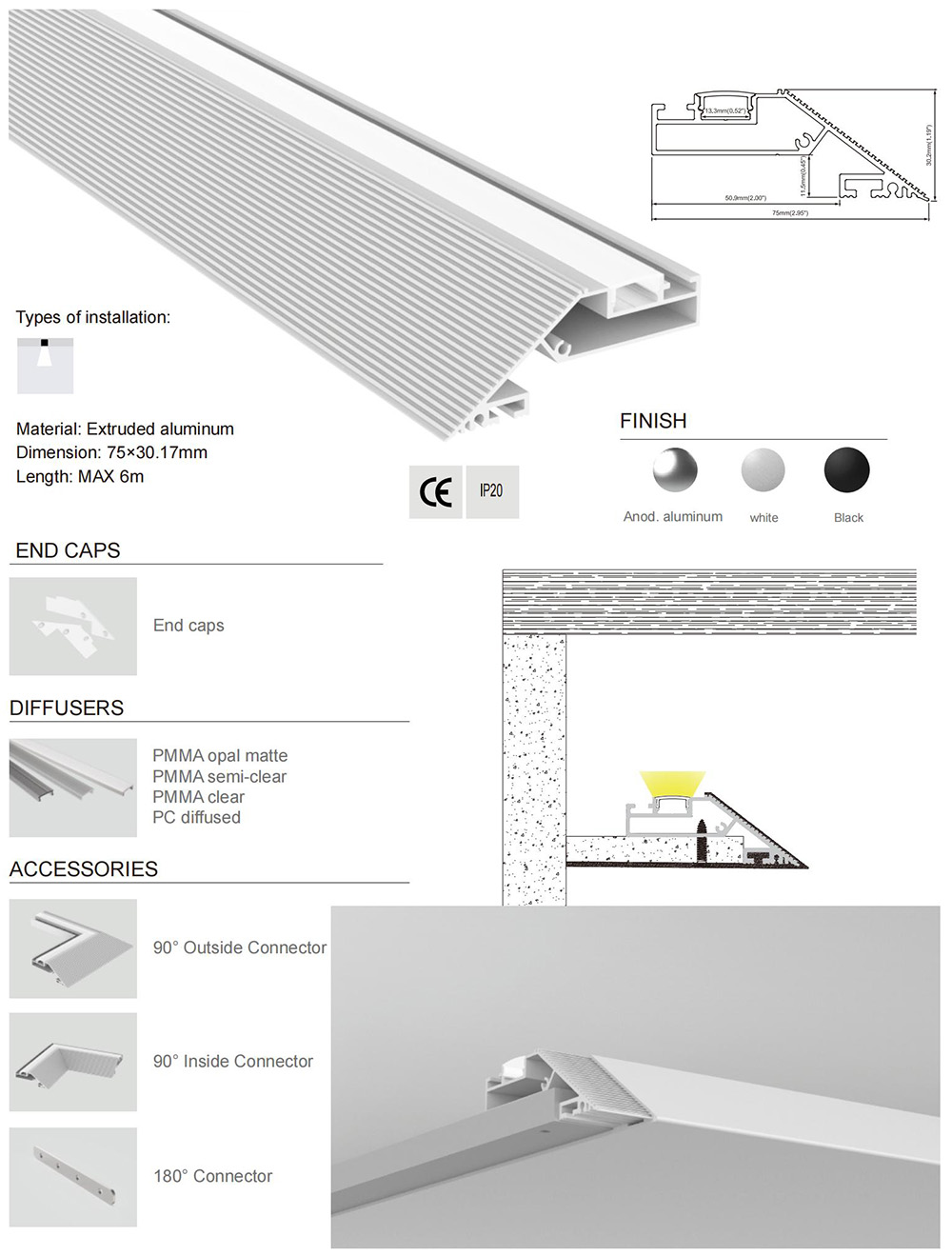

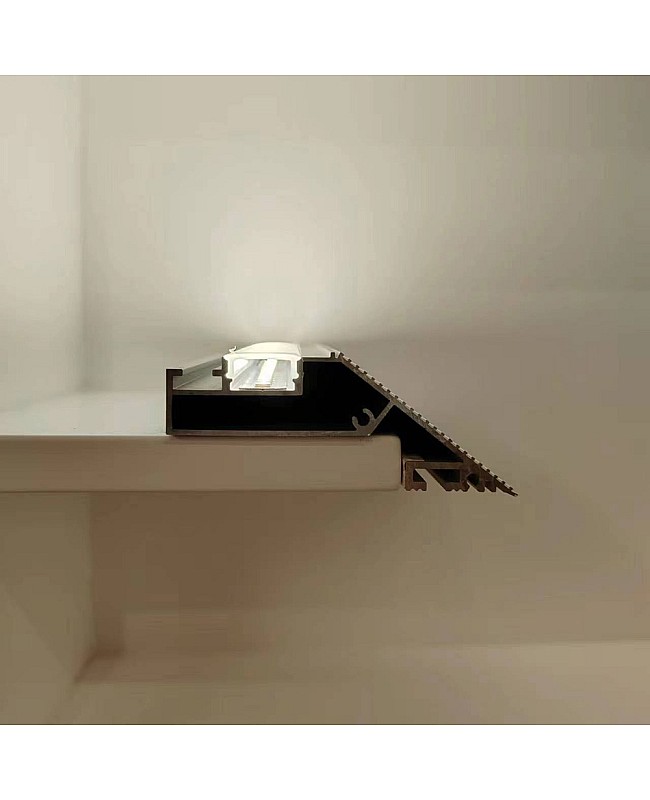

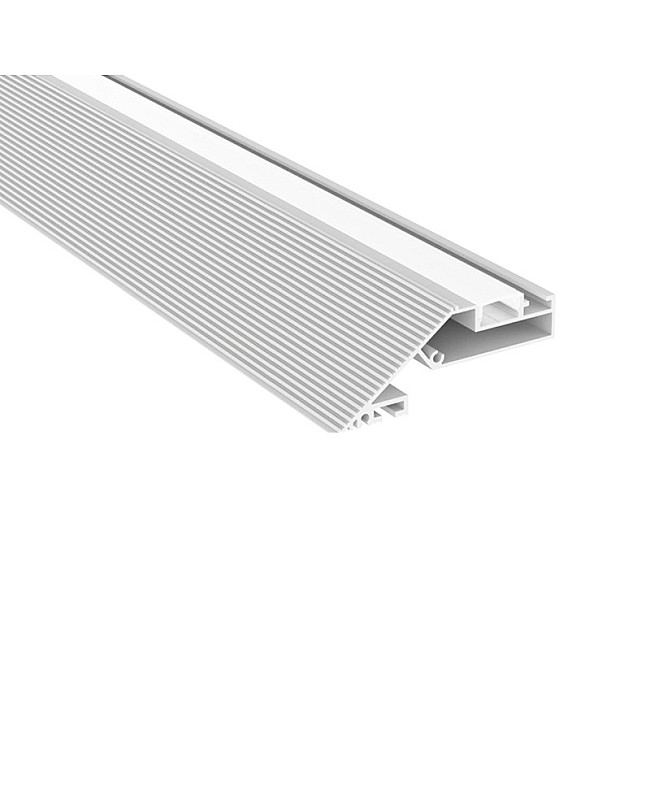

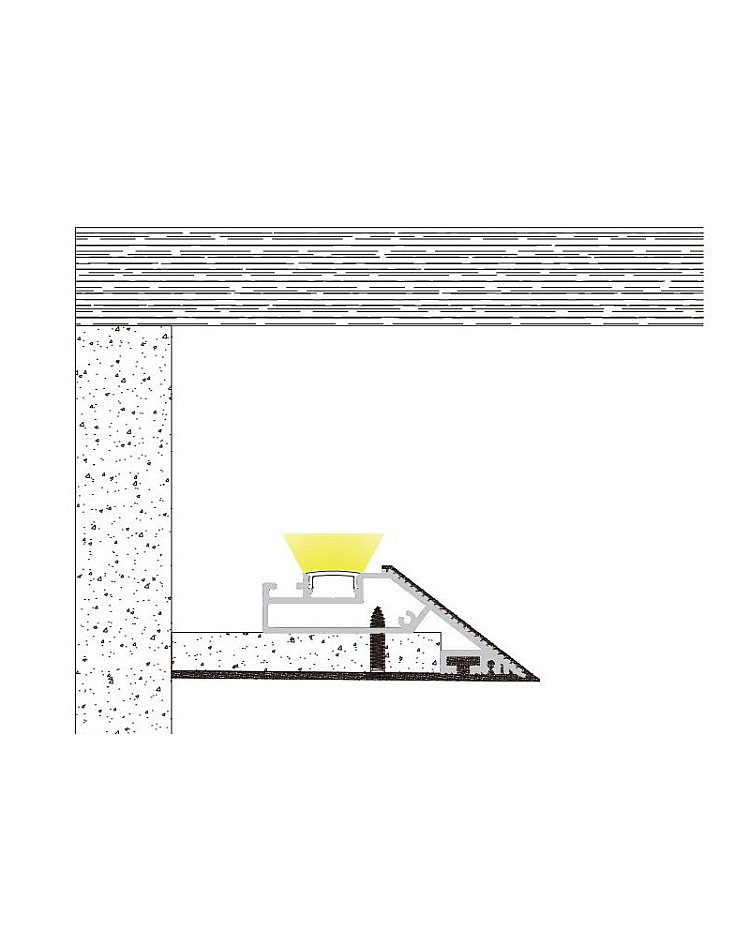

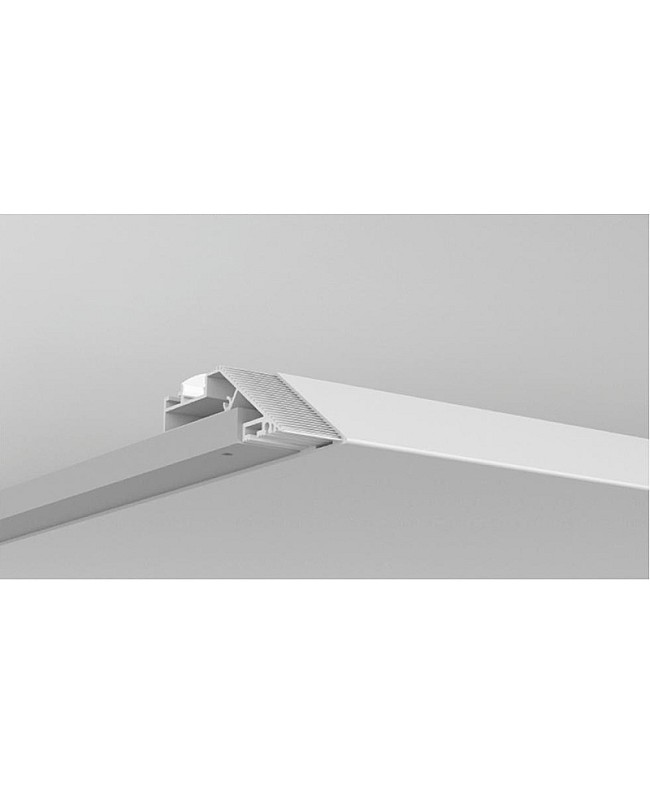

The valance lighting LED channels are designed for creating elegant indirect lighting effects in modern architectural spaces. They feature a sloped surface design and can be seamlessly integrated on the edge of gypsum board ceilings. The knife-edge LED channels have an upward lighting design, which will deliver a smooth light output and reflect off the ceiling to minimize shadows and glare, creating a soft and evenly diffused ambient lighting. The standard length is 2 meters per piece, and custom lengths are also supported. The gypsum board light channels are crafted from high-quality extruded aluminum material and have an anodized finish for anti-oxidation resistance and a longer lifespan. They can also work as heat sinks for better heat dissipation, which will extend the lifespan of strip lights. The inner width is 13.3 mm, allowing for a maximum strip light width of 13mm. We recommend adding high-density SMD or COB LED strips as light sources for uniform lighting without visible light dots. Four types of diffusers are available: PC diffused cover, PMMA opal matte cover, PMMA semi-clear cover, and PMMA clear cover. They are made of brand-stable, anti-yellowing material and have perfect light distribution. You can choose them for various light transmittance and light effects. The 90° inside connectors, 90° outside connectors, and 180° couplers are sold separately; you can use them for custom shape design.
Specifications:
- Model: ALP198
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

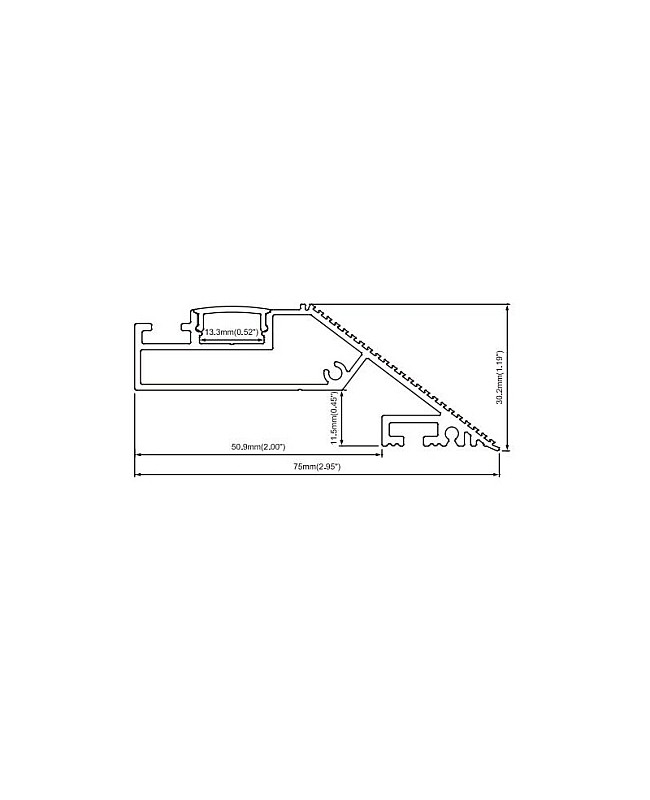

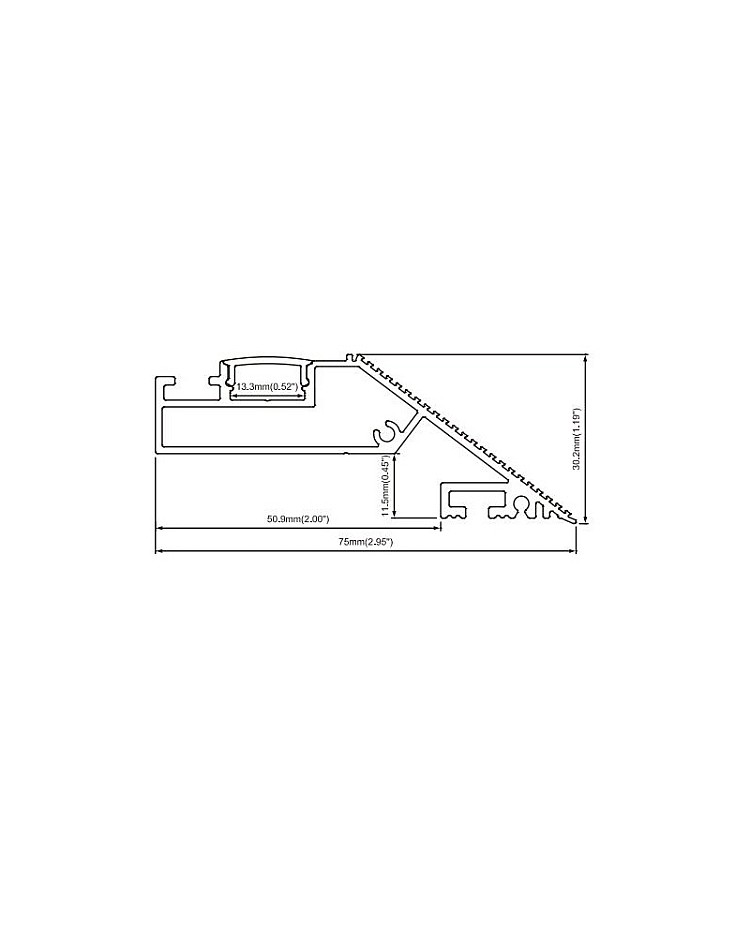

- Size ( W x H ): 75 mm x 30.2 mm (2.95" x 1.19" )
- Standard lengths: 1 m ( 39" ) , 2 m ( 78" )
- Custom length: YES
- Inner width: 13.3 mm ( 0.52" )
- Maximum width of strip lights to be 13 mm ( 0.51" )
- Max power: 15W/m
- Diffusers: PMMA opal matte diffuser / PMMA semi-clear diffuser / PMMA clear diffuser / PC diffused cover

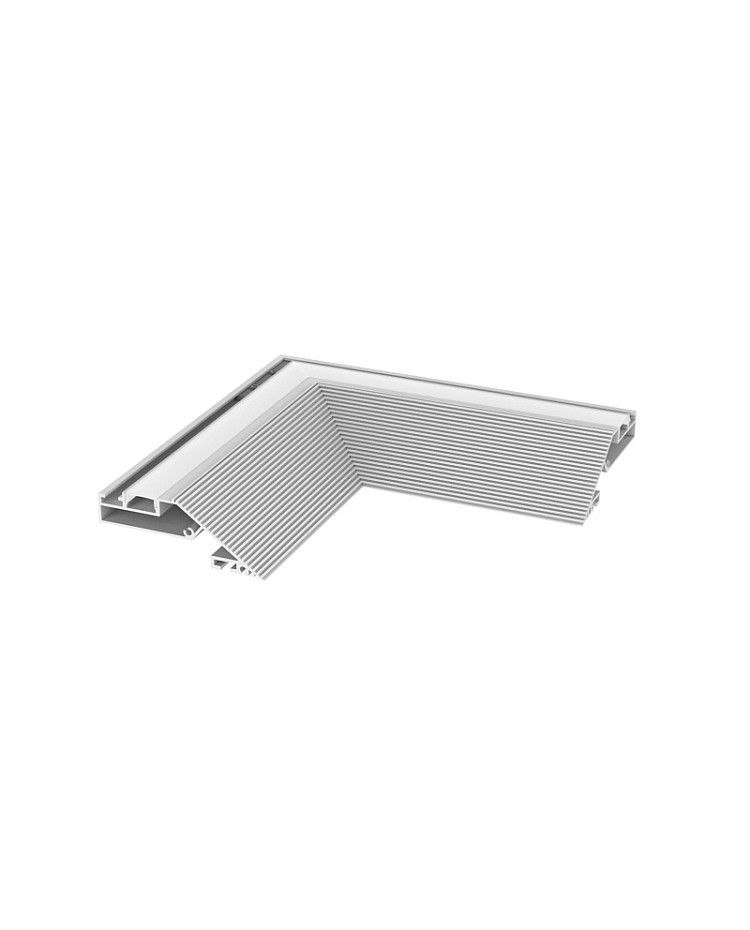

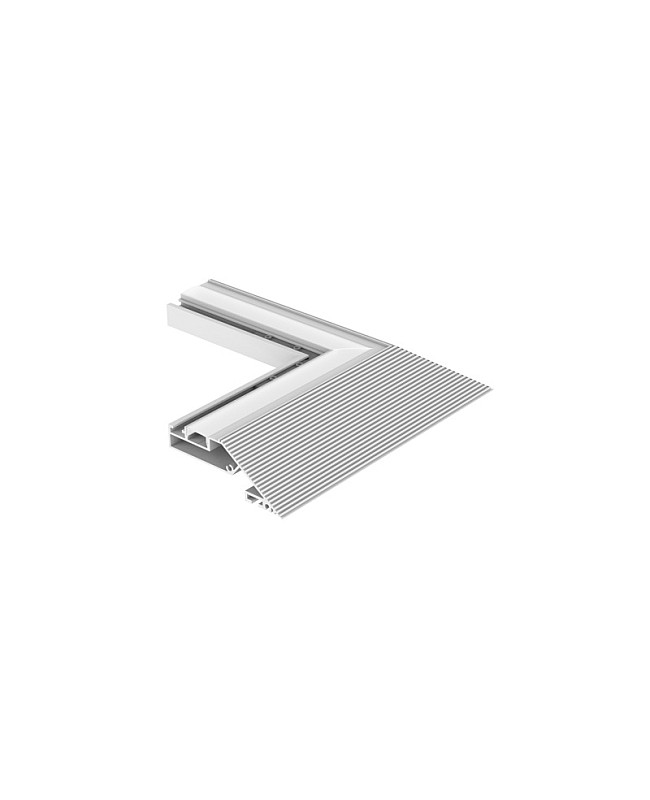

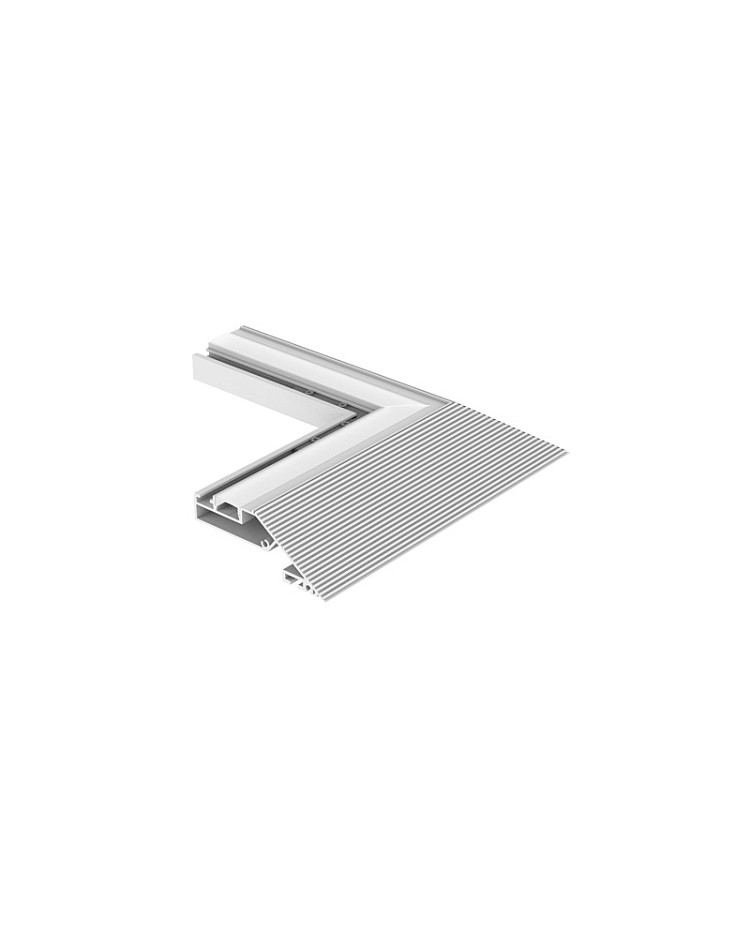

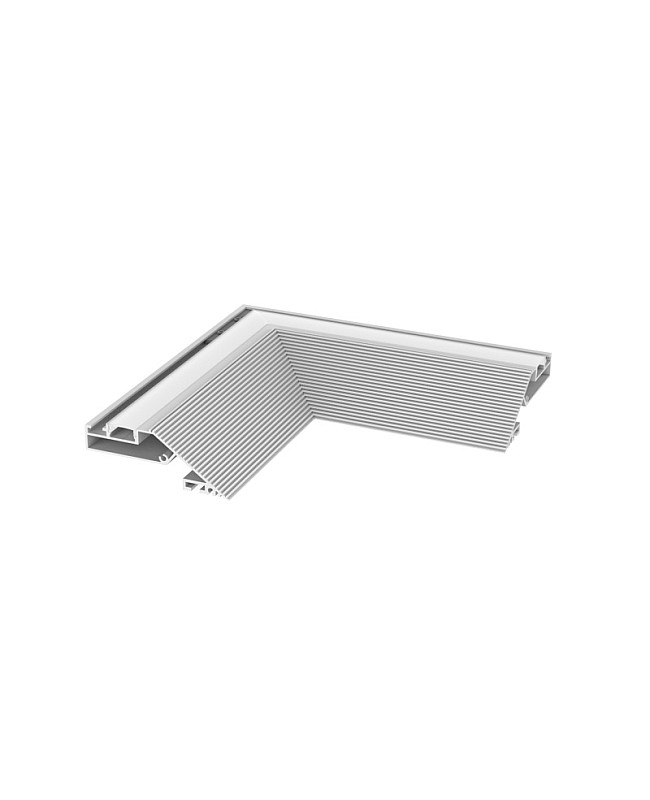

- 90° outside connectors, 90° inside connectors, and 180° couplers sold separately
- 180° joiners are sold separately
- Installation: Surface-mounted
- Warranty: 5 years
Applications:
- Indirect valance lighting for ceilings
- Floating ceiling perimeter lighting
- Cove or cornice lighting in residential or commercial interiors
Includes:
1 * Vanlance light LED channel with diffuser

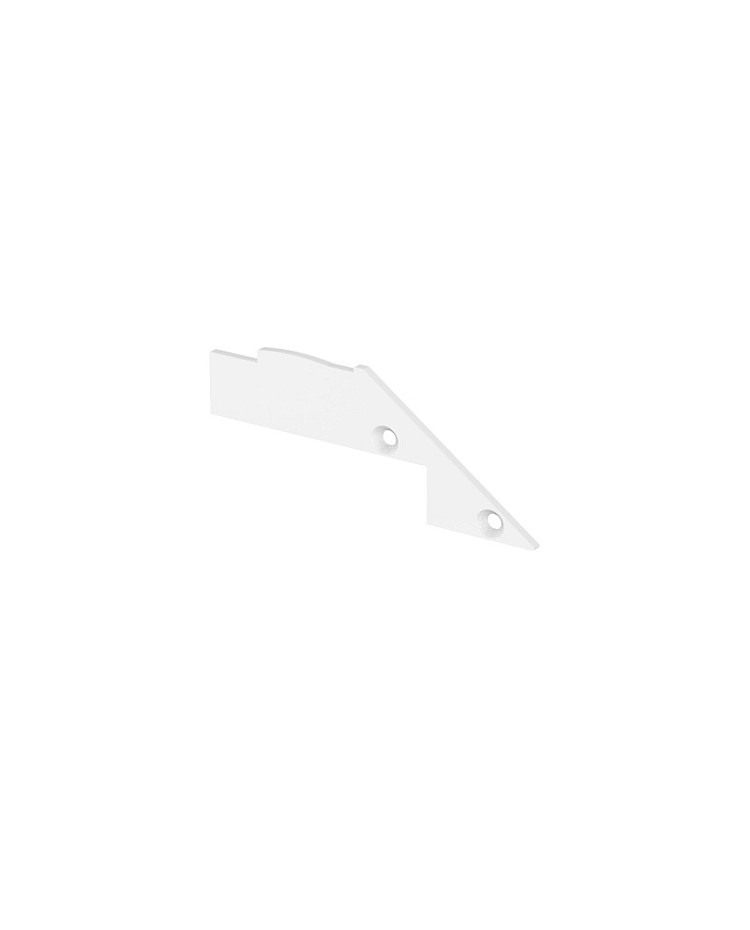

End caps (With and without wire holes)
