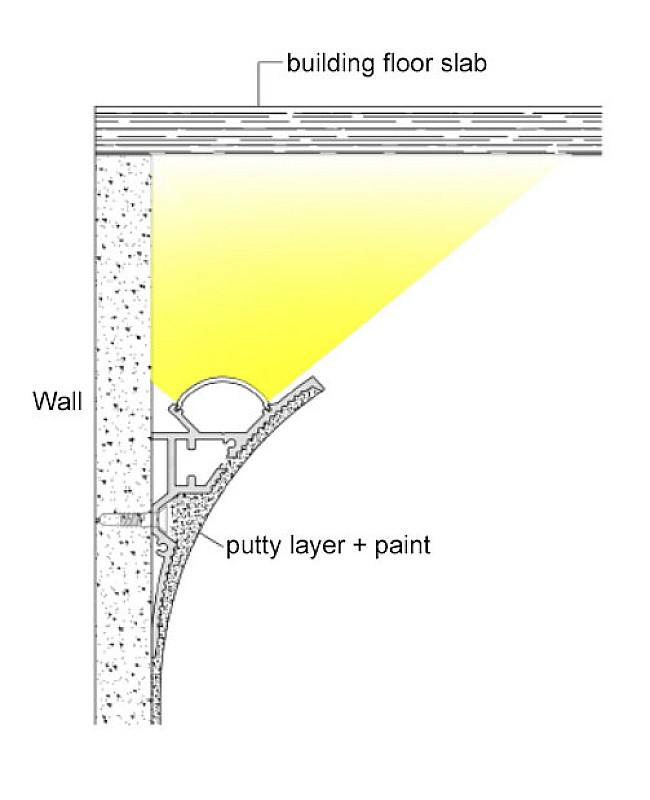

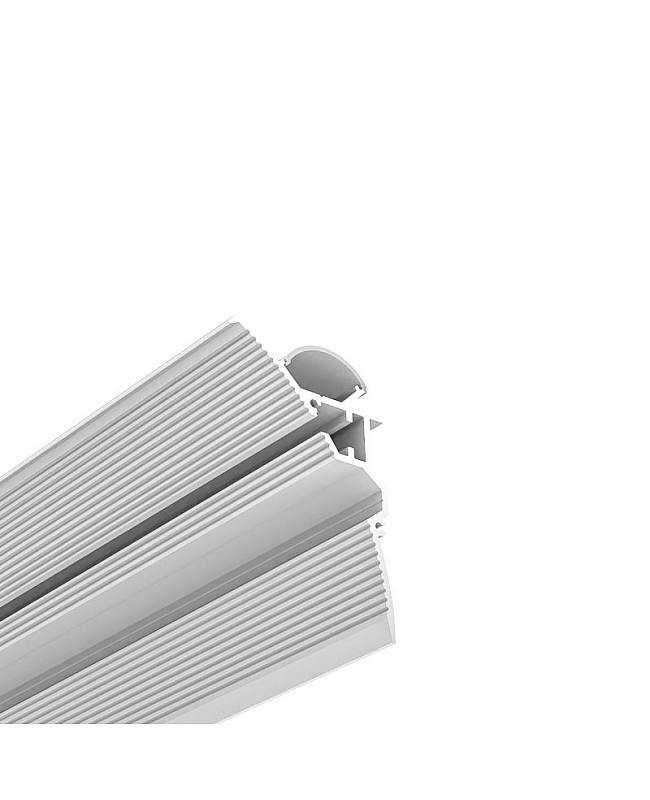

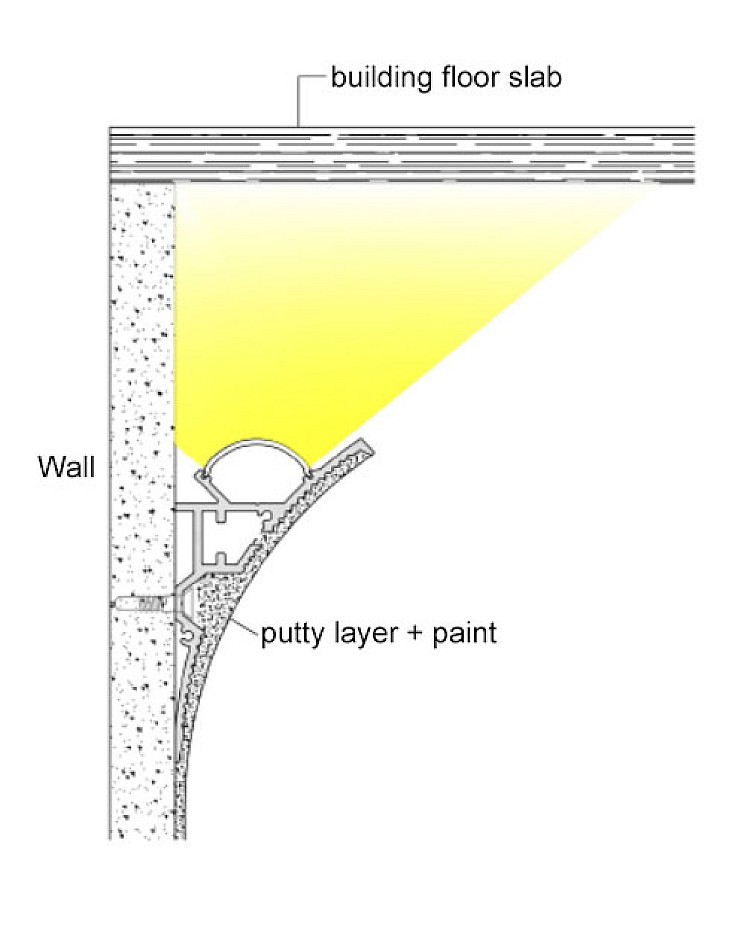

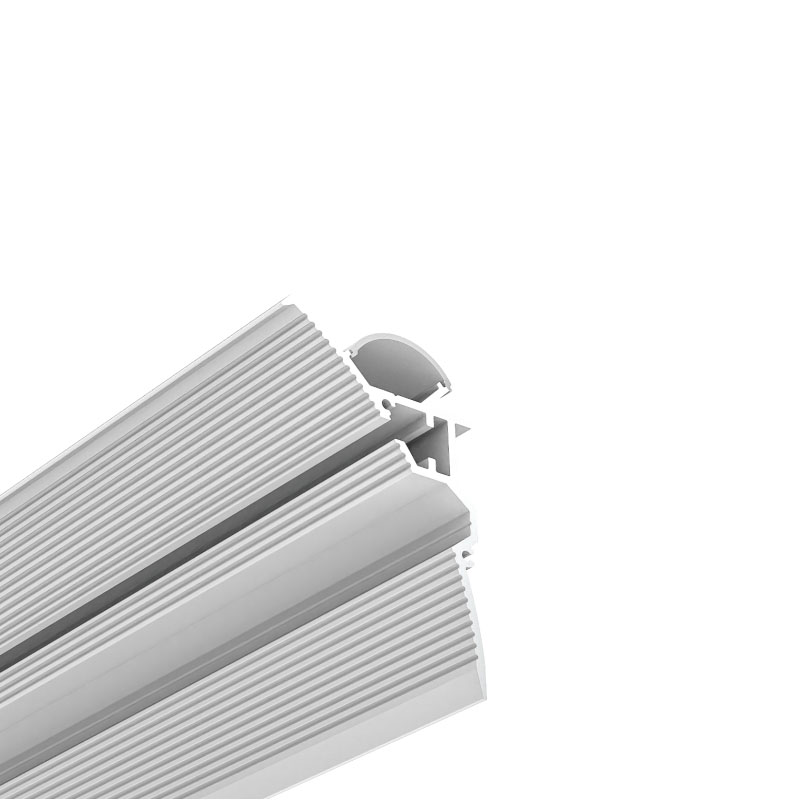

The LED strip channels are designed to be seamlessly integrated into the upper part of the wall, providing a clean, modern aesthetic. The LED channels conceal the LED strips, directing light upward toward the ceiling and down adjacent walls to create a soft, ambient glow. Ideal for enhancing ceilings, walls, and architectural features without harsh glare or visible light sources. The stock length is 1 m and 2 m; you can cut to any length for your project. The surface-mounted LED channels are made of high-quality 6063-T5 extruded aluminum, with a white powder coating that provides oxidation resistance and a longer lifespan. Two types of diffusers are available: PC diffused covers and PC semi-clear covers. The diffused covers will provide soft light, producing smooth, indirect illumination. The half-round diffusers will enlarge the lighting area. The inner width is 10mm, allowing the maximum width of LED strips to be 10mm. We recommend installing our 10mm 24V COB LED strips to create continuous, uniform lighting without visible LED dots. Two connectors are sold separately: 90° and 180° connectors. You can use them for straight or angled connections. End caps are included.
Specifications:

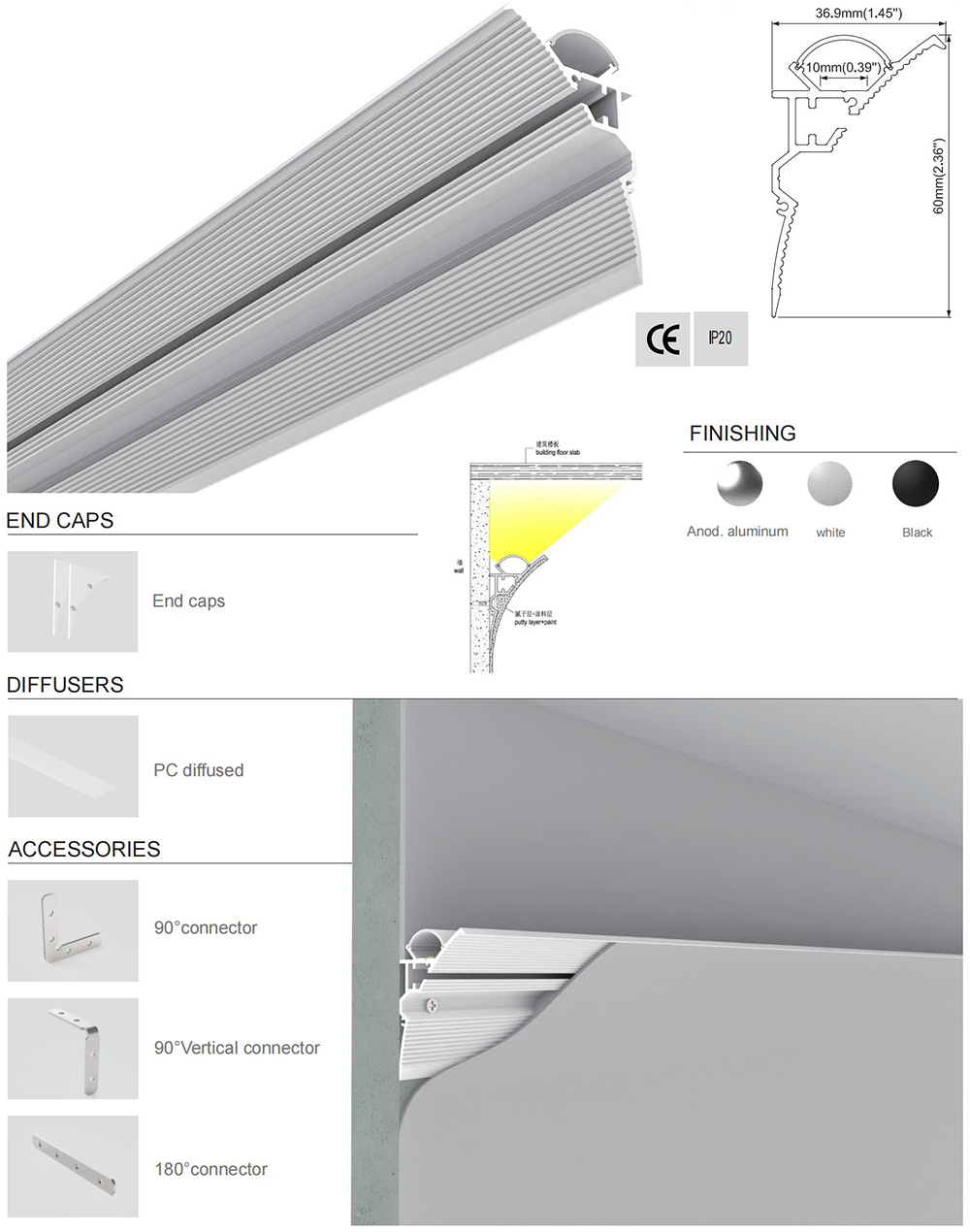

- Model: ALP189
- Material: 6063-T5 extruded aluminum
- Surface treatment: Powder-coated
- Colors: White

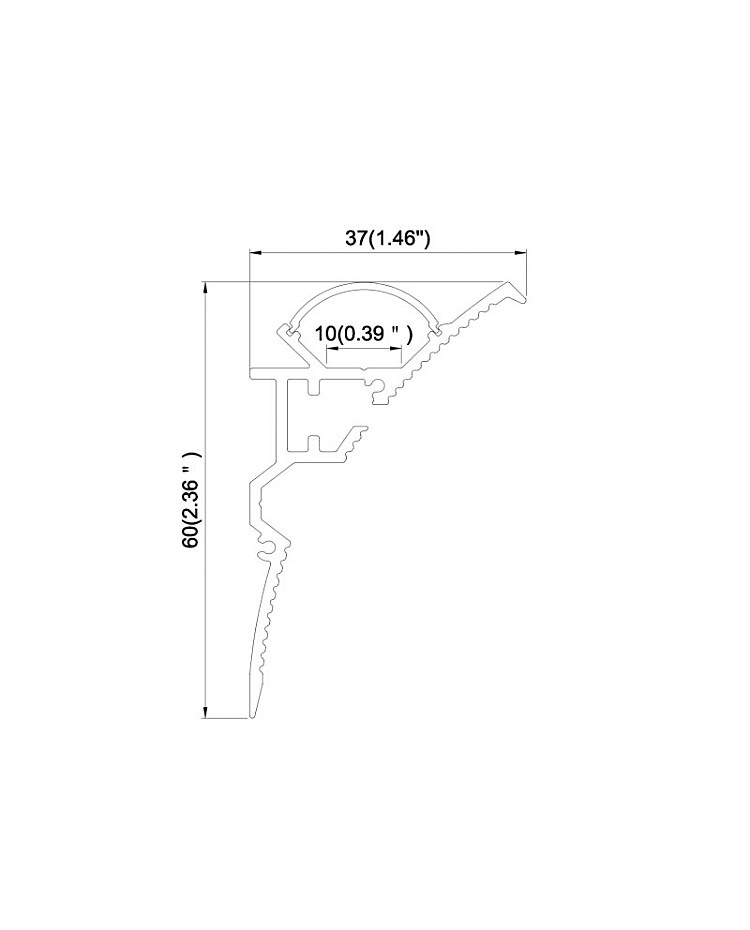

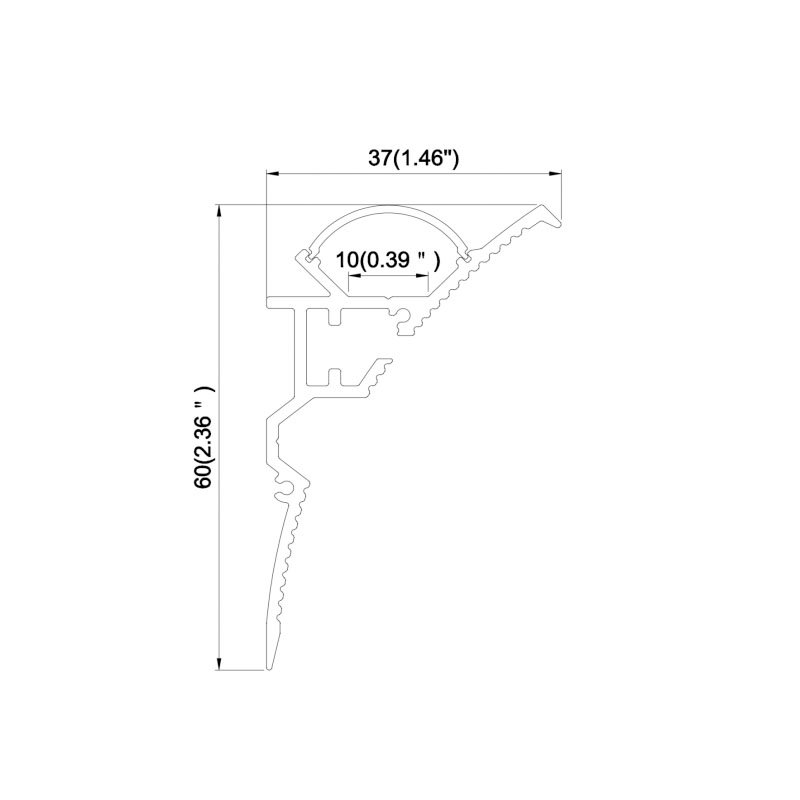

- Size( H x W ): 60 mm x 37 mm ( 2.36" x 1.45" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffusers: PC diffused cover, PC semi-clear cover
- Inner width: 10 mm ( 0.39" )
- Max width of LED strips: 10 mm ( 0.39" )
- Max power: 15W/m
- Beam angle: 100°
- Tolerance: ±1%
- IP rate: IP20 non-waterproof
- 180° and 90° vertical connectors are sold separately

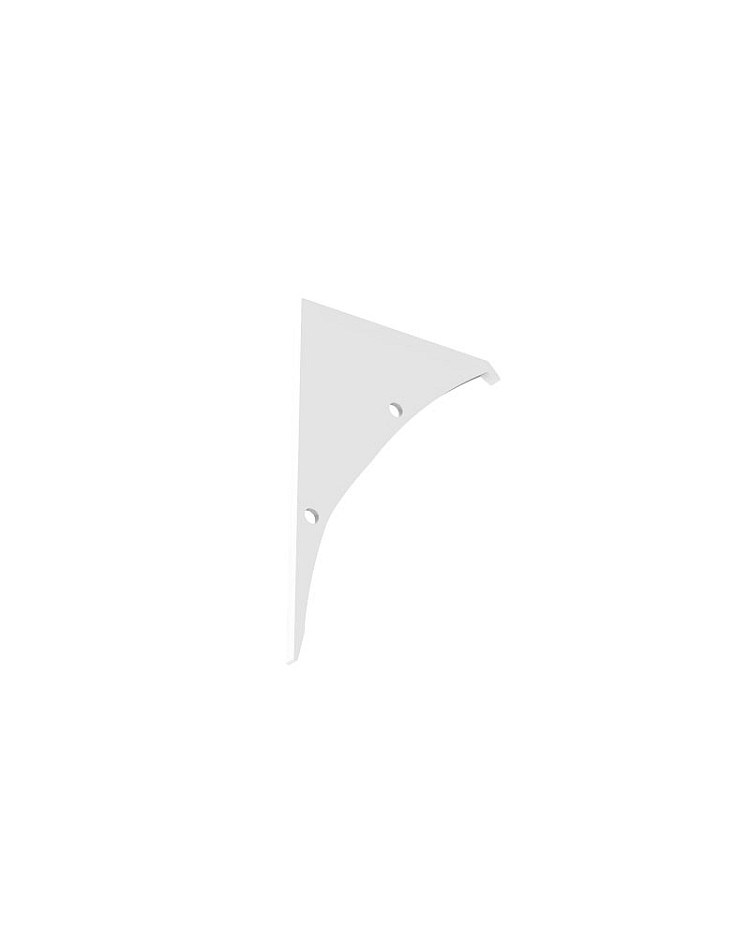

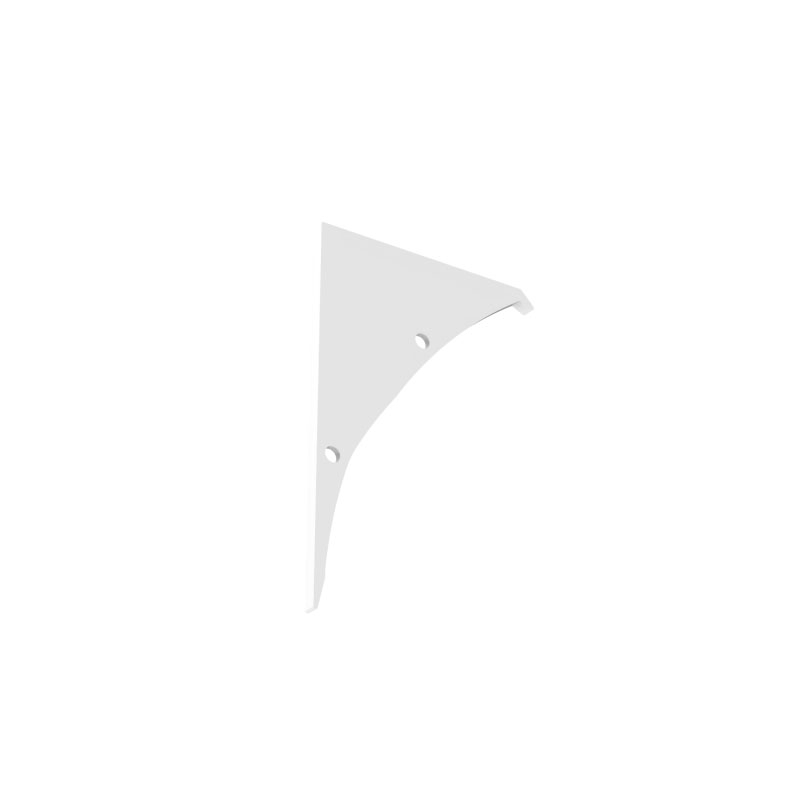

- End caps are included

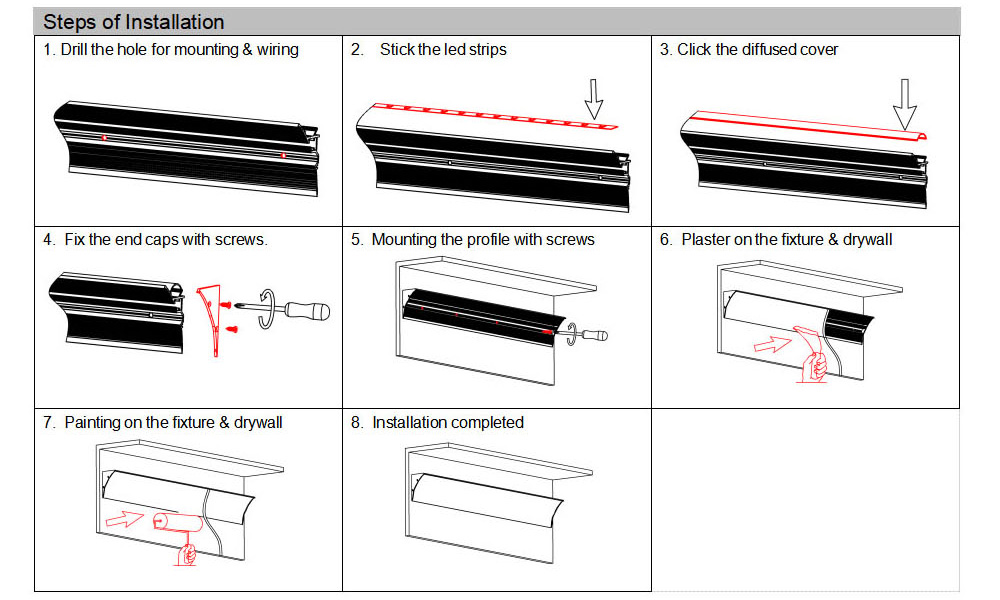

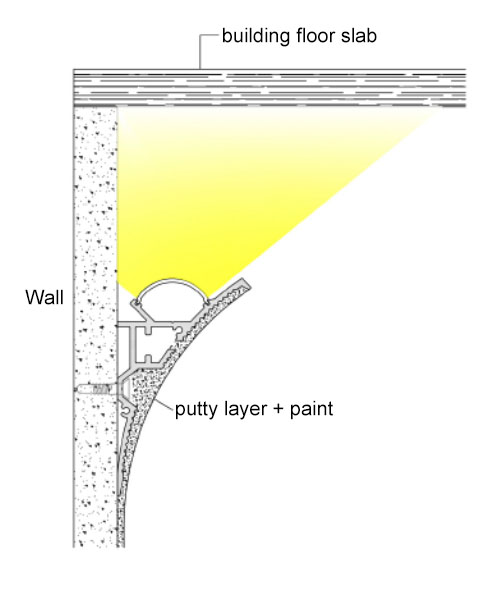

- Installation: Plaster-in
- Applications: Cove lighting, wall washer lighting
- Warranty: 5 years
Includes:
1 * LED strip light mounting channel
1 x Plastic diffused cover
2 x End caps
