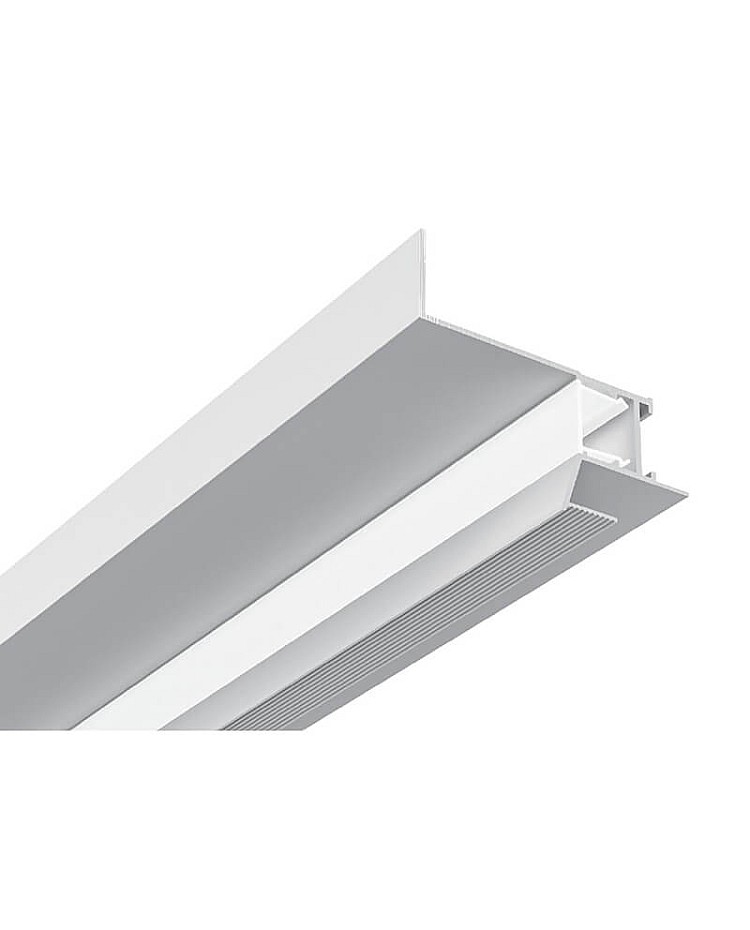

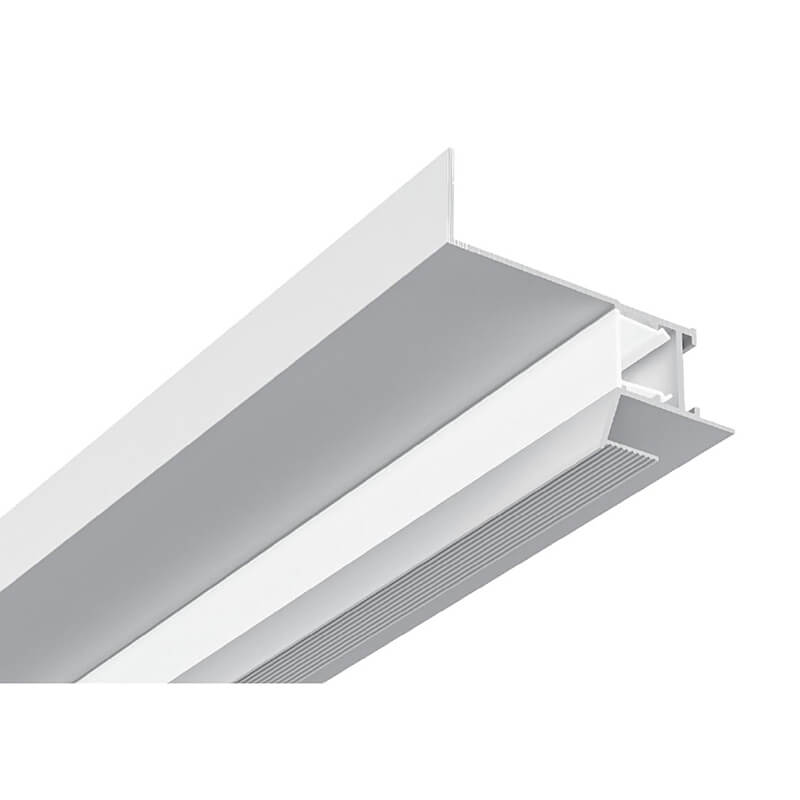

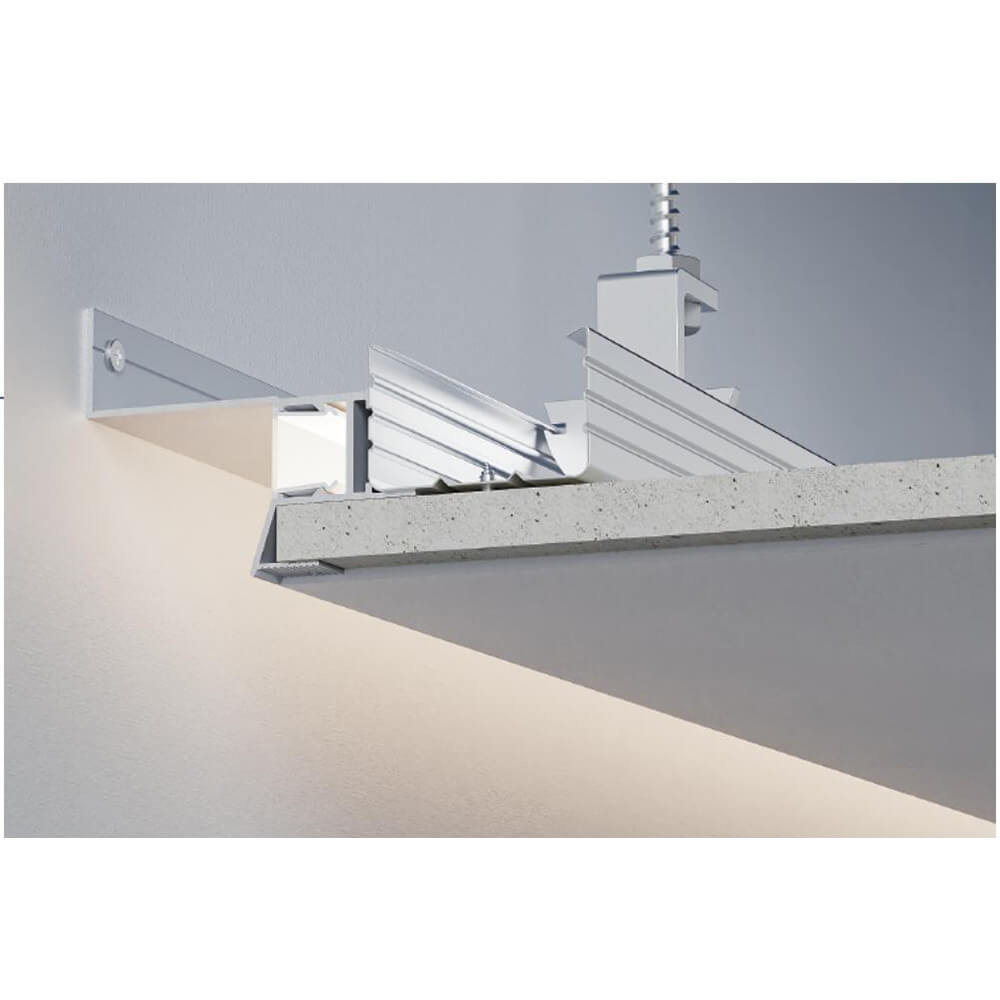

The shadow gap LED channels are designed to create a sleek, modern look with seamless indirect lighting in suspended ceilings. They are installed around the perimeter of a false ceiling, allowing for indirect lighting that enhances the architectural aesthetics of your space. The recessed shadow line aluminum channels are designed to prevent glare and conceal the light source, leaving only the ambient glow visible. They are perfect for both residential and commercial settings. Four widths of products are available, enabling lighting distances to range from 40mm to 100mm. These ceiling LED channels are made of extruded aluminum material and feature a white powder-coated surface treatment for enhanced durability and a longer lifespan. The stock length is 3M per piece, and can be cut to any size you need. Only one type of diffuser is available: the PC diffused cover, made of high-quality material, which diffuses the light of LED strips to create smooth and even illumination. The inner width is 20mm, and the maximum width of strip lights is 18mm. You can use high-density COB or SMD LED strips as the light source, eliminating dark areas and hot spots. There are 90° vertical and 180° connectors available. You can use them for angled or straight connections.
Specifications:

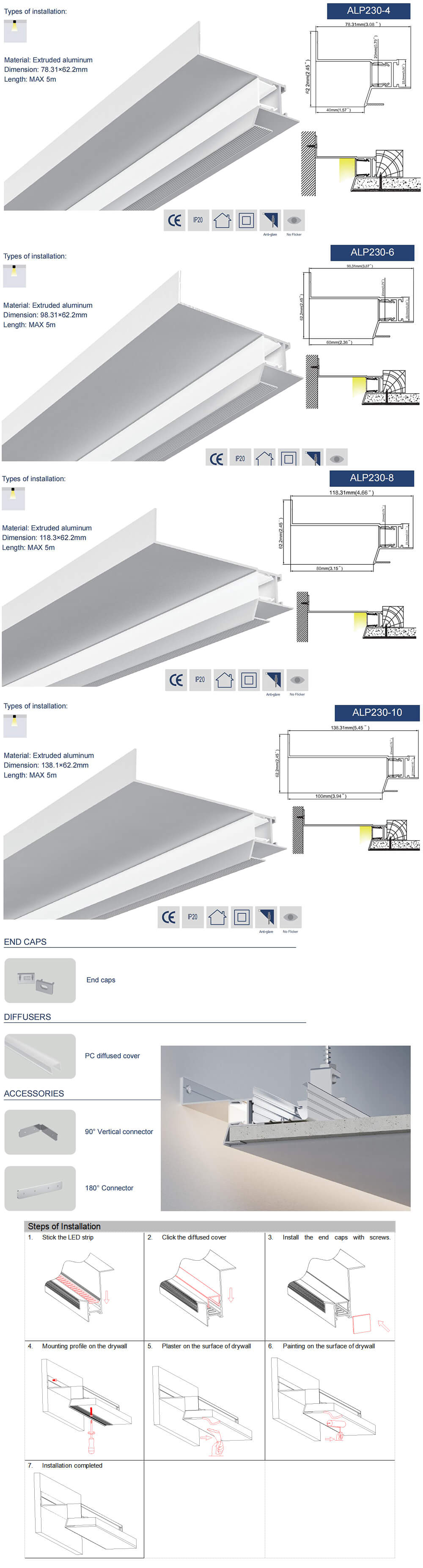

- Models: ALP230-4, ALP230-6, ALP230-8, ALP230-10
- Material: 6063-T5 extruded aluminum
- Colors: White
- Surface Treatment: Powder-coated finish

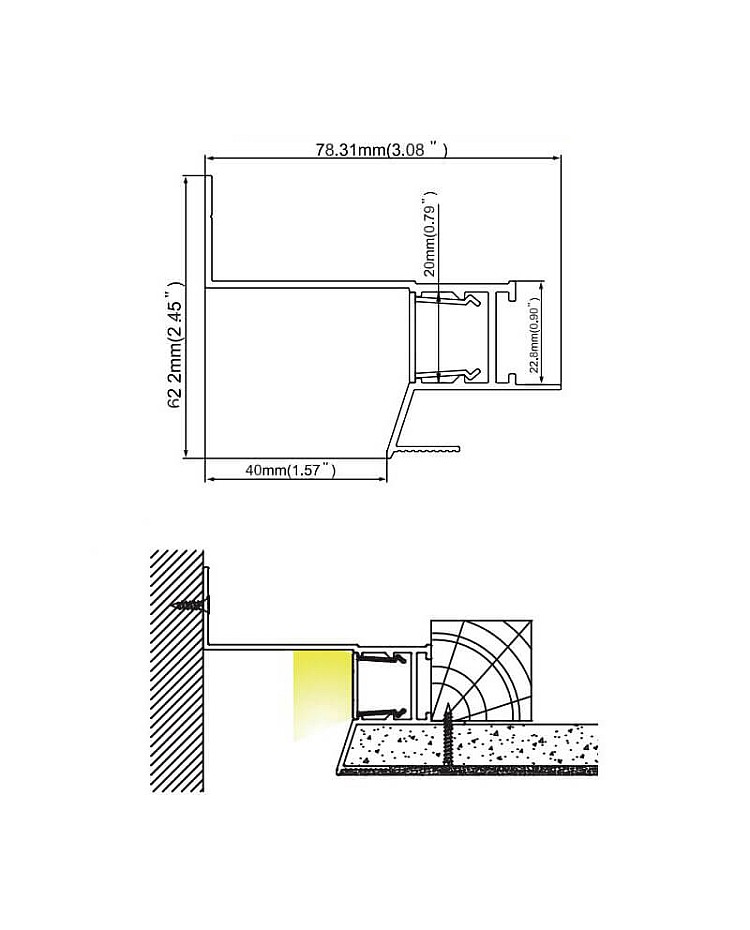

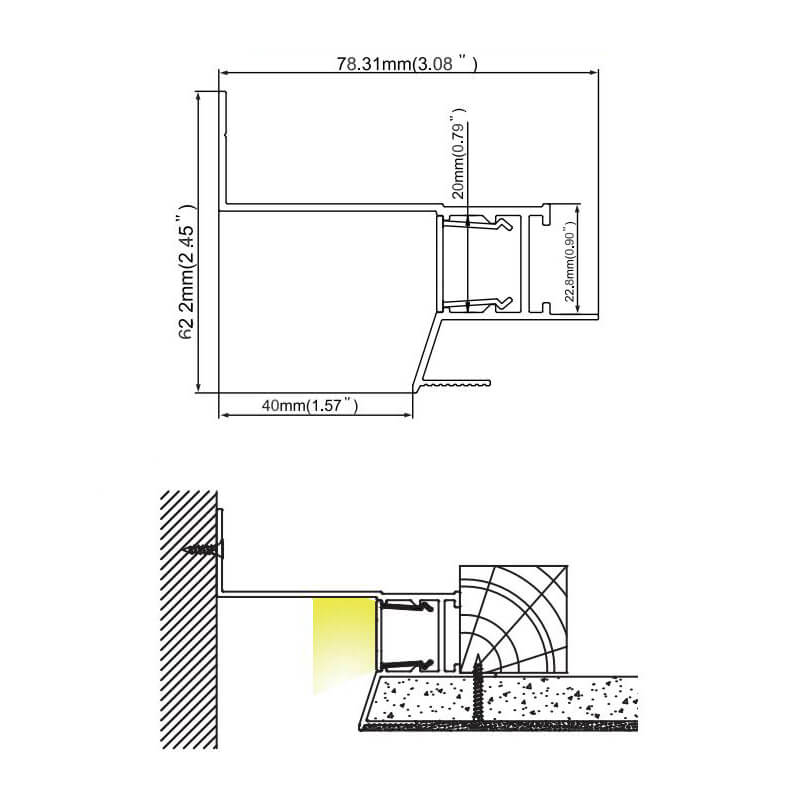

- Size(W*H): 78.31*62.2mm/3.08"*2.45"(ALP230-4) / 96.31*62.2mm/3.87"*2.45"(ALP230-6) / 118.31*62.2mm/4.66"*2.45" (ALP230-8) / 138.31*62.2mm / 5.45"*2.45"(ALP230-10)
- Lengths Available: 1M (39"), 2M (78"), 3M (117")
- Custom Length: YES
- Inner Width: 20mm/0.79"
- Max Width Of LED Strips: 18mm/0.71"
- Max Power: 20W/M
- Diffusers: PC diffused cover
- Can be recessed into 12.5mm/0.49“ plasterboards

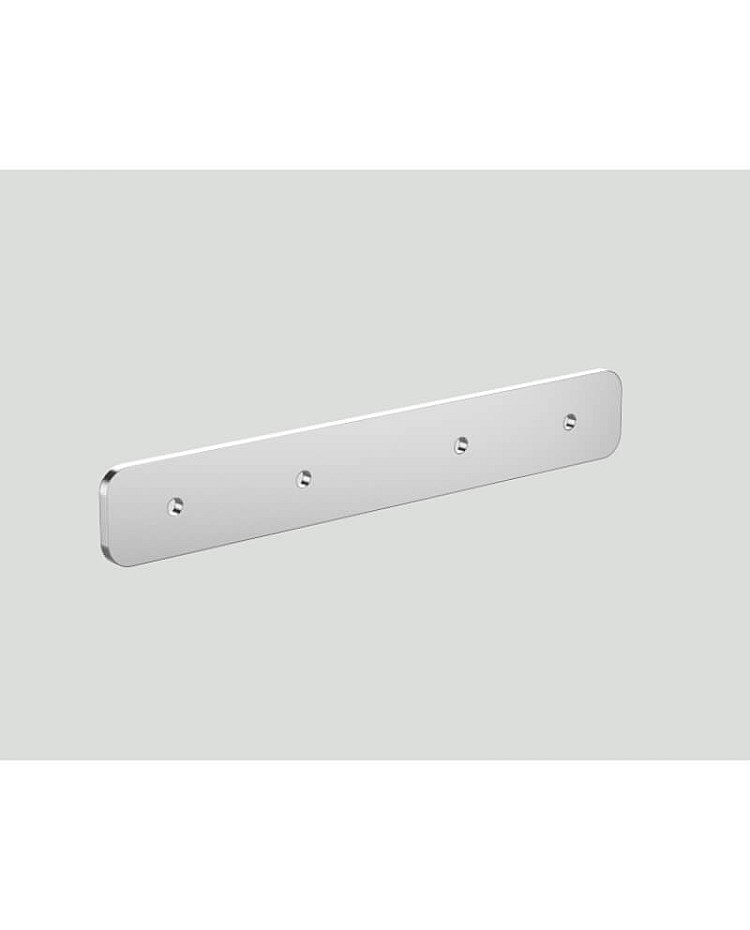

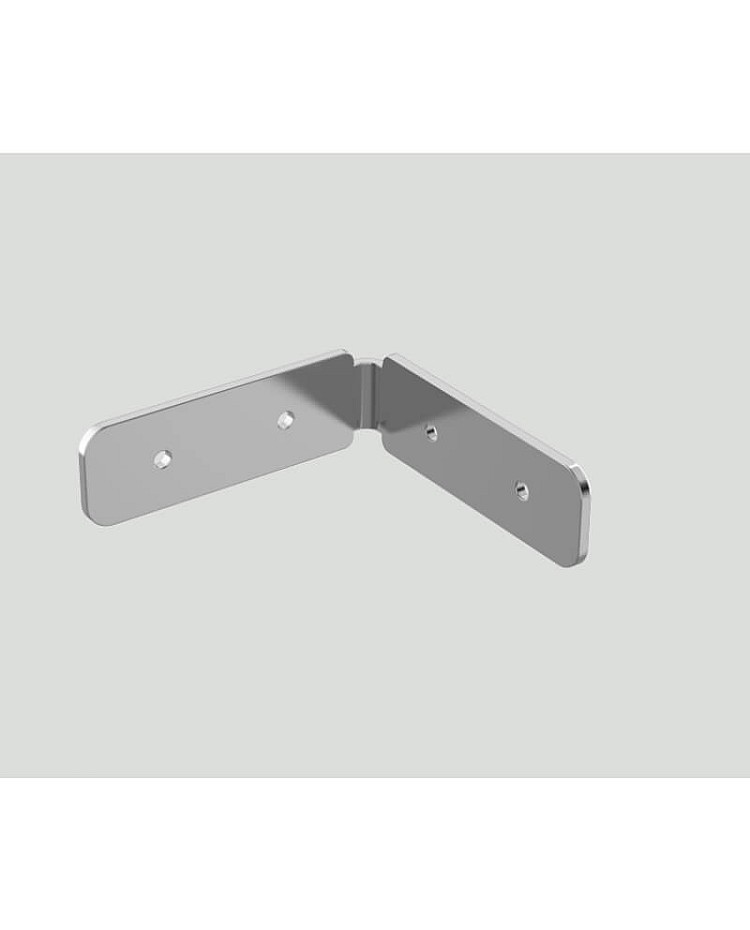

- 90° vertical and 180° connectors sold separately

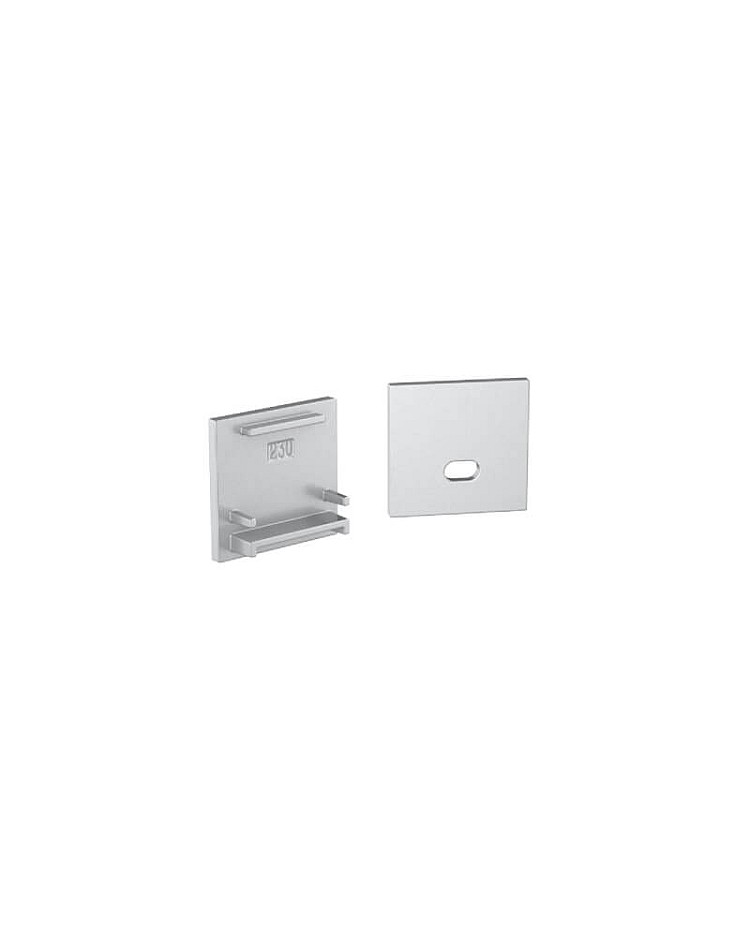

- End caps with/without wire holes included

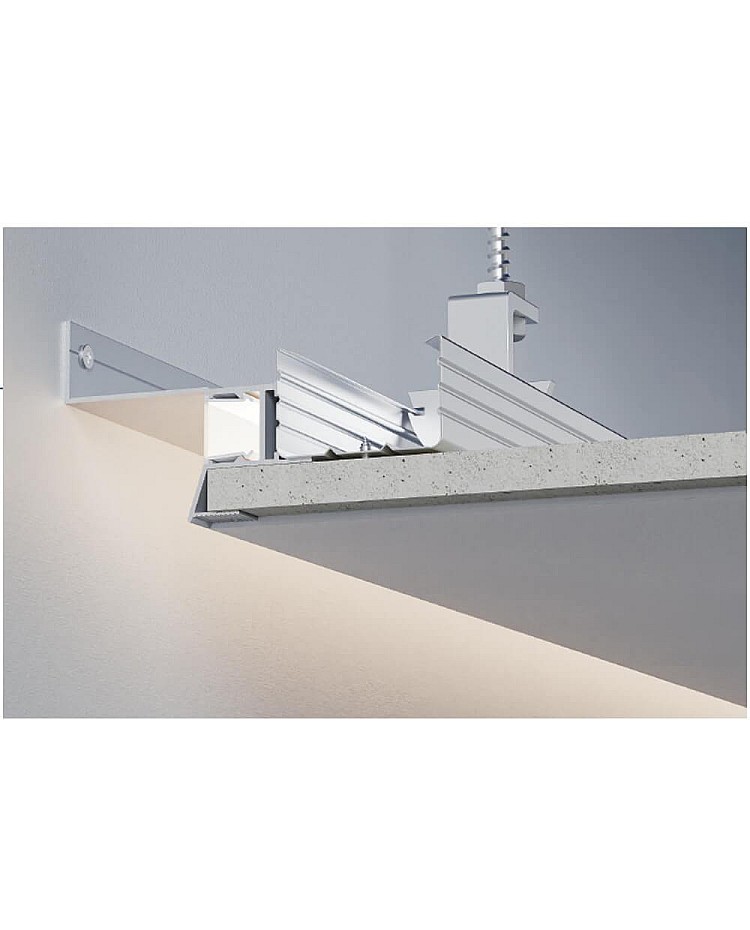

- Installation: Drop/suspended ceiling recessed
- Applications: shadow line lighting on false/suspended/dropped ceilings
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * Shadow Gap LED Channel with Diffuser
End Caps(With/Without Wire Holes)
