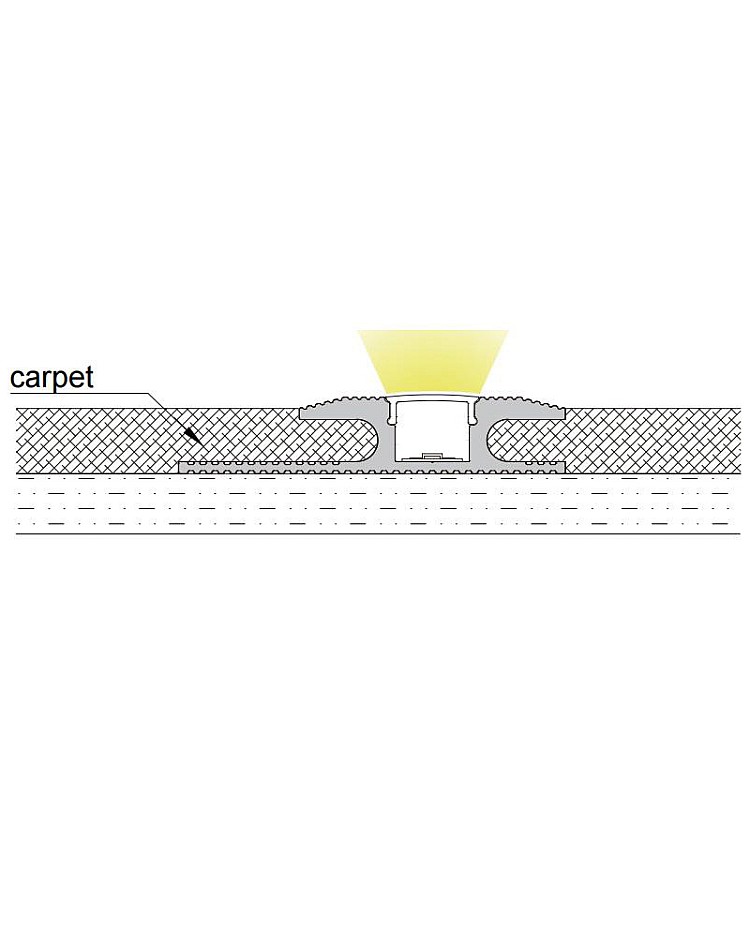

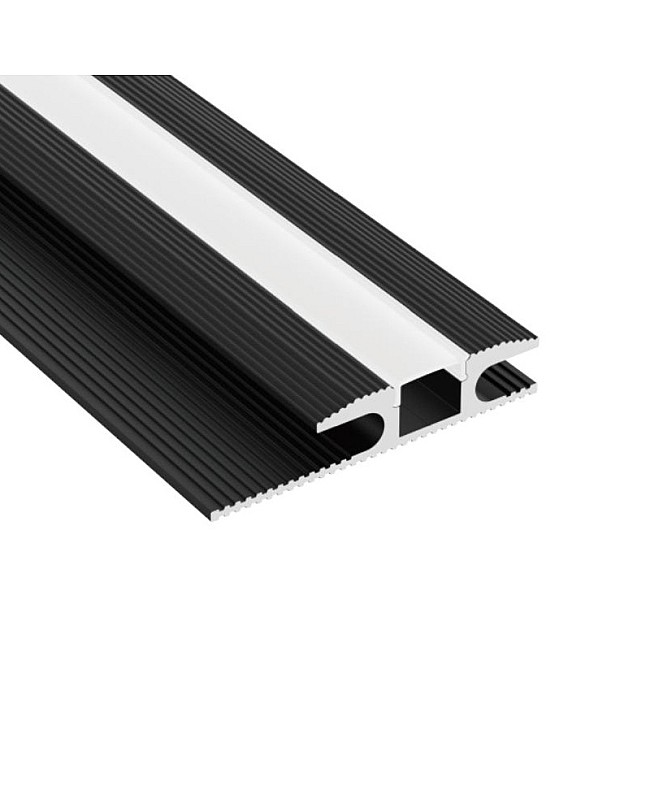

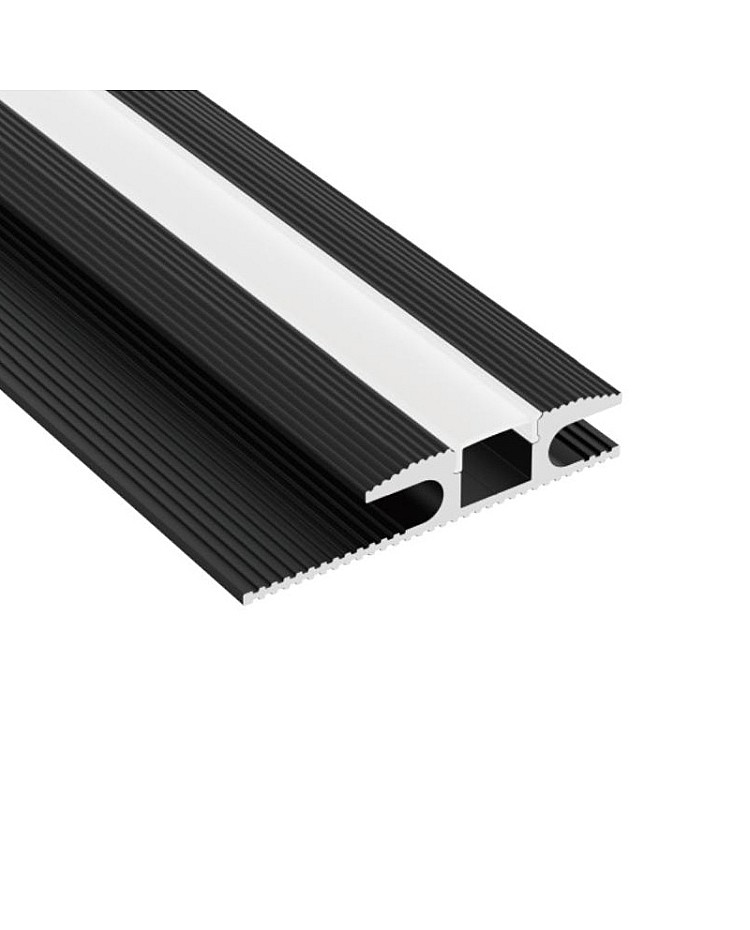

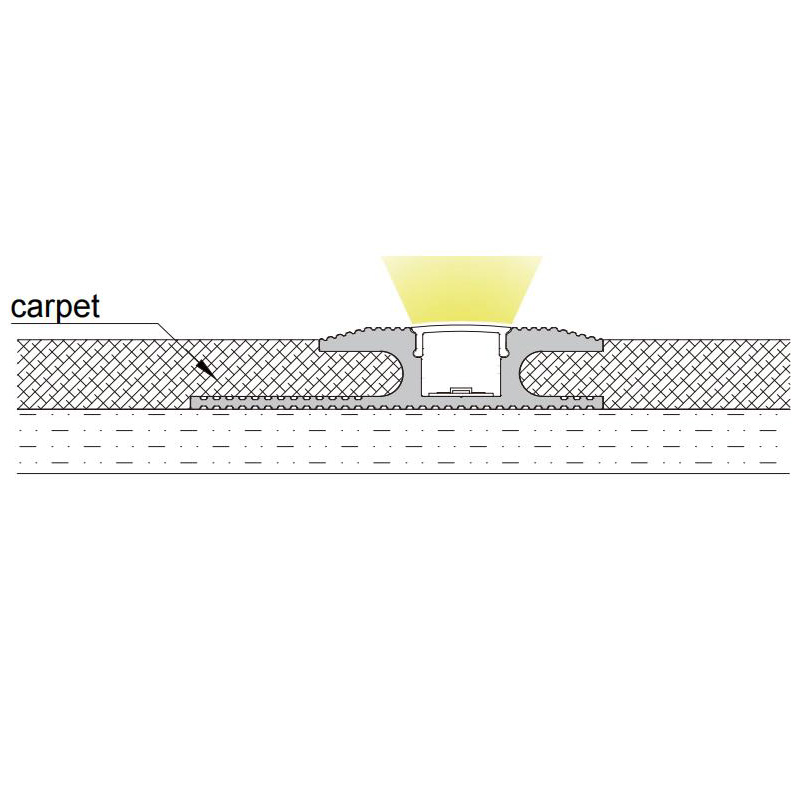

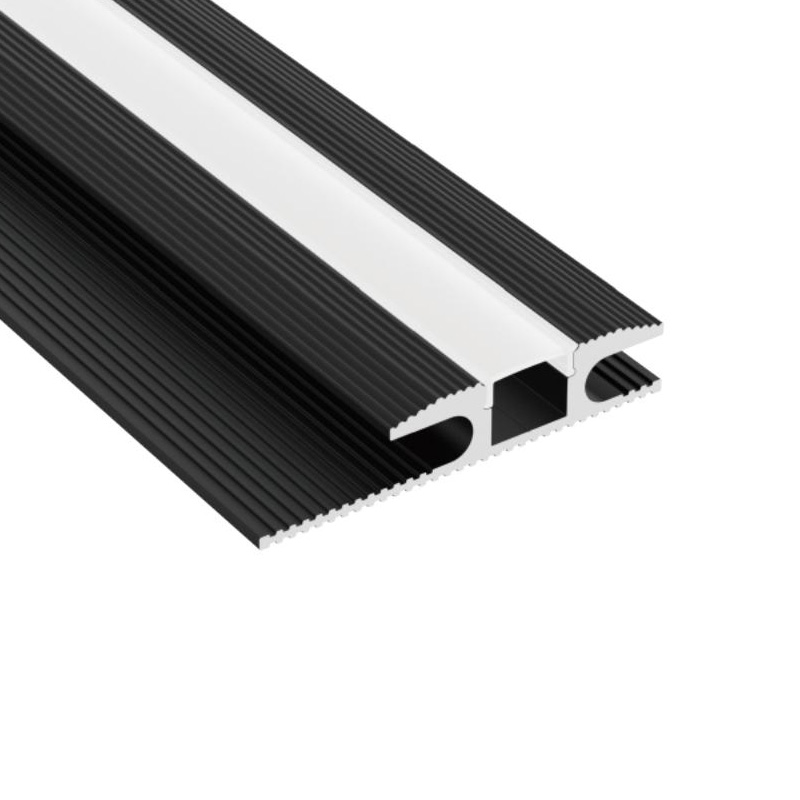

The recessed black LED channels are designed to integrate lighting into joints between carpet, parquet, laminate wood, and other floor types. They will sit flush within the floor surface, delivering a sleek, low-profile lighting that adds ambiance and safety. The recessed LED channels are made of 6063-T5 extruded aluminum with black anodized surface treatment, anti-oxidation resistance, durability, and a longer lifespan. The standard lengths are 1 m and 2 m, and a custom length is available. There are five types of diffusers available, made from high-quality materials, with anti-yellowing properties, and uniform light distribution. They will diffuse the LED strip lighting softly and evenly for cozy illumination. The inner width is 12.3 mm, allowing for a maximum width of 12 mm for strip lights. You can add our COB LED strips without hotspots. End caps with and without wire holes are included.

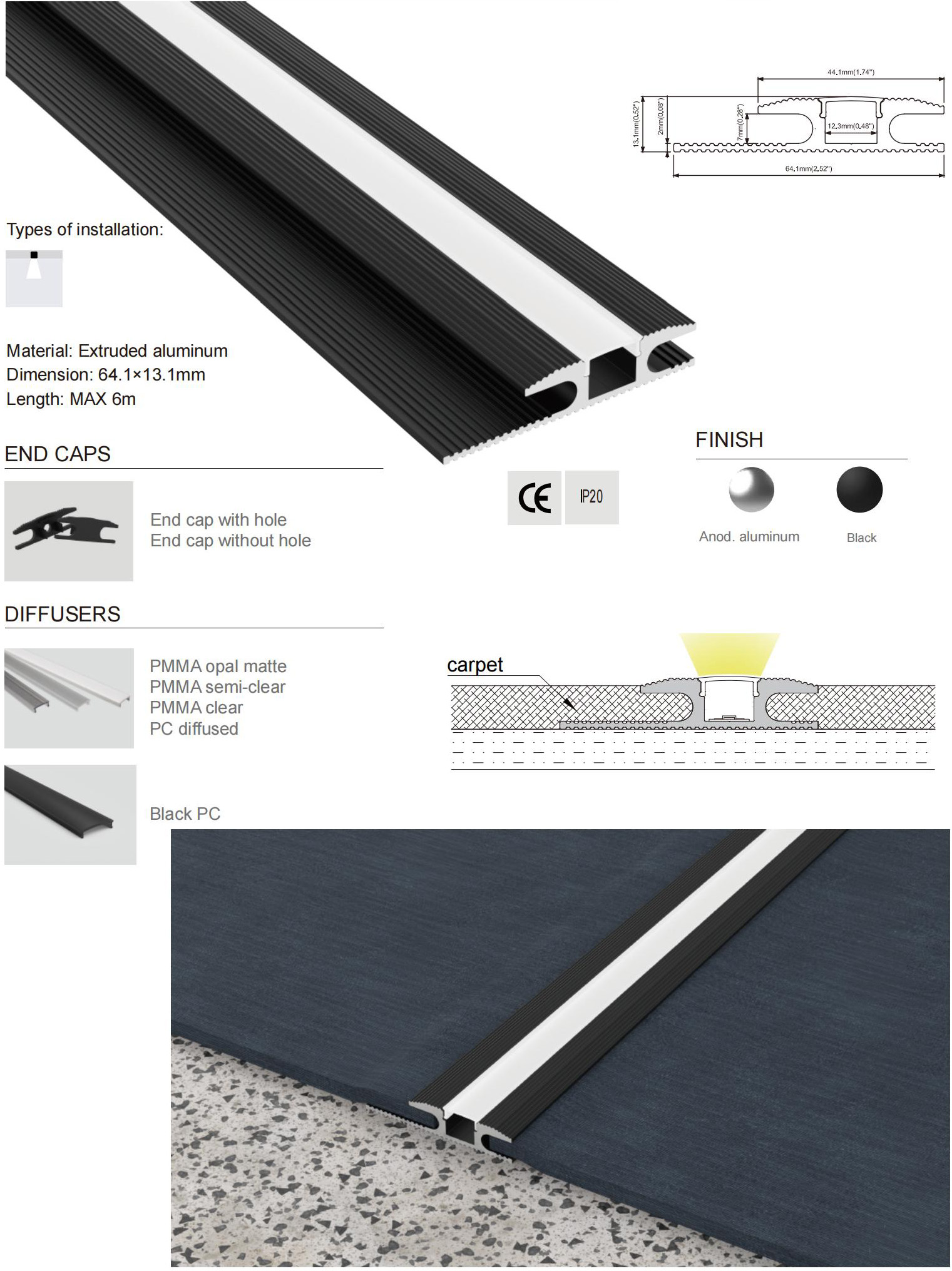

Specifications:
- Model: ALP207
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Black

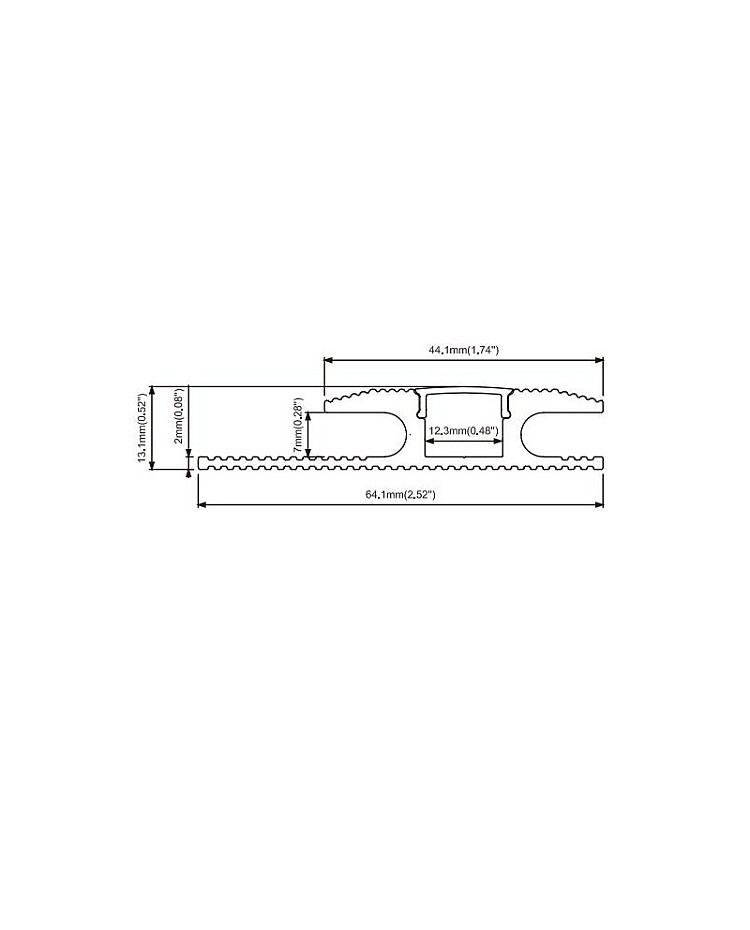

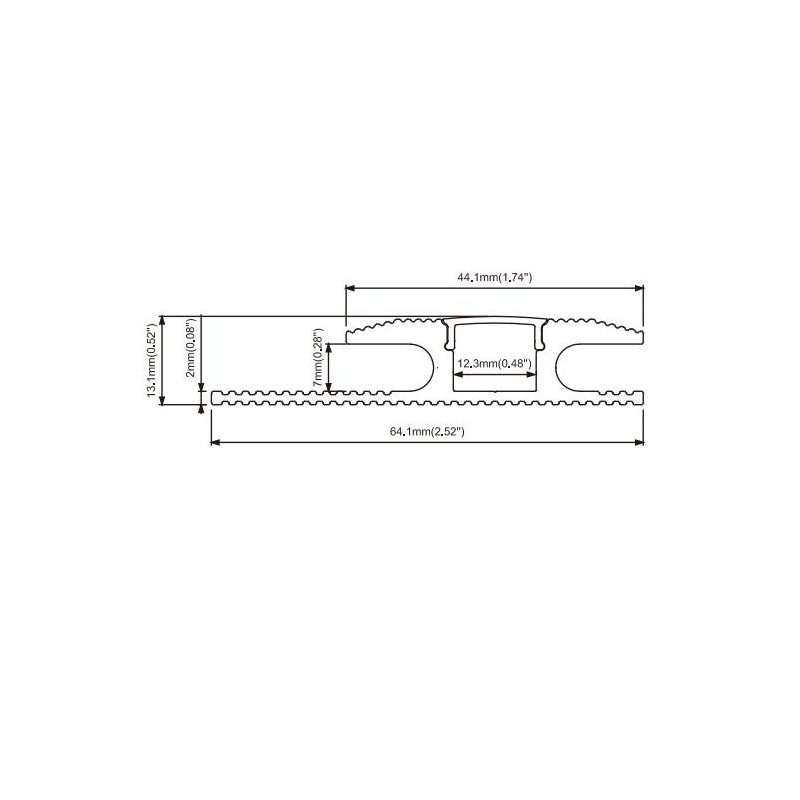

- Size ( W x H ): 44.1 mm x 13.1mm ( 1.74" x 0.52" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length: YES
- Diffuser: PC diffused cover, PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, black PC cover
- Inner width: 12.3 mm ( 1.74" )
- Allows the maximum width of strip lights: 12 mm ( 0.47" )
- IP rating: IP20 non-waterproof
- End caps with and without wire holes are included
- Installation: Recessed
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

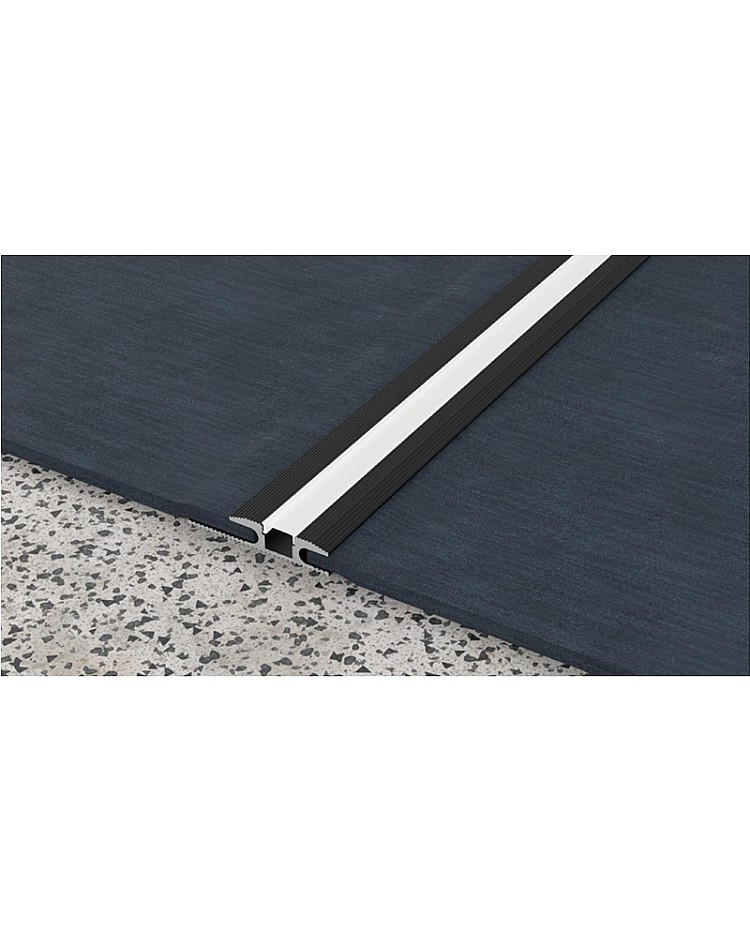

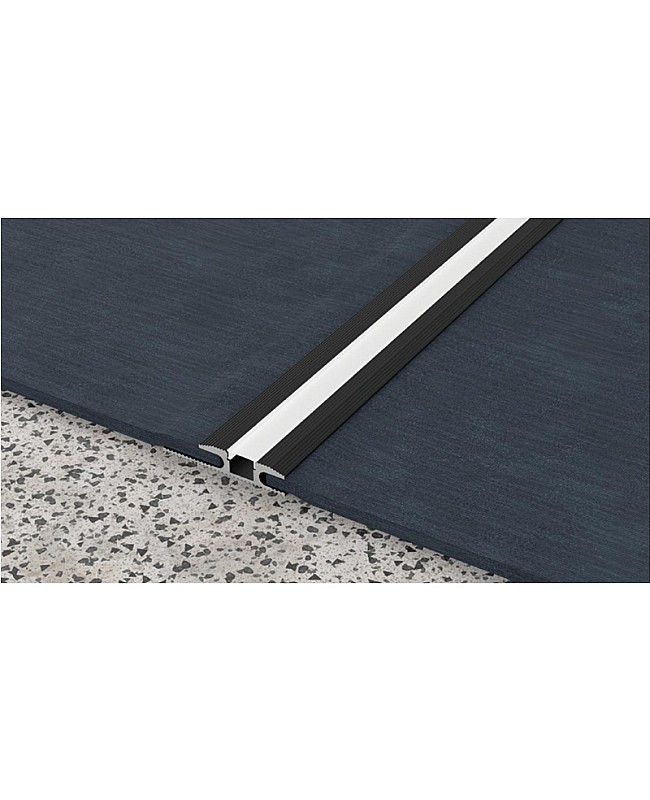

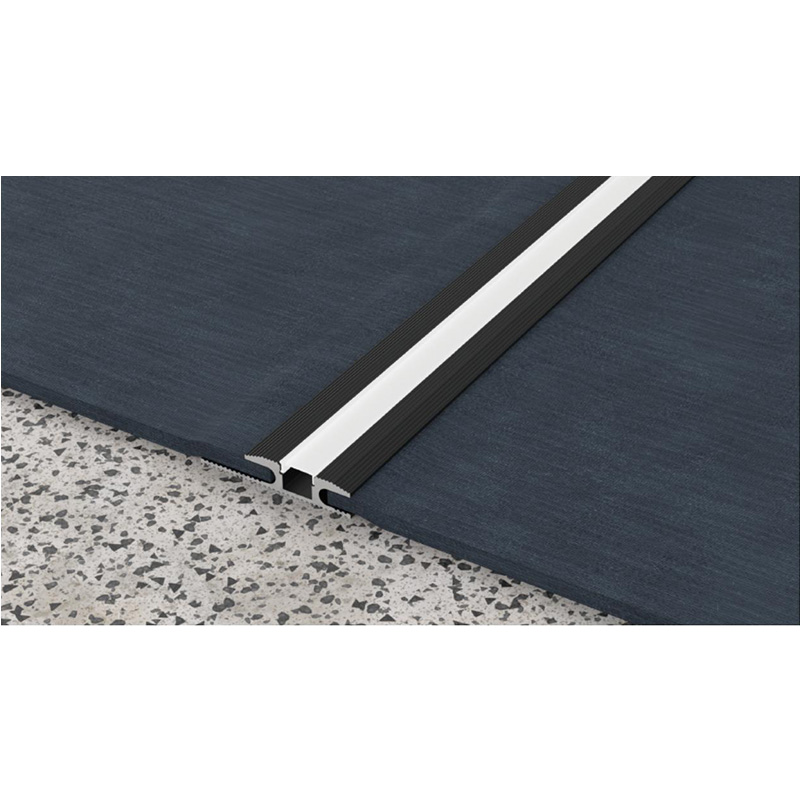

- Carpet joint lighting in hotels, offices, cinemas, etc
- Transition lighting between different floor materials
Includes:
1 * Floor carpet LED channel diffuser
End caps(with and without wire holes)
