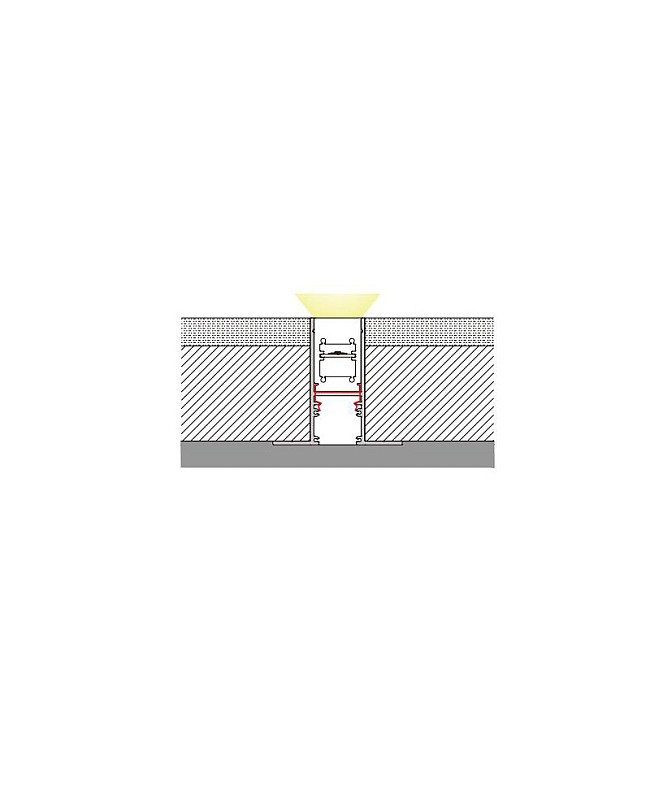

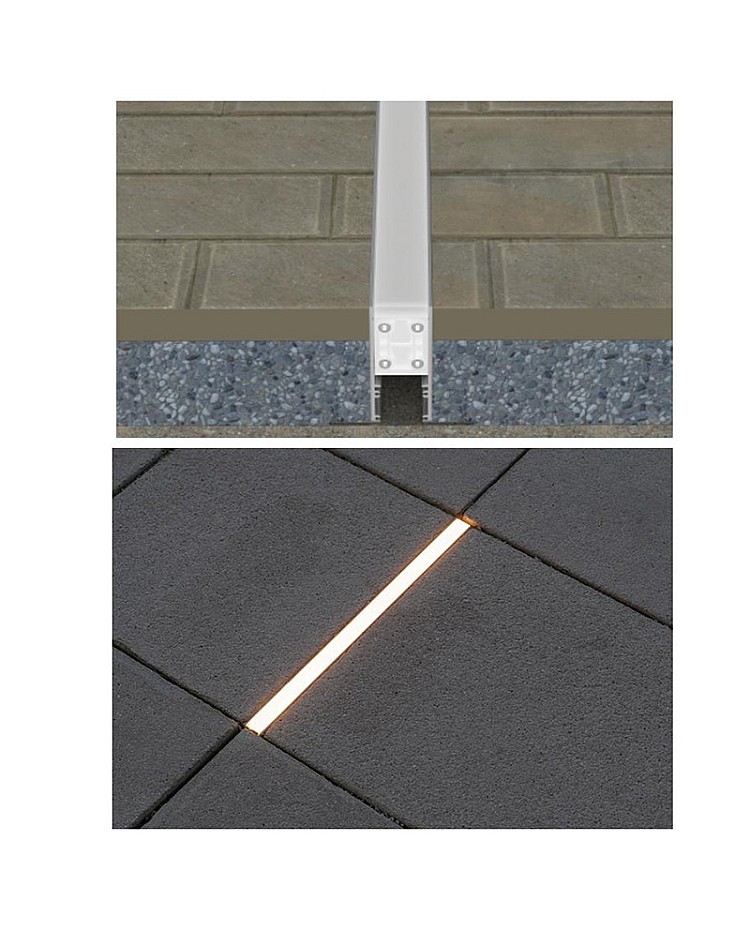

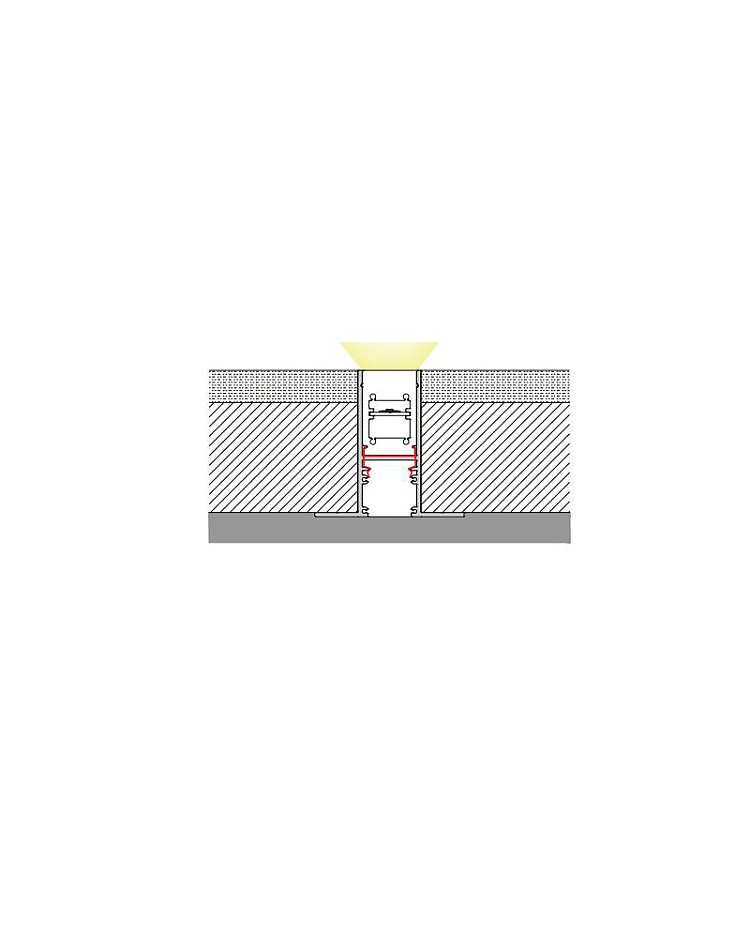

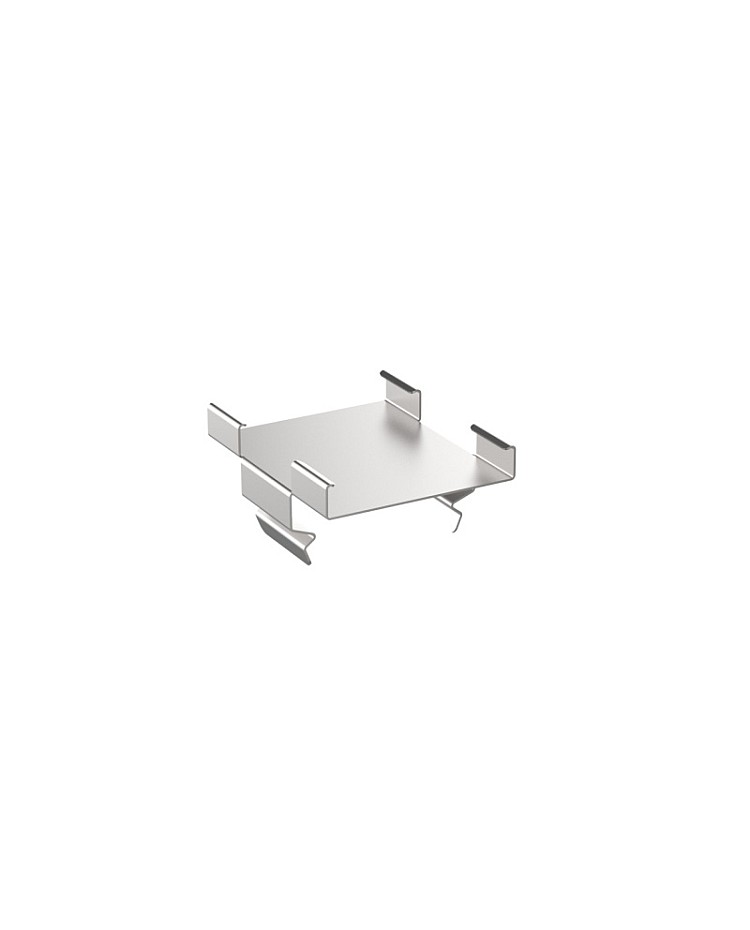

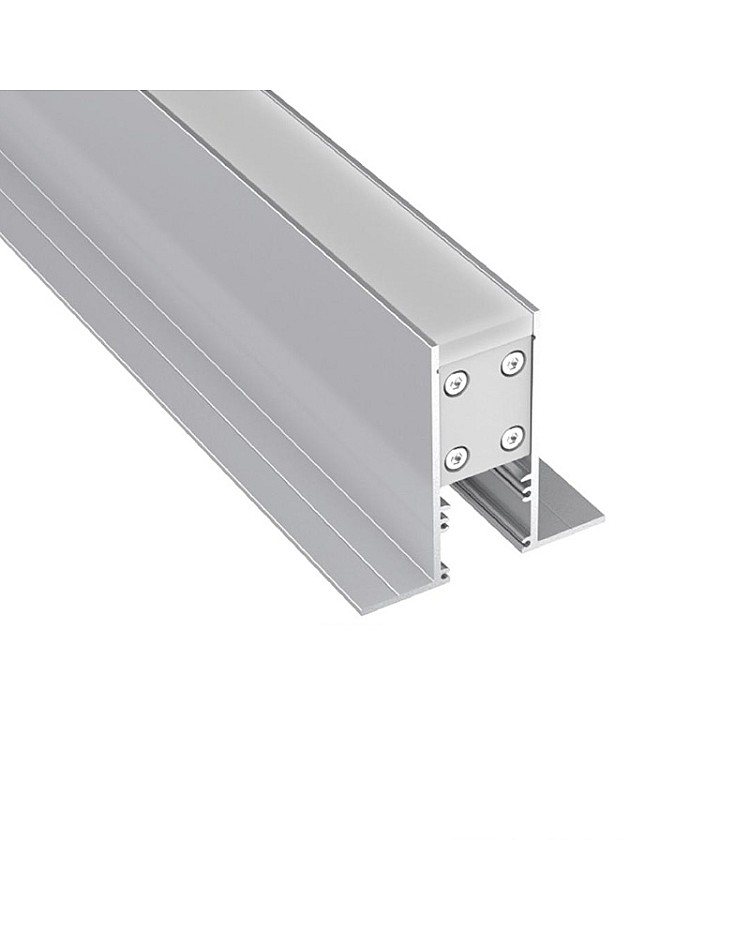

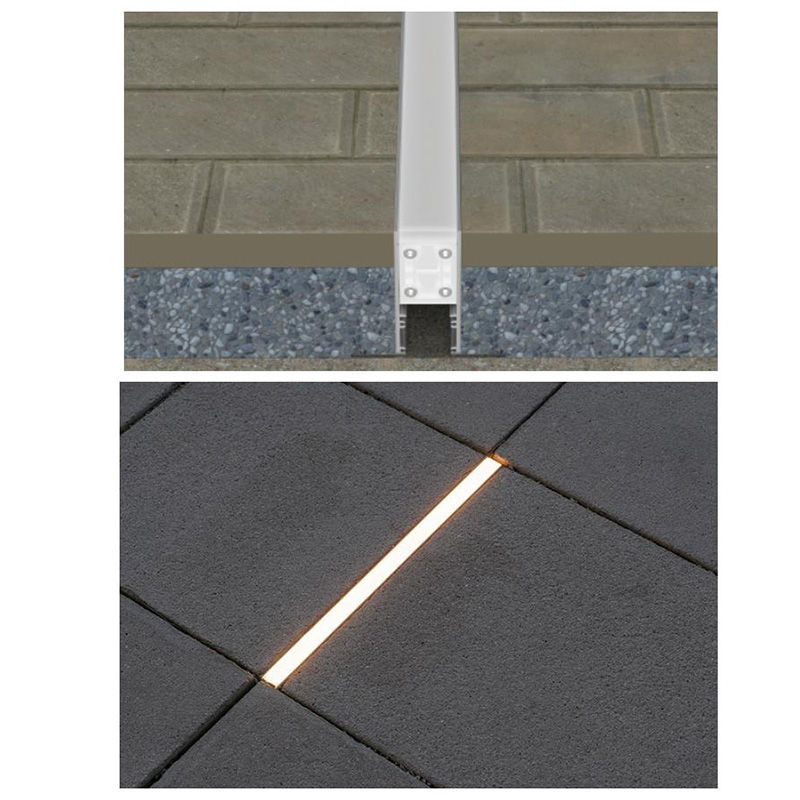

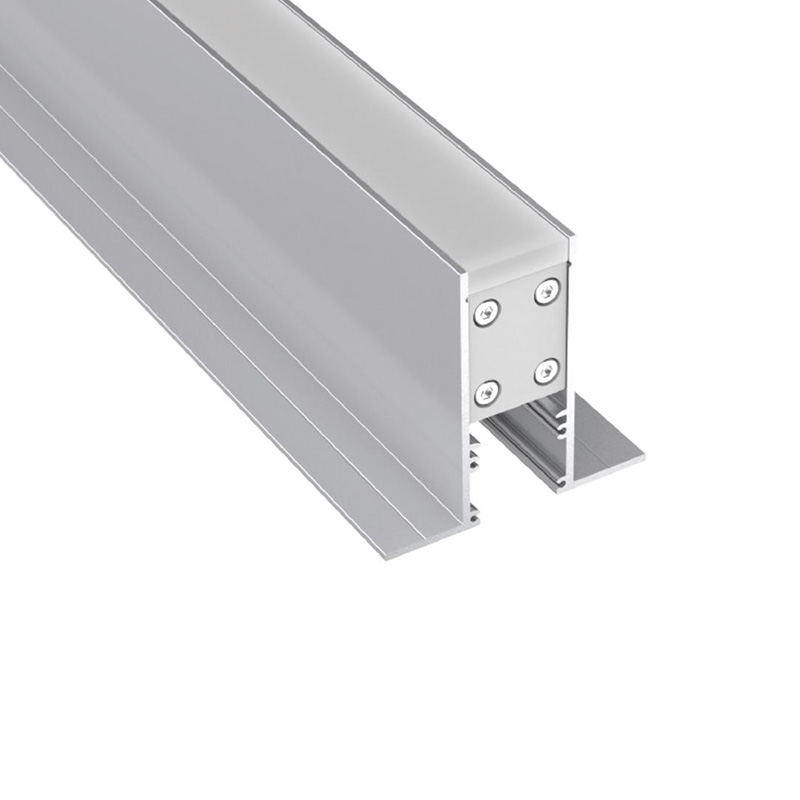

The outdoor waterproof in-ground paving lighting aluminum channels are designed to provide a safe and efficient way to install LED lighting in outdoor floor areas such as pathways, driveways, patios, and walkways. They are constructed with a waterproof aluminum alloy and feature a PMMA top cover that helps protect the White COB LED strips from water, rain, moisture, and dust. The channels are designed to be installed flush with the ground and use a unique system of connecting clips that securely attach the channels to the paving material. The floor LED channels are available in various lengths: 1M and 2M, and can be cut to any size to fulfill your needs. Made of extruded aluminum material with anodized surface treatment, anti-oxidation resistance, durability, and long-lasting. The PMMA frosted cover and PMMA clear cover are included. They are made of brand-stable material, anti-yellowing, and with perfect light distribution. The inner width is 15mm, allowing for a maximum strip light width of 15mm. Recommend adding high-density COB strip lights as the light source to create evenly and warmly lit ambient lighting, without visible light dots or dark areas.

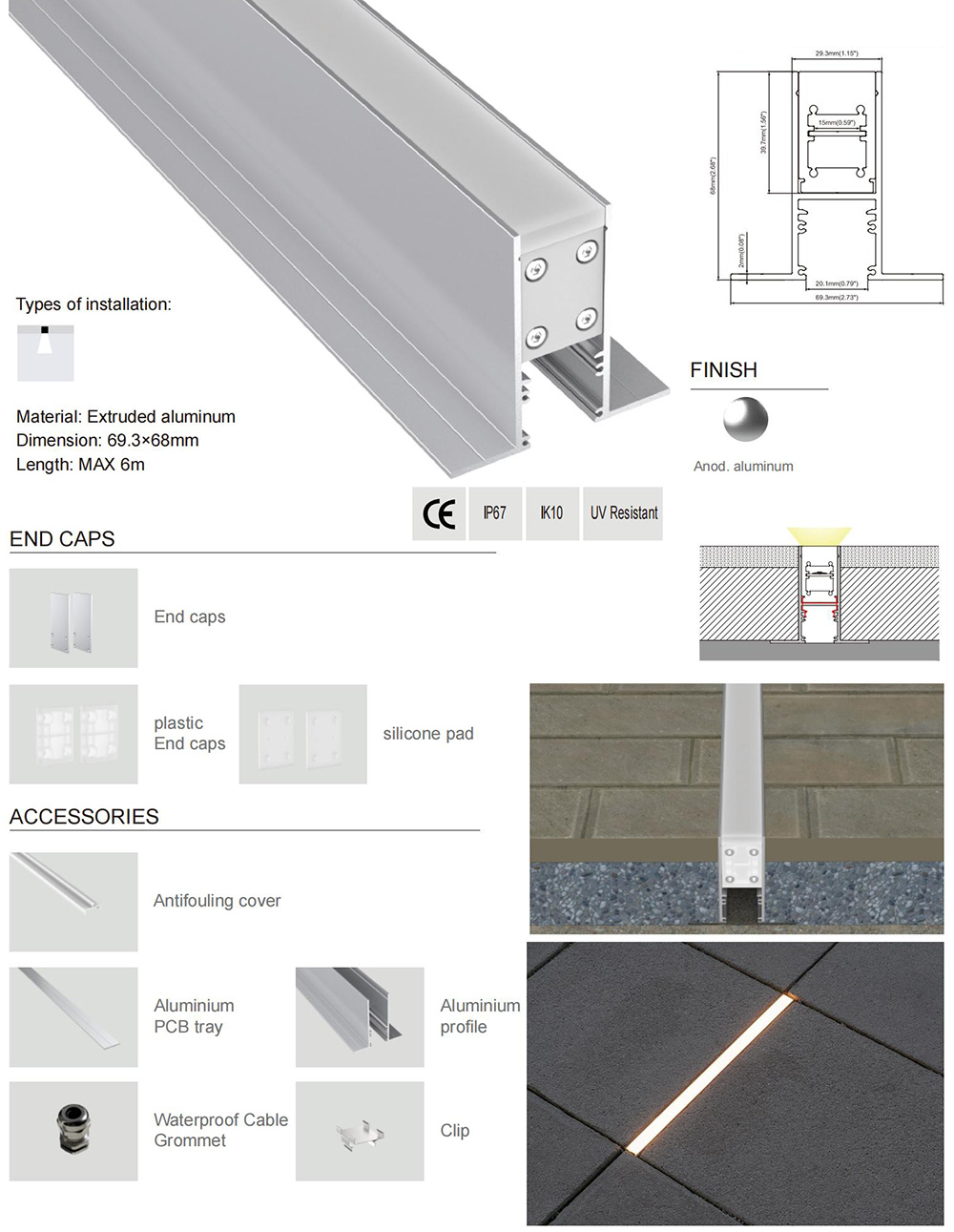

Specifications:
- Type: Aluminum LED profiles for outdoor in-ground light
- Model: ALP204
- Material: Extruded aluminum
- Surface Treatment: Anodized
- Color: Silver

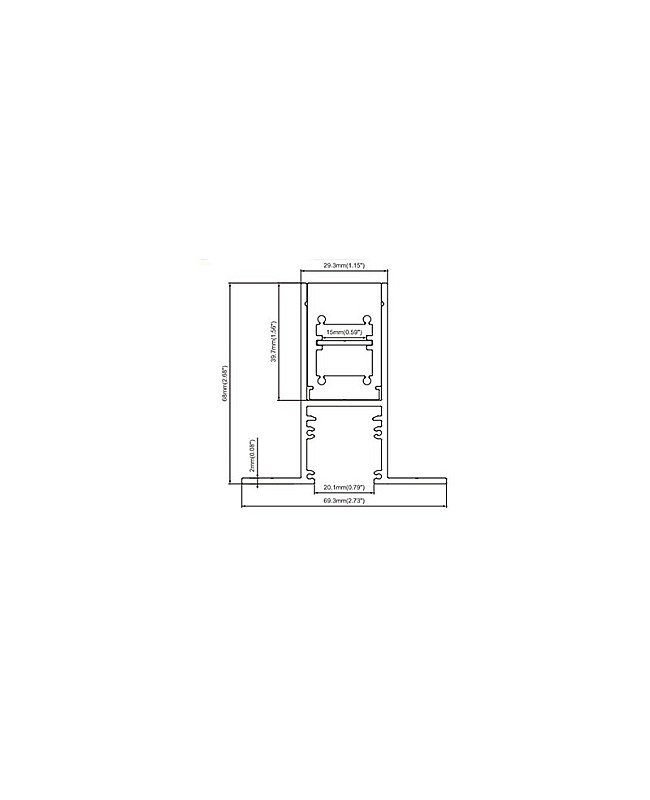

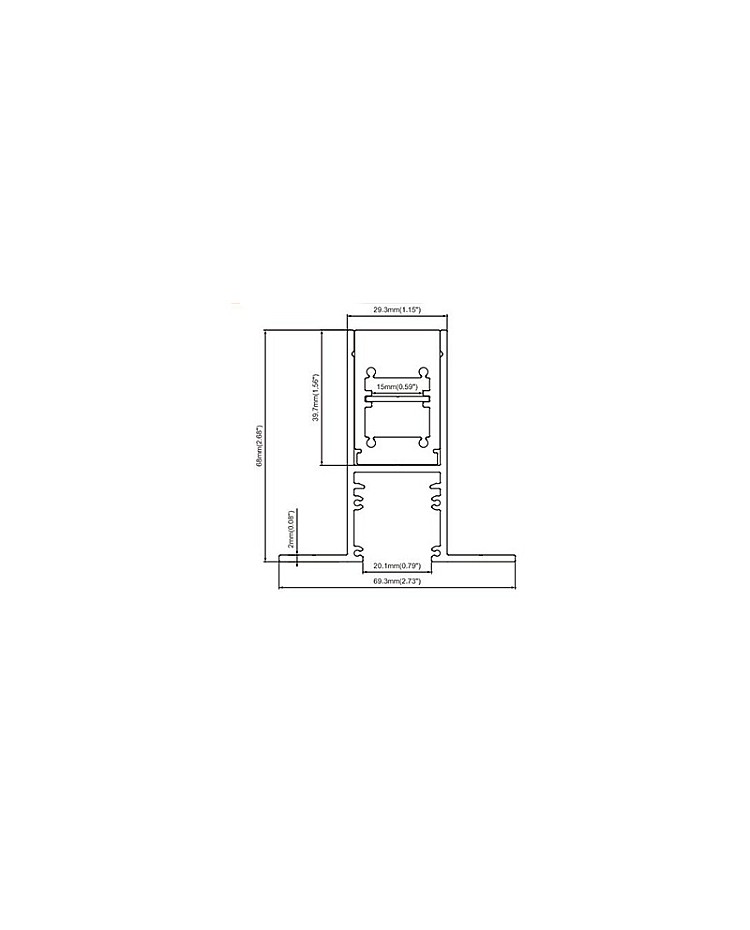

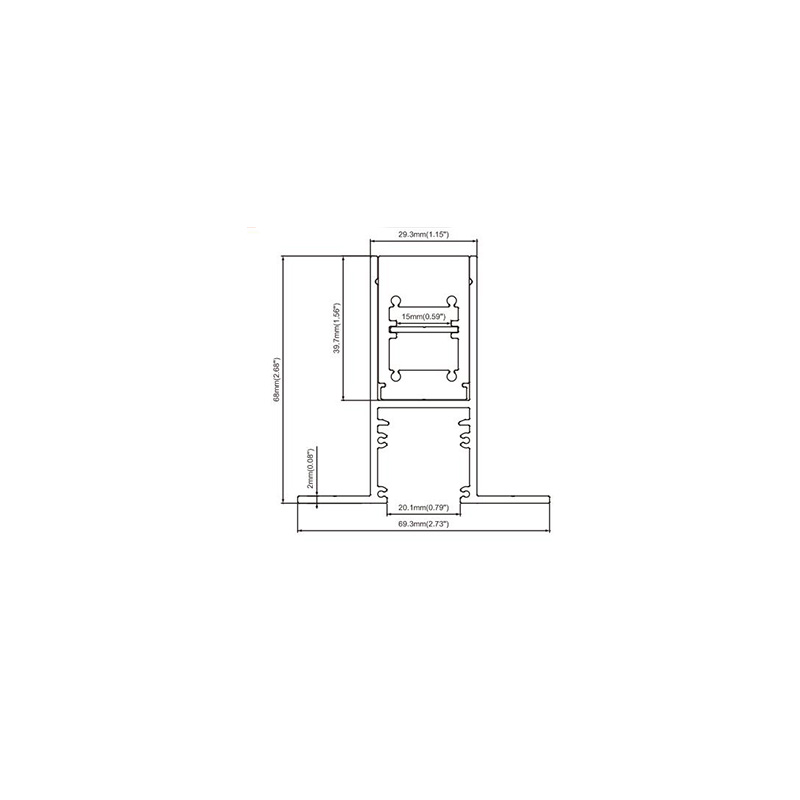

- Size(W*H): 69.3*68mm/2.73"*2.68"
- Length: 1M(39") / 2M(78")
- Custom Length: YES
- Diffuser: PMMA frosted cover + PMMA clear cover
- Inner Width: 15mm/0.59"
- Allows the max width of strip lights to be 15mm/0.59"
- IP Level: IP67 waterproof
- IK Level: IK10
- Installation: Built-in ground
- Applications: Outdoor paving lighting
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * Paving lighting channel

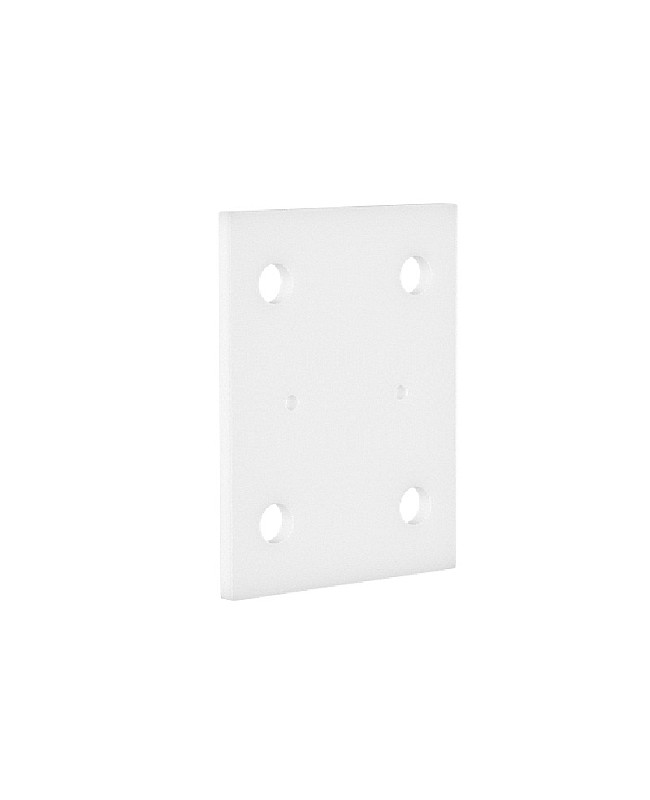

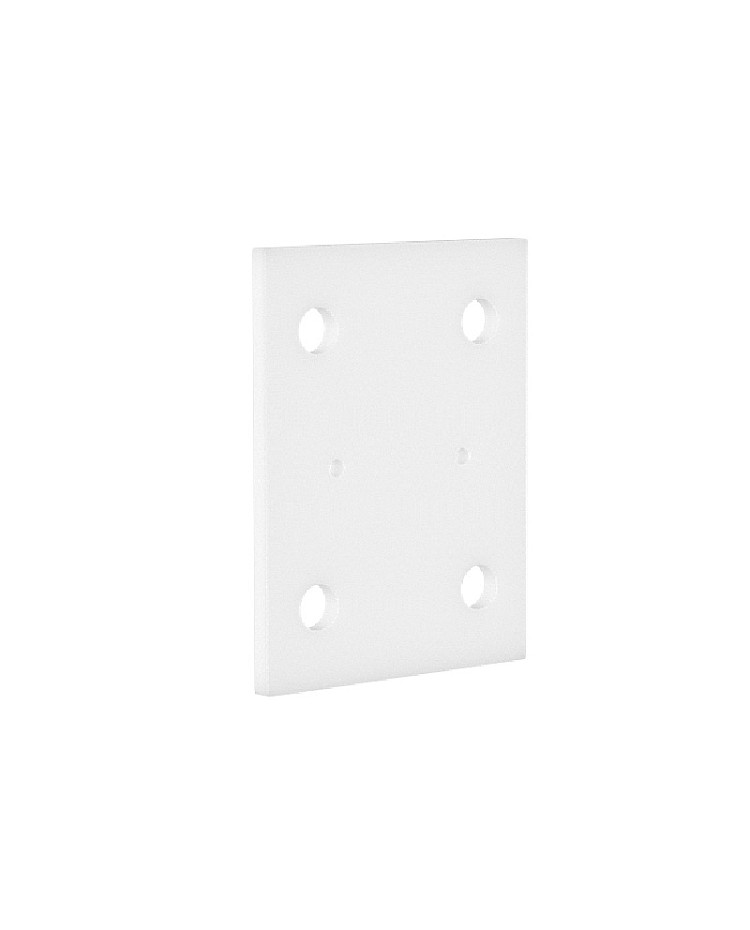

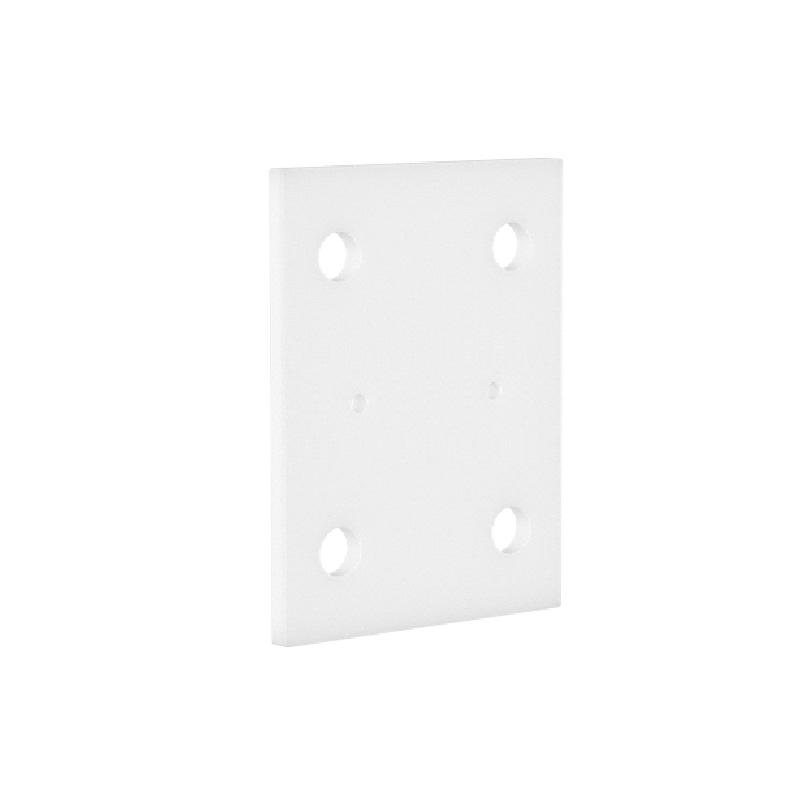

1*accessories
