In Stock
$6.99
Reward Points: 7
-
+

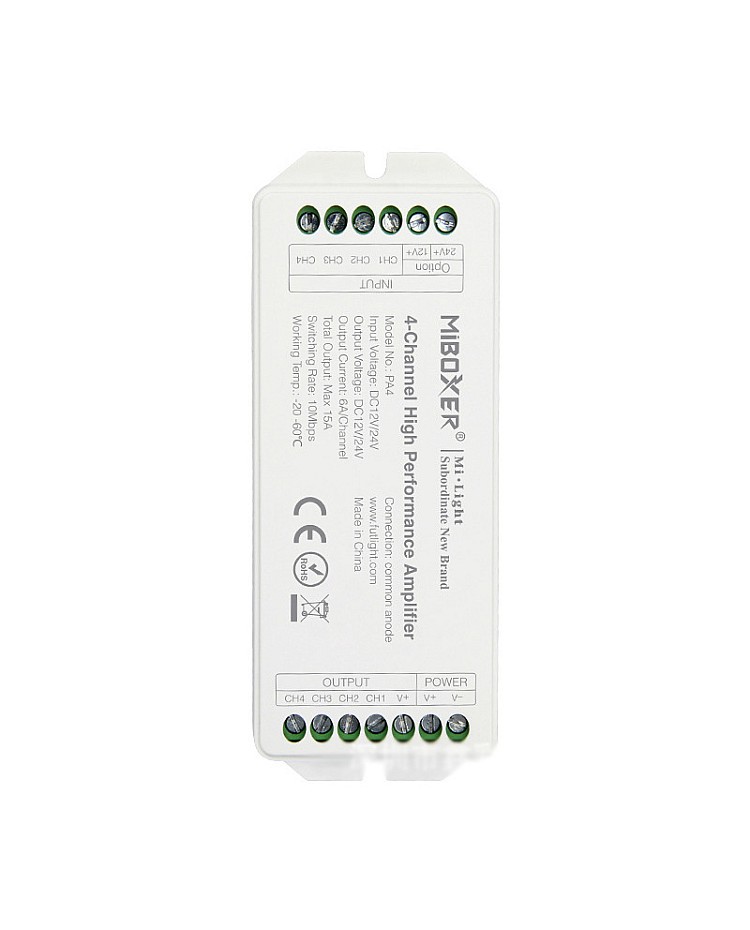

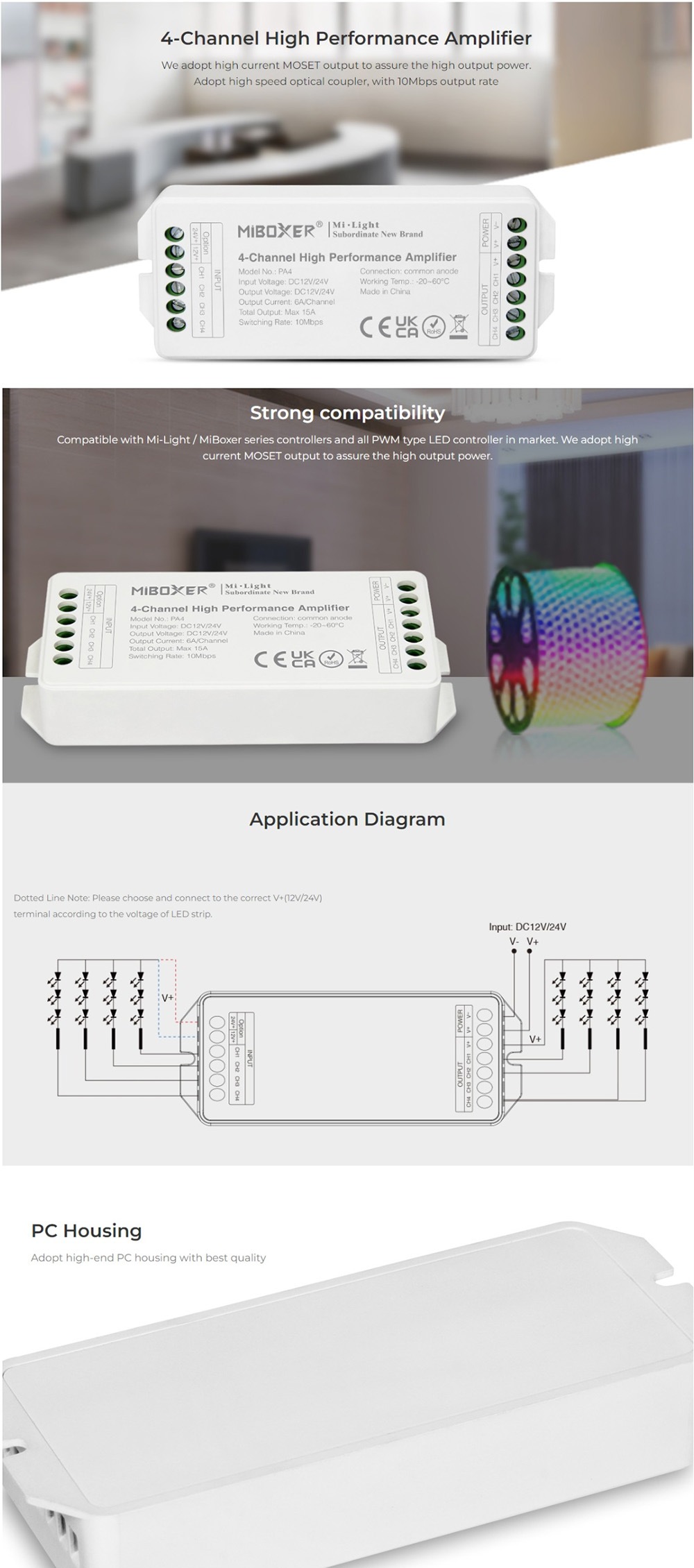

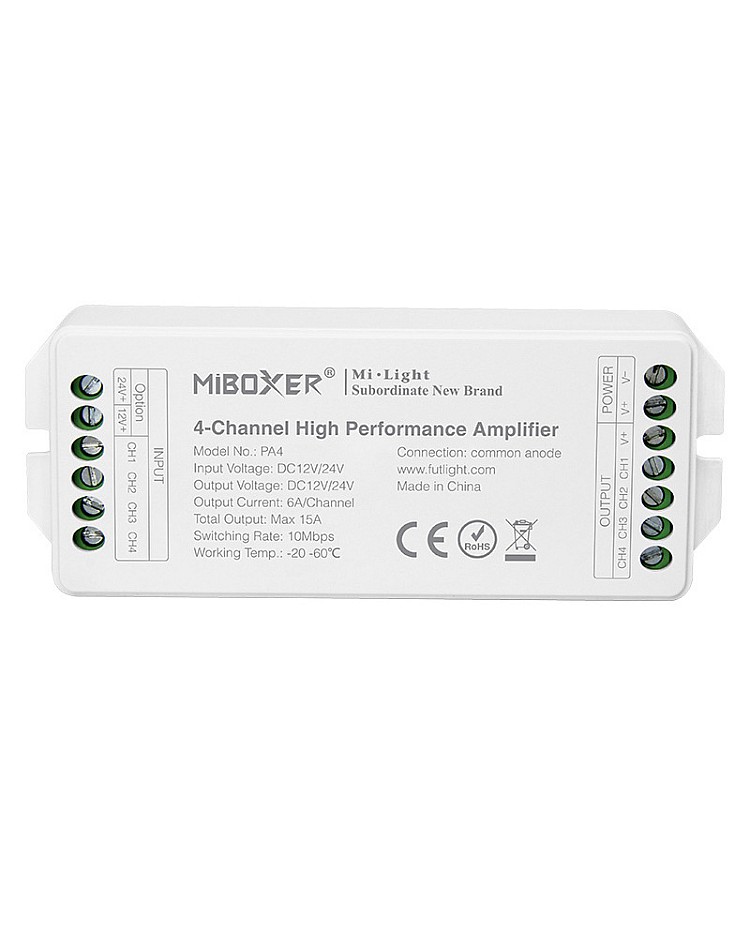

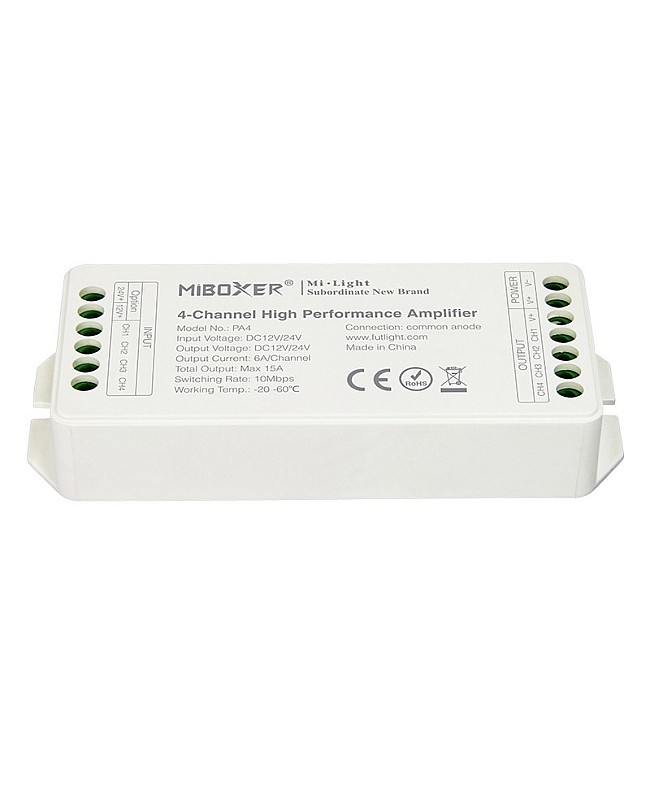

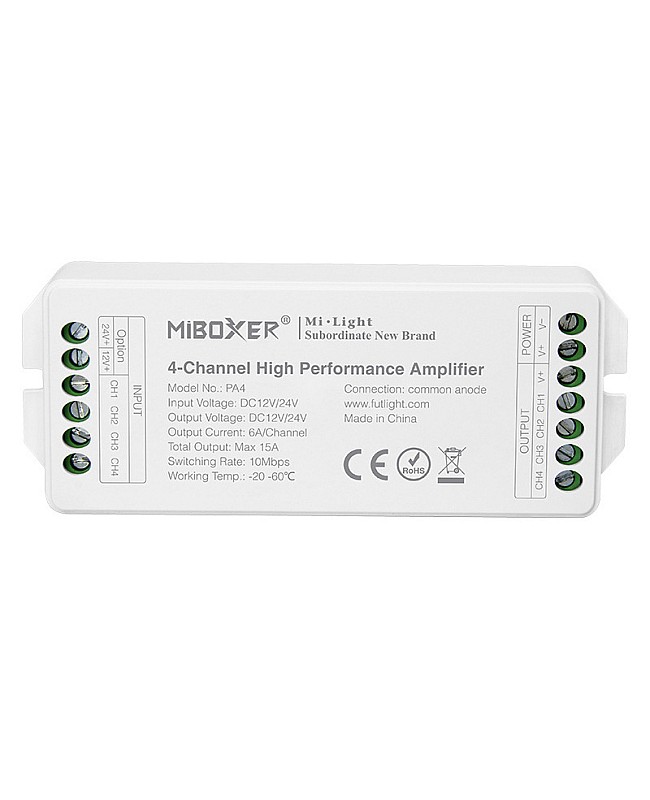

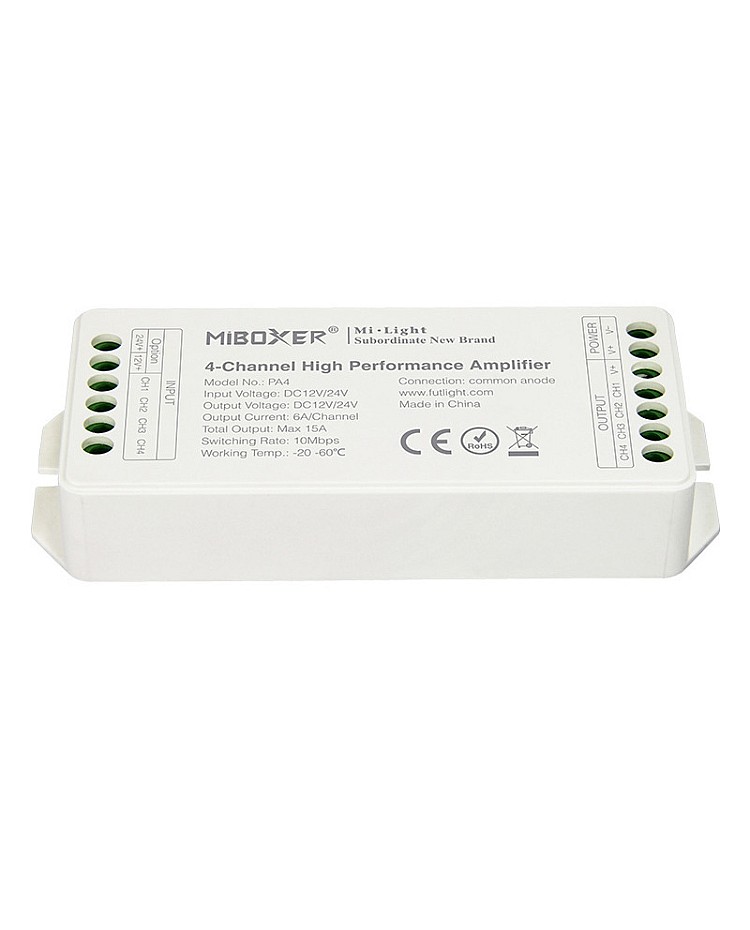

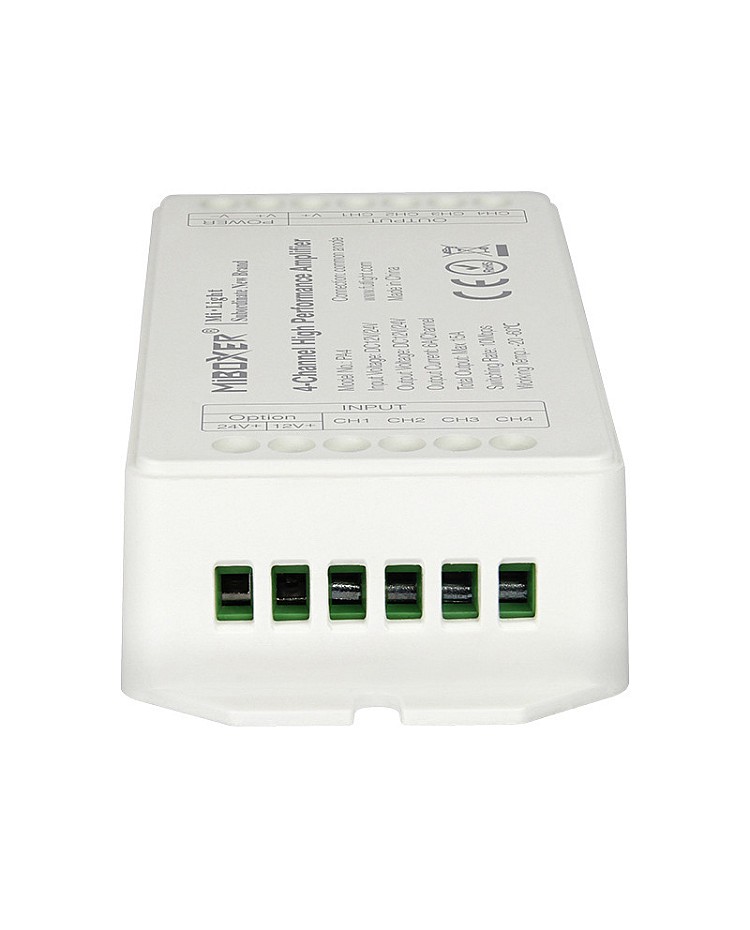

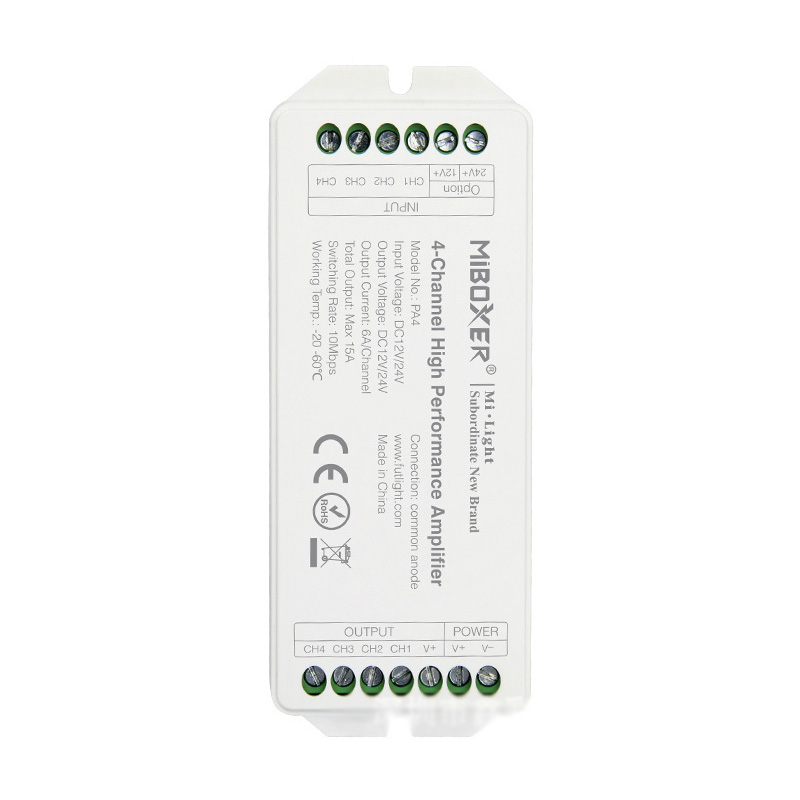

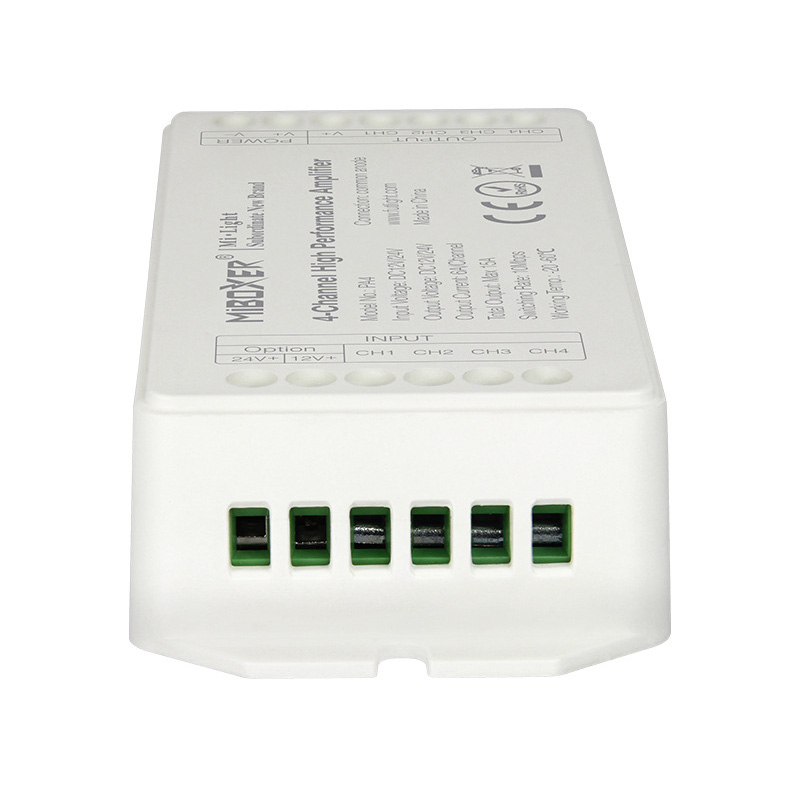

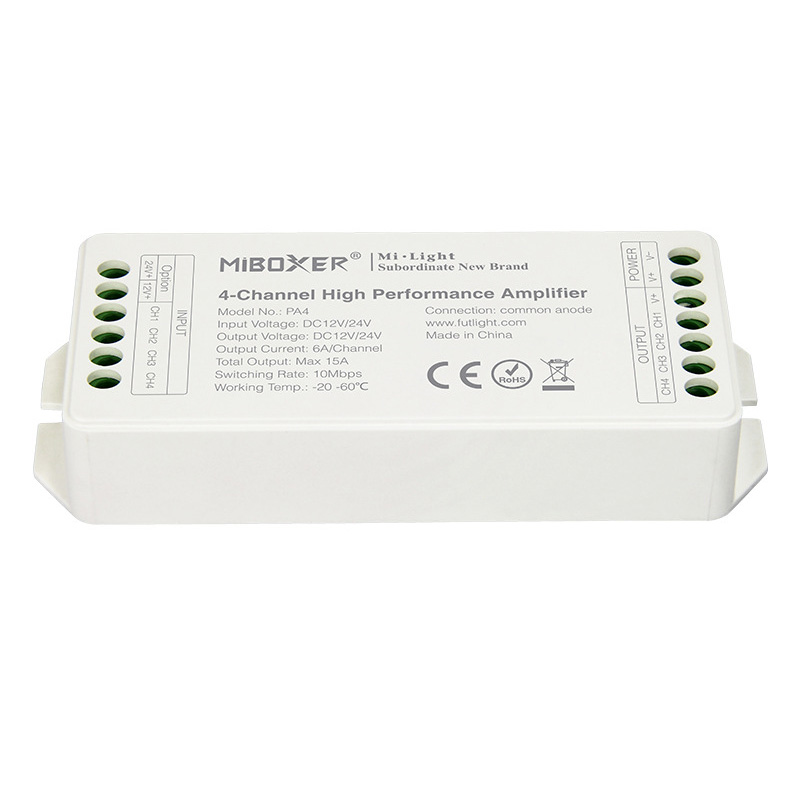

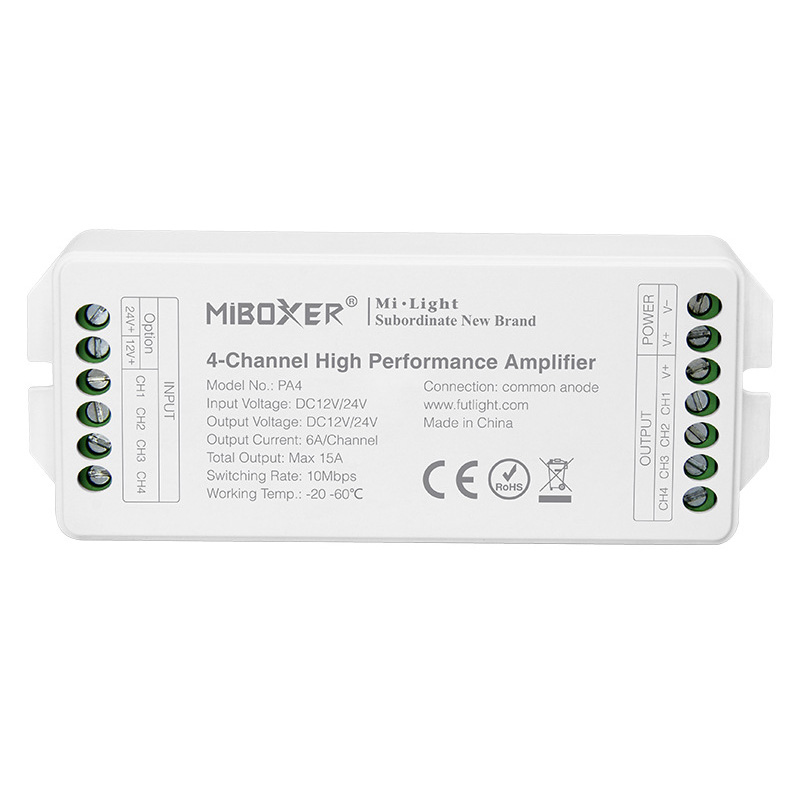

The MiBoxer PA4 RGBW Amplifier with four high-speed output channels design can be used for Single Color, Dual White, RGB, and RGBW LED Strip Lights and is compatible with Mi-Light, MiBoxer Controllers, and all PWM type Controllers in the market. Working on DC12V to DC24V, it adopts a high-speed optical coupler with a 10Mbps output rate and can output the signal of the central controller completely and synchronously. The MiBoxer Signal Booster will be compatible with all PWM series LED Controllers, made from the big current MOS pipeline to ensure the high rate output. The input and output with optoelectronic isolation, can connect countless amplifiers in theory.

Quick Links:

MiBoxer PA4 Manual


Features:

  • Size: 119*47*23mm(L*W*H)
  • Input Voltage: DC12-24V
  • Output Voltage: DC12-24V
  • Max Output Current: 6A/Channel
  • Total Output Current: 15A
  • Switching Rate: 10Mbps
  • Connection: Common Anode
  • With 4 Output Channels Design
  • Compatible With All PWM Series LED Controllers
  • Can Be Used For Single Color/CCT/RGB/RGBW LED Strip Lights
  • Working Temperature: -20℃-+60℃


Includes:

1*PA4 RGBW Amplifier


MiBoxer PA4
