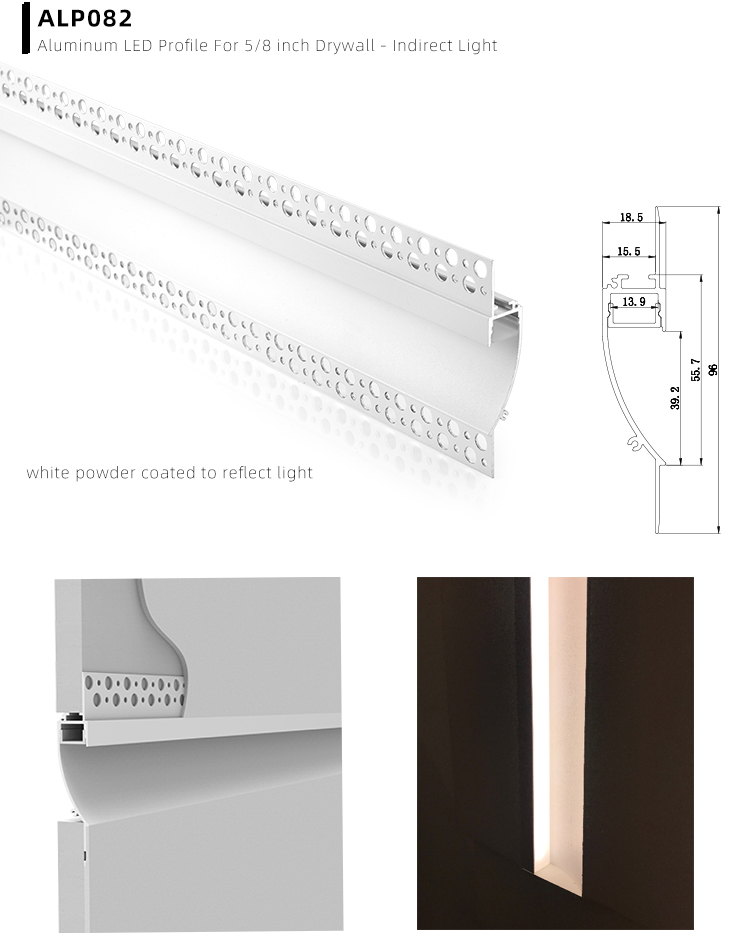

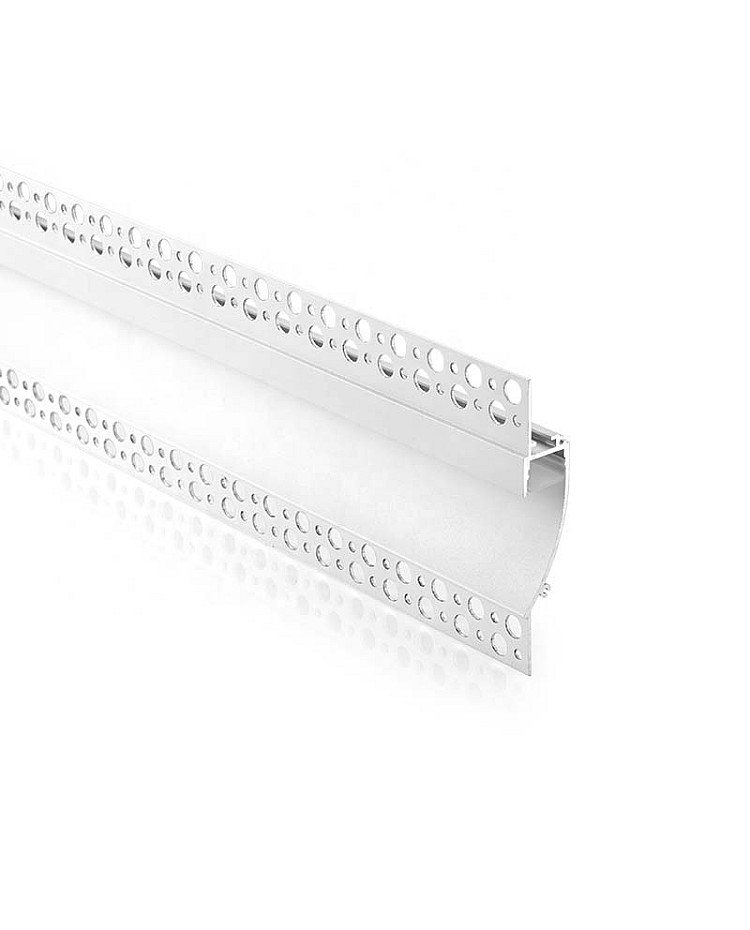

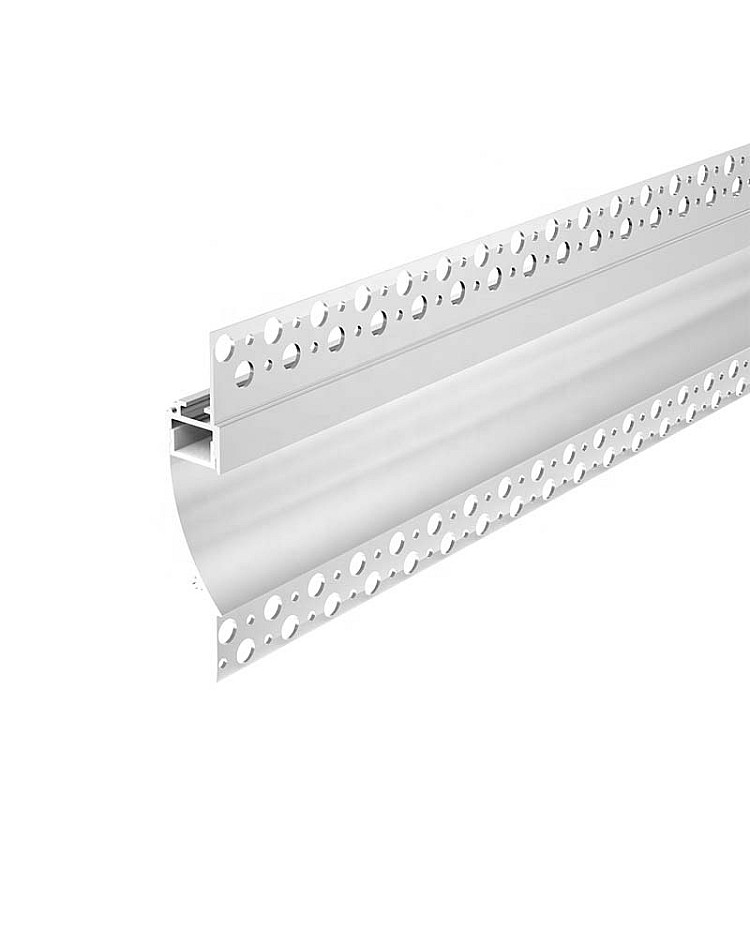

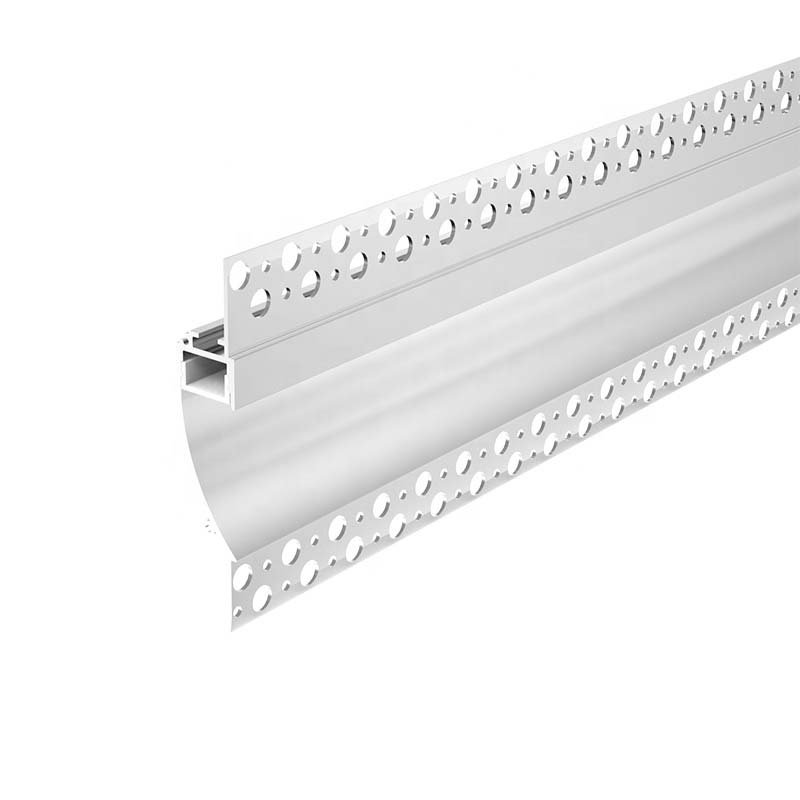

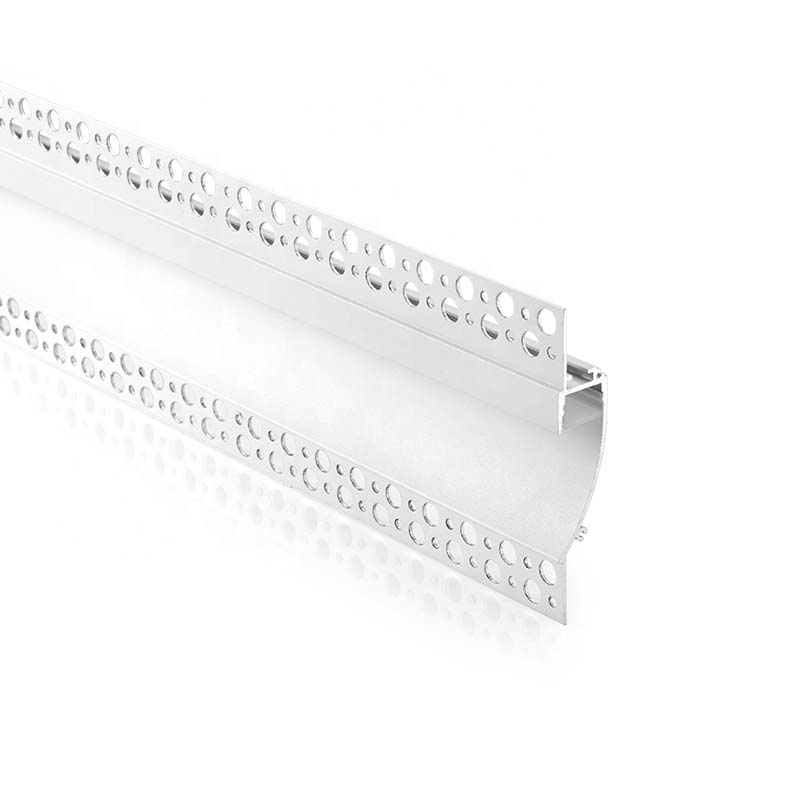

The trimless LED profiles are designed to be seamlessly installed flush into 5/8" drywall to create a smooth, indirect lighting. They offer a clean and modern solution for recessed architectural lighting. The profiles feature a reflective panel and conceal linear LED strip lights, providing uniform illumination that washes walls and eliminates glare and visible hotspots. Perfect for vertical wall slots, ceiling coves, or shadow line in residential and commercial applications. Crafted from high-quality aluminum and coated in white for anti-oxidation resistance, enhancing light reflection, and a longer lifespan. The standard lengths of the LED drywall profile are 1 m and 2 m, and it can be cut to any length that fits your needs. The inner width is 13.9 mm, allowing for a maximum strip light width of 13 mm. We recommend using high-density SMD or COB strip lights as the light source, as they deliver a uniform light without visible light dots. Only PC diffused covers are available; they are made of high-quality material and evenly diffuse the emitting light from LED strips. The aluminum profiles can be used as heat sinks to enhance heat dissipation, thereby extending the lifespan of LED lights.
Specifications:
- Model: ALP082
- Material: 6063-T5 Aluminum alloy
- Surface Treatment: Powder-coated
- Colors: White

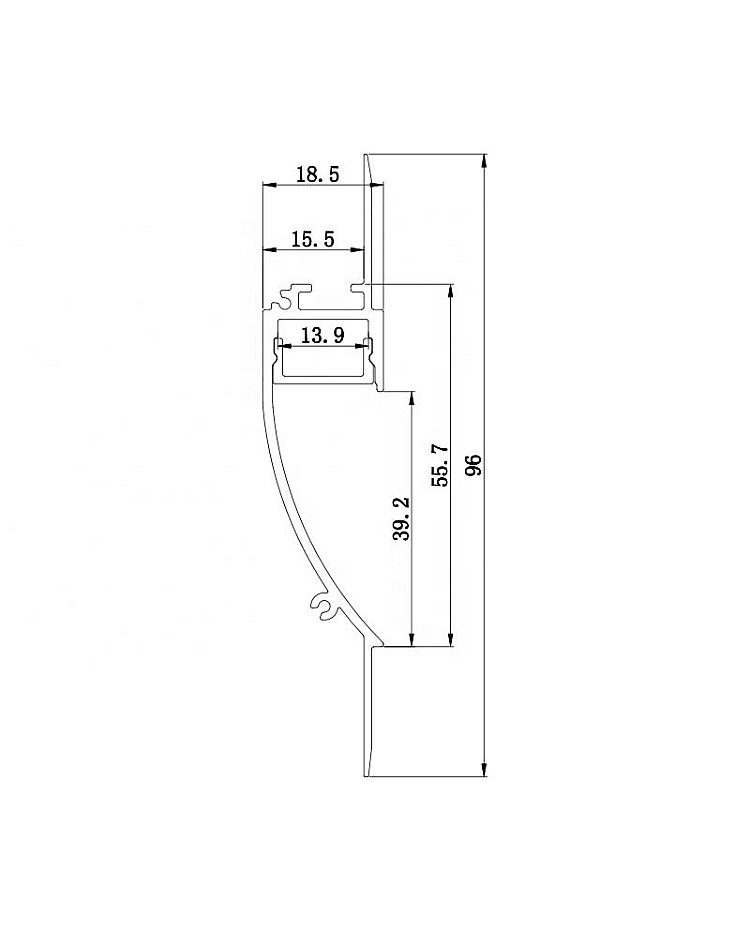

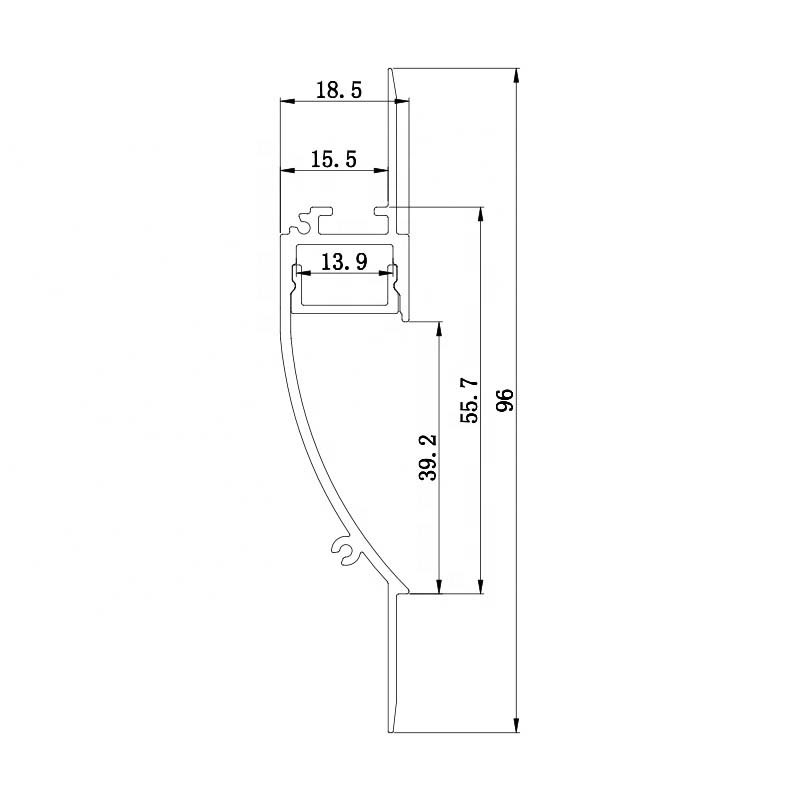

- Size: 96 mm x 18.5 mm ( 3.78" X 0.73" )
- Standard Length: 1m ( 39" ), 2 m ( 78" )
- Custom Length Available: YES
- Inner Width: 13.9 mm ( 0.55" )
- Allows The Max Width Of LED Strips: 13 mm ( 0.51" )
- Max Power: 15W per meter
- Diffuser: PC diffused cover
- Beam Angle: 100°

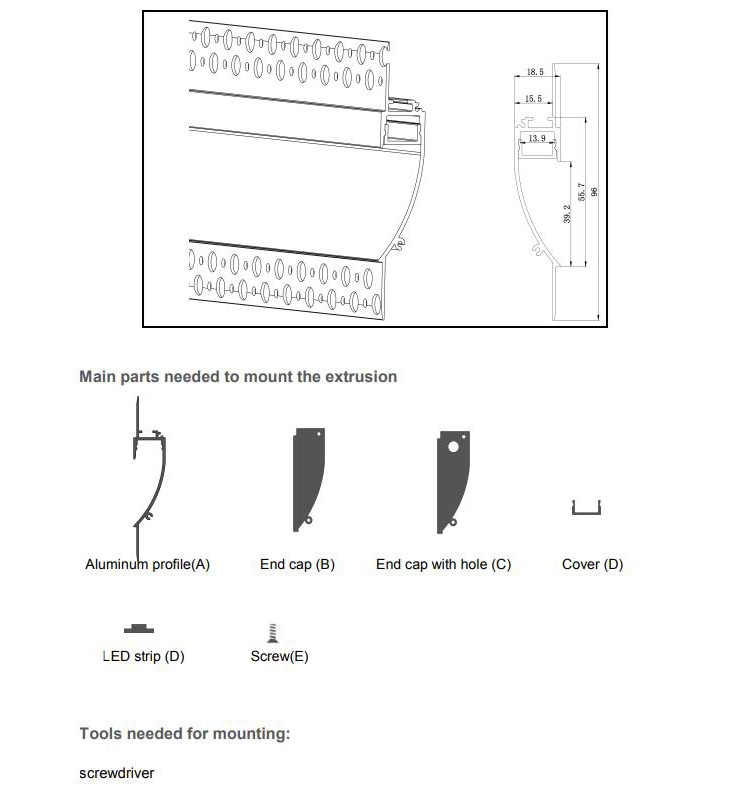

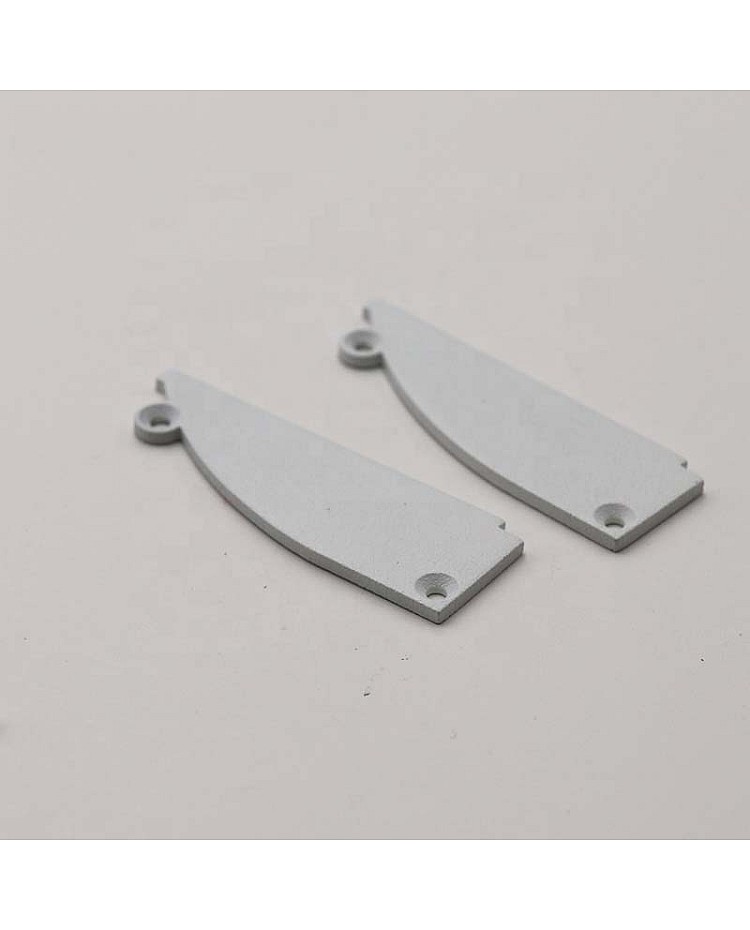

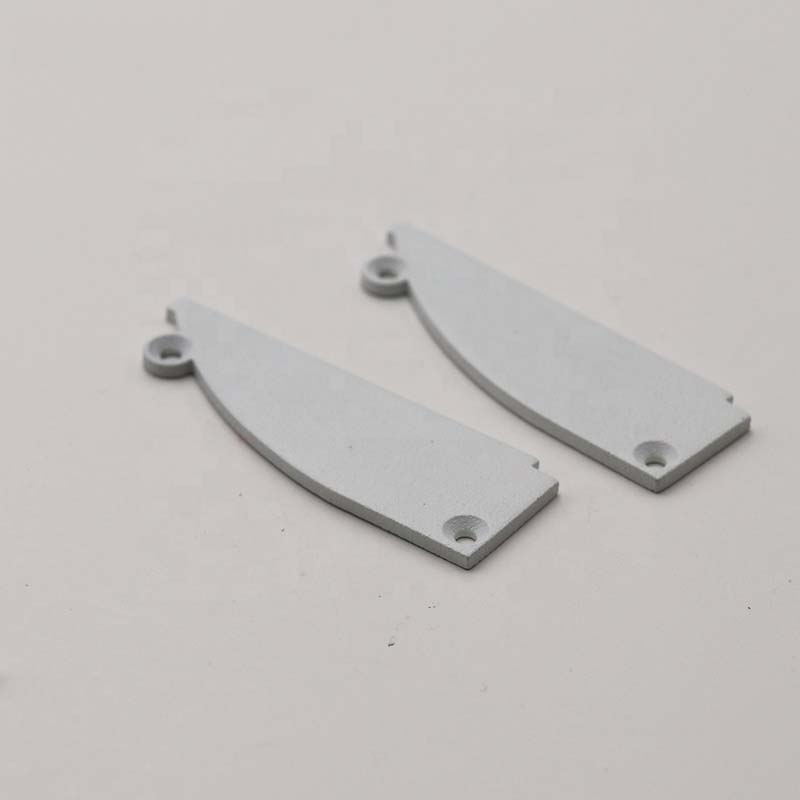

- End caps with and without wire holes are included
- 90°, 90° vertical, and 180° couplers sold separately

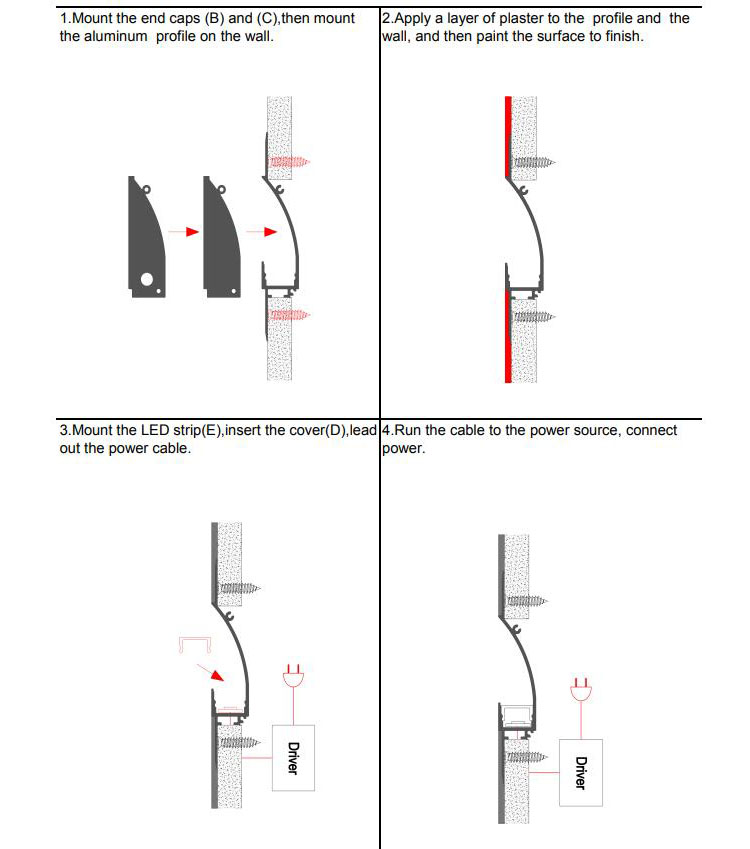

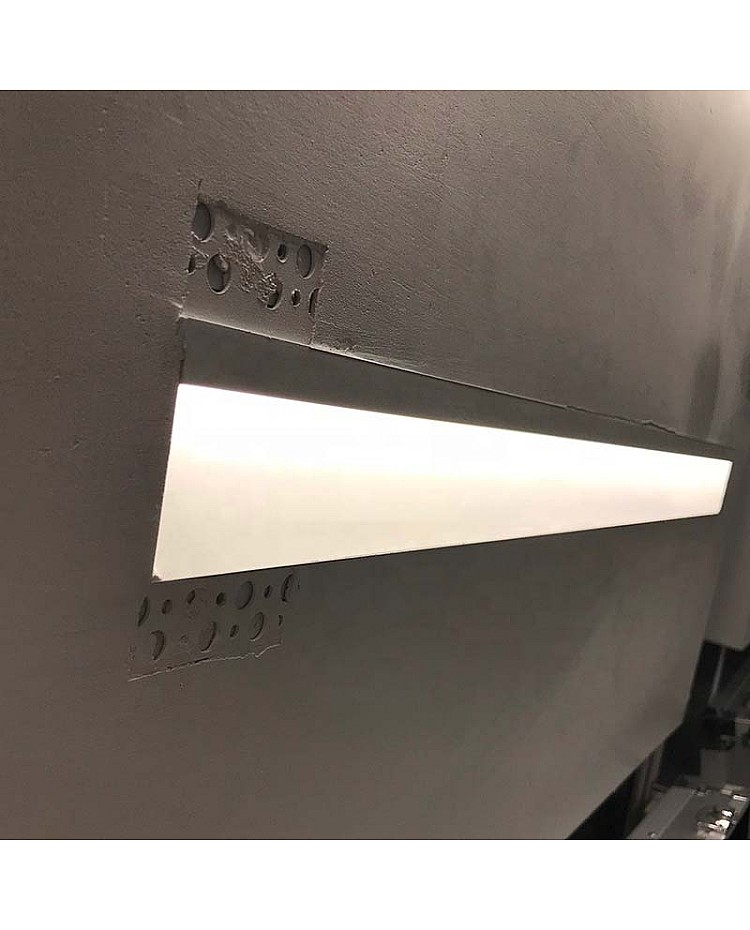

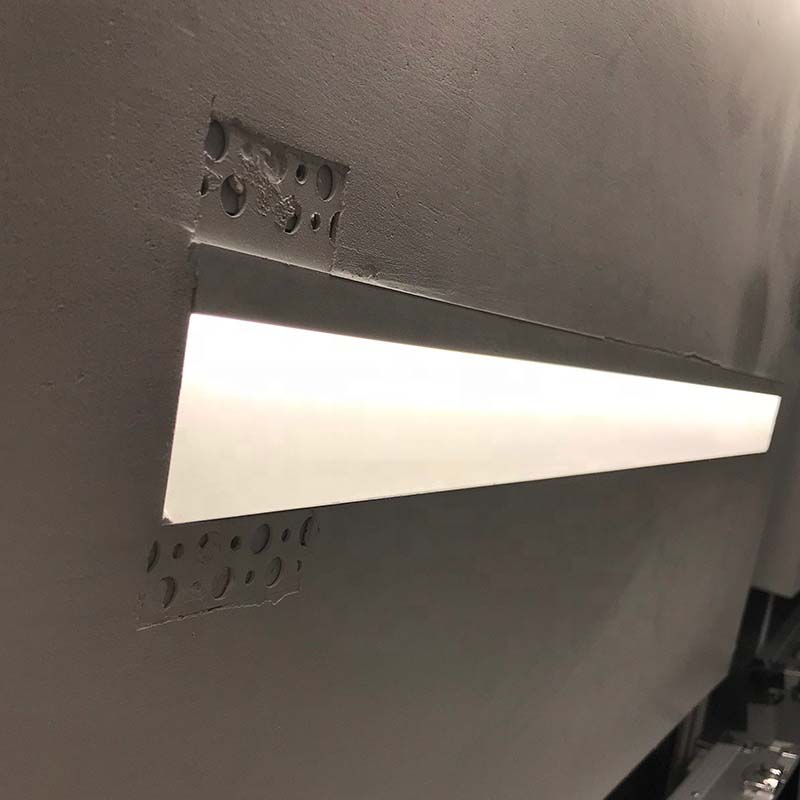

- Installation: Plaster-in
- Certifications: CE, ROHS
- Warranty: 5 years

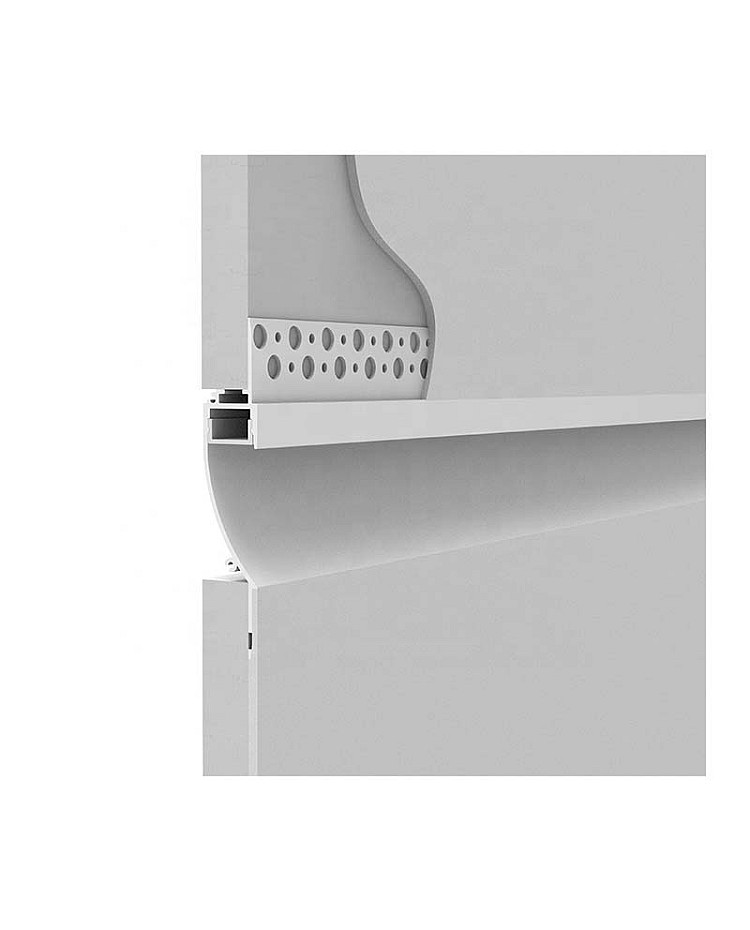

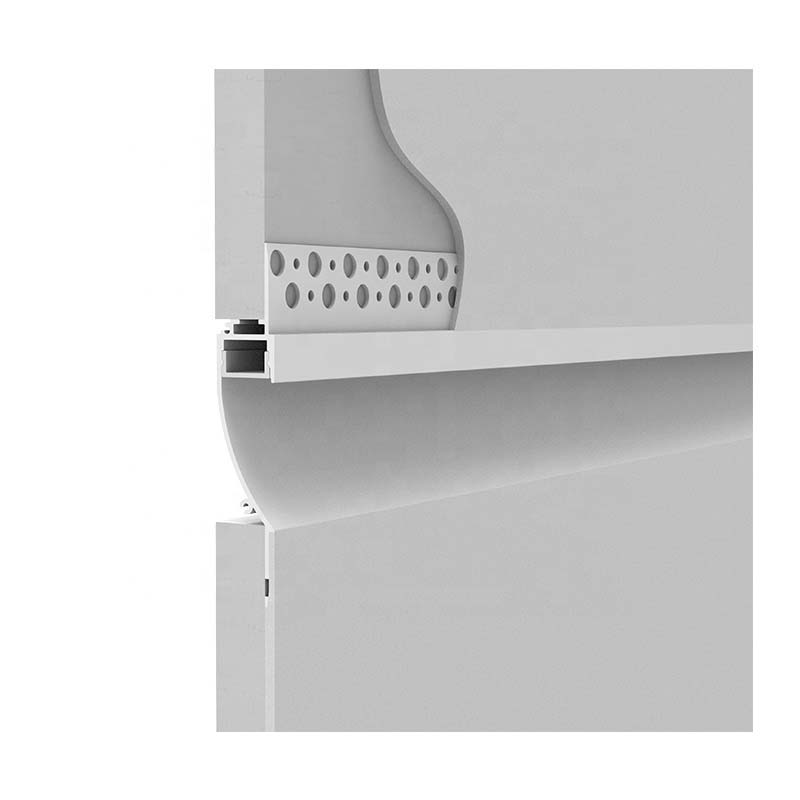

Applications:
- Wall-Wash Lighting: Feature walls, lobby accents, or architectural highlights.
- Recessed Vertical Lighting: Trimless vertical light lines in corridors, reception areas, or modern interiors.
- Cove Lighting: Can be placed near ceilings or moldings to reflect soft upward light.
- Accent Lighting For Niches Or Columns: Enhances vertical design elements and adds depth to interiors.
- Modern Residential & Commercial Interiors: Perfect for luxury homes, hotels, showrooms, galleries, and retail spaces.
- Integrated Wall Lighting: Create architectural light slots with a minimalistic look.
Includes:
1 * Drywall LED profile with diffuser
End caps(with and without wire holes)
