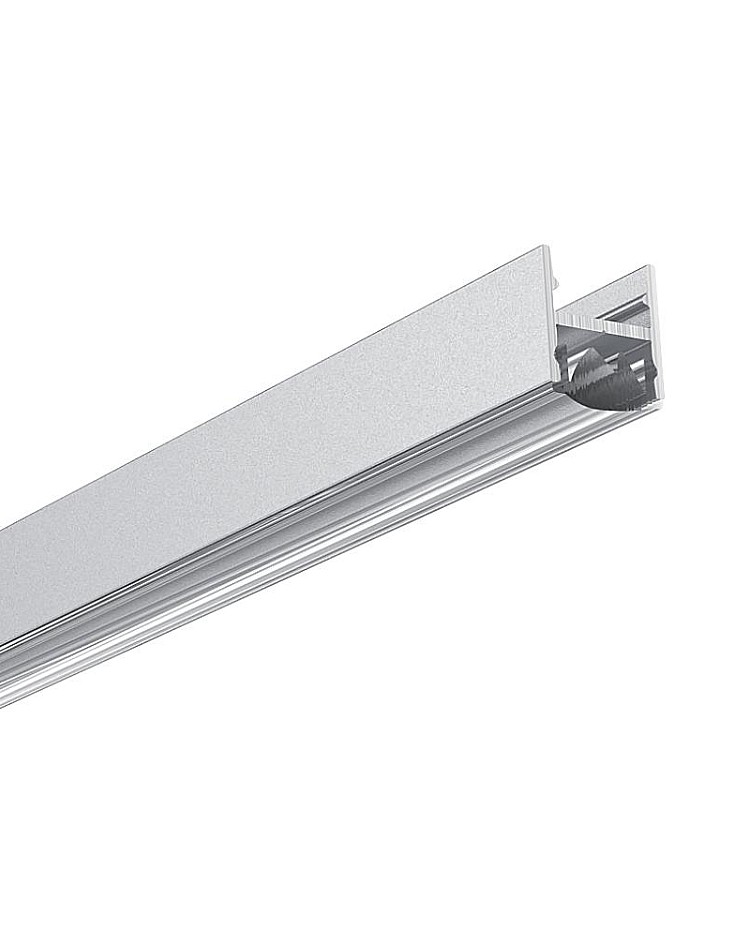

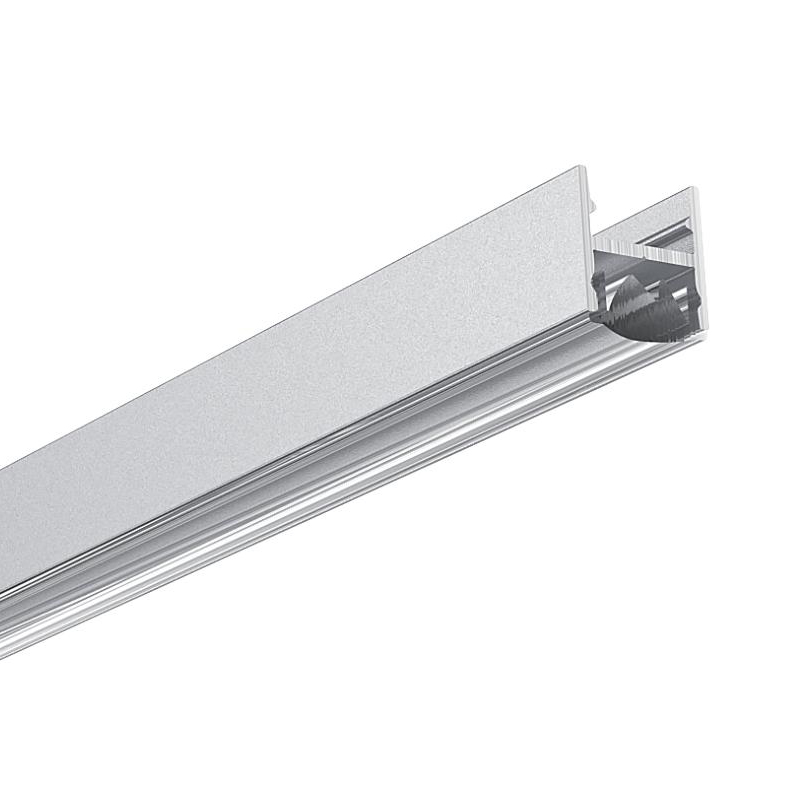

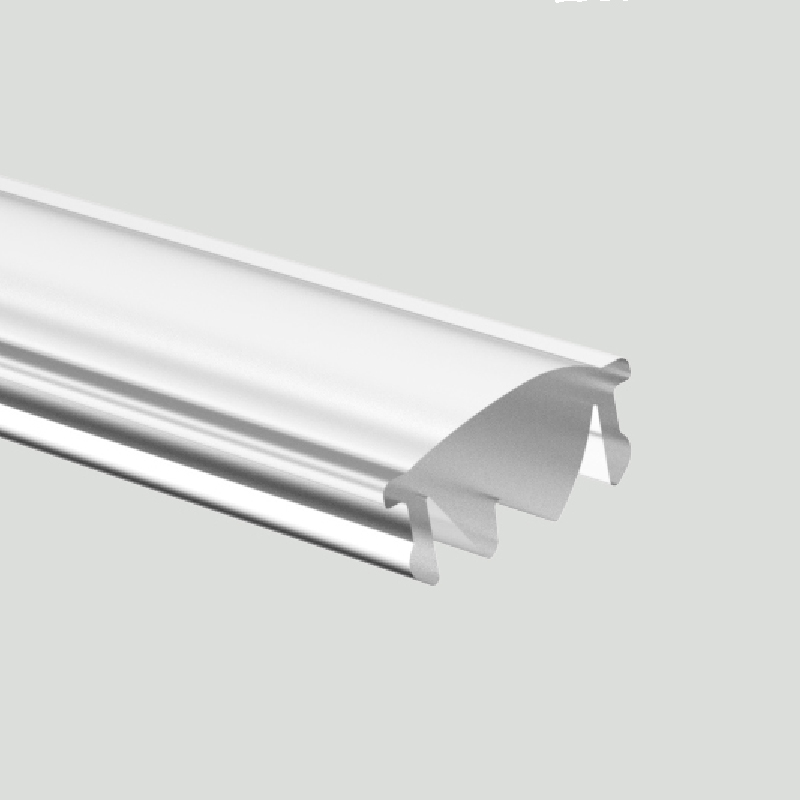

Transform your space with professional-grade aluminum LED channels. The under-counter channels offer three types of optional lenses for under-cabinet, task, and accent lighting, providing controlled light distribution. The light lens eliminates glare while directing light precisely where you need it, making it perfect for kitchens, retail displays, and workspaces. The surface-mounted LED profiles are made of 6063-T5 extruded aluminum material and feature a silver anodized surface treatment for enhanced anti-oxidation resistance. The stock length is 2.5 meters per piece and can be cut to any size to meet your needs. Three different types of lenses are available: Asymmetric lenses, PMMA 30° lenses, and PMMA 55° lenses. They are made of stable material, anti-yellowing, and have different viewing angles. You can choose the narrow or wide view angle lenses for task lighting or broader coverage. The inner width is 10.7 mm, and the maximum width of the strip lights is 10 mm. With low power consumption, you can install a single row of high-density COB strip lights as the light source without hotspots and dark areas. The aluminum channels can work as heat sinks for better heat dissipation. The end caps(with/without wire holes) and metal clips are included; no need to order separately.

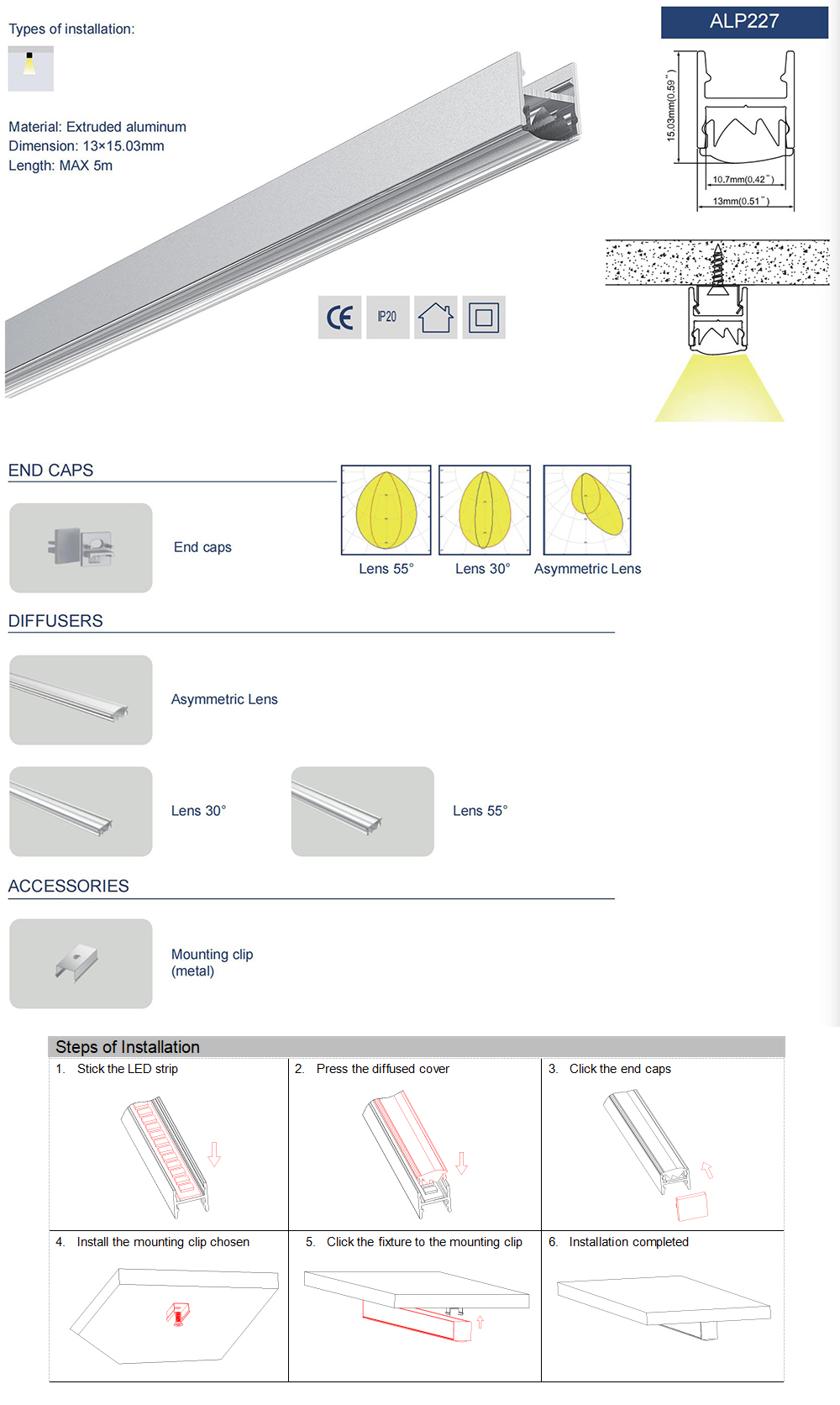

Specifications:
- Model: ALP227
- Material: 6063-T5 Extruded aluminum
- Surface Treatment: Anodized
- Color: Silver

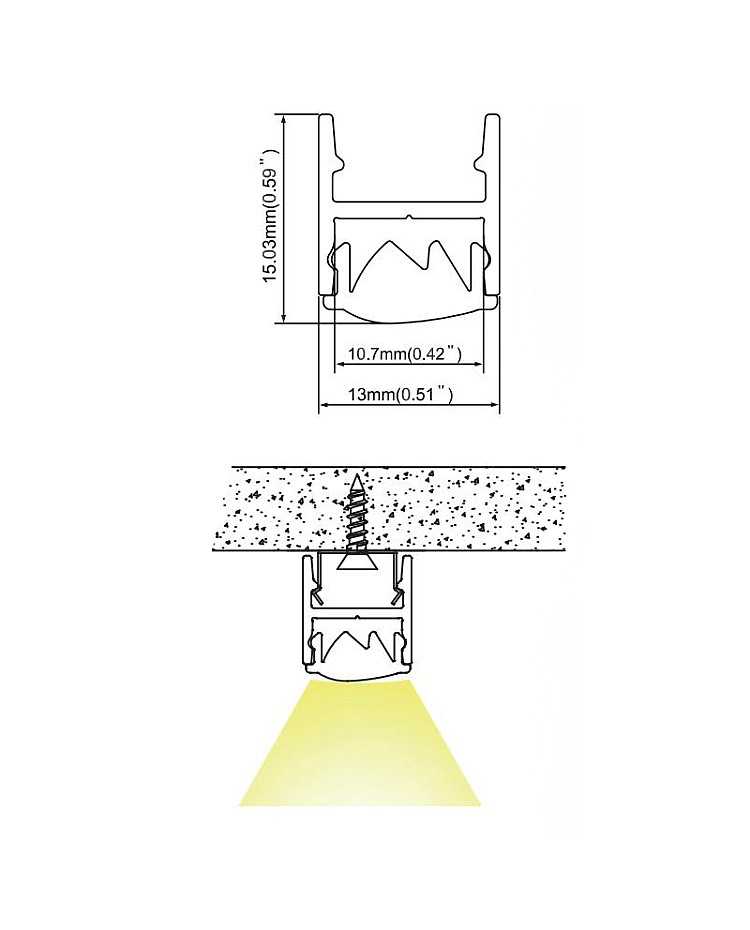

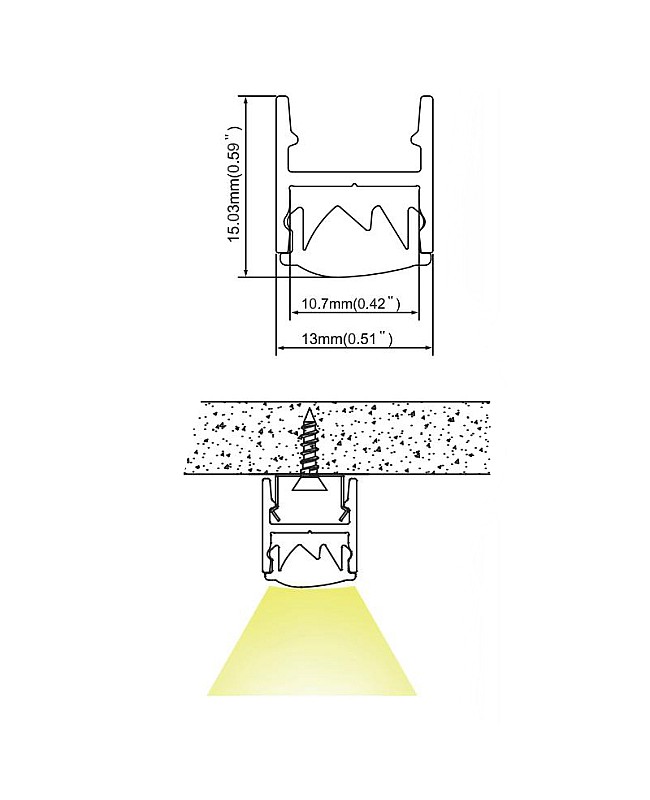

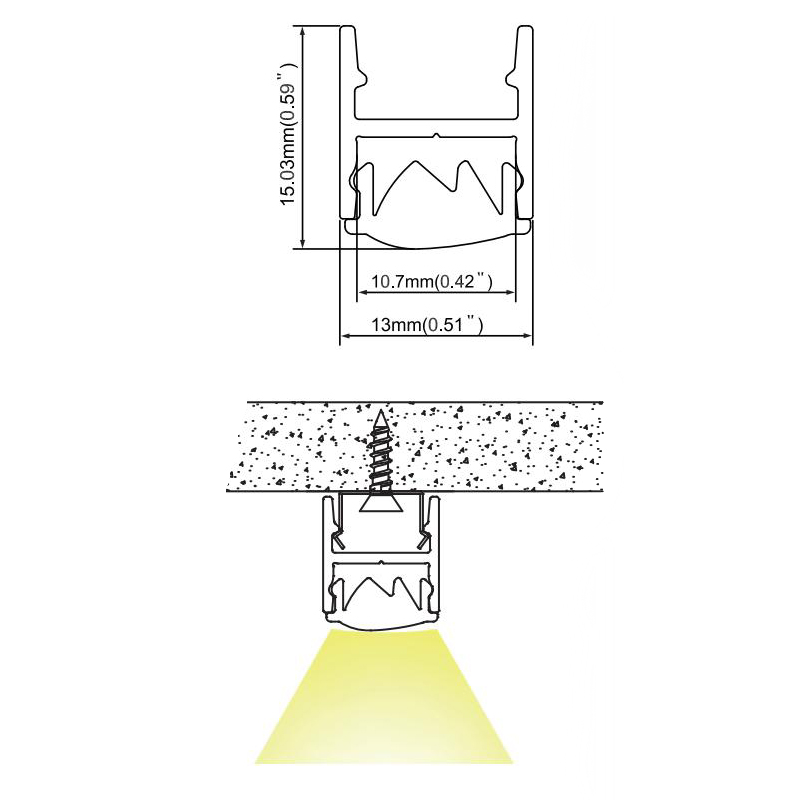

- Size(W*H): 13*15.03mm/0.51"*0.59"
- Length Available: 1M, 2M, 2.5M
- Custom Length Available: YES
- Inner Width: 10.7mm/0.42"
- Max Width Of Strip Lights: 10mm/0.39"
- Max Power: 15W/M

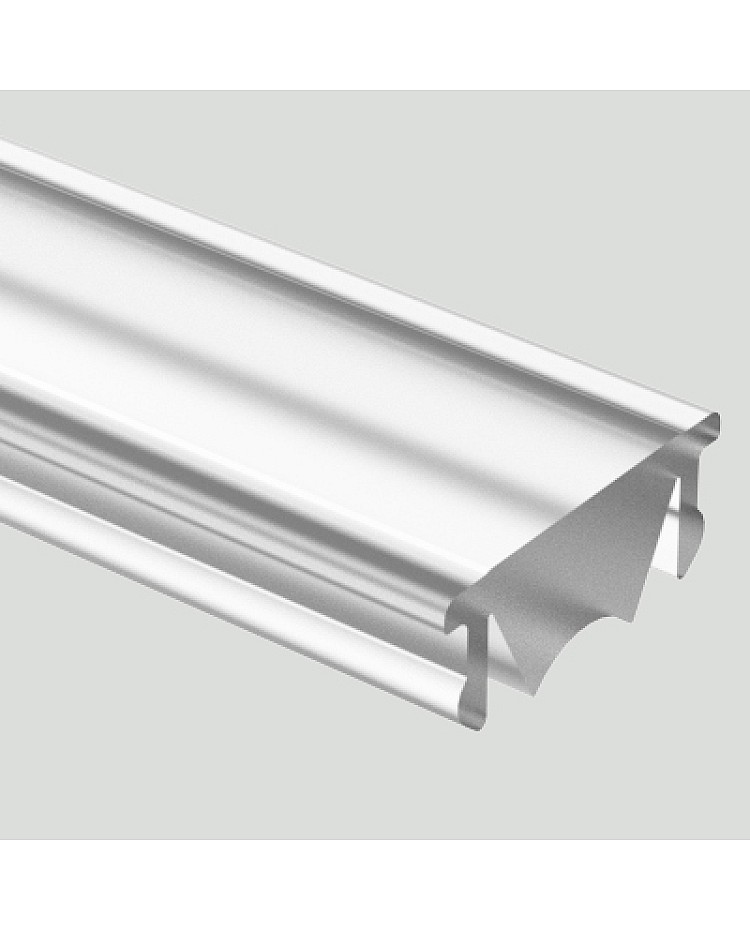

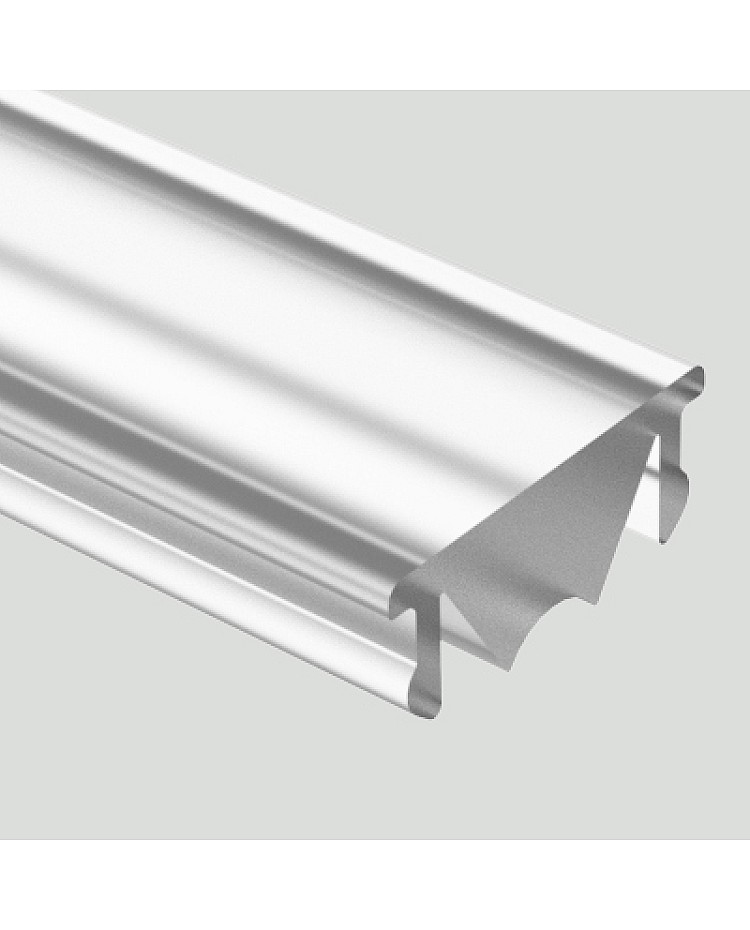

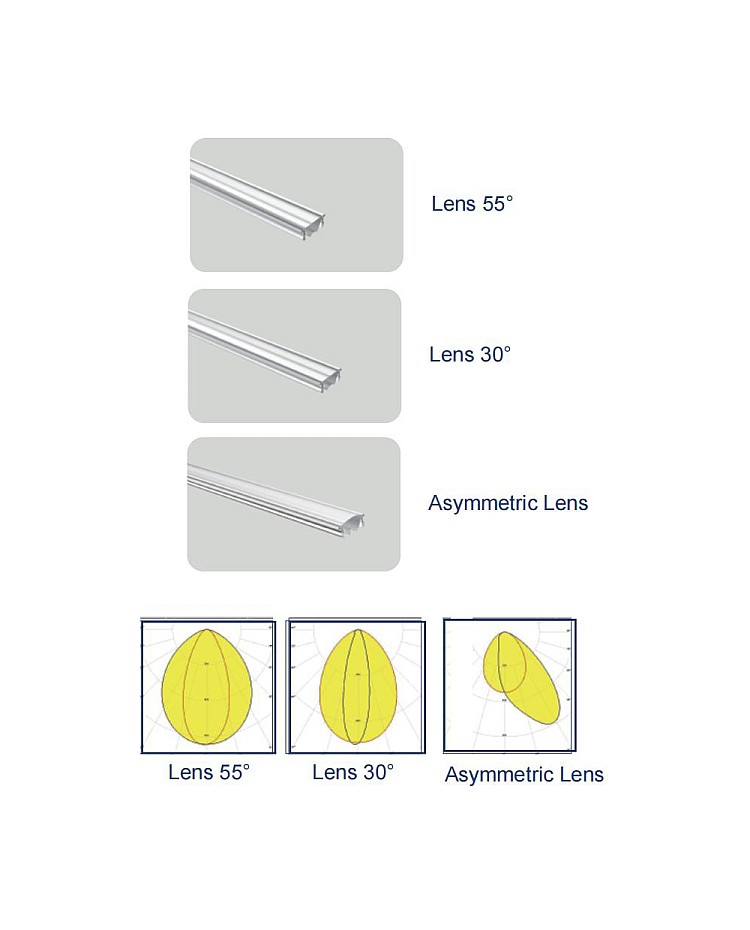

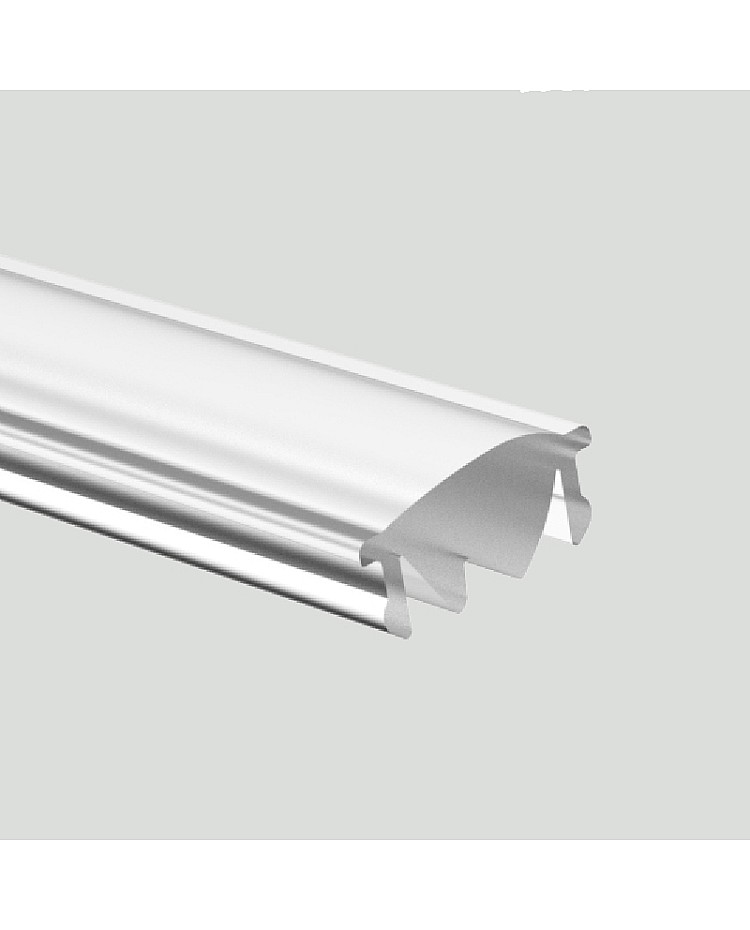

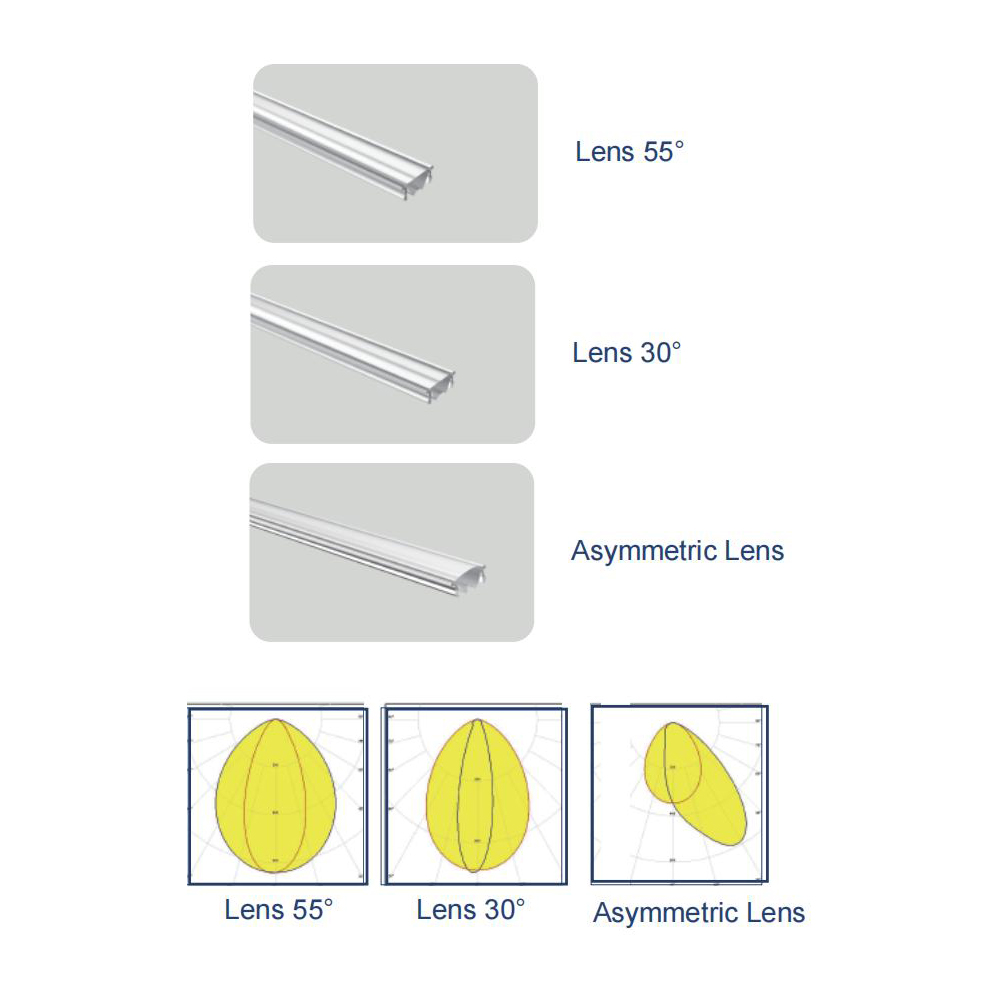

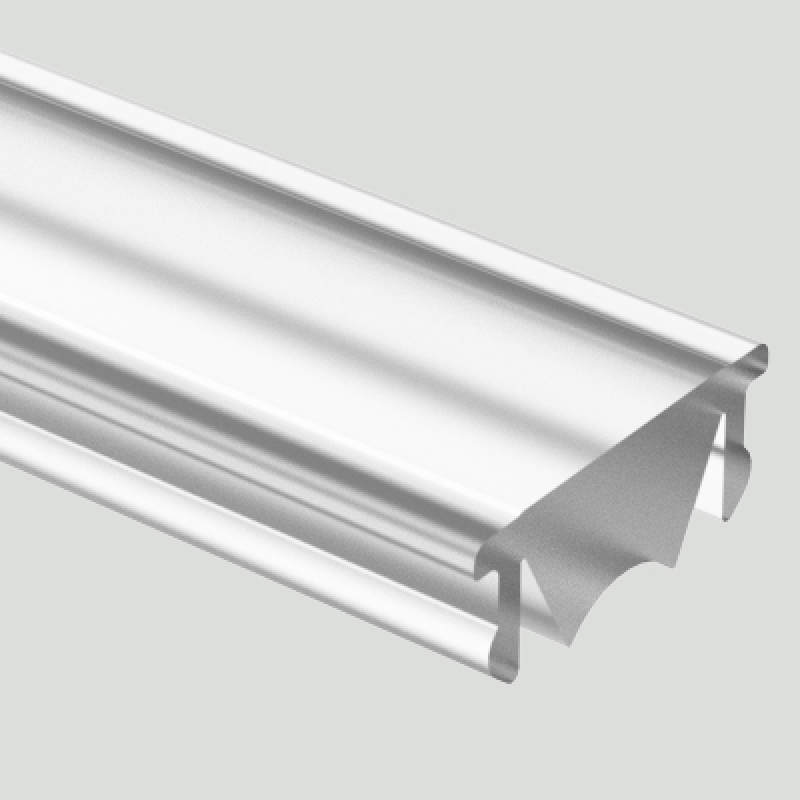

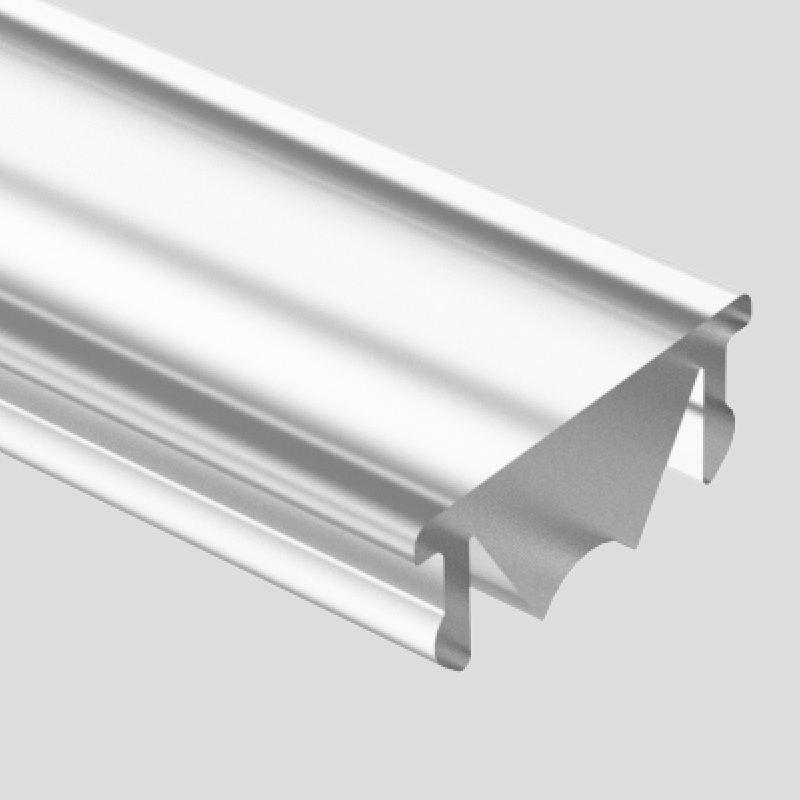

- Lens Available: Asymmetric lens, 30° PMMA lens, 55° PMMA lens
- Beam Angle: 100°

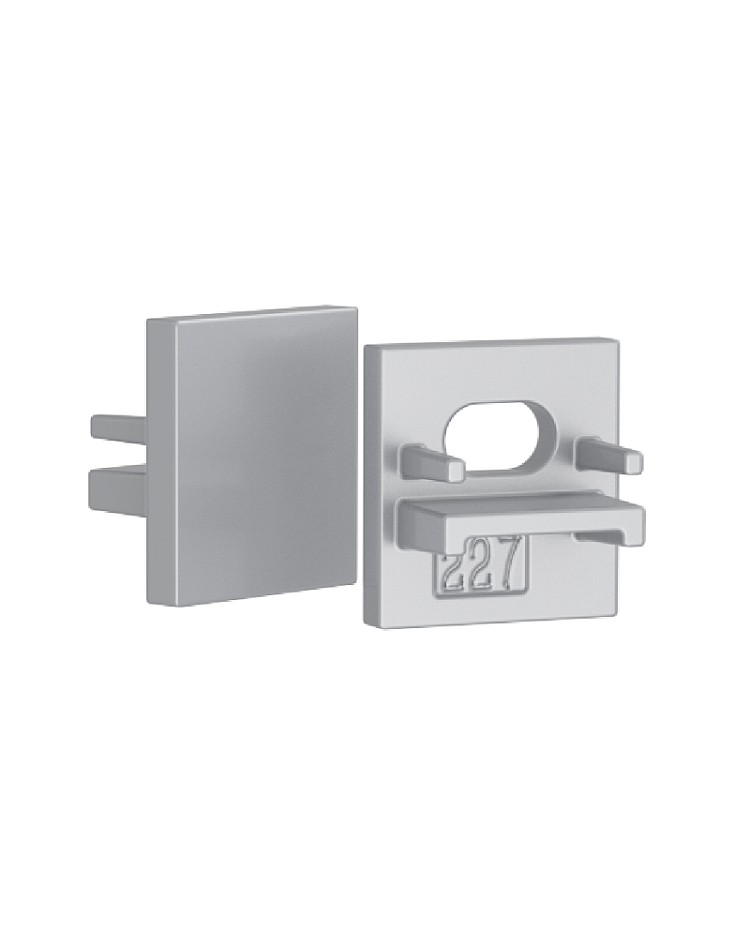

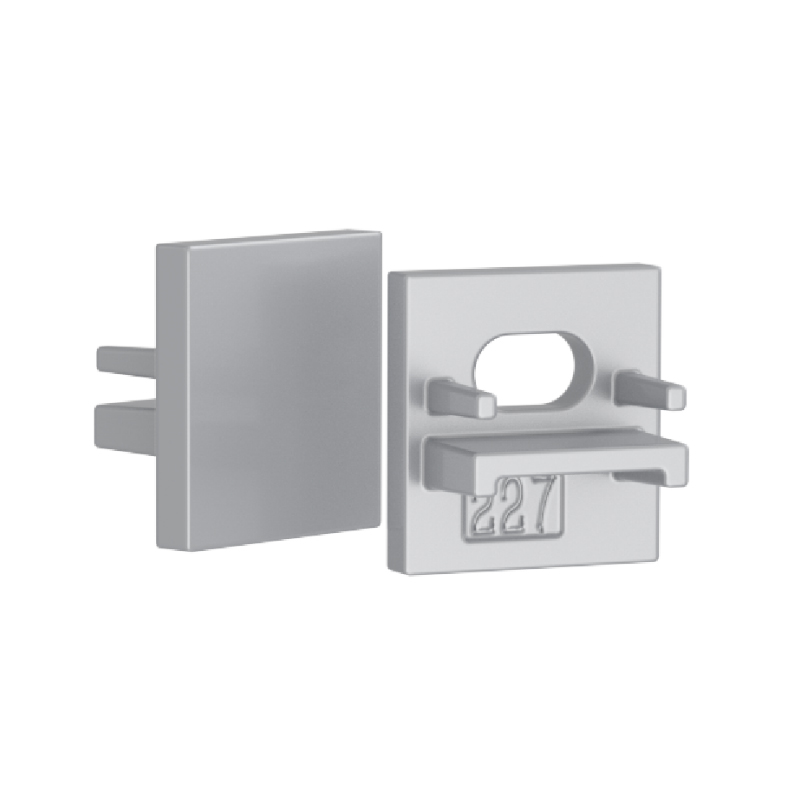

- End caps with/without wire holes are included

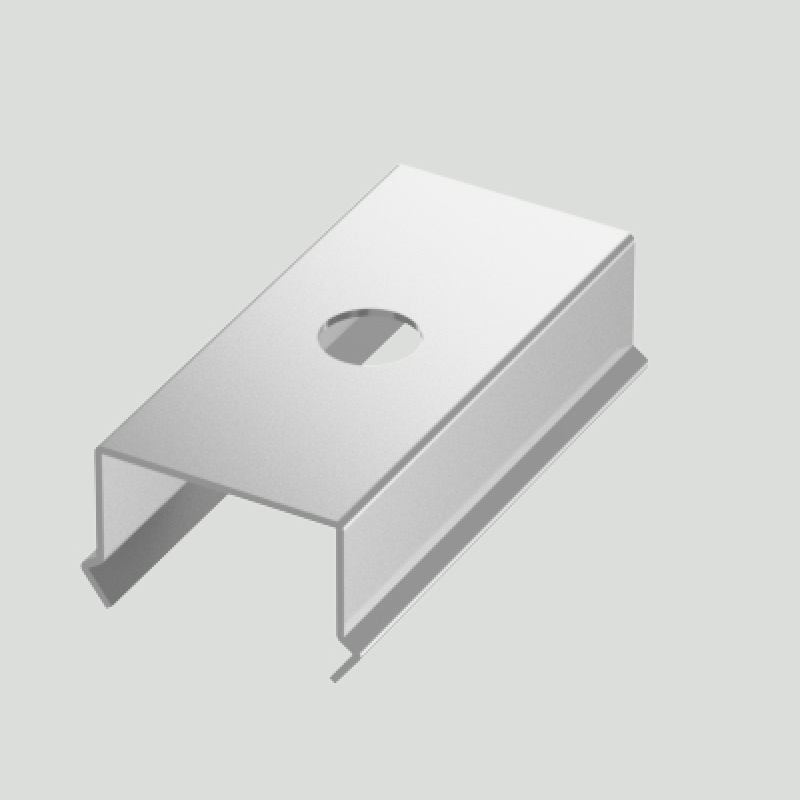

- Metal mounting clips are included
- Installation: Surface mounted
- Applications: Task lighting under cabinets/shelves, in the wardrobe, etc
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * Under-counter LED channel with lens
End caps with/without wire holes

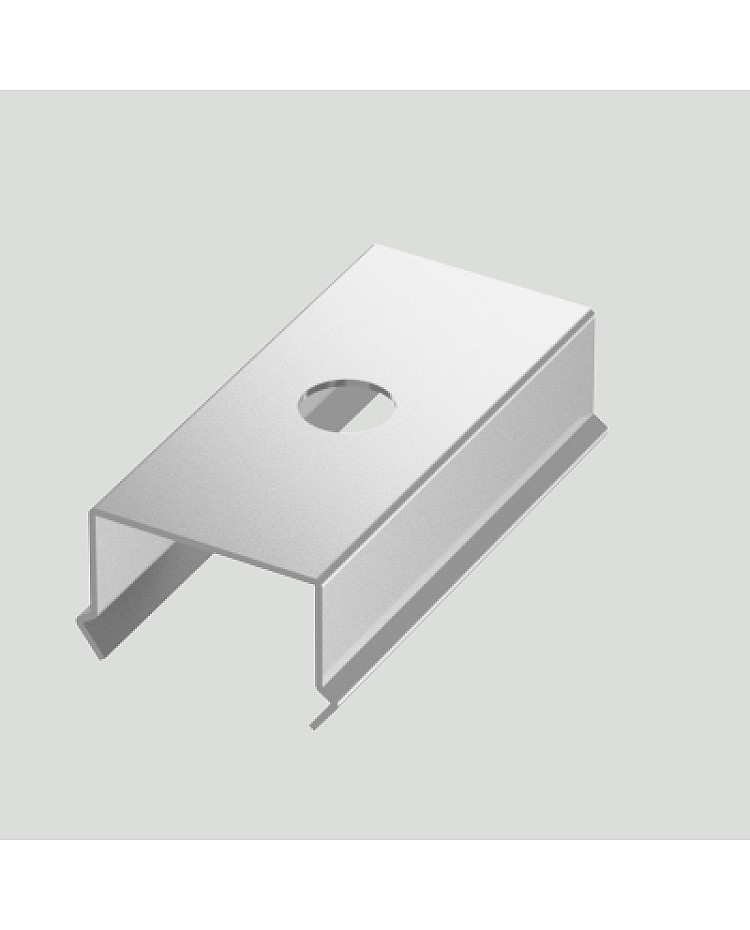

Metal mounting clips
