The MiBoxer 433MHz 4Pin RGB Controllers can control various RGB lighting products, LED Strips, RGB Wall Washers, etc. The 433MHz Wireless Remote Control is included. This set 4Pin Controller adopts widely used 433MHz wireless technology for low power consumption, longer signal to transmit, strong anti-interference, etc. Works in DC12V or DC24V, the max output current is 12A, widely used in controlling hotel and home lighting. You can use them to adjust the brightness of static color and the speed of dynamic mode. There are 16 million colors and 15 dynamic modes available. You can choose your favorite color or mode for various scenes.

Quick Links:

MiBoxer FUT042 User Manual

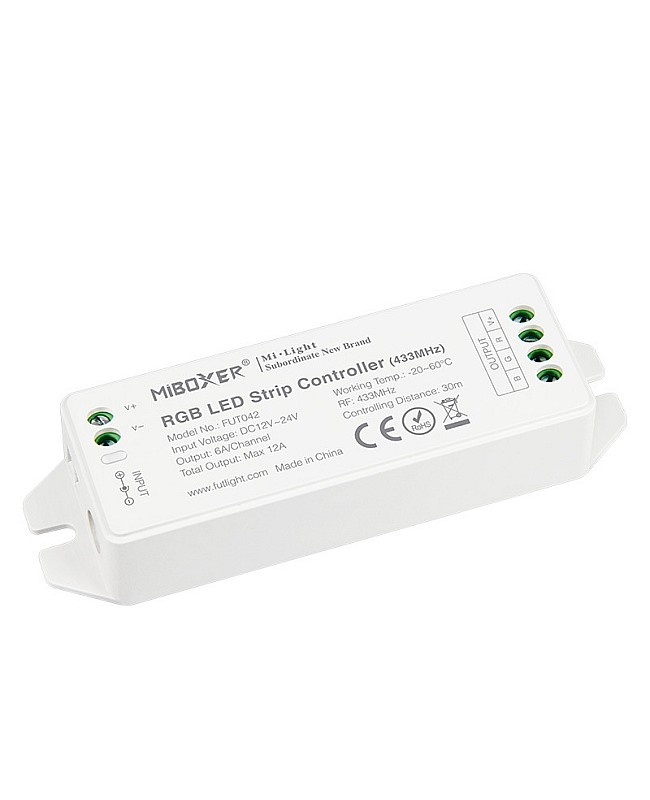

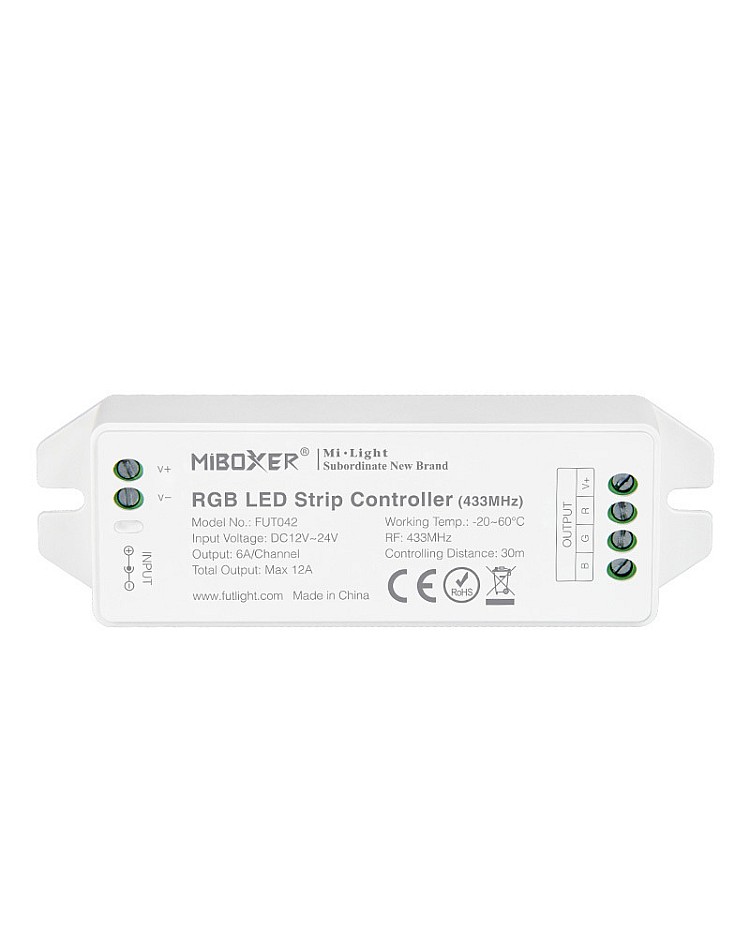

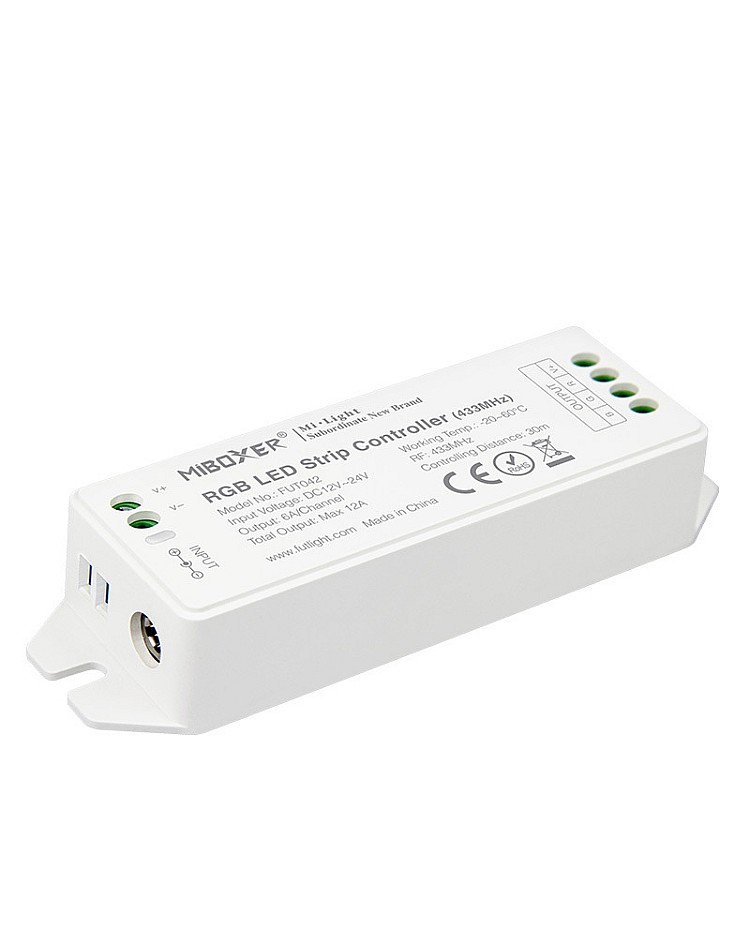

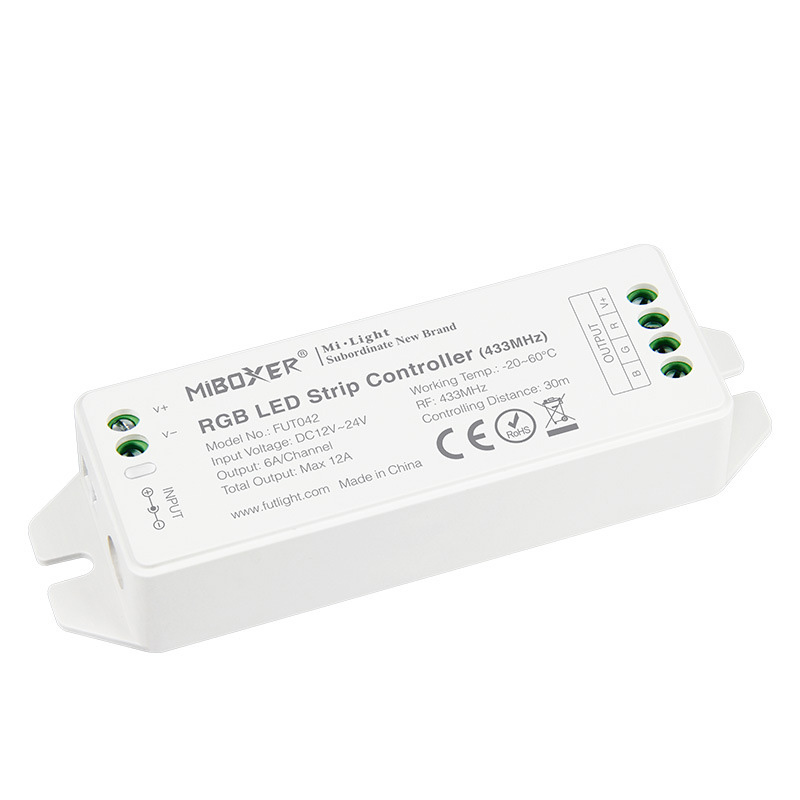

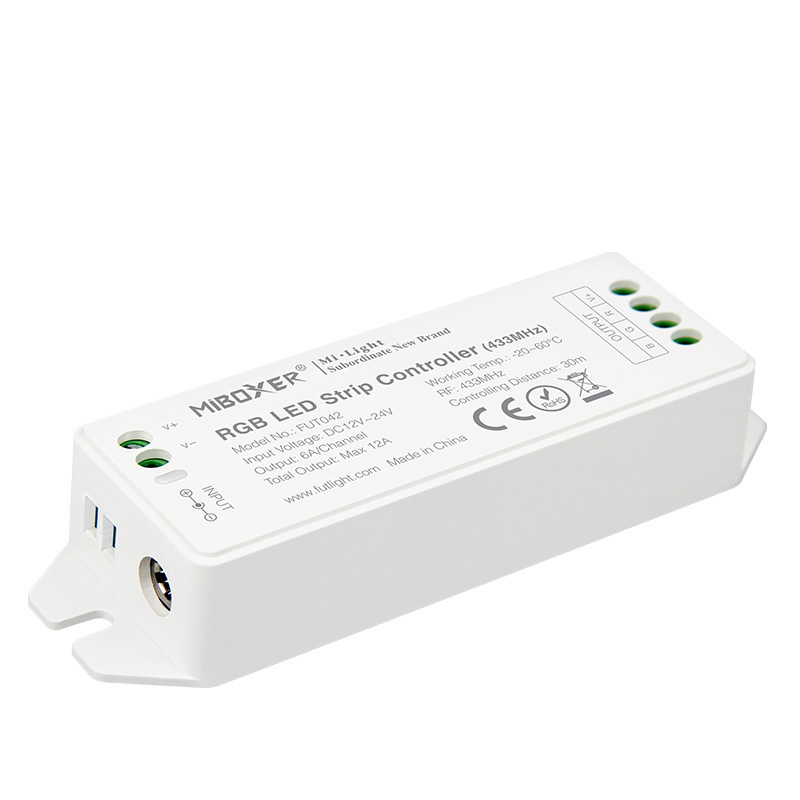

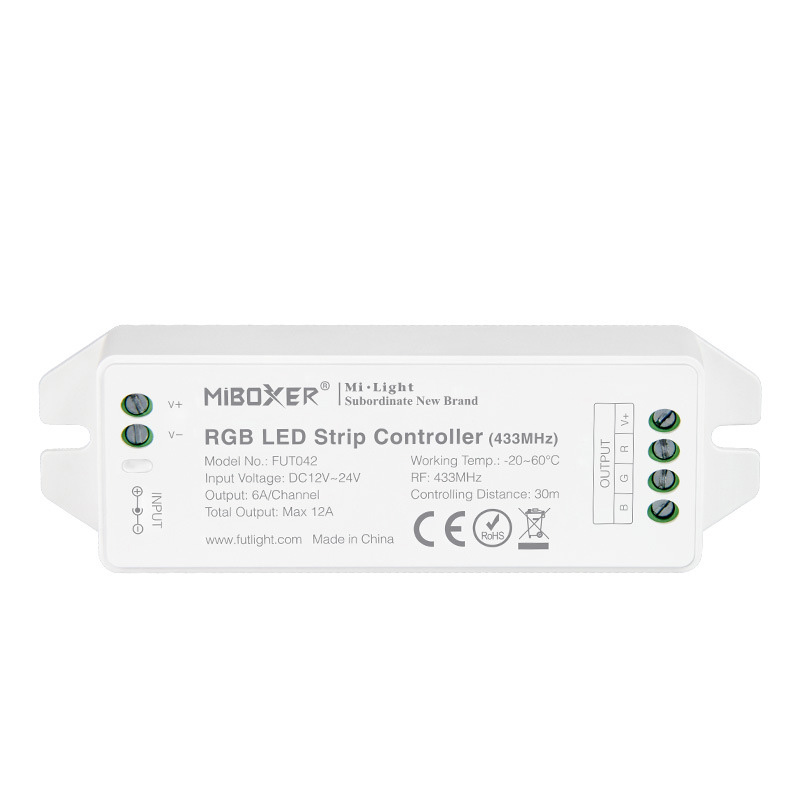

4Pin RGB Controller Features:

  • Model: FUT042(RGB), FUT041(Single Color), FUT040(Dual White)
  • Size: 119*37.5*22mm(L*W*H)
  • Working Voltage: DC12-24V
  • Output: 6A/Channel(RGB), 12A/Channel(CCT, Single Color)
  • Total Output Current: Max 12A
  • RF: 433MHz
  • Control Distance: ≤30m
  • Output Connection: Common Anode
  • 16 Million Colors Available
  • 15 Dynamic Modes Available
  • Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
  • IP Rating: IP20 Non-Waterproof
  • Working Temperature: -20-60℃
  • 2 Years Warranty

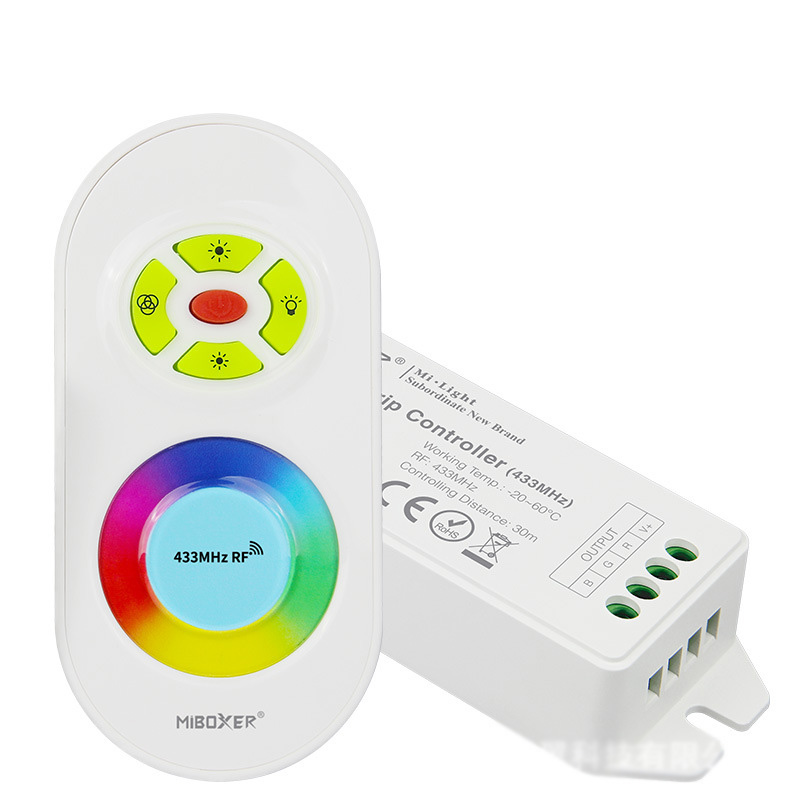

433MHz Wireless Remote Control Features:

  • Size: 114*55.5*22mm(L*W*H)
  • Working Voltage: DC3V
  • Powered By 2PCS AAA Batteries(Sold Separately)
  • RF: 433MHz
  • Transmitting Power: <10mW
  • Modulation Method: ASK
  • Control Distance: ≤30m
  • Working Temperature: -20-60℃

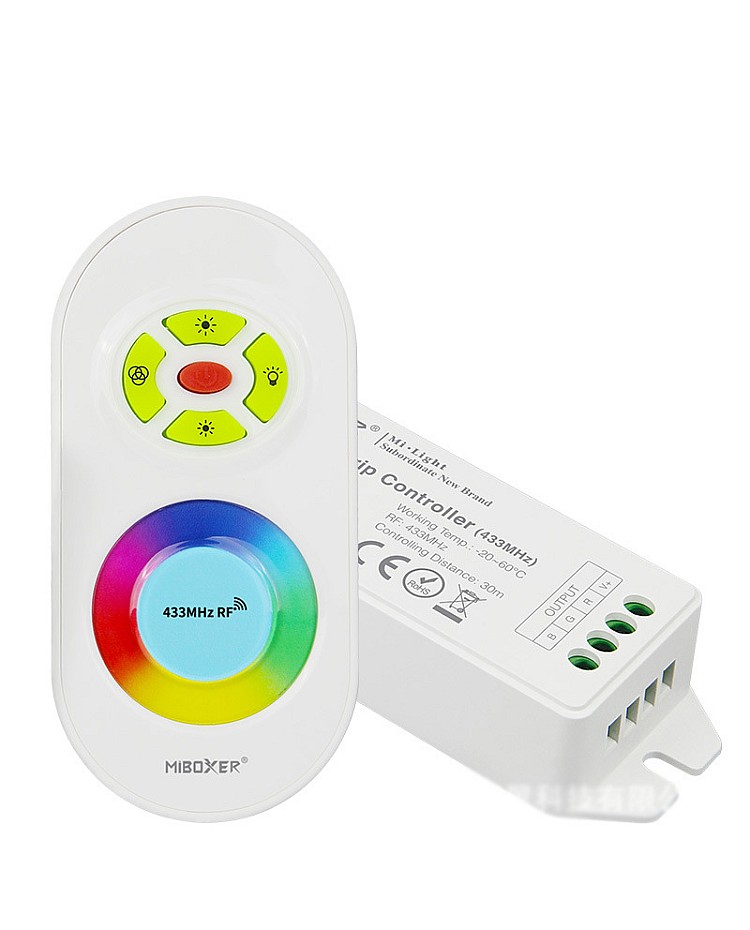

Includes:

1*FUT042 4Pin RGB Controller

1*433MHz Wireless Remote Control

1*User Manual
