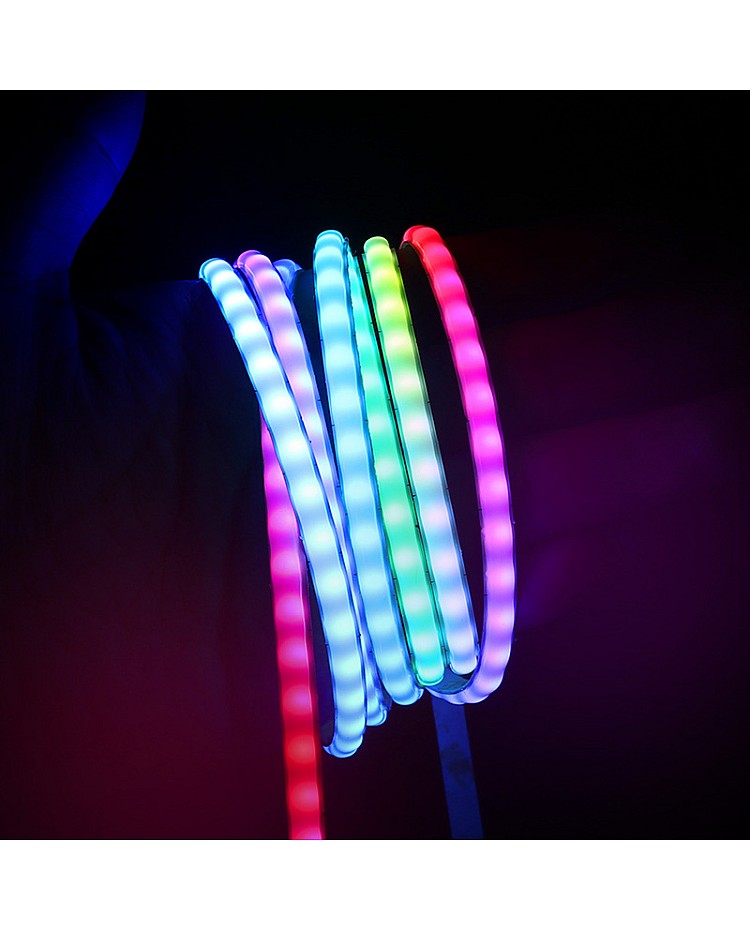

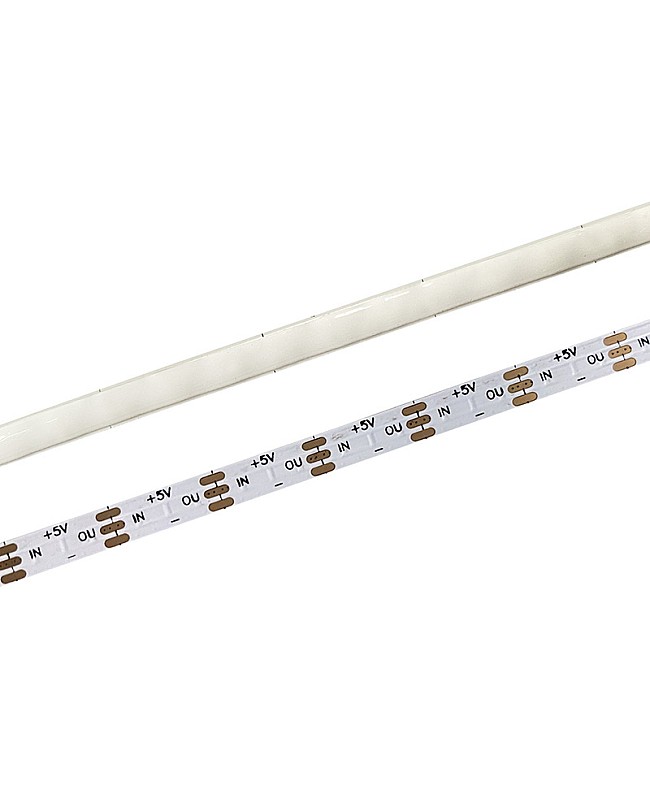

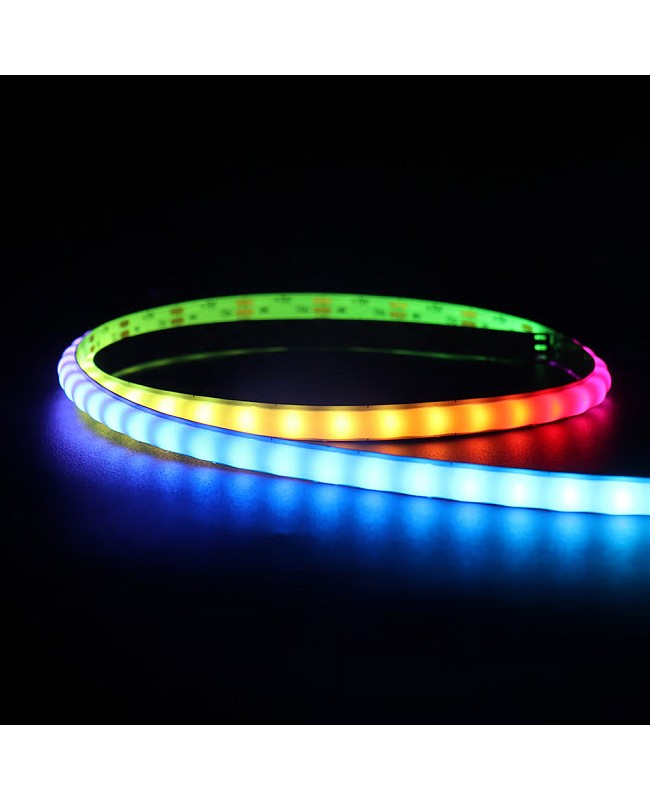

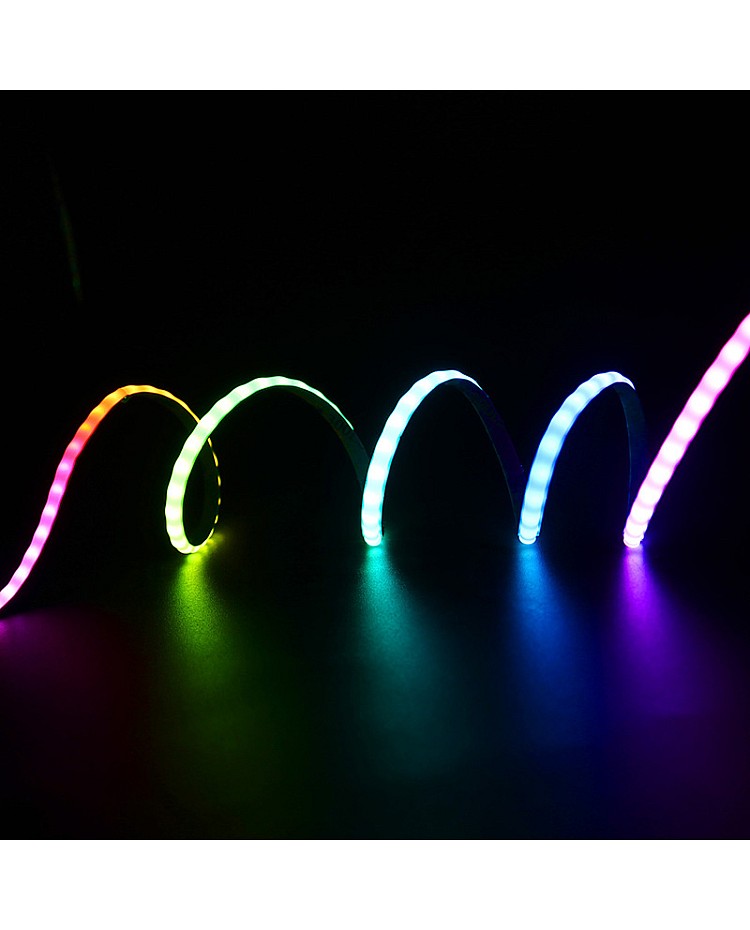

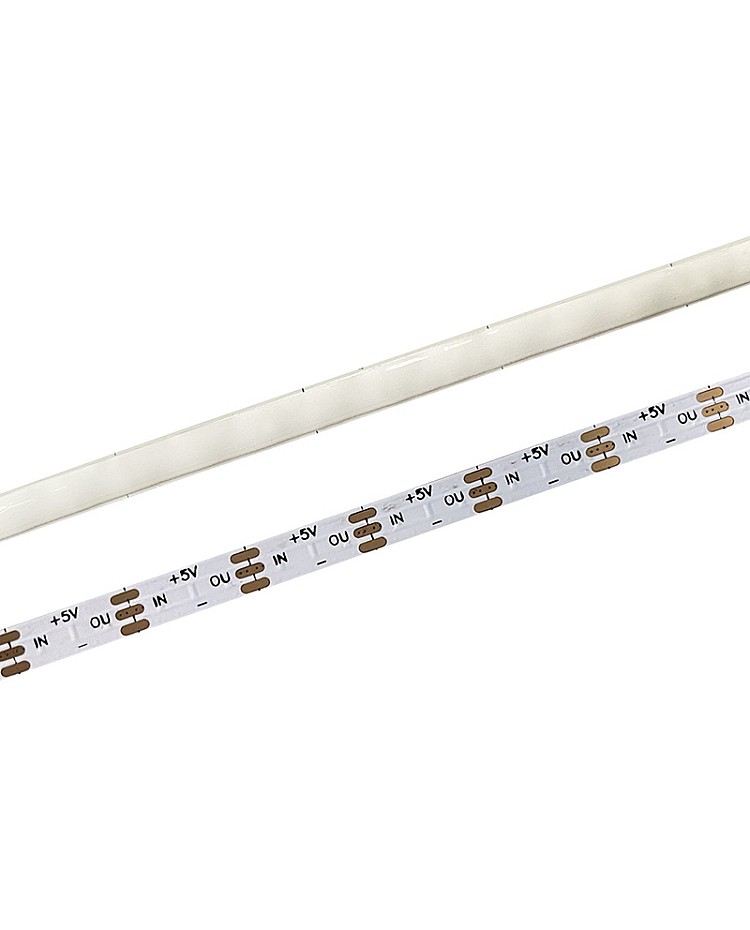

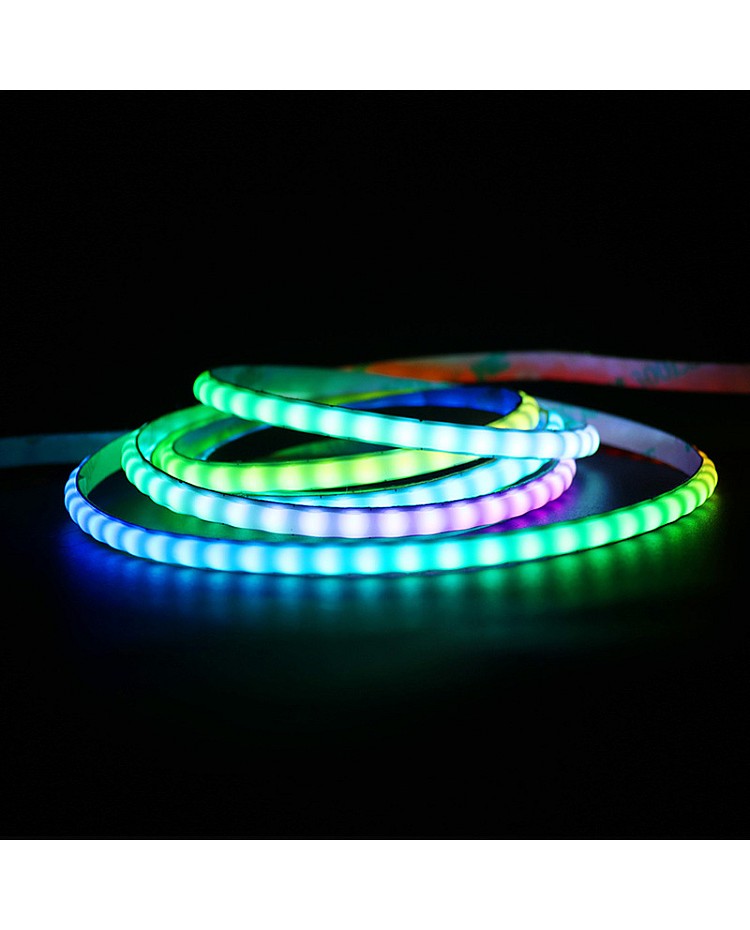

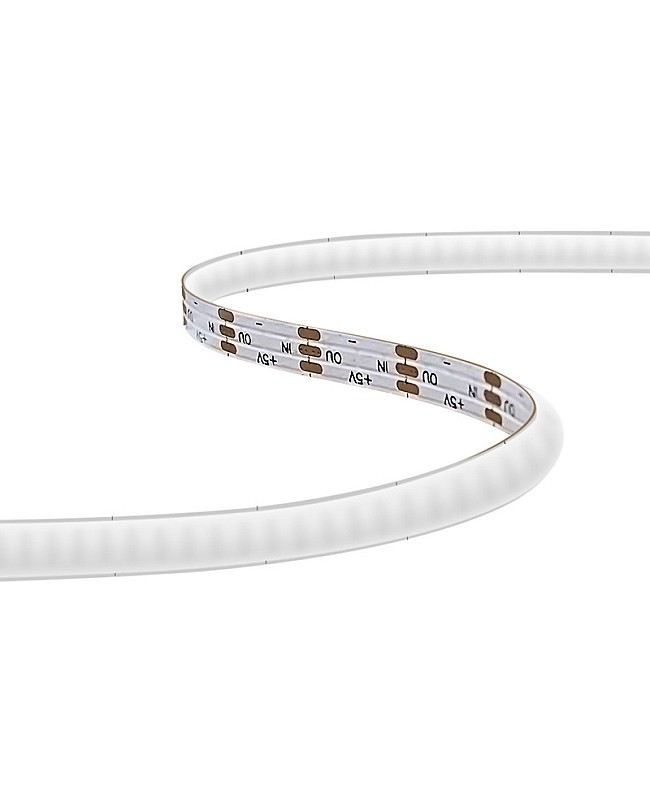

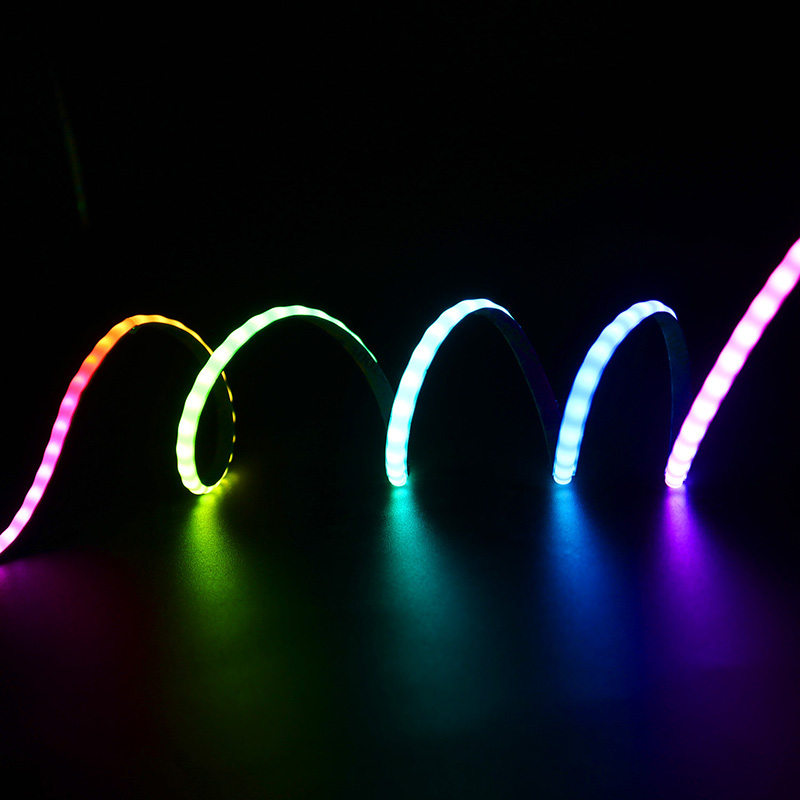

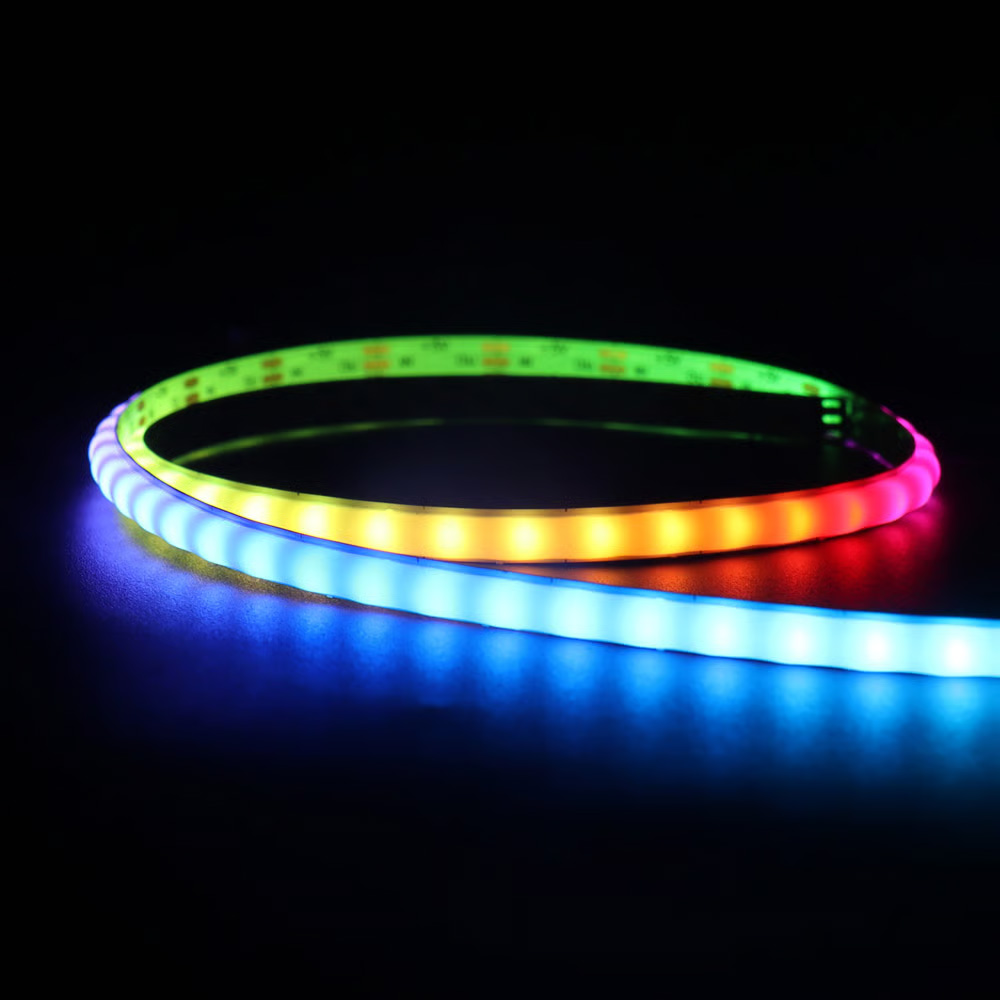

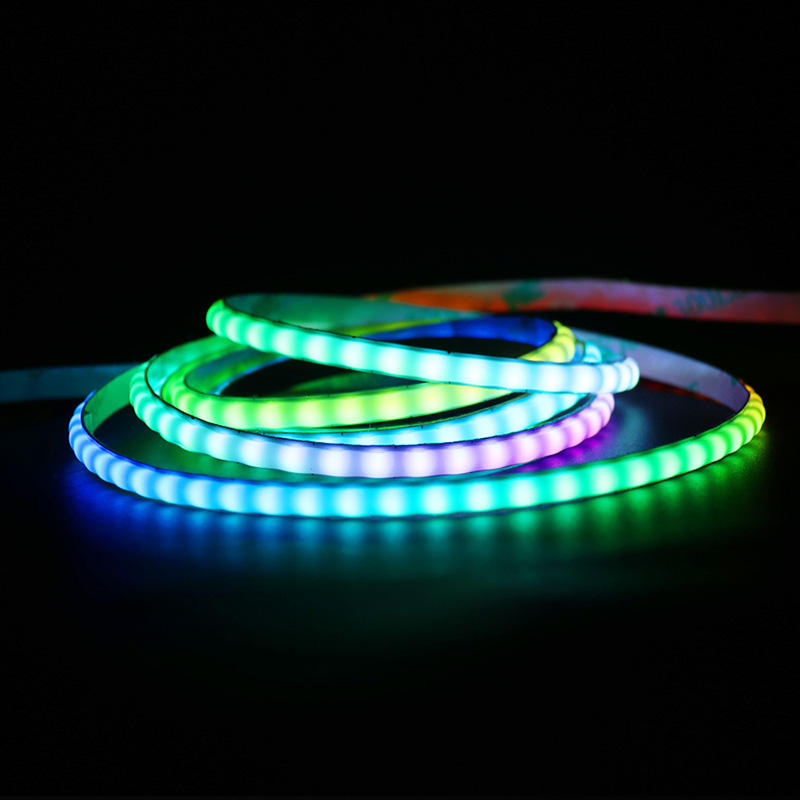

The WS2812 COB programming LED strip lights, with a 5mm width, make them well-suited for tight spaces. The 5VDC working voltage allows them to be powered by batteries. It's a great way to add color and mood lighting in a tight location. The individually addressable feature will enable you to program them to create unique patterns, effects, and animations. With the latest chip-on-board technology and a super-narrow design, measuring only 5mm in width, the 160 high-quality LED chips are mounted on a one-meter dual-layer PCB board to create seamless, dotless linear lighting. Without visible light dots and dark areas, uniform light emission. The super-slim programmable LED strips, featuring an individually addressable design, utilize the WS2812 IC to control every LED chip, enabling a range of colorful and dynamic effects. 256 levels of brightness and a 24-bit color display. Flexible, bendable, and cuttable, the minimum cutting length is 12.5mm. It operates on 5V DC and can be connected to a power bank, wall adapter, or batteries to illuminate. The back features double-sided adhesive tape, making it easy to install. The waterproof level is IP20 non-waterproof, only recommended for indoor or dry location use. You can use them in cars, furniture, toys, models, and for DIY projects.
Note: To make the WS2812 LED strips work, you will need an additional LED Power Supply (Mean Well LRS-100) and an LED Controller (SP105E).
Specifications:
- Model: 5mm-5V-2812
- Length: 16.4ft (5 meters）per roll
- Width: 5 mm ( 0.2" )
- Brand of LED chips: San An
- Type of LED chips: 1022
- LED quantity: 160PCS/m, 100LEDs/m, 60LEDs/m
- Type of IC: WS2812
- Quantity of IC: 160PCS/M, 100PCS/M, 60PCS/M
- Working voltage: DC 5V
- Power: 12W/m ( 160LEDs/m ), 7.5W/m ( 100LEDs/m ), 8W/m ( 60LEDs/m )
- Color: RGB+IC
- Color Rendering Index: >90Ra

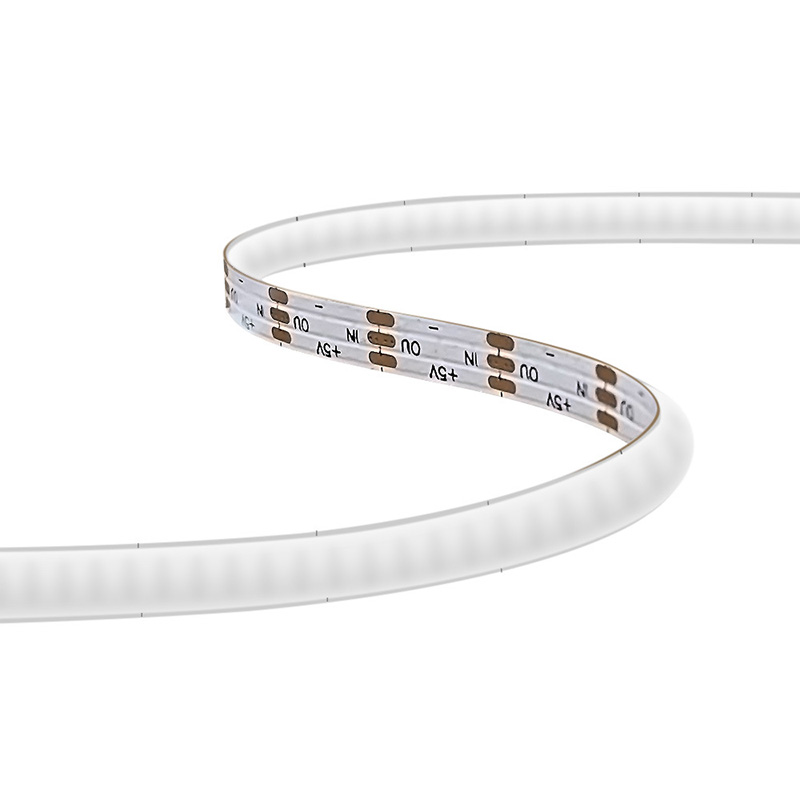

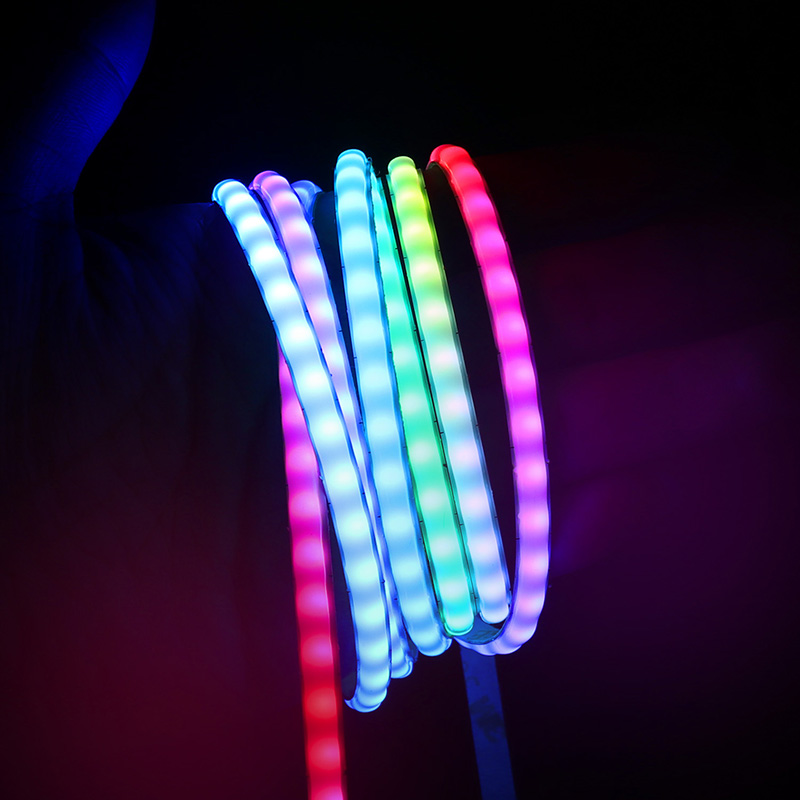

- Flexible, Bendable, And Cuttable

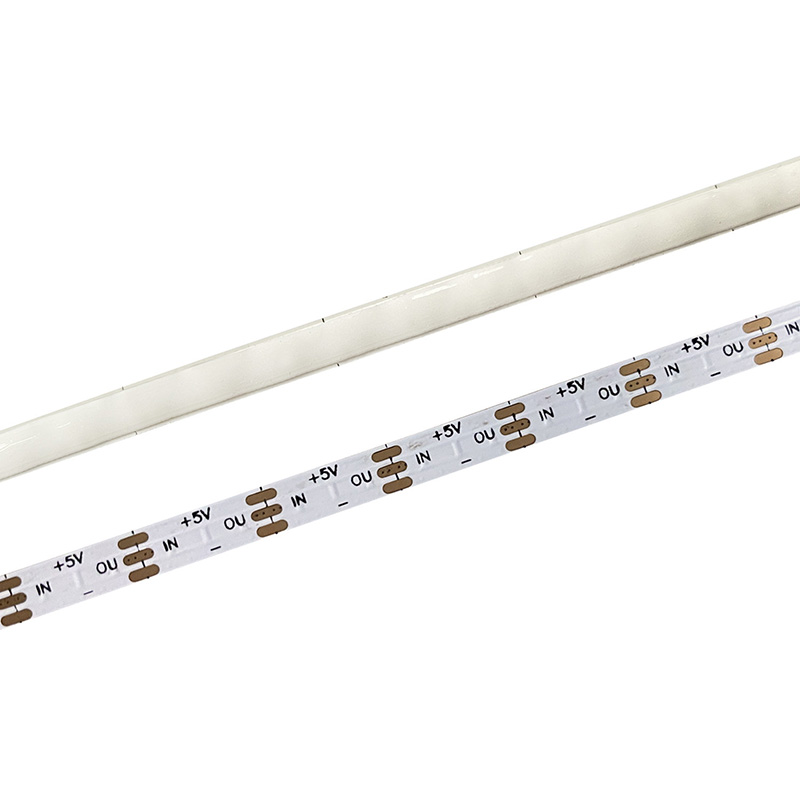

- The back has double-sided adhesive tape
- Minimum cutting length: 12.5 mm
- Beam angle: 180°
- Dimmable: YES
- IP rating: IP20 non-waterproof, IP67 silicone tube waterproof
- Lifespan: 50,000 hours
- 3 years warranty
Includes:
1 * LED light strip programmable
