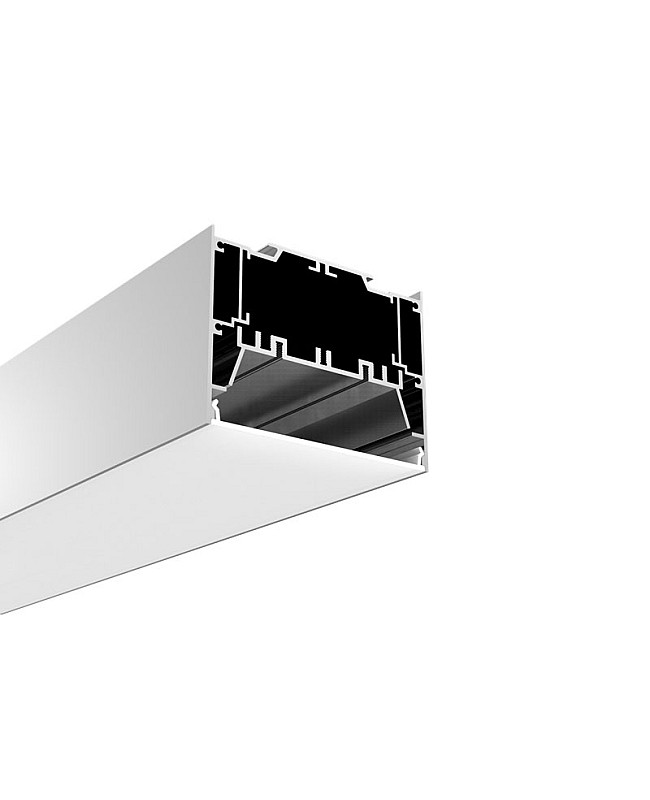

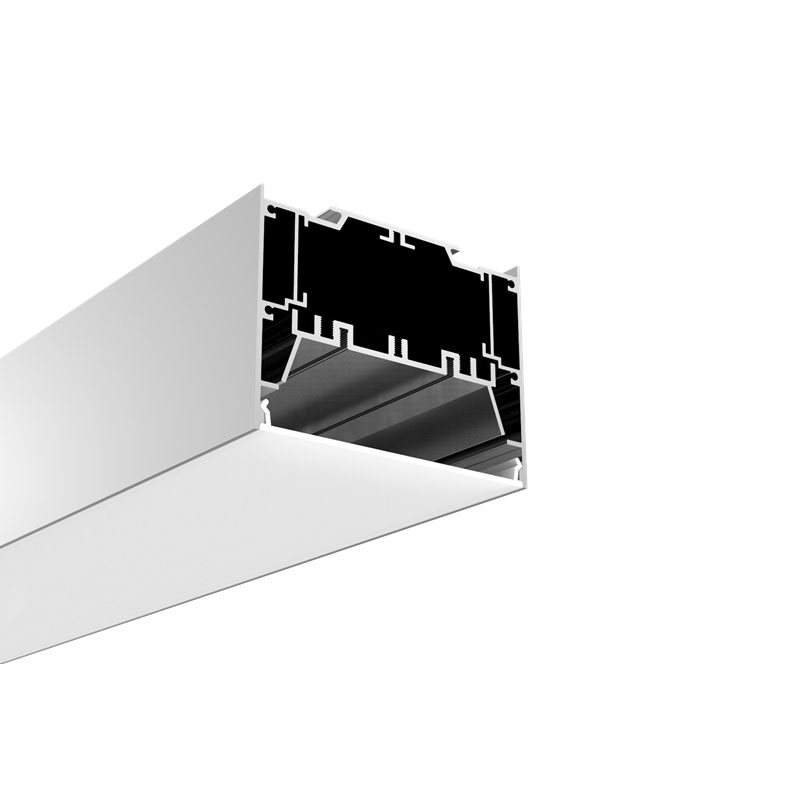

The 4 inches LED Strip Track Diffuser width is 100mm, and the inner width is 69.5mm, allowing the max-width of LED Lights to be 69mm, you can install multiple lines of Flexible LED Strips, COB LED Tapes and Rigid LED Modules as the light source. The Suspension Wire Kits are included and allowed to be hung on the ceiling. They can be used as the main lighting in offices, storages, hotels, supermarkets, etc. Made of 6063-T5 aluminum material and anodized surface treatment, anti-oxidation resistance and has a longer lifespan. The standard length is 1M and 2M, and custom lengths are available. There are three colors available: silver, white, and black colors. Only one type of diffuser is available: the PC diffused cover, which is made of imported-brand material, anti-yellowing, perfect light distribution, and soft light output. Metal clips and steel wires are included, which allow you to hang the LED Strip Light Diffuser on the ceiling or mount it on the wall. There are four types of connectors sold separately, and you can use them to reconnect the LED Tracks for the lighting projects.


  • Model: ALP10075-R
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized
  • Colors: Silver(Default), White, Black

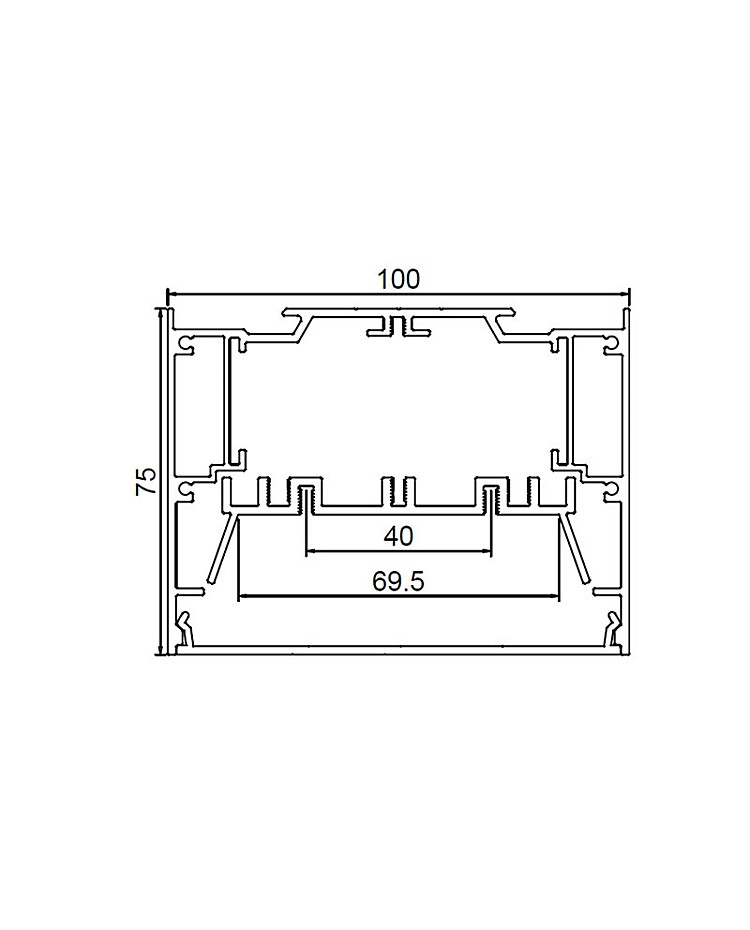

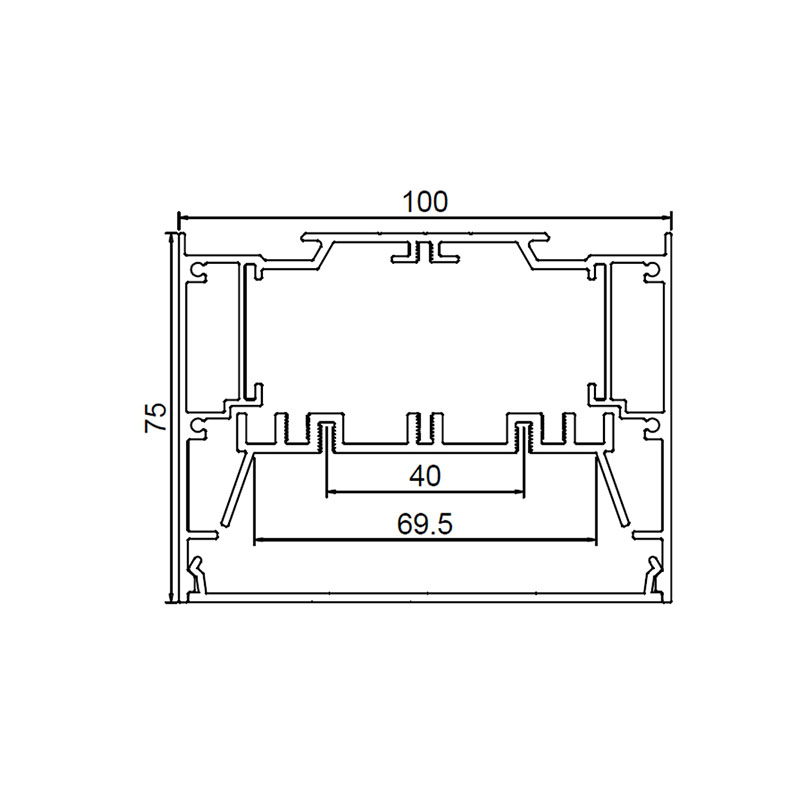

  • Size: 100*75mm(W*H)
  • Standard Length: 1M
  • Other Lengths Available: 2M, 2.5M
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover
  • Inner Width: 69.5mm
  • Max Width Of LED Strips: 68.5mm
  • Max Power: 50W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rate: IP20 Non-waterproof
  • End Caps And Clips Included
  • "T", "X", "IL" And "L" Shape Connectors Sold Separately
  • Strip Lights, Controllers, And Transformers Sold Separately
  • Installation: Pendant/Surface Mounting
  • 5 Years Warranty


1*LED Strip Track Diffuser

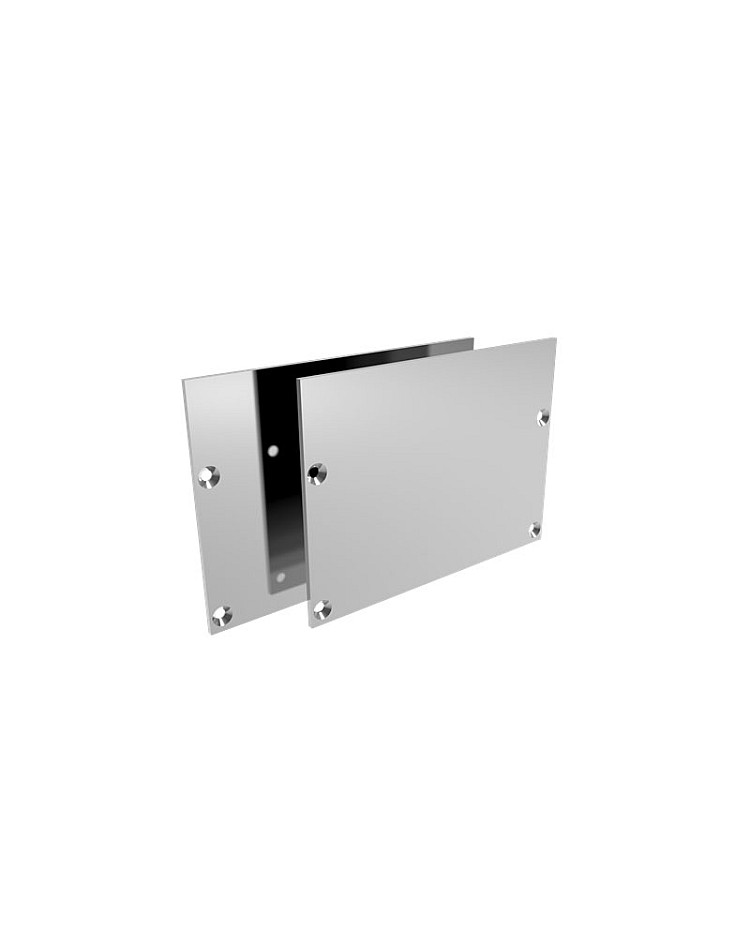

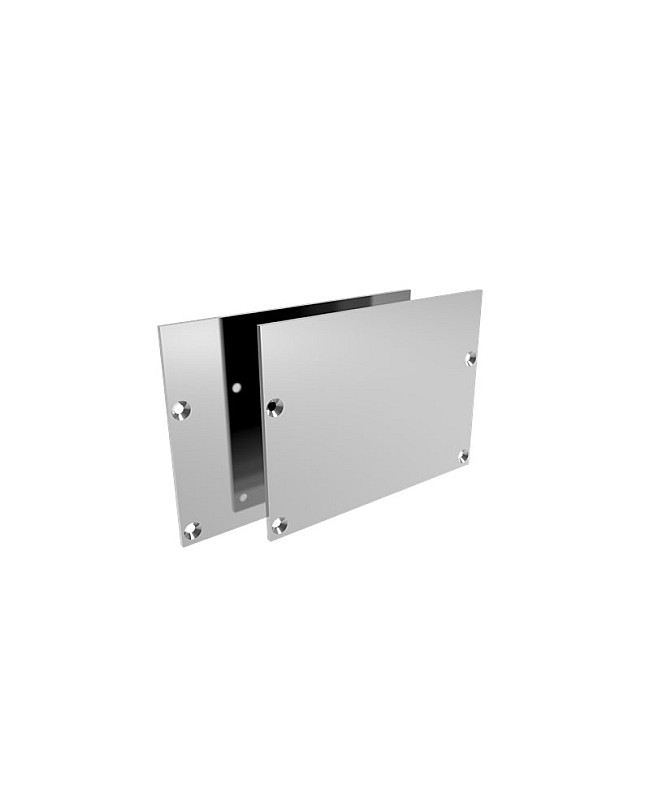

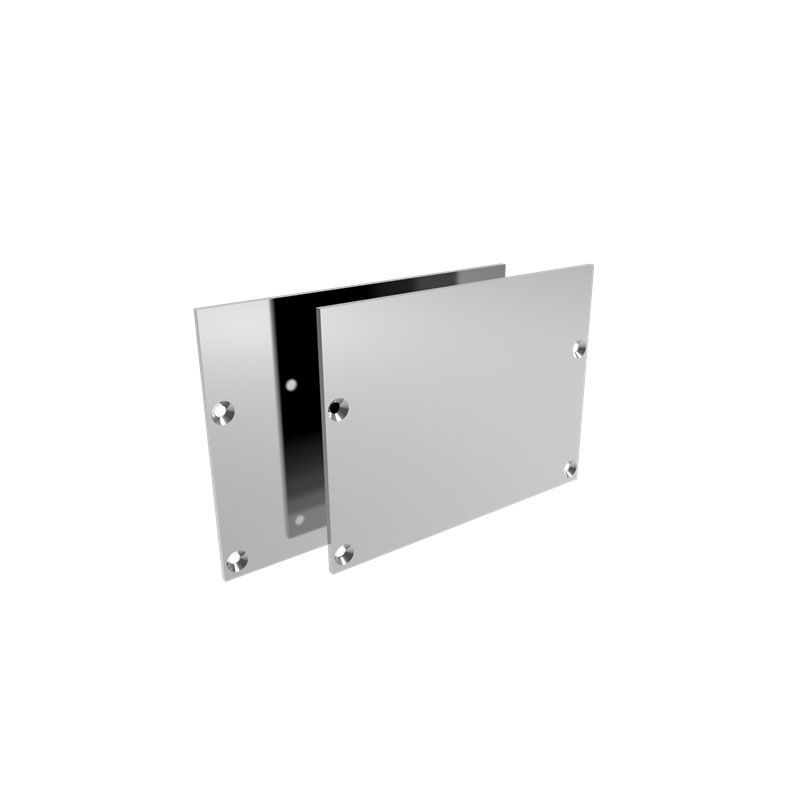

End Caps

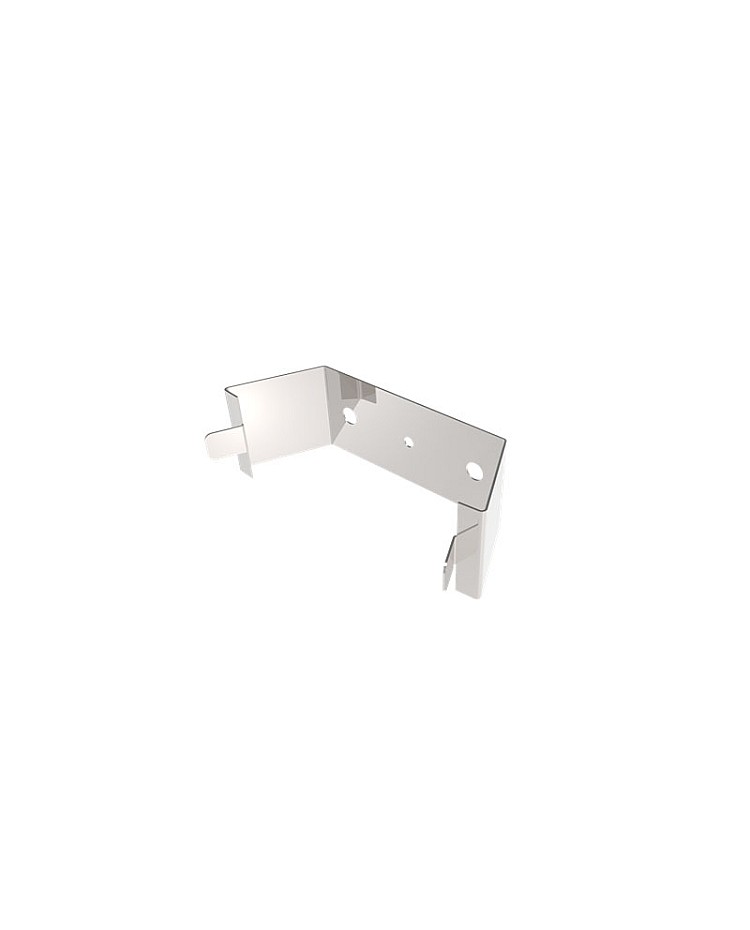

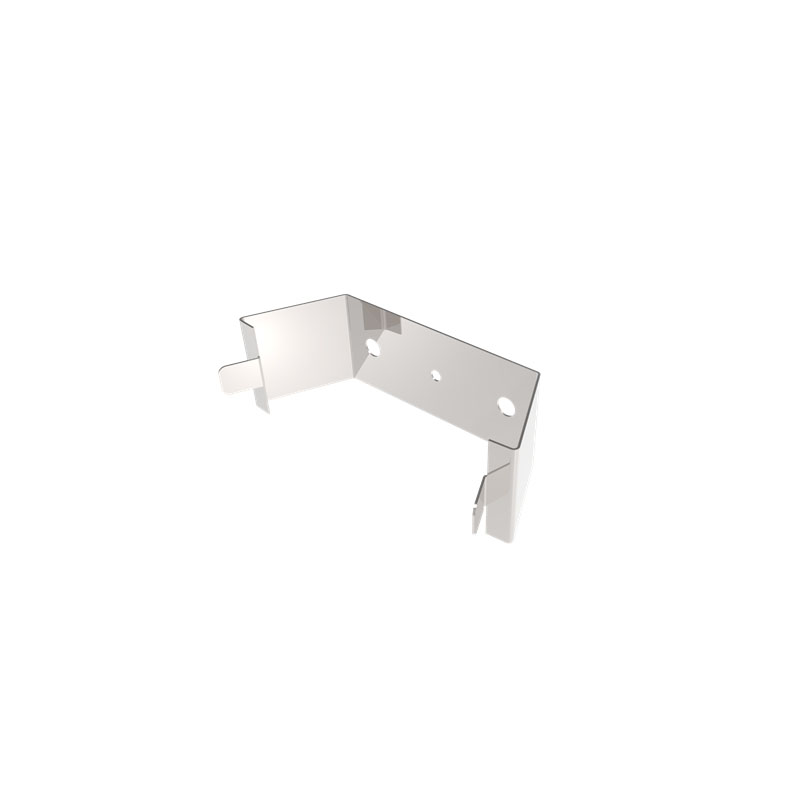

Inside Clips

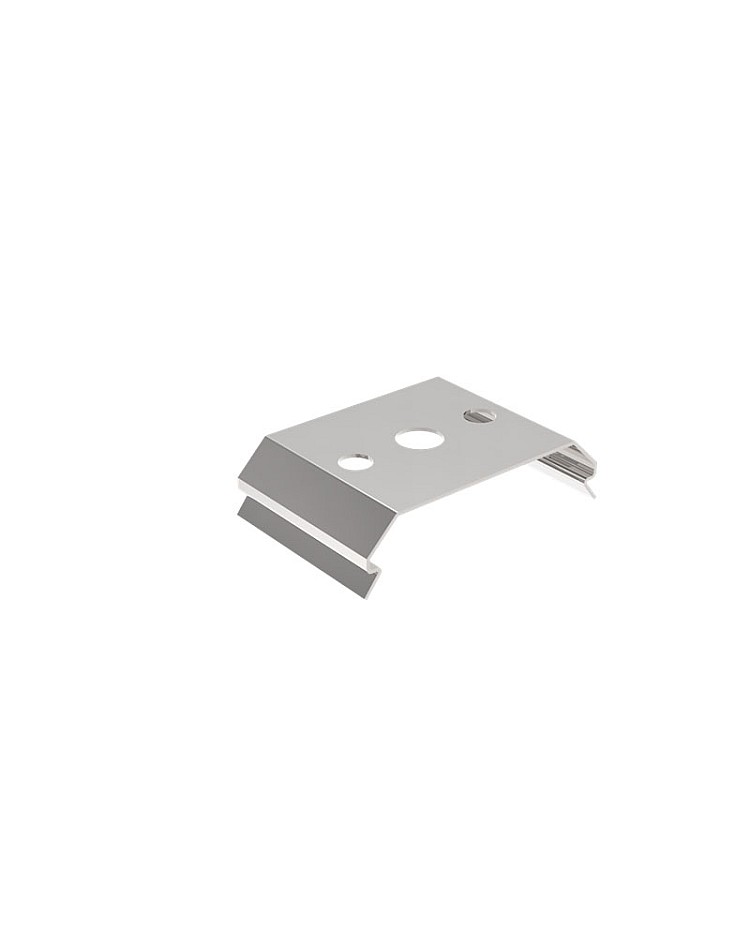

Stainless Clips

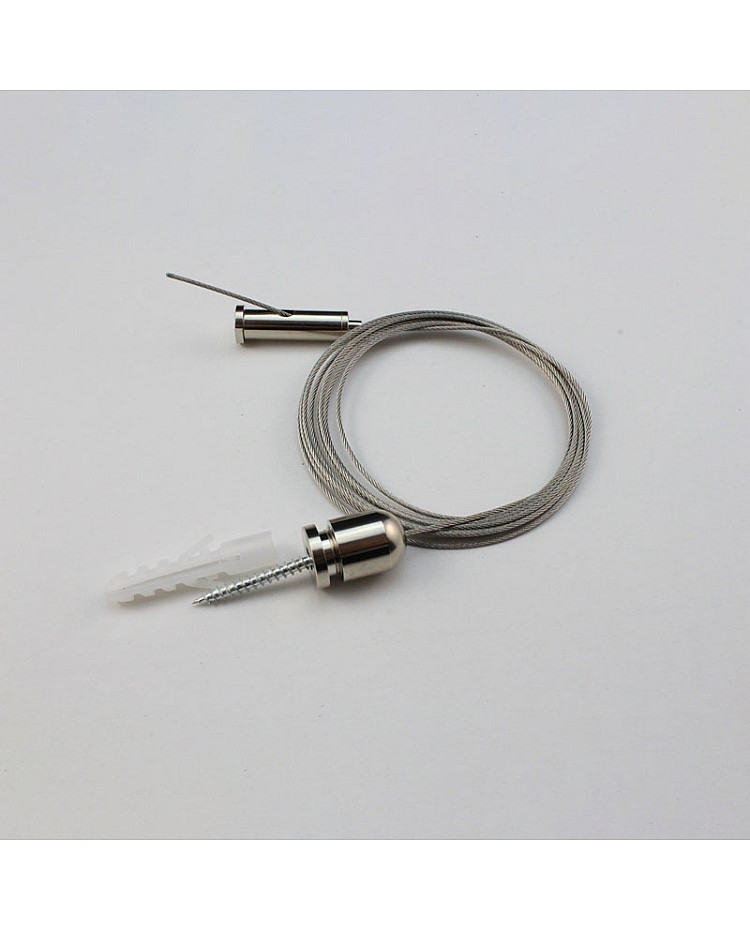

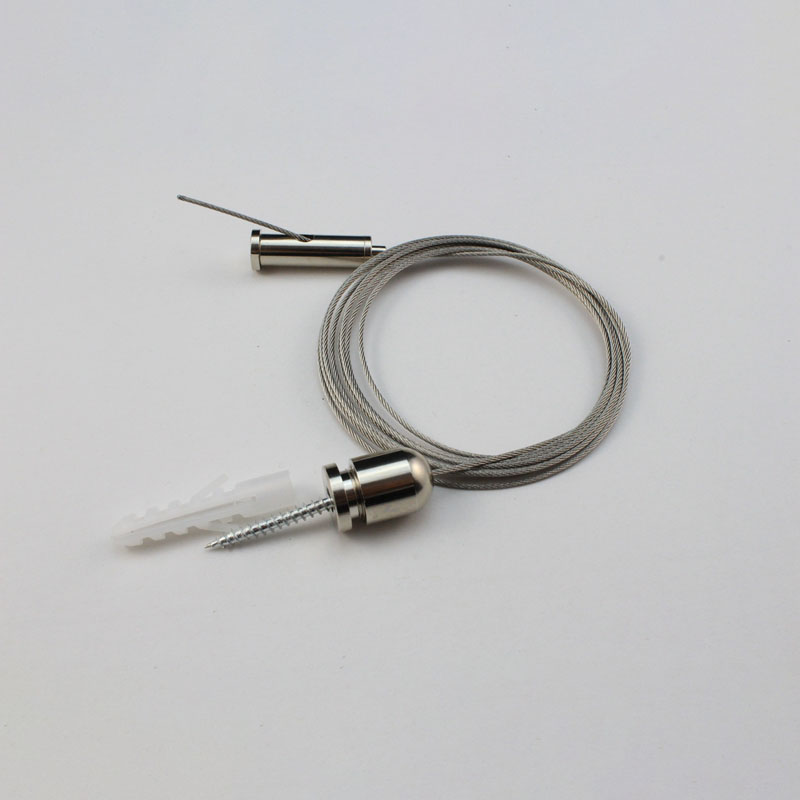

Steel Wires

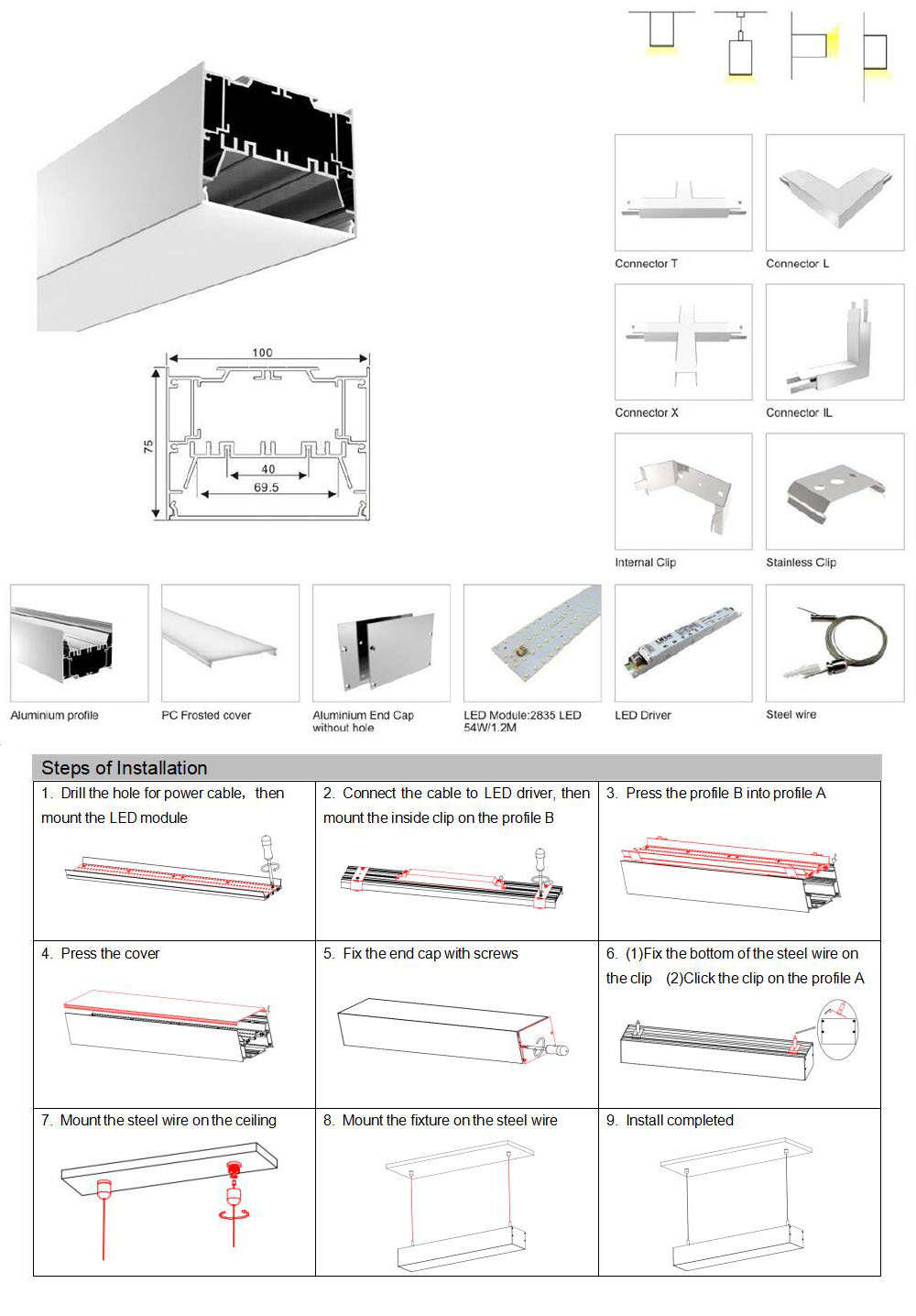

black led strip track diffuser
