In Stock
$15.30 $12.00 Sale -22% OFF
Reward Points: 12
This product has a minimum quantity of 10
  • Brand: Ledbe
  • Product Code: ALP126

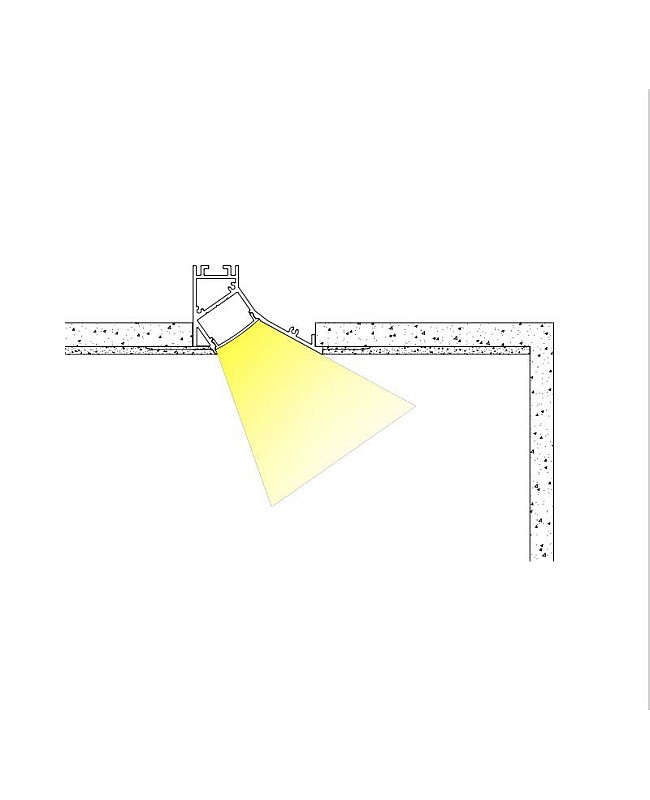

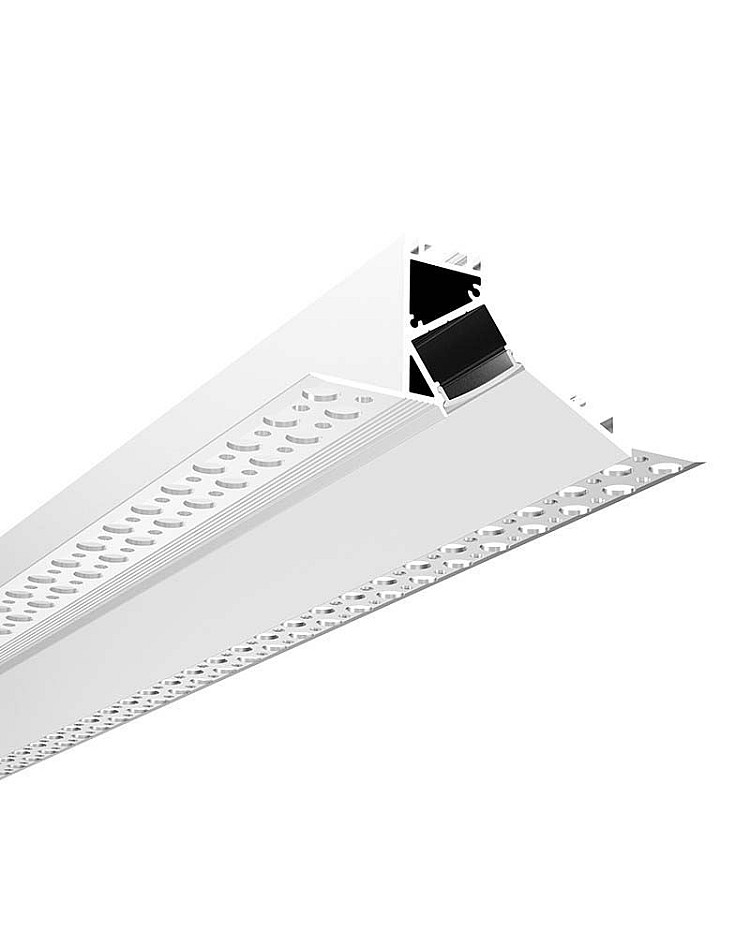

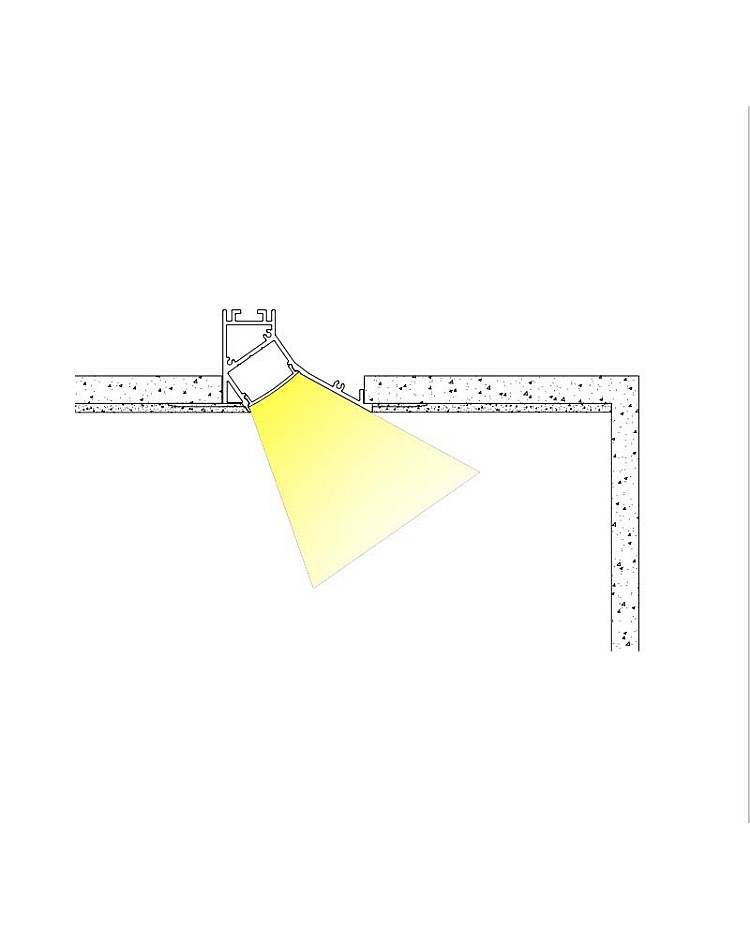

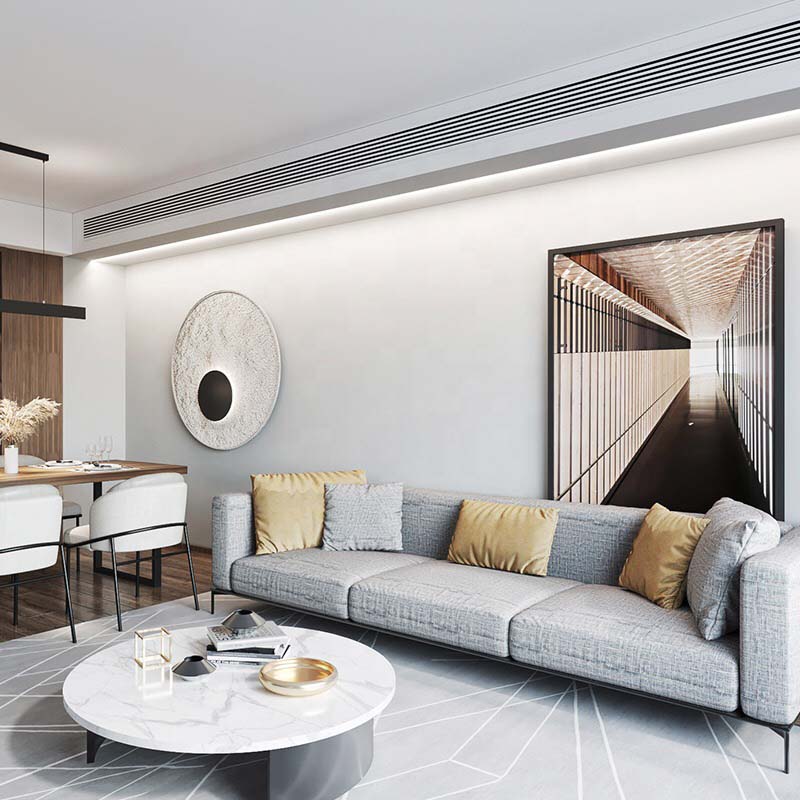

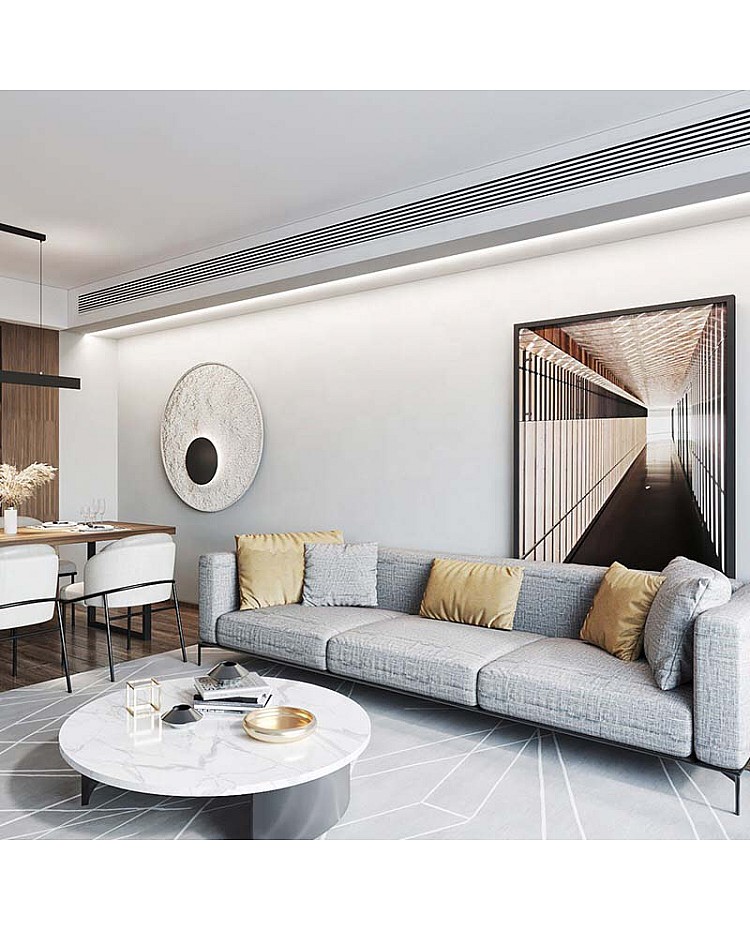

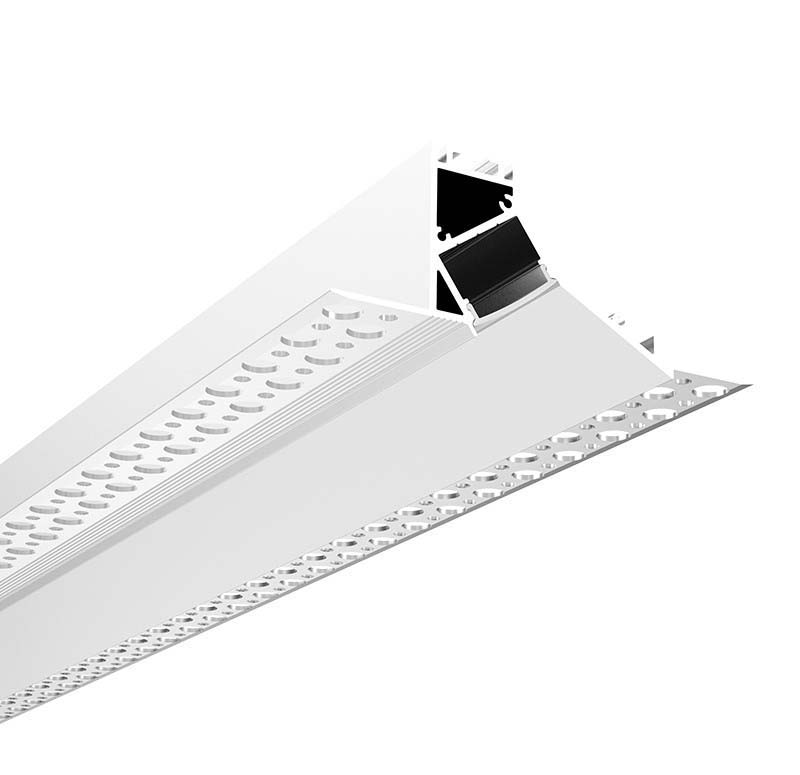

Check the Aluminum Mounting Channel, which with Inclined lighting design for the drywall wall washer lighting, the standard length is 1meter per piece, the max length is 3meter per piece and cuttable, you can cut to any size for your project, the inner width is 20.7mm and compatible with double rows 3528, 2835 or 5050 12V LED Strip Lights as the light source, the Aluminum Channels can be used as heat sinker for better heat dissipation. the LED Mounting Channels made of 6063-T5 aluminum alloy and with silver anodized surface treatment, anti-oxidation resistance and has a longer lifespan than other similar products. there are 2 types of diffusers available, the PC diffused cover and PC semi-clear cover, both of them made of brand stable material, anti-yellowing, perfect light distribution and smooth light output. there are two rows of honeycomb holes on the flanges, you could use the screws to fix them on the drywall or plasterboard easily, the IP rating is IP20 non-waterproof, only recommend for indoor use for the architectural lighting.

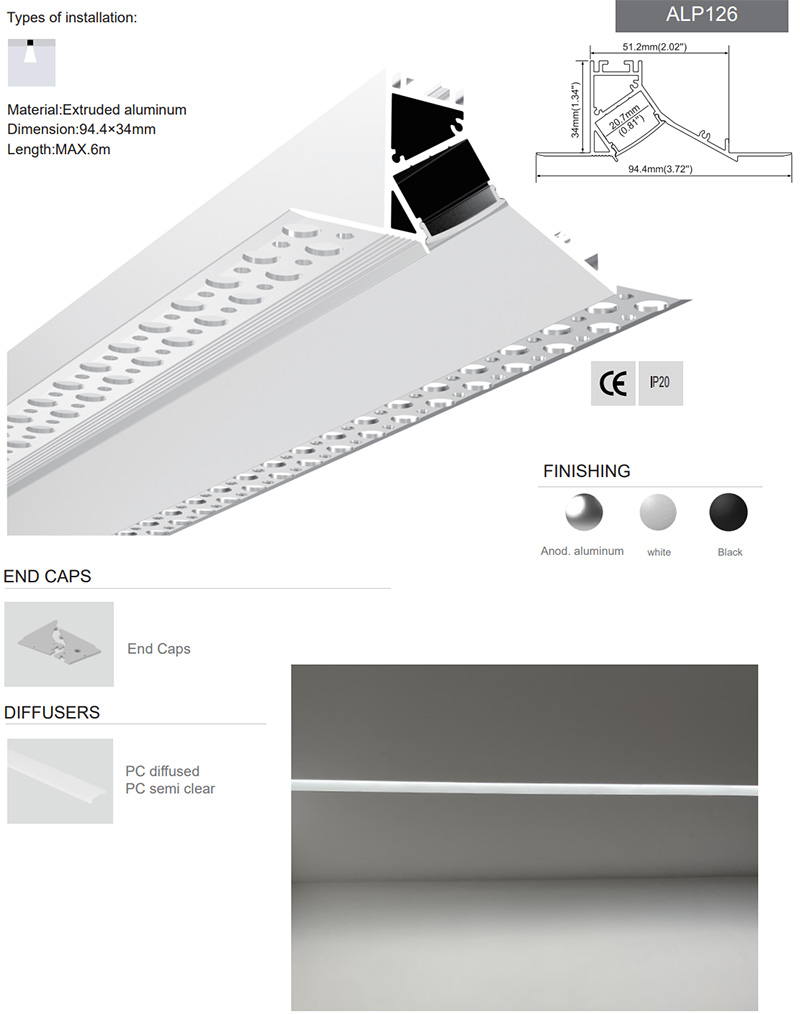

  • Model: ALP126
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized

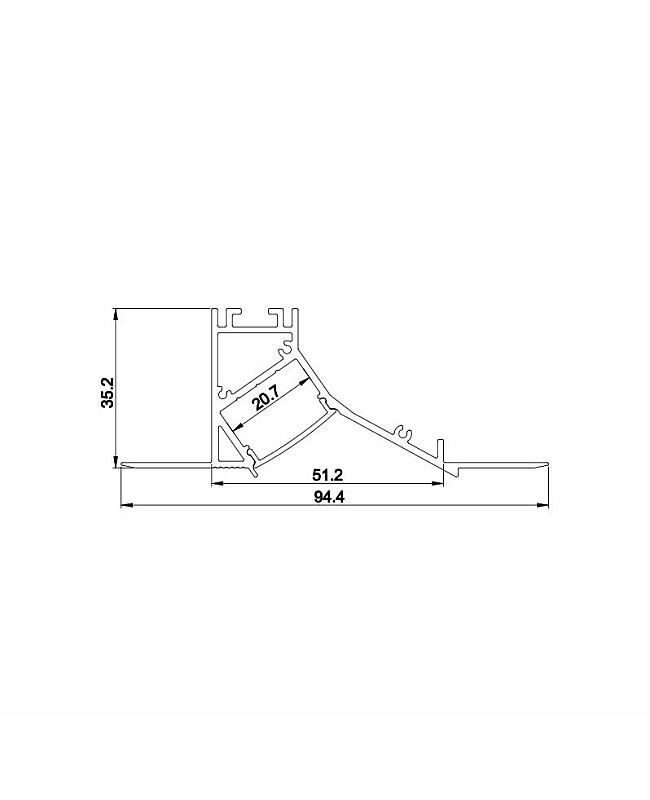

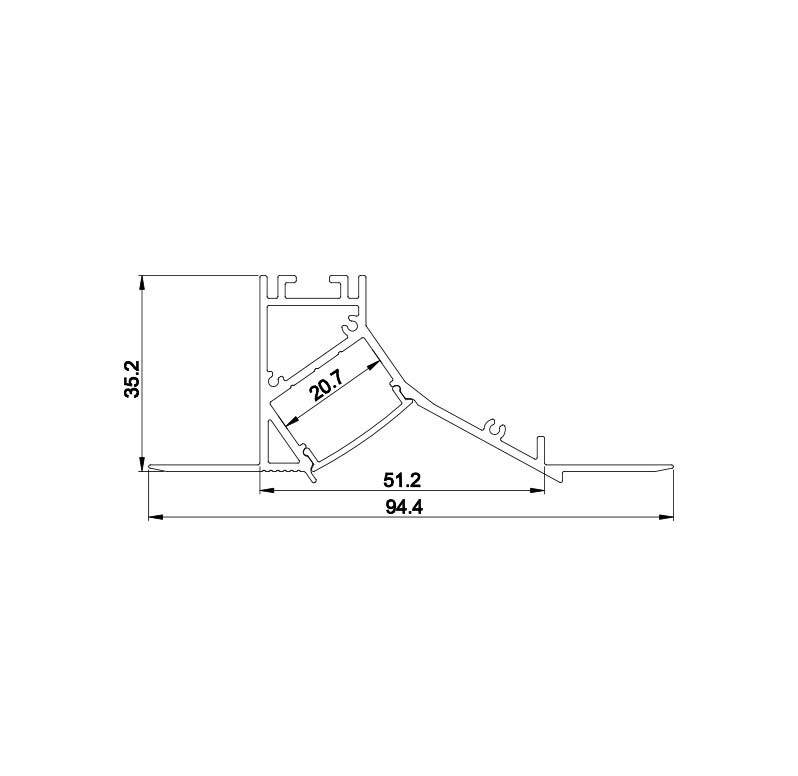

  • Size: 94.4*34mm(W*H)
  • Inner Width: 20.7mm
  • Compatible With Double Rows 3528, 2835, 5050 12V LED Strip Lights
  • Max Power: <25W/Meter
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
  • Custom Length: YES
  • Diffusers: PC Diffused Cover, PC Semi-Clear Cover
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof
  • End Caps With Wire Holes Included

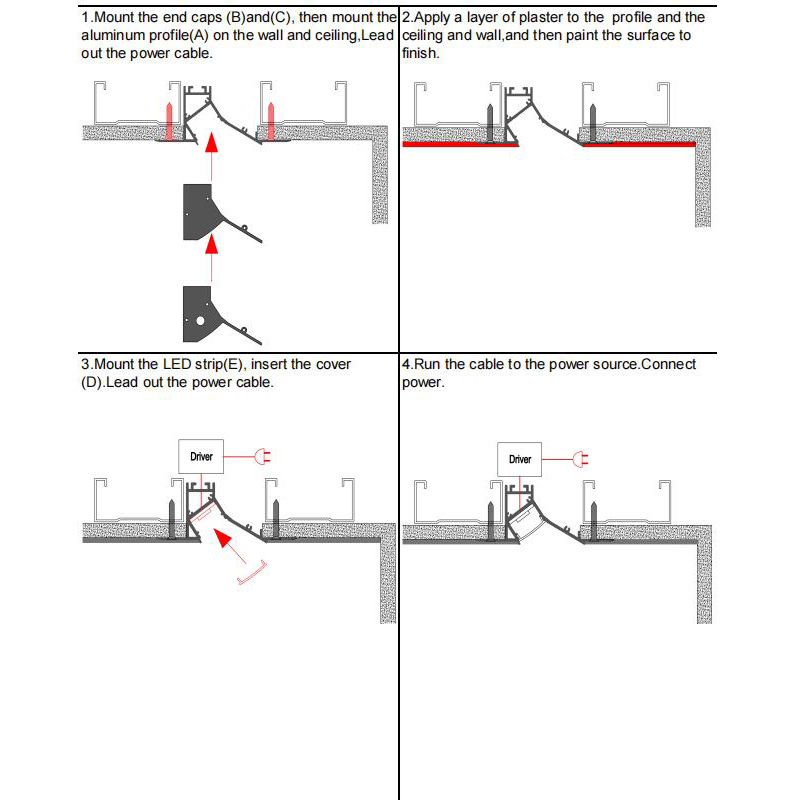

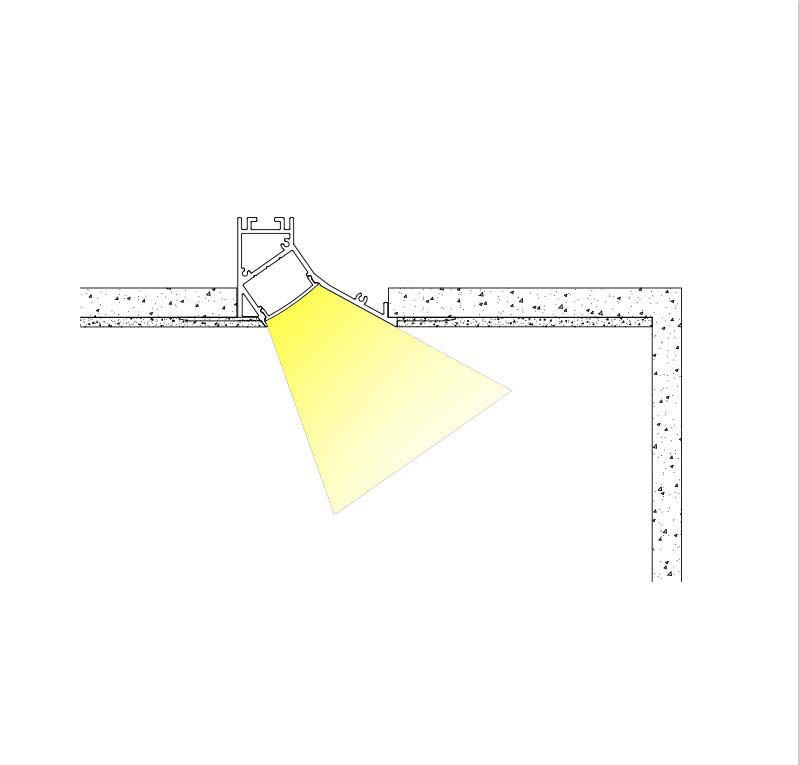

  • Installation: Drywall Ceiling/Wall Paster-In
  • Applications: Architectural Lighting
  • 3 Years Warranty

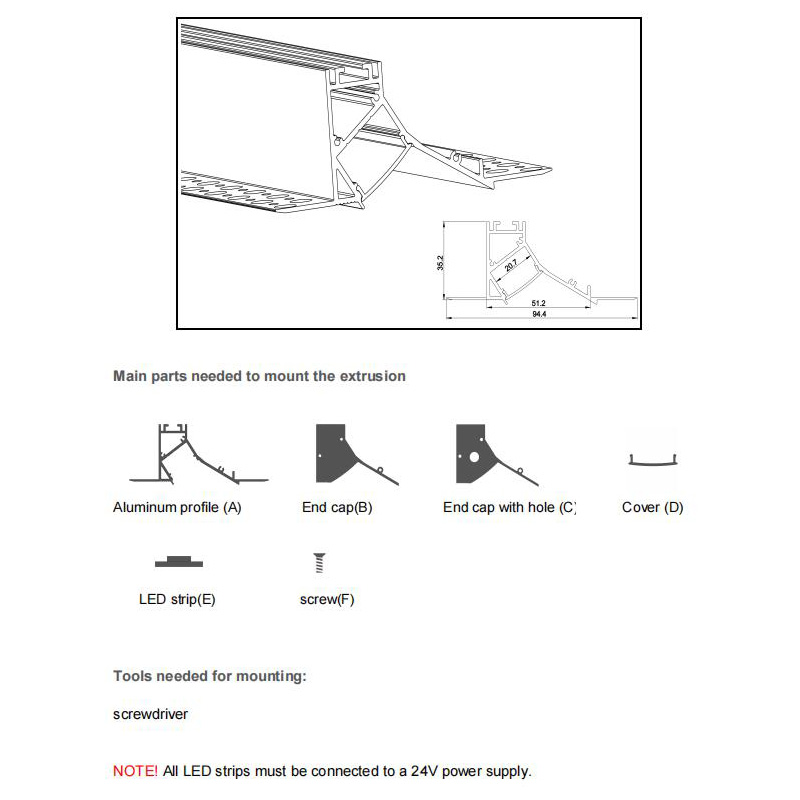

1*Aluminum Mounting Channel With Diffuser

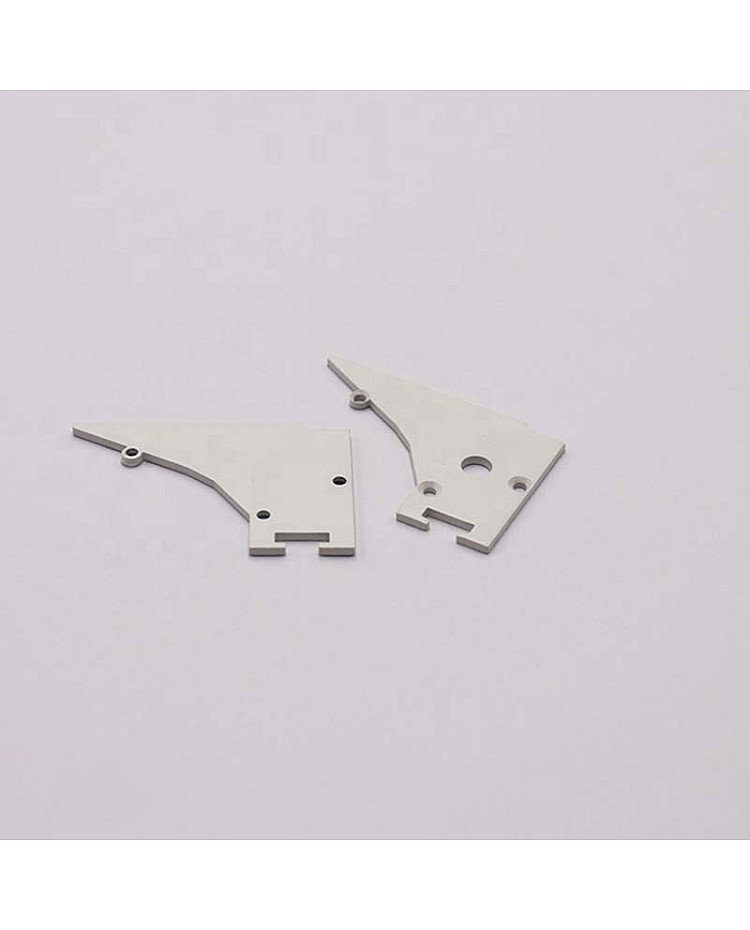

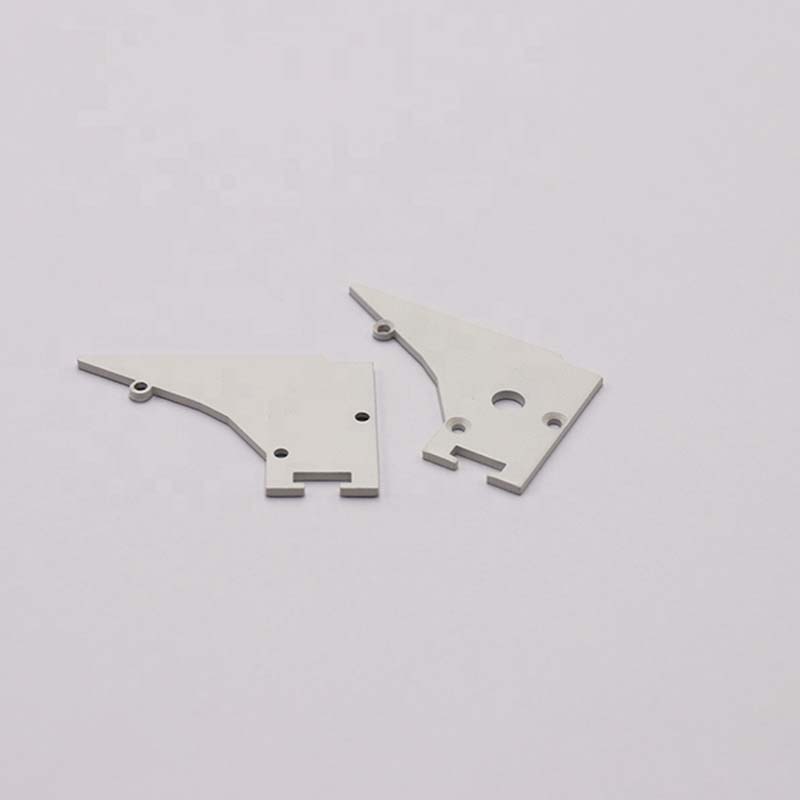

End Caps(With Wire Hole/Without Wire Hole)

aluminum mounting channel for led strips aluminum mounting channel for led tape
