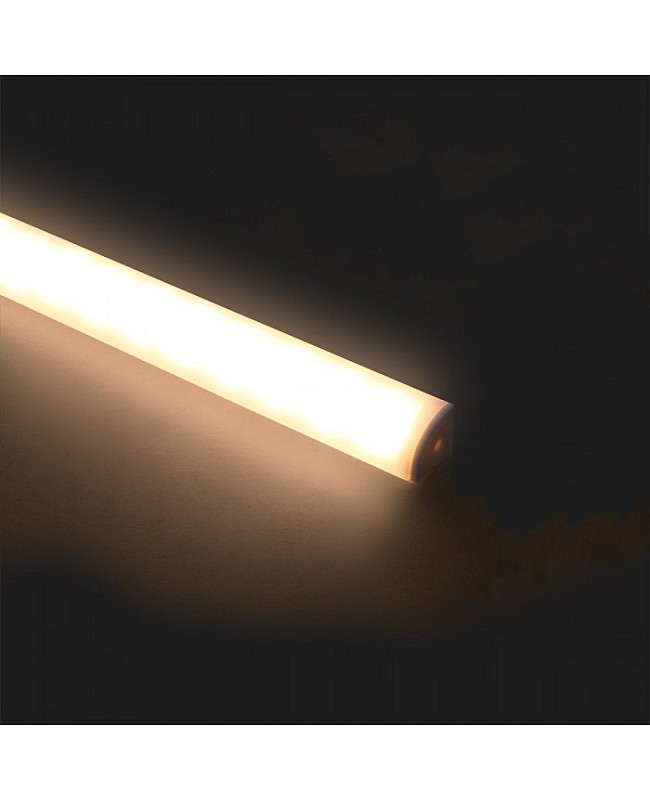

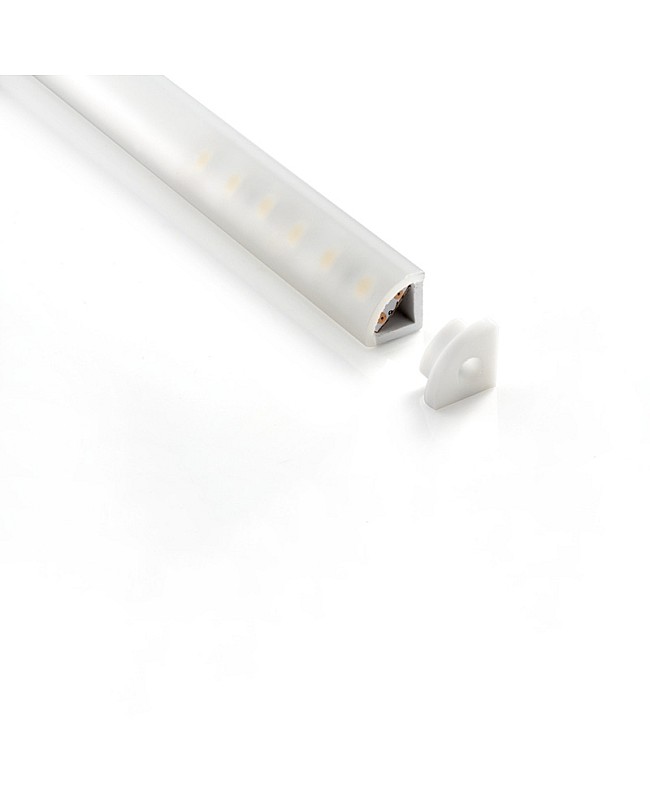

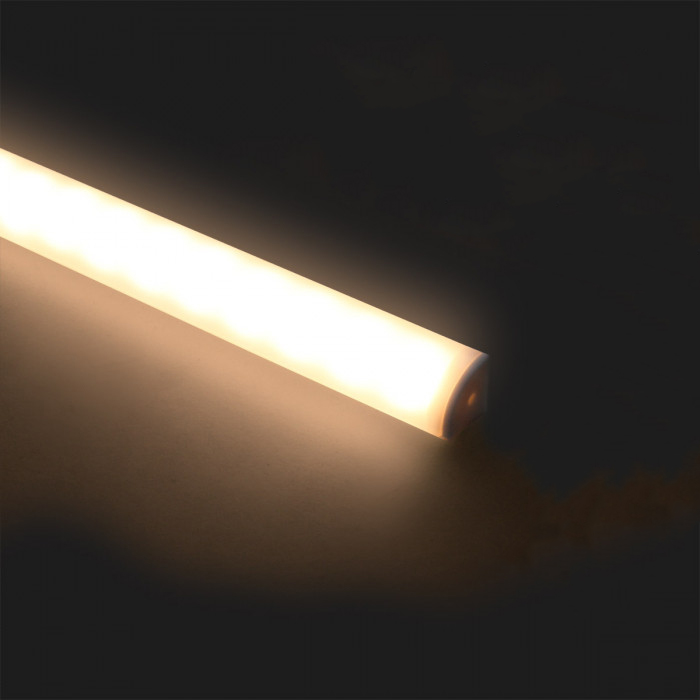

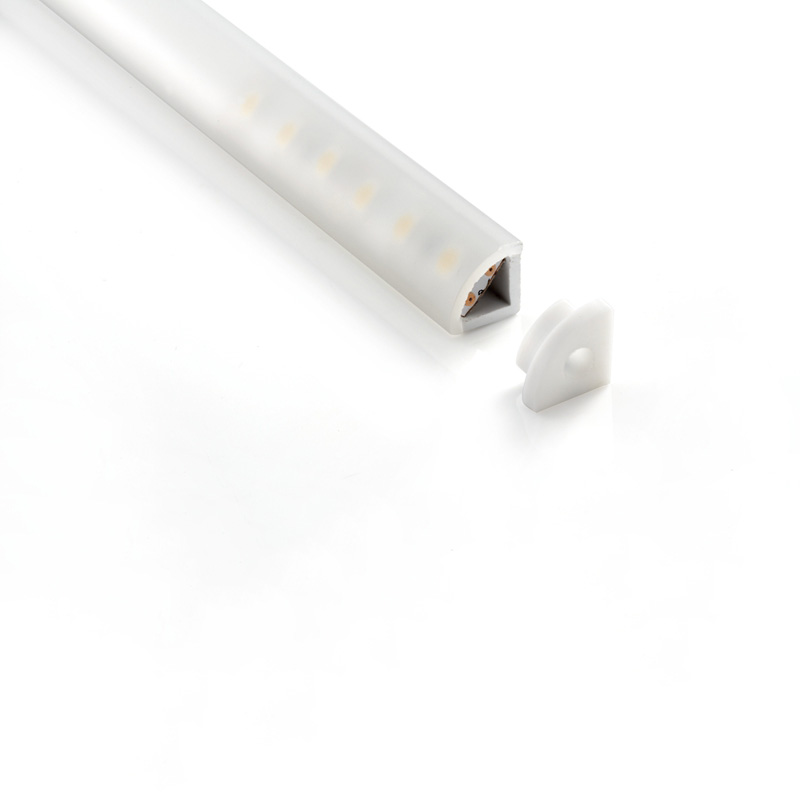

The waterproof LED Light channels are engineered for both indoor and outdoor applications that require directional lighting and waterproof protection. The waterproof level reaches IP68, making it suitable for use in wet or fully submerged environments. With its 45-degree angled design, it's perfect for illuminating corners, under cabinets, bathroom show niches, and outdoor areas. They are constructed from durable PMMA materials and designed to last many years. The standard lengths are 1 m and 2 m, and can be cut to any desired length. The inner width is 7.2 mm, allowing for a maximum width of 7 mm for rigid strip lights. The PMMA light channels will evenly diffuse the emitted light from the rigid LED strip, eliminating visible light dots. End caps with and without wire holes are included.
Specifications:

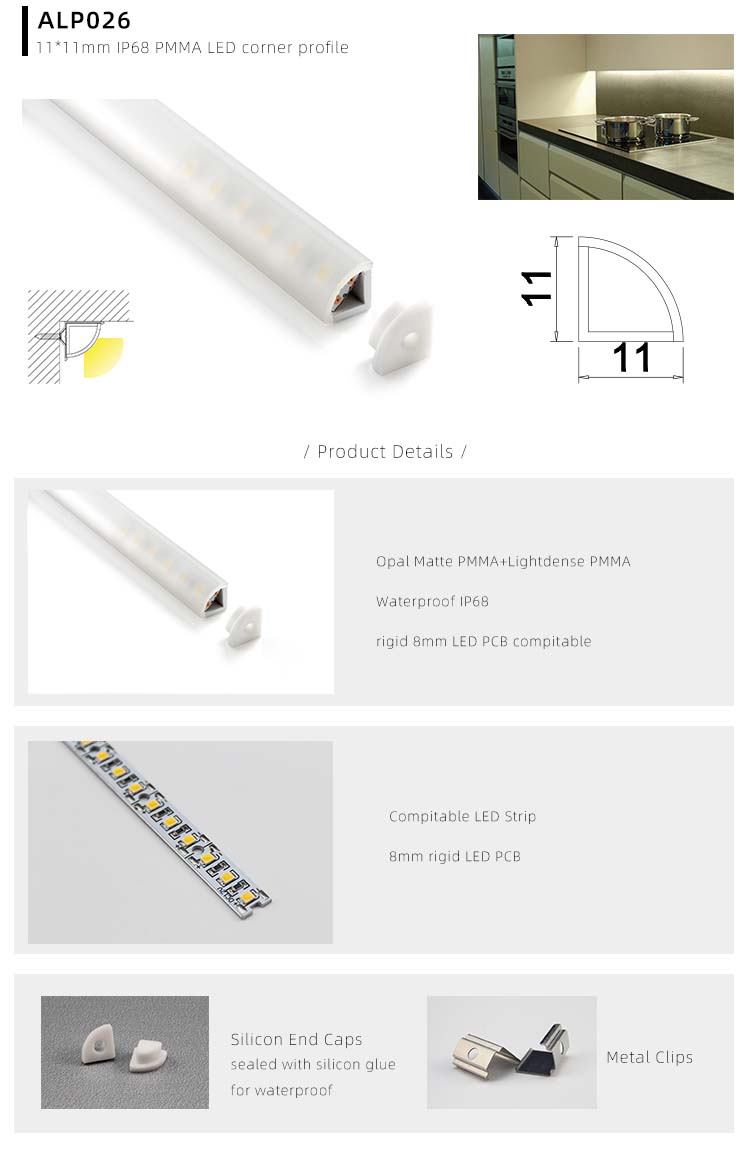

- Model: ALP026
- Material: PMMA

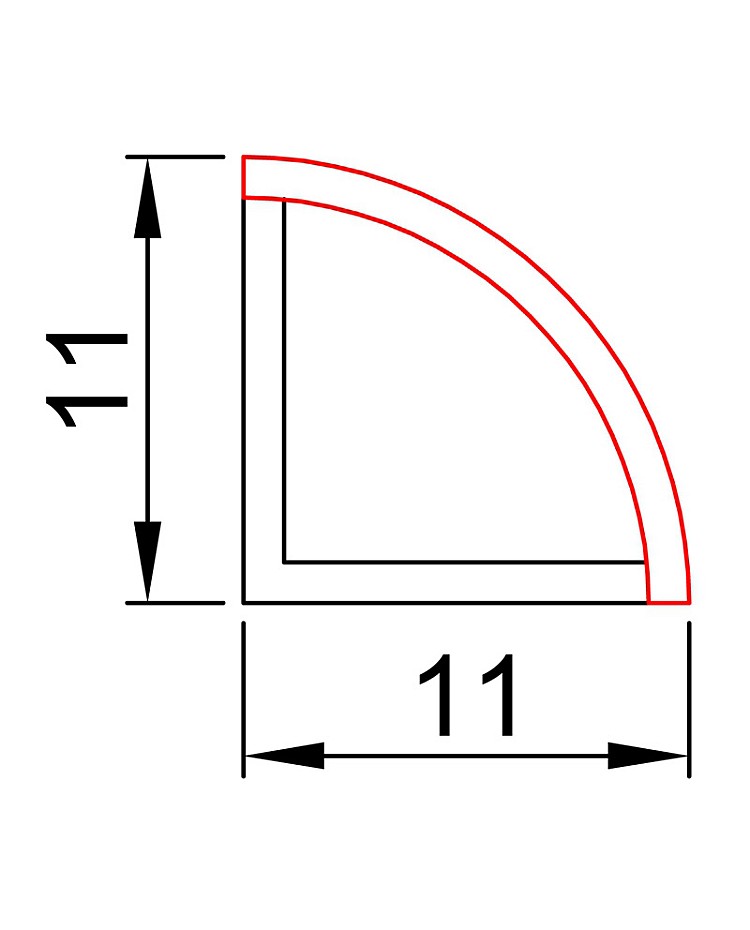

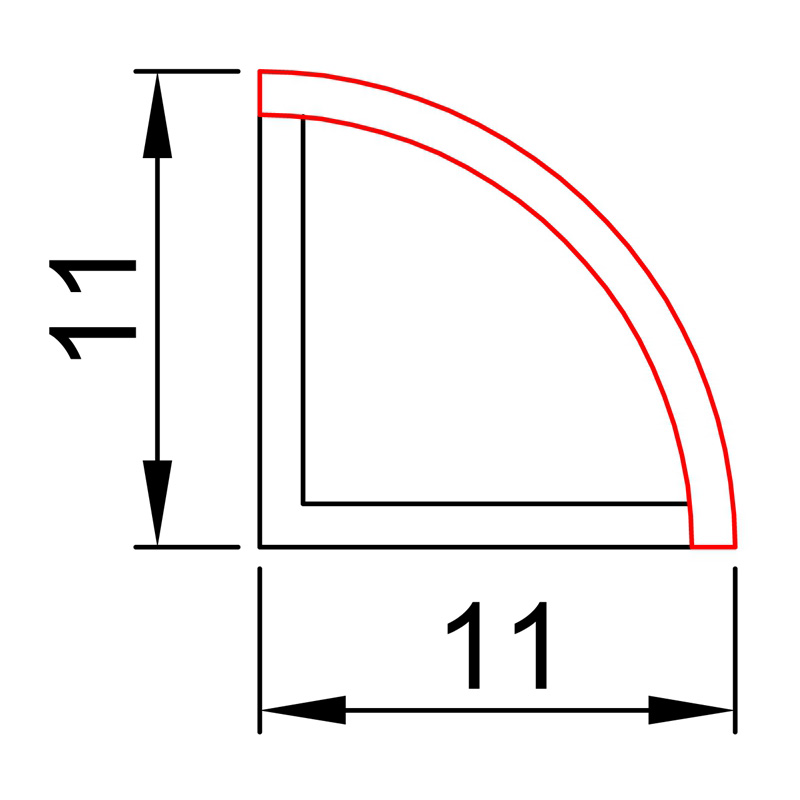

- Size: 10 mm x 10 mm ( 0.39" x 0.39" )
- Standard Lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom Length Available: YES
- Inner Width: 7.2 mm ( 0.28" )
- Allow The Maximum Width of Rigid Strip Lights: 7 mm ( 0.28" )
- Max Power: <10W/Meter
- Beam Angle: 100°
- Waterproof Level: IP68 waterproof
- Silicone end caps and metal clips are included

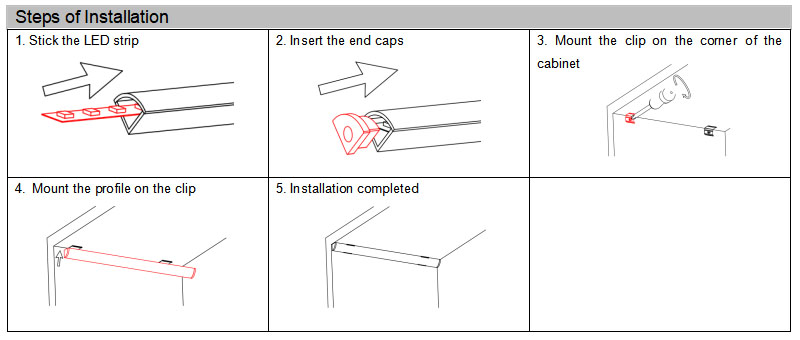

- Installation: Corner mounted
- Certifications: CE, ROHS
- Warranty: 2 years
Applications:
- Bathroom or kitchen corners
- Outdoor soffits, patios, or garden borders
- Swimming pool surrounds and fountains
- Marine or boat interior accent lighting
- Under-stair or under-bench directional lighting
- Retail or architectural edge lighting
Includes:
1 * Waterproof LED strip light channel

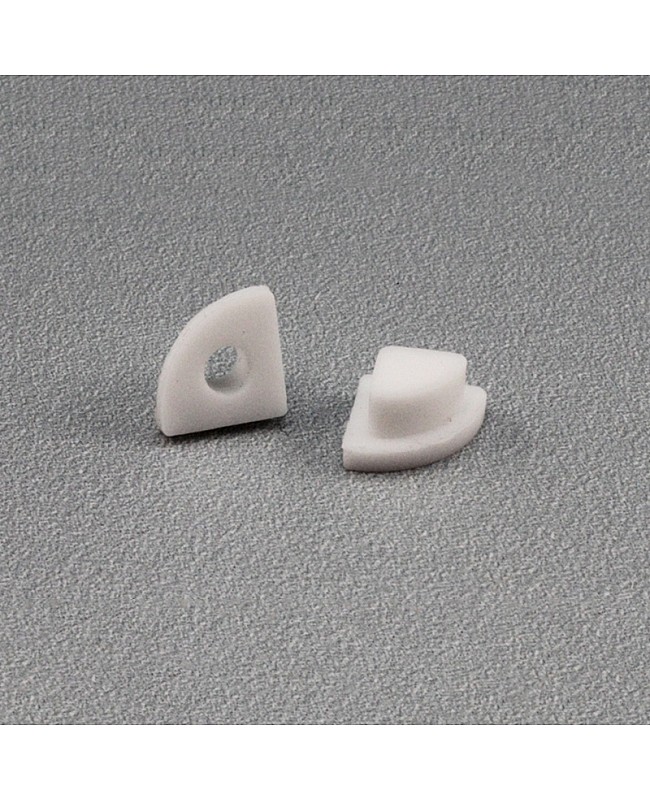

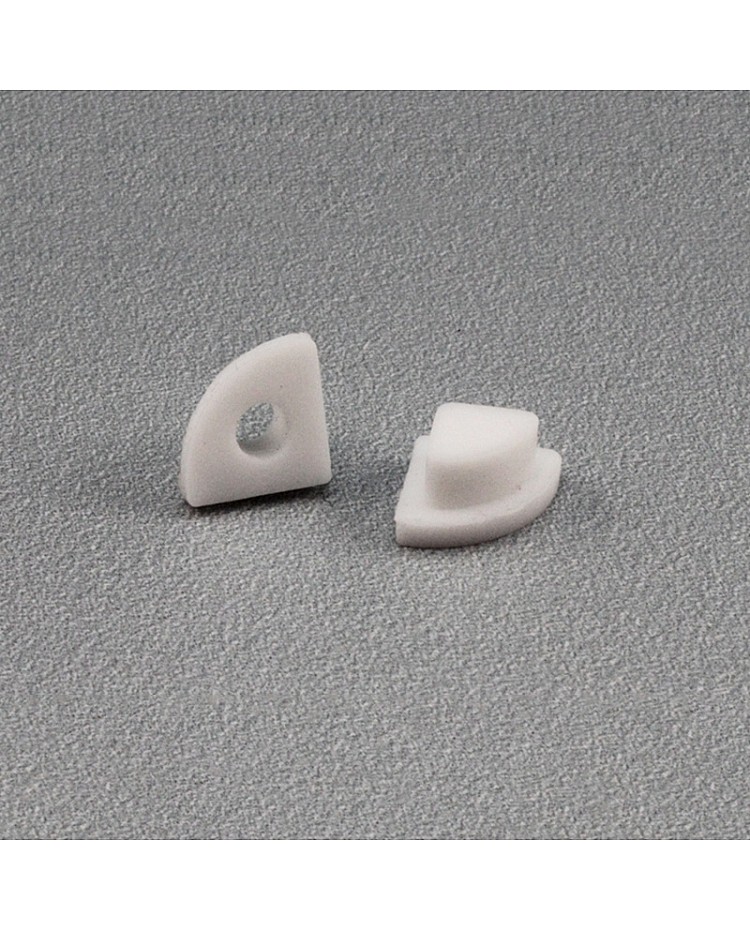

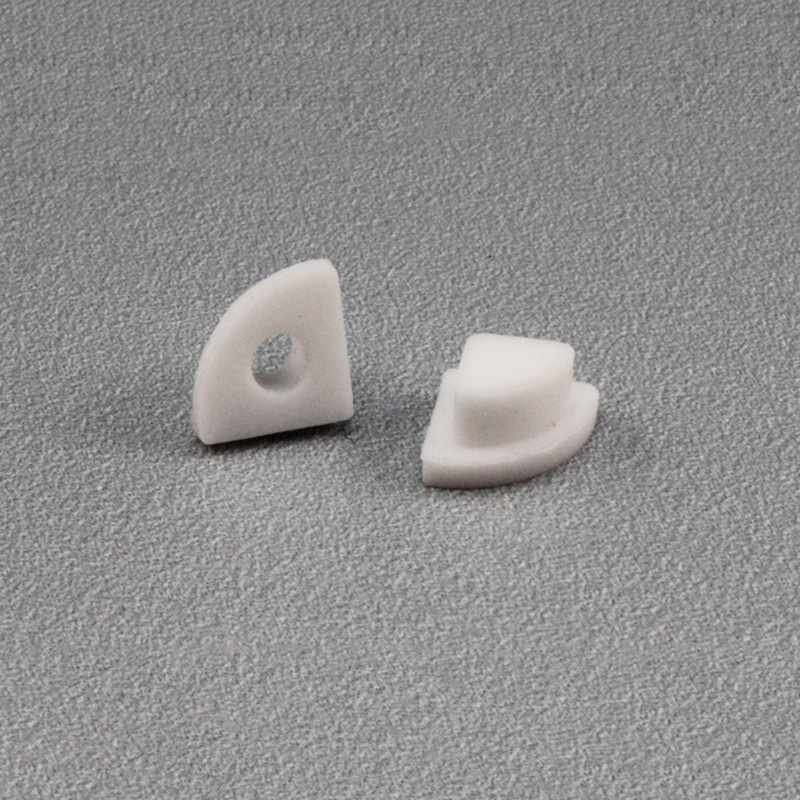

End caps（With/without wire hole)

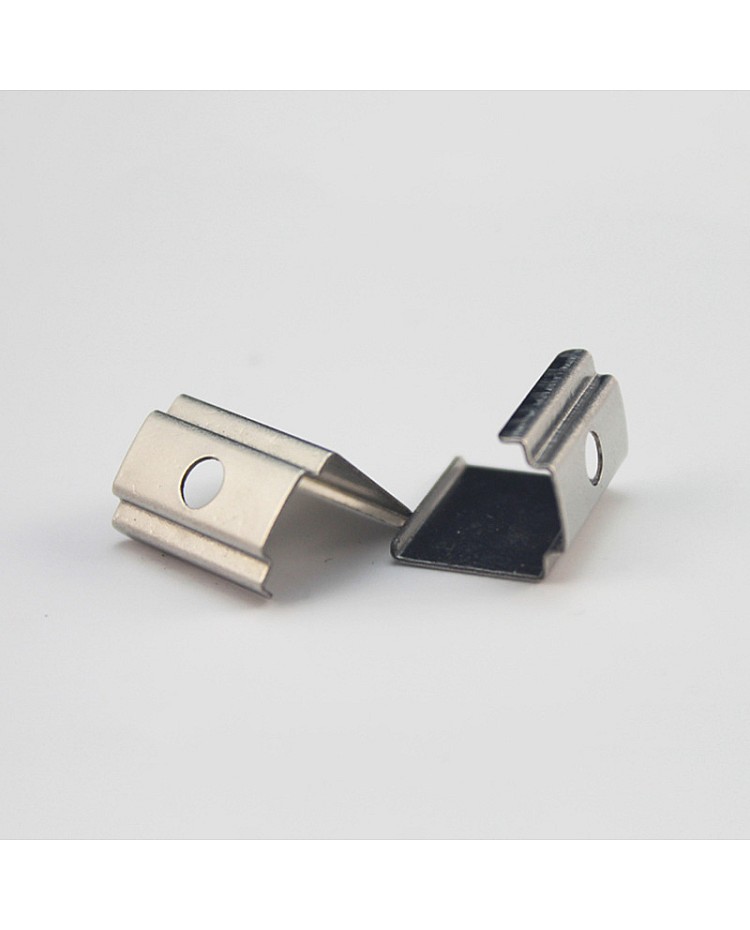

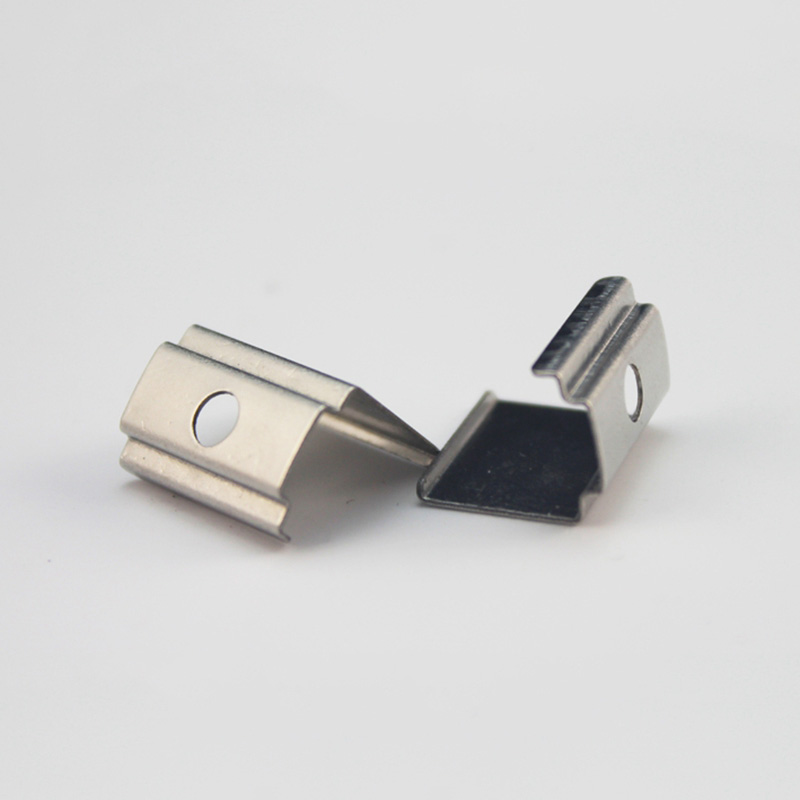

Metal mounting clips
