U Shape LED Strip Profiles With 45° Lens

The Surface Mounting U shape LED Strip Profile with a 45° Lens is an ideal solution to achieve under-cabinet and backsplash lighting, accent, and backlighting ease, etc. This aluminum Strip U Profile features robust aluminum housing and a 45-degree lens that directs light in a concentrated beam, making it perfect for accent lighting and task lighting applications. They are made of high-quality 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan. Only the 45° PMMA Clear Cover and PMMA semi-clear covers are available, made of brand material, anti-yellowing, and perfect light distribution. The standard length is 1M and 2M and can be cut to any length you want. The inner width is 16.9mm and allows the max width of Strip Lights to be 16mm. Recommend adding high-density COB Strip Lights as a light source without visible light dots. End caps with wire holes and without wire holes are included, and they are easy to connect to a Light Transformer to light up or a Light Dimmer to adjust the brightness for various scenes.

Features:

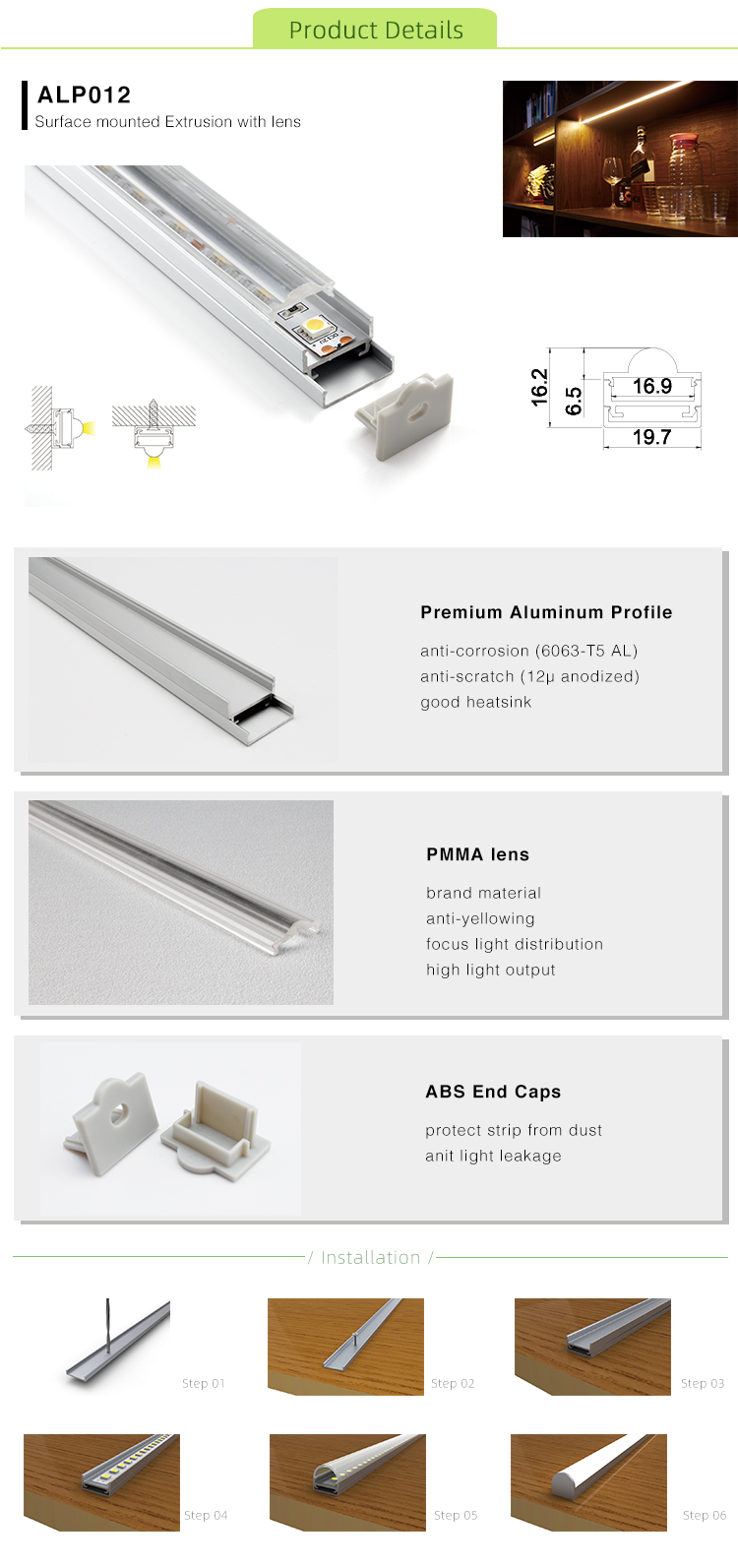

• Model: ALP012
• Material: 6063-T5 Aluminium Alloy
• Surface Treatment: Silver Anodized
• Color: Silver
• Size: 19.7mm(W)*16.2mm(H)
• Cover: 45° PMMA Clear Cover Only
• Standard Length: 1Meter
• Other Lengths Aavailable: 1Meter, 2Meter, 2.5Meter, 3Meter
• Custom length Available: YES
• Inner Width: 16.9mm
• Allows The Max Width Of Strip Lights To Be 16mm
• Recommend LED Strips: 2835, 3528, 5050, COB
• Max Power: <15W/M
• ABS End Caps With Wire Hole Included
• Application: Surface Mounted
• 5 Years Warranty

Package:

1*Surface Mounting LED Strip Profile With 45° Len

End Caps(With Wire Holes/Without Wire Holes)

Applications:

Under-cabinet And Back Splash Lighting

Accent And Back Lighting With Ease

Light Up Your Kitchen, Living Room, Patio, Bedroom, Closet, etc.
